Total home comfort
The Inverter Multi-Split Hi-Wall Mounted model features the same indoor unit as the PB Series Split System. The PB Series is our most exciting and innovative development in air conditioning yet. Packed with features, this range is designed to provide the ultimate experience in total home comfort.
Featuring Wi-Fi control via the NetHome Plus app, the PB Series allows you to control your air conditioner from anywhere with an internet or network connection.
Locate Your Nearest Stockist
NOTE: Rinnai does not sell directly to the public. Our products are available only through third-party stockists and installers.
Ideal for bedrooms and living spaces
Wall mounted split system design
Wi-Fi control enabled
Ideal for existing homes
Quiet operation
7 year limited warranty
Superior technology
- Wi-Fi Control – you can control your system from a mobile device using the NetHome Plus app from anywhere in the world
- Convenient and simple to use LCD wireless remote control
- Inverter Technology – to maintain consistent temperature and reduce running costs
- Quiet operation, ideal for bedrooms and living spaces
- 3D airflow with horizontal and vertical swing
- Heating and cooling functionality
- Turbo Function – quickly cools in summer and swiftly warms in winter
- Dehumidifying mode
- Delay timer functionality to turn the appliance on or off within a specific time period
Multi variants - Outdoor units
- MON3H07B - 3 Indoor Units connected
- MON4H09B - 4 Indoor Units connected
- MON5H11B - 5 Indoor Units connected
- MON5H13B - 5 Indoor Units connected
- MON6H18B - 6 Indoor Units connected
Rinnai quality
Download NetHome Plus App
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
Product codes:
Outdoor: 3 - MON3H07B | 4 - MON4H09B | 5 - MON5H11B | 5 - MON5H13B | 6 - MON6H18B
Indoor Hi-Wall: 2.0 - HINRP20MB | 2.6 - HINRP26MB | 3.5 - HINRP35MB | 5.0 - HINRP50MB | 6.0 - HINRP60MB | 7.0 - HINRP70MB | 8.0 - HINRP80MB
| Rinnai – Inverter Multi-Split Wall Mounted System | Values | HINRP20MB | HINRP26MB | HINRP35MB | HINRP50MB | HINRP60MB | HINRP70MB | HINRP80MB | ||
| Dimensions | Unit | Height x Width x Depth | mm | 292 x 729 x 200 | 295 x 802 x 200 | 295 x 802 x 200 | 321 x 971 x 228 | 321 x 971 x 228 | 337 x 1082 x 234 | 337 x 1082 x 234 |
| Packing | 370 x 790 x 273 | 375 x 875 x 288 | 375 x 875 x 288 | 405 x 1045 x 308 | 405 x 1045 x 308 | 318 x 1155 x 415 | 318 x 1155 x 415 | |||
| Weight | Net / Gross | kg | 8.0 / 10.7 | 8.5 / 11.5 | 8.5 / 11.5 | 11.1 / 15.2 | 11.1 / 15.2 | 13.5 / 17.8 | 13.5 / 17.8 | |
| Refrigeration Pipe Size | Liquid / Gas | mm | Φ6.35 / Φ9.52 | Φ6.35 / Φ9.52 | Φ6.35 / Φ9.52 | Φ6.35 / Φ12.7 | Φ6.35 / Φ12.7 | Φ6.35 + Φ15.9 | Φ6.35 + Φ15.9 | |
| Power Supply | V – Ph – Hz | 220~240 -1-50 | ||||||||
| Cooling | Rated Capacity | kW | 2.0 | 2.6 | 3.5 | 5.0 | 6.0 | 7.15 | 7.8 | |
| Rated Input Power | W | 30 | 30 | 30 | 56 | 56 | 120 | 120 | ||
| Rated Input Current | A | 0.17 | 0.17 | 0.17 | 0.33 | 0.33 | 0.62 | 0.62 | ||
| Heating | Rated Capacity | kW | 2.2 | 2.7 | 4.0 | 5.4 | 6.5 | 7.8 | 8.3 | |
| Rated Input Power | W | 30 | 30 | 30 | 56 | 56 | 120 | 120 | ||
| Rated Input Current | A | 0.17 | 0.17 | 0.17 | 0.33 | 0.33 | 0.62 | 0.62 | ||
| Air Flow | Turbo / Hi / Med / Lo / Min | L/s | 153 / 128 / 94 / 75 / 47 | 175 / 139 / 100 / 83 / 56 | 183 / 147 / 106 / 86 / 58 | 264 / 222 / 167 / 139 / 89 | 264 / 222 / 167 / 139 / 89 | 382 / 303 / 250 / 229 / 147 | 382 / 303 / 250 / 229 / 147 | |
| Sound Pressure @ 1.0m | dB(A) | 43 / 38 / 31 / 30 / 25 | 46 / 39 / 32 / 30 / 24 | 46 / 39 / 32 / 30 / 24 | 47 / 44 / 38 / 34 / 28 | 47 / 44 / 38 / 34 / 28 | 57 / 45 / 39 / 33 / 29 | 57.645 / 45 / 39 / 33.5/ 29.5 | ||
| Air Swing Louvres | Direction | 4-way swing | ||||||||
| Refrigerant Pipe Size | Liquid / Gas | mm | Φ6.35 / Φ9.52 | Φ6.35 / Φ9.52 | Φ6.35 / Φ9.52 | Φ6.35 / Φ12.7 | Φ6.35 / Φ12.7 | Φ6.35 + Φ15.9 | Φ6.35 + Φ15.9 | |
| Operating Range | Cooling | °C | 16~32 | |||||||
| Heating | 0~30 | |||||||||
| Controller | Wireless Remote Control | |||||||||
| Wi-Fi Compatibility | Standard | |||||||||
Consumer
-
Inverter Multi-Split Air Conditioning Brochure
-
Inverter Multi-Split Air Conditioning Operation Manual
-
Air Conditioning Warranty Booklet
Installation Guides + Diagrams
-
Inverter Multi-Split Air Conditioning Installation Manual
Photos
-
Rinnai Inverter Multi-Split Wall Mounted Ducted Air Conditioner (lifestyle – mother baby)

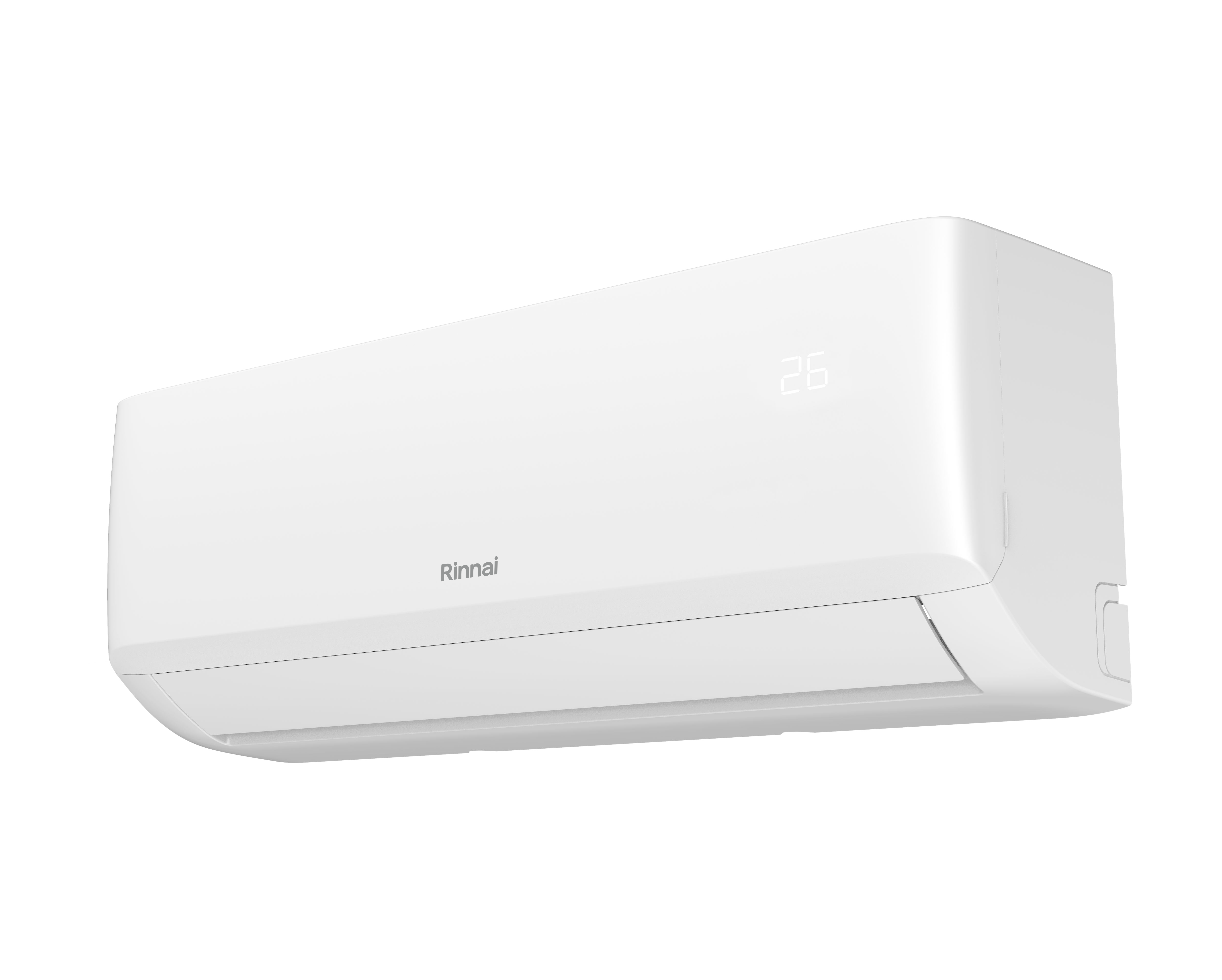

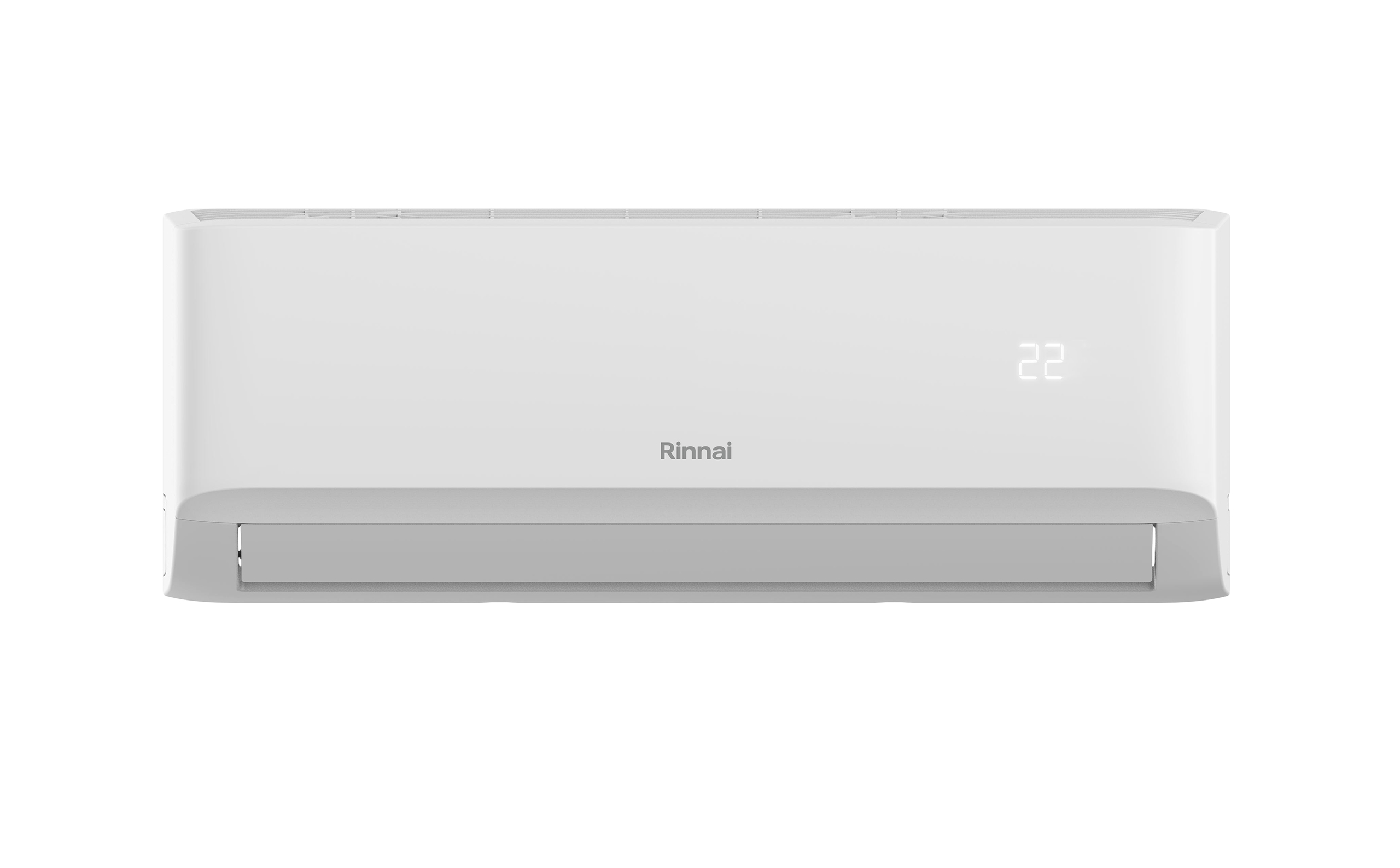

Rinnai PB Series Inverter Split Air Conditioner (front)

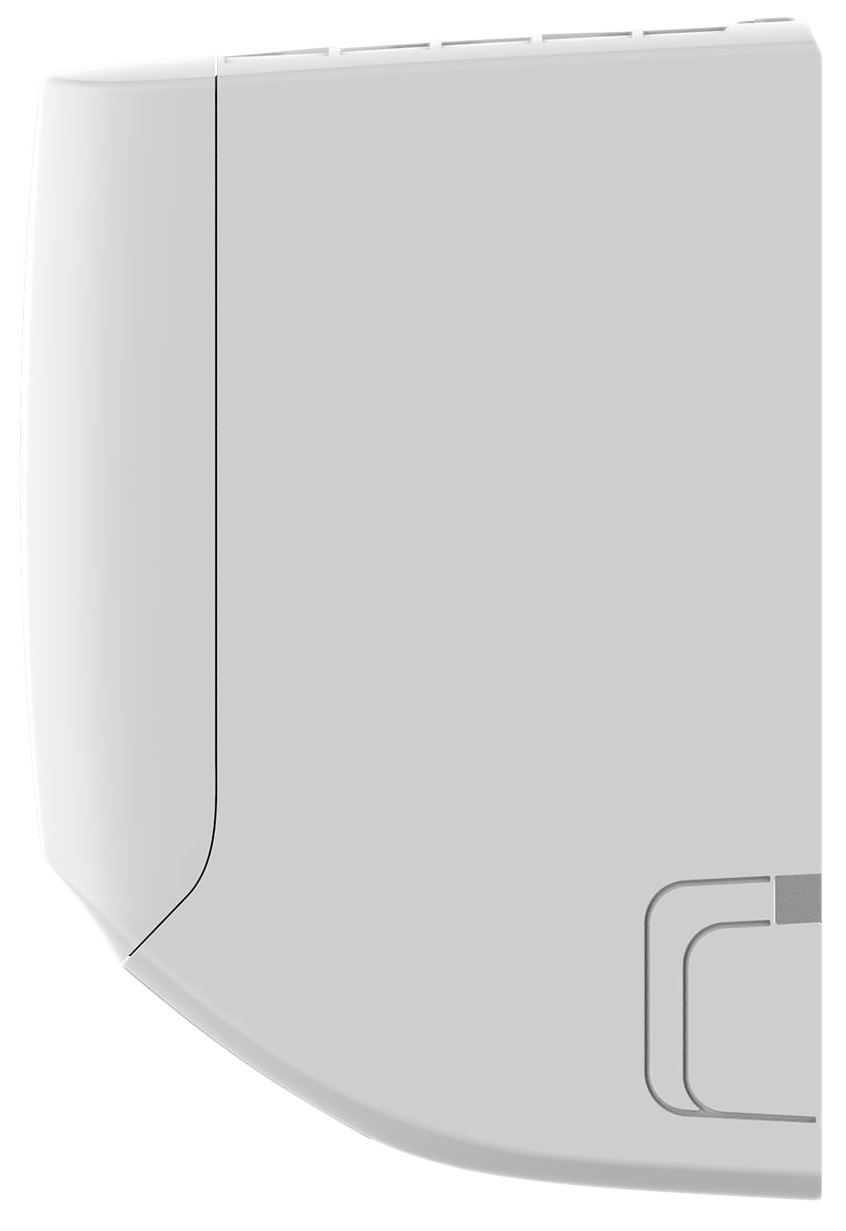

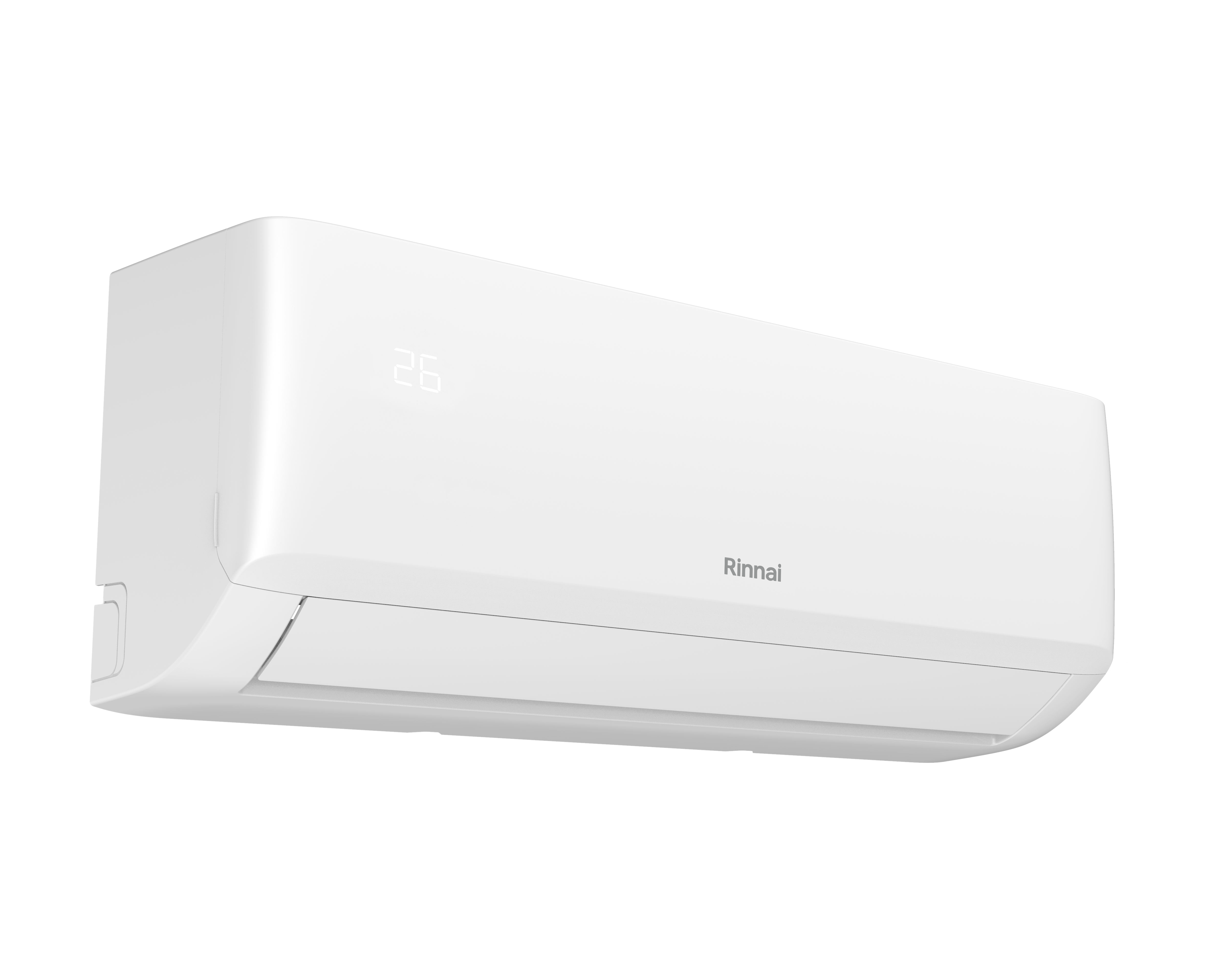

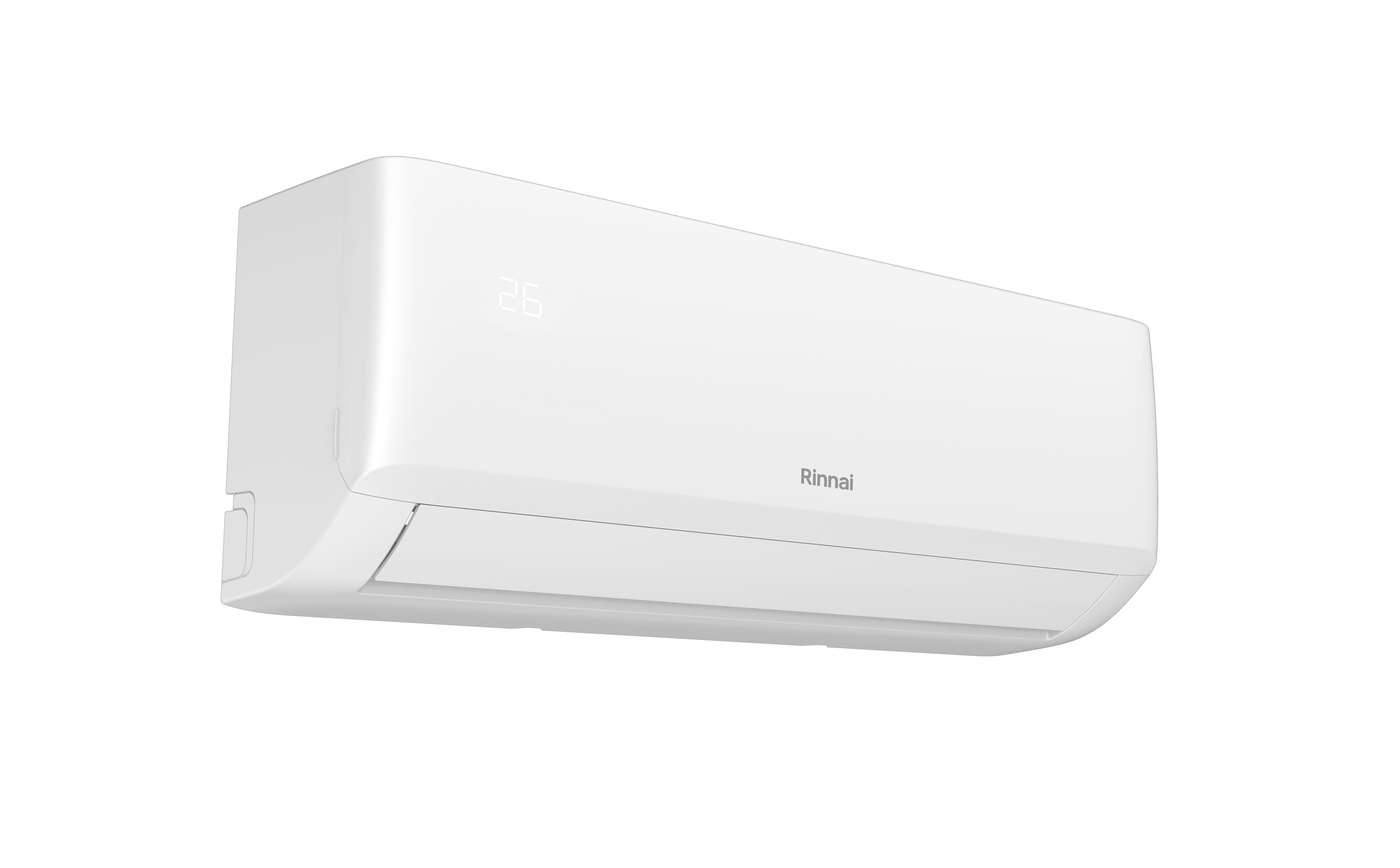

Rinnai PB Series Inverter Split Air Conditioner (left)

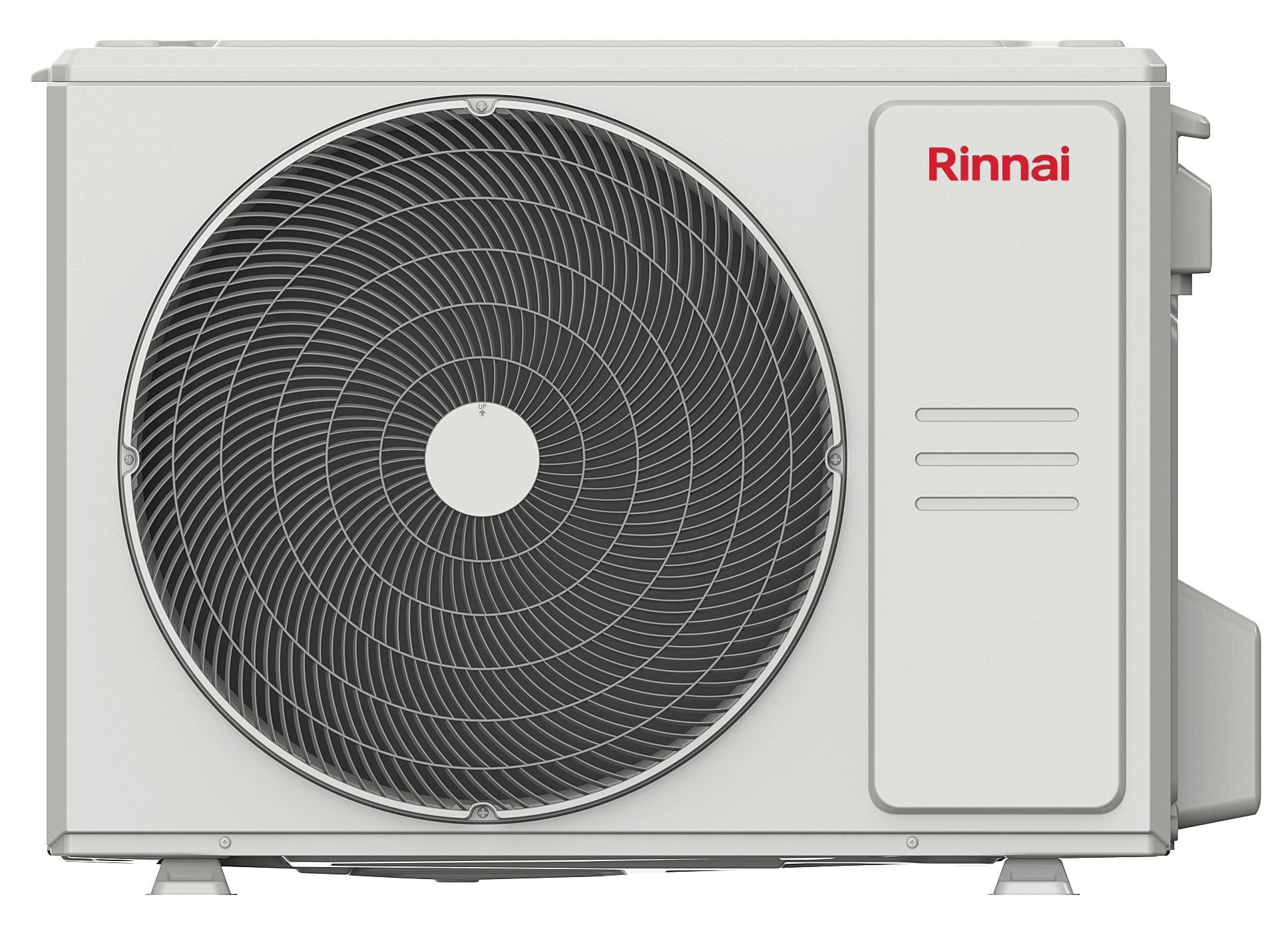

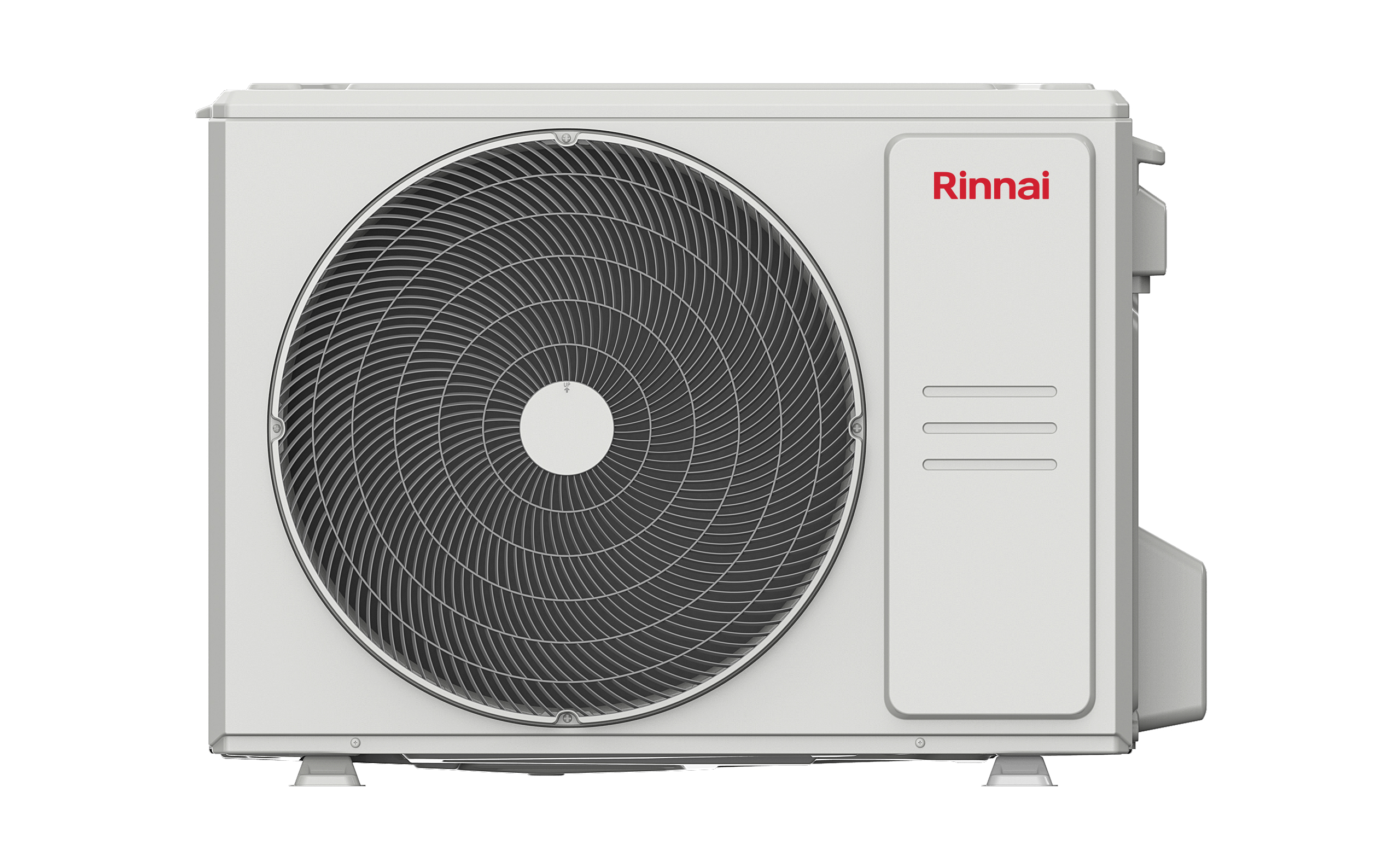

Rinnai PB Series Inverter Split Air Conditioner (outdoor unit)

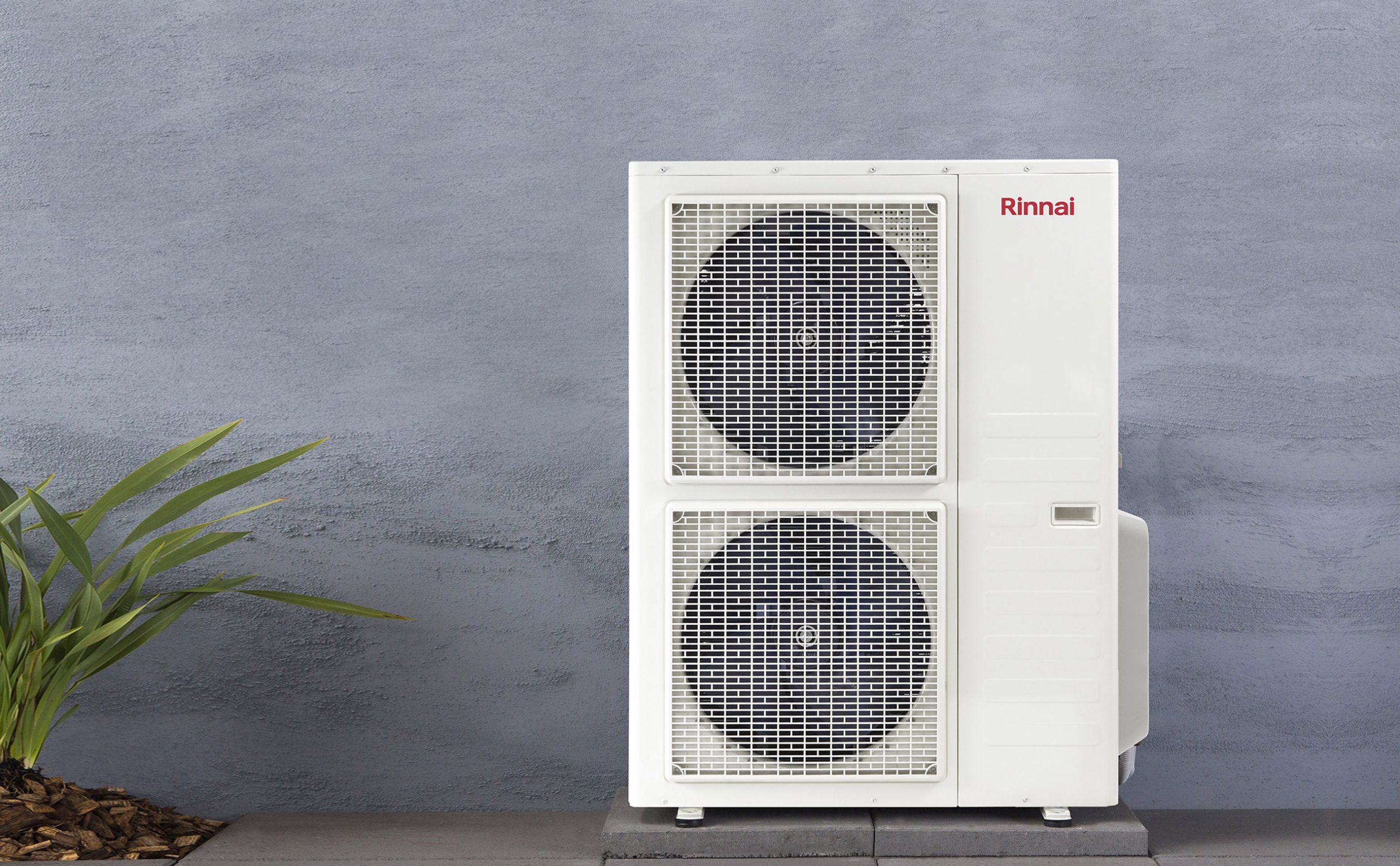

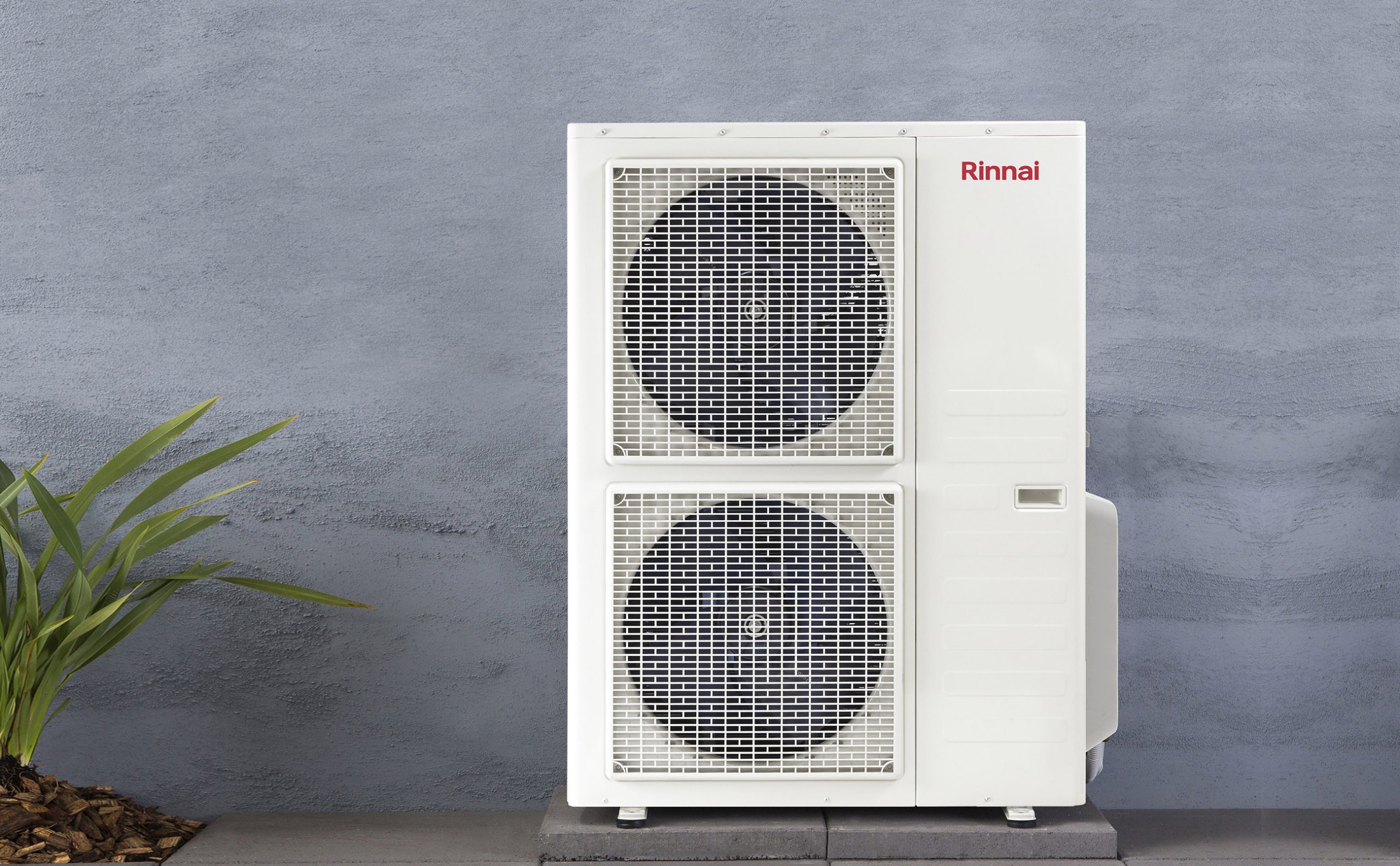

Rinnai Inverter Multi-Split Ducted Air Conditioner (lifestyle - outdoor unit large)

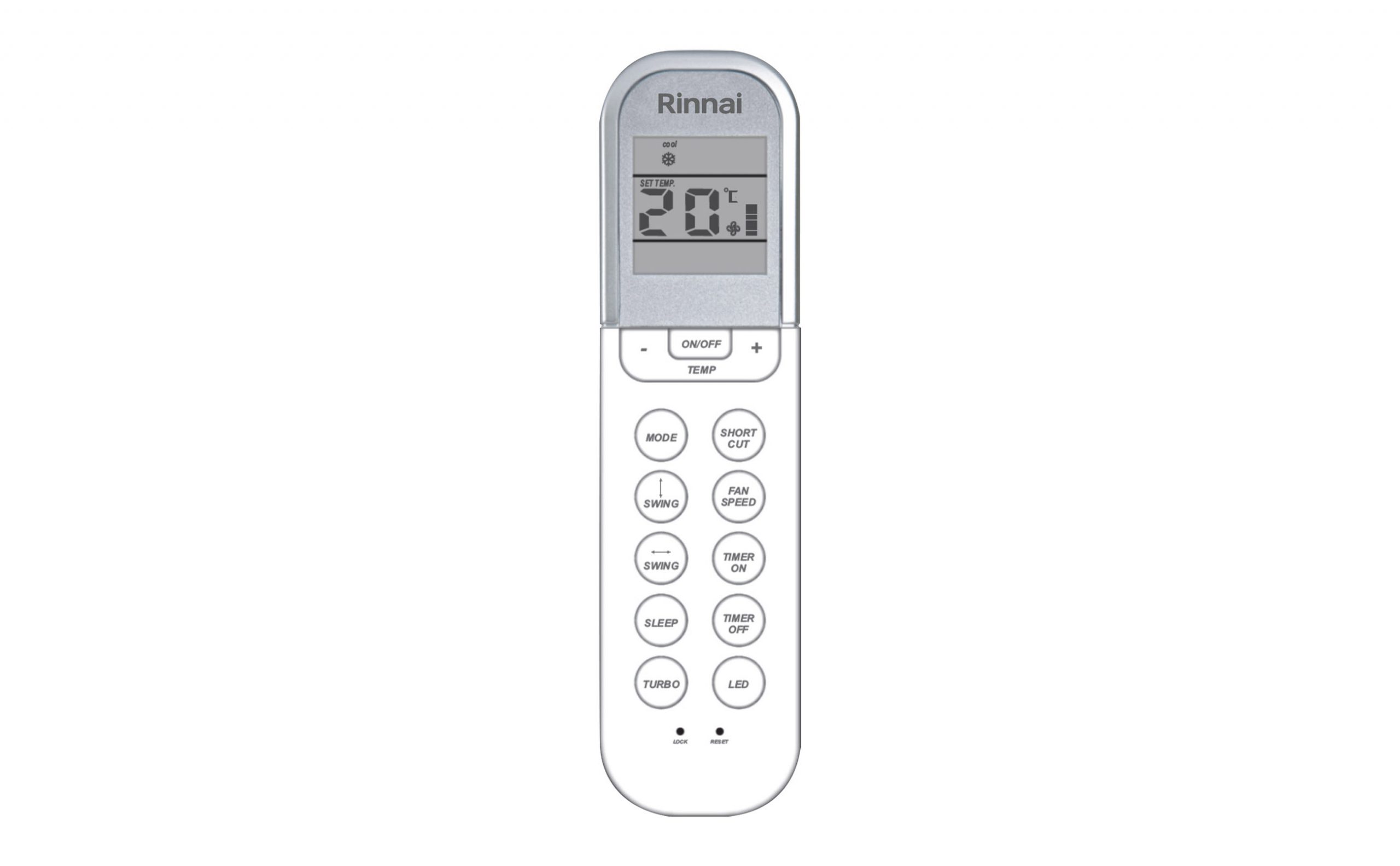

Rinnai Inverter Multi-Split Wall Mounted Ducted Air Conditioner Remote Controller

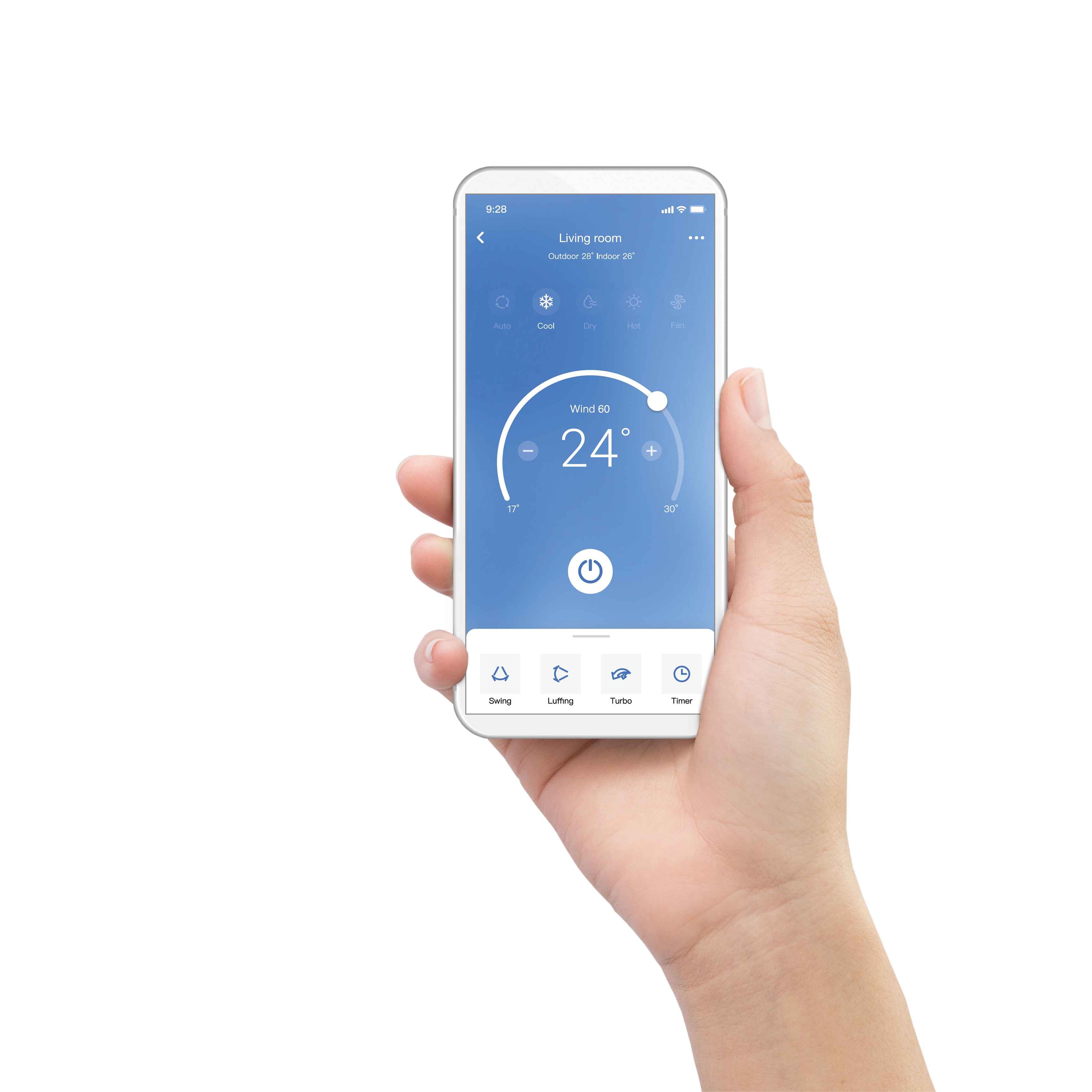

Rinnai Air Conditioning NetPlus Home app

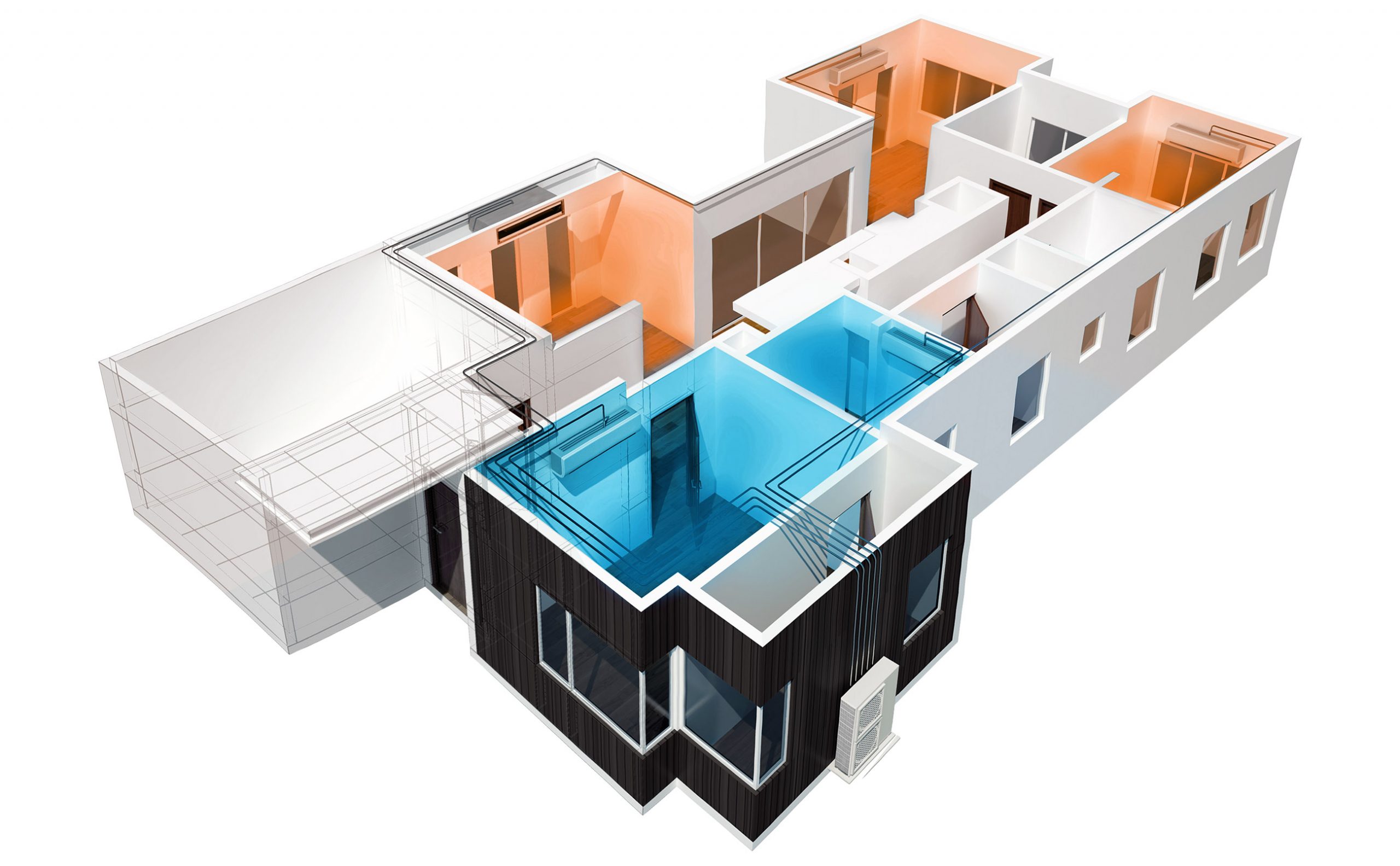

Rinnai Inverter Multi-Split Ducted Cooling and Heating (3D house diagram)

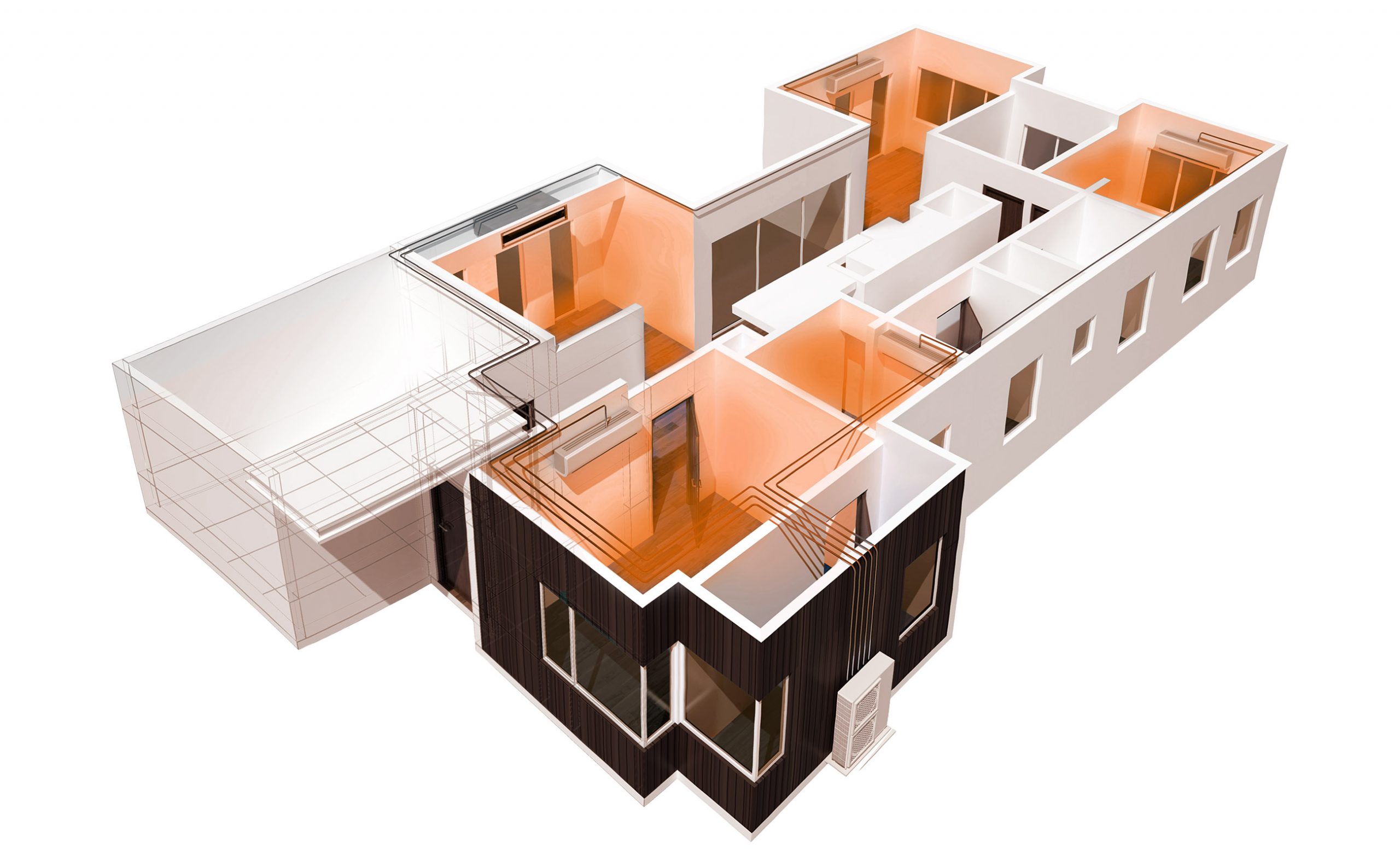

Rinnai Inverter Multi-Split Ducted Heating (3D house diagram)

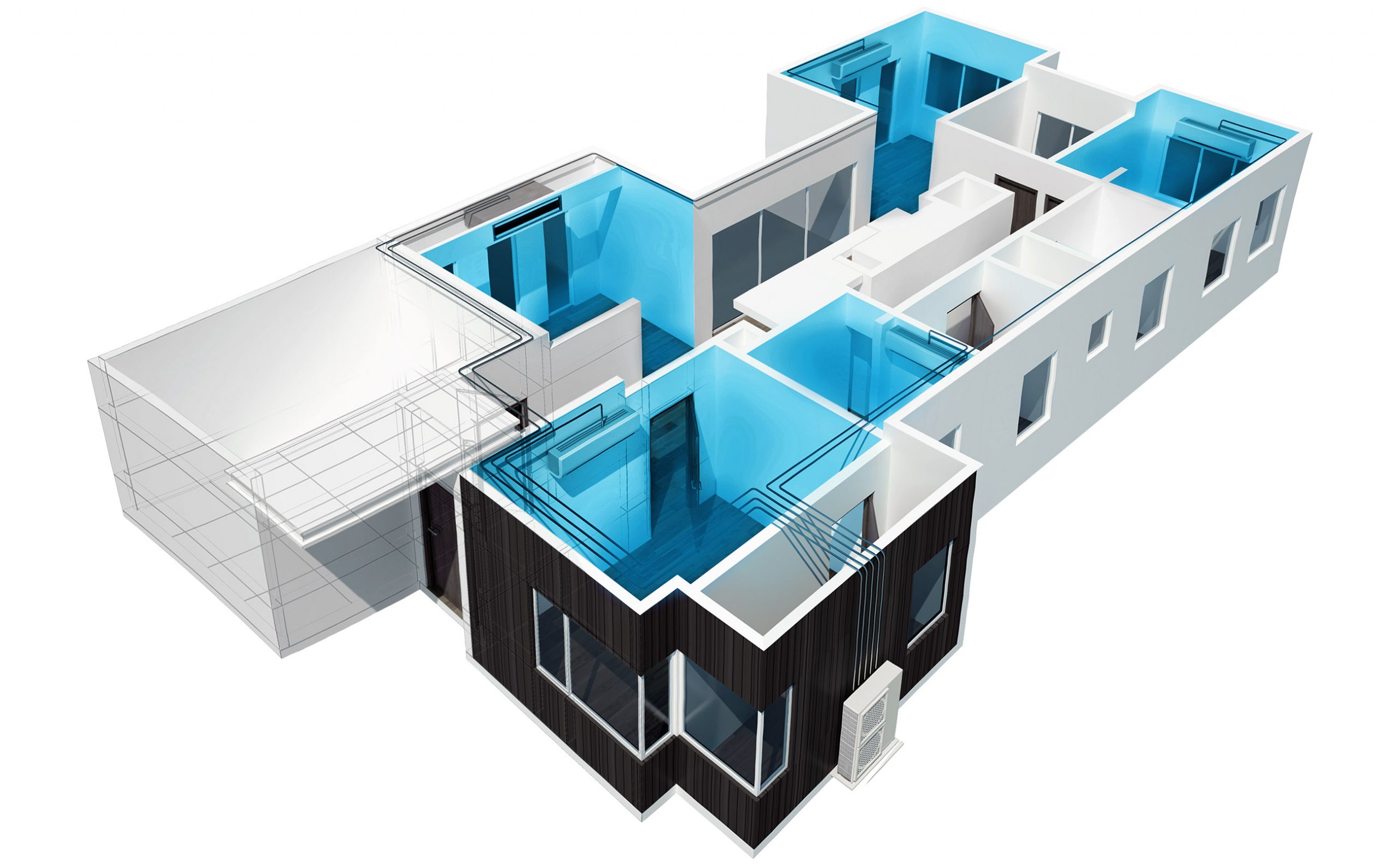

Rinnai Inverter Multi-Split Ducted Cooling (3D house diagram)
