Inverter Multi-Split Slim Ducted
Inverter Multi-Split Slim Ducted
Ideal temperatures for more than one room
When your home requires heating and cooling in more than one room, or independent room control is needed, the Inverter Multi-Split Slim Ducted units are the simplest way to heat or cool up to five individual rooms with only one outdoor unit.
Compact and space saving in design, the Inverter Multi-Split Slim Ducted indoor unit is ideal for tight spaces. Hidden away in a bulkhead or a ceiling cavity, with excellent acoustic characteristics, this ultra slim unit also has flexible installation configuration options.
Note: The Multi Slim Ducted models do not have Wi-Fi capability, see the Multi-Split Wall System models for more information on Wi-Fi systems.
Locate Your Nearest Store

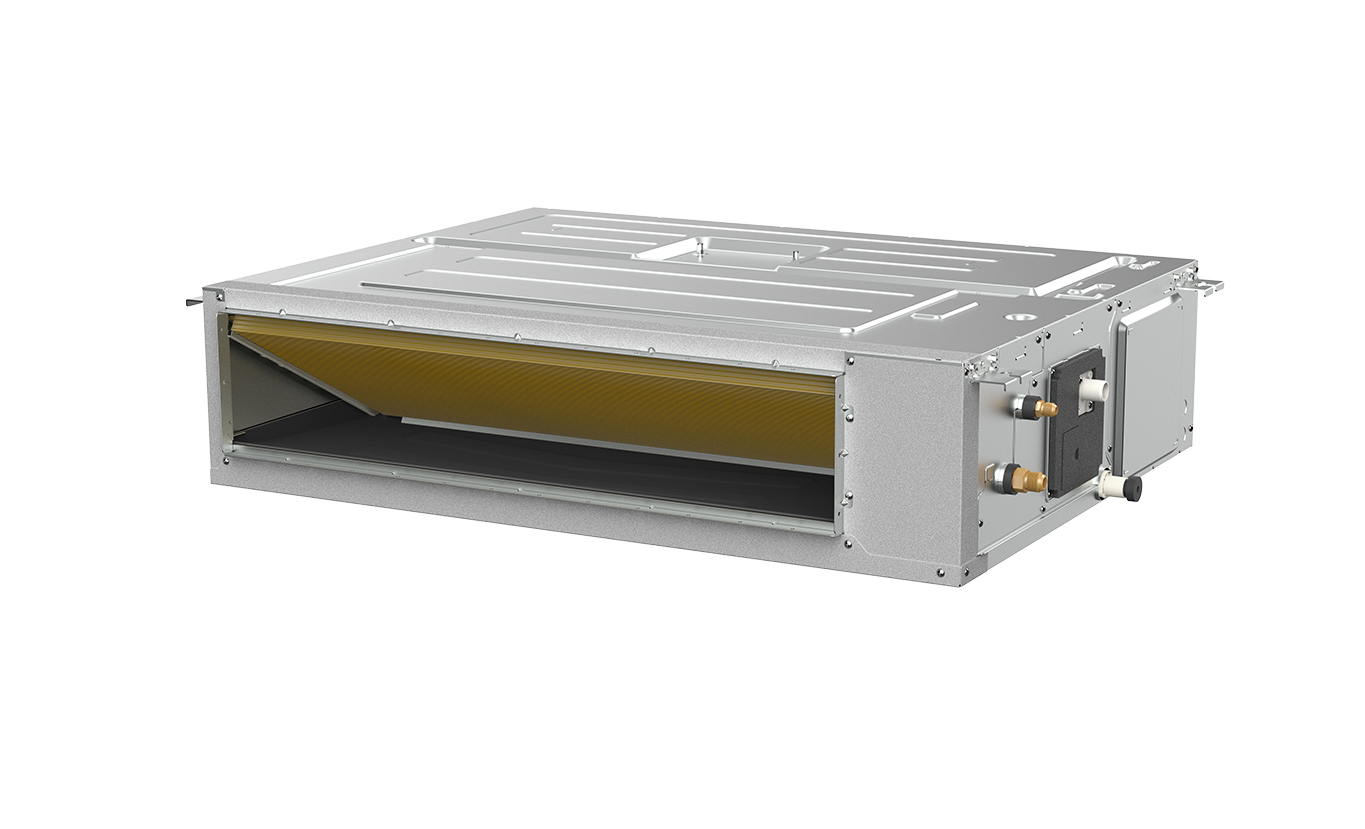

Sleek and non-obtrusive indoor unit
Indoor unit can be hidden in a bulk-head or ceiling
Non-obtrusive to your architectural designs
Quiet operation
7 year limited warranty
Superior technology
- Compact and slim
- Non-obtrusive to your architectural designs
- Great performance
- Timer functionality
- DC Inverter

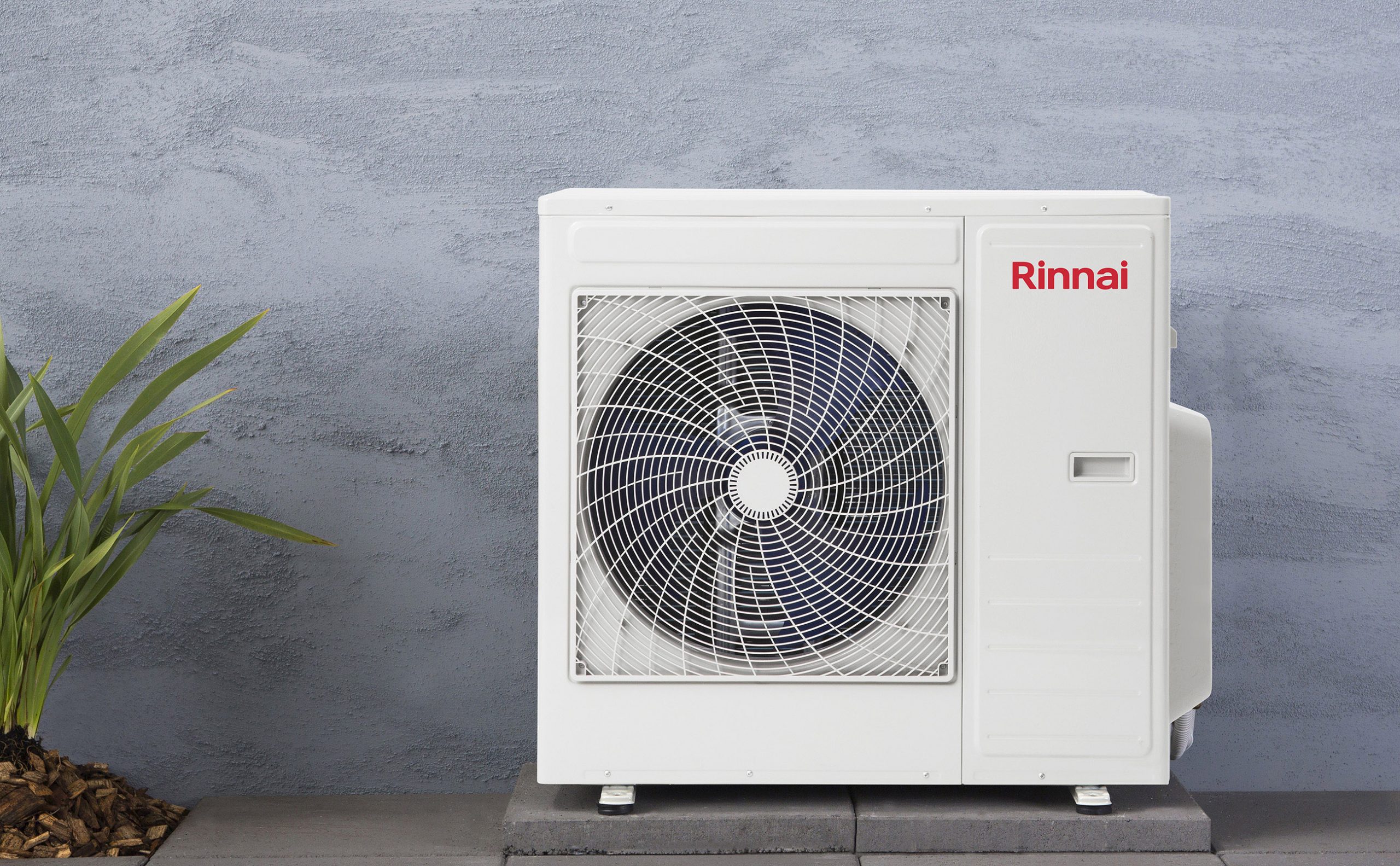

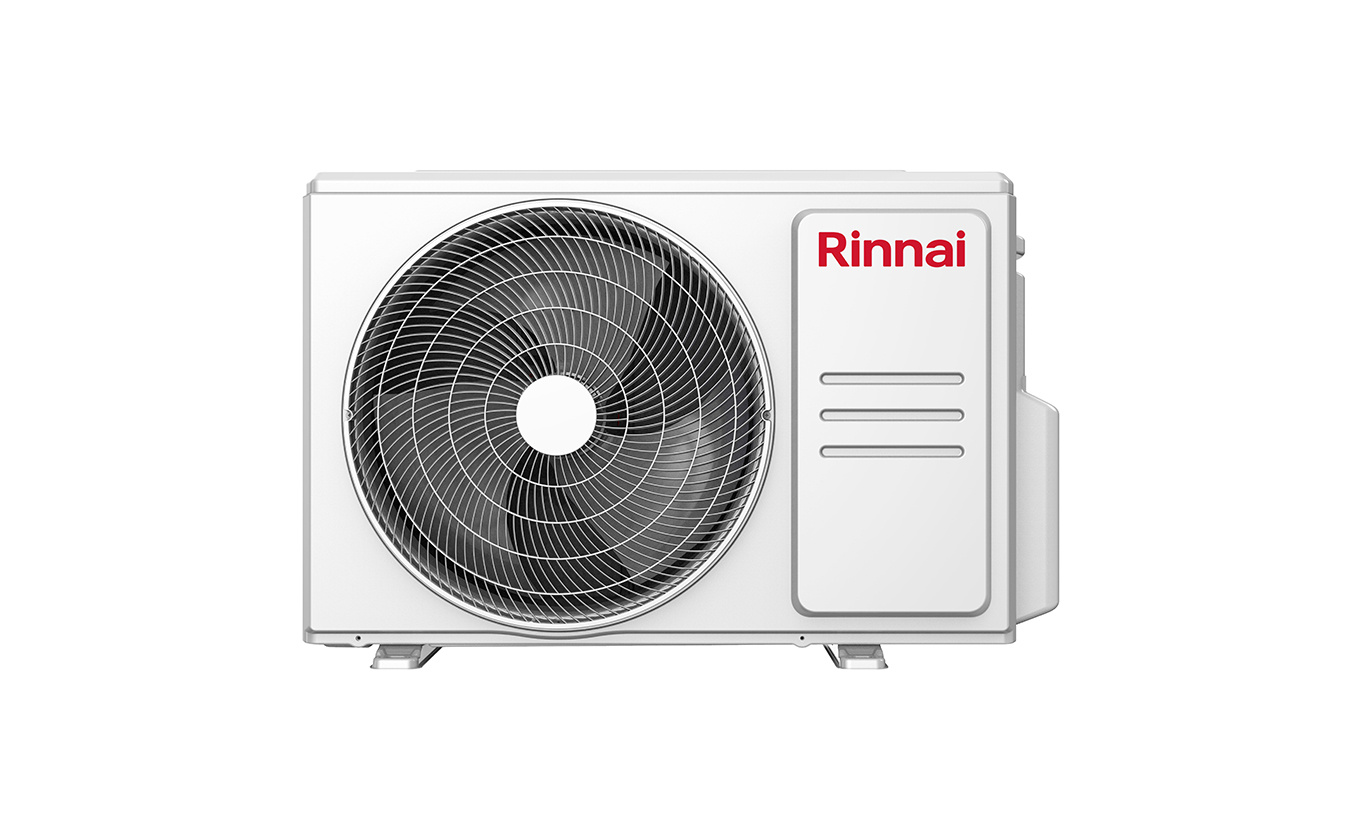

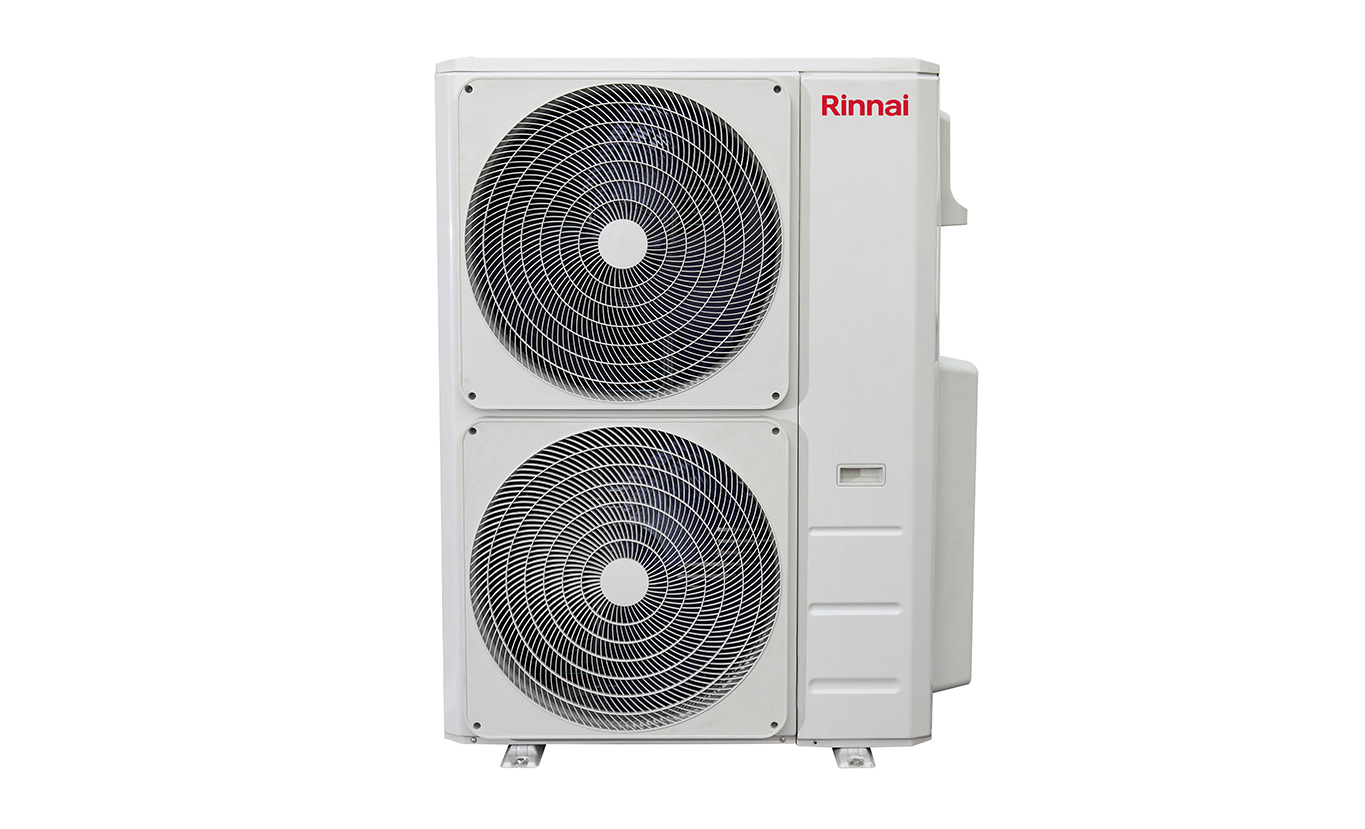

Multi variants - Outdoor units
- MON3H07B - 3 Indoor Units connected
- MON4H09B - 4 Indoor Units connected
- MON5H11B - 5 Indoor Units connected
- MON5H13B - 5 Indoor Units connected
- MON6H18B - 6 Indoor Units connected
Rinnai quality
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
| Rinnai – Inverter Multi-Split Slim Ducted System | Values | DINSD26MB | DINSD35MB | DINSD50MB | DINSD70MB | ||
| Dimensions | Net | Height | mm | 200 | 200 | 210 | 249 |
| Width | 700 | 700 | 880 | 1100 | |||
| Depth | 506 | 506 | 674 | 774 | |||
| Gross | Height | 285 | 285 | 280 | 315 | ||
| Width | 860 | 860 | 1070 | 1305 | |||
| Depth | 540 | 540 | 725 | 805 | |||
| Weight | Net | kg | 18 | 18 | 24 | 32 | |
| Gross | 22 | 22 | 29 | 39 | |||
| Air Duct Connection | Supply | Height | mm | 152 | 152 | 136 | 175 |
| Width | 537 | 537 | 706 | 926 | |||
| Return | Height | 186 | 186 | 190 | 228 | ||
| Width | 599 | 599 | 782 | 1001 | |||
| Refrigeration Pipe Size | Liquid | Φ6.35 | Φ6.35 | Φ6.35 | Φ9.52 | ||
| Gas | Φ9.52 | Φ9.52 | Φ12.70 | Φ15.9 | |||
| Power Supply | V-Ph-Hz | 220~240 -1-50 | |||||
| Cooling | Rated Capacity | kW | 2.6 | 3.5 | 5.2 | 7.1 | |
| Rated Input Power | W | 180 | 185 | 200 | 200 | ||
| Rated Input Current | A | 1.1 | 1.1 | 1.3 | 1.3 | ||
| Heating | Rated Capacity | kW | 2.9 | 3.8 | 5.5 | 7.3 | |
| Rated Input Power | W | 180 | 185 | 200 | 200 | ||
| Rated Input Current | A | 1.1 | 1.1 | 1.3 | 1.3 | ||
| Airflow | Hi / Med / Lo | L / s | 500 / 340 / 230 | 500 / 340 / 230 | 600 / 480 / 300 | 880 / 650 / 350 | |
| Sound Pressure @ 1.0m | dB(A) | 40 / 34 / 27 | 40 / 34 / 27 | 40 / 34 / 27 | 41 / 38 / 33 | ||
| Maximum External Static Pressure (Hi) | Pa | 60 | 60 | 100 | 160 | ||
| Condensate Drain Pump Connection | mm | OD Φ25 | |||||
| Controller | Liquid | Type | Wired Controller – 12m Cable | ||||
| Operating Range | Cooling | °C | 17 ~ 32 | ||||
| Heating | 0 ~ 30 | ||||||
| Wi-Fi Compatibility | Optional | ||||||
Photography
-
Rinnai Inverter Multi-Split Slim Ducted Air Conditioner (brown kitchen)Preview
-

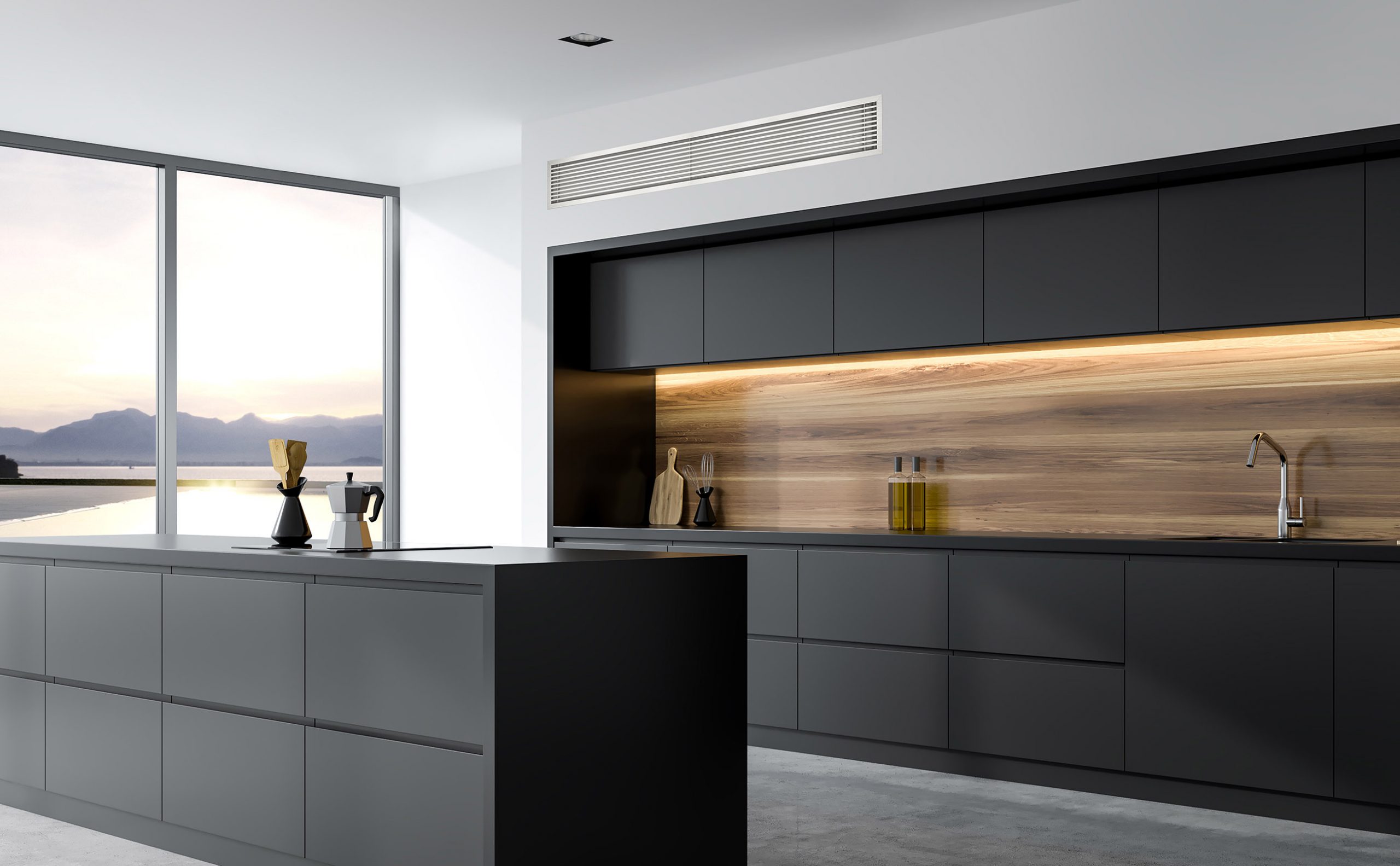

Rinnai Inverter Multi-Split Slim Ducted Air Conditioner (black kitchen)Preview
-

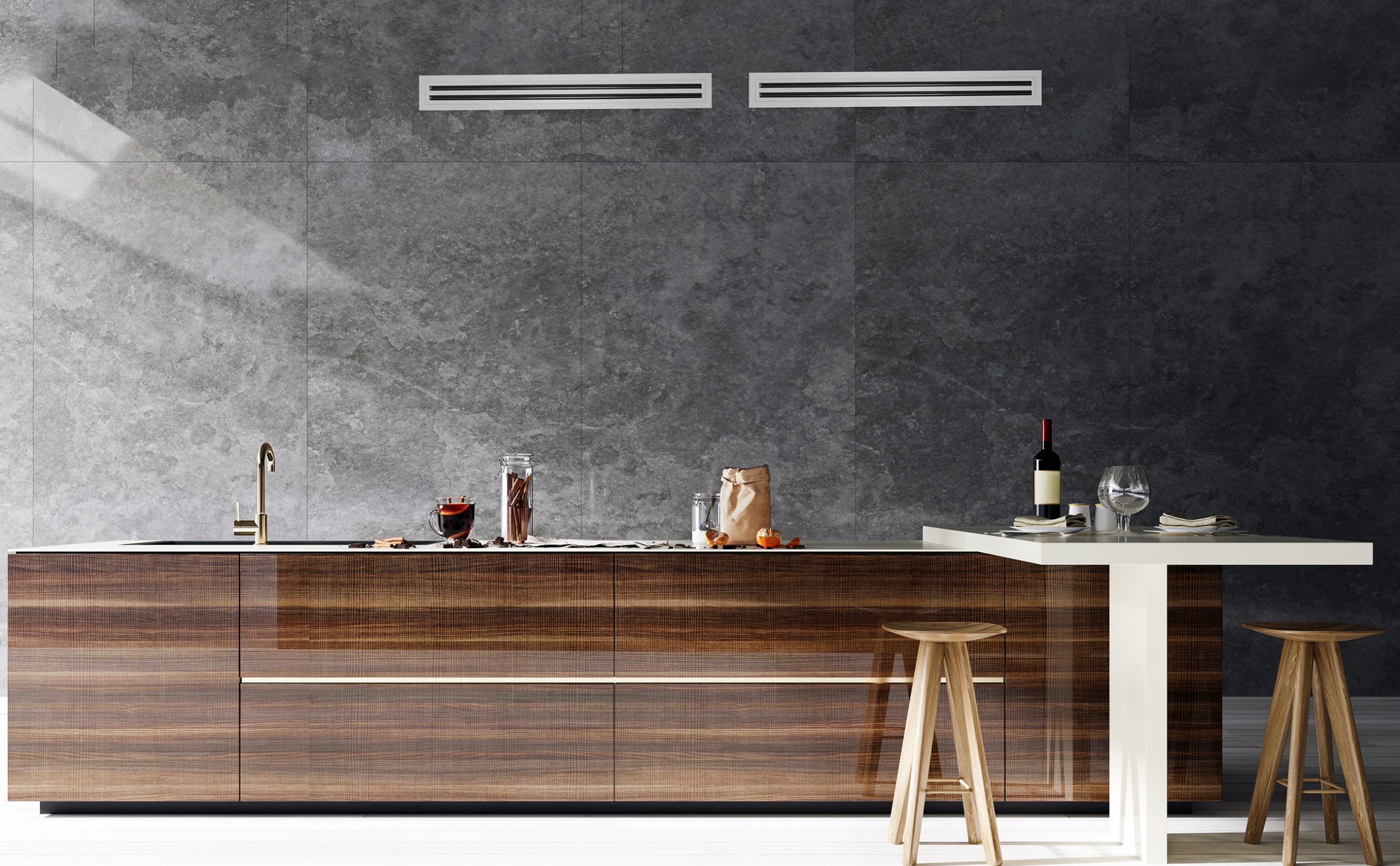

Rinnai Inverter Multi-Split Slim Ducted Air Conditioner (black wood kitchen)Preview
-

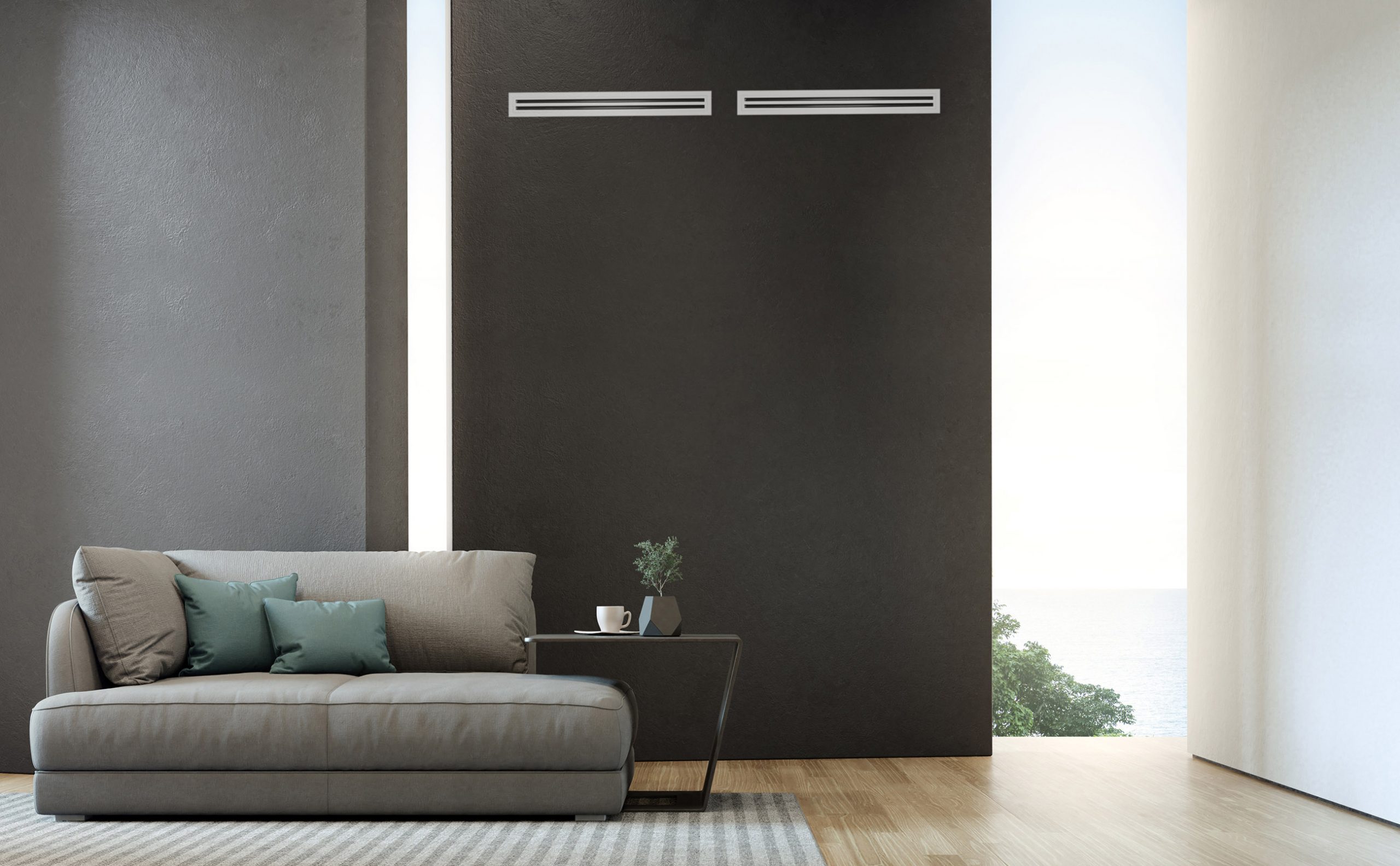

Rinnai Inverter Multi-Split Slim Ducted Air Conditioner (living)Preview
-

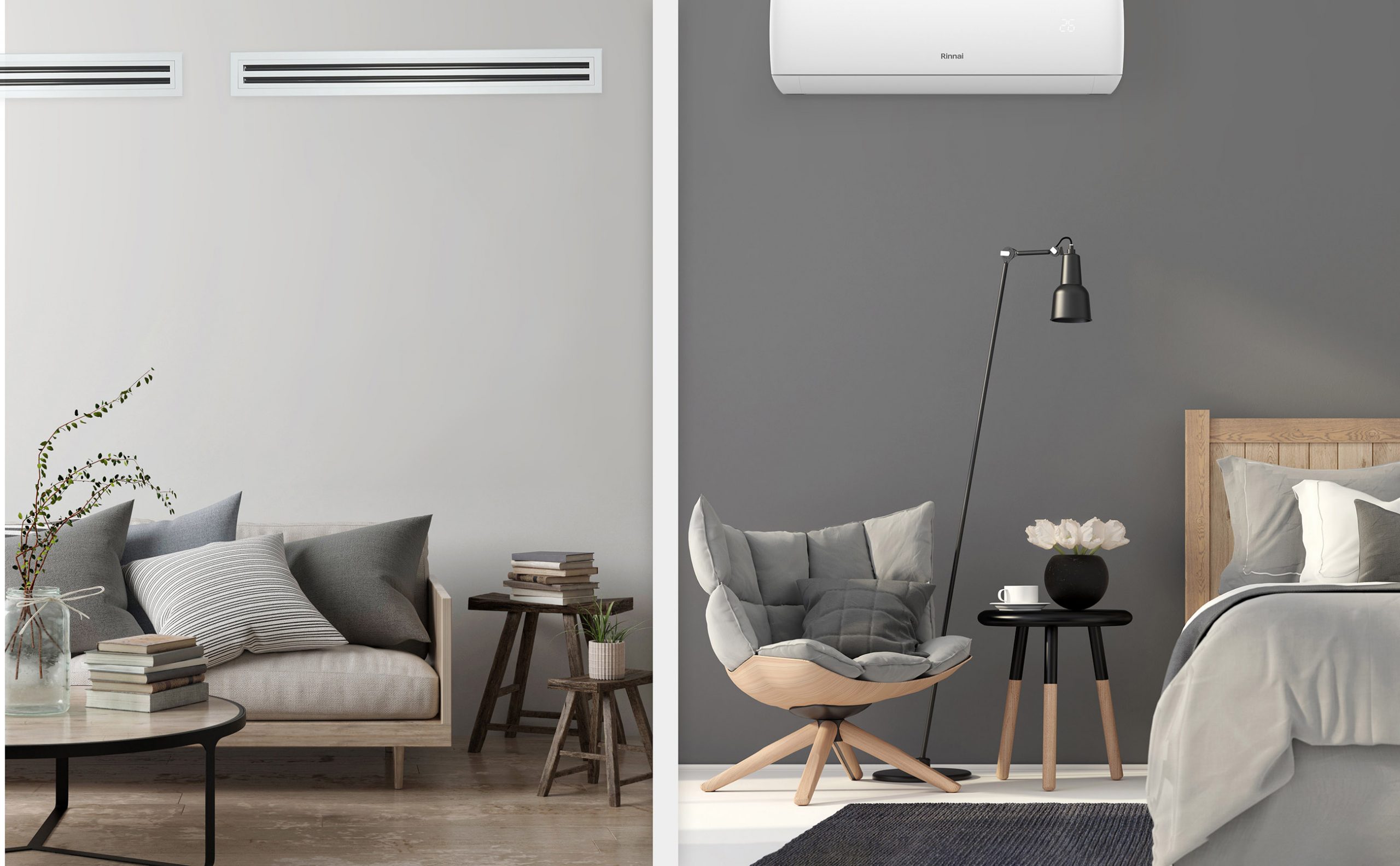

Rinnai Multi-Split Slim Ducted and Wall Mounted Air ConditionersPreview
-

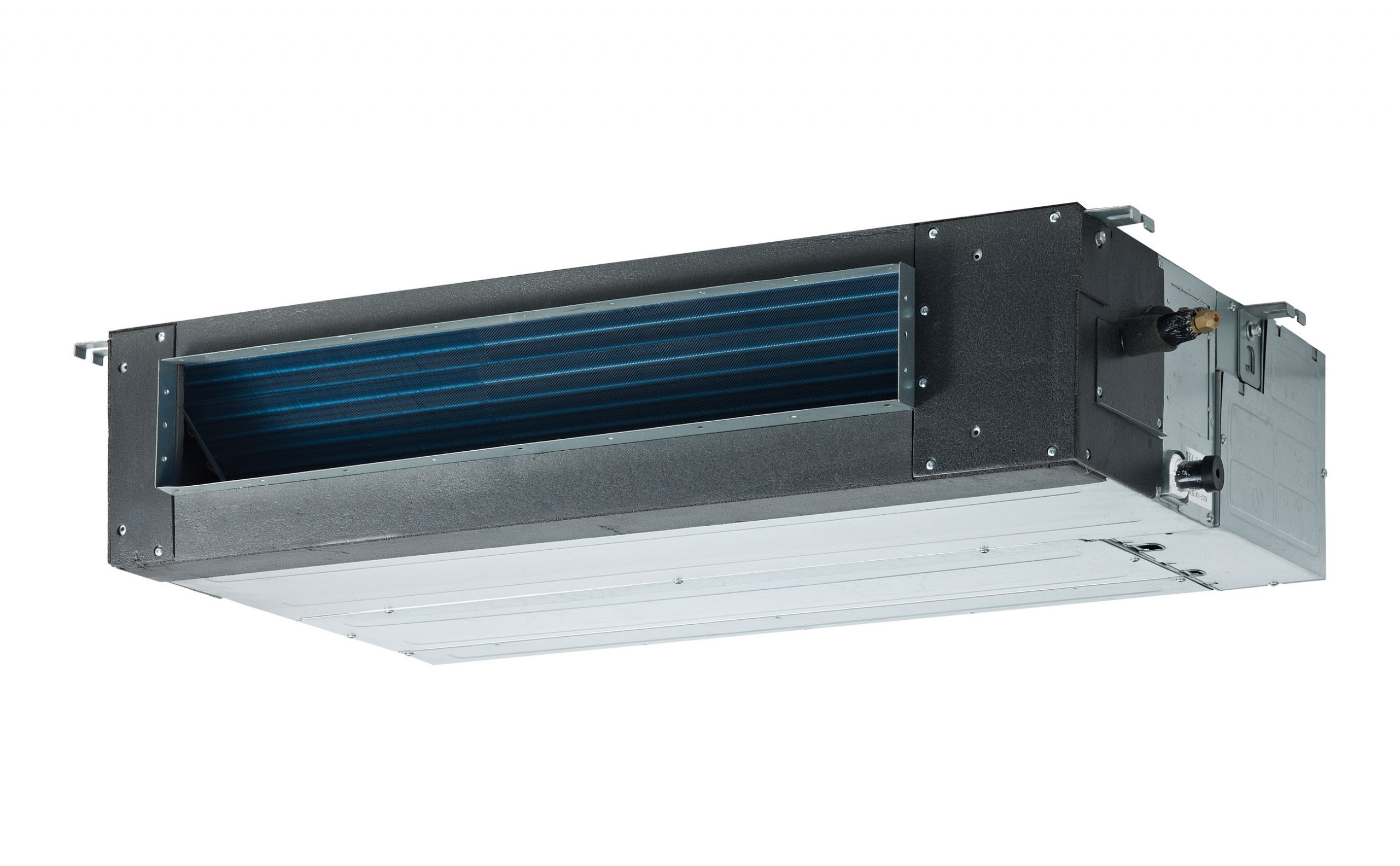

Rinnai Inverter Multi-Split Slim Ducted Air Conditioner (head)Preview
-

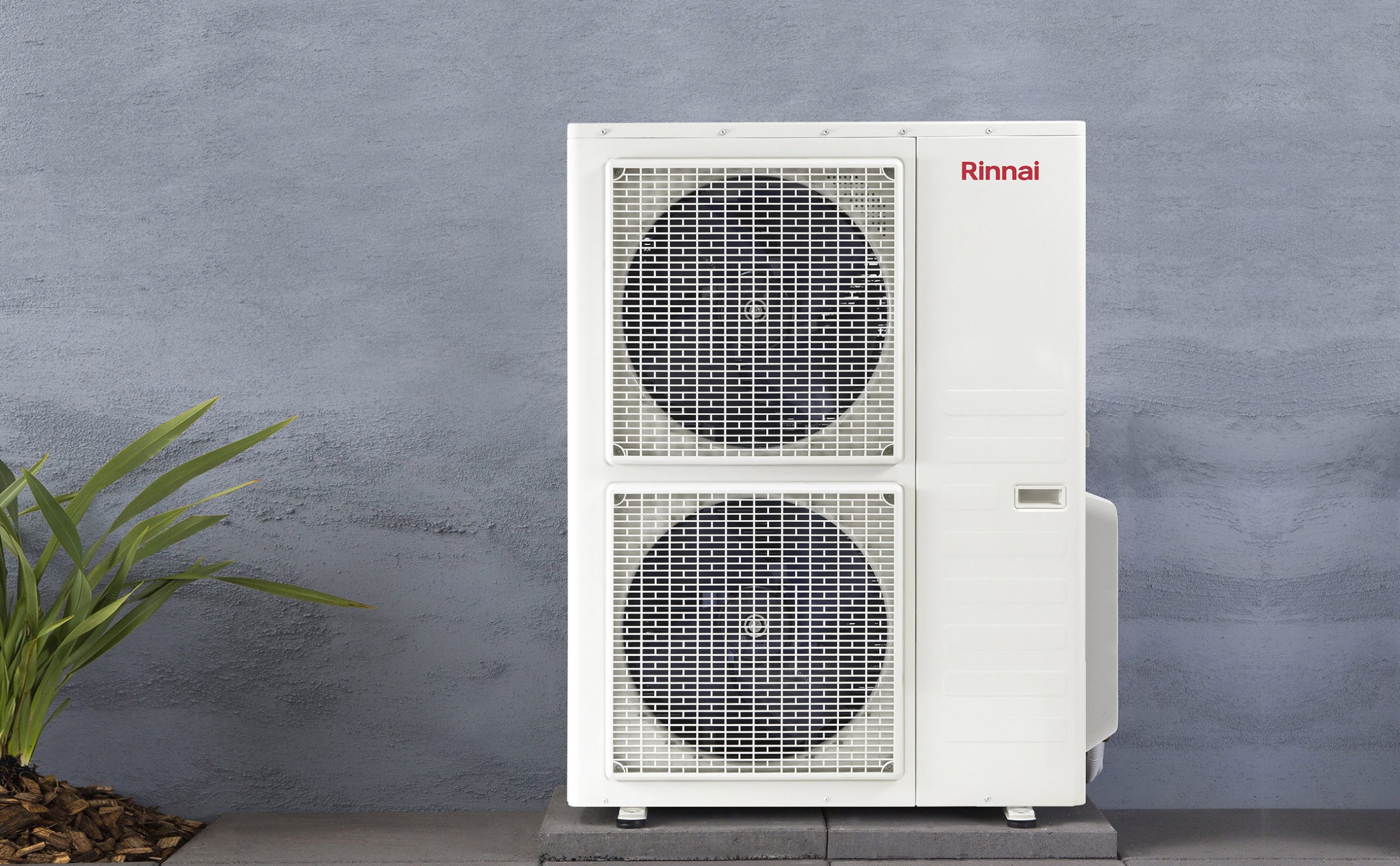

Rinnai Inverter Multi-Split Ducted Air Conditioner (large outdoor unit)Preview
-
Rinnai Inverter Multi-Split Slim Ducted Air Conditioner (small outdoor unit)Preview
-

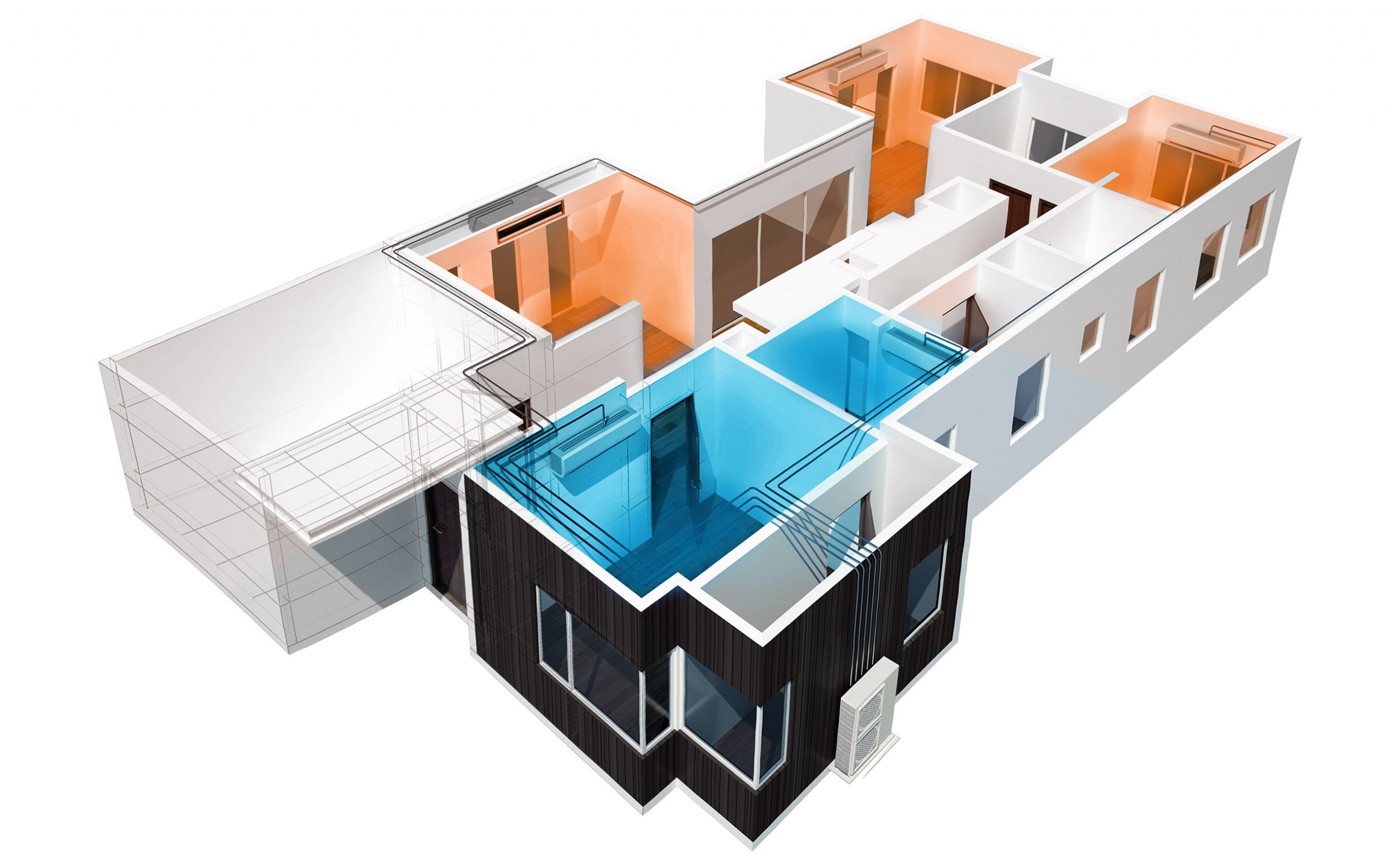

Rinnai Inverter Multi-Split Ducted Cooling and Heating (3D house diagram)Preview
-

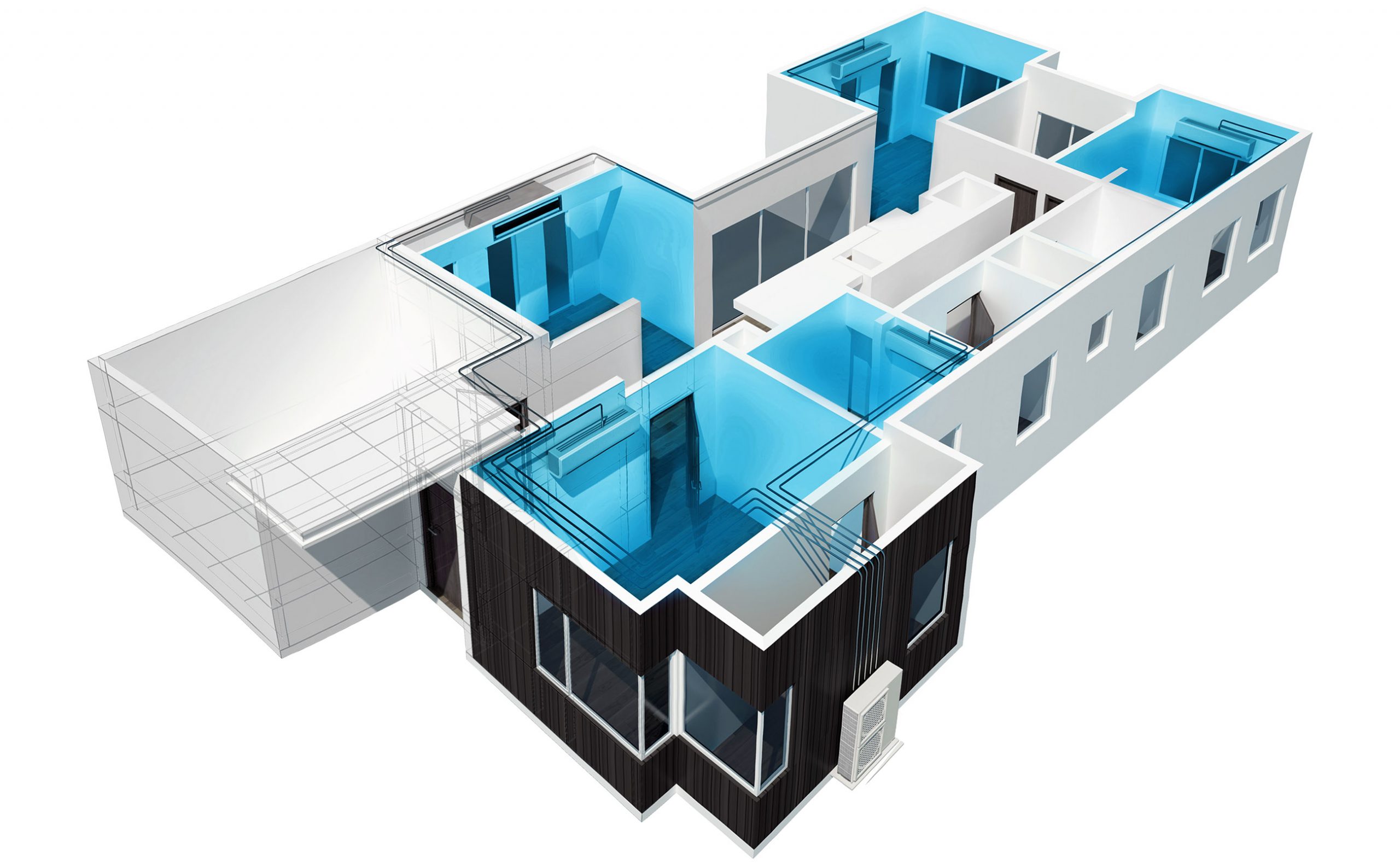

Rinnai Inverter Multi-Split Ducted Cooling (3D house diagram)Preview
-

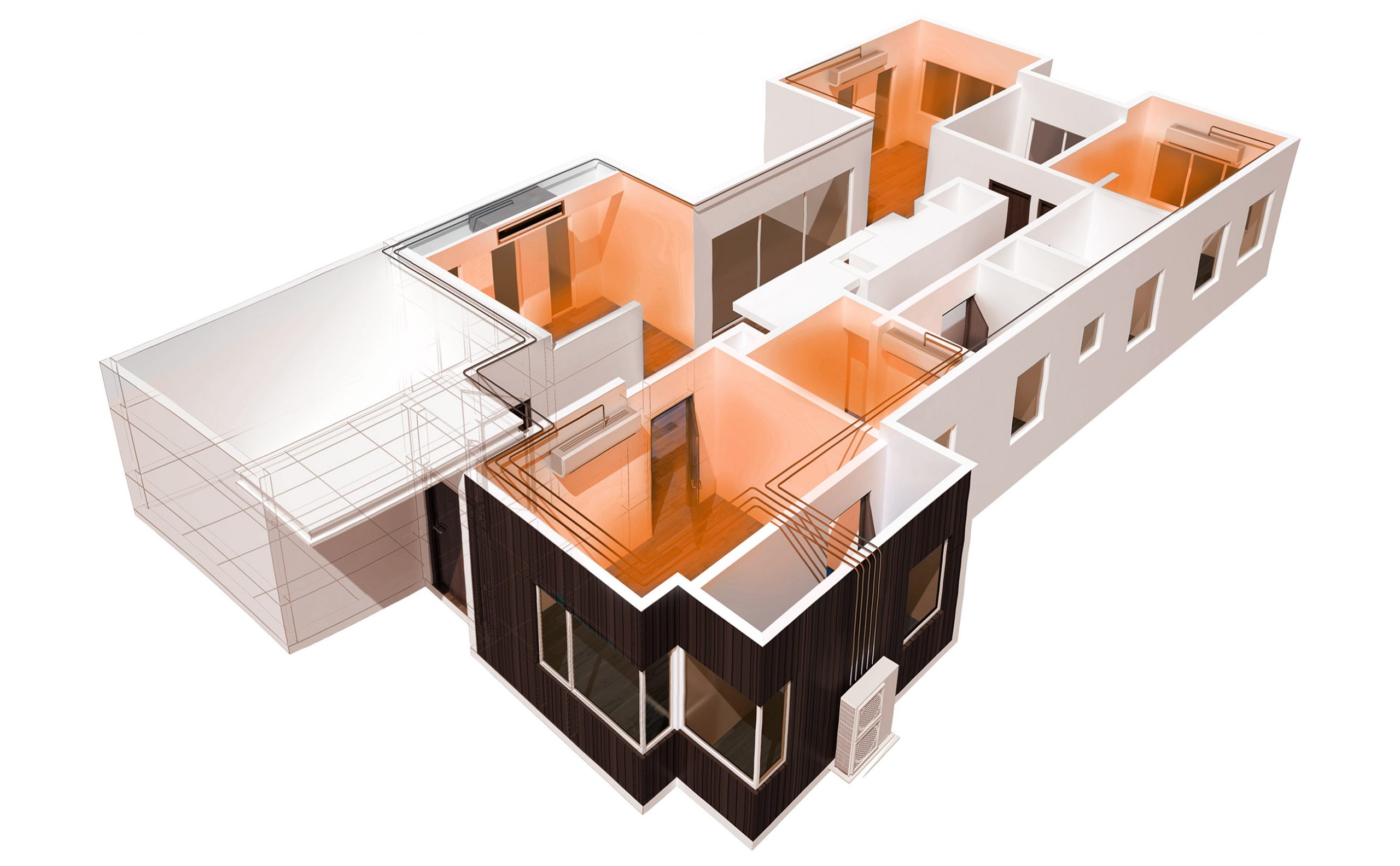

Rinnai Inverter Multi-Split Ducted Heating (3D house diagram)Preview
