7-18kW Ducted Air Conditioner R32
7-18kW Ducted Air Conditioner R32
An advanced ducted reverse cycle air conditioner
Rinnai’s 7-18kW Ducted Air Conditioning R32 System discreetly delivers powerful home heating and cooling, keeping you comfortable regardless of the extremes outside.
Concealed in your roof cavity, the efficient indoor fans and DC compressor quietly operate and the advanced ducted inverter control mechanisms ensure a controlled warm-up and cool down with outstanding energy efficiency ratings.
Enjoy the exceptional benefits of a Reverse Cycle Air Conditioner without the hassle of installing and the sight of multiple indoor units. Condition and filter the air in your whole home, or choose to zone specific areas tailored to individual comfort levels.
Three times more efficient than conventional heating, Rinnai’s Ducted Air Conditioning system features optional Wi-Fi, programmable controller and App (compatible with Google Home, Amazon Alexa and Apple), and slimline design.
Locate Your Nearest Stockist
NOTE: Rinnai does not sell directly to the public. Our products are available only through third-party stockists and installers.
Up to 8 zones
Up to 3.4 star energy efficiency rating in cooling mode^
Zone temperature control
Sleep timer
AC unit control
Favourites and schedules
5% airflow control adjustments
Wi-Fi and Remote access
‘Filter Clean’ reminder with adjustable frequency
7 year limited warranty*
Superior Technology
- Up to 3.4 star energy efficiency rating – in cooling mode (^hot climates)
- Wi-Fi Control - allows for convenient control from anywhere with the Rinnai Home App+ (App available from the Apple Store or Google Play, and is compatible with Google Home and Amazon Alexa)
- Heating and Cooling
- Slimline Design
- Programmable Controller
- Fast Temperature Control
- Reduced Operational Costs
- Quiet Operation
- Zoning Option
Rinnai Quality
- 7 year limited warranty*
FAQs
-
What is a Ducted air conditioning system? >
-
When is Ducted air conditioning a good option? >
-
How do I choose the right size Ducted system? >
-
Can Ducted systems heat as well as cool? >
-
How energy efficient are Ducted systems? >
-
How long does a Ducted system last? >
*For full warranty terms and conditions refer to the related warranty booklet.
+Rinnai uses a third-party application (App) to enhance your experience of the Rinnai product. You may use the App at your sole discretion. Please note that when you download and use the App and its services, the third-party’s privacy policy and terms and conditions of service will apply. By using the Rinnai product through this App, you acknowledge and agree that: The third-party App may collect, store, and process your personal information according to its own privacy policy and App terms and conditions. Rinnai does not control and are not responsible for the content, policies, or practices of the third-party App and its services. Rinnai strongly recommends that you review the App privacy policy before using its features. The use of the third-party App is optional. For further information or clarification, please contact us at 1300 555 545 and [email protected]
NB: Reverse cycle air-conditioners are an effective solution as they provide both cooling and heating and are highly efficient. However, unlike gas heaters, their heating capacity will reduce with colder ambient temperatures, which is especially relevant for homes in colder areas. Discuss with your installer things like the local climate, the size of your house, its orientation and construction (such as glazing, doors, insulation), and your expectations, so a system with the appropriate capacity can be selected.
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
Product codes:
7 - DONSR07B1 DINLR07B1 | 9 - DONSR09B1 DINLR09B1 | 11 - DONSR11B1 DINLR11B1 | 13 - DONSR13B1 DINLR13B1 | 15 - DONSR15B1 DINLR15B1 | 18 - DONSR18B1 DINLR18B
| Rinnai – System Model No | 07 | 09 | 11 | 13 | 15 | 18 | ||
| Nominal Capacity | kW | 7 | 9 | 11 | 13 | 15 | 18 | |
| Power Supply (To Outdoor Unit) | V- Ph-Hz | 220~240 – 1 – 50 | ||||||
| Maximum Input Power | kW | 3.4 | 4.6 | 4.6 | 7.0 | 7.0 | 7.0 | |
| Maximum Input Current | A | 16.0 | 21.0 | 21.0 | 31.0 | 31.0 | 31.0 | |
| Recommended Circuit Breaker Size | 20 | 25 | 25 | 32 | 32 | 32 | ||
| Cooling | Rated Capacity | kW | 7.3 | 9.0 | 10.5 | 12.5 | 14 | 17 |
| Capacity Range | 2.38 ~ 9.00 | 3.15 ~ 11.85 | 3.15 ~ 11.85 | 4.20 – 15.75 | 4.20 – 15.75 | 6.80 – 19.50 | ||
| Rated Input Power | 2.1 | 2.55 | 3.1 | 3.45 | 4.2 | 5.25 | ||
| Rated Input Current | A | 9.8 | 14.5 | 14.2 | 18.2 | 18.2 | 22.5 | |
| Annualised Energy Efficiency Ratio [AEER]1 | W / W | 3.4 | 3.5 | 3.4 | 3.6 | 3.3 | 3.2 | |
| Heating | Rated Capacity | kW | 7.5 | 10.0 | 11.5 | 13.0 | 14.5 | 18.0 |
| Capacity Range | 1.79 – 10.5 | 3.45 – 13.50 | 3.45 – 13.50 | 4.44 – 16.65 | 4.44 – 16.65 | 6.90 – 21.10 | ||
| Rated Input Power | kW | 1.7 | 2.25 | 2.7 | 3.15 | 3.6 | 4.55 | |
| Rated Input Current | A | 7.9 | 12.8 | 12.8 | 16.3 | 16.3 | 19.5 | |
| Annual Coefficient of Performance [ACOP]2 | W / W | 4.3 | 4.4 | 4.3 | 4.1 | 4.0 | 3.9 | |
1. AEER: The Annualised Energy Efficiency Ratio (AEER) measures a cooling system’s efficiency by comparing its total cooling output to the electricity it consumes, including standby power.
2. ACOP: The Annual Coefficient of Performance (ACOP) measures a heater’s efficiency by comparing its total heating output to the electricity it consumes, including standby power.
| Indoor Unit | DINLR07B1 | DINLR09B1 | DINLR11B1 | DINLR13B1 | DINLR15B1 | DINLR18B1 | ||
| Rated Input | W | 90 | 250 | 560 | 560 | 560 | 420 | |
| Rated Current | A | 1.6 | 2.5 | 2.5 | 3.0 | 3.0 | 3.0 | |
| Airflow (With Filter) | High Speed | L / s (ESP) | 480 (100 Pa) | 625 (150pa) | 710 (150Pa) | 1050 (150Pa) | 1050 (150Pa) | 1080 (150Pa) |
| Airflow (Minimum) | 140 | 190 | 190 | 250 | 250 | 410 | ||
| Maximum External Static Pressure (ESP)3 | Pa | 160 | 160 | 200 | 200 | 200 | 200 | |
| Noise Level (Hi / Med / Lo) |
Sound Pressure @ 1.4m | dB(A) | 38.5 / 35.5 / 32.5 | 45 / 42 / 39.5 | 39 / 37 / 34.5 | 46.5 / 43.5 / 40 | 46.5 / 43.5 / 40 | 53 / 49.5 / 45.3 |
| Dimensions (Height x Width x Depth) |
Net | mm | 249 x 1100 x 774 | 249 x 1360 x 774 | 380 x 1200 x 625 | 380 x 1200 x 625 | 380 x 1200 x 625 | 440 x 1400 x 858 |
| Packing | 315 x 1305 x 805 | 320 x 1570 x 805 | 450 x 1485 x 675 | 450 x 1485 x 675 | 450 x 1485 x 675 | 515 x 1605 x 910 | ||
| Weight | Net | kg | 32 | 40 | 53 | 53 | 53 | 81 |
| Gross | 38.5 | 48 | 62 | 62 | 62 | 92 | ||
| Duct Connections (Height x Width) |
Supply Air | mm | 175 x 926 | 175 x 1186 | 253 x 1000 | 253 x 1000 | 253 x 1000 | 385 x 1188 |
| Return Air | 228 x 1001 | 228 x 1261 | 334 x 1145 | 334 x 1145 | 334 x 1145 | 385 x 1188 | ||
| Condensate Drain Pipe Outer Diameter | 25 | |||||||
| Refrigerant Piping | Liquid / Gas Connections | 9.5 / 15.9 | 9.5 / 19.0 | |||||
| Moisture Removal | L / h | 2.0 | 2.5 | 2.7 | 3.0 | 3.0 | 3.5 | |
| Controller | Type | Wired Programmable Controller with Wi-Fi Control | ||||||
| Operating Range | Cooling | °C | 17 ~ 32 | |||||
| Heating | 0 ~ 30 | |||||||
3. ESP: External Static Pressure refers to the level of resistance the blower fan in an HVAC system must overcome to push air through ductwork, filters, and dampers.
| Outdoor Unit | DONSR07B1 | DONSR09B1 | DONSR11B1 | DONSR13B1 | DONSR15B1 | DONSR18B1 | ||
| Power Supply | V-Ph-Hz | 220 – 240 – 1 – 50 | ||||||
| Starting Current | A | 2.2 | 2.5 | 2.5 | 3.6 | 3.6 | 4 | |
| Compressor | Type | Twin Rotary | ||||||
| Sound Pressure Level @ 1m | dB(A) | 60 | 60 | 62 | 60 | 60 | 60.5 | |
| Sound Power Level | 65 | 68 | 68 | 69.5 | 69.5 | 72 | ||
| Dimensions (Height x Width x Depth) |
Net | mm | 673 x 890 x 342 | 810 x 946 x 410 | 810 x 946 x 410 | 1333 x 952 x 415 | 1333 x 952 x 415 | 1333 x 952 x 415 |
| Packing | 730 x 995 x 398 | 845 x 1090 x 500 | 845 x 1090 x 500 | 1380 x 1095 x 495 | 1380 x 1095 x 495 | 1380 x 1095 x 495 | ||
| Weight | Net / Gross | kg | 45 / 48 | 70 / 75 | 70 / 75 | 95 / 110 | 95 / 110 | 96 / 111 |
| Refrigerant Piping | Type | R32 | ||||||
| Pre-Charged Length | m | 15 | ||||||
| Charged Volume | kg | 1.75 | 2.6 | 2.6 | 3.6 | 3.6 | 4.0 | |
| Charge Adjustment (Add or Remove) |
g / m | 24 | ||||||
| Liquid / Gas Connections | mm | 9.5 / 15.9 | 9.5 / 19.0 | |||||
| Maximum Pipe Length | 50 | 75 | 75 | 75 | 75 | 75 | ||
| Minimum Pipe Length | 3 | 3 | 3 | 3 | 3 | 3 | ||
| Maximum Vertical Separation | 25 | 30 | 30 | 30 | 30 | 30 | ||
| Ambient Temperature Limits | Cooling | °C | -15 ~ 50 | |||||
| Heating | -20 ~ 24 | |||||||
Capacities tested in accordance with AS/NZS 3823.3. With our policy of continuous improvement, we reserve the right to change, or discontinue at any time, specifications or designs without notice.
Consumer
-
Ducted Air Conditioning Brochure
-
Ducted Air Conditioning Operation Manual
-
Ducted Air Conditioning R32 Wired (DRCINW) Controller Operation Manual
-
Ducted Air Conditioning R32 Wired (DRCIPW/B) Controller Operation Manual
-
Air Conditioning Warranty Booklet
Installation Guides + Diagrams
No trade files available
Photos
-
Rinnai R32 Ducted Reverse Cycle Air Conditioner (lifestyle - outdoor unit)
Rinnai Ducted Air Conditioner (lifestyle - kitchen black)
Rinnai Ducted Air Conditioning (3D cooling diagram)

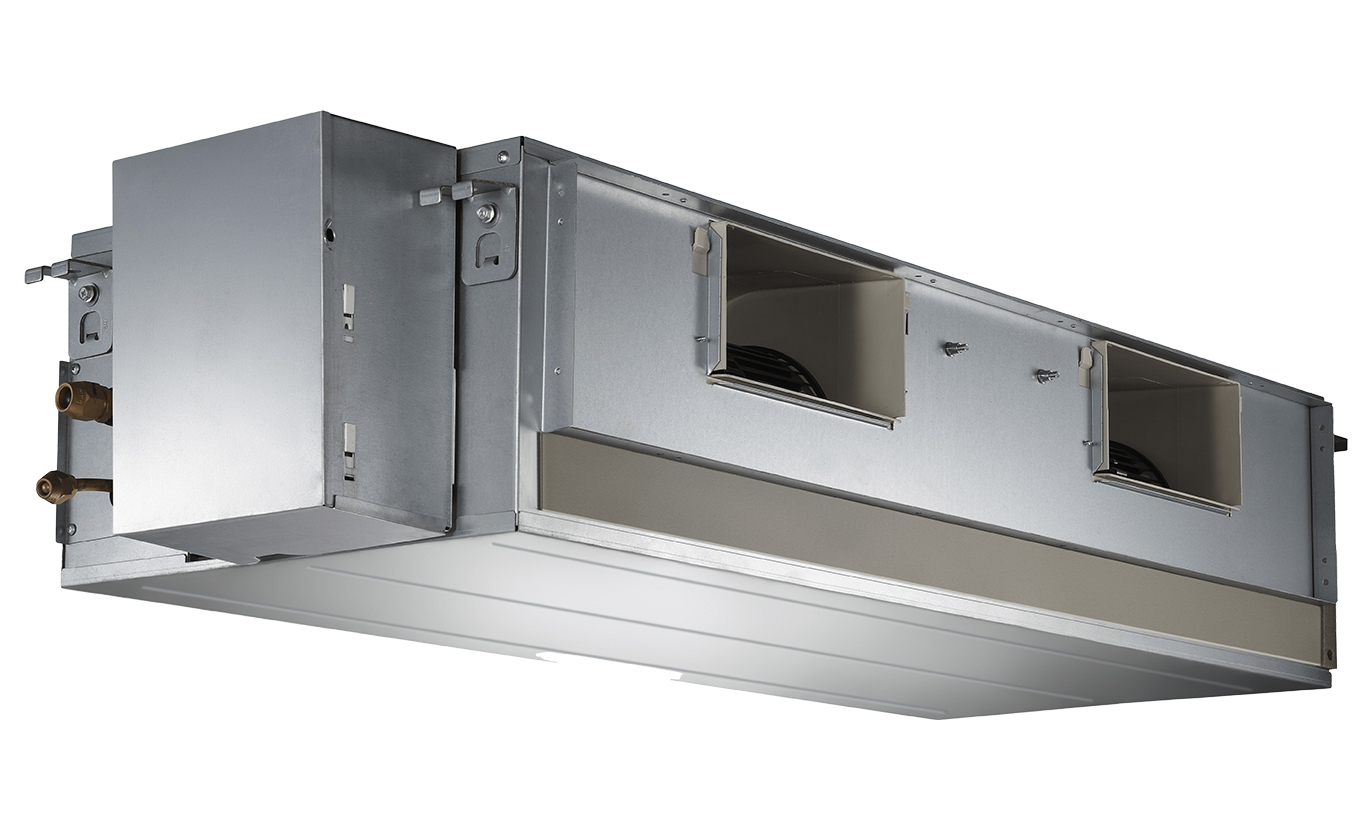

Rinnai Ducted Air Conditioner (uninstalled)
