Rinnai Home Controller
Rinnai Home Controller
Control your Ducted Air Conditioning System with ease from your smart device with Rinnai Home Controller, our latest in climate control technology.
Rinnai Home’s intelligent sensors will redirect conditioned air from one room to another, so rooms reach their set temperature as quickly and efficiently as possible. Each zone is controlled individually with the added benefit of having different temperatures in each zone.
With intelligent Fan Auto Control, Scheduling Assistant and Favourite programs Rinnai Home Controller enables a more energy efficient and cost effective solution to the heating and cooling of your home.
Individual zone temperature control
8 zones
8″ touch screen & wireless sensors
Wi-Fi and remote access via Rinnai Home App
- Individual Zone Temperature Control
- Wi-Fi & Remote access and Voice Control via Google Home, Google Assistant, Amazon Alexa, Apple Home Kit, Siri
- Fan Auto Control
- Favourites and Schedules
- ‘Filter Clean’ reminder with adjustable frequency
- Sleep timer
- 5% Airflow Control Adjustments
|
Controllers |
Sensors |
||||||
|
Model No. |
CNTRLDRCIZHAB |
CNTRLDRCIZHAW |
Model No. |
CNTRLIZWLSENSORB |
CNTRLIZWLSENSORW |
||
|
Colours |
Black |
White |
Colours |
Black |
White |
||
|
Display |
8” colour touch screen |
Wireless |
Wireless Sensors |
||||
|
DRCi Range |
kW |
7-24kW |
Battery |
CR2032 |
|||
|
Zoning |
Up to 8 Zones |
Accept |
All damper motors fitted with an RJ12 connection only |
||||
|
Wi-Fi |
Wi Fi Control |
Damper Motors |
On the system must be the same brand |
||||
|
App |
RINNAI HOME |
Compatibility |
Some damper motors do not require configuration and will be recognised automatically by the Rinnai Home system, some of these are:
|
||||
|
Download for |
Apple App Store & Google Play Store |
||||||
|
Add up to |
Three touch screens may be configured |
||||||
|
Loom length |
25m |
||||||
|
Functions |
On/Off |
||||||
|
Ac Unit |
|||||||
|
Zones |
|||||||
|
Airflow |
|||||||
|
Favourites |
|||||||
|
Schedules |
|||||||
|
Sleep Timer |
|||||||
|
Time |
|||||||
|
Setting |
|||||||
|
Beep |
|||||||
|
Config |
|||||||
|
Pair |
|||||||
|
System Reset Button |
|||||||
|
Operating Range |
Cooling |
°C |
17 ~ 32 °C |
||||
|
Heating |
°C |
0 ~ 30°C |
|||||
Photography
-
Rinnai-Home-Controller-Black-Home-Screen-2560x1583Preview
-
Rinnai-Home-Controller-White-Home-Screen-2560x1583Preview
-

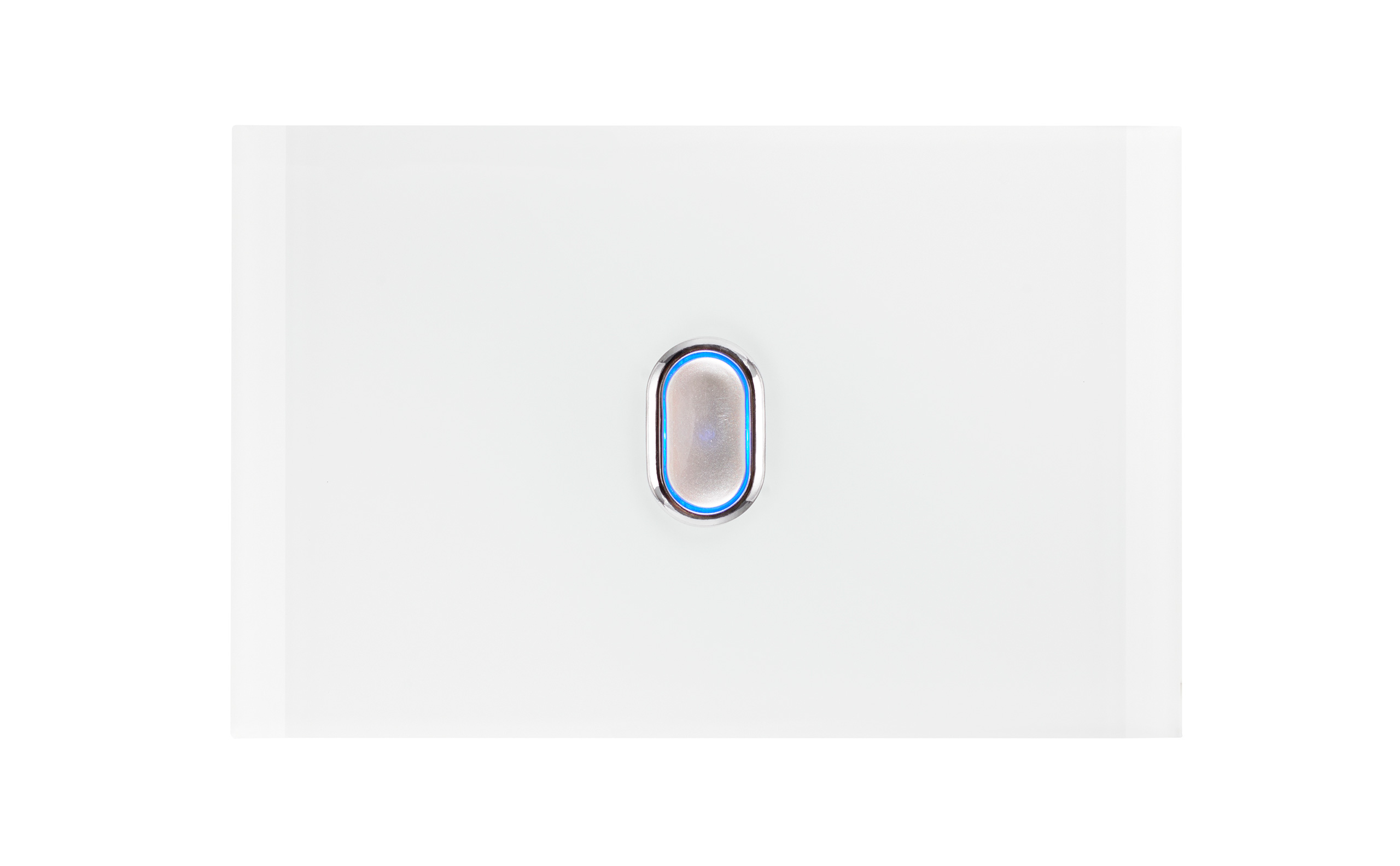

Rinnai-Home-Controller-Sensor-White-2560x1583Preview
-

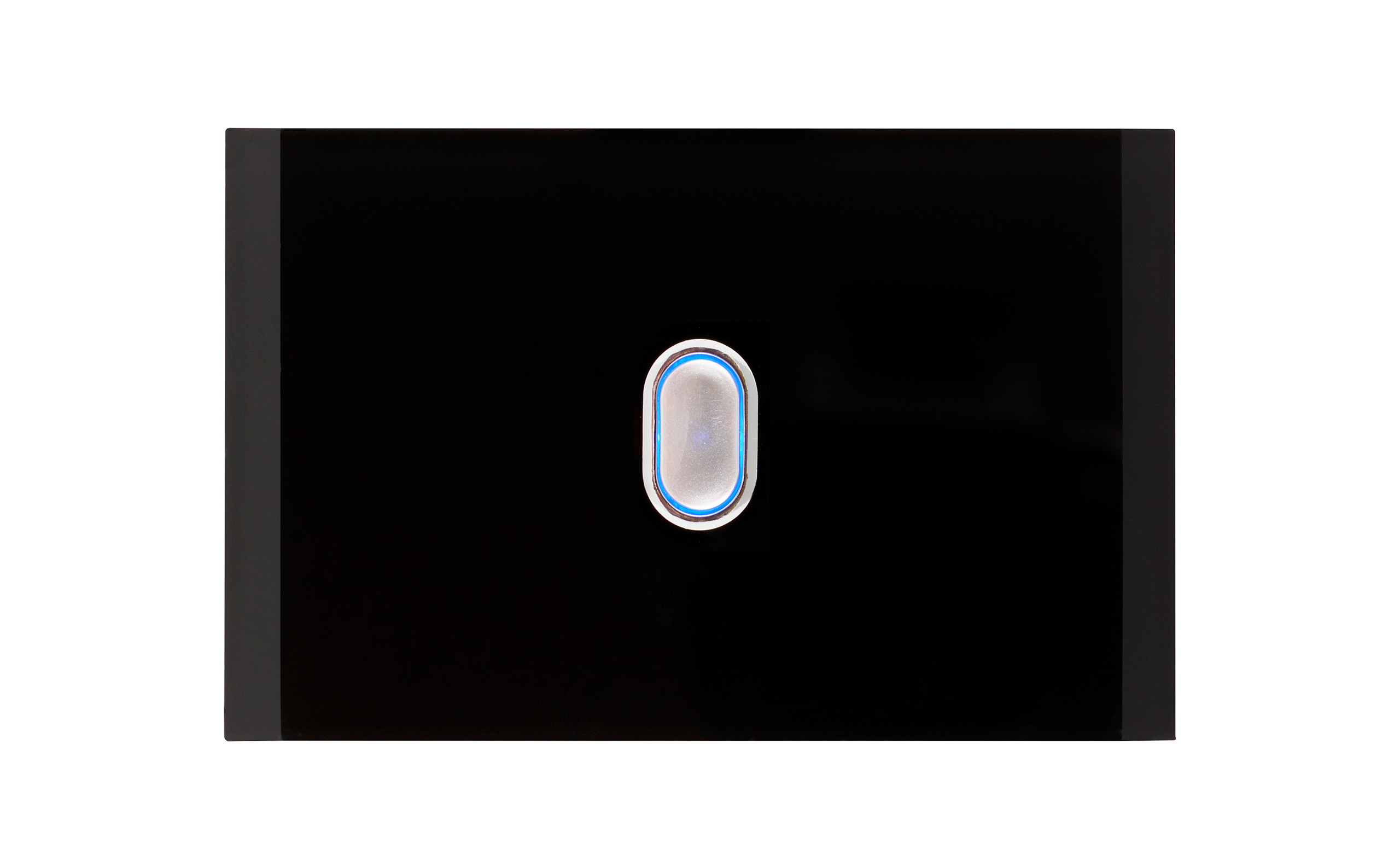

Rinnai-Home-Controller-Sensor-Black-2560x1583Preview
-

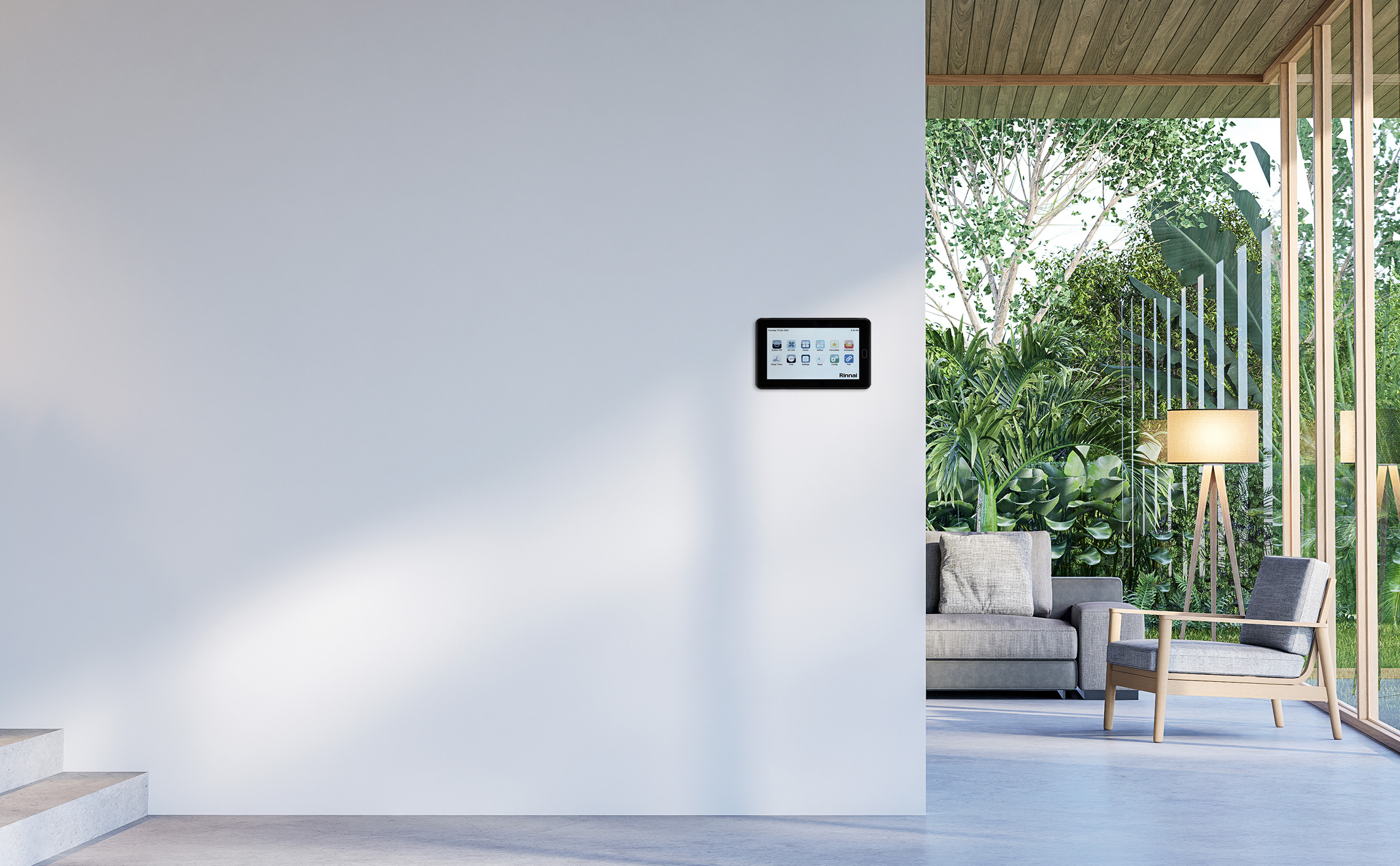

Indoors-Lifestyle-2560x1583-2Preview
-

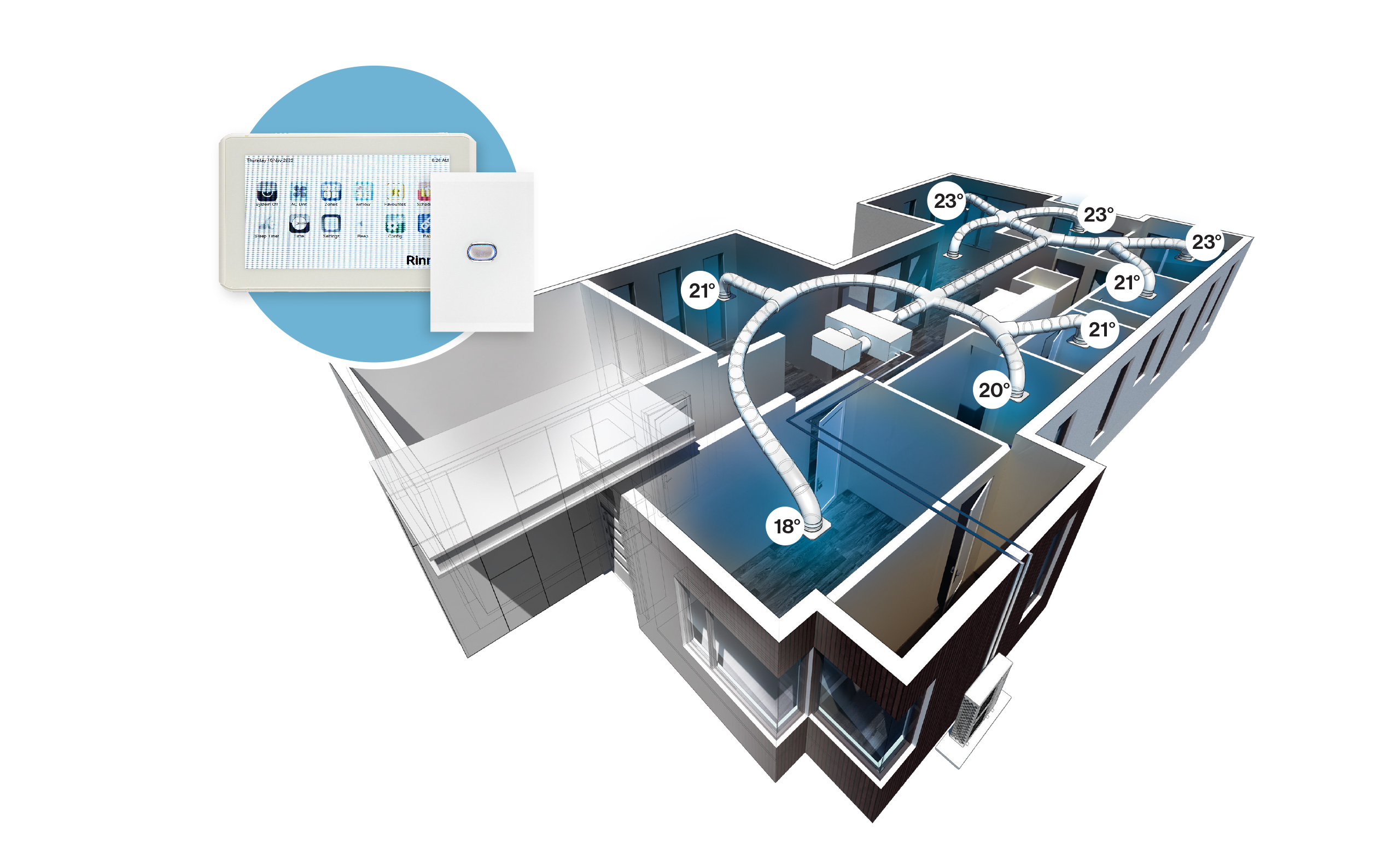

Rinnai-Home-Controller-3DHome-2560x1583Preview
-

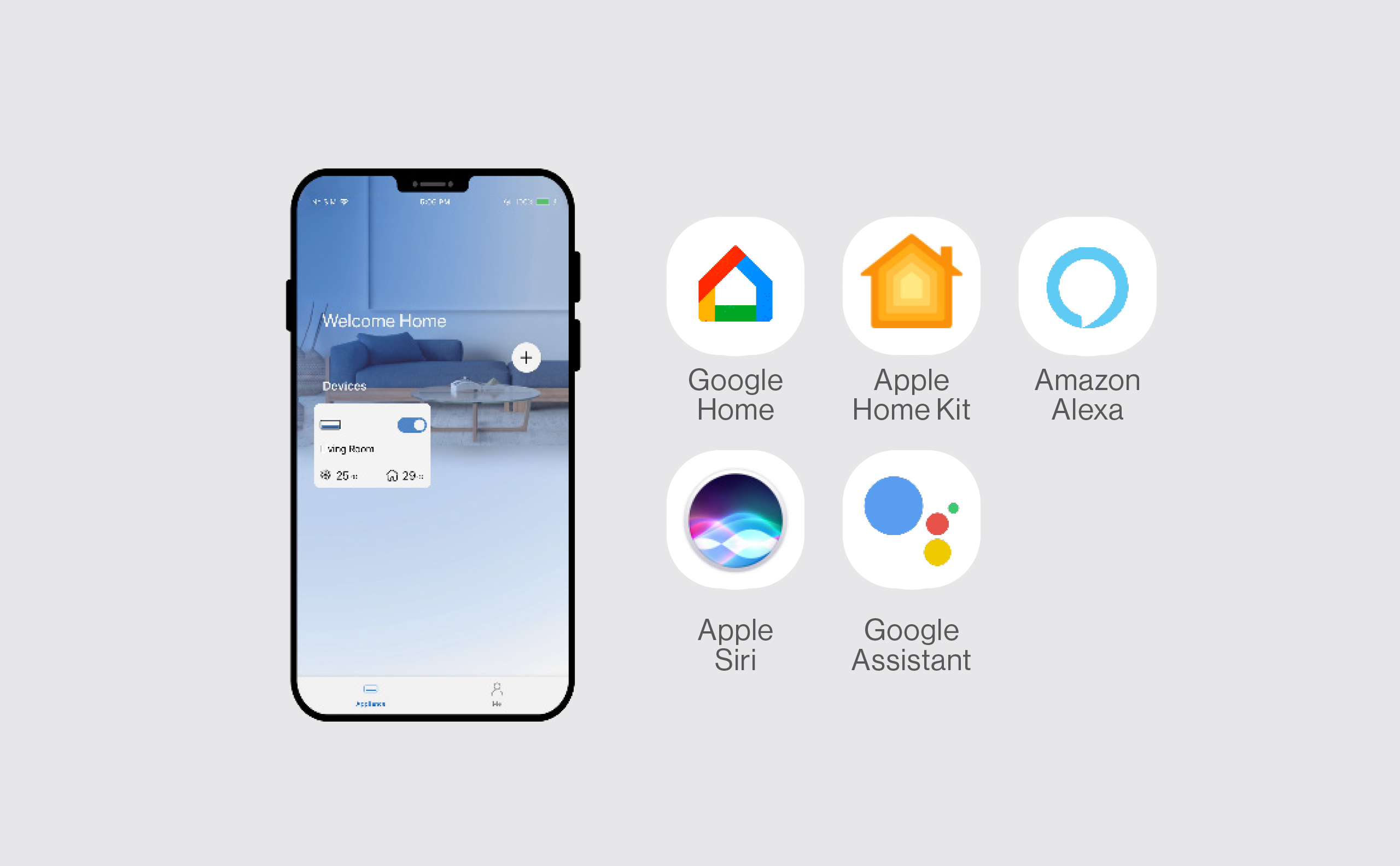

Rinnai-Home-Apps-2560x1583Preview
-
