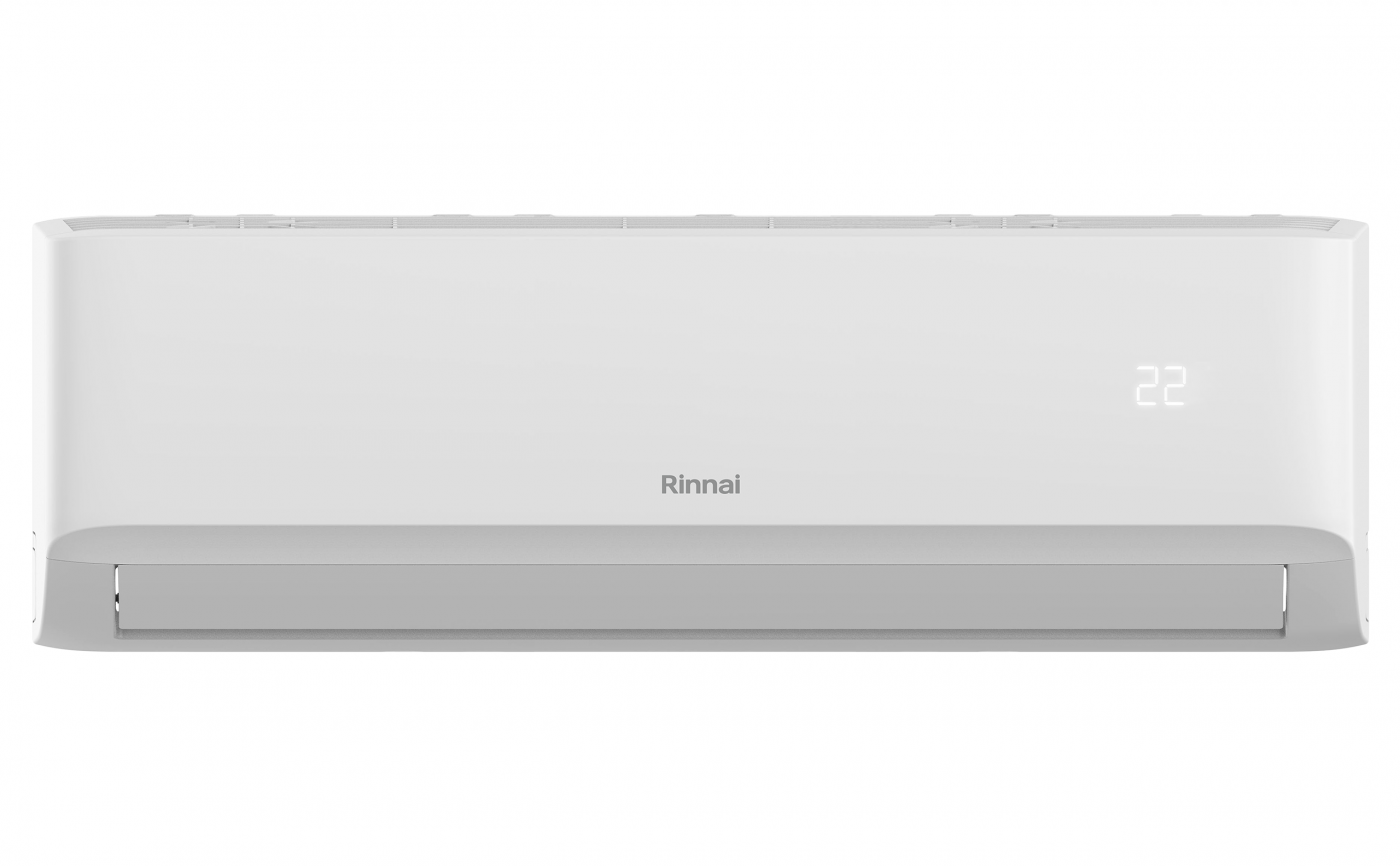

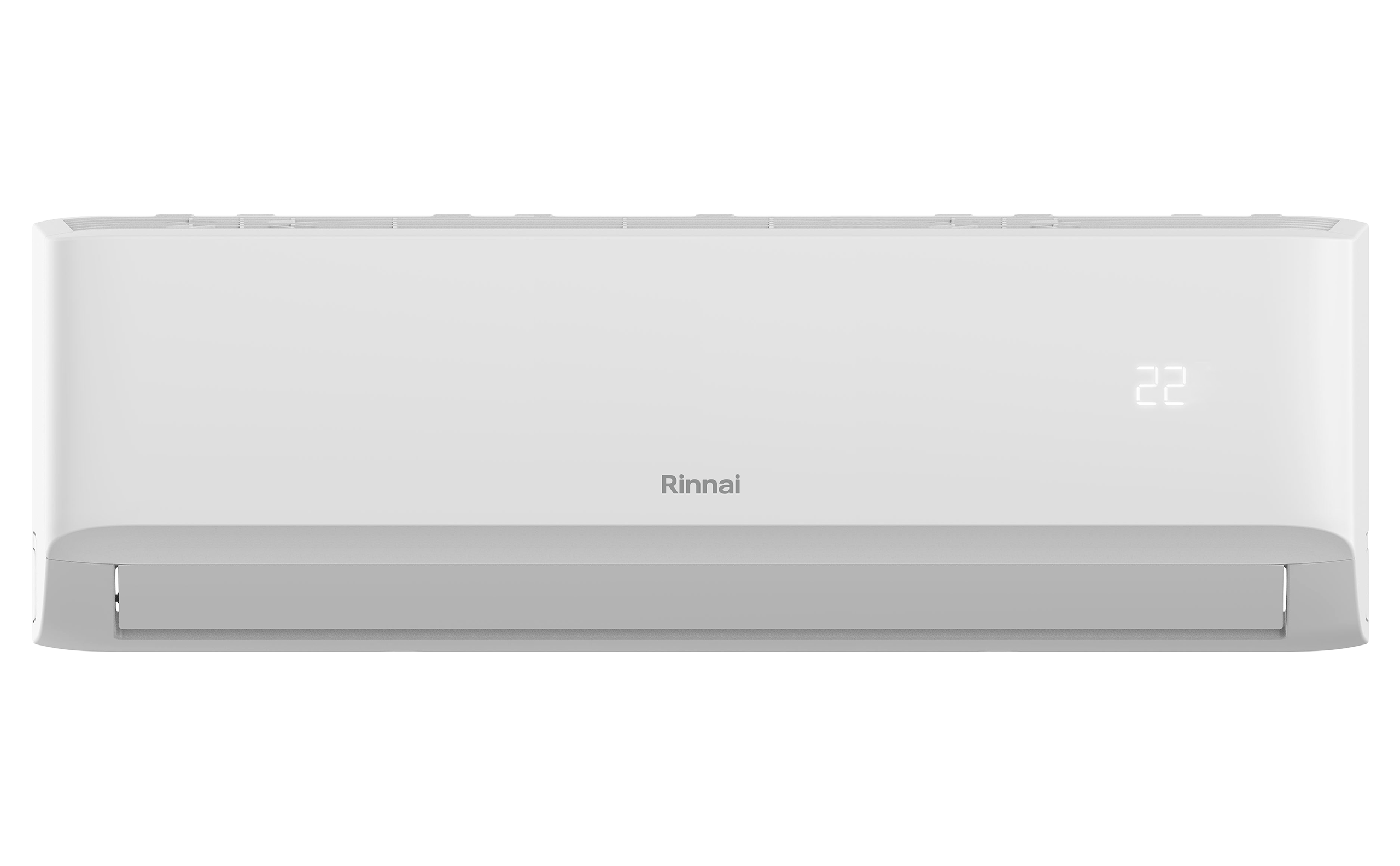

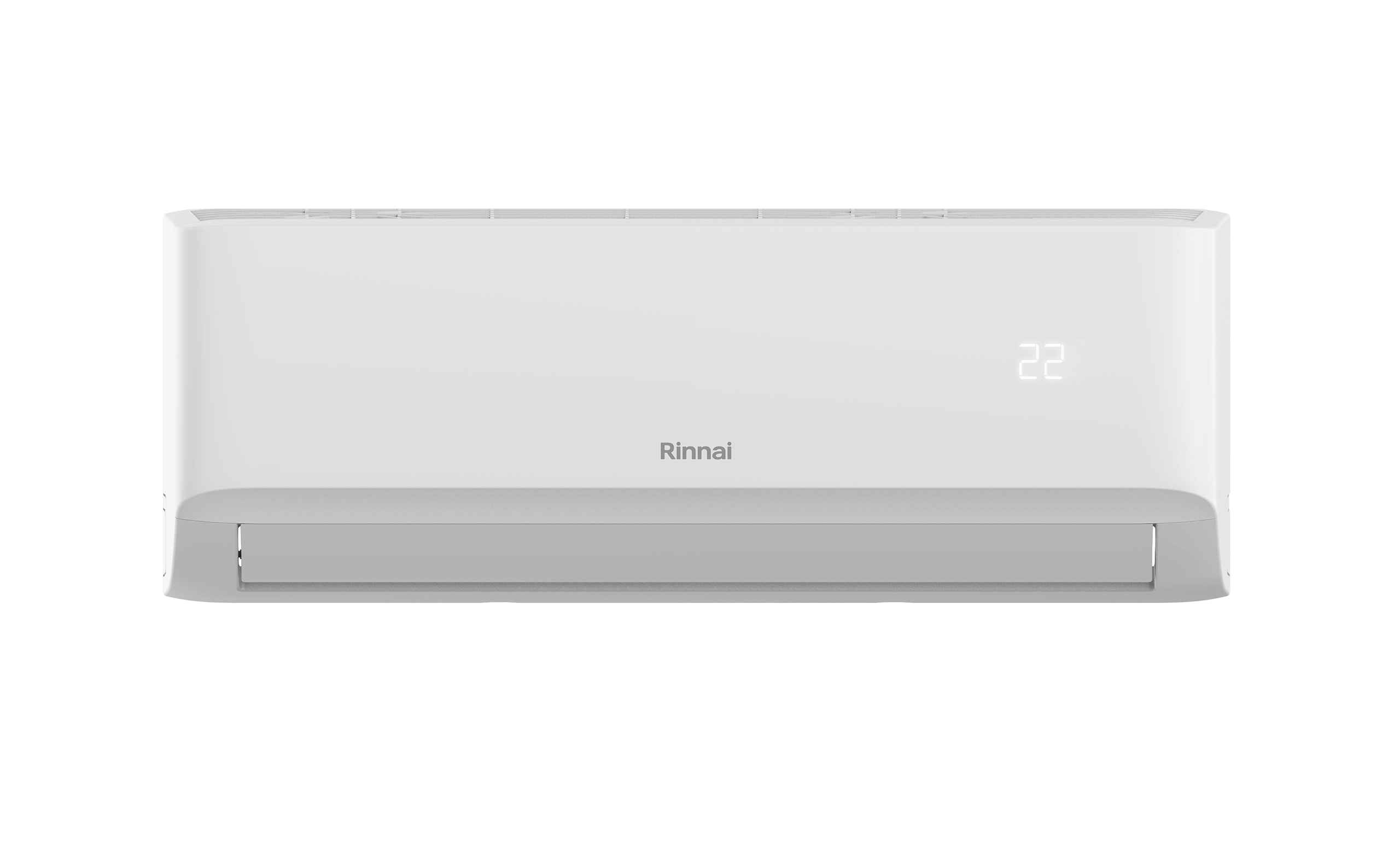

Rinnai PB Series 6.0kW Inverter Split Air Conditioner (front)

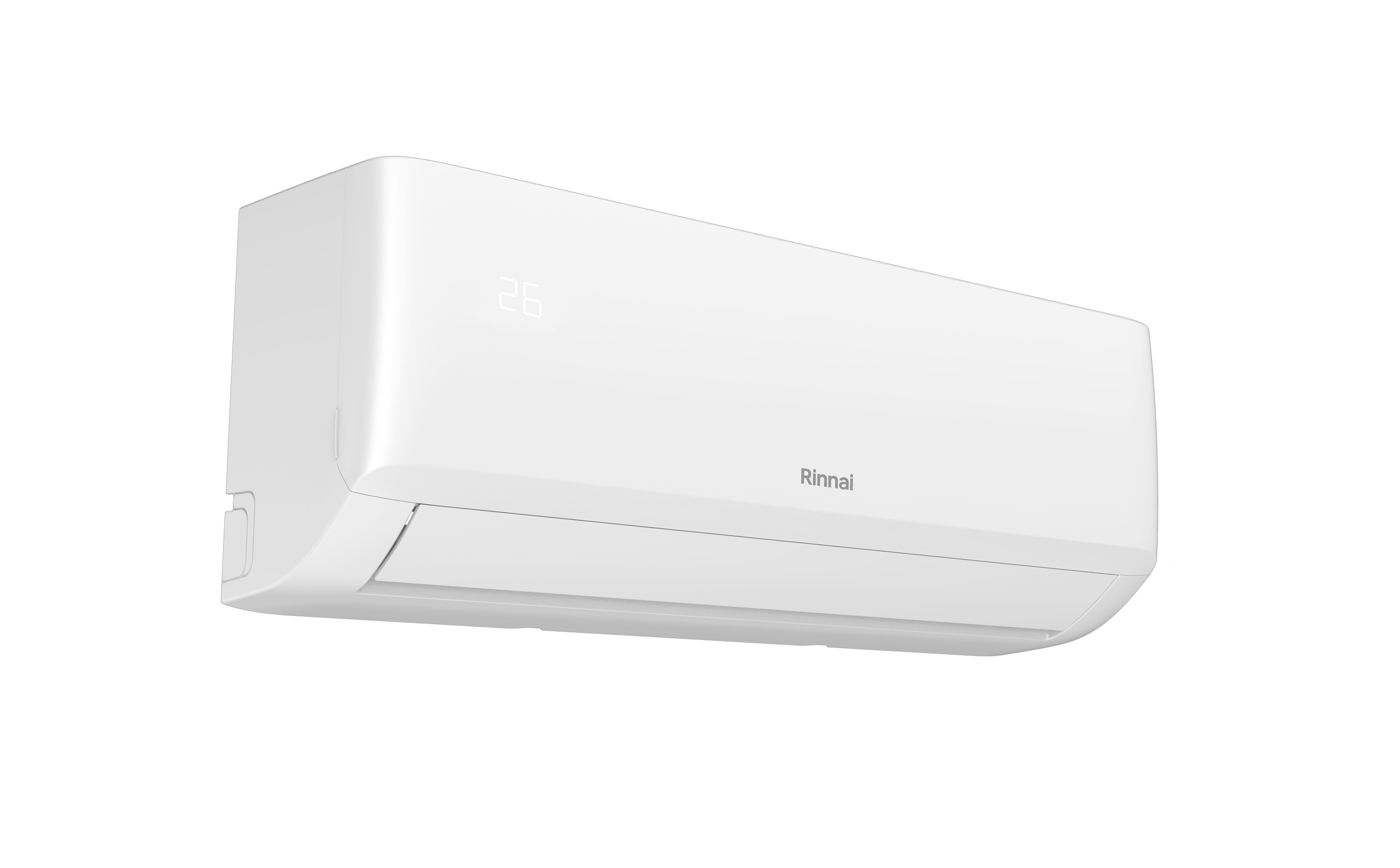

Rinnai PB Series Inverter Multi-Split Air Conditioner (left)

PB Series 6.0kW Reverse Cycle Split System

Streamlined home heating and cooling from the one unit

Sleep soundly all year round with the ultra-quiet PB Series 6.00kW Reverse Cycle Split System.

The intelligent inverter split system quickly delivers energy efficient heating and cooling using its turbo function. Improve indoor air quality by controlling room humidity levels using the effective dehumidifying mode.

Maintenance is also a breeze as the indoor unit allows for user-friendly access, saving you time and money.

With a host of features including convenient Wi-Fi control and timer functions, the PB Series 6.0kW is a practical split system for family rooms and living spaces.

Dimensions:

H: 321, W: 991, D: 228

Locate Your Nearest Store

Specialist

Dealer

Retailer

Trade

Flame Fire Specialist

Climate Specialist

Dealer

Retailer

Trade

Features & Performance
Specifications
Downloads

Ideal for large living spaces

Wi-Fi control

DRED function

Quiet operation

7 year limited warranty

Superior technology

Inverter technology to maintain consistent temperature and reduce running costs

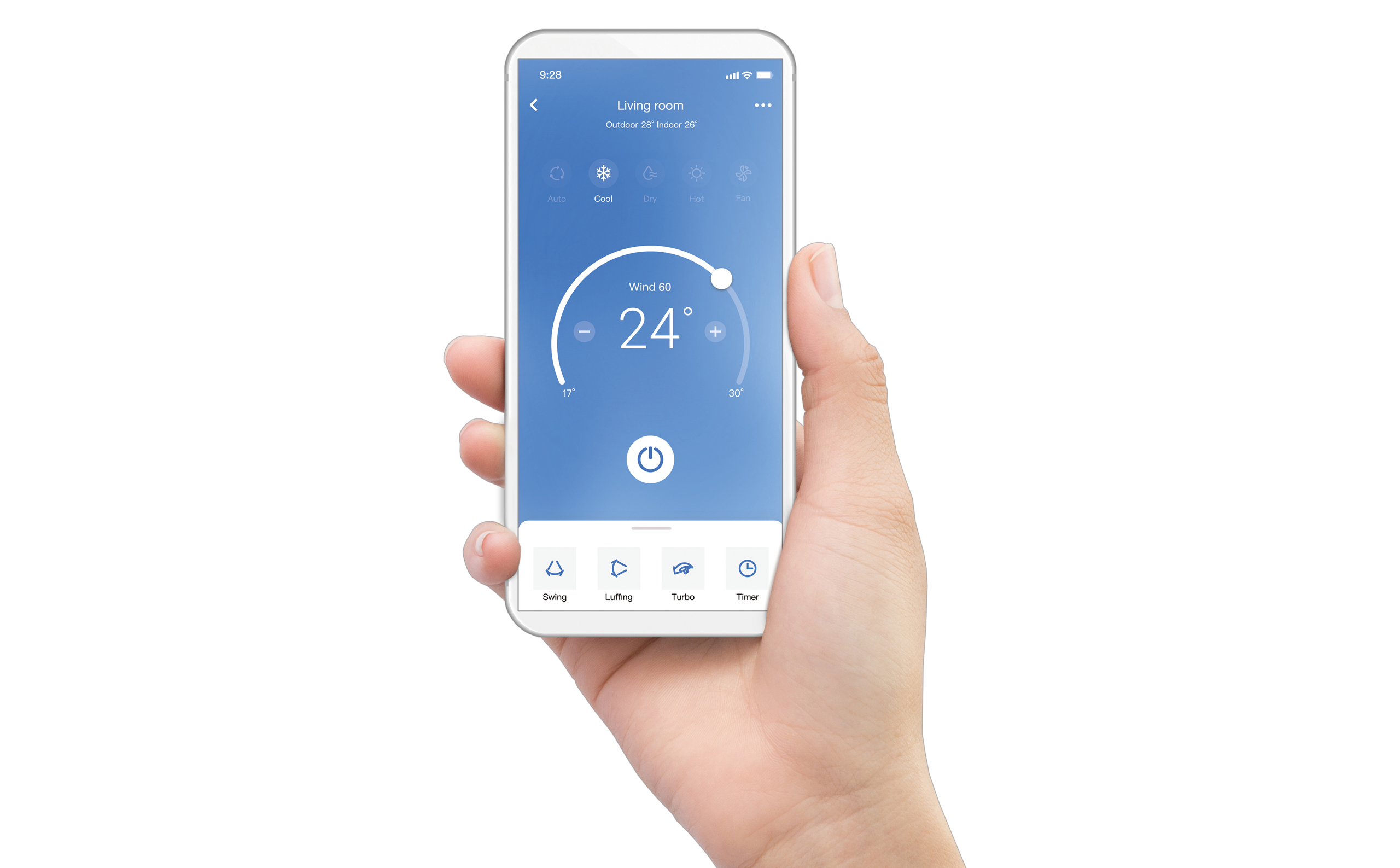

Wi-Fi Control – you can control your Rinnai using a mobile device from anywhere in the world
Convenient and simple to use LCD wireless remote control
DRED* Function
Quiet operation, ideal for bedrooms and living spaces
3D airflow with horizontal and vertical swing
Heating and cooling functionality
Turbo function to quickly cool in summer or swiftly warm in winter
Dehumidifying mode
Delay timer functionality to turn the appliance on or off within a specific time period

Rinnai quality

7 year limited warranty

Find out which size PB Series split system your room requires

The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.

*DRED Function: Equipped with demand response capability (DRED) to help reduce overall power consumption at critical peak load times.

Rinnai – PB Series 6.0kW Cycle Split System			Values	HSNRP60B
Nominal Capacity			kW	6.00
Power Supply (To Outdoor Unit)			V – Ph – Hz	220~240 – 1 – 50
Maximum Input Current			A	15.5
Maximum Input Power			W	3600
Recommended Circuit Breaker			A	20
Connectivity				Wi-Fi Enabled
Demand Response Enabling Device				DRED Enabled
Cooling	Rated Capacity		kW	6.0
	Capacity Range			2.10 – 7.20
	Rated Input Power		W	1750
	Rated Input Current		A	8.0
	AEER		W / W	3.42
	TCSPF	Hot		5.86
		Mixed		5.61
		Cold		5.99
Star Rating		Hot	Star	4.0
		Average
		Cold
Heating	Rated Capacity		kW	6.5
	Capacity Range			2.50 – 7.80
	Rated Input Power		W	1686
	Rated Input Current		A	8.2
	ACOP		W/W	3.847
	HSPF	Hot		5.31
		Mixed		4.29
		Cold		3.52
Star Rating		Hot	Star	3.5
		Average		2.5
		Cold		2.0
Moisture Removal			L / h	2.10
Suitable Area (up to 2.6m insulated ceiling)			m²	27 – 40

Indoor Unit				HINRP60MB
Dimensions	Unit	Height	mm	321
		Width		971
		Depth		228
	Packing	Height		405
		Width		1045
		Depth		308
Weight		Net	kg	11.1
Weight		Gross	kg	15.2
Air Flow		Turbo	L / s	264
		Hi		222
		Med		167
		Lo		139
		Silent		89
Sound Pressure @ 1.0m		Turbo	dB(A)	47.1
		Hi		44.5
		Med		38.0
		Lo		34.5
		Silent		28.0
Operating Range		Cooling	°C	16 ~ 32
Operating Range		Heating	°C	0 ~ 30
Standard Controller				Wireless Remote Control

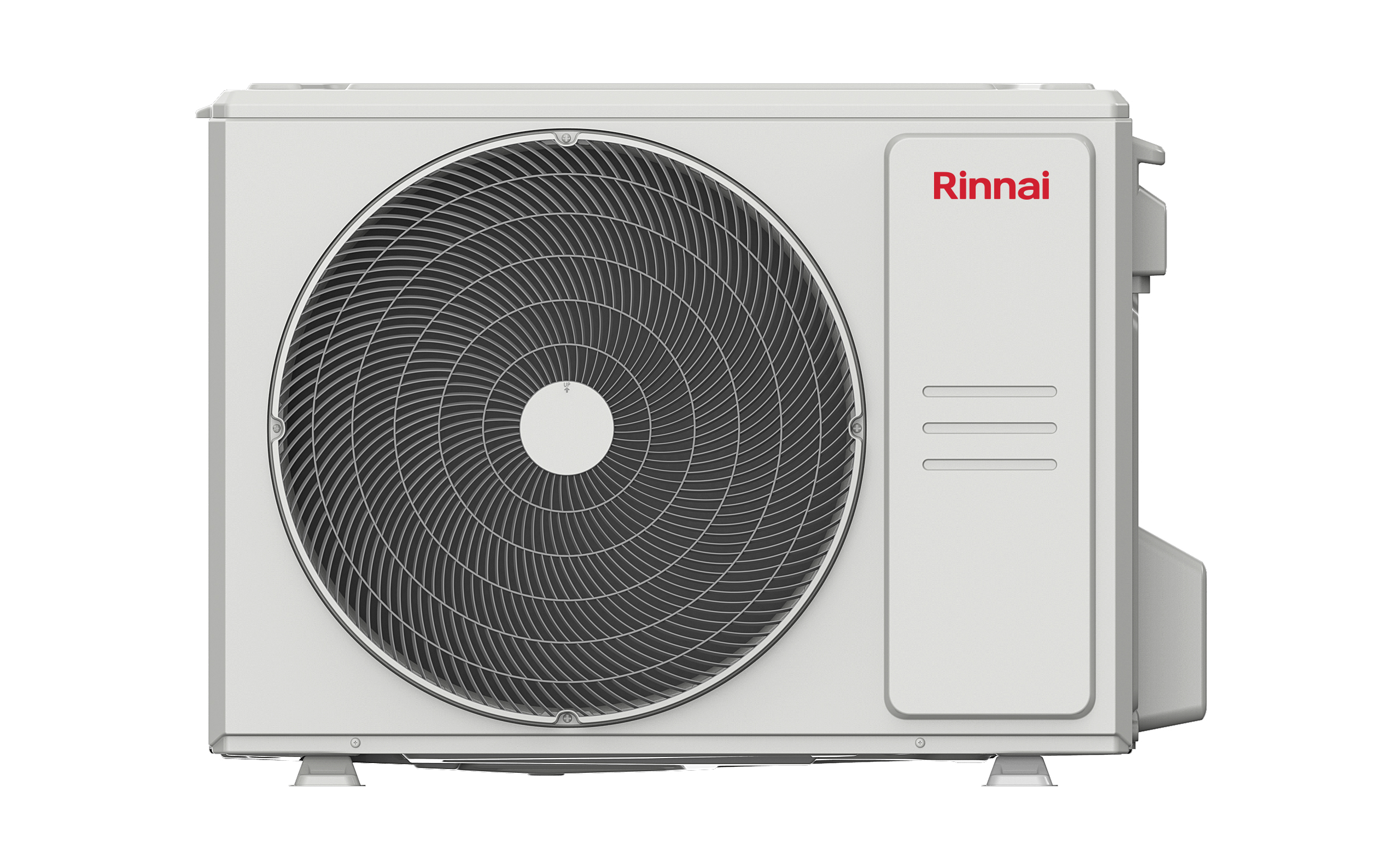

Outdoor Unit				HONRP60B
Dimensions	Unit	Height	mm	673
		Width		890
		Depth		342
	Packing	Height		740
		Width		995
		Depth		398
Weight		Net	kg	38.30
		Gross		41.6
Sound Pressure Level @ 1m				65.2
Refrigerant			Type	R32
Charged Volume			kg	1.26
Refrigerant Piping	Pipe Size: Liquid / Gas		mm	6.35 / 12.7
	Maximum Pipe Length		m	30
	Chargeless Length			10
	Extra Charge for Lengths >10m		g / m	12
	Maximum Vertical Separation		m	20
Ambient Temperature Limits	Cooling		°C	0 ~ 50
	Heating			-15 ~ 24
