PB Series 3.5kW Reverse Cycle Split System
PB Series 3.5kW Reverse Cycle Split System
Streamlined home heating and cooling from the one unit
Sleep soundly all year round with the ultra-quiet PB Series 3.55kW Reverse Cycle Split System.
The intelligent inverter split system quickly delivers energy efficient heating and cooling using its turbo function. Improve indoor air quality by controlling room humidity levels using the effective dehumidifying mode.
Maintenance is also a breeze as the indoor unit allows for user-friendly access, saving you time and money.
With a host of features including convenient Wi-Fi control and timer functions, the PB Series 3.55kW is a practical split system for Ideal size for large bedrooms, study or home office.
Locate Your Nearest Store
Ideal for large bedrooms, study or home office
Wi-Fi control
DRED function
Quiet operation
7 year limited warranty
Superior technology
- Inverter technology to maintain consistent temperature and reduce running costs
- Wi-Fi Control – you can control your Rinnai using a mobile device from anywhere in the world
- Convenient and simple to use LCD wireless remote control
- DRED* Function
- Quiet operation, ideal for bedrooms and living spaces
- 3D airflow with horizontal and vertical swing
- Heating and cooling functionality
- Turbo function to quickly cool in summer or swiftly warm in winter
- Dehumidifying mode
- Delay timer functionality to turn the appliance on or off within a specific time period
Rinnai quality
Find out which size PB Series split system your room requires
*DRED Function: Equipped with demand response capability (DRED) to help reduce overall power consumption at critical peak load times.
| Rinnai – PB Series 3.5kW Cycle Split System | Values | HSNRP35B | ||
| Nominal Capacity | kW | 3.55 | ||
| Power Supply (To Outdoor Unit) | V – Ph – Hz | 220~240 – 1 – 50 | ||
| Maximum Input Current | A | 10.5 | ||
| Maximum Input Power | W | 2300 | ||
| Recommended Circuit Breaker | A | 16 | ||
| Connectivity | Wi-Fi Enabled | |||
| Demand Response Enabling Device | DRED Enabled | |||
| Cooling | Rated Capacity | kW | 3.5 | |
| Capacity Range | 1.50 – 4.90 | |||
| Rated Input Power | W | 790 | ||
| Rated Input Current | A | 3.8 | ||
| AEER | W / W | 4.42 | ||
| TCSPF | Hot | 7.00 | ||
| Mixed | 6.76 | |||
| Cold | 7.07 | |||
| Star Rating | Hot | Star | 5.0 | |
| Average | 5.0 | |||
| Cold | 5.5 | |||
| Heating | Rated Capacity | kW | 3.8 | |
| Capacity Range | 1.80 – 5.10 | |||
| Rated Input Power | W | 830 | ||
| Rated Input Current | A | 5.00 | ||
| ACOP | W / W | 4.564 | ||
| HSPF | Hot | 6.23 | ||
| Mixed | 5.22 | |||
| Cold | 4.50 | |||
| Star Rating | Hot | Star | 4.5 | |
| Average | 3.5 | |||
| Cold | 3.0 | |||
| Moisture Removal | L / h | 1.20 | ||
| Suitable Area (up to 2.6m insulated ceiling) | m2 | 16 – 23 | ||
| Indoor Unit | HINRP35MB | |||
| Dimensions | Unit | Height | mm | 295 |
| Width | 802 | |||
| Depth | 200 | |||
| Packing | Height | 375 | ||
| Width | 875 | |||
| Depth | 288 | |||
| Weight | Net | kg | 8.5 | |
| Gross | 11.5 | |||
| Air Flow | Turbo | L / s | 183 | |
| Hi | 147 | |||
| Med | 106 | |||
| Lo | 86 | |||
| Silent | 58 | |||
| Sound Pressure @ 1.0m | Turbo | dB(A) | 46.7 | |
| Hi | 39 | |||
| Med | 32.5 | |||
| Lo | 30 | |||
| Silent | 24.5 | |||
| Operating Range | Cooling | °C | 16~32 | |
| Heating | 0~30 | |||
| Standard Controller | Wireless Remote Control | |||
| Outdoor Unit | HONRP35B | |||
| Dimensions | Unit | Height | mm | 554 |
| Width | 805 | |||
| Depth | 330 | |||
| Packing | Height | 615 | ||
| Width | 915 | |||
| Depth | 370 | |||
| Weight | Net | kg | 32.2 | |
| Gross | 35.1 | |||
| Sound Pressure Level @ 1m | dB(A) | 55.5 | ||
| Refrigerant | Type | R32 | ||
| Charged Volume | kg | 0.90 | ||
| Refrigerant Piping | Pipe Size: Liquid / Gas | mm | 6.35 / 9.52 | |
| Maximum Pipe Length | m | 25 | ||
| Chargeless Length | 10 | |||
| Extra Charge for Lengths >10m | g / m | 12 | ||
| Maximum Vertical Separation | m | 10 | ||
| Ambient Temperature Limits | Cooling | °C | 0 ~ 52 | |
| Heating | -15 ~ 24 | |||
Photography
-

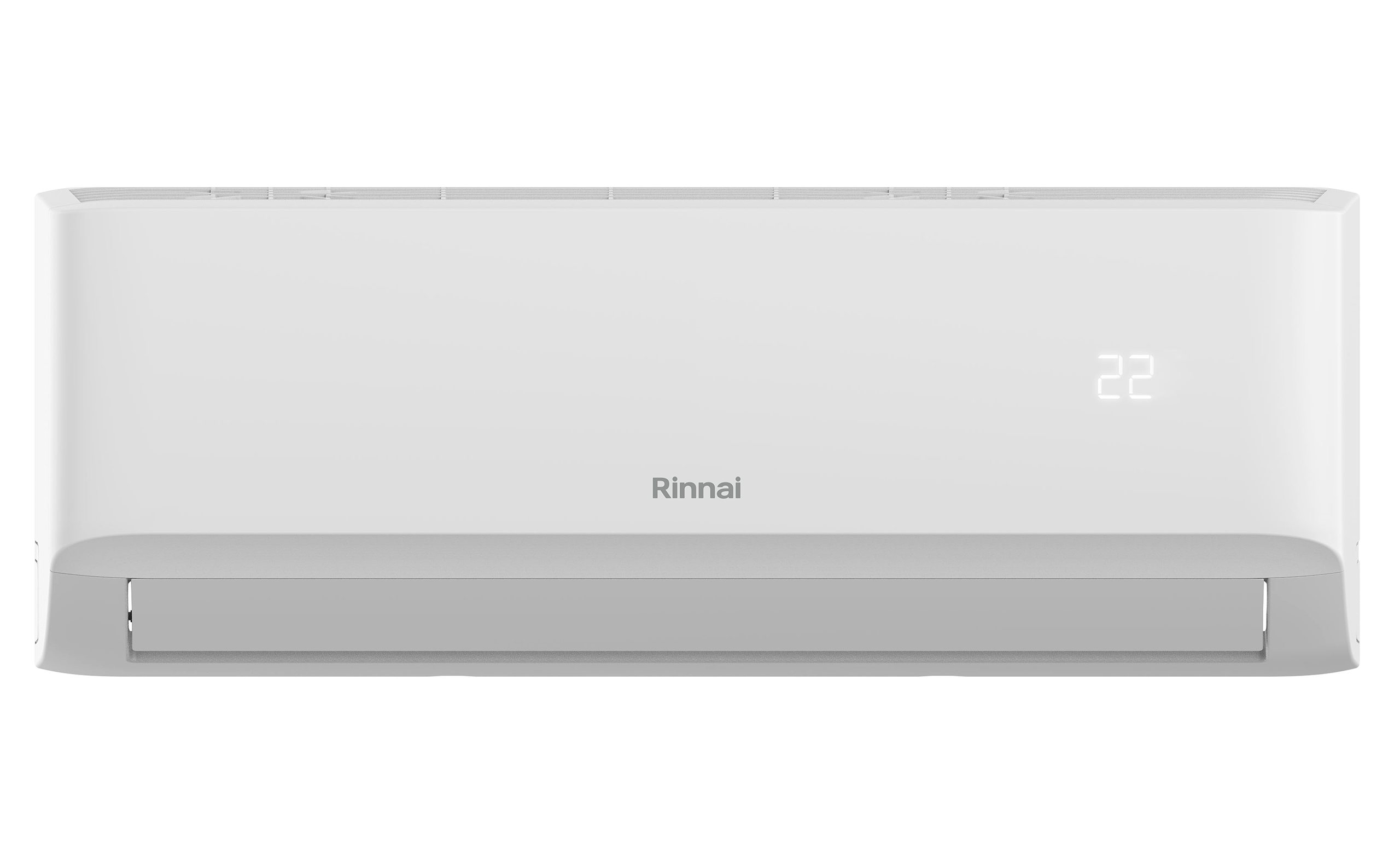

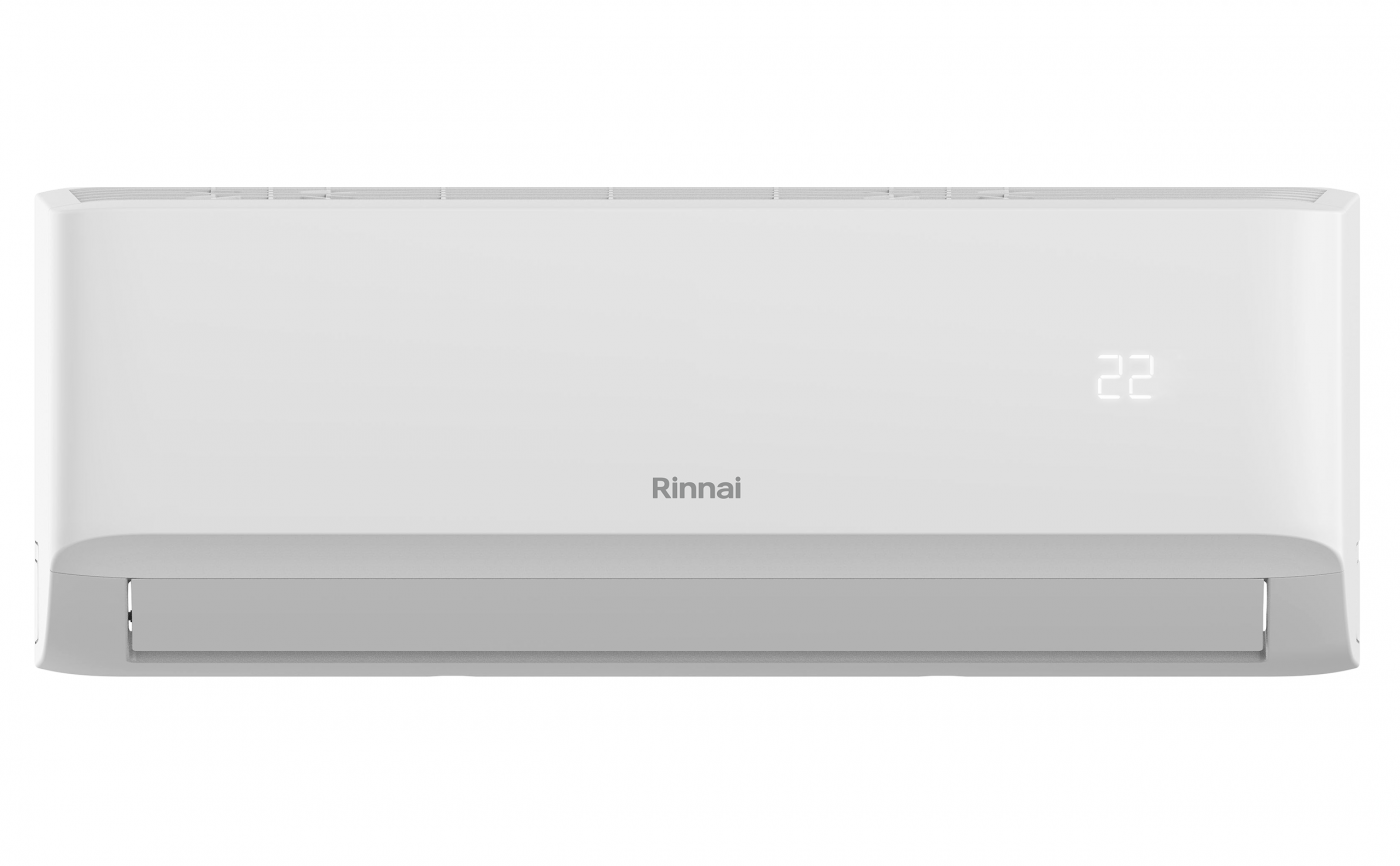

Rinnai PB Series 3.55kW Inverter Split Air Conditioner (front)Preview
-
