Rinnai Floor Console Series
Rinnai Floor Console Series
Designed for the Australian Climate
Designed for Australia’s ever-changing climate, the Rinnai Floor Console Inverter Split System Air Conditioner Series offers optimal heating and cooling all year round, no matter where you live.
Packed with innovative features, including Wi-Fi connectivity, this system provides complete comfort throughout the year. The Rinnai Floor Console stands out with its programmable timer function, accessible via an app, allowing you to set the unit’s operation times to achieve the perfect room temperature. It operates with a low noise level, ensuring a peaceful environment, with easy installation and maintenance for your convenience.
Encased in a sleek, contemporary design, the Rinnai Floor Console is durable and designed to complement any home interior.
Wi-Fi Control
Quite Operation
Dual Air Outlets
Turbo Function
Programmable Timer
7 year limited warranty
Superior technology
- Turbo Function – Quickly cool in summer or swiftly warm in winter
- Equipped with demand response capability (DRED) reducing overall power consumption at critical peak load times*
- R32 refrigerant** – greater savings for you and the environment
- Programmable timer accessible by the app
- Wi-Fi compatible
- Low operating noise levels
- Flexible installation
Rinnai quality
- 7 year limited warranty
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
*DRED Function: Equipped with demand response capability (DRED) to help reduce overall power consumption at critical peak load times. Subject to availability from your energy provider.
**R32 refrigerant: is a highly energy-efficient, low-GWP gas used in modern air conditioners. It offers better cooling performance while using less energy, making it ideal for eco-friendly air conditioning systems.
| Rinnai – Floor Console Inverter Split System Air Conditioner Series | Values | Model | |
| Floor Console Single Split System | FSNRP50B | ||
| Power Supply | V-Ph-Hz | 220 – 240V, 1Ph, 50Hz | |
| Cooling (Standard conditions) | Rated Capacity | kW | 4.90 |
| Rated Power Input | W | 1340 | |
| Rated Current | A | 5.95 | |
| AEER | W/W | 3.636 | |
| TCSPF (Hot / Average / Cold) | – | 6.12 / 5.79 / 6.08 | |
| Star Rating (Hot / Average / Cold) | – | 4.5 / 4.0 / 4.5 | |
| Heating (Standard conditions) | Rated Capacity | kW | 5.50 |
| Rated Power Input | W | 1300 | |
| Rated Current | A | 5.94 | |
| ACOP | W/W | 4.207 | |
| HSPF (Hot / Average / Cold) | – | 4.98 / 4.42 / 3.79 | |
| Star Rating (Hot / Average / Cold) | – | 3.0 / 2.5 / 2.0 | |
| Indoor Unit Model | FINRP50MB | ||
| Sound Power Level | dB(A) | 54.0 | |
| Indoor Unit (H x W x D) | Unit | mm | 621 x 794 x 200 |
| Packing | mm | 719 x 865 x 280 | |
| Net / Gross Weight | kg | 14.9 / 18.8 | |
| Outdoor Unit Model | HONRP50B | ||
| Outdoor Unit (H x W x D) | Unit | mm | 673 x 890 x 342 |
| Packing | mm | 740 x 995 x 398 | |
| Net / Gross Weight | kg | 38.3 / 41.4 | |
| Sound Power Level | dB(A) | 65.0 | |
| Refrigerant Type / Refrigerant Charged Volume | kg | R32 / 1.26 | |
| Refrigerant Piping | Liquid Side / Gas Side | mm | 6.35 / 12.7 |
| Max. Refrigerant Pipe Length | m | 30 | |
| Max. Difference in Level | m | 20 | |
Photography
-

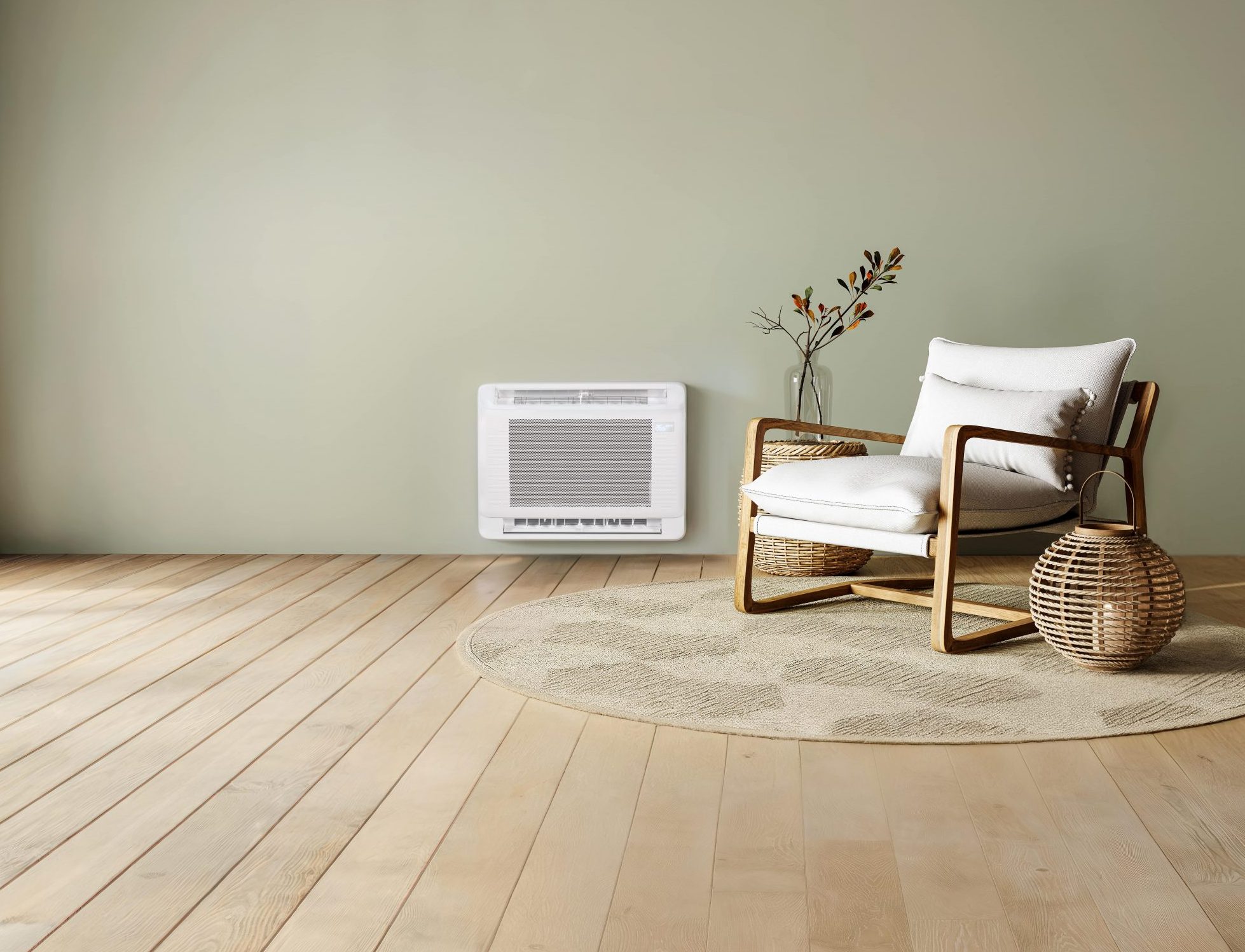

Rinnai Floor Console Inverter Split SystemPreview
-

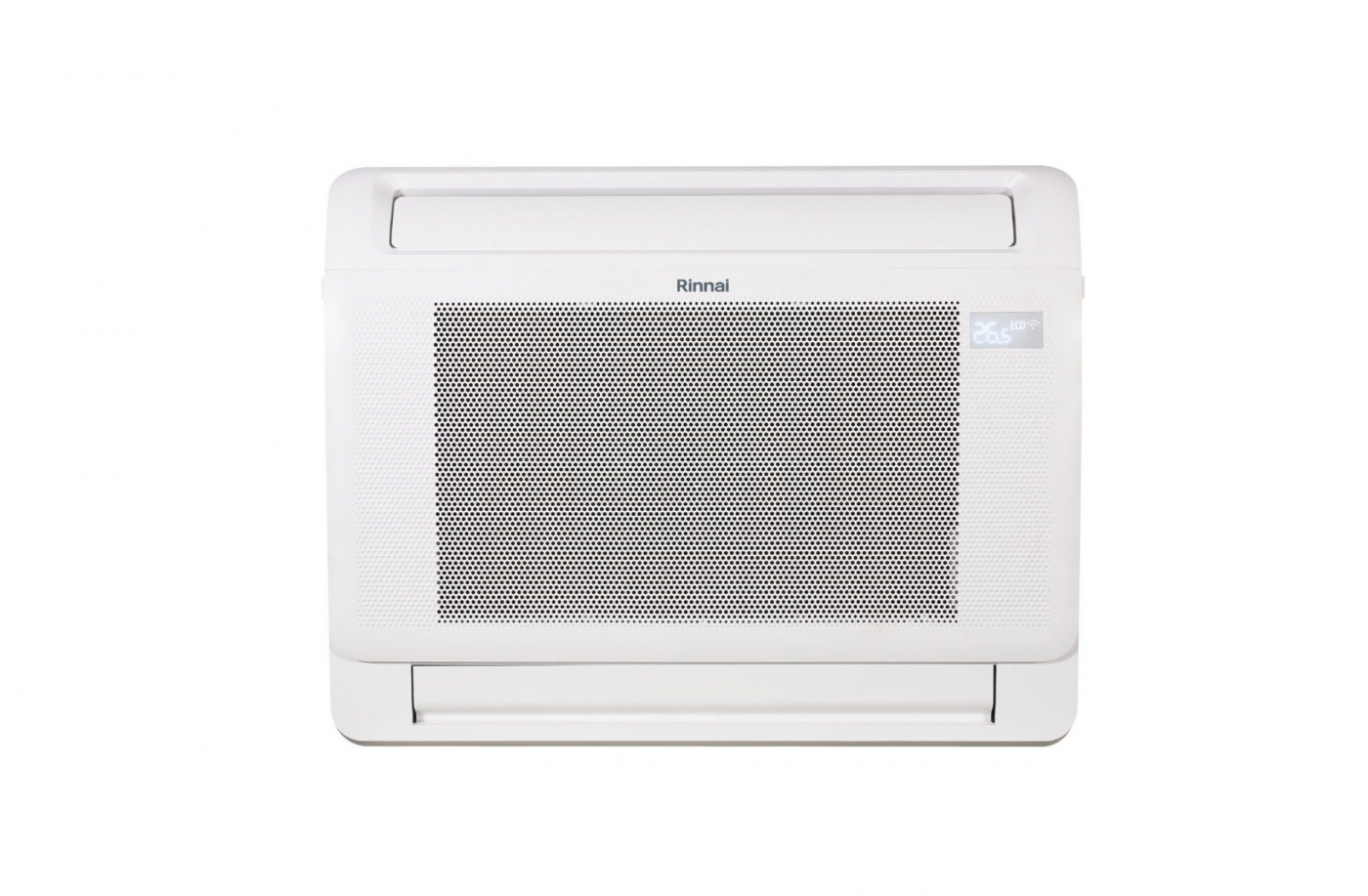

Rinnai Floor Console Inverter Split System (front)Preview
-
Rinnai Inverter Multi-Split Floor Console Air Conditioner (left)Preview
-
Rinnai Inverter Multi-Split Floor Console Air Conditioner (right)Preview
-
Rinnai Inverter Multi-Split Floor Console Air Conditioner (front two louvers open)Preview
-
Rinnai Inverter Multi-Split Floor Console Air Conditioner (front upper louvers open)Preview
-
Rinnai Inverter Multi-Split Floor Console Air Conditioner Remote ControllerPreview
