Inverter Multi-Split Compact Cassette
Inverter Multi-Split Compact Cassette
Compact and Space Saving solution
The Inverter Multi-Split Compact Cassette System offers a discreet yet powerful air conditioning solution. Designed for larger open plan areas, this unit features a low-profile design with a 360° airflow system to ensure even distribution of air.
It has Wi-Fi control system and can be managed remotely via the NetHome Plus app, providing convenience and advanced temperature control.
This unit is an excellent choice for those looking to maximise ceiling space while maintaining a seamless and sleek appearance in their home or office.
Locate Your Nearest Stockist
NOTE: Rinnai does not sell directly to the public. Our products are available only through third-party stockists and installers.
Ideal for use in the larger open plan areas
Wi-Fi control
Turbo function
Sleep mode
Super fine filter
Programmable timer
7 year limited warranty
Superior technology
- Ideal for use in the larger open plan areas
- Wi-Fi Control – you can control your system from a mobile device using the NetHome Plus app from anywhere in the world
- Inverter Technology – to maintain consistent temperature and reduce running costs
- Convenient and simple to use LCD wireless remote control
- Quiet operation
- Heating and cooling functionality
- Turbo function – quickly cools in summer and swiftly warms in winter
- Timer functionality to turn the appliance on or off when needed
Multi variants - Outdoor units
- MON3H07B - 3 Indoor Units connected
- MON4H09B - 4 Indoor Units connected
- MON5H11B - 5 Indoor Units connected
- MON5H13B - 5 Indoor Units connected
- MON6H18B - 6 Indoor Units connected
Rinnai quality
Download NetHome Plus App
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
Product codes:
Outdoor: 3 - MON3H07B | 4 - MON4H09B | 5 - MON5H11B | 5 - MON5H13B | 6 - MON6H18B
Indoor Compact Cassette: 2.0 - CIN020RMB | 2.6 - CIN026RMB | 3.5 - CIN035RMB | 5.0 - CIN050RMB
| Rinnai – Inverter Multi-Split Compact Cassette System | Values | CIN020RMB | CIN026RMB | CIN035RMB | CIN050RMB | ||
| Fascia Panel | Model no. | CINFASMB | |||||
| Power Supply | V Ph / Hz | 220~240 / 1-50 | |||||
| Dimensions (H x W x D) | Body | Net | mm | 245 x 570 x 570 | 245 x 570 x 570 | 245 x 570 x 570 | 245 x 570 x 570 |
| Gross | 295 x 715 x 640 | 295 x 715 x 640 | 295 x 715 x 640 | 295 x 715 x 640 | |||
| Fascia | Net | 50 x 620 x 620 | |||||
| Gross | 115 x 715 x 700 | ||||||
| Weight | Body | Net | kg | 14.6 | |||
| Gross | 17.5 | ||||||
| Fascia | Net | 2.7 | |||||
| Gross | 4.3 | ||||||
| Cooling | Rated Capacity | kW | 2.00 | 2.60 | 3.50 | 5.30 | |
| Rated Input Power | W | 60 | 60 | 70 | 75 | ||
| Rated Input Current | A | 1.1 | 1.2 | 1.2 | 1.2 | ||
| Heating | Rated Capacity | kW | 2.30 | 2.90 | 3.50 | 5.50 | |
| Rated Input Power | W | 60 | 60 | 70 | 75 | ||
| Rated Input Current | A | 1.1 | 1.2 | 1.2 | 1.2 | ||
| Operating Range | Cooling | °C | 16 – 32 | ||||
| Heating | 0 – 30 | ||||||
| Airflow | Hi / Med / Lo | L / s | 139 / 128 / 111 | 139 / 128 / 111 | 172 / 144 / 92 | 183 / 150 / 83 | |
| Sound Pressure @ 1.0m | dB(A) | 40 / 37 / 27 | 40/37/27 | 42 / 38 / 31 | 44 / 41 / 31.5 | ||
| Refrigeration Pipe Size | Liquid / Gas | mm | 6.35 / 9.52 | 6.35 / 9.52 | 6.35 / 9.52 | 6.35 / 12.70 | |
| Refrigerantion Pipe Size | Liquid | mm | 6.35 | 6.35 | 6.35 | 6.35 | |
| Gas | 9.52 | 9.52 | 9.52 | 12.7 | |||
| Condensate Drain Pump Connection | mm | Φ25 | Φ25 | Φ25 | Φ25 | ||
| Controller | Wireless Remote controller | ||||||
| Wi-Fi Compatibility | Standard | ||||||
Consumer
-
Inverter Multi-Split Air Conditioning Brochure
-
Inverter Multi-Split Air Conditioning Operation Manual
-
Inverter Multi-Split Compact Cassette Air Conditioning Operation and Installation Manual
-
Inverter Multi-Split Compact Cassette Air Conditioning Wireless Smart Kit Operation Manual
-
Inverter Multi-Split Compact Cassette Air Conditioning Remote Controller Operation Manual
-
Air Conditioning Warranty Booklet
Installation Guides + Diagrams
-
Inverter Multi-Split Outdoor Unit Air Conditioning Installation Manual
Photos
-

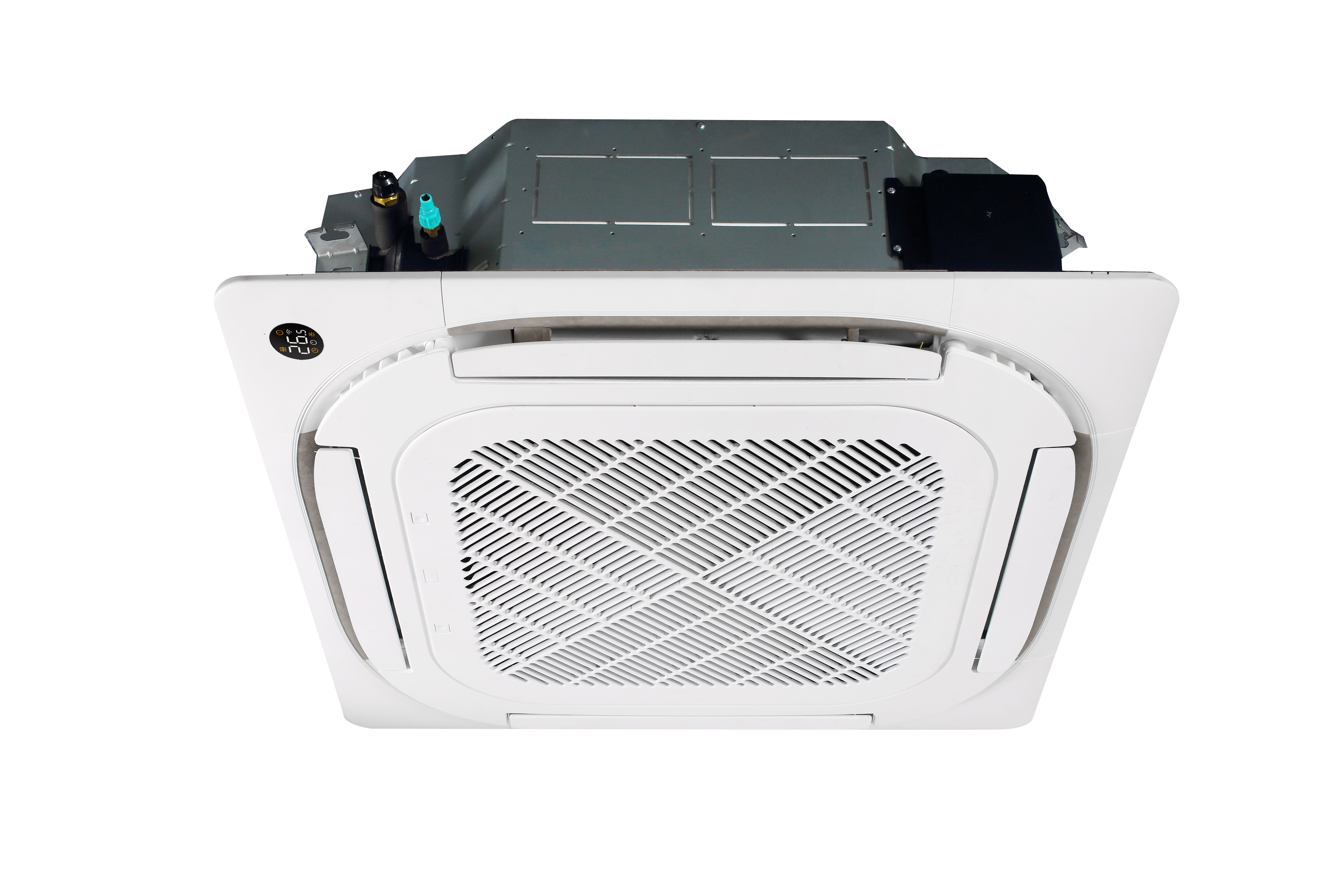

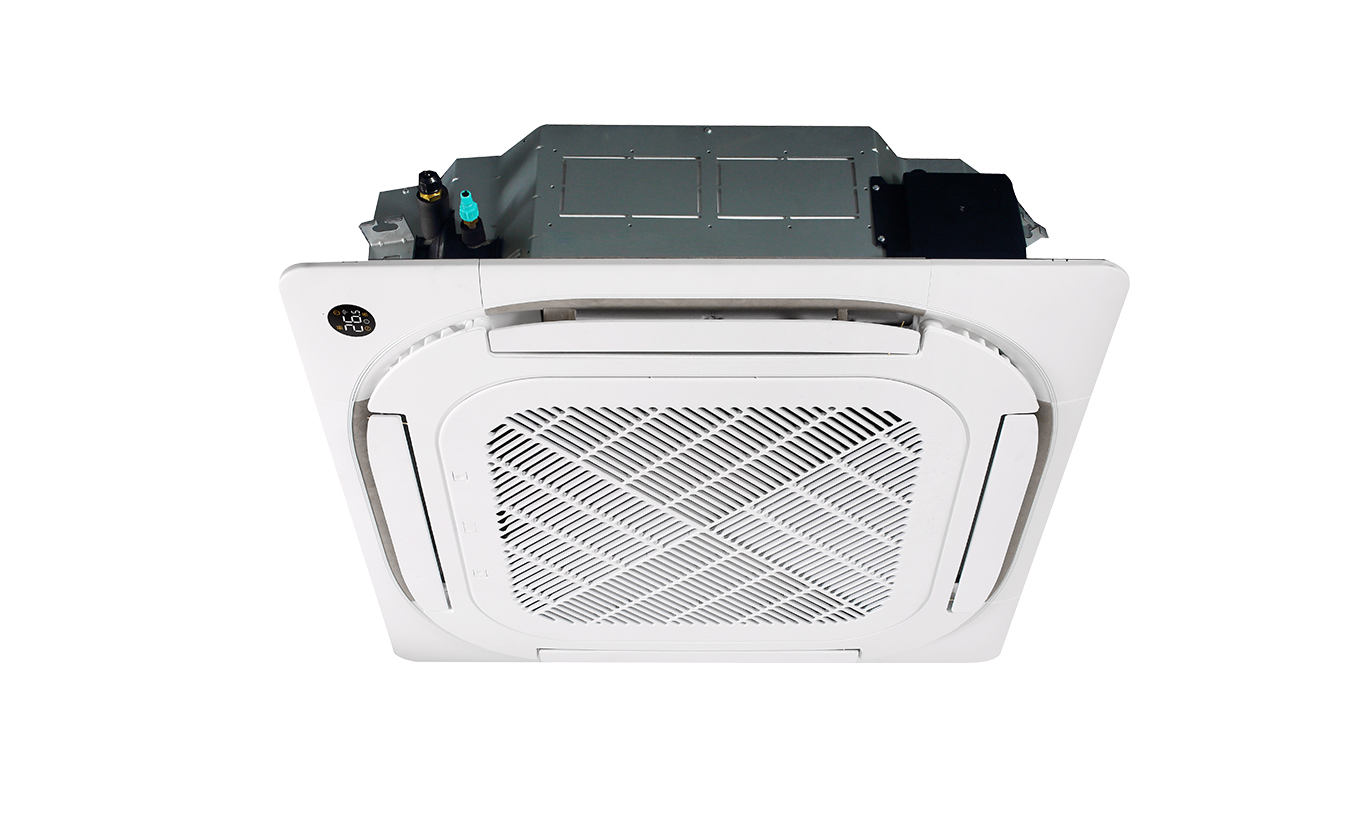

Rinnai Inverter Multi-Split Compact Cassette Air Conditioner

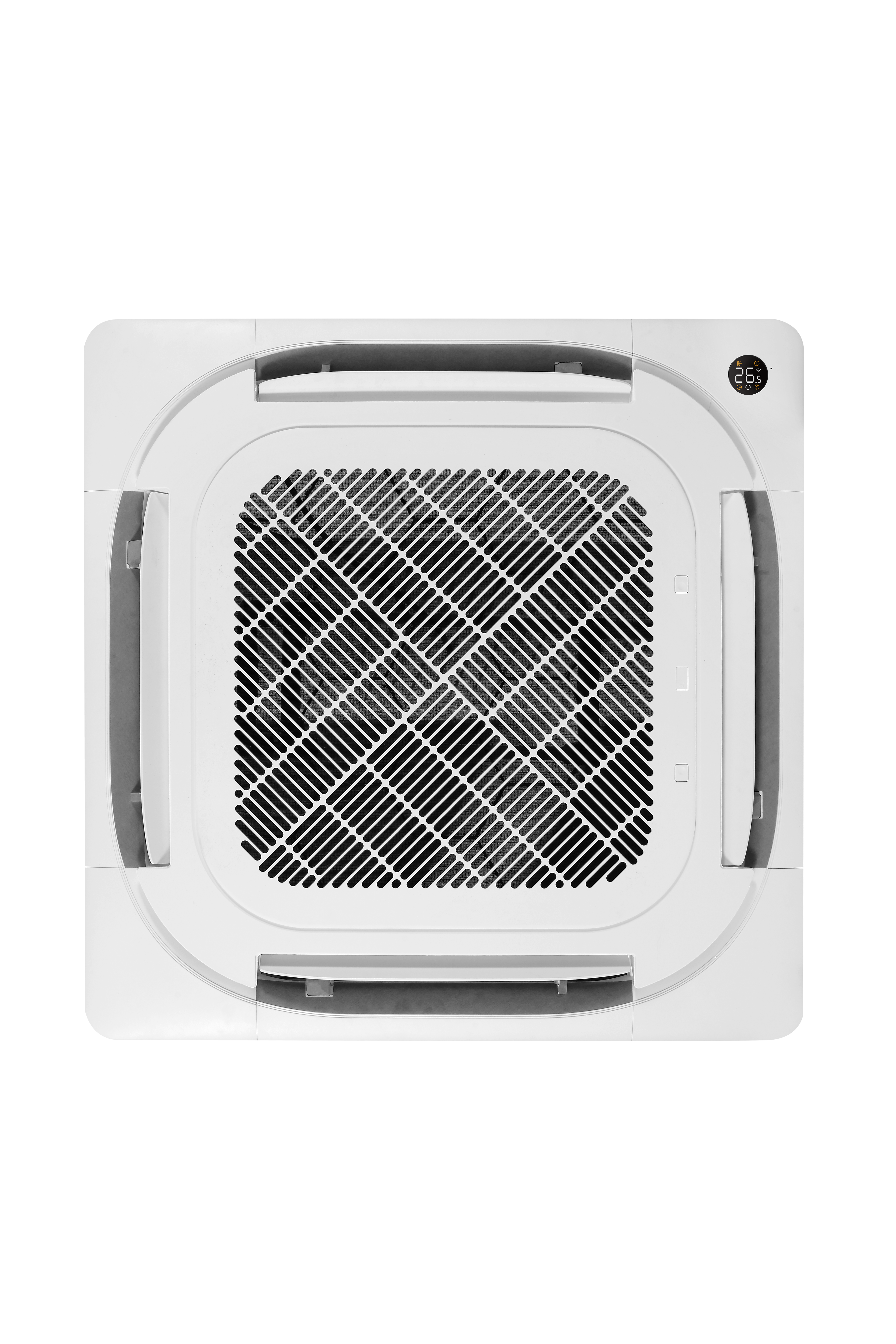

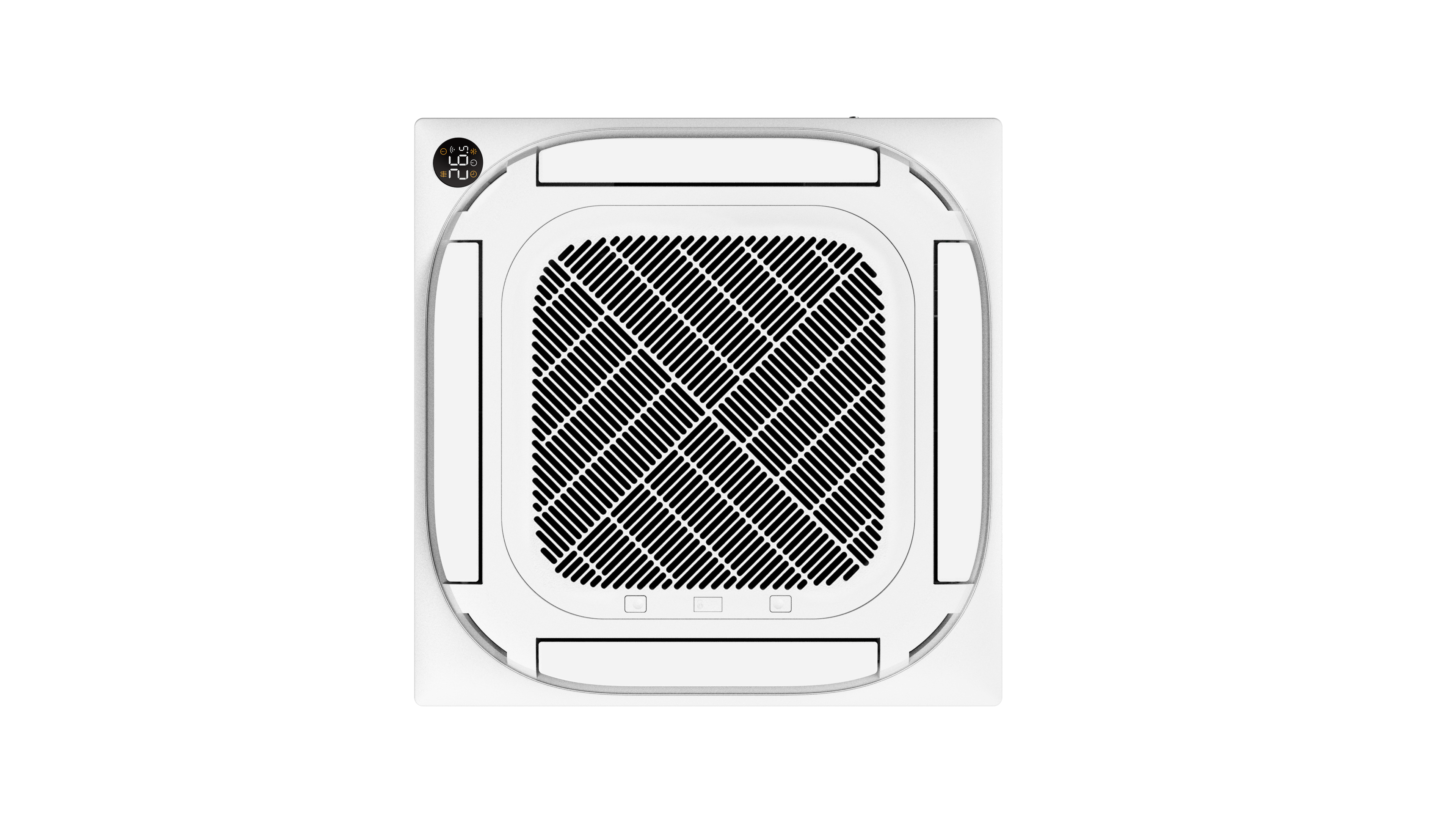

Rinnai Inverter Multi-Split Compact Cassette Air Conditioner (below)

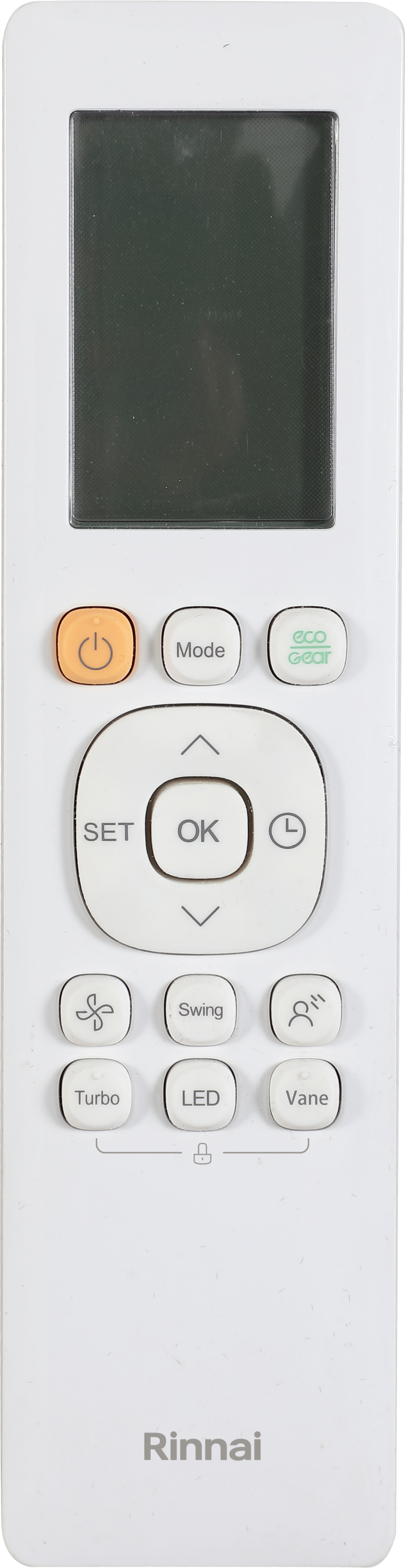

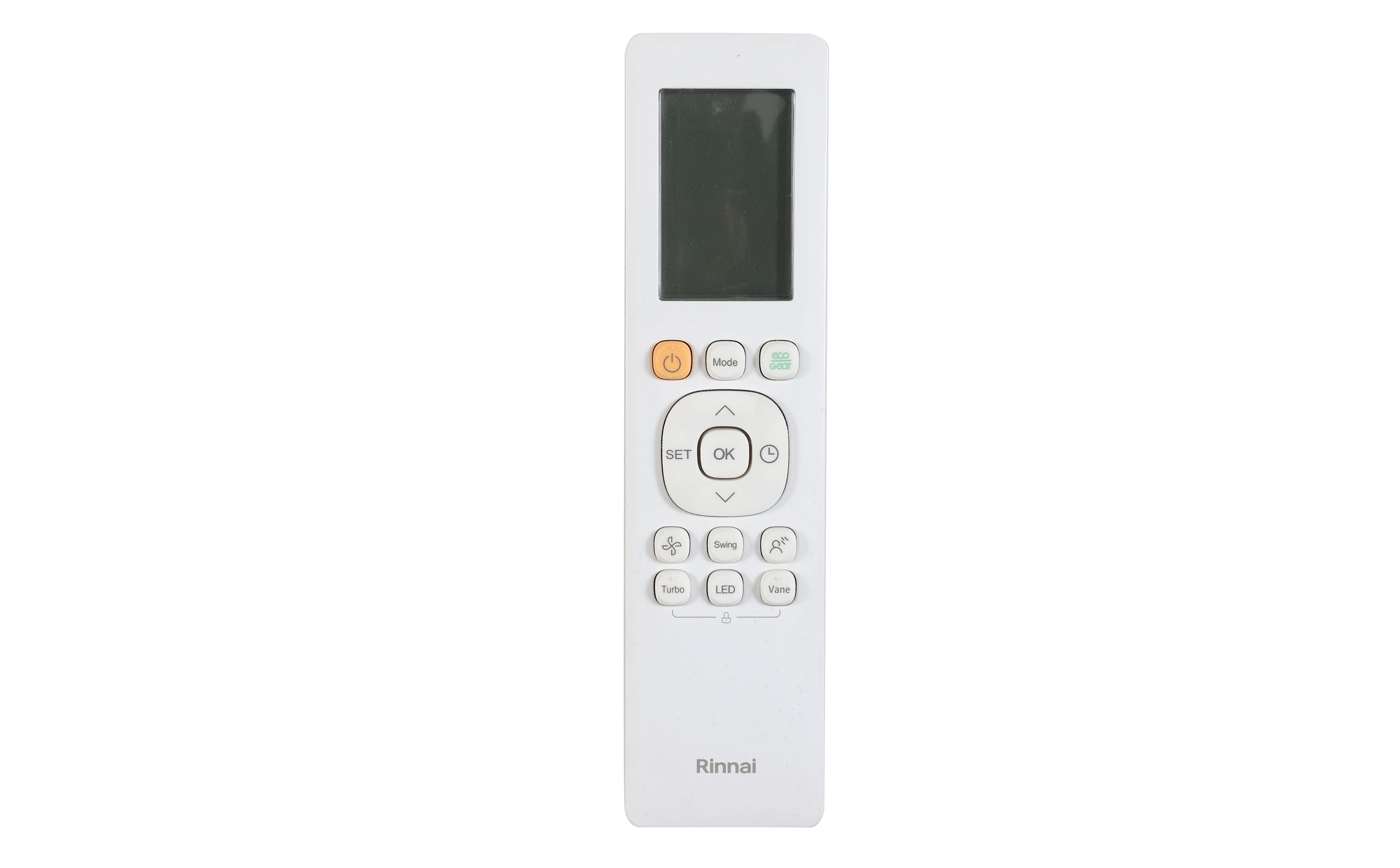

Rinnai PB Series Inverter Split Air Conditioner Remote Controller
