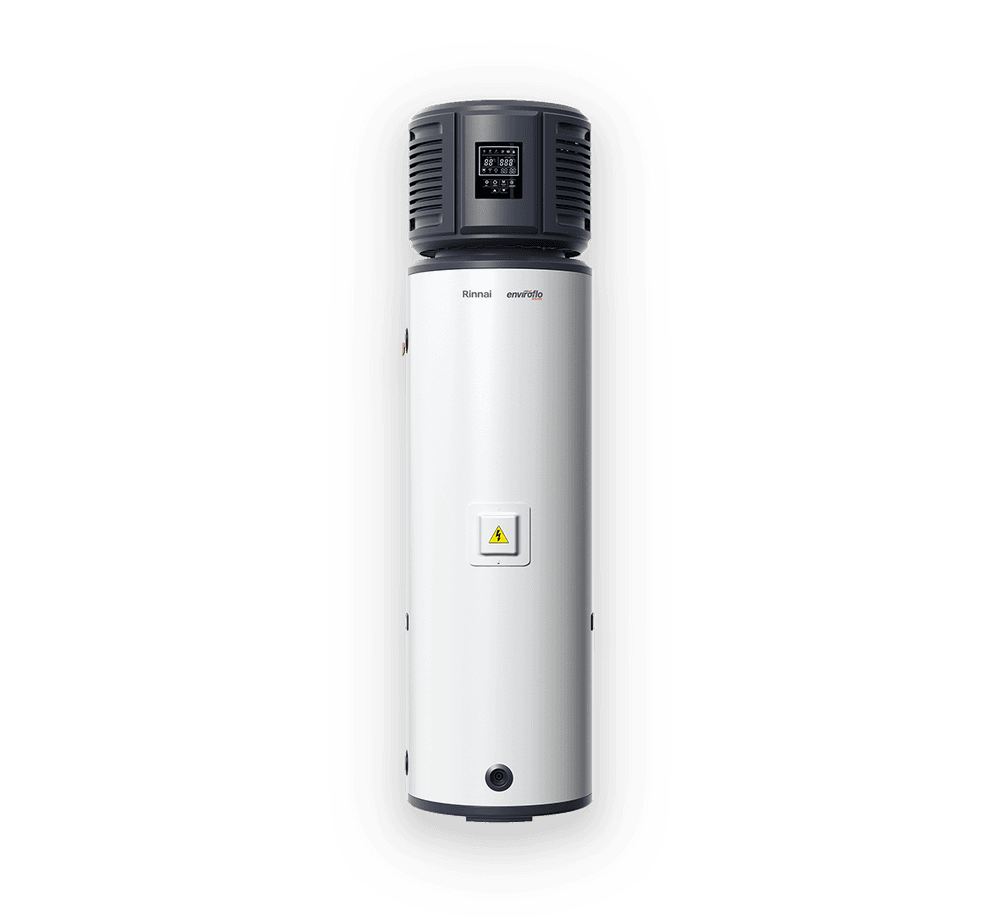

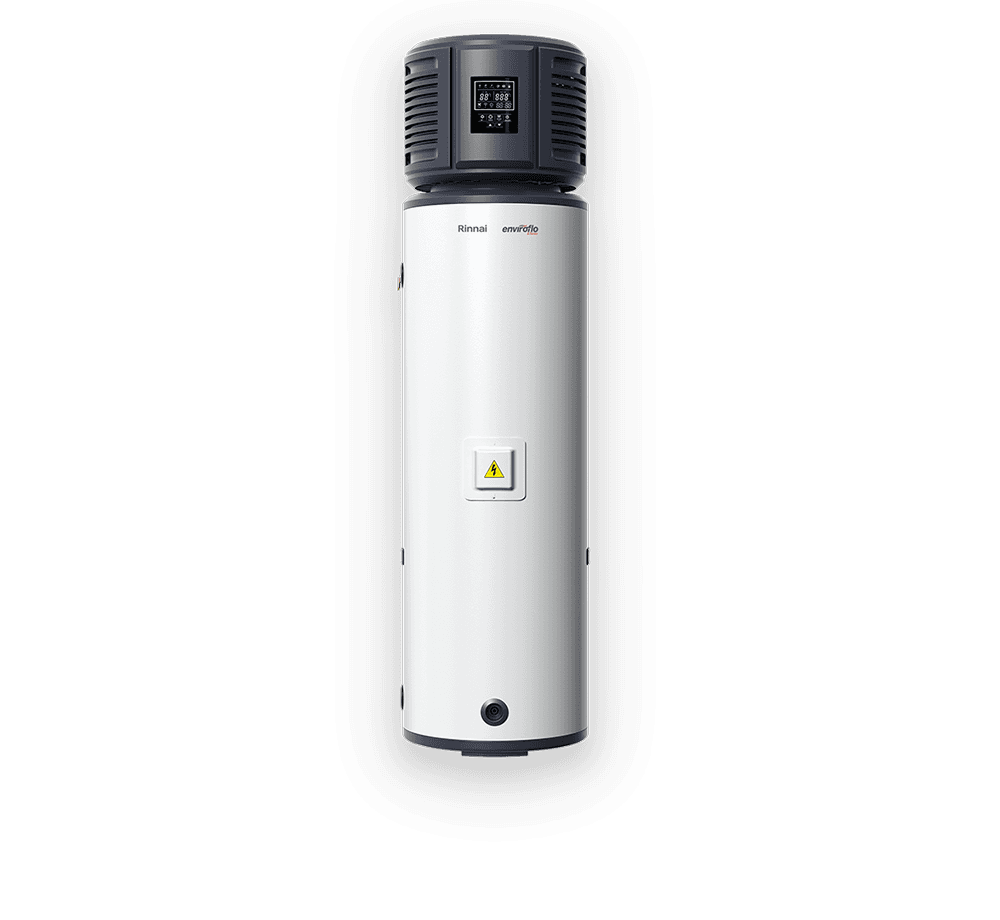

Rinnai Enviroflo A Series Heat Pump
Rinnai Enviroflo A Series Heat Pump
Upgrade to a more efficient Hot Water system
The Rinnai Enviroflo A Series Electric Heat Pump Hot Water system operates by utilising a heat exchange system that absorbs the heat from the surrounding air and uses it to heat your water. The innovative controller works to maximise hot water availability while using up to 70% less energy*, compared to a standard electric storage tank.
Combine this with the included Wi-Fi enabled Timer Function allowing you to utilise solar PV usage, and watch your energy consumption drop. These tanks have been designed and tested to operate with water pressures up to 850kPa. Best of all, they are lighter in weight to aid quick and safe installation whilst having a minimal impact on the environment.
Federal Government Grants (excl. ACT) plus State Government Grants for VIC/NSW available - more information can be found below.
* Energy saving of up to 70% based on a Rinnai Enviroflo 180L Heat Pump when compared to a standard electric water heater of the same capacity during peak winter load in Zone 1 based on AS/NZS4234. Savings will vary depending upon your location (Zone 1-5), type of water heater being replaced, hot water consumption and associated fuel tariffs.
High energy efficiency
Perfect for replacing an electric storage tank
Adaptable for all climates
Available in 180L
Federal Government Grants for all regions (excl. ACT) available
State Government Grants for VIC/NSW available
7 year cylinder warranty***
Superior technology
- Energy Efficient

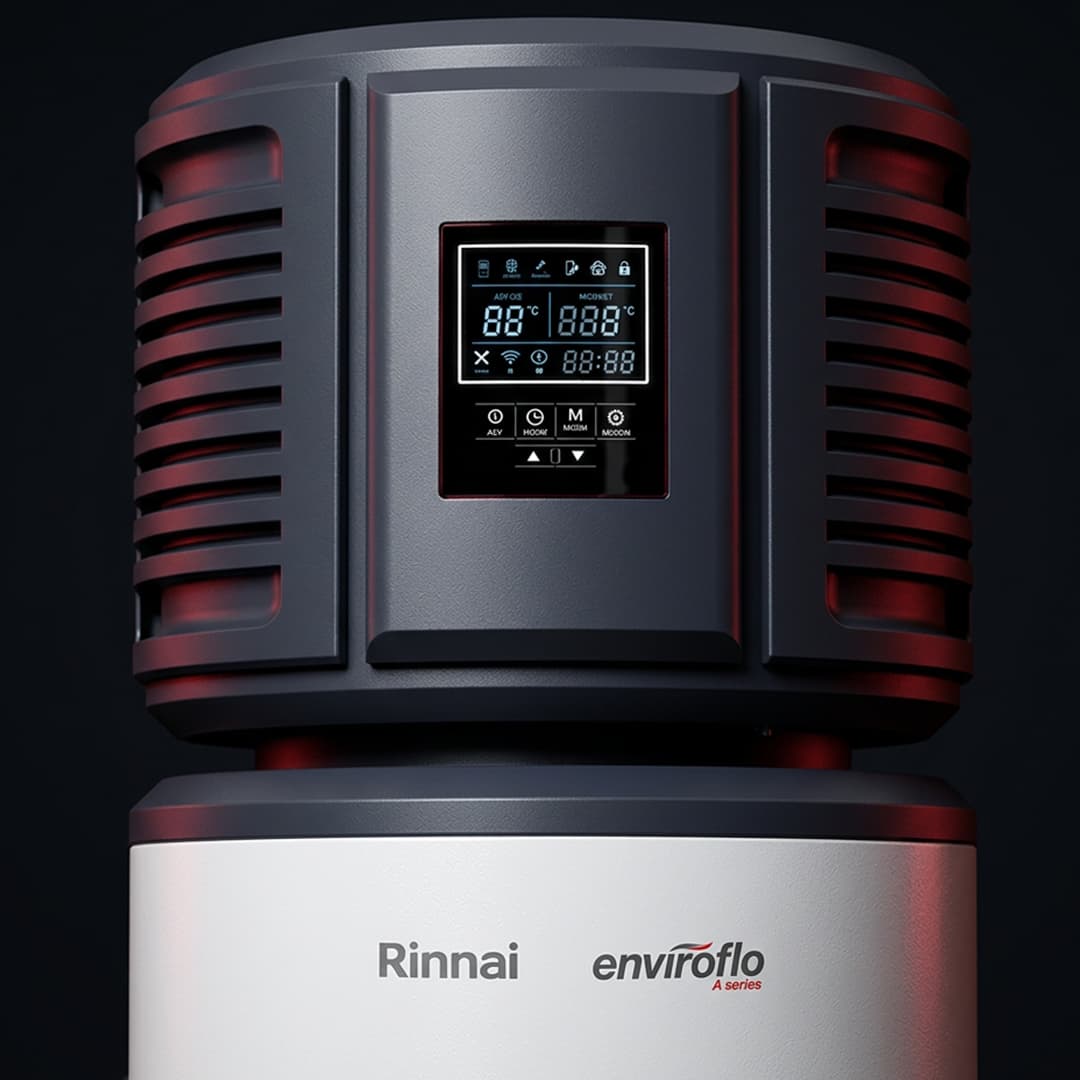

- Convenient Wi-Fi Timer
- Reliable
- Auto Disinfection
- Defrost Control
Rinnai quality
- 7 year cylinder warranty***
***7 year extended Inner Storage Cylinder warranty available subject to participating in the Rinnai scheduled service program. For full terms and conditions please refer to the warranty booklet.
Federal Government Grants - Small-Scale Technology Certificate (STC’s)
- Enviroflo’s innovative design allows it to be eligible for Grants through the Federal Government.
- Small-scale Renewable Energy Scheme, generously covering a proportion of the up-front costs of purchasing and installing the system. These grants are called Small-scale Technology Certificates (STC’s) and are offered based on how sustainable a hot water system is.
- Your STC rebate value will depend on your installation location, see the map above for your geographic Zone locations.
State Government Grants
Victoria
- For Victorian consumers there are additional rebates available for replacing inefficient hot water systems with Heat Pumps.
- Victorian Energy Efficiency Certificates (VEECs) plus a Solar Victoria rebate are offered for eligible installations on top of the Federal STC grants - making the conversion to a Rinnai Enviroflo Heat pump the obvious low-cost choice.
New South Wales
- For New South Wales consumers there are additional rebates available for replacing inefficient hot water systems with Heat Pumps.
- Energy Savings Certificates (ESCs) are offered for eligible installations on top of the Federal STC grants - making the conversion to a Rinnai Enviroflo Heat pump the obvious low-cost choice.
*The value of STCs and State Grants are a tradable, market driven commodity. Values are subject to daily variation and are valid as of 01/05/2022.
| Rinnai – Enviroflo A Series Heat Pump | Values | Unit | Model EHPT180VM (180L) | |||
| Shower Outlets | No | 2 | ||||
| Dimensions | Unit | Height | mm | 1730 | ||
| Diameter | 570 | |||||
| Hot Outlet | 1035 | |||||
| Cold Inlet | 145 | |||||
| Weight | Empty | kg | 100 | |||
| Sound Level | dB(A) | 48 | ||||
| Ambient Temperature Limits (for heat pump operation – element will operate beyond these limits) |
°C | -7 to 43 | ||||
| Ingress Protection | IPX4 | |||||
| Storage Cylinder Connections | Hot Outlet / Cold Inlet | RP | ISO 7.1 ¾” | |||
| PTR Valve | ISO 7.1 ½” | |||||
| Pressure and Temperature Relief (PTR) Supplied Valve Settings / Ratings | kPa / kW | 850 / 30 | ||||
| ECV Fitted | Fit PLV if mains pressure exceeds | kPa | 680 | |||
| Recommended PLV pressure rating | 500 | |||||
| ECV Not Fitted | Fit PLV if mains pressure exceeds | 800 | ||||
| Recommended PLV pressure rating | 500 | |||||
| Refrigerant Type / Mass | R / kg | 134a / 1 | ||||
| Rated Input (d) | Factory Wired | Electric Element | kW | 1.5 | ||
| Refrigeration Module | 0.9 | |||||
| Wired by Installer | Total | 2.4 | ||||
| Power Supply | V AC / Hz | 220-240 / 50 | ||||
| Rated Current (15 Amp plug fitted) | Maximum | Amps | 11 | |||
| Energy Output | Use to size PTR | Maximum | kW | 5.5 | ||
| Heat Output# | 3.1 | |||||
| Refrigerant Type / Mass | R / kg | 134a / 1 | ||||
| Coefficient Of Performance (COP)# | kW | 7.5 | ||||
Warranty*
| Type of Use | Cylinder | Refrigeration Components | Other Components | |
| Domestic Use | Parts | 7 years | 5 years | 1 year |
| Labour | 5 Years | 5 years | 1 year | |
#32.6°C ambient 21.1°C cold water inlet
*Please refer to the Warranty Booklet for more information.
Without limiting the above periods, a 5-year whole-of-product warranty applies where a rebate has been received under the Solar Victoria Solar Homes Program for installations from 1 July 2023. For further details, contact Rinnai.
