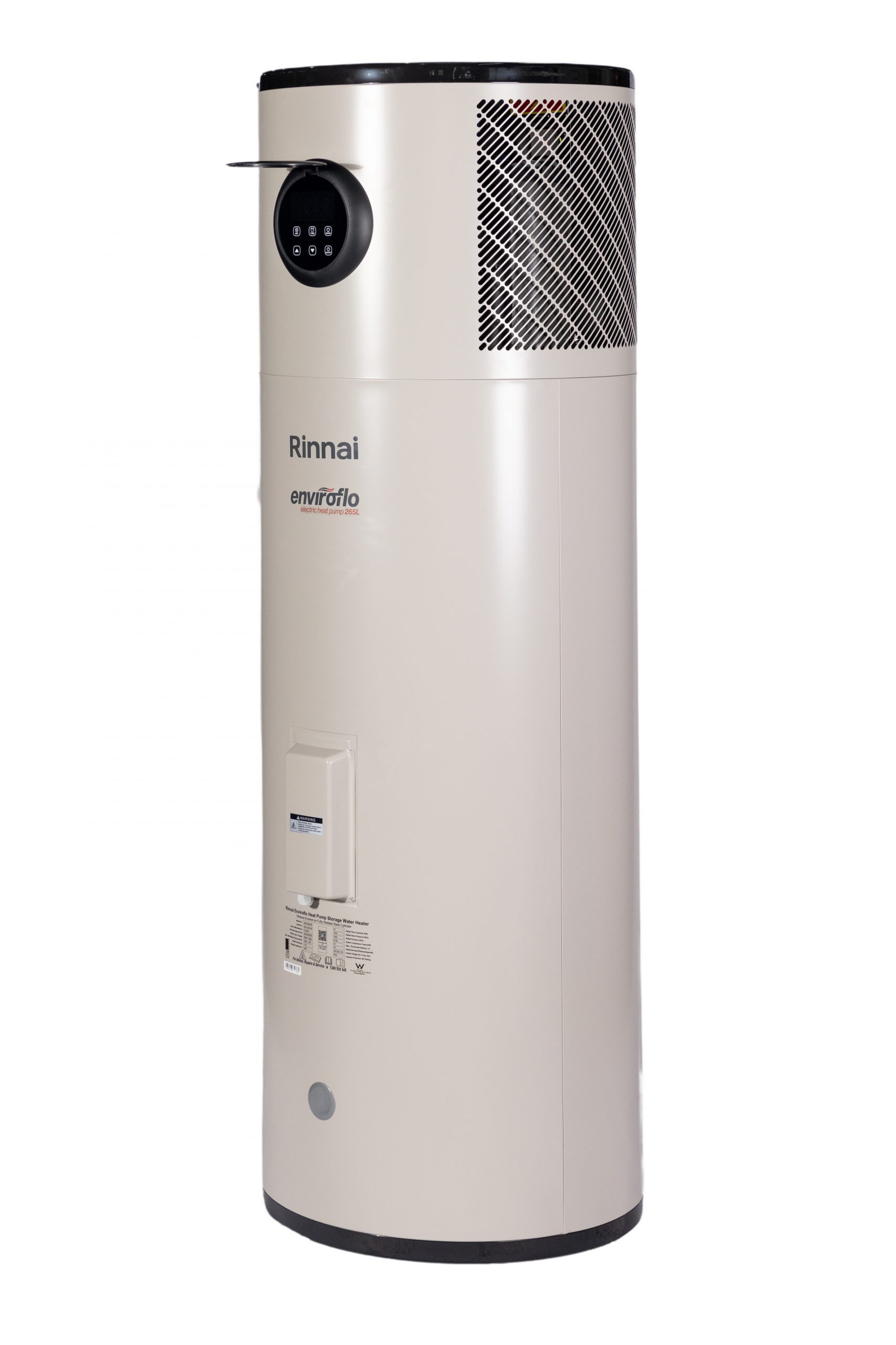

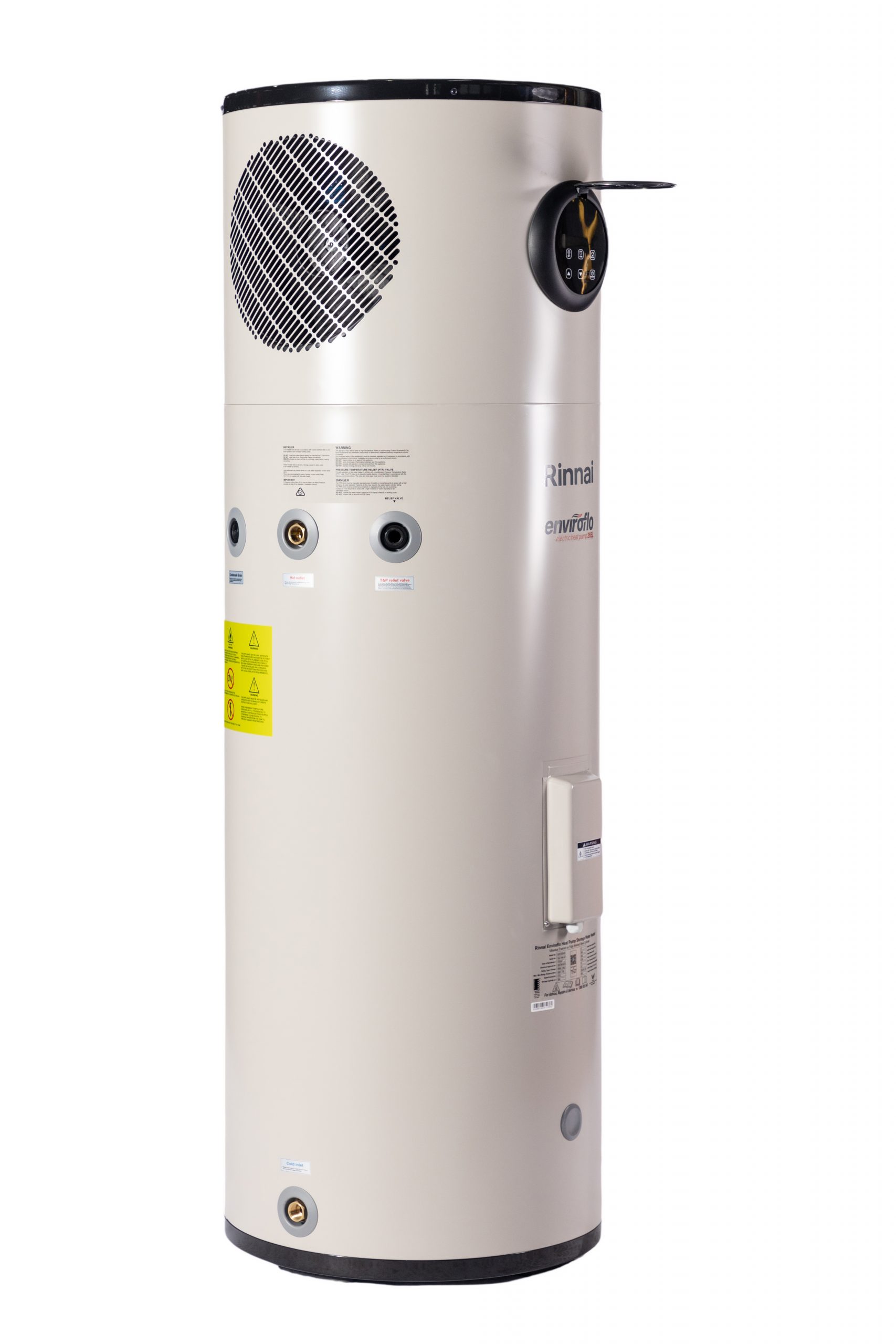

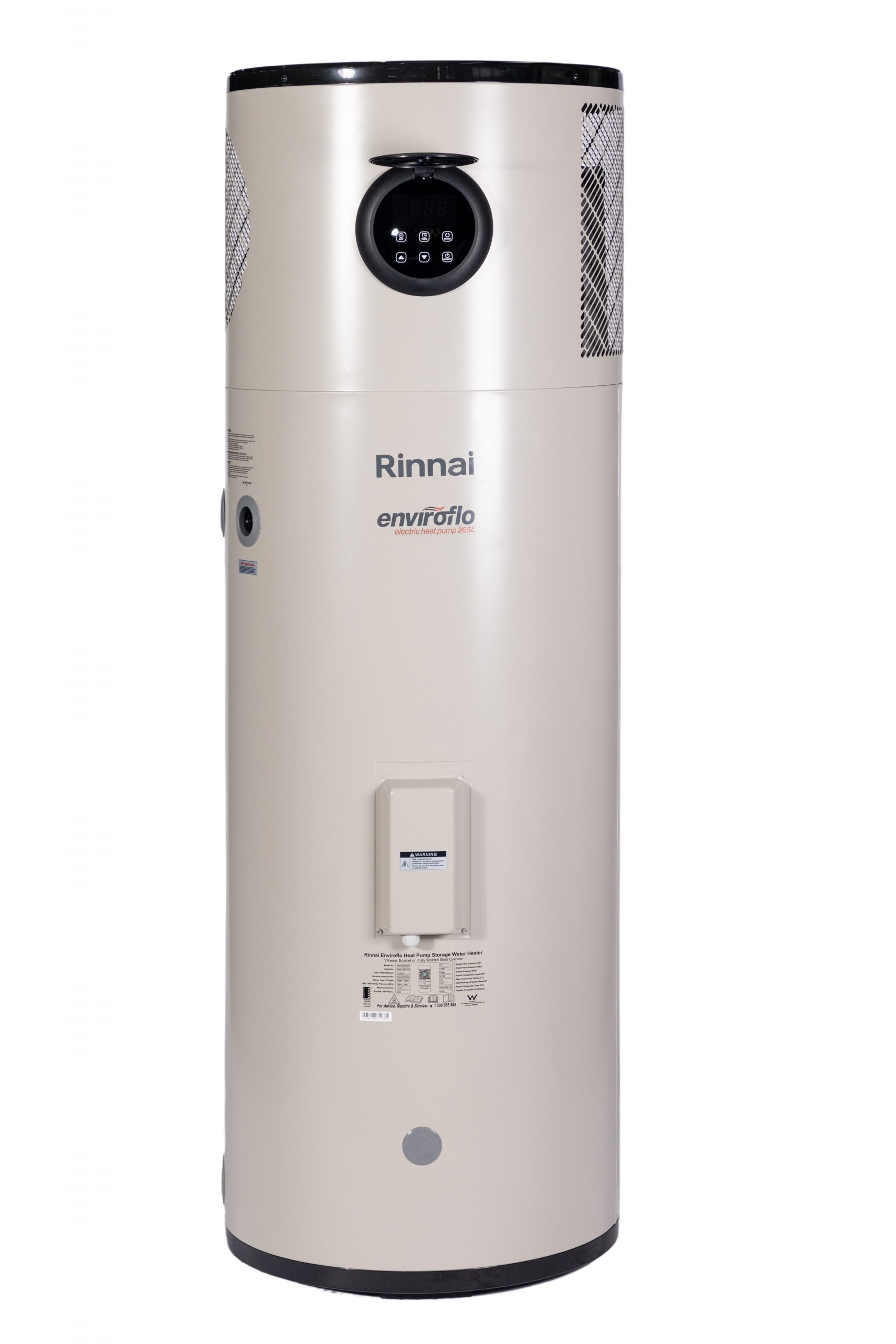

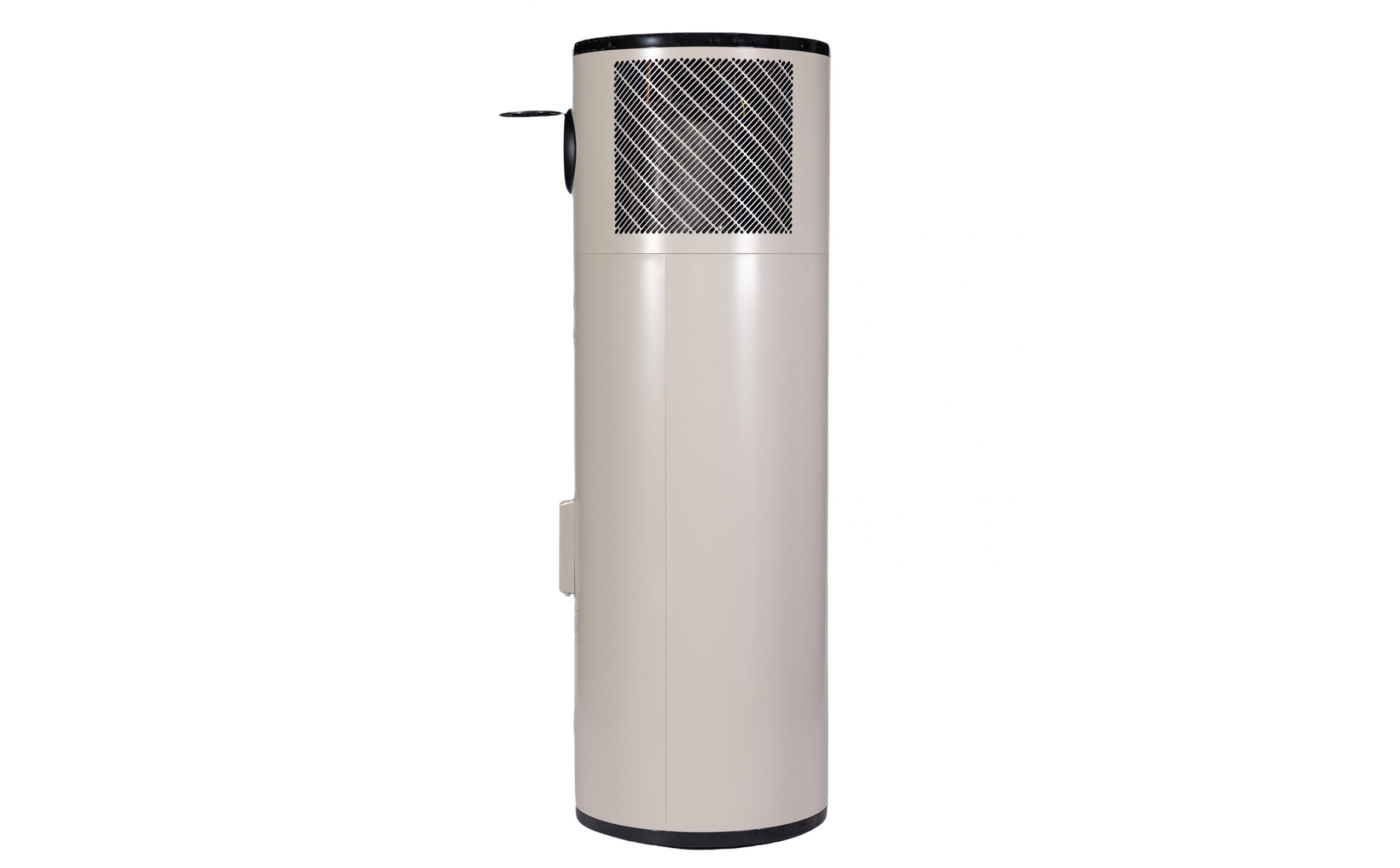

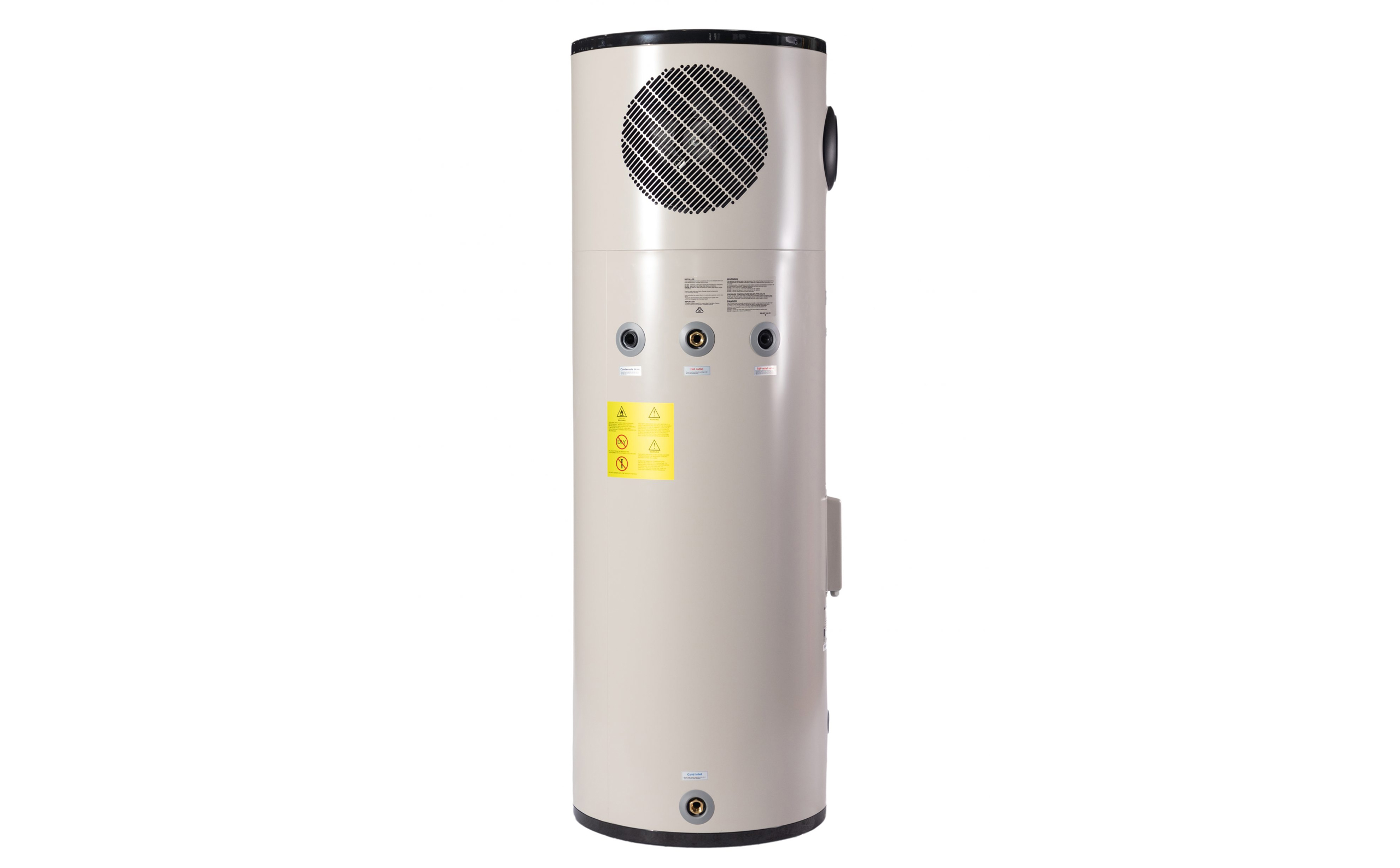

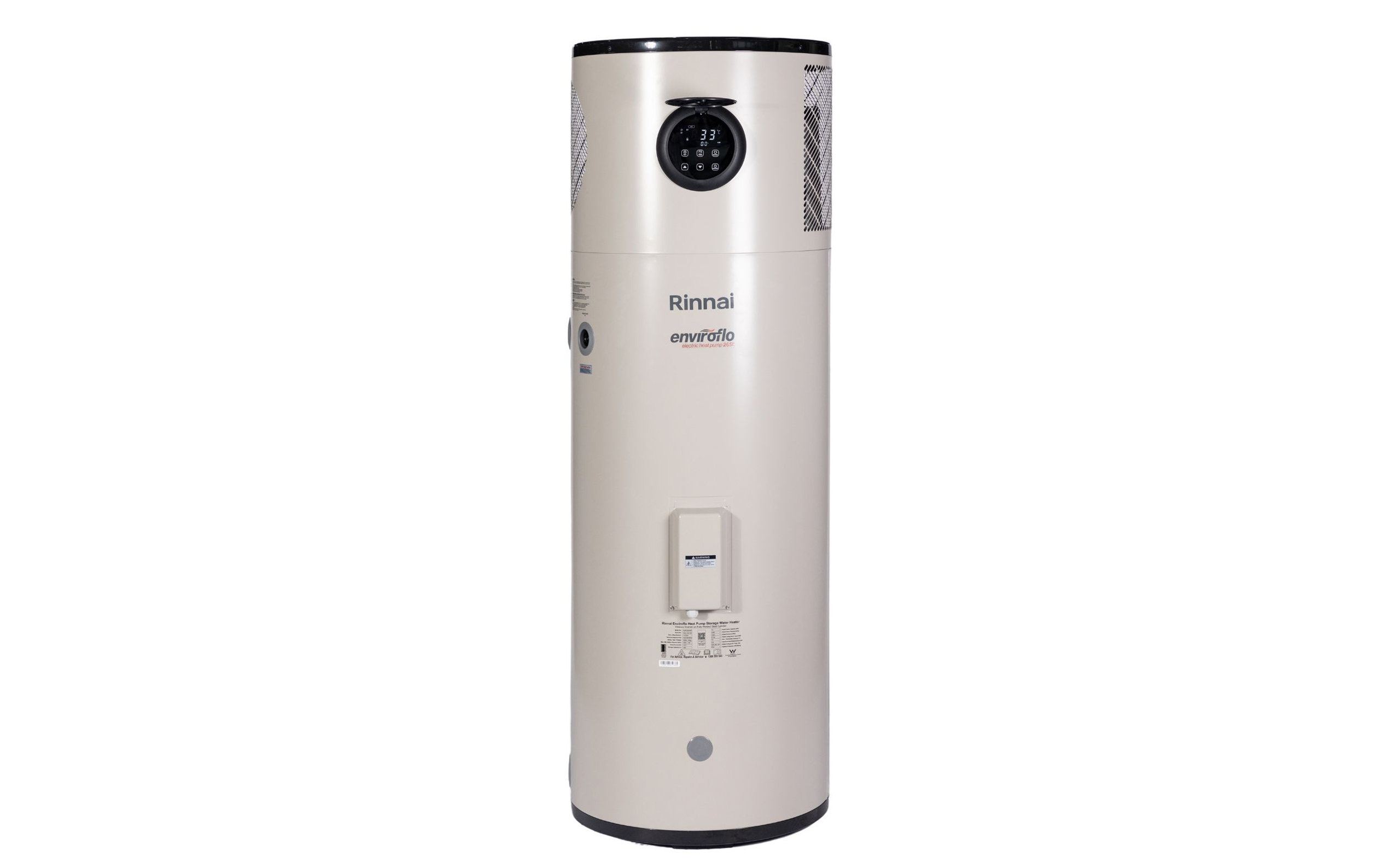

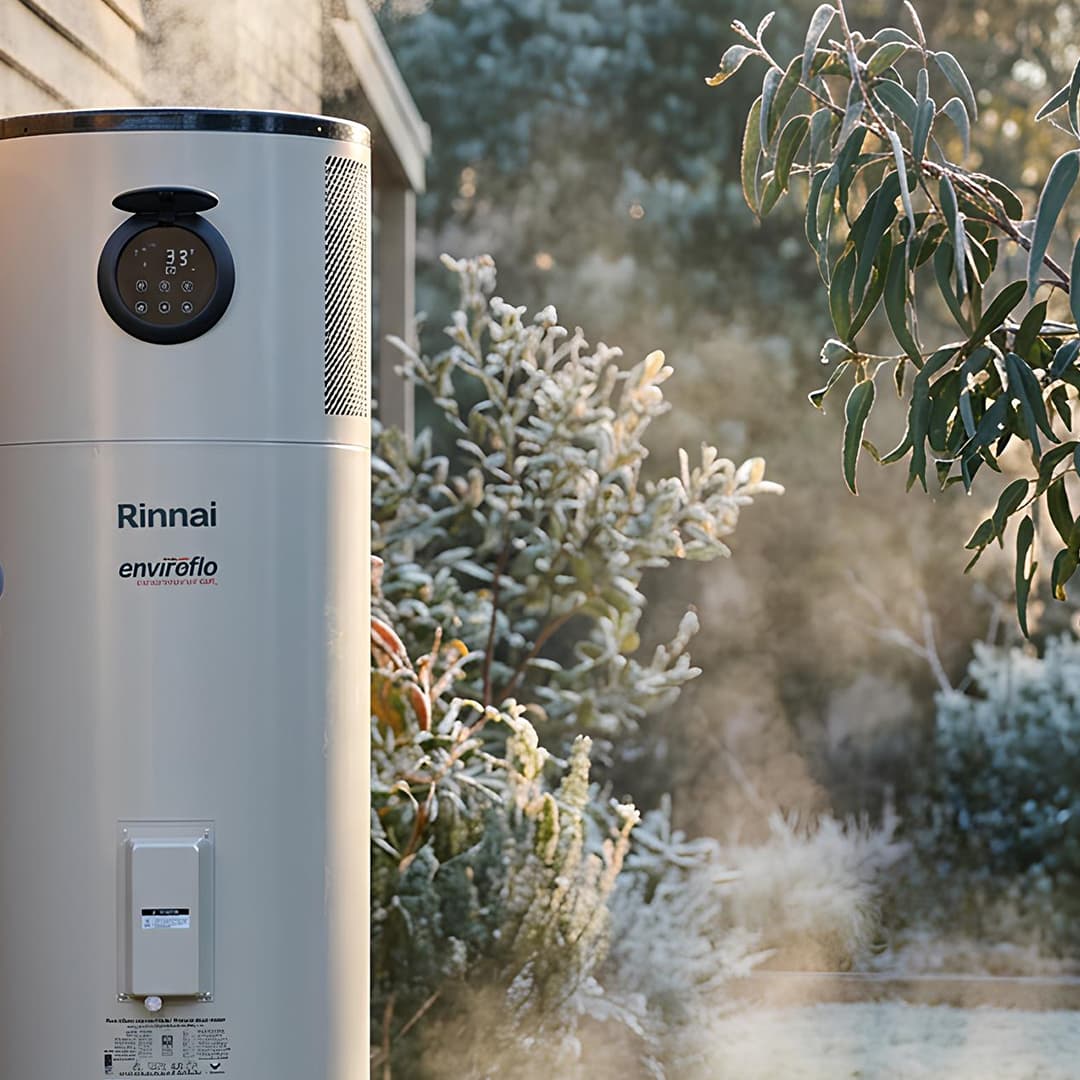

Rinnai Enviroflo 265L Heat Pump

Rinnai Enviroflo 265L Heat Pump

Exclusive to Tradelink

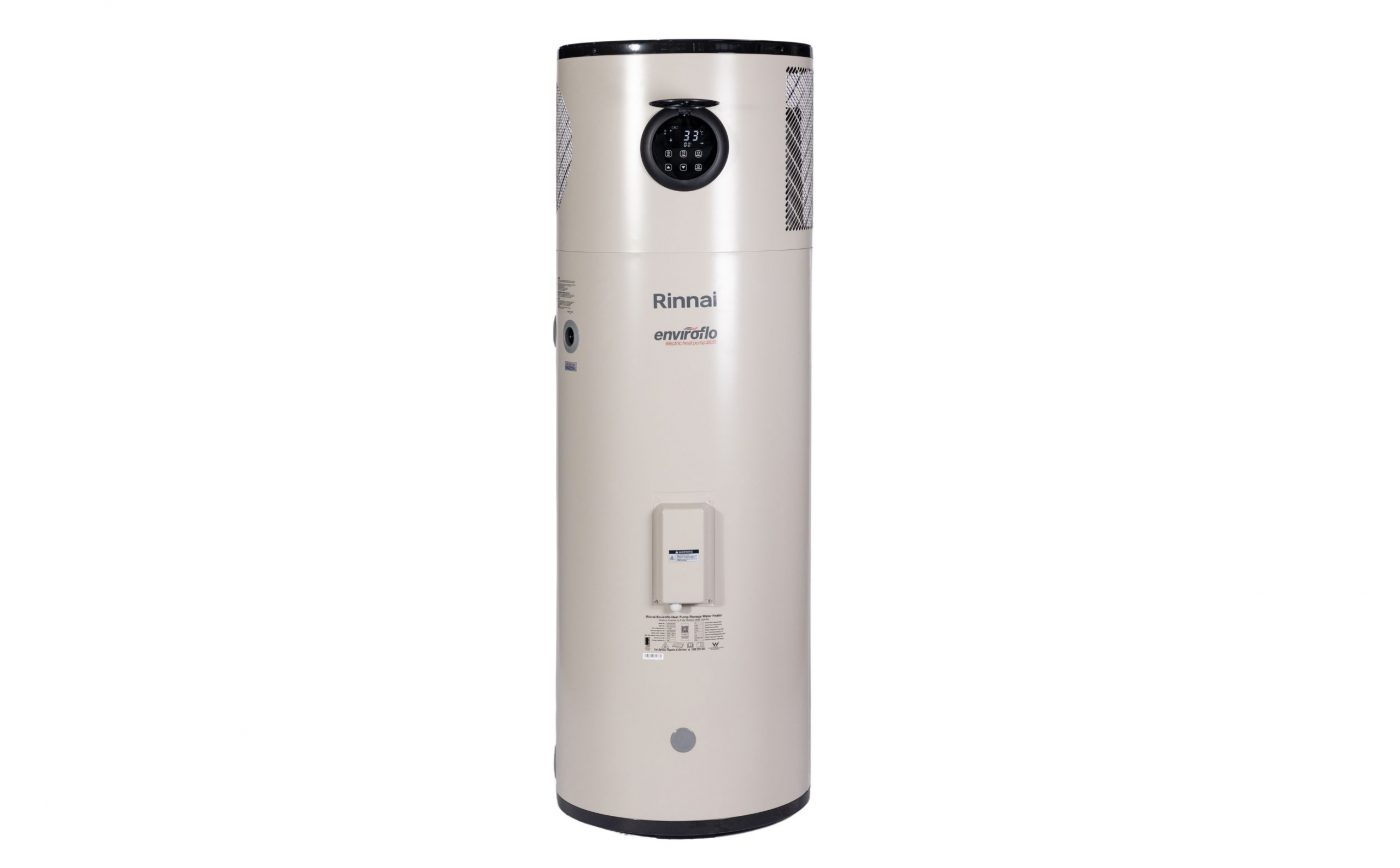

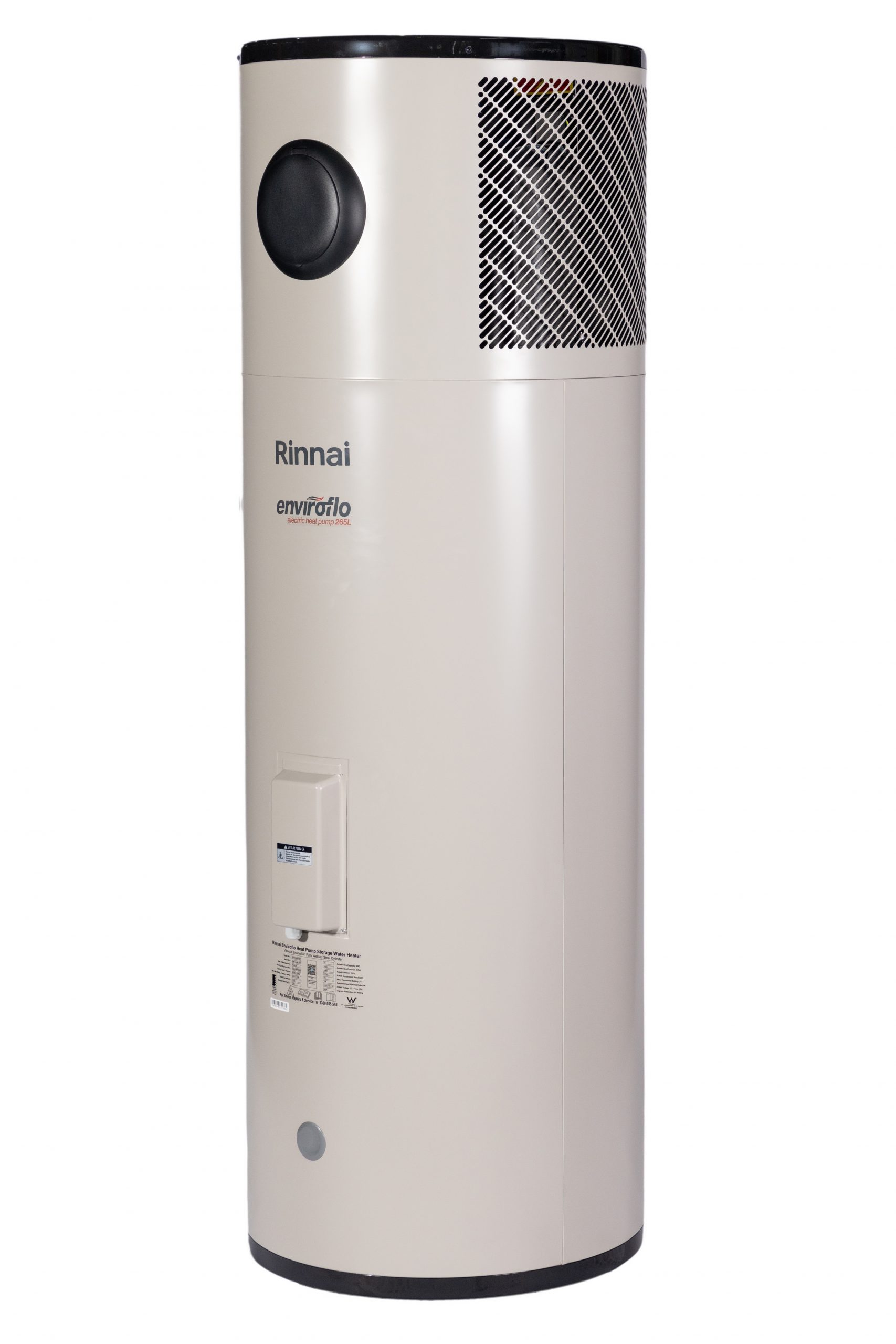

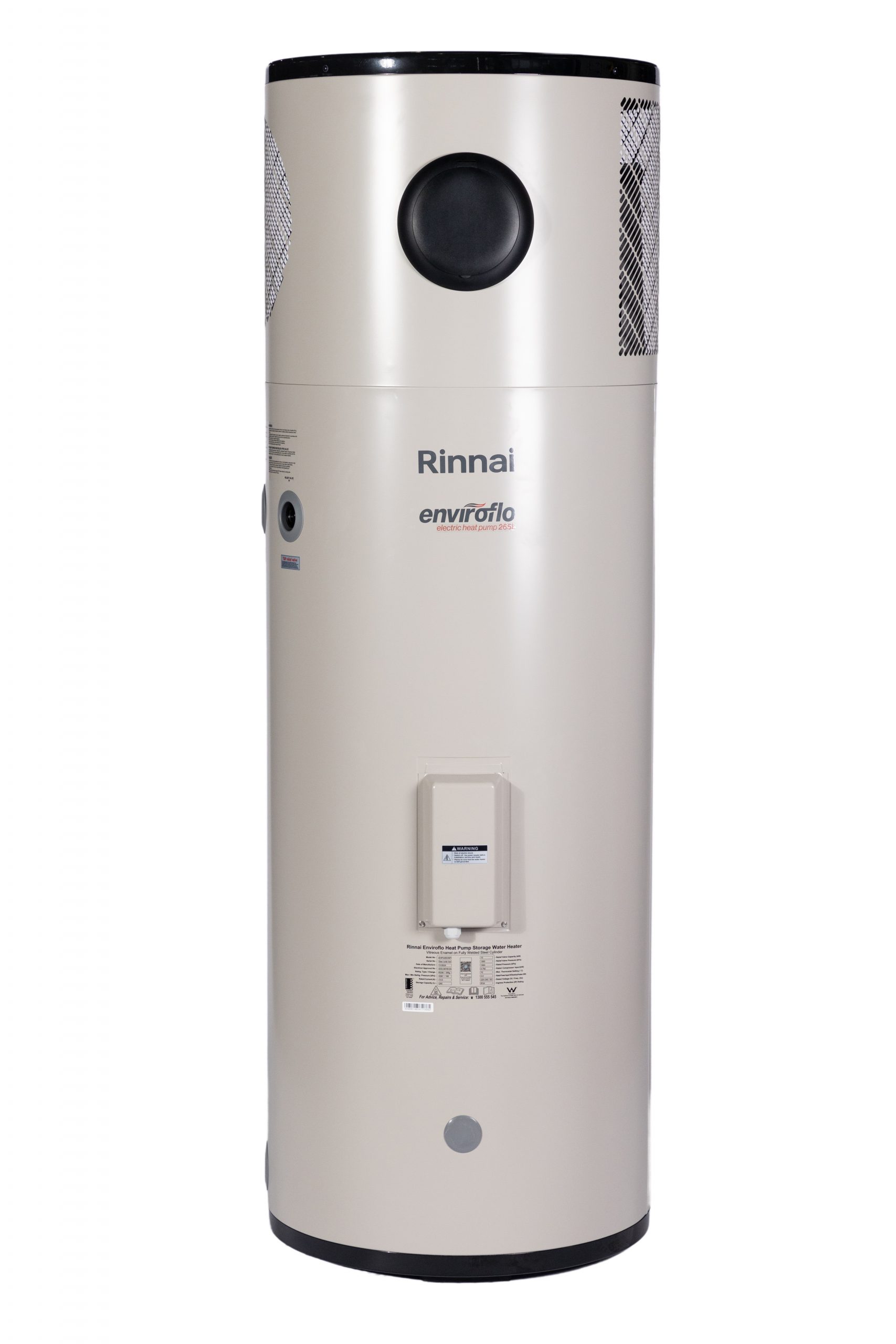

The Rinnai Enviroflo 265L Electric Integrated Heat Pump hot water system is your reliable choice for efficient hot water. The Enviroflo 265L Heat Pump is designed for ultimate convenience and energy efficiency.

Equipped with an electric boost element inside the tank, it ensures your water stays at the perfect temperature, providing reliable hot water whenever you need it. Additionally, its PV compatibility allows seamless integration with solar energy systems, maximising efficiency. Built to withstand Australia’s tough climate, these systems operate effectively under water pressures up to 1000kPa, ensuring durability and dependable performance. Plus, they utilise R290, an environmentally friendly refrigerant, making them a sustainable choice for your hot water needs.

Federal Government Grants* plus State Government Grants for VIC/NSW available.

Find a Tradelink store near you >

* Federal Government Grants available for all regions excluding ACT.



Available in 265L capacity

Adaptable for all climates

Built in Wi-Fi for convenient control

Can be networked with solar PV

Federal Government Grants for all regions (excl. ACT) available

State Government Grants for VIC/NSW available

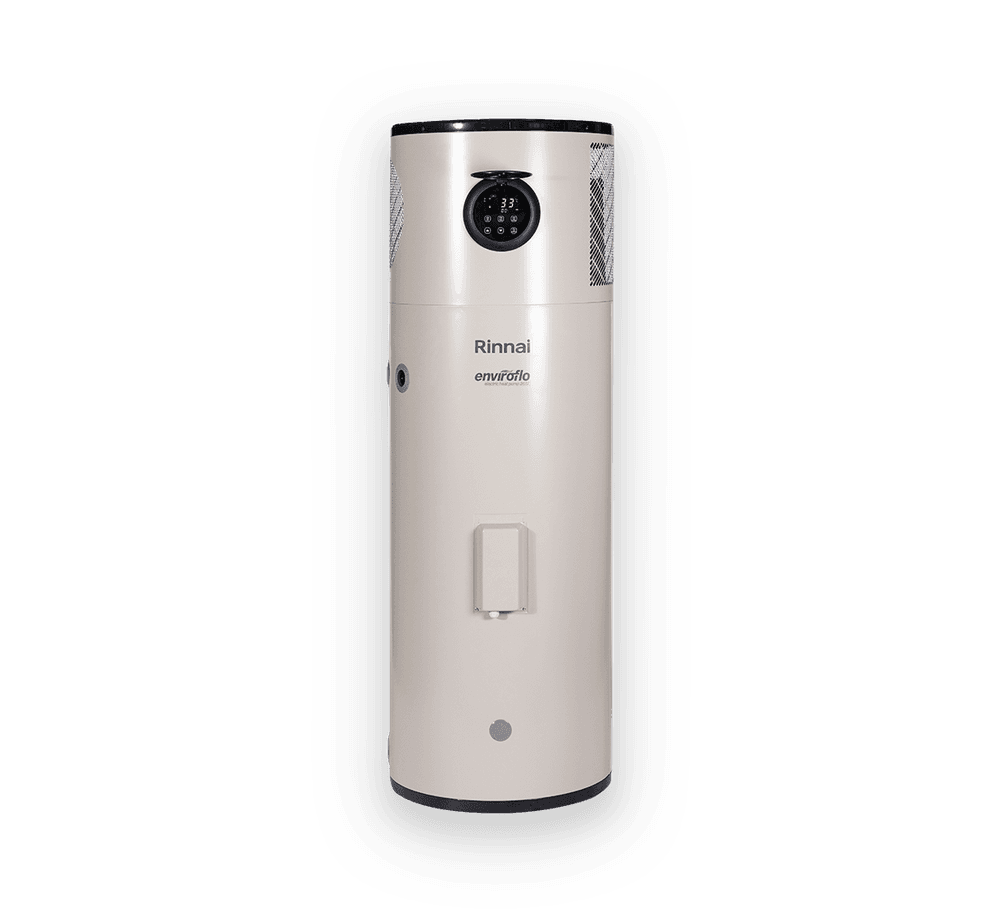

Enviroflo 265L Heat Pump

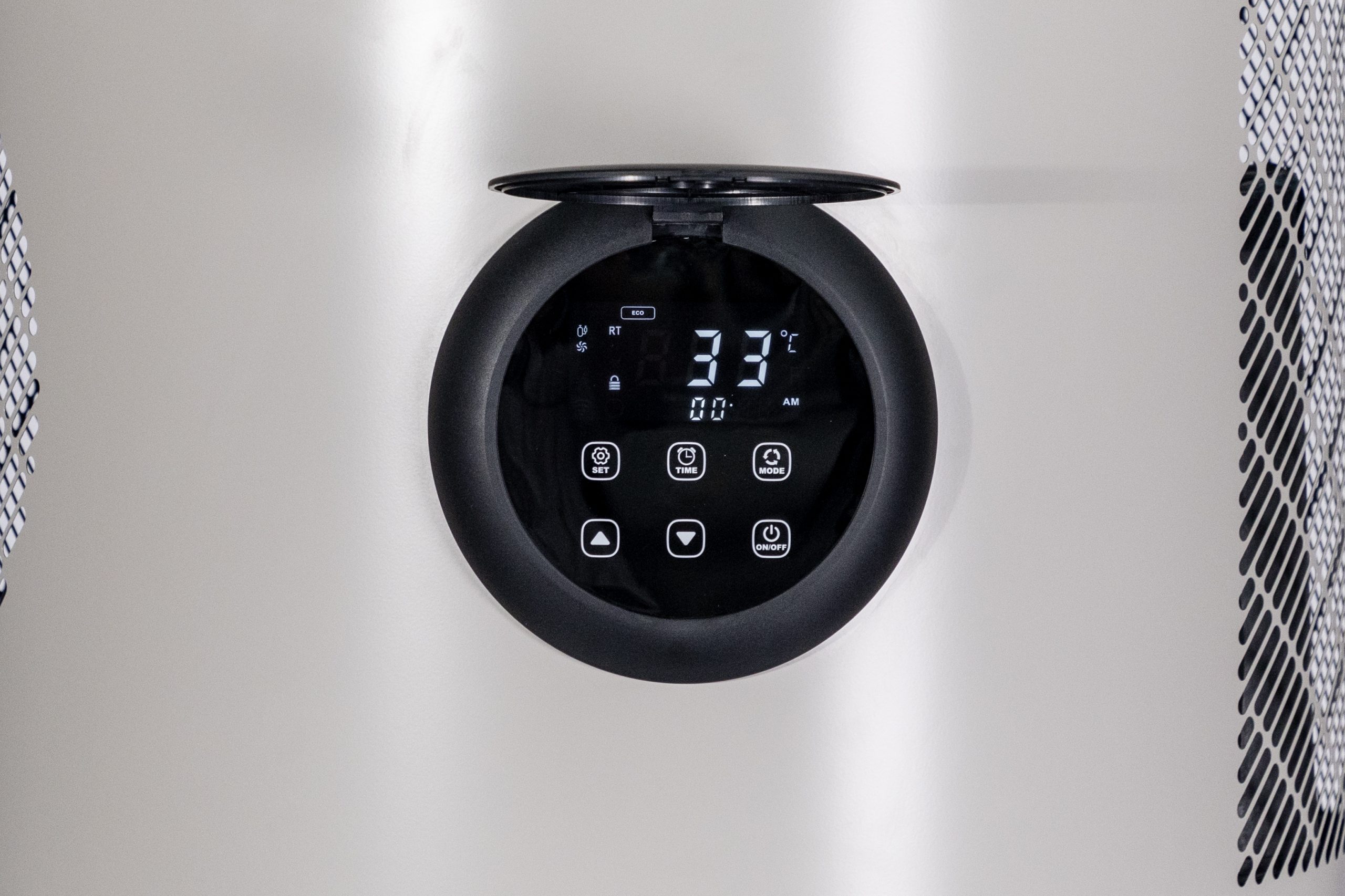

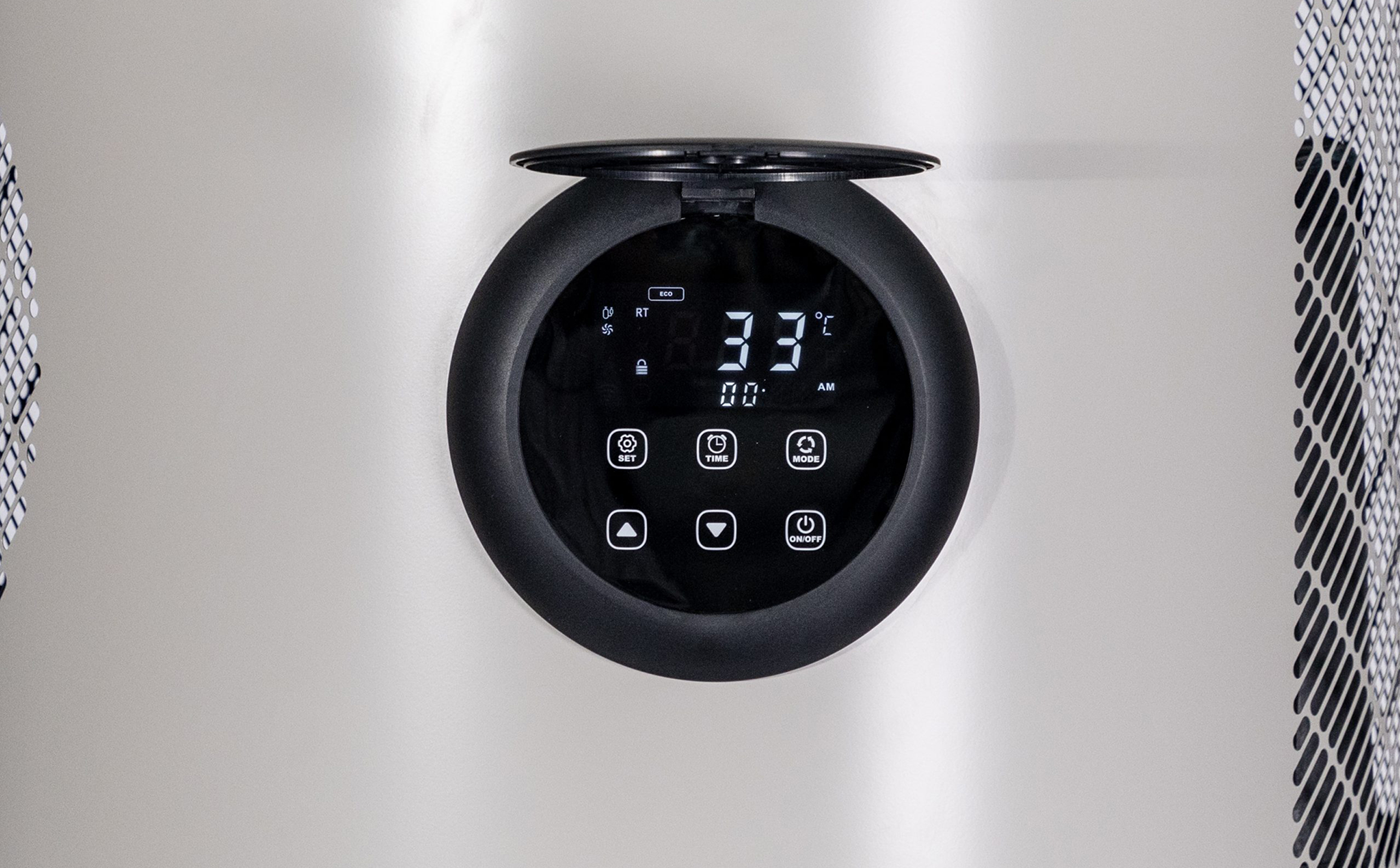

  • Innovative controller to maximise hot water availability while using more than 70% less energy*
  • High efficiency R290 refrigerant with a low Global Warming Potential of just 0.02.
  • Multiple operating modes (Standard/ECO/Hybrid/ Electric/Vacation).
  • Operates in ambient air conditions ranging from -7°C to 45°C.
  • Designed and built with a high level of product quality, backed by over 50 years of Rinnai’s excellence in hot water.
  • Built in anti-frost function to protect the evaporator in colder climates.
  • Inbuilt electric element to ensure you always have a reliable supply of hot water.
  • Auto disinfection preventing the potential growth of legionella.
  • Auto restart function - in the event of a power outage it will automatically restart once the power is re-instated.
  • Option to run only at off-peak times, when the electricity cost is lower.

*Energy saving based on a Rinnai Enviroflo 265L Series Heat Pump when compared to a standard electric water heater of the same capacity during peak winter load in Zone 3 and 4 based on AS/NZS4234. Savings will vary depending on location (Zone 1-5), type of water heater being replaced, hot water consumption and associated fuel tariffs.



Federal Government - Small-Scale Technology Certificate (STC’s)

  • Enviroflo’s innovative design allows it to be eligible for Grants through the Federal Government’s Small-Scale Renewable Energy Scheme, generously covering a proportion of the up-front costs of purchasing and installing the system.
  • These grants are called Small-Scale Technology Certificates (STCs) and are offered based on how sustainable a hot water system is.
  • Your STC rebate value will depend on your installation location, see the map above for your geographic zone locations.



Certified System Code STCs from Jan 1st 2024 to Dec 31st 2024 STCs from Jan 1st 2025 to Dec 31st 2025
Heat Pump Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 1 Zone 2 Zone 3 Zone 4 Zone 5
EHPG265VMT 18 18 21 23 23 15 15 18 19 19
Model STC - 10 Years Deeming (2021 registered)
Zone 1 Zone 2 Zone 3 Zone 4 Zone 5
EHPG265VMT 26 26 31 33 33



State Government Grants

Victoria

  • For Victorian consumers there are additional rebates available for replacing inefficient hot water systems with Heat Pumps.
  • Victorian Energy Efficiency Certificates (VEECs) are offered for eligible installations on top of the Federal STC grants - making the conversion to a Rinnai Enviroflo Heat Pump the obvious low-cost choice.

New South Wales

  • For New South Wales consumers there are additional rebates available for replacing inefficient hot water systems with Heat Pumps.
  • Energy Savings Certificates (ESCs) are offered for eligible installations on top of the Federal STC grants - making the conversion to a Rinnai Enviroflo Heat pump the obvious low-cost choice.

*The value of STCs and State Grants are a tradable, market driven commodity. Values are subject to daily variation and are valid as of 27.11.2024.

Model Description Diameter (mm) Hot Outlet (mm) Cold Inlet (mm) Height (mm) Empty Weight (Kgs) Sizing Guide
EHPG265VMT Enviroflo 265L Heat Pump 640 1210 112 1933 118 Up to 5 People
2 Bathrooms – 4 Bedrooms
Technical Information Value
Net Weight/Filled Weight (kg) 118 / 383
Tank Volume (L) 265
Sound Level 46 dB(A)
Ambient Temperature Limits (for heat pump operation – element will operate beyond these limits) -7°C to 45°C
Ingress Protection IP24

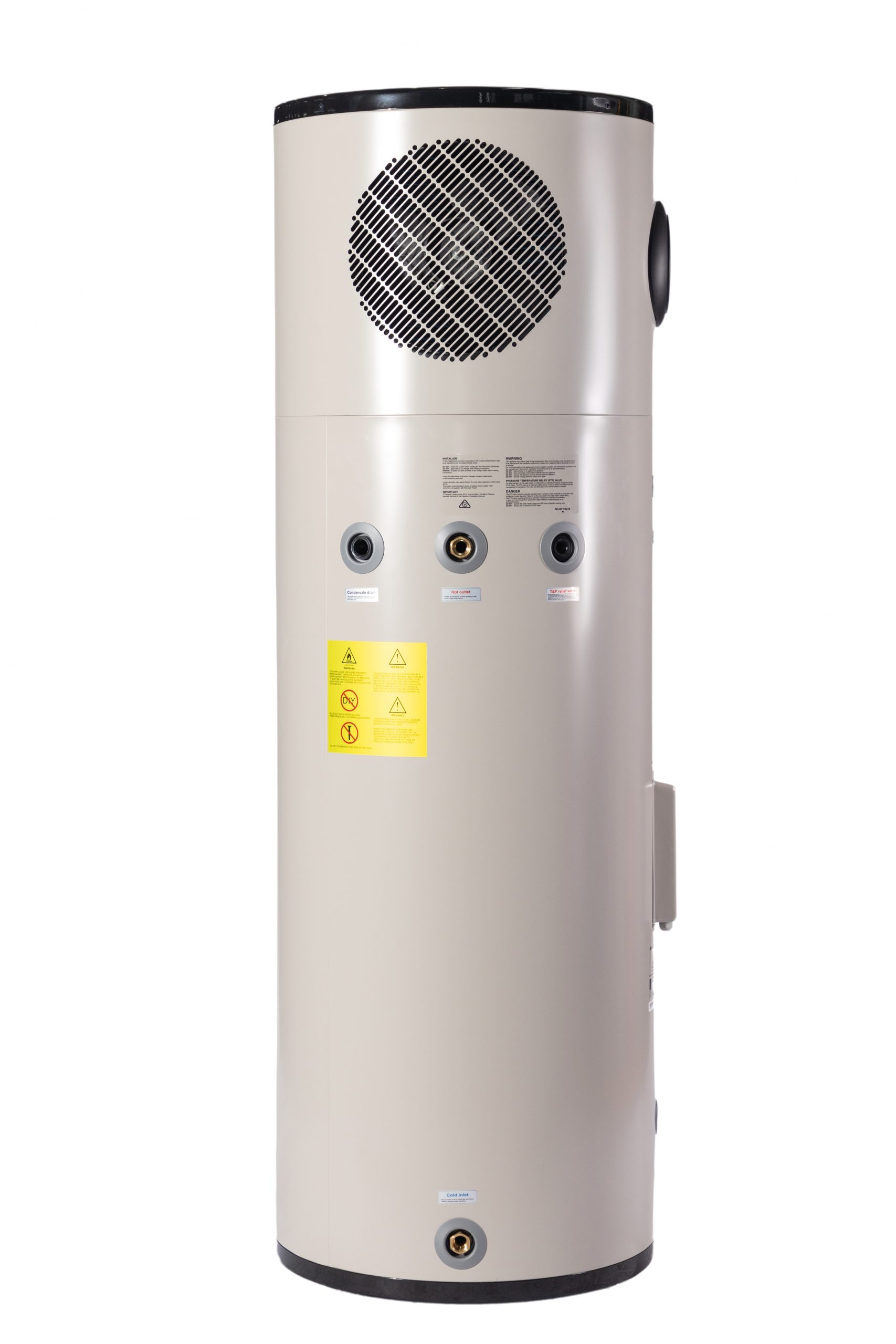

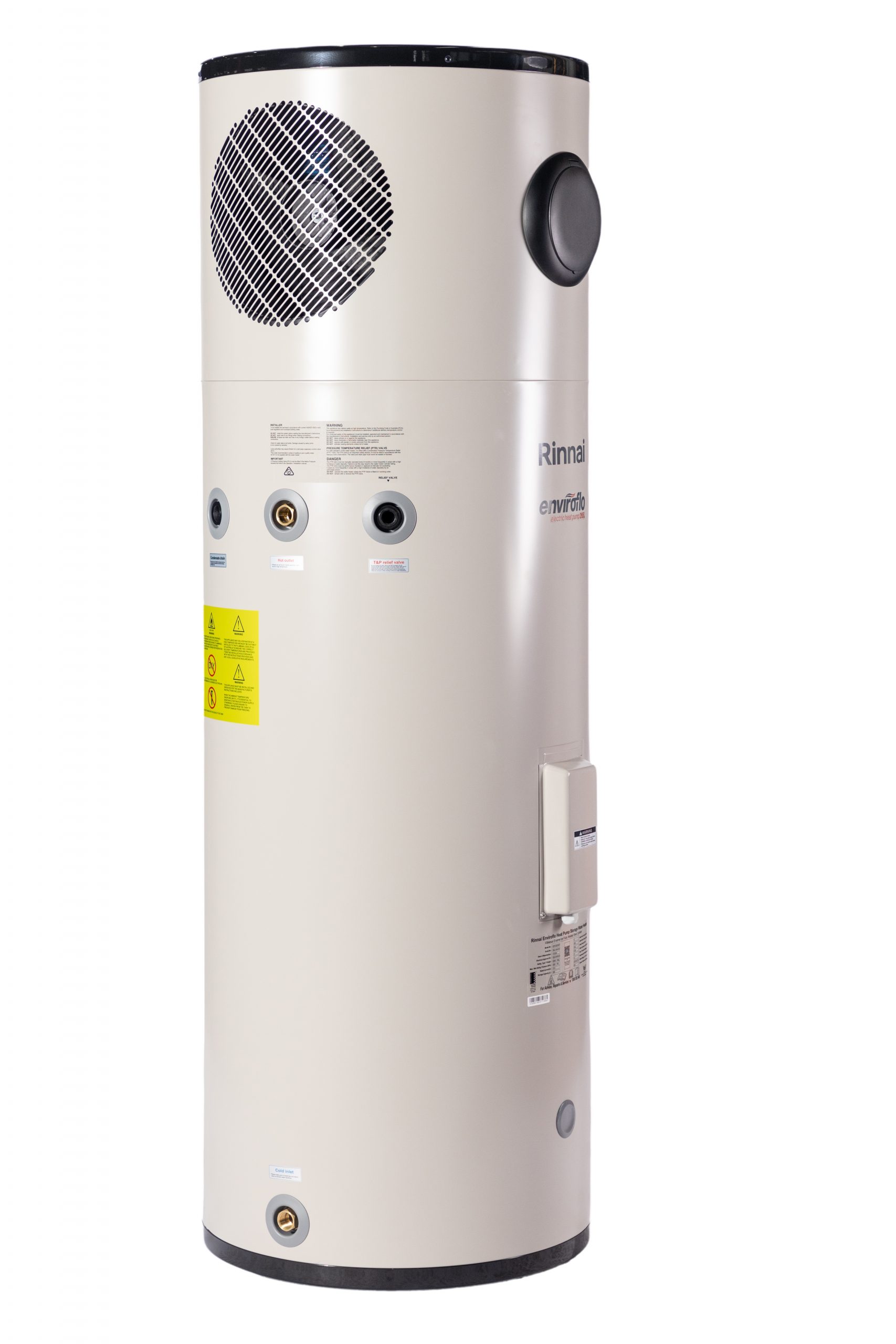

Storage Cylinder – Hot Outlet and Cold inlet Connections ISO 7.1  ¾” RP
Storage Cylinder – PTR Valve Connection ISO 7.1  ½” RP
Pressure and Temperature Relief (PTR) supplied valve settings/ratings 1000 kPa / 10 kW
ECV Fitted Fit PLV if mains pressure exceeds 680 kPa
Recommended PLV pressure rating 500 kPa
ECV Not Fitted Fit PLV if mains pressure exceeds 800 kPa
Recommended PLV pressure rating 500 kPa
Refrigerant Type / Mass R290 / 395g
Rated Input Electric Element (Factory Wired) 2.4 kW
Rates Input Refrigeration Module (Factory Wired) 1.1 kW
Total Maximum Input (To be wired by installer) 3.3 kW
Maximum Energy Output (Use to size PTR) 7.0 kW
Power Supply 220 – 240 V AC, 50Hz
Rated Current 13.5 Amps
(15 Amp plug fitted)
Refrigerant Circuit Maximum Pressure 3091 kPa
Coefficient Of Performance (COP) (32.6°C ambient 21.1°C cold water inlet’) 8.5
Package Size 725 x 725 x 1980

Note: Enviroflo 265L Heat Pump is supplied with a 15 amp plug, or can be hard wired.

Warranty*

Type of Use Cylinder** Refrigeration Components 1 Other Components 2
Domestic Use Parts 7 years 5 Years 1 Year
Labour 5 Years 5 Years 1 Year
Commercial Use Parts 1 Year 1 Year 1 Year
Labour 1 Year 1 Year 1 Year

*Please refer to the Warranty Booklet for more information.
** Inner Storage Cylinder
1. Refrigeration Components include but are not limited to: compressor, condenser, expansion valve, heat exchanger, evaporator and associated pipe work.
2. Other Components include but are not limited to: sensors, thermostats, valves, electric heating elements, anodes.
