Rinnai Infinity 28i (Internal)
Rinnai Infinity 28i (Internal)
Australia’s favourite system can now be fitted indoors
Specifically engineered for internal domestic installation, the Rinnai Infinity 28i Internal Gas Continuous Flow Hot Water System is ideal for replacing aging internal storage cylinders with a modern solution in 1-2 bathroom homes (1-3 for warmer climates).
Utilising our dedicated co-axial flue system, the energy efficient unit can be installed almost anywhere and no power is consumed until you turn a tap on. This combined with an impressive 6 star energy rating*, means you get superior comfort for less money.
The slimline unit not only saves you precious internal space but also offers precise temperature control display, enhanced electronic safety monitoring and Puretemp™ stability control**.
Customise and complete your Infinity 28i system with our comprehensive range of hot water controllers to enhance your hot water experience.
Locate Your Nearest Store
Ideal for 1-2 bathrooms (1-3 in warmer climates)
Never runs out of hot water
Precise temperature control for safety and convenience
6 Star energy rating
Status operation monitor
Puretemp™ temperature stability technology**
LPG or natural gas models available
25 year extended heat exchanger warranty***
6 Star Energy Rating*
- ‘Room sealed’ appliance
- Low running costs
- Highly efficient
- Low greenhouse gas emissions
Superior technology
- Quality Japanese design and manufacturing
- Precise temperature control for safety and convenience
- Compact design allows installation flexibility
- Suitable for higher ambient water temperatures
- Compatible with low flow rated shower fixtures (3 Star - 7.0 to 9.0 l/min)
Rinnai quality
- 25 year extended heat exchanger warranty***
- After-sales support
Related products/Add-ons
★ Hot Water Flue system
★ Hot Water Controllers
★ Pipe Covers
★ Recess Boxes
★ Security Brackets
★ Smartstart Water Saver system
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
* Independently calculated using Australian Standard AS5263.1.2. | S5263.1.2 limits the rating shown on the energy label to 6.0 Stars.
** Puretemp™ temperature stability control ensures that the water temperature remains steady, even during fluctuations in flow.
*** 25 year extended heat exchanger warranty available subject to participating in the Rinnai scheduled service program. For full terms and conditions please refer to the warranty booklet.
| Rinnai – Infinity 28i Gas Continuous Flow Hot Water System | Unit | Values | ||
| Shower Outlets | Warm Climates | No | 1 – 3 | |
| Cool Climates | 1 – 2.5 | |||
| Dimensions | Height | mm | 583 | |
| Width | 350 | |||
| Depth | 275 | |||
| Height including Brackets | 583 | |||
| Hot Water Outlet | From Wall | 91 – 124 | ||
| Left from Centre | 110 | |||
| Cold Water Inlet | From Wall | 70 – 103 | ||
| Right from Centre | 27 | |||
| Gas Connection | From Wall | 99 – 132 | ||
| Right from Centre | 89 | |||
| Length from Base | 36 | |||
| Cold Connection | Length from Base | 46 | ||
| Weight | kg | 21 | ||
| Colour | White | |||
| Star Energy Rating | Stars | 6.0 | ||
| Connection Sizes | Gas | mm | 20 | |
| Hot | 20 | |||
| Cold | 20 | |||
| Flow Rate 25°C | Maximum | L / min | 28 / 35 | |
| Gas Rate | Maximum | NG | 11 / 210 | |
| Water Pressure | Minimum | kPa | 220 | |
| Maximum | 1000 | |||
| Factory Default Temperature | °C | 50 / 60 | ||
| Status Monitor | Yes | |||
* Sizing assumes AAA or 3 star outlets. For more sizing information, consult with your hot water specialist.
Photography
-

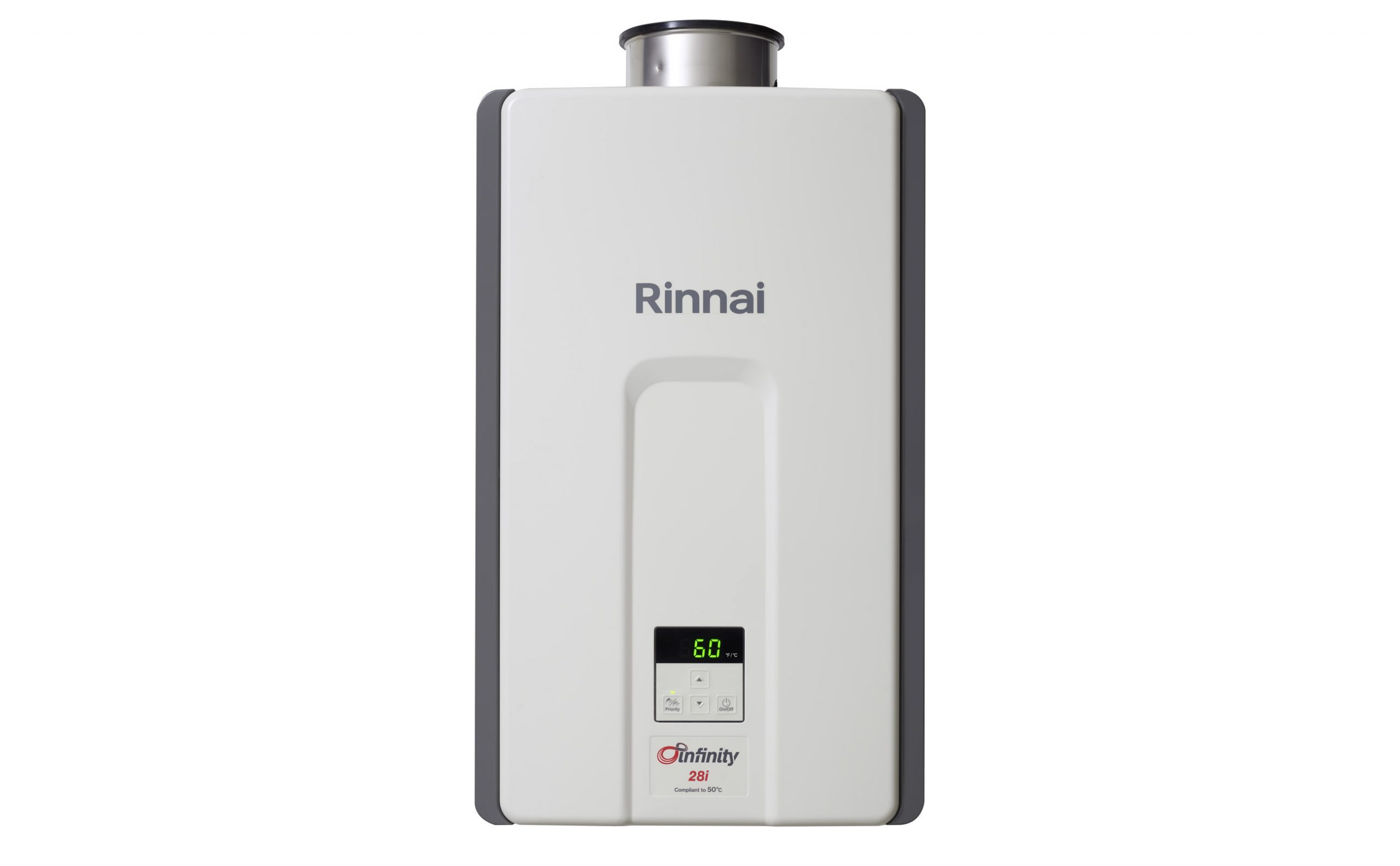

Rinnai Infinity 28i Gas Continuous Flow Hot Water (front)Preview
-

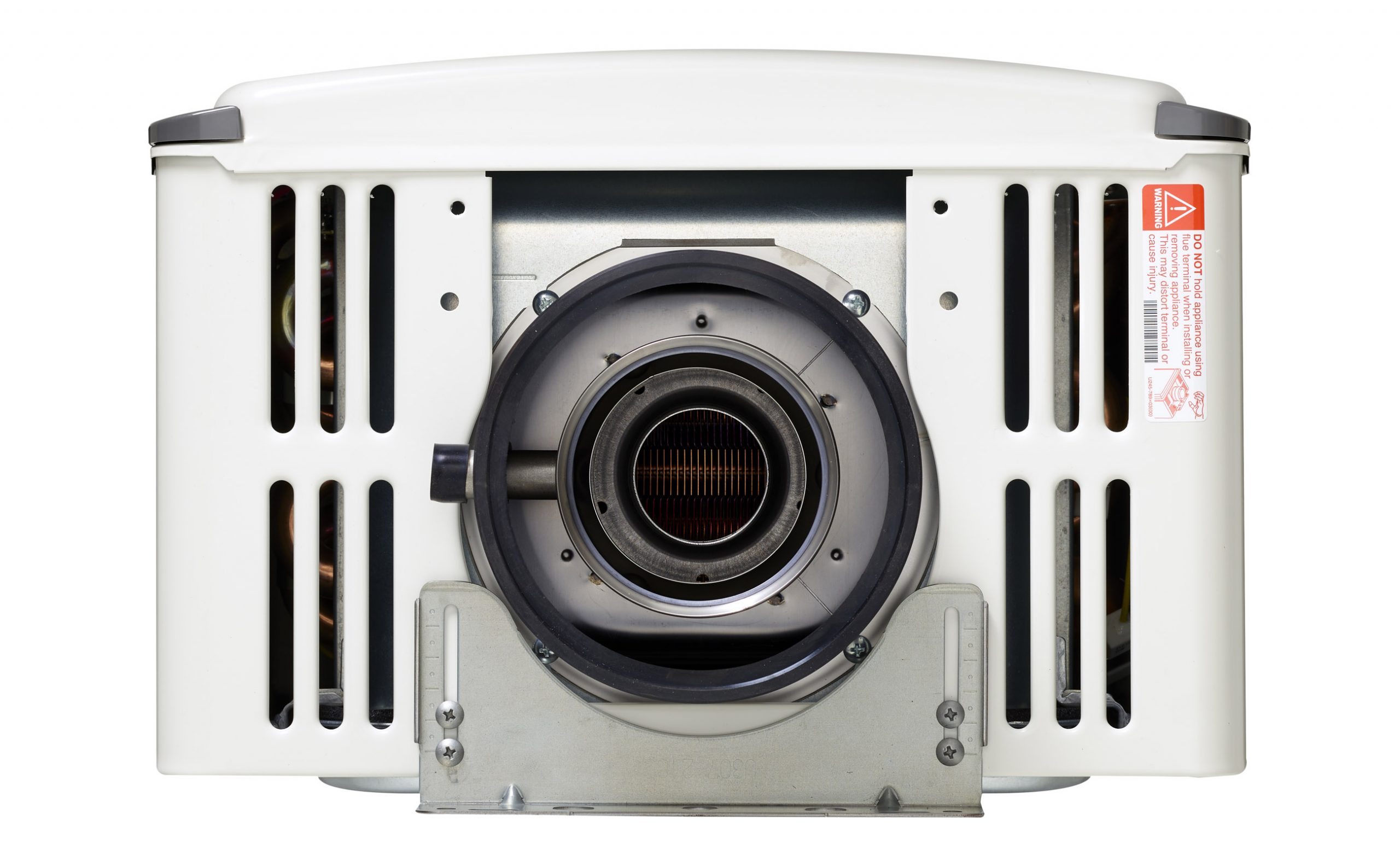

Rinnai Infinity 28i Gas Continuous Flow Hot Water (top)Preview
-

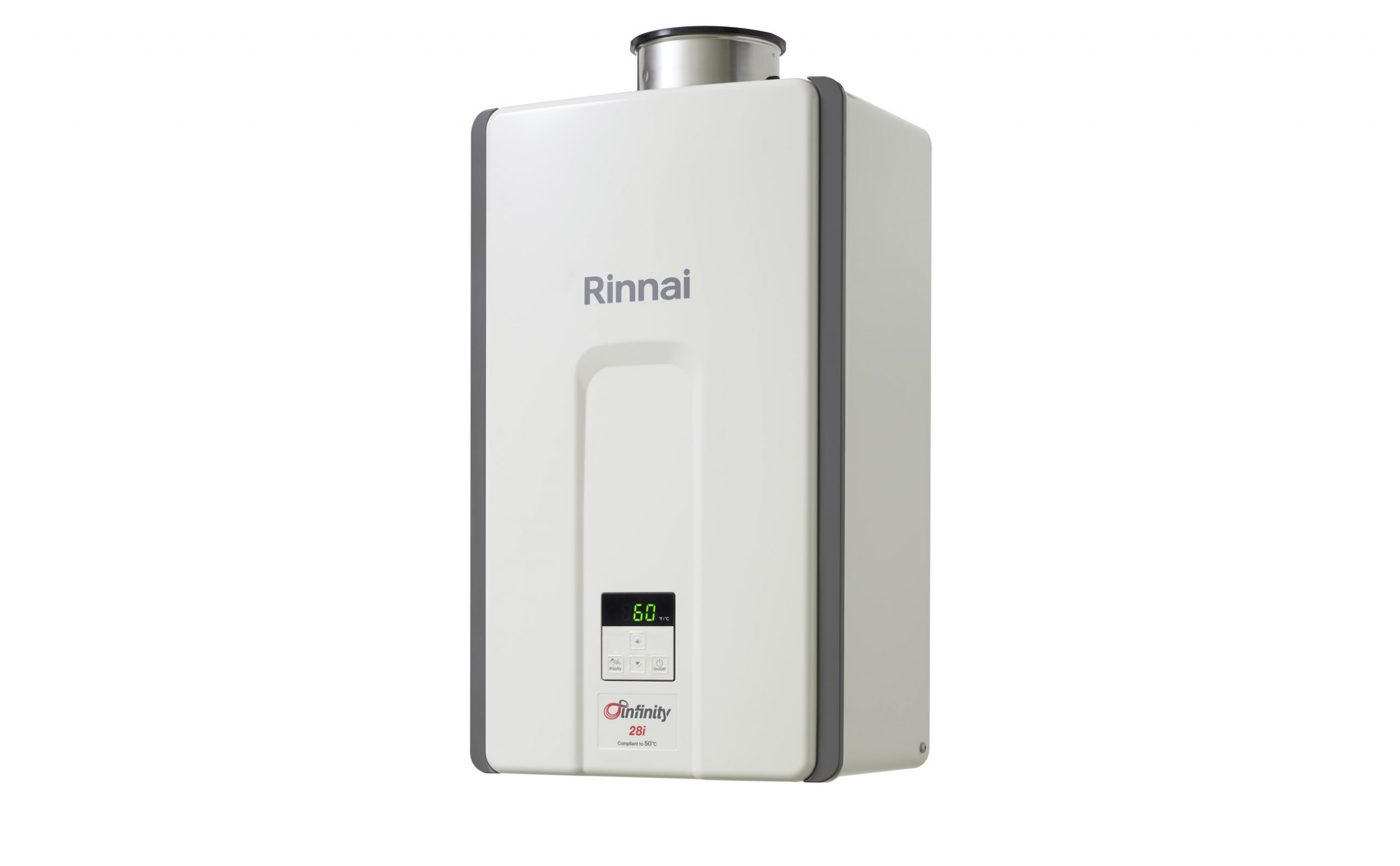

Rinnai Infinity 28i Gas Continuous Flow Hot Water (right)Preview
-

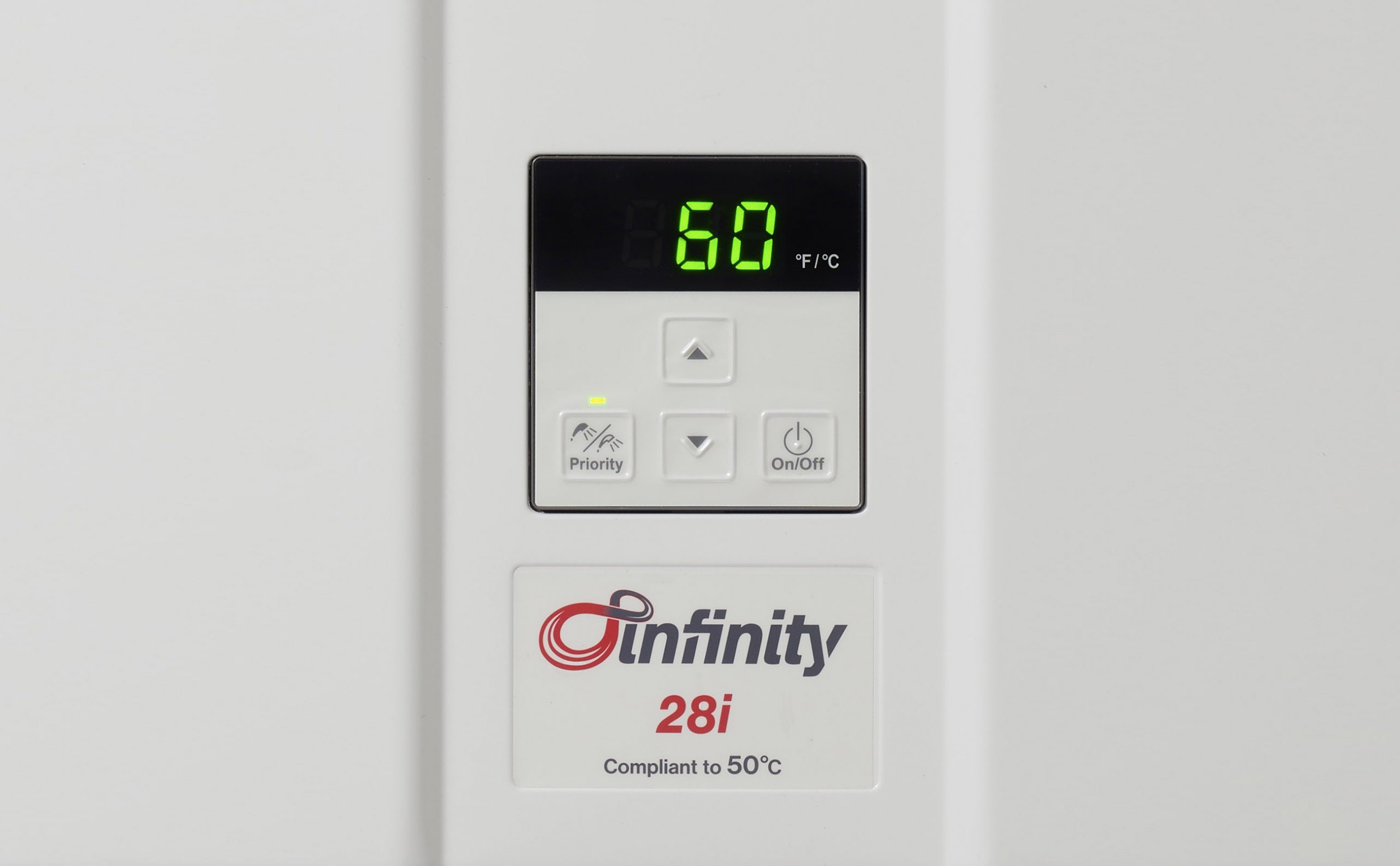

Rinnai Infinity 28i Gas Continuous Flow Hot Water (control panel)Preview
-

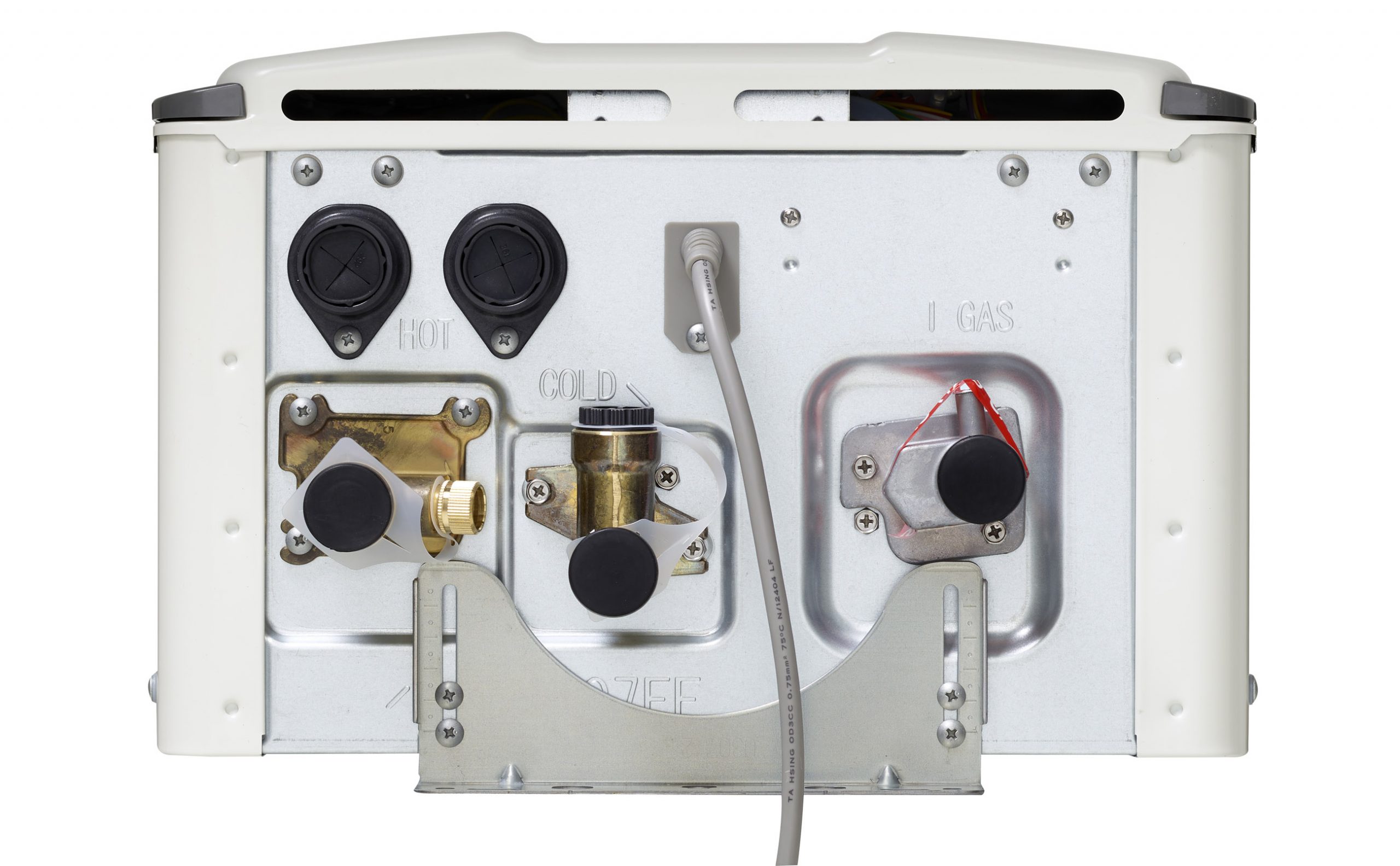

Rinnai Infinity 28i Gas Continuous Flow Hot Water (under + brackets)Preview
-

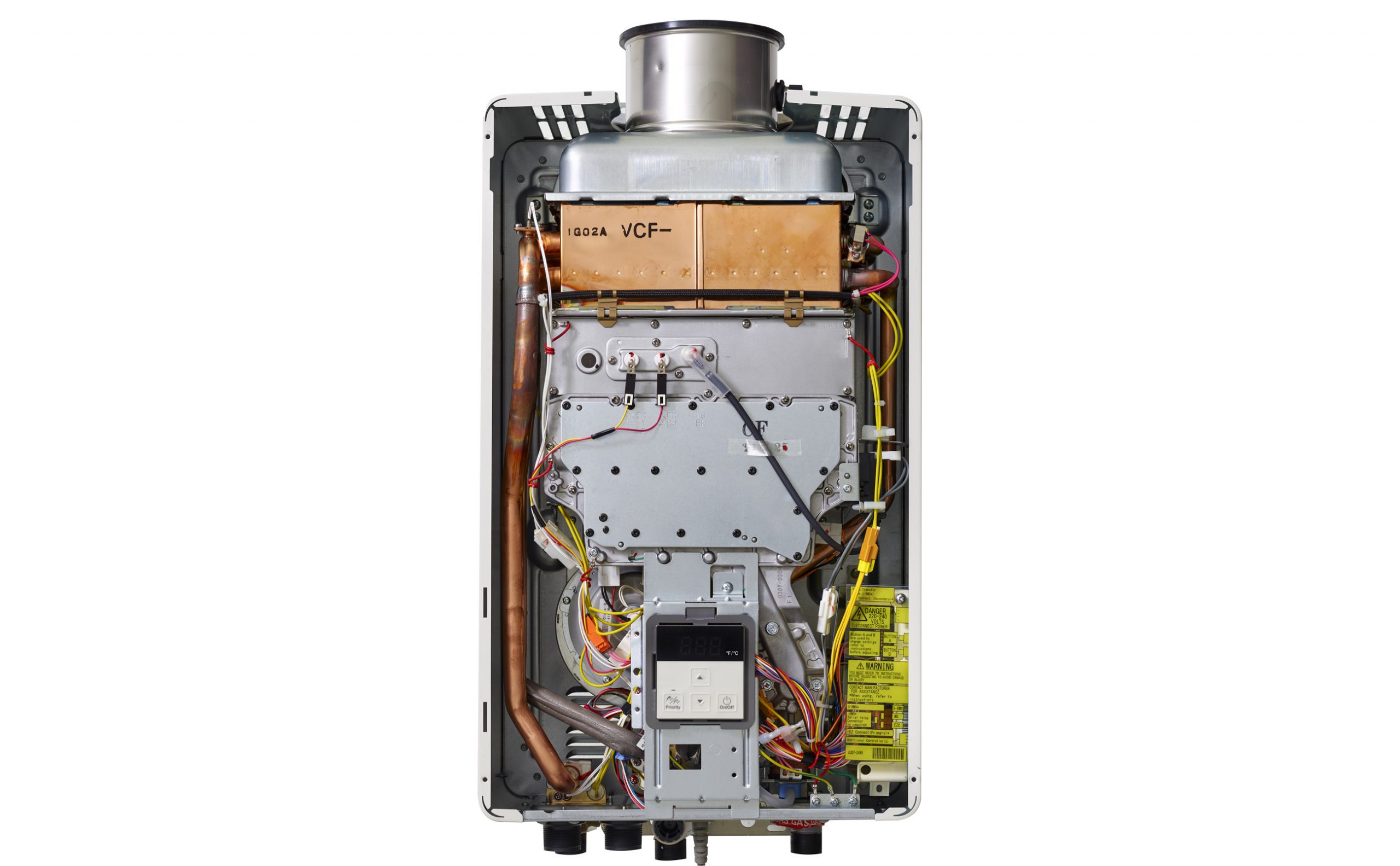

Rinnai Infinity 28i Gas Continuous Flow Hot Water (internal)Preview
-

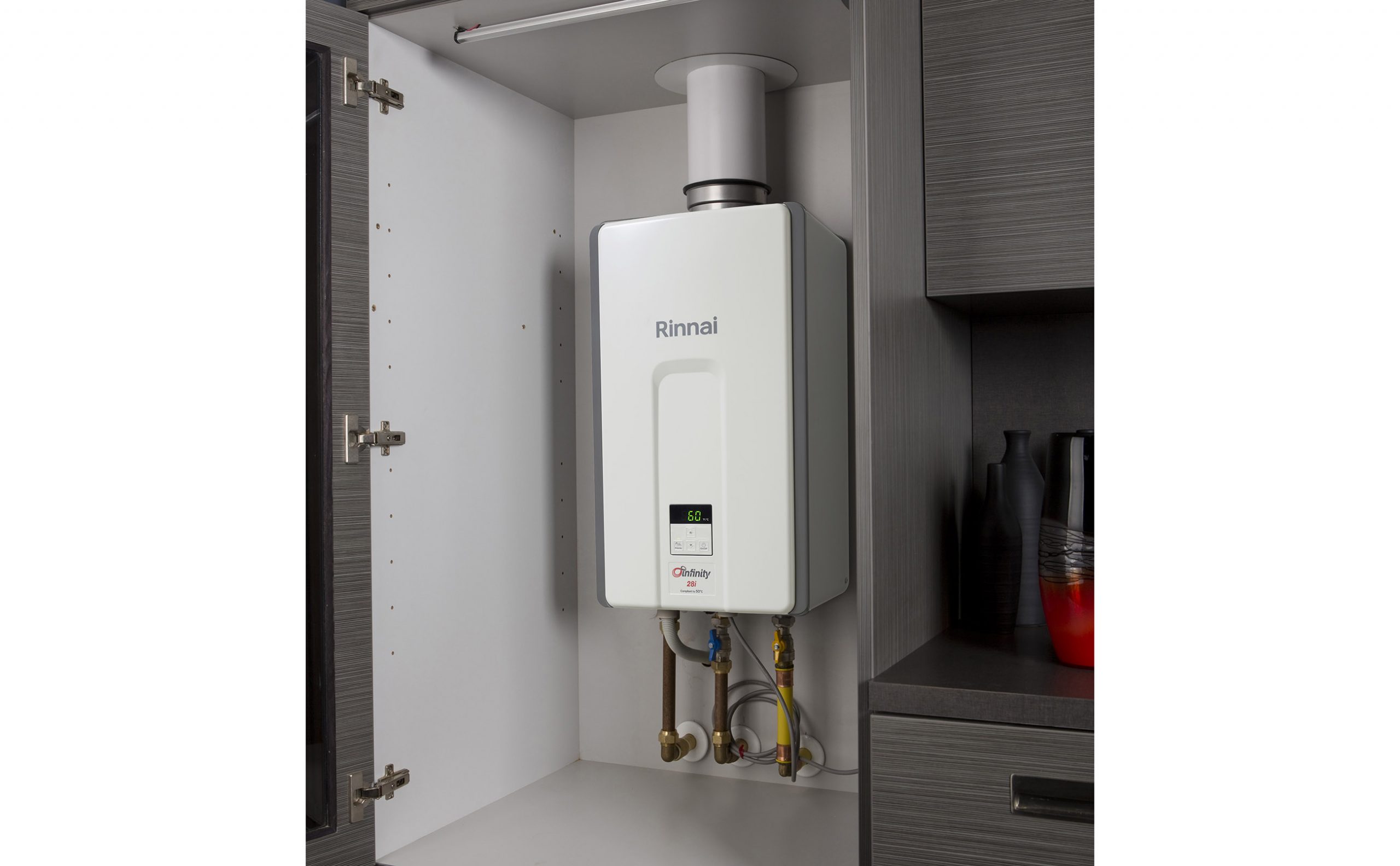

Rinnai Infinity 28i Gas Continuous Flow Hot Water (cupboard + flue)Preview
