Rinnai ES 1000 Electric Fireplace
Rinnai ES 1000 Electric Fireplace
Add luxury to your living space with the ES 1000, the ultimate home investment
The Rinnai ES 1000 Electric Fireplace is the smallest of our landscape electric fires at 1 metre in length. With the option of inset, panoramic (3 sided) or corner (left or right) aspect you will be spoilt for choice when creating your perfect fireplace.
Locate Your Nearest Store
Instant heat and hyper realistic flame pattern
Unique TriLight technology
Built in Wi-Fi connectivity
Smart Technology – synchronise with your smart device
Super Technology
- Heat output – 1.8kW (3 Heating modes with cool blow function)
- Optimised heater position and minimal visible vents
- Convenient multiple control options – Manual, Remote control or App
- Easy to install – Wall mountable (Supplied with brackets)
- 7 day programmable timer with adaptive smart heating
- Open door/window detection
Themes and Effects
-
- Multi-option RGB flame and fuel bed colours with user preset options
- Ultra-realistic glowing fuel bed with burning embers with customisable log layout
- 3 independently controlled lighting effects:
– Flames: colour and brightness
– Under fuel bed: colour and brightness
– Above fuel bed: colour and brightness
- 6 pre-set TriLight themes: Autumn Campfire | Emberglow | Inferno | Noir | Fire and Ice | Nebular
Rinnai quality
- 5 Year warranty
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
| Rinnai – System Model | Unit | ES1000 | |||||
| Weight | kg | 44.5 | |||||
| Dimensions H x W x D | mm | 548 x 1030 x 296 | |||||
| Supply Voltage | VAC / Hz | 230 – 240 / 50 | |||||
| Three pin plug type | Amp | 10 | |||||
| Length of power lead | mm | 1600 | |||||
| Max. Power Consumption | W | 2000 | |||||
| Power for Flame Effect | W | 40 | |||||
| Heat Output | Symbol | Value | Unit | ||||
| Nominal Heat Output | Pnom | 1.8 | kW | ||||
| Minimum Heat Output | Pmin | 0.9 | kW | ||||
| Maximum Continuous Heat Output | Pmax | 1.9 | kW | ||||
| Auxiliary Electricity Consumption | |||||||
| At Nominal Heat Output | elmax | 12.5 | W | ||||
| At Minimum Heat Output | elmax | 12 | W | ||||
| In Standby Mode | elmax | 1.1 | W | ||||
| Type of Heat Output / Room Temperature Control | Yes / No | ||||||
| With electronic room temperature control | Yes | ||||||
| Electronic room temperature control plus day timer | Yes | ||||||
| Electronic room temperature control plus week timer | Yes | ||||||
| Other Control Options | |||||||
| Room temperature control, with open window detection | Yes | ||||||
| With distance control option | Yes | ||||||
| With adaptive start control | Yes | ||||||
Warranty
| Type | Product Groups | Parts | Labour |
| Residential and Light Commercial | Electric Fire Heater | 5 Years | 5 Years |
Photography
-

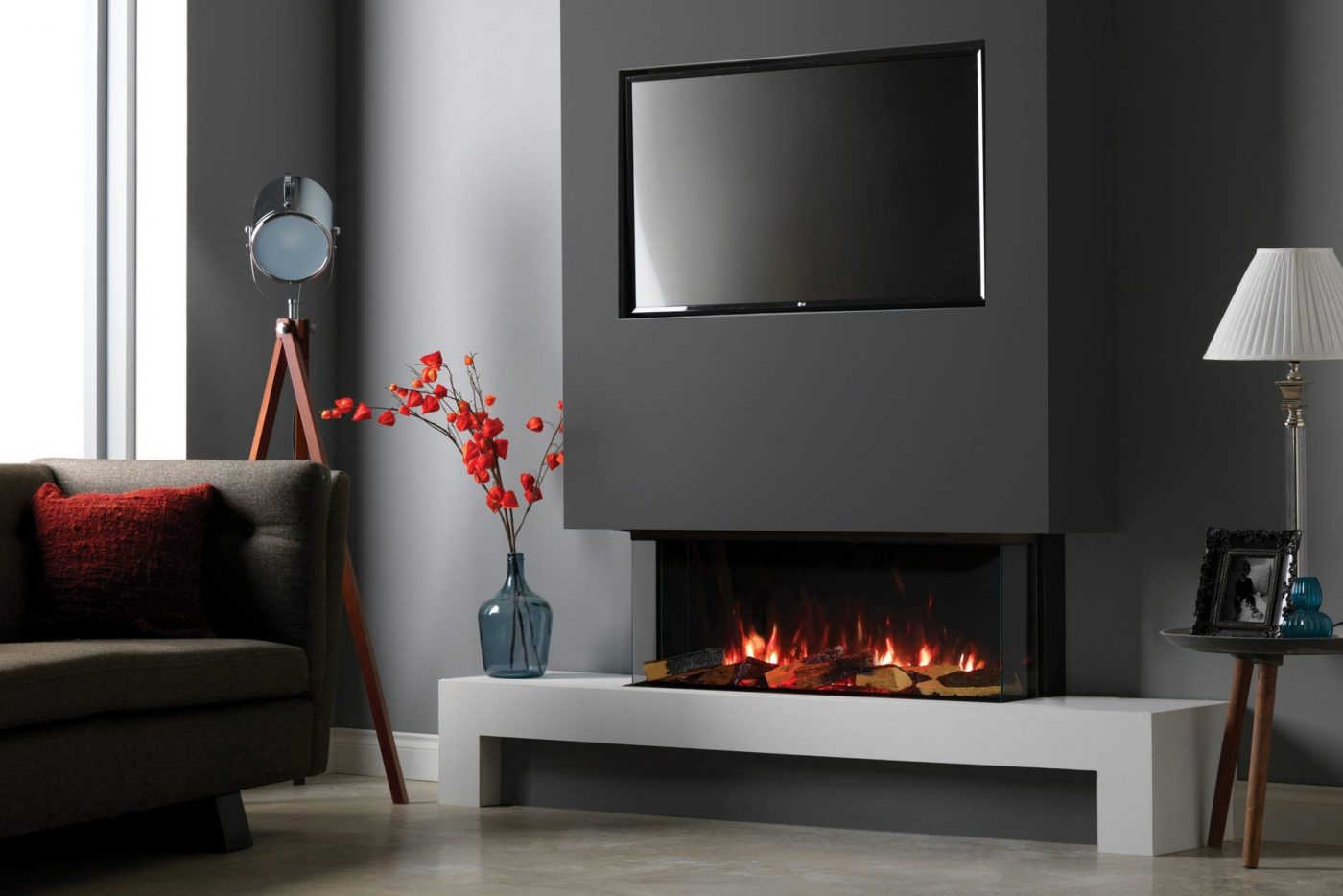

Rinnai ES 1000 Electric Fireplace (living room)Preview
-

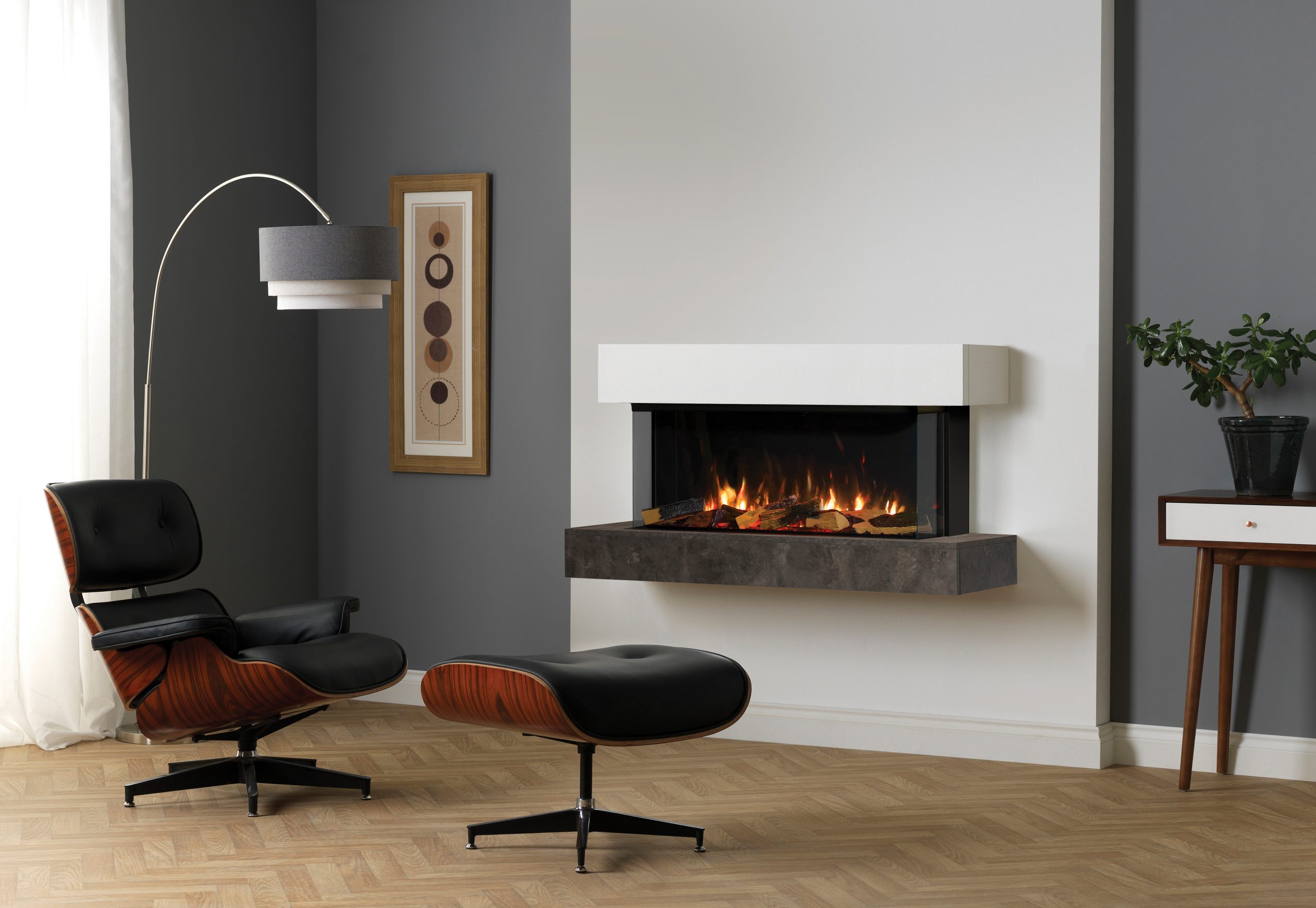

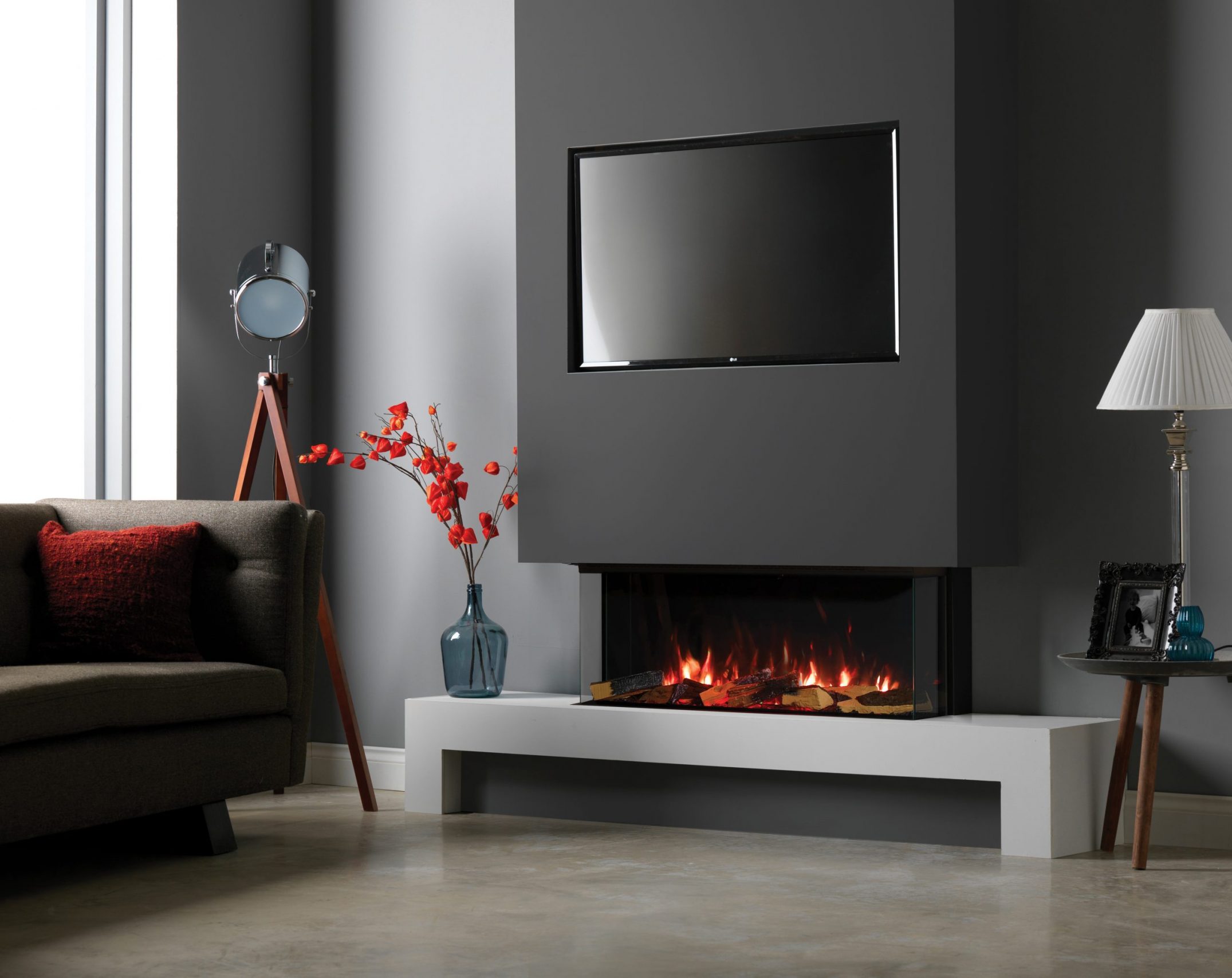

Rinnai ES 1000 Electric Fireplace (in wall 3 sides)Preview
-

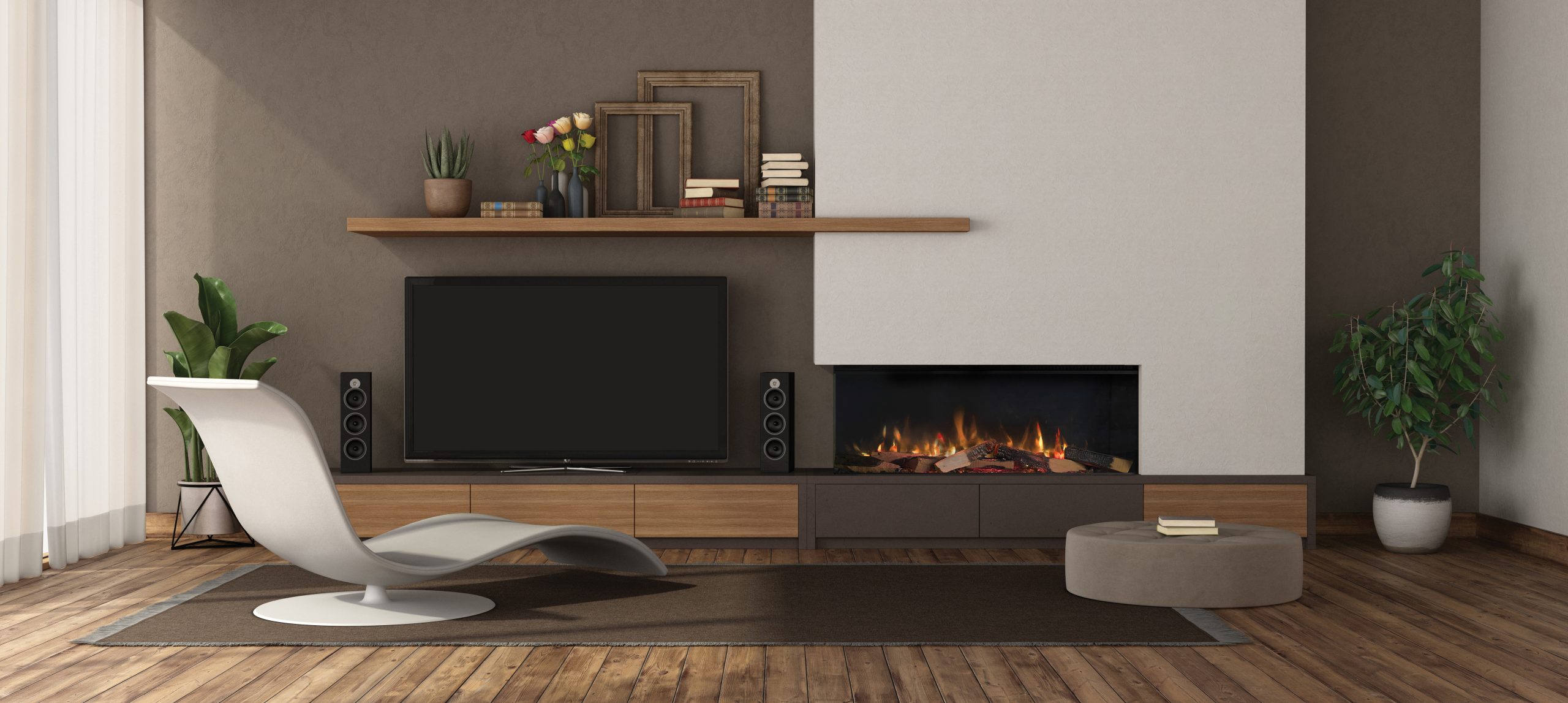

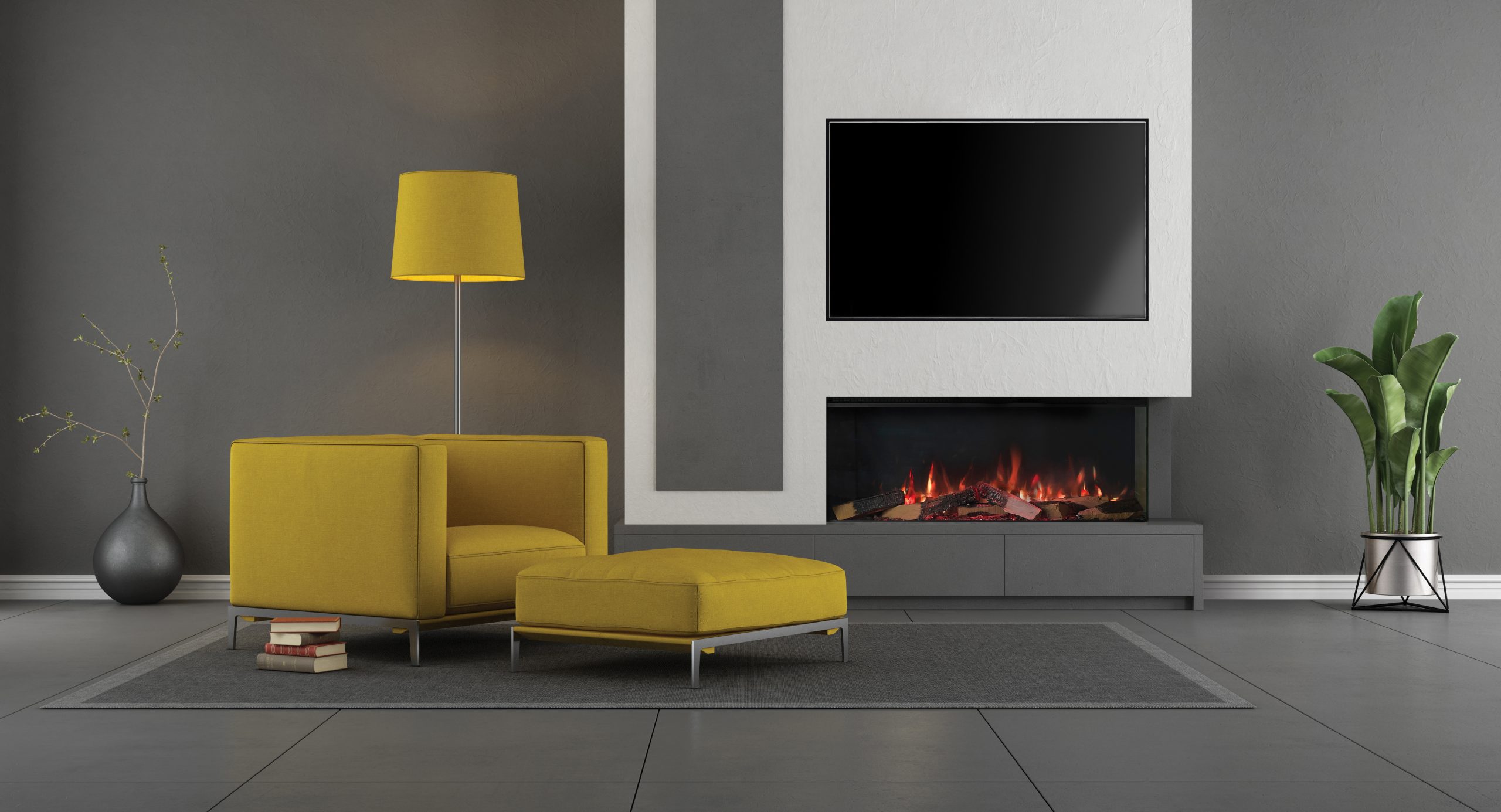

Rinnai ES 1000 Electric Fireplace (left corner)Preview
-
Rinnai ES 1000 Electric Fireplace (right corner)Preview
-

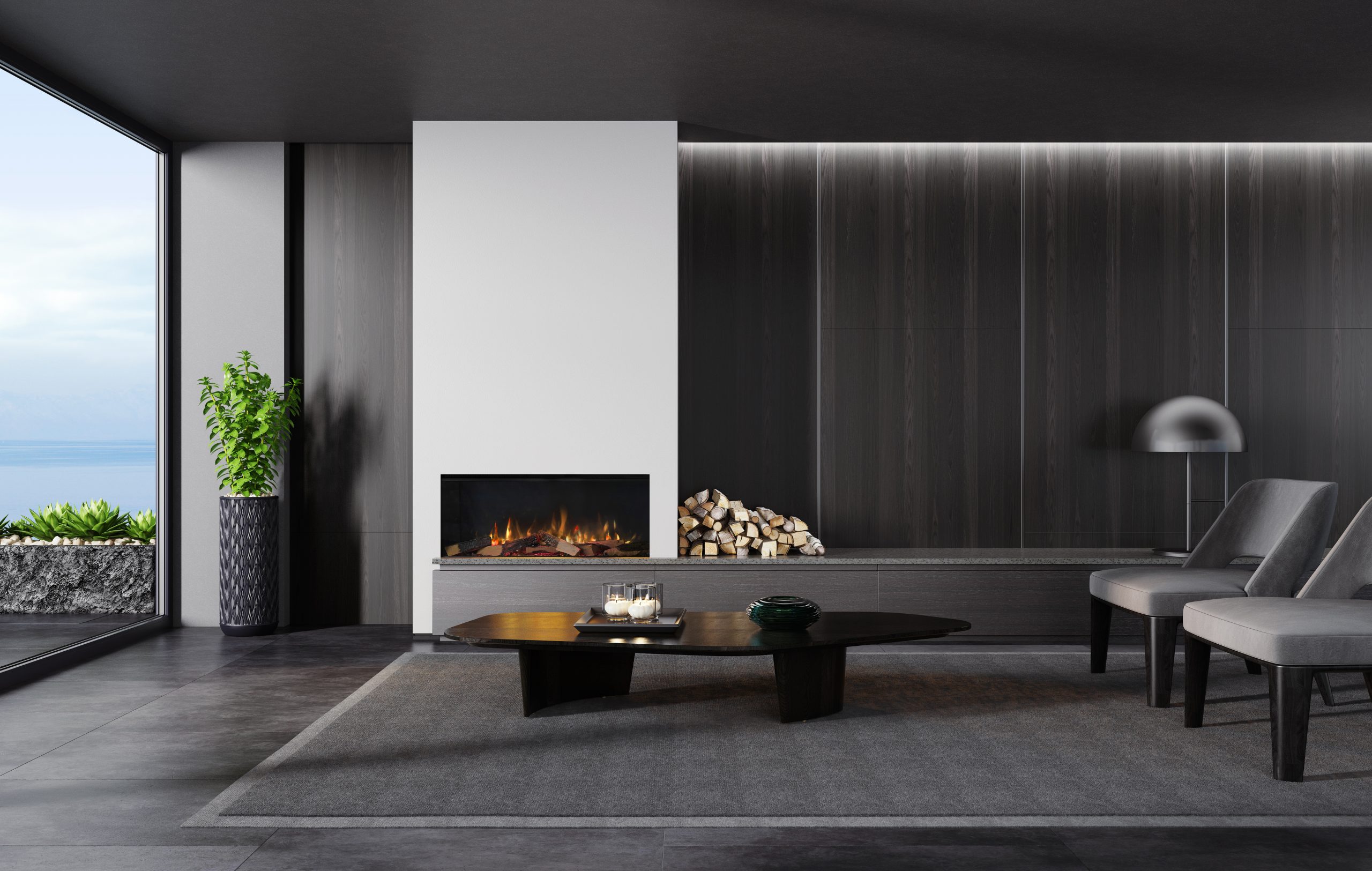

Rinnai ES 1000 Electric Fireplace (in wall)Preview
-
Rinnai ES Electric Fireplace TriLight Log (purple)Preview
-
Rinnai ES Electric Fireplace Mobile AppPreview
-
Rinnai ES Electric Fireplace ControllerPreview
PDF
-
ES Series Electric Fireplace Brochure Preview
-
ES Series Electric Fireplace Operation and Installation Manual Preview
-
ES Series Electric Fireplace Wireless Smart Kit Operating Manual Preview
-
ES Series Electric Fireplace Cabinet Brochure Preview
CAD
-
Rinnai ES 1000 Electric Fireplace (CAD)
