HDC32i (Internal)
HDC32i (Internal)
Ground breaking technology
This ground breaking technology is the first of its kind to be used in water heating in Australia. The unique design of the Rinnai HDC32i (internal) Heavy Duty Continuous Flow Hot Water system incorporates two innovative Stainless Steel heat exchangers to achieve the maximum heating output from every mega joule of gas, resulting in an outstanding thermal efficiency of 97%.
In addition it employs revolutionary surface burner technology – an Australian first!
This unit is a room sealed appliance using a co-axial flue design with an impressive maximum flue run of up to 42 metres. Offering class leading installation flexibility.
For internal applications only.
Locate Your Nearest Stockist
NOTE: Rinnai does not sell directly to the public. Our products are available only through third-party stockists and installers.
Ideal for childcare centres, high usage amenities and factories
Renowned Japanese design / Australian made
97% thermal efficiency
Revolutionary surface burner technology – an Australian first
56kW output capacity
High temperature safety cut-out
Internal model
5 year heat exchanger warranty*
7.0 star equivalent energy rating**
- 97% thermal efficiency
- 56kW output capacity
Superior Technology
- Top down surface burner technology
- Dual Stainless Steel heat exchangers
- Heat exchange bypass technology maintains the perfect temperature with reduced pressure loss
- Compatible with Rinnai sophisticated Cascade staging system
- In-built controller displays set water temperature and system status
- Building Management System (BMS) fault option
- Flue lengths up to 42 metres for internal versions
- Push button control on the PCB making initial installation set-up a breeze
- High altitude function allowing installation up to 2000 metres above sea level
- High temperature safety cut-out
- Low pressure loss
- Revolutionary fuel sensing technology removing the need for separate models for Natural Gas or LPG
- Anti-frost protection down to a low -20°C
- 50°C and 75°C pre-set temperatures available
Ideal for
- Caravan Parks
- Butchers
- Laundromats with domestic style top loader machines
- Childcare centres
- Small amenity blocks
- Factories
- High temperature wash down
Related products/Add-ons
Rinnai Quality
- Renowned Japanese design quality and components
- Manufactured in Rinnai’s own state of the art facility
- 5 year heat exchange warranty*
- 3 year parts and labour warranty*
*For full warranty terms and conditions refer to the related warranty booklet.
**Independently calculated using Australian Standard AS5263.1.2. | S5263.1.2 limits the rating shown on the energy label to 6.0 Stars. | Where the calculated rating of Rinnai appliances exceeds 6.0 Stars it is designated as an “equivalent” rating.
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
Product codes: REU-NB3237WC-AK / REU-NB3237FFC-AK / REU-NB3237WC-50-AK / REU-NB3237FFC-50-AK
| Rinnai – HDC32i (internal) Heavy Duty Continuous Flow Hot Water | Values | |||
| Dimensions | Height | mm | 654 | |
| Width | 470 | |||
| Weight | kg | 27 | ||
| Factory Default Temperature | Celsius | 50 or 75 | ||
| Temperature | Maximum | 85 | ||
| Water Pressure | Minimum | kPa | 300 | |
| Maximum | 1000 | |||
| Gas Rate | Minimum | NG / LPG | 15.9 | |
| Maximum | 209 | |||
| Operating Water Flow Rate | Minimum | L / min | 2.4 | |
| Thermal Efficiency Rating | % | 96.2 | ||
| Energy Rating | Stars | 7 | ||
| Capacity | Maximum | kW | 55.6 | |
| Compatibility | MECS | Yes | ||
| Cascade | Yes | |||
| Status Monitor | Yes | |||
| Electrical Consumption | W | 150 | ||
| Sound Level | dBA | 49 | ||
| Dimensions | Height (including brackets) | mm | 730 | |
| Depth (including brackets) | 291 | |||
| Hot Water Outlet | From Wall | 158 | ||
| From Centre | 130 | |||
| Cold Water Inlet | From Wall | 91 | ||
| From Centre | 9 | |||
| Gas Connection | From Wall | 72 | ||
| From Centre | 142 | |||
| Condensate Connection | From Wall | 135 | ||
| From Centre | 181 | |||
| Fitting Diameter | Hot / Cold / Gas | 20 | ||
Consumer
-
HDC32 (Heavy Duty) Gas Continuous Flow Hot Water Specification Guide
-
Infinity Enviro 32 / HDC32 (Heavy Duty) Gas Continuous Flow Hot Water Operation and Installation Manual
-
Gas Continuous Flow Hot Water Error Codes
-
Commercial Hot Water Warranty Booklet
Installation Guides + Diagrams
-
Commercial Hot Water FFPP (Polypropylene) Flue System Installation Manual
Photos
-
Rinnai HDC32i (Internal) Heavy Duty Continuous Flow Hot Water (front)

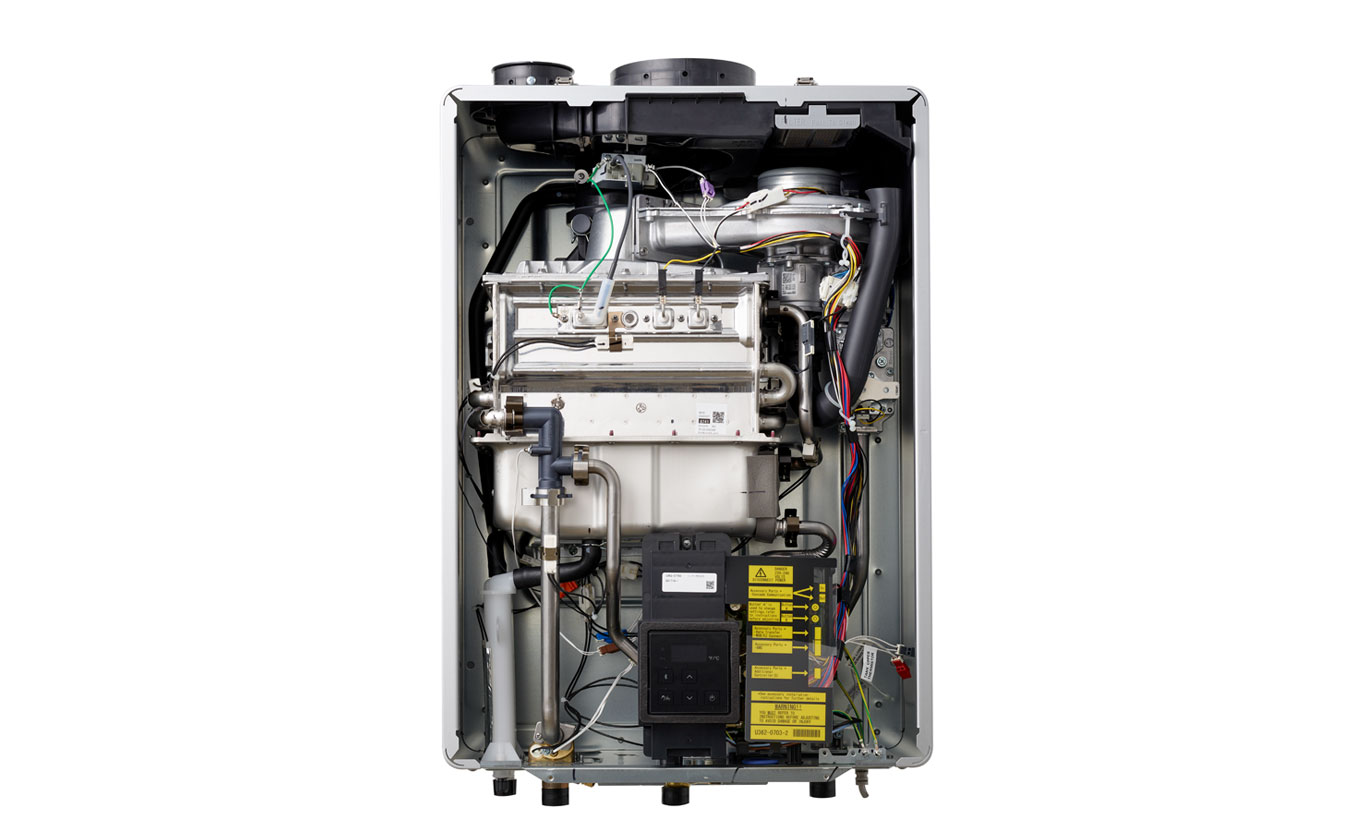

Rinnai HDC32i (Internal) Heavy Duty Continuous Flow Hot Water (interior)

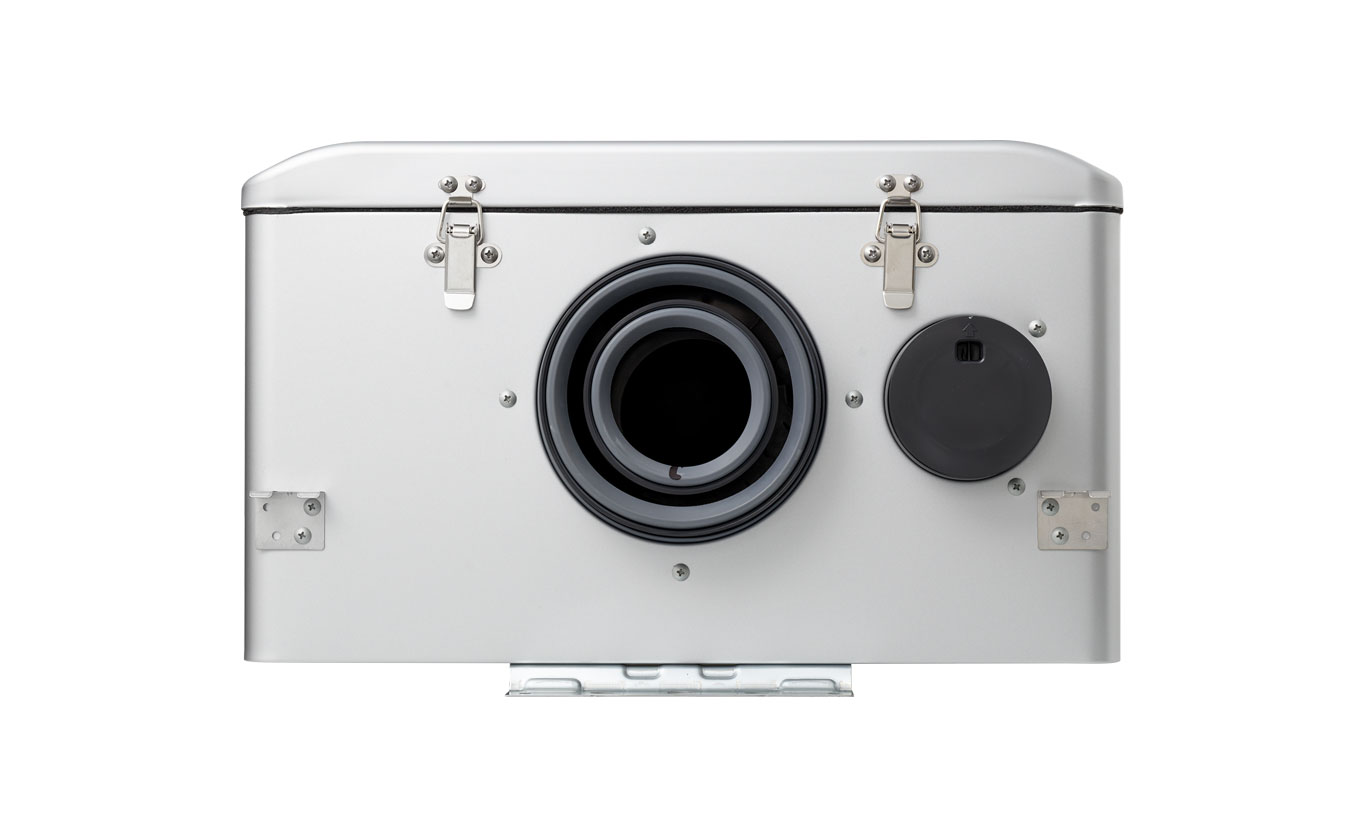

Rinnai HDC32i (Internal) Heavy Duty Continuous Flow Hot Water (top)

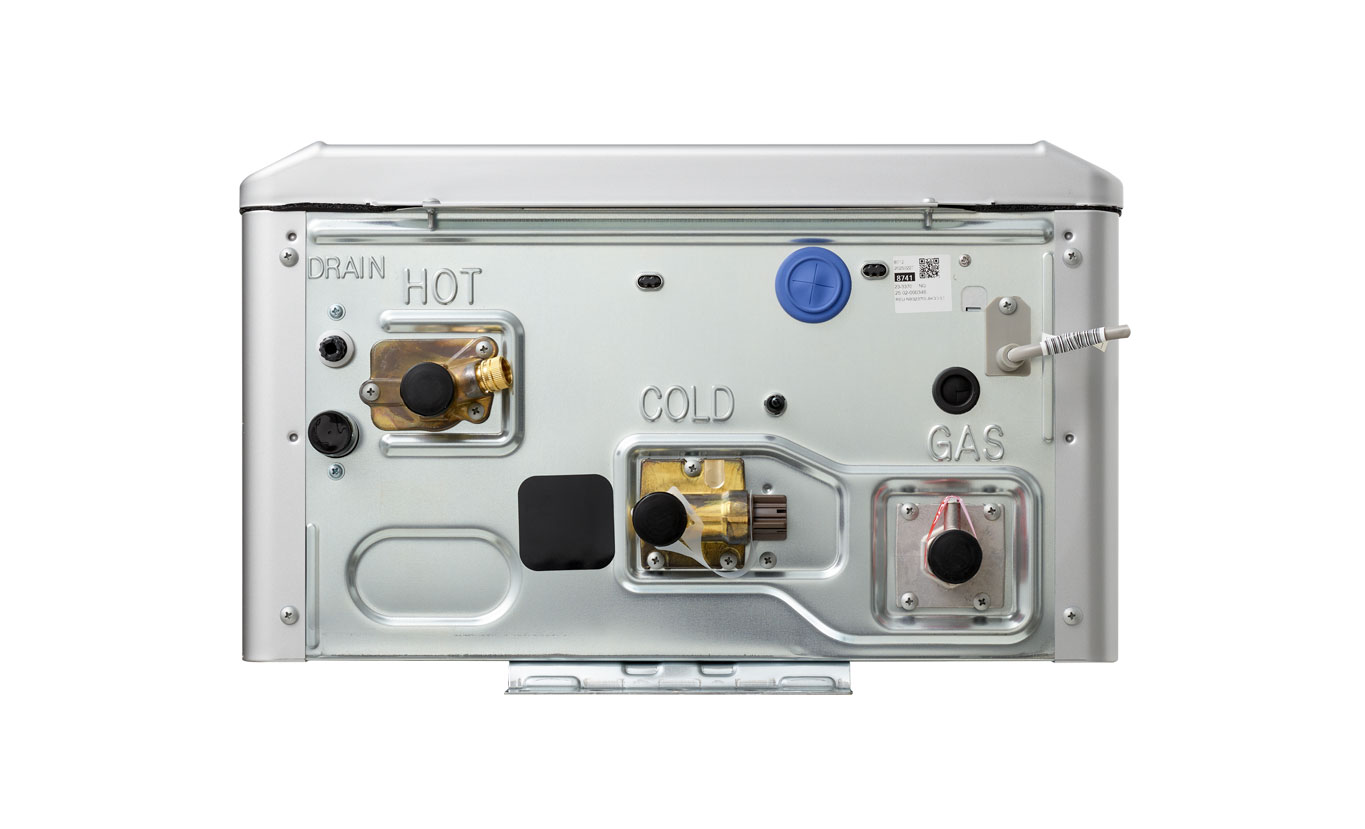

Rinnai HDC32 Heavy Duty Continuous Flow Hot Water (under)
