Warm Water Valve
Warm Water Valve
Reliable temperature control with minimal pressure drop
The Rinnai Demand Duo Warm Water Valve (DDWWV) is a high-performance circulating warm water valve that accepts hot water at 60°C or higher from a storage system and delivers a consistent, reduced outlet temperature across a full range of flow rates with minimal pressure drop.
Ideal for commercial applications such as apartments, hotels, hospitals, and nursing homes, the DDWWV can replace multiple tempering or thermostatic mixing valves (TMV) with a single centralised solution, simplifying installation and maintenance.
The system features an intelligent electronic controller that continuously monitors the warm water outlet temperature. A magnetically actuated three-way mixing valve automatically adjusts to mix hot and cold water at the precise rate needed to maintain the programmed temperature. The outlet temperature can also be fine-tuned to account for temperature losses along the ring main, ensuring accurate and safe water delivery at every point of use.
Locate Your Nearest Stockist
NOTE: Rinnai does not sell directly to the public. Our products are available only through third-party stockists and installers.
Ideal for apartment blocks, hospitals, aged care facilities
For use with Demand Duo Hot Water systems
Lowers the cost of servicing multiple units
Improved maintenance scheduling
Features
- Reduces installation cost of multiple valves
- Lowers the cost of servicing multiple units
- Maintenance can be fully managed in one area
- Improved maintenance scheduling with reduced interruption
- Better aesthetics
- Compatible with our solar pre-heating systems
Ideal for
- Large apartment blocks
- Large Hotels
- Hospitals
- Nursing Homes
- Aged Care Facilities
Related products/Add-ons
Note: The Demand Duo Warm Water Valve is approved to AS4032.1, as a thermostatic mixing valve and to AS4032.2, as a tempering valve. It is also approved as a warm water system by NSW Health.
For further information, please contact your Rinnai Commercial Representative.
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
Consumer
-
Demand Duo Warm Water Valve Specification Guide
-
Demand Duo Warm Water Valve Operation and Installation Manual
-
Commercial Hot Water Warranty Booklet
Trade
-
Plans - UV Steriliser DDUV117 (PDF)
-
Plans - UV Steriliser DDUV300 (PDF)
-
Plans - Warm Water Valve DDWW50-1 (PDF)
-
Plans - UV Steriliser DDUV300 (DWG)
-
Plans - UV Steriliser DDUV117-1 (RFA)
-
Plans - UV Steriliser DDUV300-1 (RFA)
-
Plans - Warm Water Valve DDWW50-1 (RFA)
-
Plans - UV Steriliser DDUV117 (DWG)
-
Plans - Warm Water Valve DDWW50 (DWG)
Photos
-

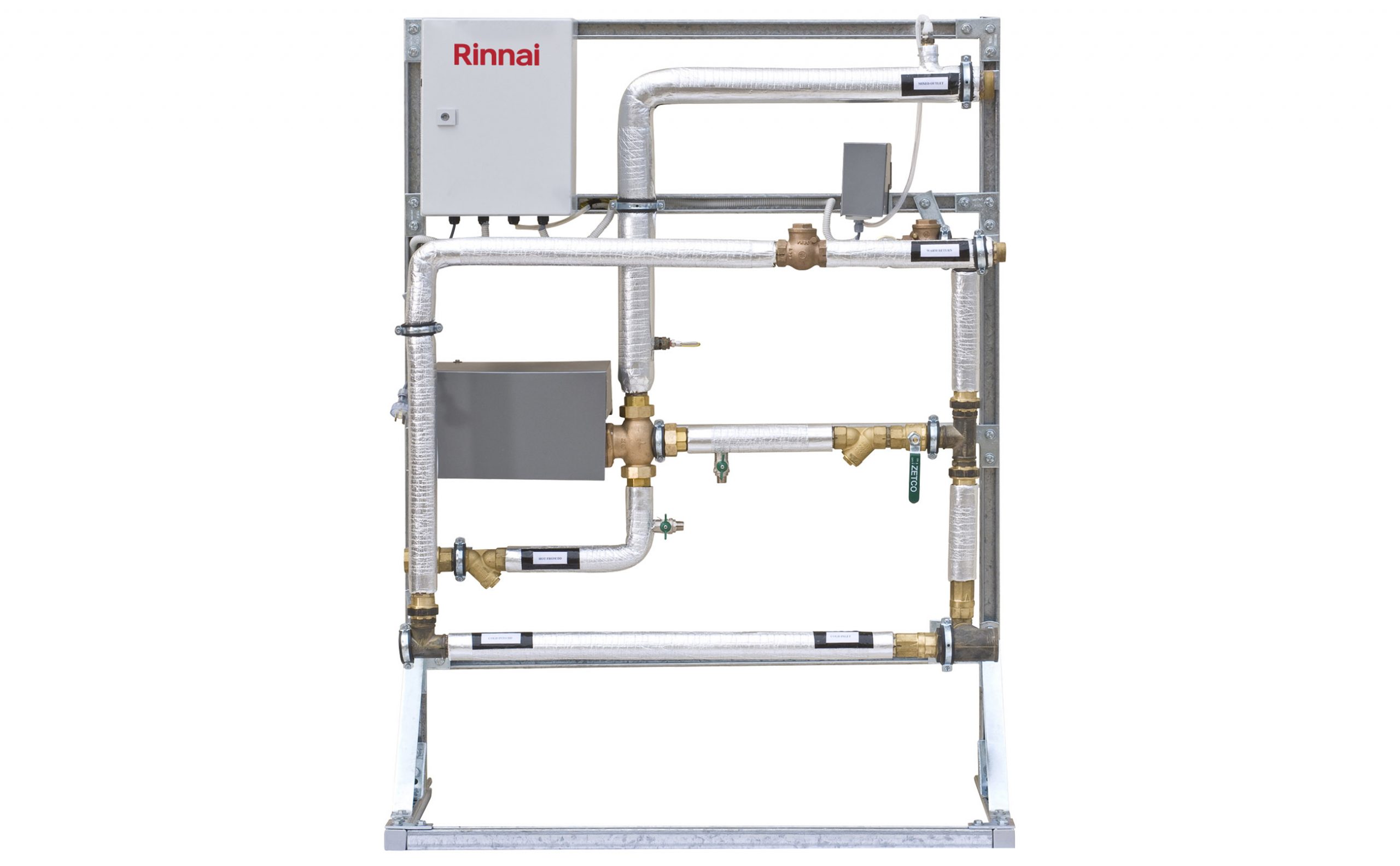

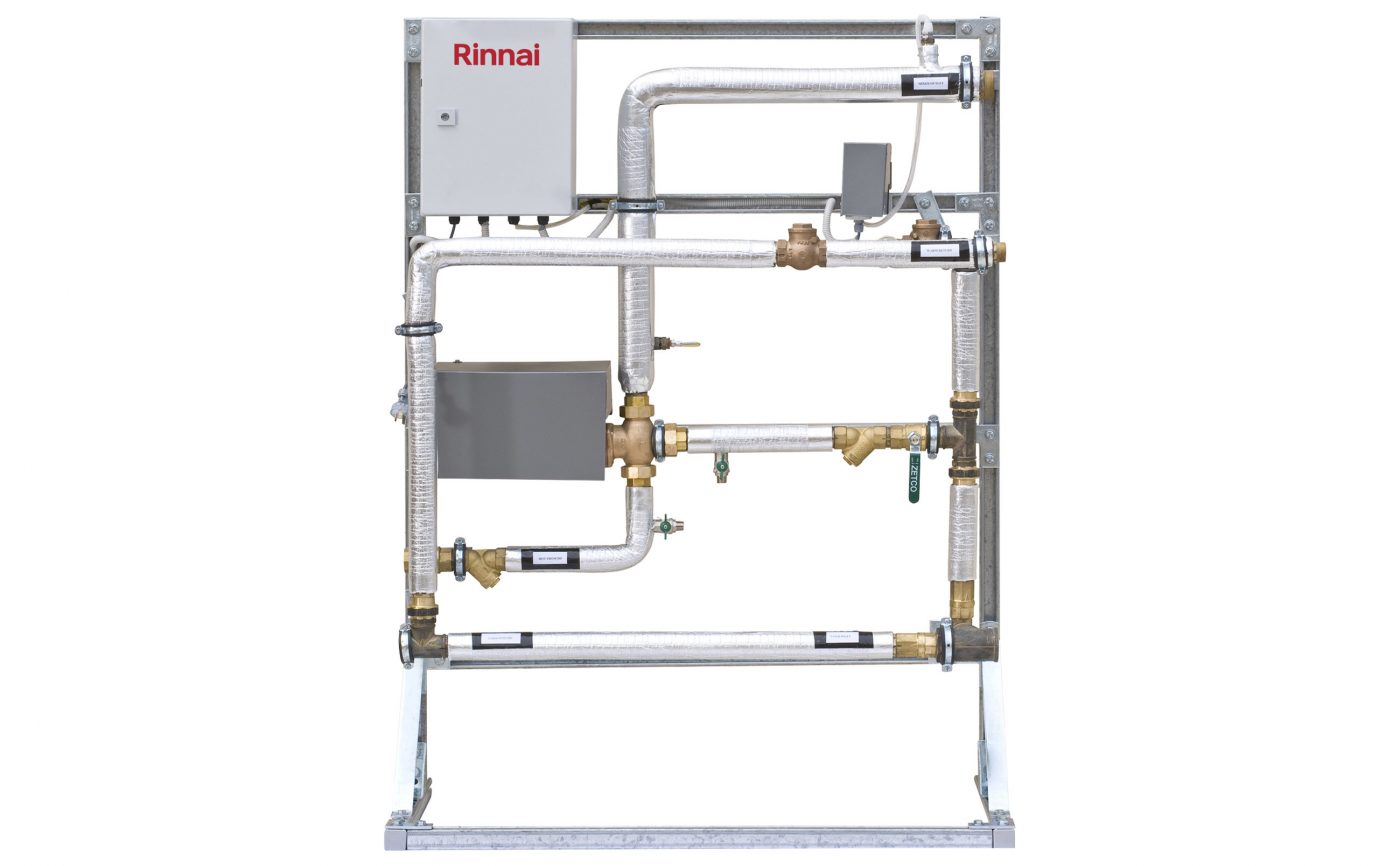

Rinnai Warm Water Valve (contoured front)

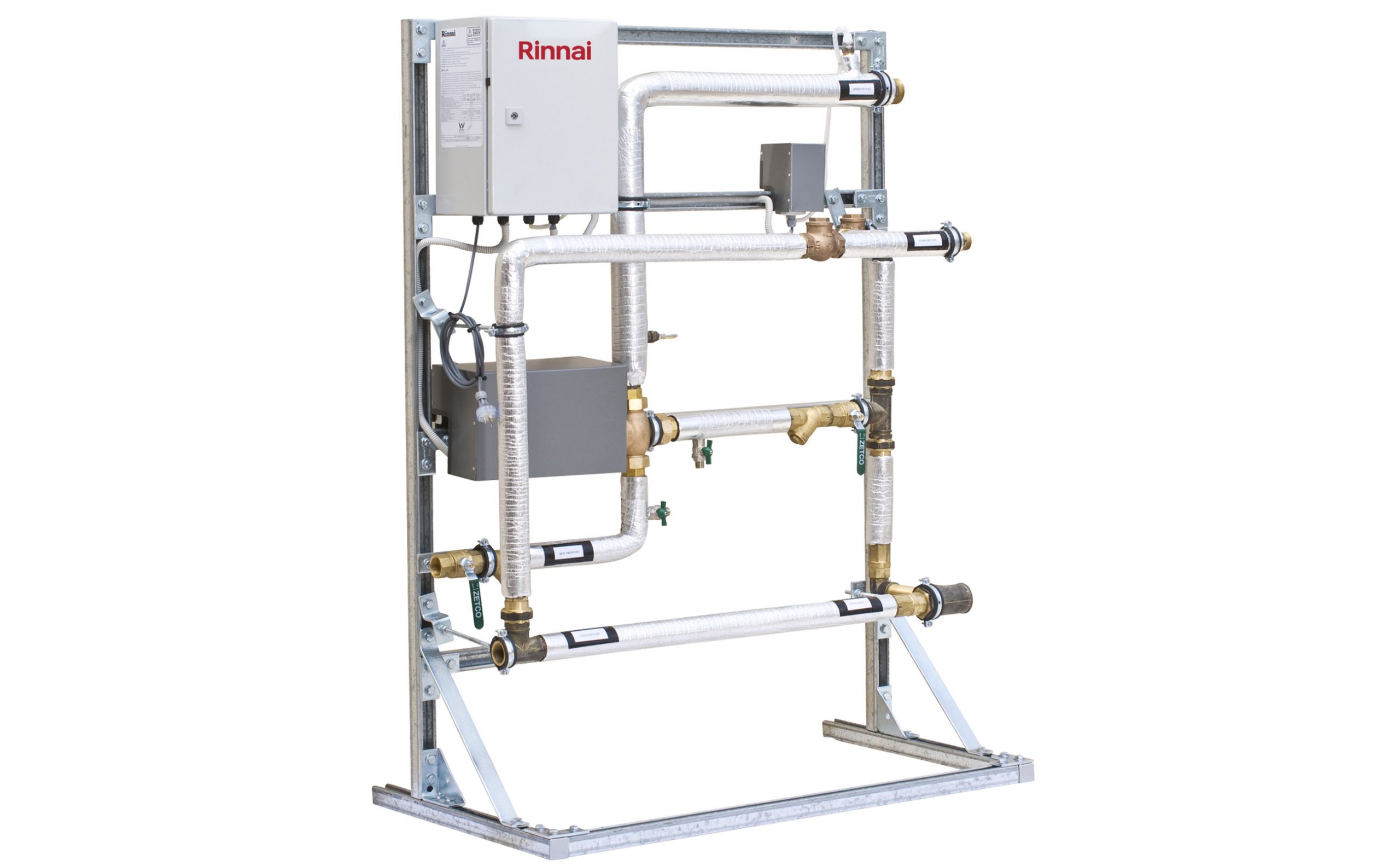

Rinnai Warm Water Valve (contoured left)

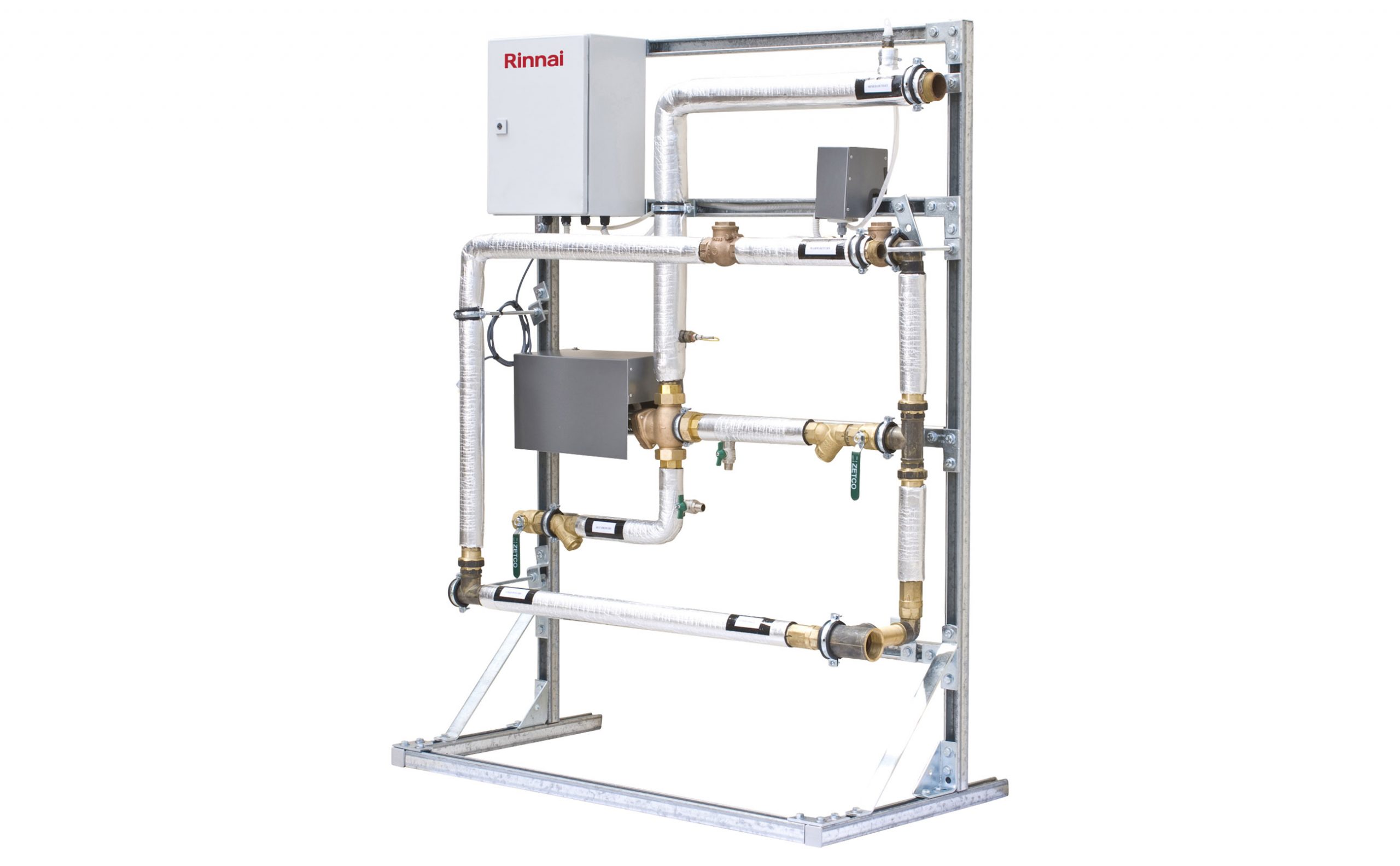

Rinnai Warm Water Valve (contoured right)

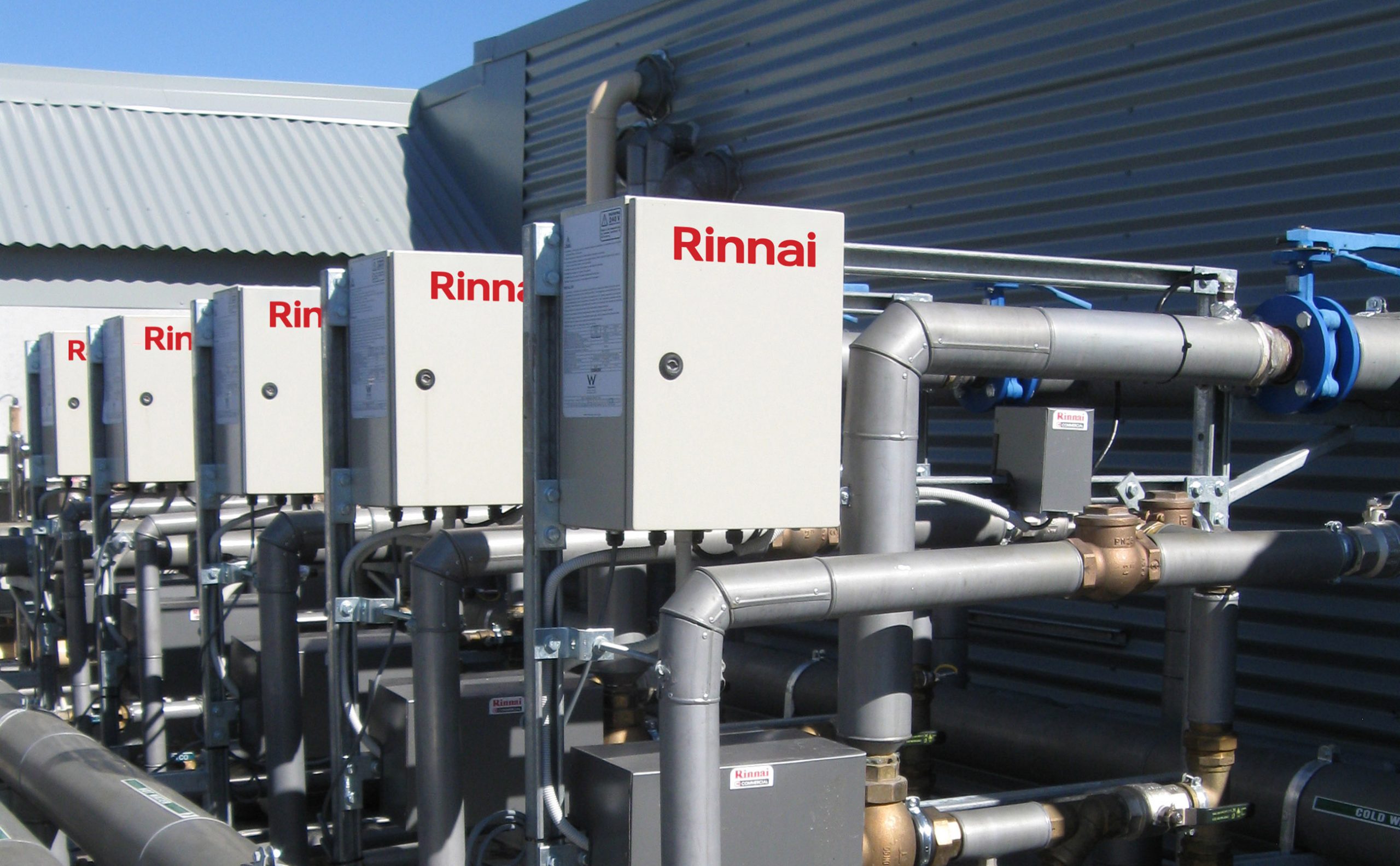

Rinnai Warm Water Valve (close up outdoors)

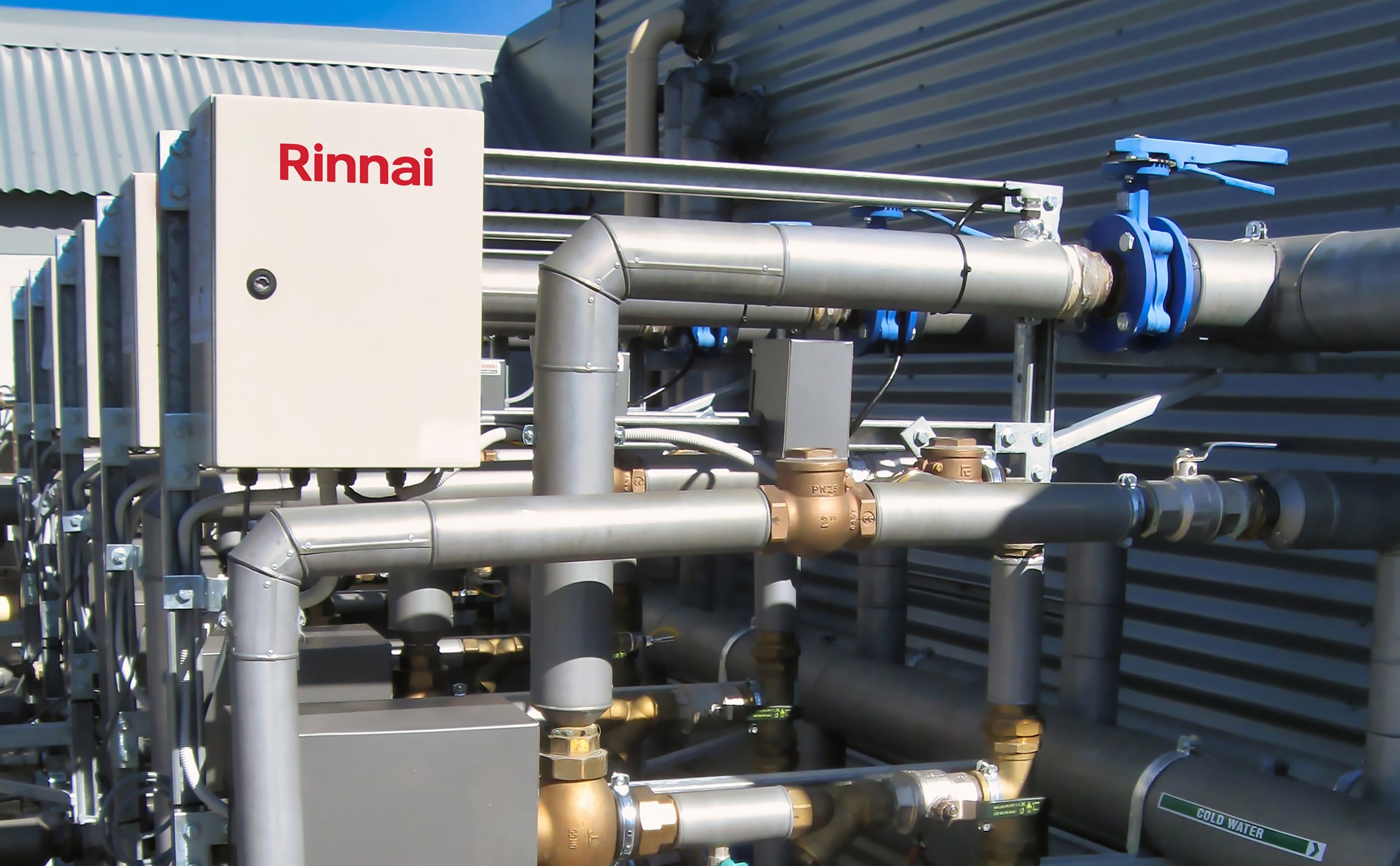

Rinnai Warm Water Valve (outdoors)
