Quick Recovery Electric Vitreous Enamel
Quick Recovery Electric Vitreous Enamel
High capacity, quick recovery – built for reliability
Built for reliability and high performance, the Rinnai Quick Recovery Electric (QRE) storage hot water system delivers up to 625 litres of hot water in the first hour at 50°C**. With a powerful triple-element design ranging from 3.6 to 6.0kW, it offers the flexibility to meet diverse household or commercial demands.
The durable Y-class*** enamel-lined cylinder suits most Australian water conditions, while high-efficiency polyurethane insulation provides excellent heat retention and exceeds current MEPS (Minimum Energy Performance) Standards. Large ports support high flow with minimal pressure drop, and the system can be installed indoors or outdoors for maximum convenience.
Engineered for easy maintenance, the QRE system features accessible electric elements and is WaterMark approved for domestic hot water applications. The result is a dependable, long-lasting hot water solution that delivers quick recovery, high capacity, and confidence in every installation.
Locate Your Nearest Stockist
NOTE: Rinnai does not sell directly to the public. Our products are available only through third-party stockists and installers.
50L or 340L tanks available
Exceeds MEPS standards for heat loss
WaterMark certified
Flexible installation options
Suitable for commercial use
5 year comemrcial cylinder warranty*
Features
- Storage capacity – 60L tanks deliver up to 50L | 340L tanks deliver up to 315L
- Triple element configuration – 3.6kW, 4.8kW, 6.0kW
- Maximum working pressure – 1000kPa
- Y-class enamel*** coated cylinder
- High flow rate and low pressure drop
- Internal or external installation
- Exceeds MEPS standards for heat loss
- High efficiency polyurethane insulation
- WaterMark certified
- Easy access for maintenance
Rinnai Quality
- 5 year comemrcial cylinder warranty*
- 10 year residential cylinder warranty*
*For full warranty terms and conditions refer to the related warranty booklet.
**QREVE340L360(H)
***Y-class enamel: A premium commercial-grade enamel coating applied to the interior of water heaters, designed to deliver long-lasting durability and superior corrosion resistance.
Product codes: 340 - QREVE340L336(H) / QREVE340L348(H) / QREVE340L360(H) | 50 - QREVE50L336(H) / QREVE50L348(H)
| Rinnai – Quick Recovery Electric Vitreous Enamel | QREVE340L336(H) | QREVE340L348(H) | QREVE340L360(H) | QREVE50L336(H) | QREVE50L348(H) | ||
| Dimensions | Height | mm | 1740 | 760 | |||
| Diameter | 655 | 470 | |||||
| Hot Outlet | 1425 | 500 | |||||
| Cold Outlet | 130 | 95 | |||||
| Electrical Entry | 140 | 85 | |||||
| Depth | 700 | 520 | |||||
| Overall Width1 | 745 | 560 | |||||
| Storage Capacity | L | 340 | 60 | ||||
| Hot Water Delivery | 315 | 50 | |||||
| First Hour Delivery | 50°C rise | 500 | 560 | 625 | 235 | 295 | |
| Recovery Rate | 185 | 245 | 310 | 185 | 245 | ||
| Number of Elements | 3 | ||||||
| Element Capacity (each) | kW | 3.6 | 4.8 | 6.0 | 3.6 | 4.8 | |
| Total Input Power | 10.8 | 14.4 | 18.0 | 10.8 | 14.4 | ||
| Electrical | 3 Phase, 415 VAC | ||||||
| Current (per phase) | Amps | 15 | 20 | 25 | 15 | 20 | |
| Pressure and Temperature Relief (PTR) Valve Setting | kPa | 1000 | |||||
| Expansion Control Valve (ECV) Setting | 850 | ||||||
| Maximum Inlet Pressure | without ECV | 800 | |||||
| with ECV | 680 | ||||||
| Thermostat Setting | Factory | °C | 70 | ||||
| Minimum | 60 | ||||||
| Weight | Dry | kgs | 110 | 30 | |||
| Connection | Cold Inlet | mm | 32 | ||||
| Hot Outlet | 32 | ||||||
| PTR Valve | 20 | ||||||
| Energy Maintenance Rate | kW / 24h | 2.5 | |||||
1. Including Pressure and Temperature Relief (PTR) valve
Consumer
-
Commercial Hot Water Quick Recovery Electric Vitreous Enamel Storage Tanks Specification Guide
-
Commercial Hot Water QRE Vitreous Enamel Storage Tanks Operation and Installation Manual
-
Commercial Hot Water Warranty Booklet
Installation Guides + Diagrams
No trade files available
Photos
-

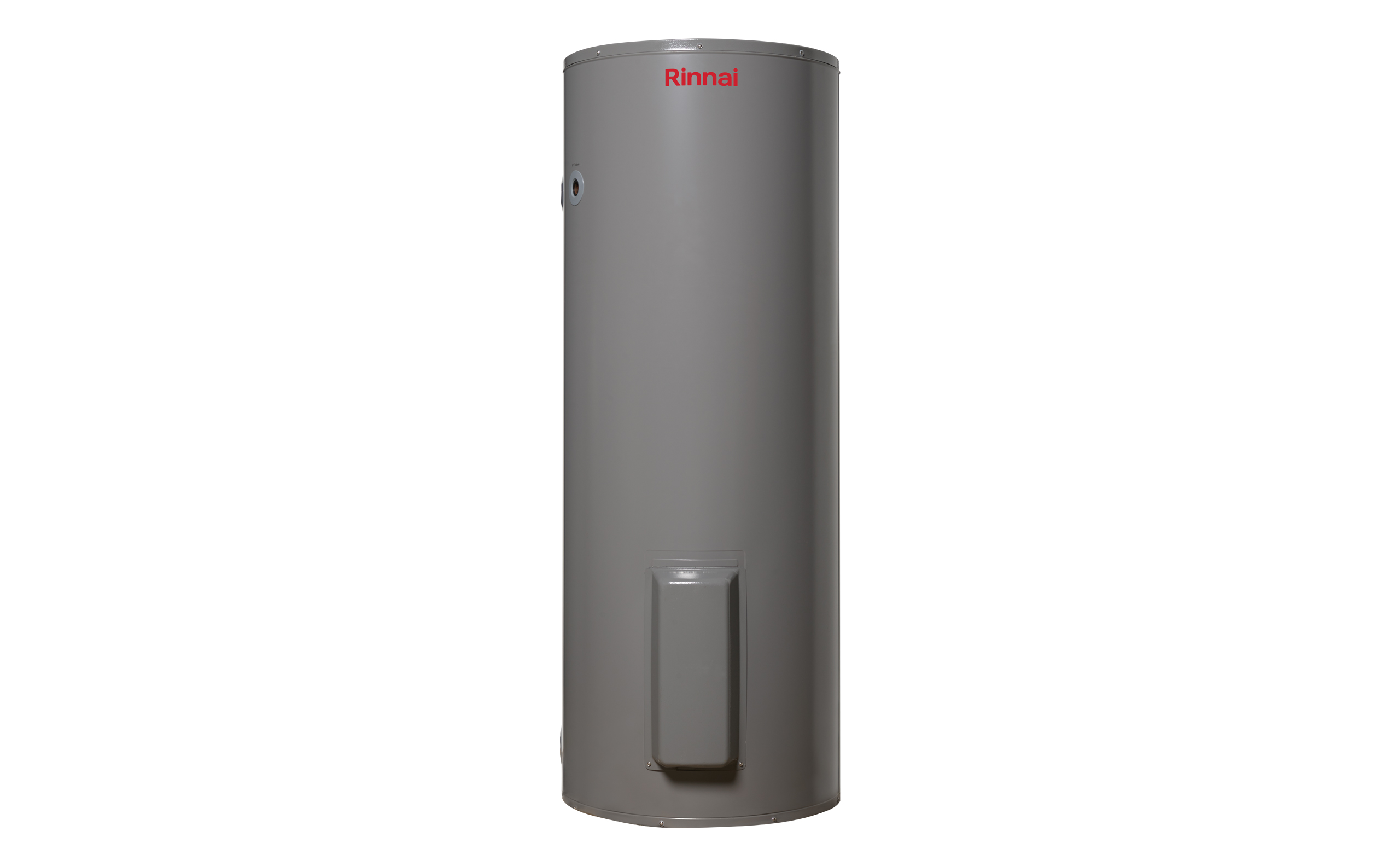

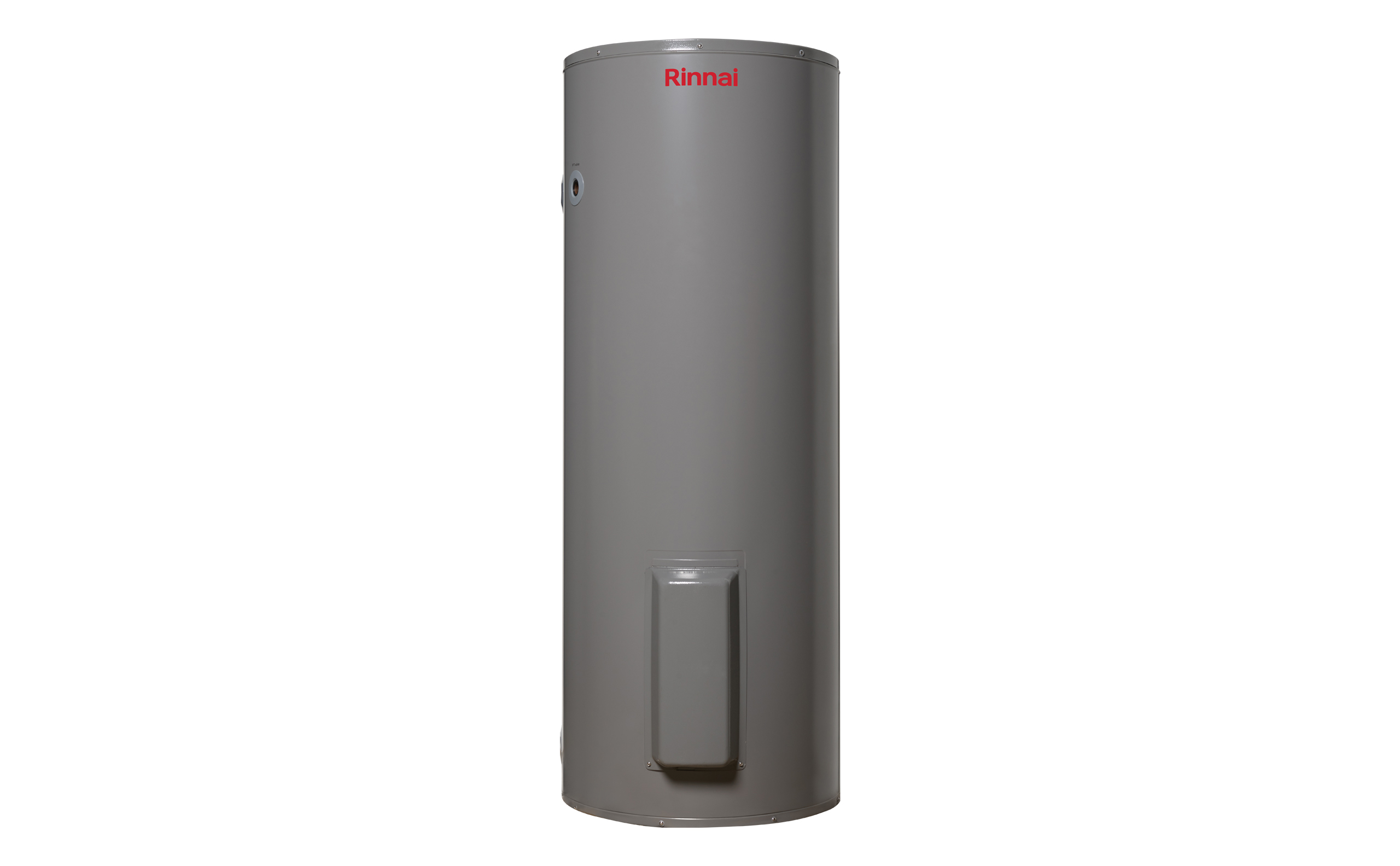

Rinnai Quick Recovery Electric Vitreous Enamel QRE340L Storage Tank (front)

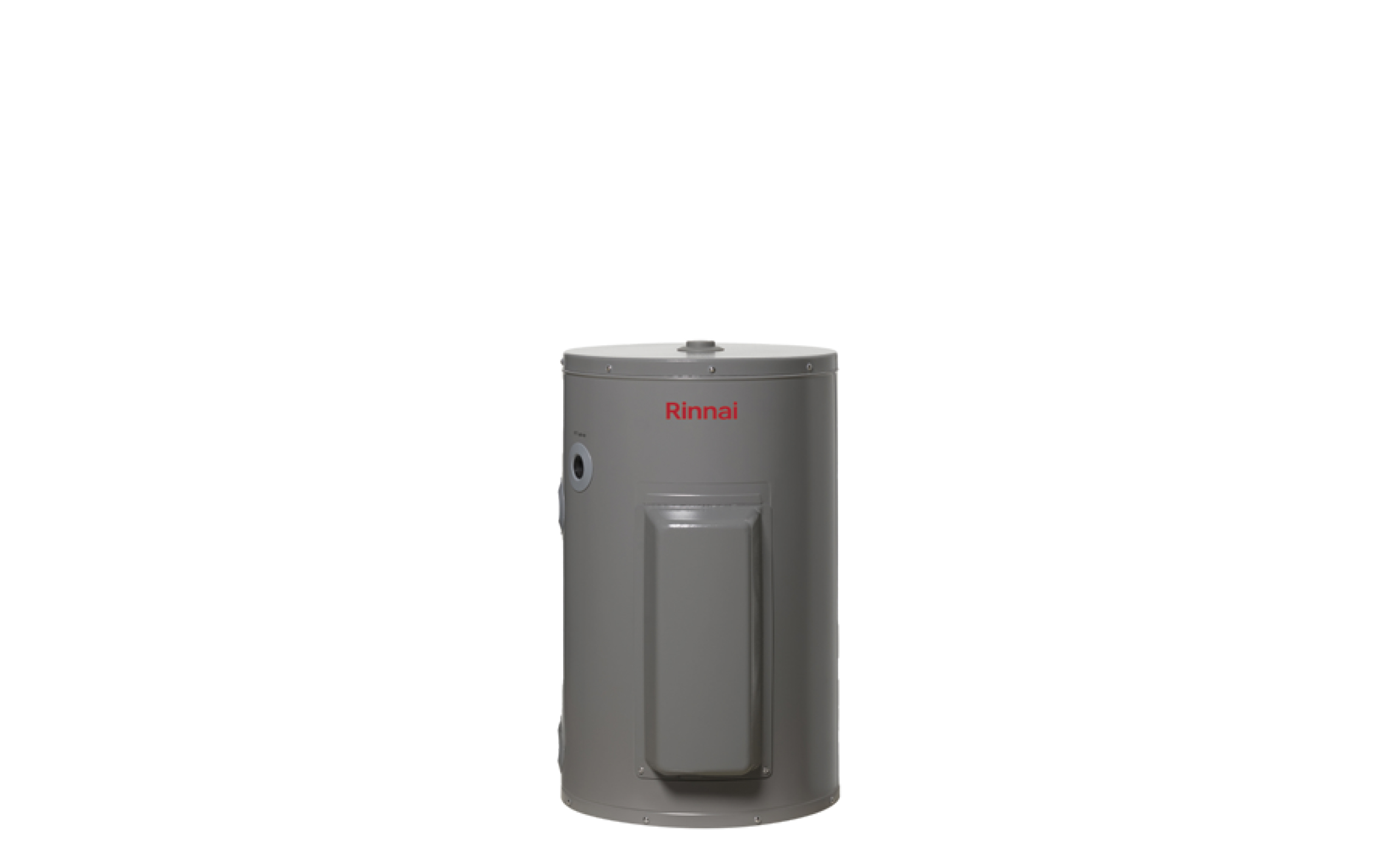

Rinnai Quick Recovery Electric Vitreous Enamel QRE50L Storage Tank (front)
