Manifold Pack

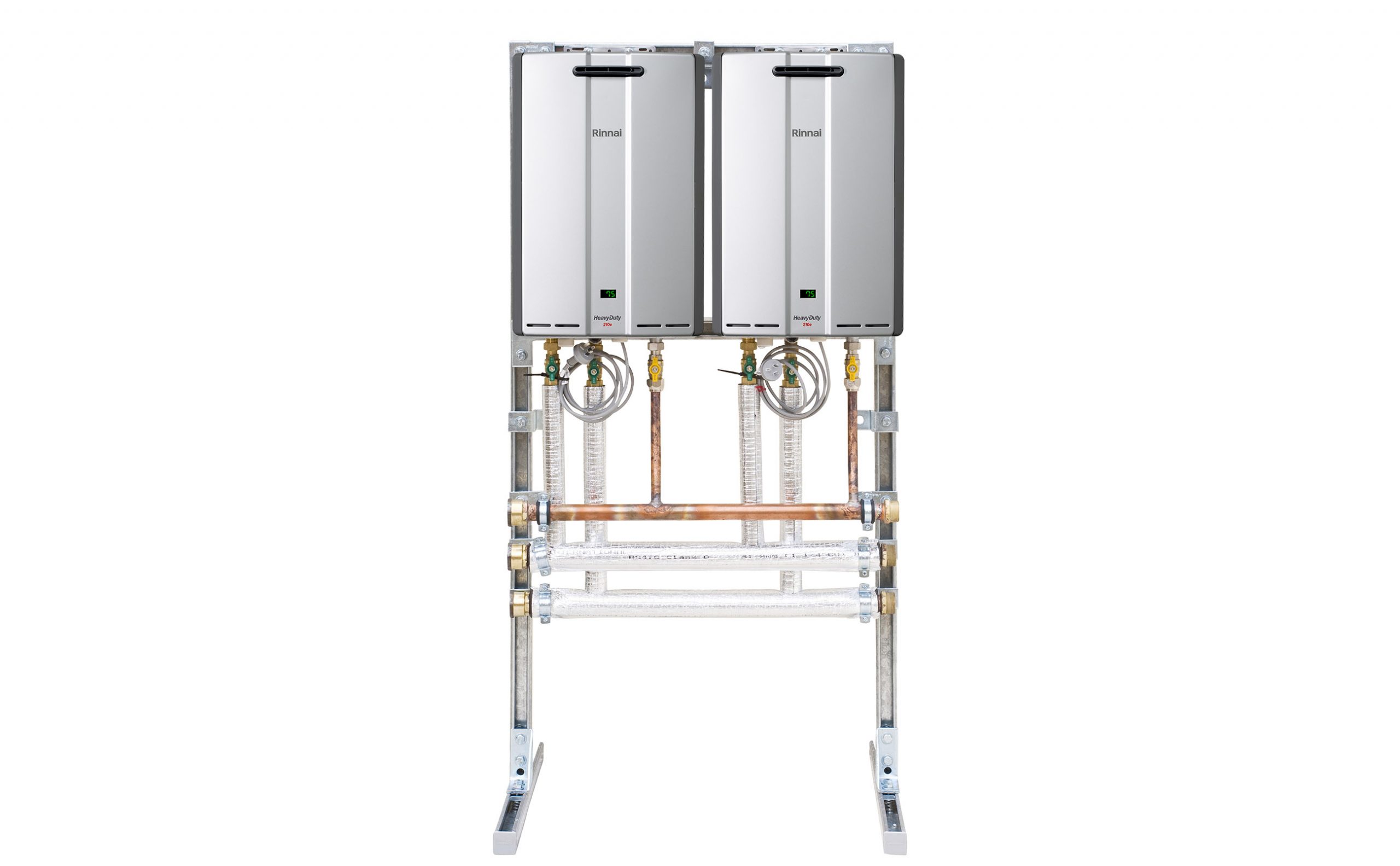

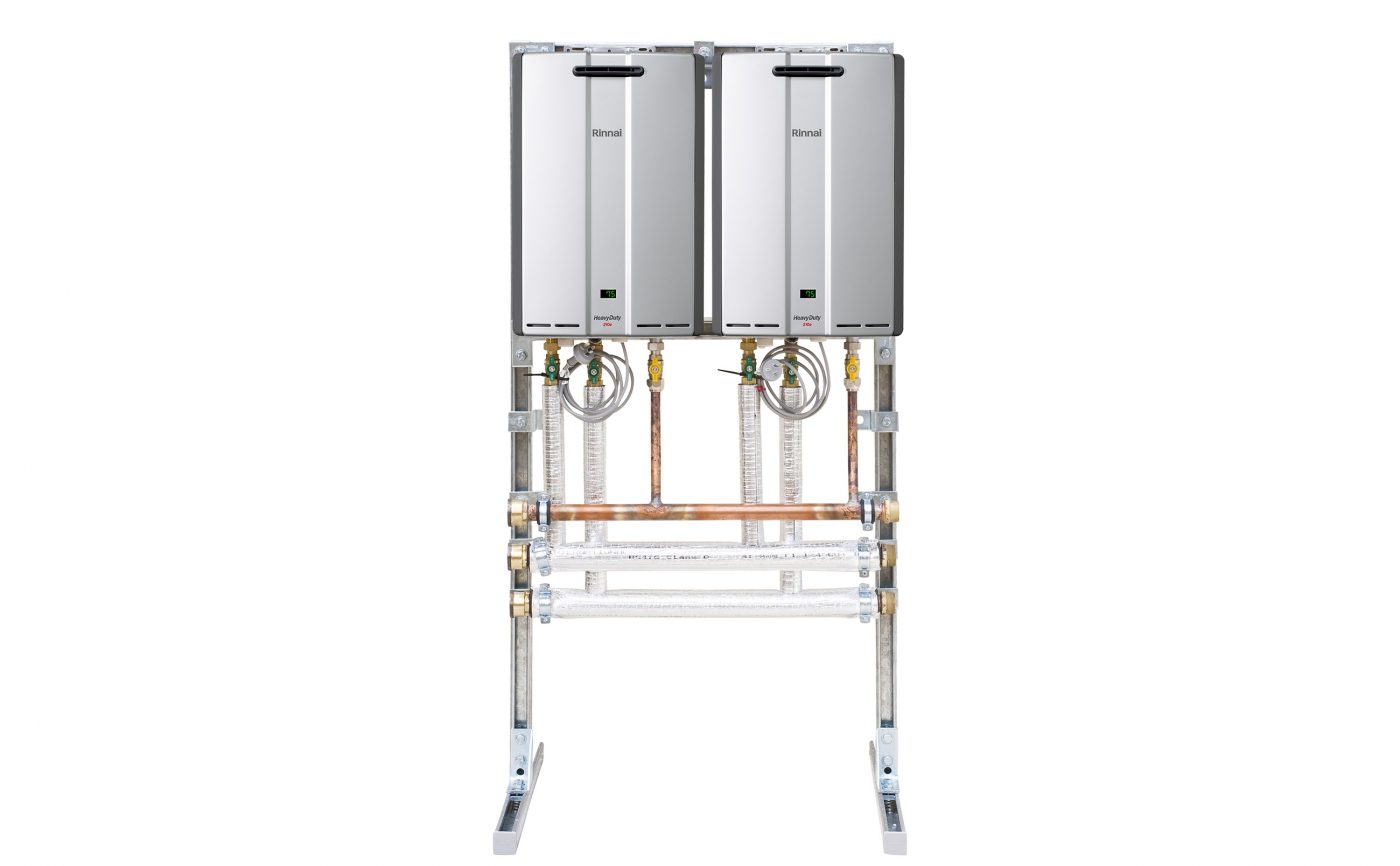

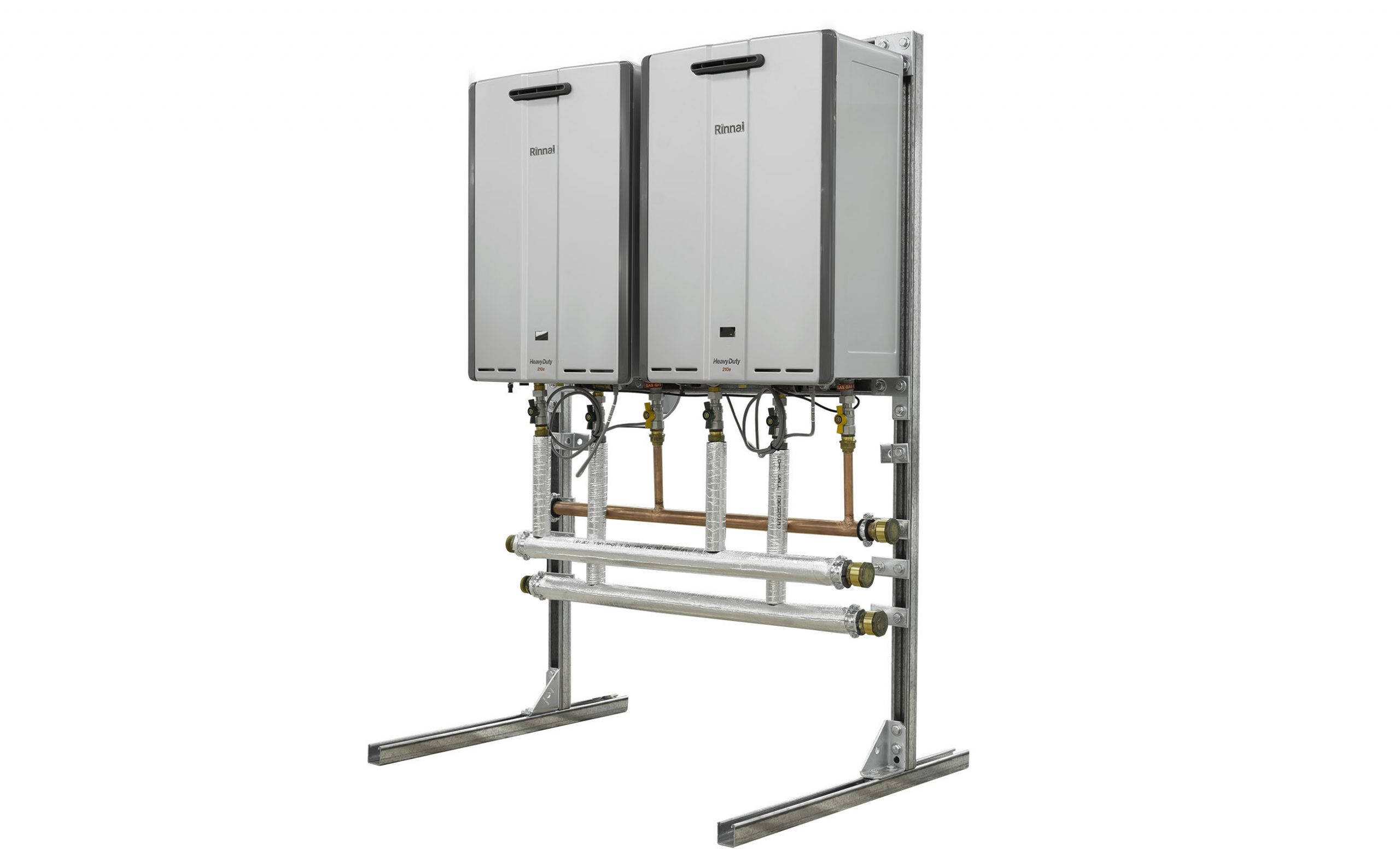

Rinnai Manifold Pack HD210e Rig (right)

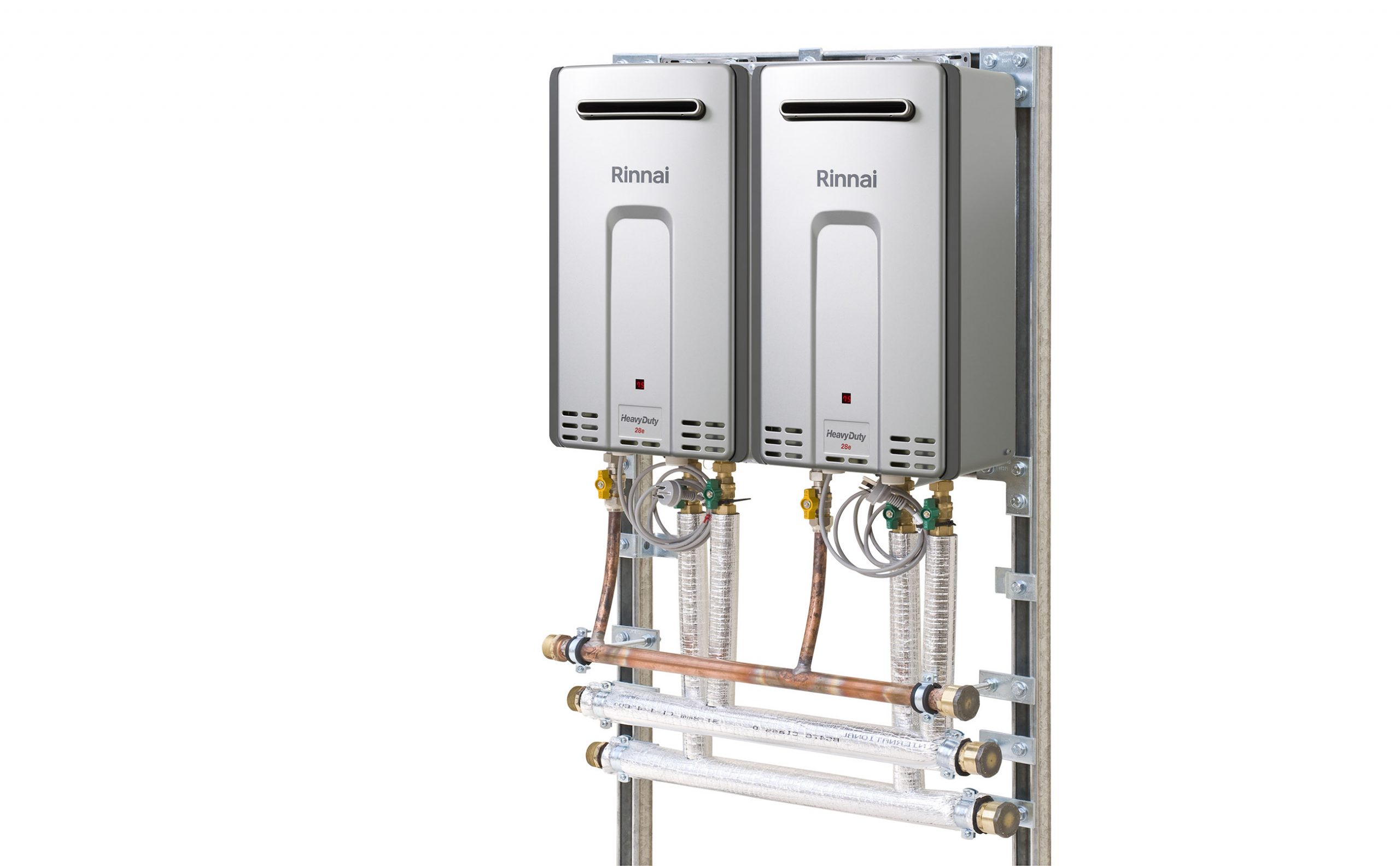

Rinnai Manifold Pack HD28e Rig (right)

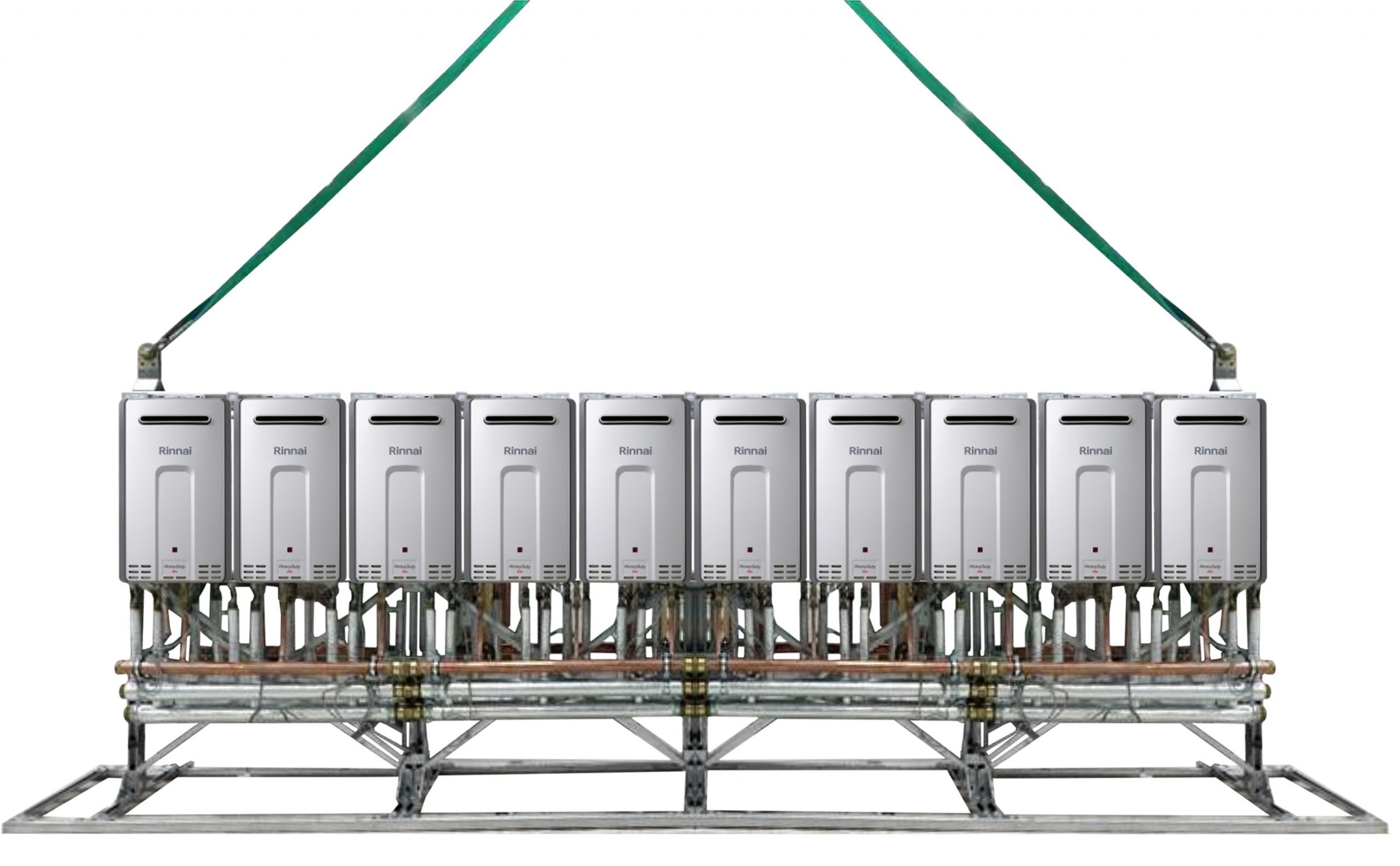

Rinnai Manifold Pack HD28e Rig (lifting engineered frame)

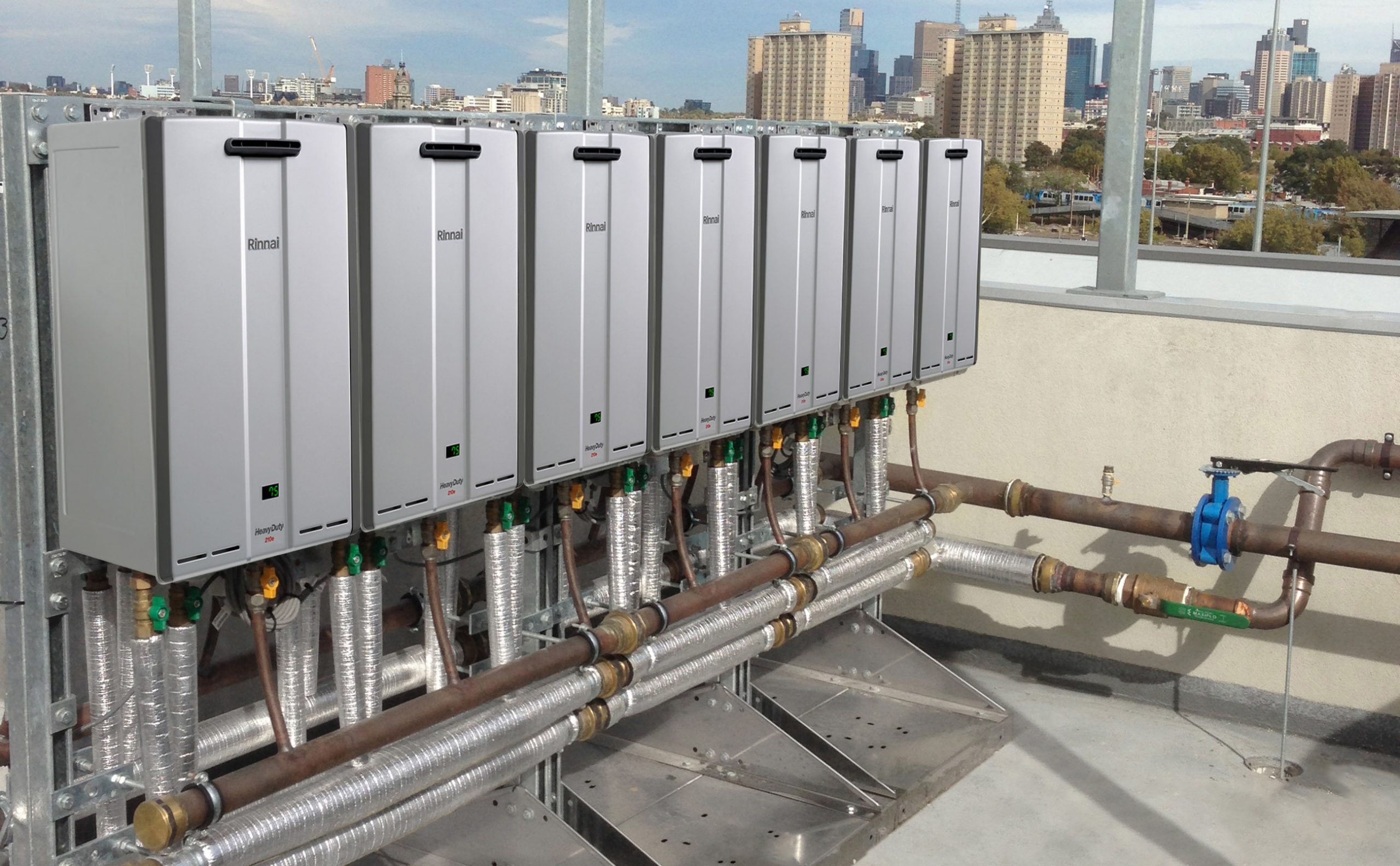

Rinnai Manifold Pack HD210e Rig (rooftop)

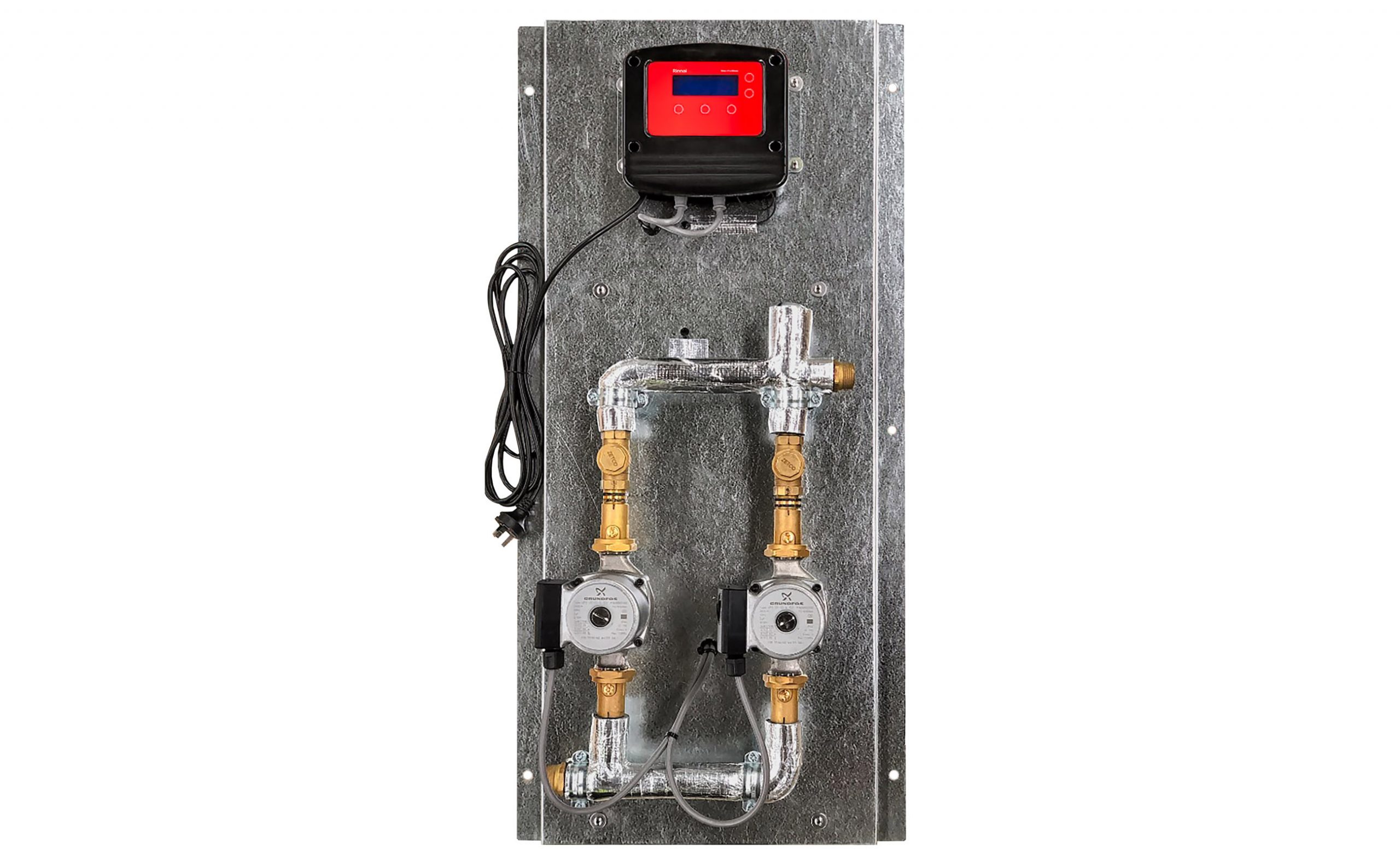

Rinnai Pumpplate (no cover)

Manifold Pack

Peak performer

Rinnai's manifold pack consists of 2 to 25 heavy-duty continuous flow water heaters plumbed together.

This allows for higher flow rates than a single unit can achieve. The outlet temperature is preset and remains constant, even when the flow varies, providing a reliable source of hot water that only uses gas when there is a demand.

Return to COMMERCIAL home

Locate Your Nearest Store

Search

Specialist

Dealer

Retailer

Trade

Flame Fire Specialist

Climate Specialist

Dealer

Retailer

Trade

Ideal for cafes, child care centres and small amenities blocks

Preset outlet temperature

No wasteful pilot lights

Features

  • Outlet temperature is preset and remains constant, even when the flow varies
  • Standard temperatures available are 55°C, 60°C, 70°C, 75°C and 85°C
  • Factory set and sealed 50°C preset units offer site adjustable incremental temperature adjustment to deliver true 50°C at tap
  • NSW health approved 40°C and 42°C are available to replace TMVs for ablution areas. Must be specifically ordered as such. Local legislation dependent
  • Peak flow rate cannot be exceeded
  • No flow means no gas consumption
  • No wasteful pilot lights
  • Internal or external systems available
  • Internal system can be used with individual flueing and common flueing

Ideal for

  • Sporting club change rooms - temperature set at 42°C or 50°C
  • Shower blocks - temperature set at 42°C or 50°C
  • Cafés, restaurants and pubs - temperatures set at 60°C or 75°C
  • Hot water wash down for manufacturing - temperature set at up to 85°C

Related products/Add-ons

★ Commercial Flues

Manifold packs are usually used for dead leg type installations, however they can be used on flow and return ring main systems. These must have correct pipe and pump selection.

For further information, please contact your Rinnai Commercial Representative.
