Rinnai T Series 7.0kW Reverse Cycle Split System
Rinnai T Series 7.0kW Reverse Cycle Split System
Creating comfortable, eco-friendly and more energy efficient homes all year round
Ideal for larger bedrooms, home offices and medium size living areas, this Wi-Fi and Voice control compatible Inverter Split System features leading technologies including airflow distances of up to 15 metres - the Rinnai T Series Reverse Cycle Split System is the ultimate companion in economical comfort; wherever you call home.
The sleek Rinnai T Series 7.0kW Reverse Cycle Split System utilises a more eco-conscious R32 refrigerant*, convenient timer functions and Sleep Mode amongst other practical features - all encased in a sleek matte design, blending effortlessly with Australian décor. It also features a high-density air filter, which removes unwanted contaminates replacing it with fresh air. A 3 minute cleaning cycle is ran after each use, keeping the indoor unit free of excess moisture.
Designed to efficiently deliver rapid cooling and heating to meet individual lifestyles, the Rinnai T Series 7.0kW Inverter Split System helps create comfortable and healthy Australian homes.
Buy from one of our Climate Specialists
Ideal for large, open plan living areas
High energy efficiency
Long distance airflow
Wi-Fi and Voice control compatible with Google Home and Amazon Alexa
7 year limited warranty
9 Stars energy efficiency
- Up to 9 stars Energy efficiency in cooling mode (2.5kW - 9 stars, 3.5kW - 5.5 stars, 5.0kW - 4.5 stars, 7.0kW - 4 stars, 8.0kW - 3 stars)
- Superior airflow, up to 15m (2.5kW - 10m, 3.5kW - 10m, 5.0kW - 12m, 7.0kW - 15m, 8.0kW - 15m)
- R32 refrigerant* – greater savings for you and the environment
Superior technology
- Wi-Fi and Voice control compatible with Google Home and Amazon Alexa
- Delay timer turns appliance on/off within a specific time period
- Intuitive end of season cleaning function
- Adjustable air flow direction
- Outdoor operation range for temperatures of up to 52° Celsius
- Low operating noise levels
- Boost/turbo mode to swiftly reach desired set temperatures
Rinnai quality
- 7 year limited warranty
Find out which size T Series split system your room requires
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
*R32 refrigerant: is a highly energy-efficient, low-GWP gas used in modern air conditioners. It offers better cooling performance while using less energy, making it ideal for eco-friendly air conditioning systems.
| Rinnai – T Series 7.0kW Reverse Cycle Split System | Values | HSNRT70B | |
| Nominal Capacity | kW | 7.0 | |
| Power Supply (To Outdoor Unit) | V – Ph – Hz | 220~240 – 1 – 50 | |
| Maximum Input Current | A | 14.0 | |
| Maximum Input Power | W | 2800 | |
| Connectivity | – | Wi-Fi Enabled | |
| Demand Response Enabling Device | – | DRED Enabled | |
| Cooling | Rated Capacity | kW | 7.00 |
| Capacity Range | 1.8-7.5 | ||
| Rated Input Power | W | 2000 | |
| Rated Input Current | A | 8.5 | |
| AEER | W/W | 3.51 | |
| Star Rating: Hot / Average / Cold | – | 4.0 / 3.5 / 4.0 | |
| Heating | Rated Capacity | kW | 8.2 |
| Capacity Range | 1.8-8.4 | ||
| Rated Input Power | W | 2400 | |
| Rated Input Current | A | 10.0 | |
| ACOP | W/W | 3.41 | |
| Star Rating: Hot / Average / Cold | – | 3.5 / 2.0 / 1.5 | |
| Moisture Removal | L/h | 2.2 | |
| Suitable Area (up to 2.6m insulated ceiling) | m2 | 35-47 | |
| Indoor Unit | HINRT70B | ||
| Dimensions (H x W x D) | Unit | mm | 3330 x 1132 x 232 |
| Packing | 400 x 1205 x 317 | ||
| Net / Gross Weight | kg | 14.0 / 18.0 | |
| Air Flow (Turbo / Hi / Med / Lo / Silent) | L/s | 361 / 319 / 283 / 244 / 189 | |
| Sound Pressure @ 1.0m (Turbo / Hi / Med / Lo / Silent) | dB(A) | 50 / 48 / 44 / 40 / 36 | |
| Operating Range | Cooling | °C | 16°C |
| Heating | 32°C | ||
| Standard Controller | Model | Wireless Remote Control | |
| Outdoor Unit | HONRT70B | ||
| Dimensions (H x W x D) | Unit | mm | 700 x 900 x 350 |
| Packing | 770 x 1020 x 430 | ||
| Net / Gross Weight | kg | 49 / 53 | |
| Sound Pressure Level @ 1m | 58 | ||
| Refrigerant | Type | R32 | |
| Charged Volume | kg | 1.35 | |
| Refrigerant Piping | Pipe Size: Liquid / Gas | mm | 6.35 / 15.88 |
| Maximum Pipe Length | m | 30 | |
| Chargeless Length | 10 | ||
| Extra Charge for Lengths >10m | g/m | 15 | |
| Maximum Vertical Separation | m | 20 | |
| Ambient Temperature Limits | Cooling | °C | -15 ~ 52°C |
| Heating | -15 ~ 24°C | ||
Photography
-

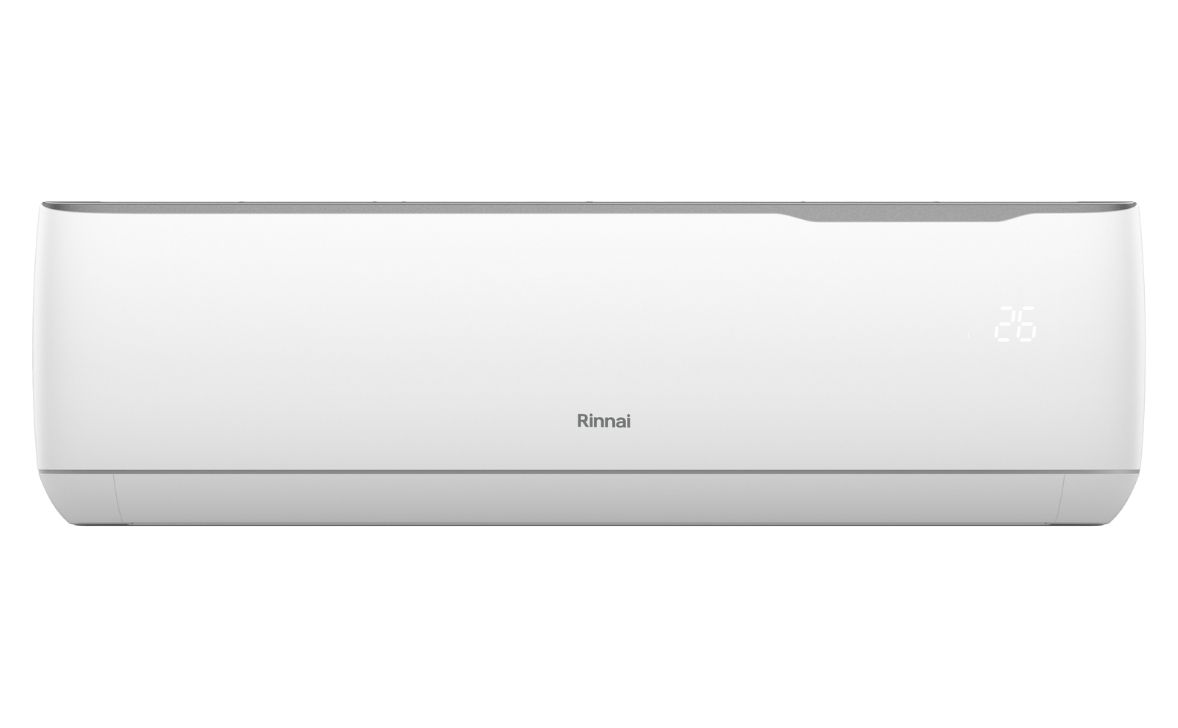

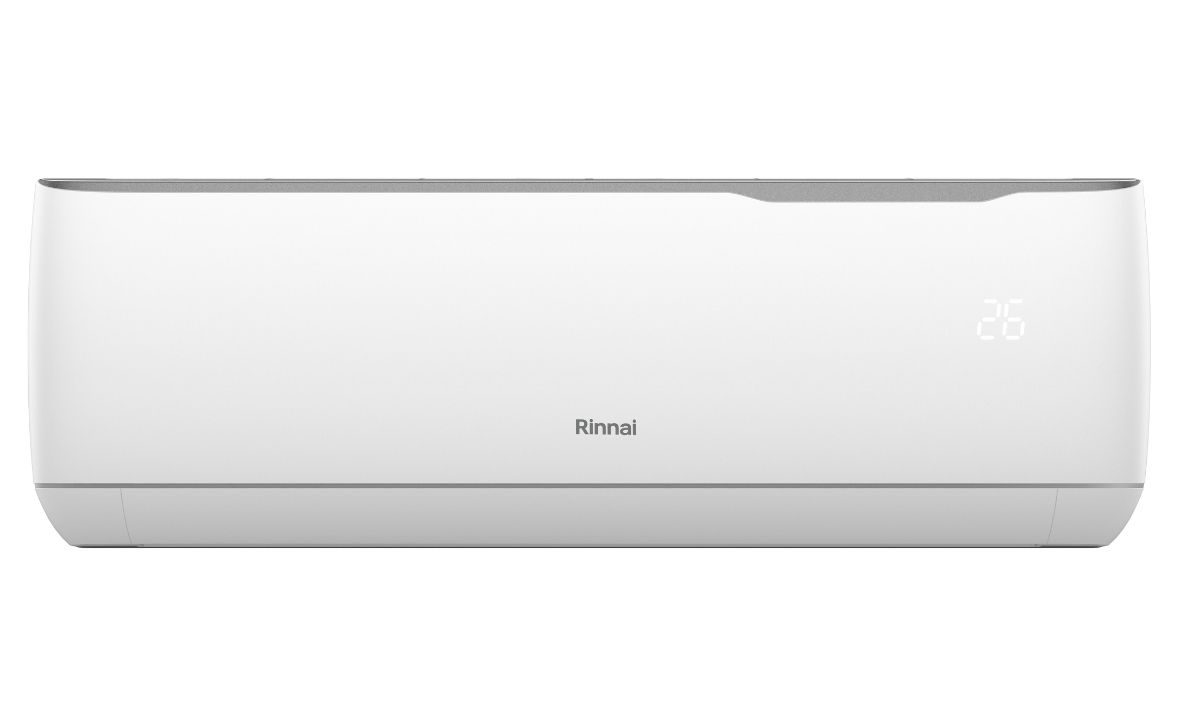

Rinnai 7.0kW T Series Inverter Split Air Conditioner (front)Preview
-

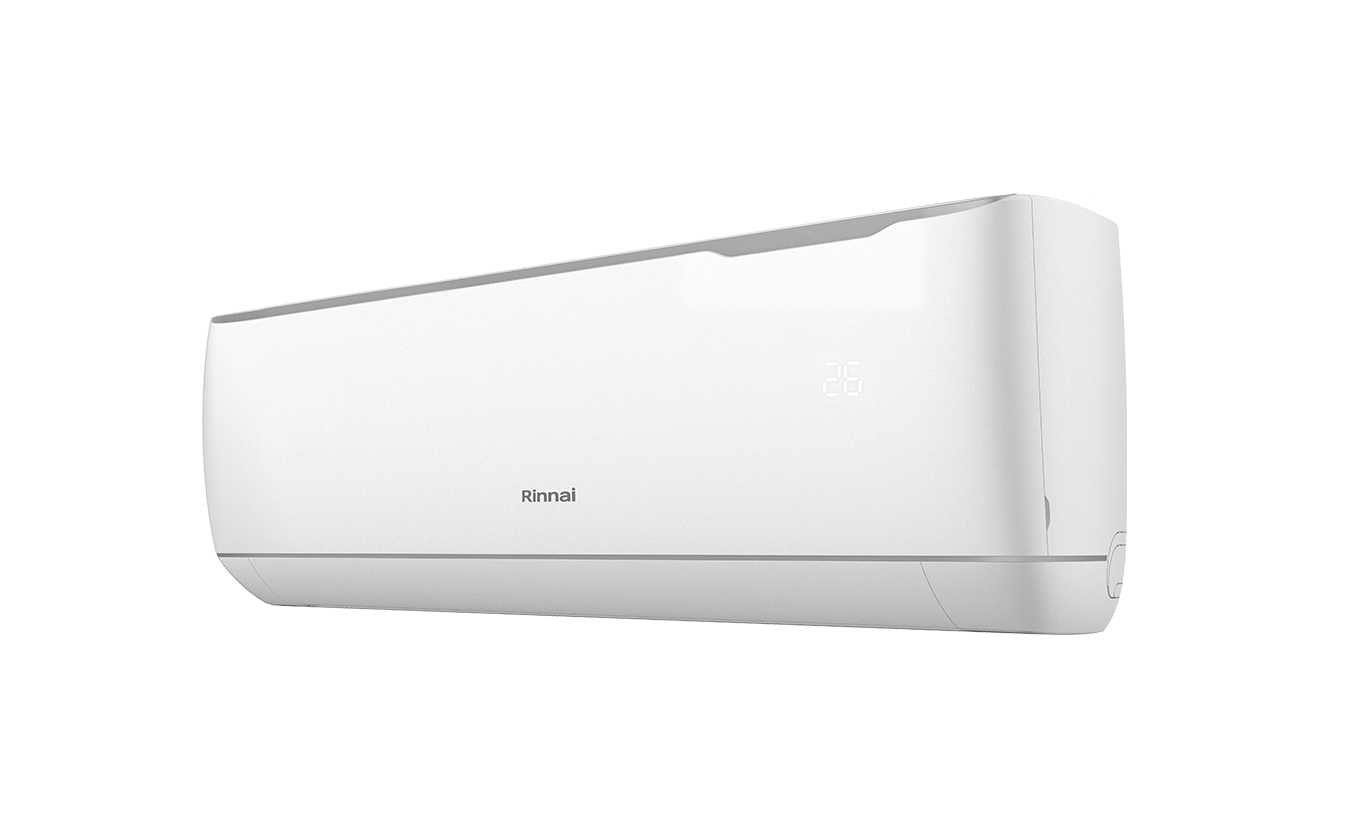

Rinnai T Series Inverter Split Air Conditioner (right)Preview
-

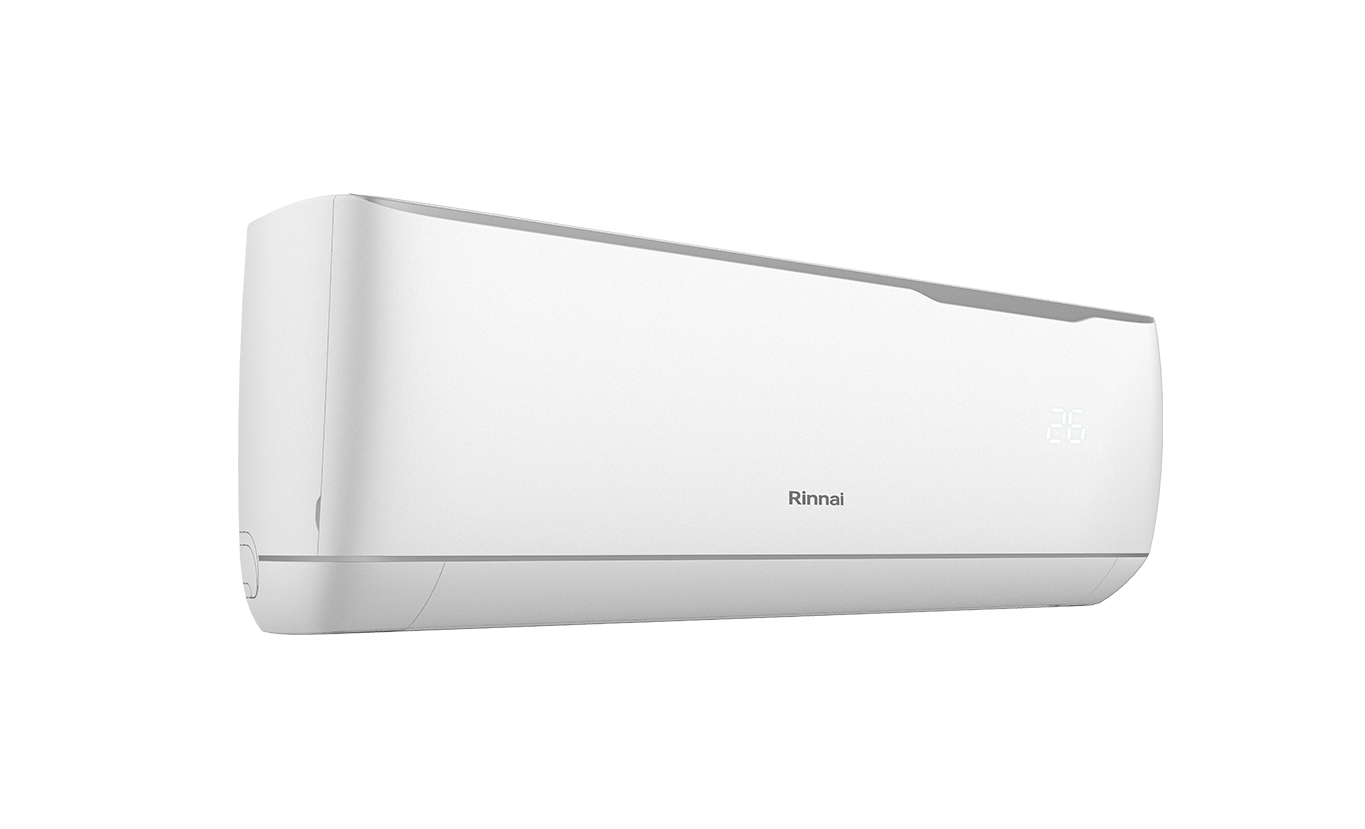

Rinnai T Series Inverter Split Air Conditioner (left)Preview
-

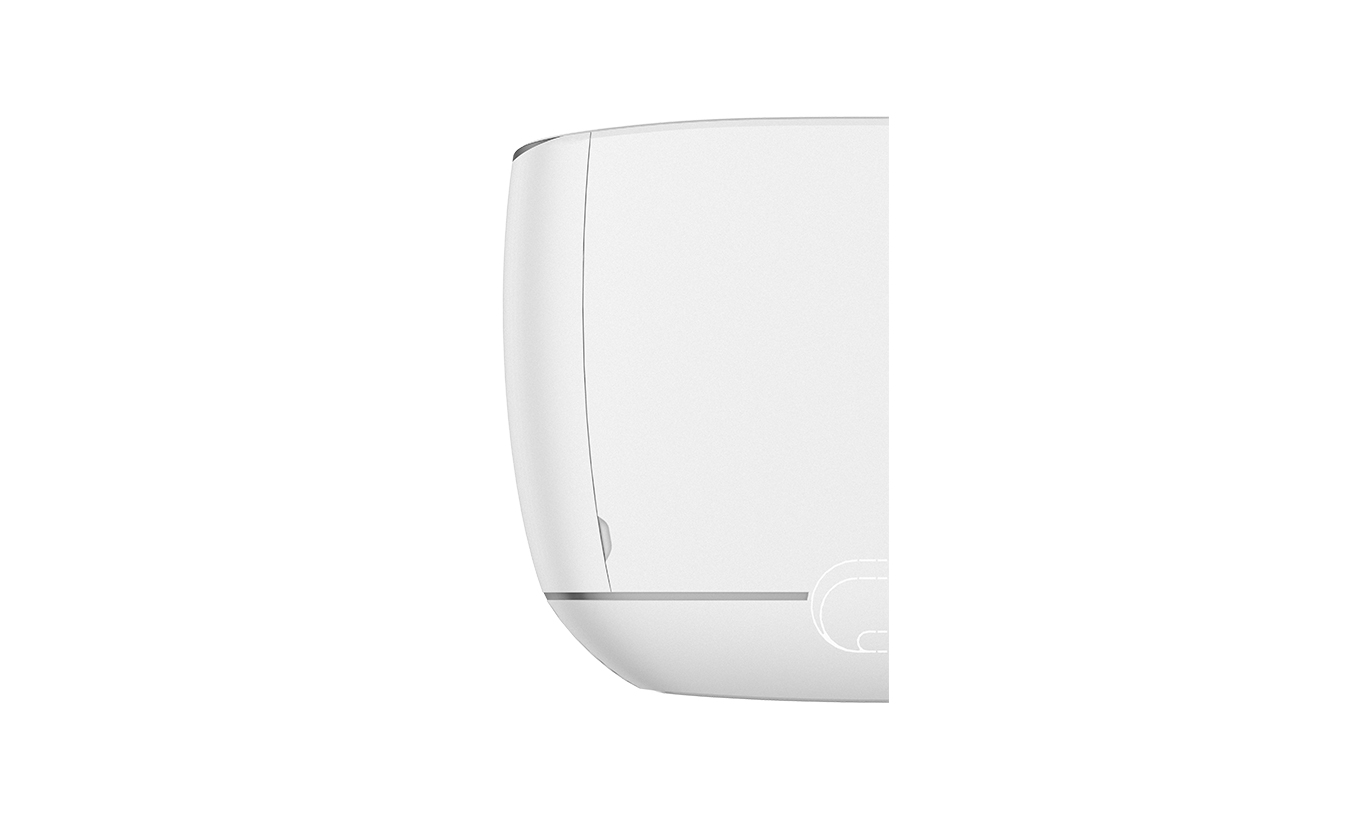

Rinnai T Series Inverter Split Air Conditioner (side right)Preview
-

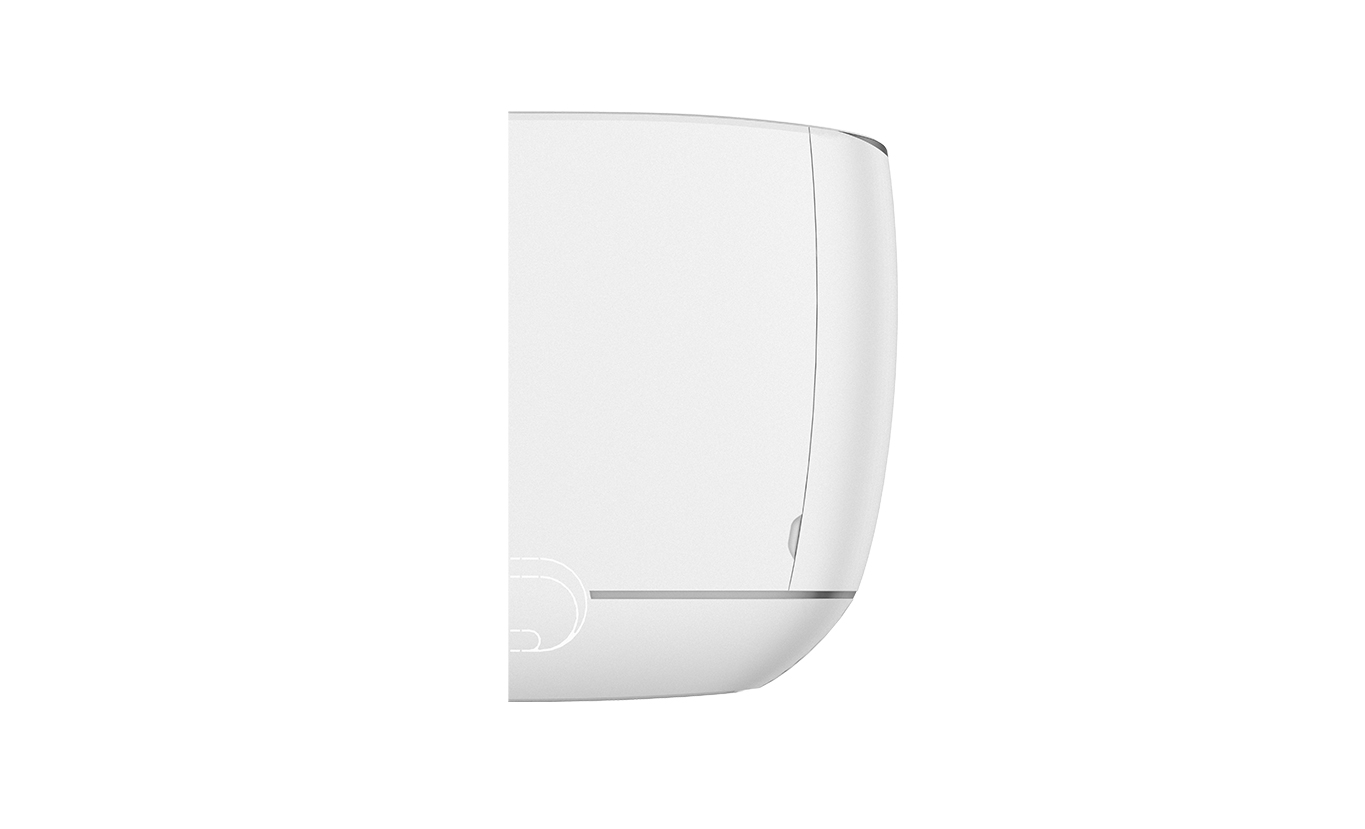

Rinnai T Series Inverter Split Air Conditioner (side left)Preview
-
Rinnai T Series Inverter Split Air Conditioner Mobile App (in hand)Preview
