5.0kW T Series Reverse Cycle Split System
5.0kW T Series Reverse Cycle Split System
Creating comfortable, eco-friendly and more energy efficient homes all year round
Perfect for the bedroom, this Wi-Fi and Voice control compatible Inverter Split System features leading technologies including airflow distances of up to 15 metres, the Rinnai T Series Reverse Cycle Split System is the ultimate companion in economical comfort; wherever you call home.
The sleek Rinnai 5.0kW T Series Reverse Cycle Split System utilises a more eco-conscious R32 refrigerant*, convenient timer functions and Sleep Mode amongst other practical features - all encased in a sleek matte design that effortlessly blends with your home décor. It also features a high-density air filter, which removes unwanted contaminates replacing it with fresh air. A 3 minute cleaning cycle is ran after each use, keeping the indoor unit free of excess moisture.
Designed to efficiently deliver rapid cooling and heating to meet individual lifestyles, the Rinnai 5.0kW T Series Inverter Split System helps create comfortable and healthy Australian homes.
Buy from one of our Climate Specialists
Suitable for family rooms and living spaces
Long distance airflow
High energy efficiency
Wi-Fi and Voice control compatible with Google Home and Amazon Alexa
9 Stars energy efficiency
- Up to 9 stars Energy efficiency in cooling mode (2.5kW - 9 stars, 3.5kW - 5.5 stars, 5.0kW - 4.5 stars, 7.0kW - 4 stars, 8.0kW - 3 stars)
- Superior airflow, up to 15m (2.5kW - 10m, 3.5kW - 10m, 5.0kW - 12m, 7.0kW - 15m, 8.0kW - 15m)
- R32 refrigerant* – greater savings for you and the environment
Superior technology
- Wi-Fi and Voice control compatible with Google Home and Amazon Alexa
- Delay timer turns appliance on/off within a specific time period
- Intuitive end of season cleaning function
- Adjustable air flow direction
- Outdoor operation range for temperatures of up to 52° Celsius
- Low operating noise levels
- Boost/turbo mode to swiftly reach desired set temperatures
Rinnai quality
- 7 year limited warranty
Find out which size T Series split system your room requires
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
*R32 refrigerant: is a highly energy-efficient, low-GWP gas used in modern air conditioners. It offers better cooling performance while using less energy, making it ideal for eco-friendly air conditioning systems.
| Rinnai – System Model | Values | HSNRT50B | |
| Nominal Capacity | kW | 5.0 | |
| Power Supply (To Outdoor Unit) | V – Ph – Hz | 220~240 – 1 – 50 | |
| Maximum Input Current | A | 12.0 | |
| Maximum Input Power | W | 2300 | |
| Connectivity | – | Wi-Fi Enabled | |
| Demand Response Enabling Device | – | DRED Enabled | |
| Cooling | Rated Capacity | kW | 5.20 |
| Capacity Range | 1.3 – 5.7 | ||
| Rated Input Power | W | 1280 | |
| Rated Input Current | A | 5.6 | |
| AEER | W/W | 4.04 | |
| Star Rating: Hot / Average / Cold | – | 4.5 / 4.0 / 4.5 | |
| Heating | Rated Capacity | kW | 5.2 |
| Capacity Range | 1.3 – 6.3 | ||
| Rated Input Power | W | 1260 | |
| Rated Input Current | A | 5.50 | |
| ACOP | W/W | 4.10 | |
| Star Rating: Hot / Average / Cold | – | 3.0 / 2.5 / 2.0 | |
| Moisture Removal | L/h | 1.6 | |
| Suitable Area (up to 2.6m insulated ceiling) | m2 | 25-34 | |
| Indoor Unit | HINRT50B | ||
| Air Flow (Turbo / Hi / Med / Lo / Silent) | L/s | 292 / 258 / 231 / 197 / 153 | |
| Sound Pressure @ 1.0m (Turbo / Hi / Med / Lo / Silent) | dB(A) | 49 / 44 / 41 / 36 / 29 | |
| Dimensions | Dimension (W x H x D) | mm | 997 × 316 × 227 |
| Packing (W x H x D) | 1067 × 385 × 312 | ||
| Net / Gross Weight | kg | 13.0 / 16.0 | |
| Operating Range | Cooling | °C | 16°C |
| Heating | 32°C | ||
| Standard Controller | Model | Wireless Remote Control | |
| Outdoor Unit | HONRT50B | ||
| Sound Pressure Level @ 1m | 53 | ||
| Dimensions | Dimension (W x H x D) | mm | 900 × 700 × 350 |
| Packing (W x H x D) | 91020 × 770 × 430 | ||
| Net / Gross Weight | kg | 45 / 49 | |
| Refrigerant | Type | R32 | |
| Charged Volume | kg | 1.20 | |
| Refrigerant Piping | Pipe Size: Liquid / Gas | mm | 6.35 / 12.70 |
| Maximum Pipe Length | m | 30 | |
| Chargeless Length | 10 | ||
| Extra Charge for Lengths >10m | g/m | 15 | |
| Maximum Vertical Separation | m | 20 | |
| Ambient Temperature Limits | Cooling | °C | -15 ~ 52°C |
| Heating | -15 ~ 24°C | ||
Photography
-

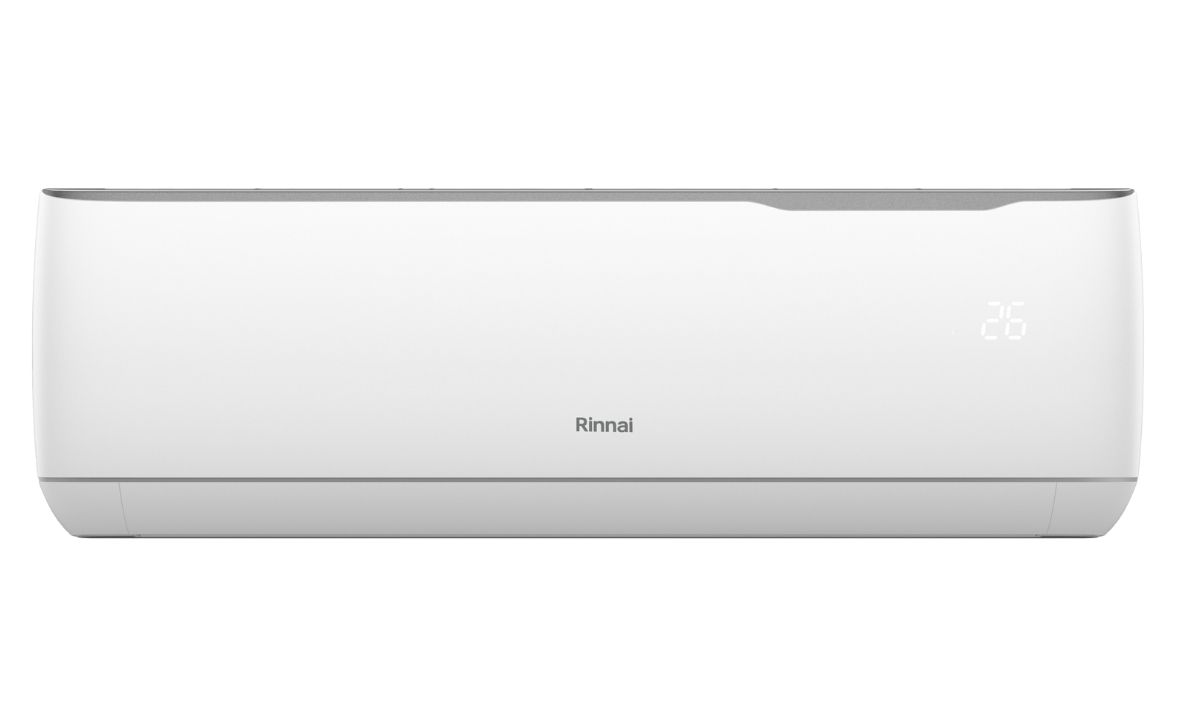

Rinnai 5.0kW T Series Inverter Split Air Conditioner (front)Preview
-
