Inverter Cassette

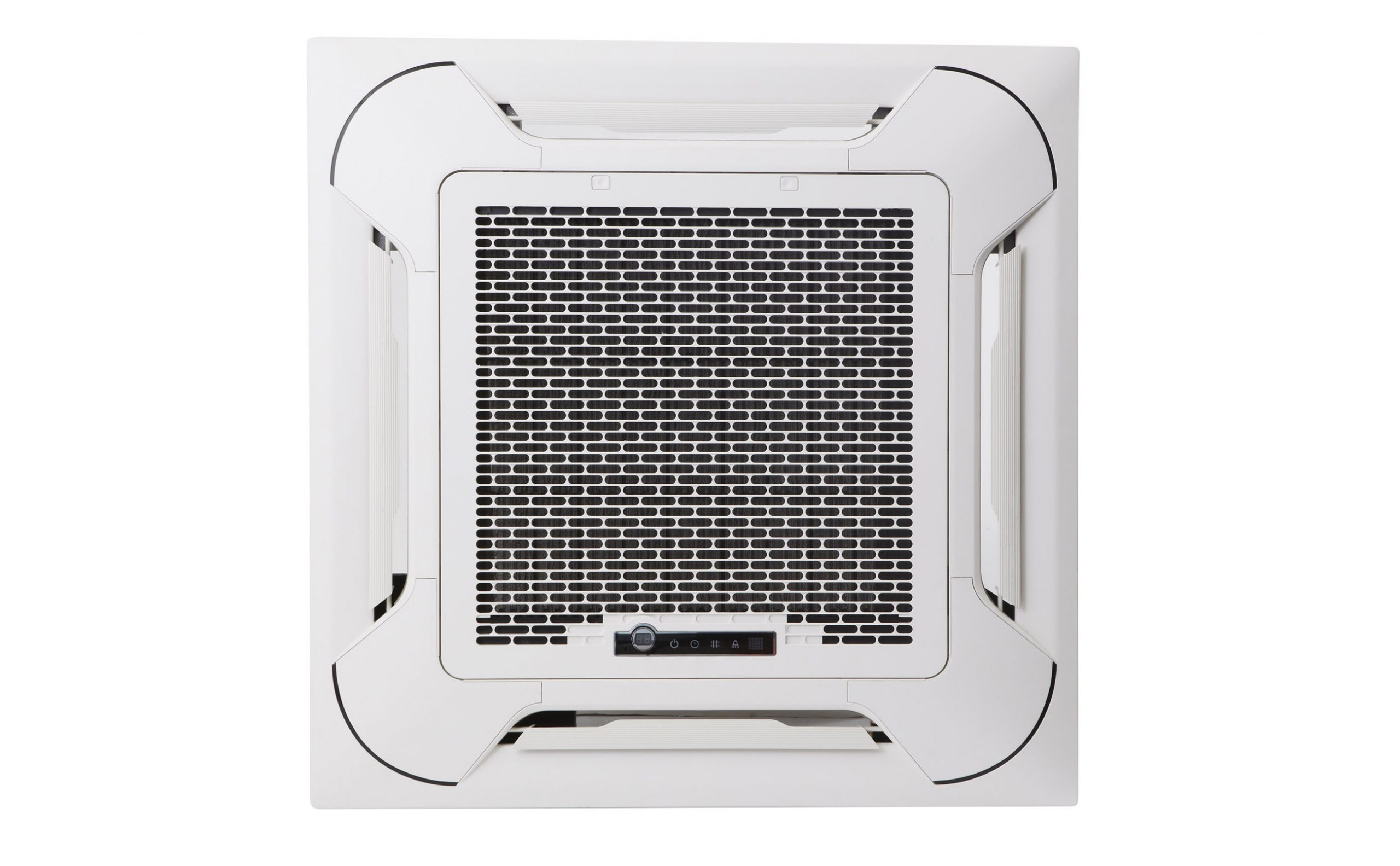

Rinnai Inverter Cassette Split System (cooling ceiling unit internal)

Inverter Cassette

360° of beautifully conditioned air

Experience powerful performance in a compact design with Rinnai’s Inverter Cassette Split System Air Conditioner. Its ultra-slim, modern profile makes it ideal for light commercial spaces such as hotels, restaurants, offices, and showrooms — and just as suitable for larger open-plan areas in the home. Equipped with advanced Direct Current (DC) Inverter technology, the system delivers fast, efficient heating and cooling with precise temperature control and lower running costs, ensuring year-round comfort and peace of mind.

The Rinnai Inverter Cassette offers 360° airflow for evenly distributed, beautifully conditioned air, with the option to integrate a fresh-air system for improved ventilation. Both the indoor and outdoor units are compact and lightweight, making installation simple even in confined spaces. With models available up to 14 kW capacity, this versatile system is designed to suit a wide range of applications without compromising on efficiency or style.

Locate Your Nearest Stockist

NOTE: Rinnai does not sell directly to the public. Our products are available only through third-party stockists and installers.

Specialist

Dealer

Retailer

Trade

Flame Fire Specialist

Climate Specialist

Dealer

Retailer

Trade

Features & Performance
Specifications
Downloads

High efficiency DC inverter

360° air flow

External supplementary duct connections

Programmable wired thermostat (optional)

Super technology

All year-round comfort - full temperature control suited to your needs
360° air flow fascia - ensuring optimal air distribution and total comfort in every corner of the room
Auto restart function - during a power failure the system will stop immediately. When the power returns, restart the systems and the unit will restart at the same settings

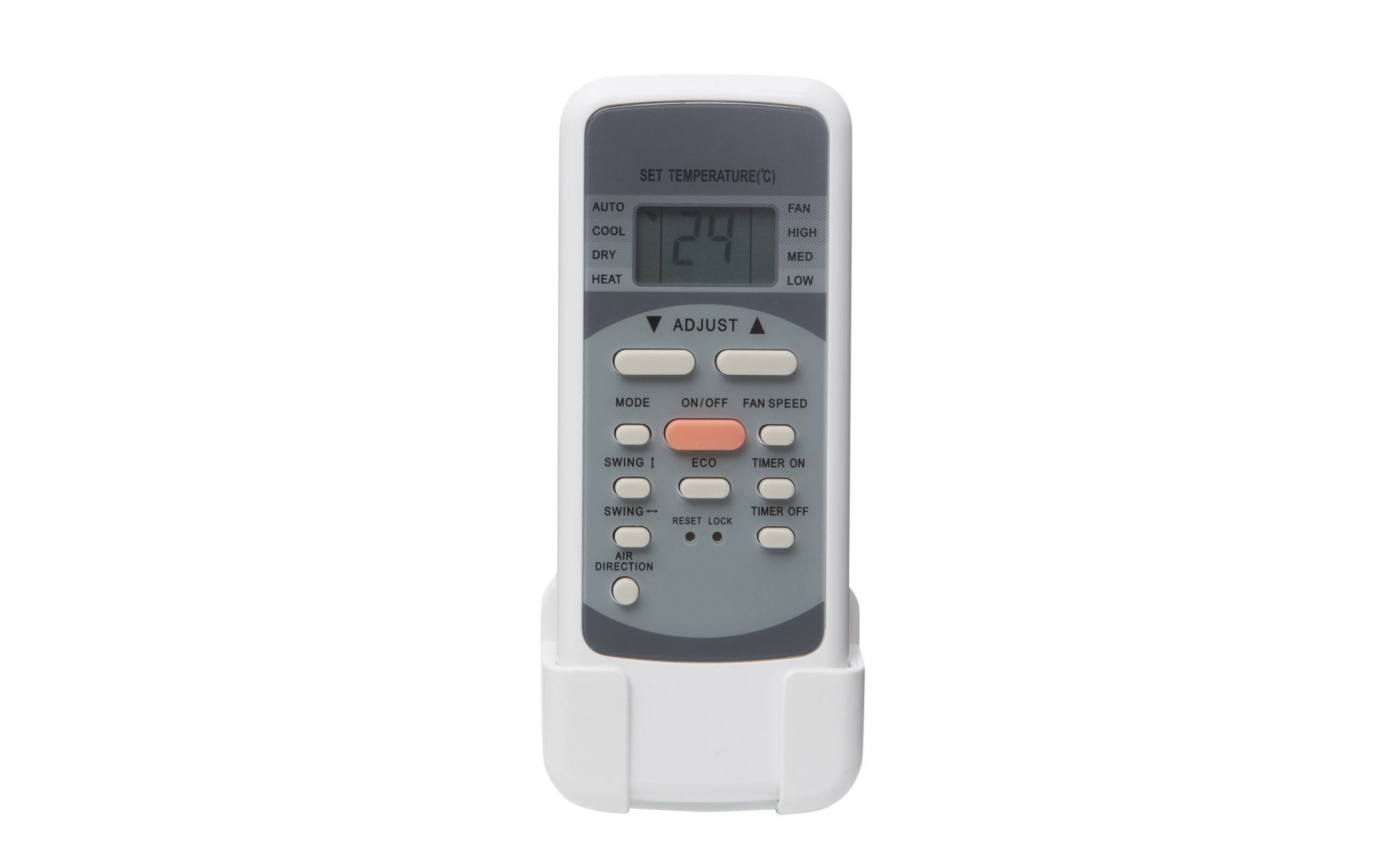

Infrared remote control
Optional upgrade - to Rinnai wired programmable thermostat and Wi-Fi
Built-in drain pump - cleverly engineered to ensure condensed water is drained out reliably
Condensate drain pump - conveniently located in a separate compartment of the indoor unit providing maximum service access

Rinnai quality

5 year limited warranty

The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.

Product codes: 70 - CIN070R DONSR07Z72 | 100 - CIN100R DONSR10Z72 | 120 - CIN120R DONSR12Z72 | 140 - CIN140R DONSR14Z72

Rinnai – Inverter Cassette Air Conditioner				70	100	120	140
Nominal Capacity			kW	7	10	12	14
Power Supply (To Outdoor Unit)			V- Ph-Hz	220~240 – 1 – 50
Maximum Input Power			W	3000	3900	5500
Maximum Input Current			A	16.0	21.0	26.0
Recommended Circuit Breaker Size				25	25	32
Cooling	Rated Capacity		kW	7.0	10.3	12.3	13.4
	Capacity Range			2.8 ~ 8.4	4.0 ~ 12.6	5.0 ~ 15.0	5.6 ~ 16.8
	Rated Input Power		W	2116	3110	3690	4079
	Stand By Power			10
	Rated Input Current		A	9.4	13.7	16.1	17.8
	AEER		W / W	3.26	3.26	3.31	3.26
	Energy Rating		Star	2.0
Heating	Rated Capacity		kW	7.7	10.4	14.2	14.9
	Capacity Range			3.0 ~ 9.0	4.2 ~ 12.9	5.2 ~15.6	5.8 ~17.5
	Rated Input Power		W	2250	2980	4030	4411
	Stand By Power			10
	Rated Input Current		A	10.0	13.1	17.7	19.2
	ACOP		W / W	3.36	3.46	3.49	3.36
	Energy Rating		Star	2.0
Indoor Unit				CIN070R	CIN100R	CIN120R	CIN140R
Dimensions (W x D x H)	Net	Body	mm	840 x 840 x 287
	Packing			900 x 900 x 265	900 x 900 x 300
	Net	Fascia		950 x 950 x 55
	Packing			1035 x 1035 x 90
Weight	Net	Body	kg	24	28.7
	Gross			28	32.8
	Net	Fascia		5
	Gross			8
Fascia Panel			Model No.	CINFAS
Rated Input			W	246	250
Air Flow		Hi / Med / Lo	L / s	439 / 333 / 278	639 / 556 / 500
Sound Pressure Level @ 1.4m			dB(A)	49 / 45 / 41	54 / 51 / 48
Condensate Drain Pipe Diameter			mm	ODΦ32
Refrigerant Piping	Liquid / Gas Connections			Φ9.52 / Φ15.9
Standard Controller			Type	Wireless Remote
Operating Range		Cooling	°C	17 ~ 32
		Heating		0 ~ 30
Outdoor Unit				DONSR07Z72	DONSR10Z72	DONSR12Z72	DONSR14Z72
Dimensions (W x D x H)	Net		mm	946 x 410 x 810		952 x 415 x 1333
	Packing			1090 x 500 x 865		1095 x 495 x 1480
Weight	Net		kg	61	68.5	100	116
	Gross			66.5	74	114	130
Power Supply			V- Ph-Hz	220~240 – 1 – 50
Maximum Input Power			W	3000	3900	5500
Maximum Input Current			A	16.0	21.0	26.0
Starting Current				2.5	3.0	3.5	4.0
Compressor			Type	Twin Rotary
Air Flow			L / s	972	1528	1944	2000
Sound Pressure Level @ 1m			dB(A)	58	61	62
Sound Power Level				69	70	71
Refrigerant Piping	Type		R	R410A
	Charged Volume		kg	2.90	3.80	4.50	4.90
	Design Pressure		MPa	4.2 / 1.5
	Pre-Charged Length		m	15
	Charge Adjustment (Add or Remove)		g / m	30
Refrigerant Piping	Liquid / Gas Connections		mm	Φ9.52 / Φ15.9
	Maximum Pipe Length		m	50	65
	Maximum Vertical Separation			25	30
Ambient Temperature Limits	Cooling		°C	-15 ~ 50
	Heating			-15 ~ 24
