Rinnai Mini VRF Air Conditioning System
Rinnai Mini VRF Air Conditioning System
Multi-room climate solution with individual control
When your home needs heating and cooling across multiple rooms with the flexibility of individual room control, the Rinnai Mini VRF* Air Conditioning System is a smart, space-saving solution powered by just one outdoor unit.
Compact yet powerful, the Rinnai Mini VRF delivers efficient, zoned climate control with advanced refrigerant technology and slimline piping, making it ideal for renovations, multi-storey homes or tight installation spaces. With quieter operation and a neater finish, it is designed to blend seamlessly into your living environment.
Enjoy even greater convenience with smart climate control and built-in Wi-Fi, allowing you to manage each room’s temperature via App** at any time and from anywhere.
Locate Your Nearest Store
Individual room temperature control
Supports 3 to 6 indoor units
Flexible installation and zoning
Smart climate control with built in Wi-Fi
Powerful outdoor unit
Wide operating range
5 year warranty
Superior technology
- Individual room controls - Set different temperatures in each room with individual room control for personalised comfort and energy savings
- Wi-Fi compatible - Manage temperature, modes, and power from your phone or tablet thanks to built-in Wi-Fi
- Operating range - Enjoy reliable performance in extreme conditions with a wide operating range from -5°C to 55°C (cooling) and -15°C to 27°C (heating)
- Low operating noise - Maintain a peaceful environment with quiet operation from low-noise branch boxes, ideal for bedrooms and home offices
- Tailored system - Tailor the system to your home with flexible installation that supports 3 to 6 indoor units on a single outdoor unit
Rinnai quality
- 5 year warranty on parts
- 5 year warranty on labour
*Variable Refrigerant Flow
**Privacy Disclaimer
Rinnai uses a third-party application (App) to enhance your experience of the Rinnai product. You may use the App at your sole discretion. Please note that when you download and use the App and its services, the third-party’s privacy policy and terms and conditions of service will apply.
By using the Rinnai product through this App, you acknowledge and agree that:
- The third-party App may collect, store, and process your personal information according to its own privacy policy and App terms and conditions.
- Rinnai does not control and are not responsible for the content, policies, or practices of the third-party App and its services.
- Rinnai strongly recommends that you review the App privacy policy before using its features.
The use of the third-party App is optional. For further information or clarification, please contact us at 1300 555 545 and [email protected]
Rinnai – Mini VRF Air Conditioning System | MVRFON6H20 | |||
Outdoor Unit | ||||
Net Dimensions | H x W x D | mm | 1558 / 1120 / 528 | |
Packing Dimension | 1720 / 1270 / 565 | |||
Weight | Net / Gross | kg | 129 / 145 | |
Power Supply | V-Ph-Hz | 220-240 – 1 – 50 | ||
Heating | Rate Capacity (Range) | kW | 23.5 (12 – 30.6) | |
Rated Input Power | 5.3 | |||
Rated Input Current | A | 22.1 | ||
ACOP | 4.33 | |||
Cooling | Rate Capacity (Range) | kW | 20 (10 – 26) | |
Rated Input Power | 4.95 | |||
Rated Input Current | A | 20.43 | ||
AEER | 3.93 | |||
Maximum Input Current | A | 33 | ||
Recommended Circuit Breaker | 40 | |||
Number of Indoor Units | Maximum Quantity | 6 | ||
Ambient Temperature Operation Range | Cooling | °C | -5~55 | |
Heating | -15~27 | |||
Sound Pressure Level | Cooling/Heating | dB(A) | 59 / 59 | |
Refrigerant | Type | R410A | ||
Charge | kg | 4.8 | ||
Refrigerant Piping | Liquid | mm | 9.53 | |
Gas | 19.1 | |||
Pre-Charged Length | m | 60 | ||
Maximum Total System Pipe Length | 200 | |||
Maximum Pipe Length per Indoor Unit | Outdoor Unit to Indoor Unit | 70 | ||
Branch Box to Indoor Unit | 15 | |||
Maximum Vertical Separation Outdoor Unit | ABOVE Indoor Unit | 30 | ||
BELOW Indoor Unit | 20 | |||
Maximum Height Difference | BETWEEN Outdoor Unit and Branch Box | 20 | ||
BETWEEN Indoor Unit and Branch Box | 15 | |||
BETWEEN Indoor Units | 8 |
Wall Mounted Split System | HINRMVRF15 | HINRMVRF22 | HINRMVRF28 | HINRMVRF36 | HINRMVRF45 | HINRMVRF56 | HINRMVRF71 | HINRMVRF80 | ||
Net Dimensions | H x W x D | mm | 265 x 750 x 295 | 295 x 950 x 296 | 295 x 1200 x 265 | |||||
Gross Dimensions | 385 x 875 x 360 | 385 x 1075 x 360 | 385 x 1315 x 360 | |||||||
Net / Gross Weight | kg | 10.0 / 15.5 | 11.0 / 16.5 | 12.5 / 18.3 | 16.0 / 22.2 | |||||
Power supply | V-Ph-Hz | 220-240 – 1 – 50 | ||||||||
Cooling | Rated Capacity | kW | 1.5 | 2.2 | 2.8 | 3.6 | 4.5 | 5.6 | 7.1 | 8.0 |
Rated Input Power | W | 18 | 21 | 24 | 27 | 30 | 40 | 50 | 65 | |
Rated Input Current | A | 0.08 | 0.09 | 0.1 | 0.12 | 0.13 | 0.17 | 0.22 | 0.28 | |
Heating | Rated Capacity | kW | 1.7 | 2.4 | 3.2 | 4.0 | 5.0 | 6.3 | 8.0 | 9.0 |
Rated Input Power | W | 18 | 21 | 24 | 27 | 30 | 40 | 50 | 65 | |
Rated Input Current | A | 0.08 | 0.09 | 0.1 | 0.12 | 0.13 | 0.17 | 0.22 | 0.28 | |
Air flow rate | Max / Hi / Med / Lo | m3 / h | 460 / 440 / 380 / 340 | 500 / 470 / 380 / 340 | 540 / 510 / 400 / 340 | 580 / 540 / 420 / 340 | 720 / 670 / 510 / 410 | 860 / 780 / 550 / 410 | 1220 / 1120 / 850 / 660 | 1380 / 1260 / 900 / 660 |
Sound pressure level (at 1 m) | dB(A) | 32 / 31 / 29 / 27 | 33 / 32 / 29 / 27 | 35 / 34 / 31 / 28 | 37 / 36 / 31 / 28 | 37 / 35 / 31 / 29 | 41 / 39 / 33 / 29 | 44 / 42 / 36 / 32 | 45 / 43 / 37 / 32 | |
Sound power level | 45 / 44 / 42 / 40 | 46 / 45 / 42 / 40 | 50 / 49 / 46 / 42 | 54/ 53 / 48 / 44 | 54 / 52 / 48 / 44 | 56 / 54 / 48 / 44 | 58 / 56 / 50 / 46 | 60 / 57 / 50 / 46 | ||
Pipe Connections | Liquid / Gas Pipe | mm | Ф6.35 / Ф12.7 | Ф9.52 / Ф15.9 | ||||||
Drain Pipe | OD Ф 16 | |||||||||
Refrigerant Type | R410A | |||||||||
Throttle | Type | Electronic Expansion Valve | ||||||||
MPa | 4.4 / 2.6 | |||||||||
Controller | Wireless Remote Control | |||||||||
Wi-Fi Compatibility | Standard |
-

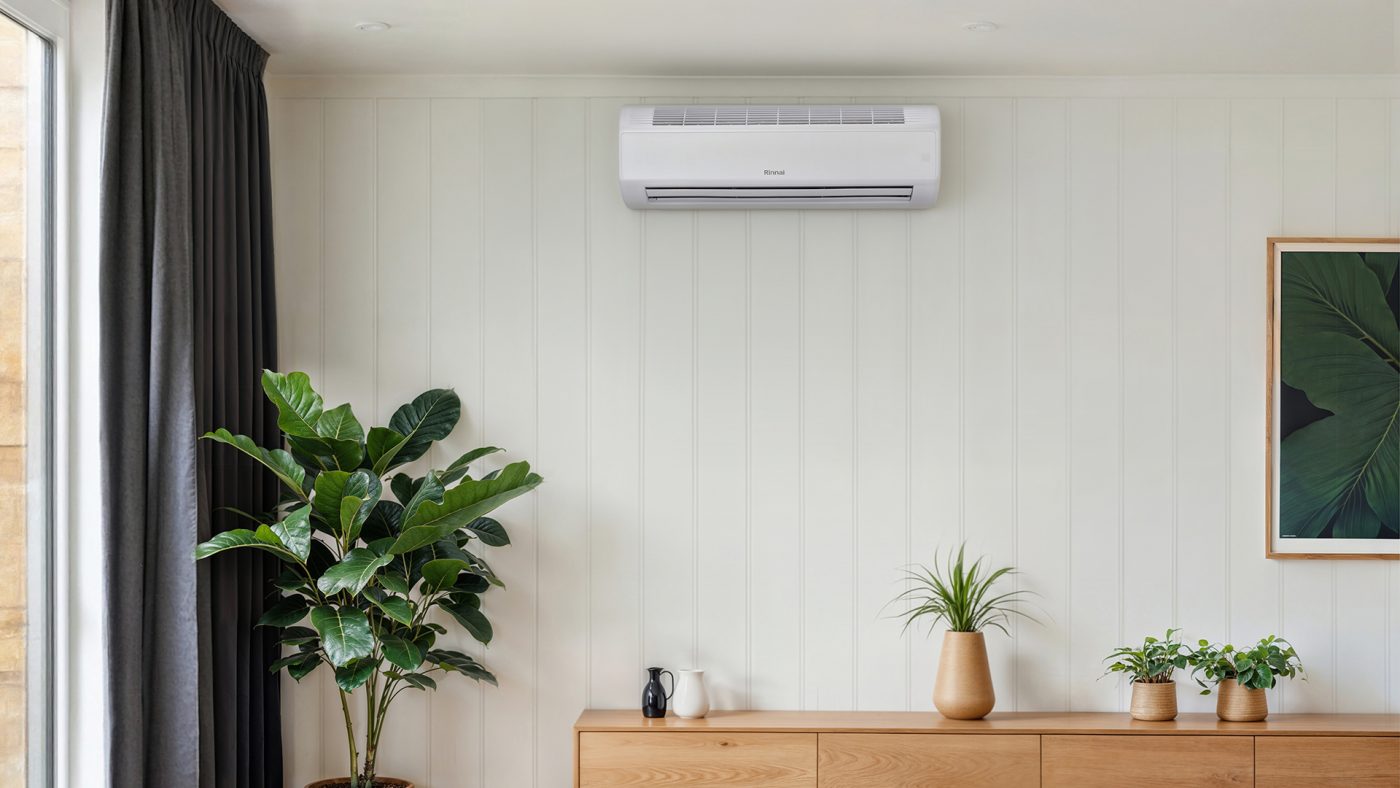

Rinnai Mini VRF Air Conditioner (living)Preview
-

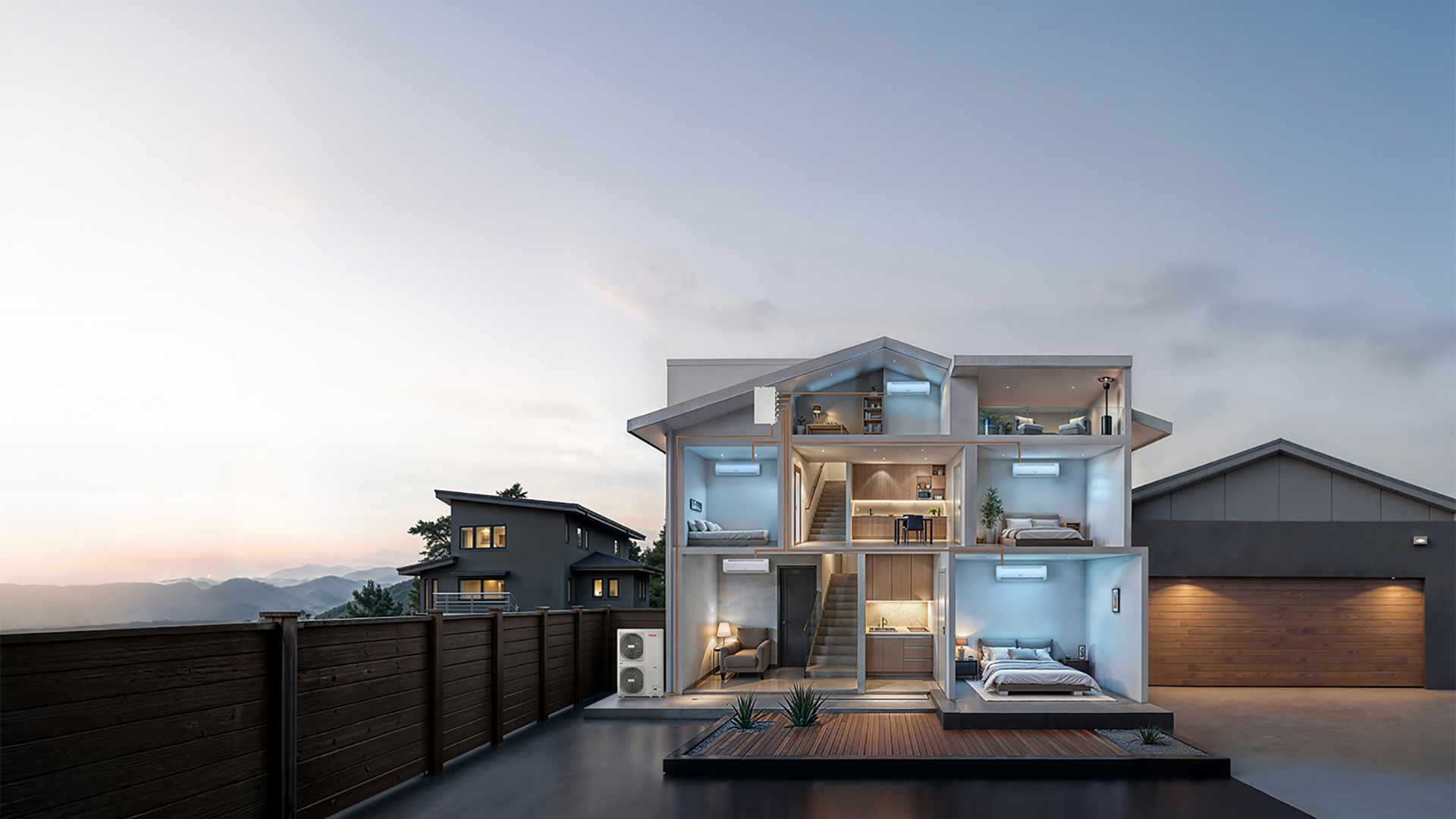

Rinnai Mini VRF Air Conditioner (3D house diagram)Preview
-

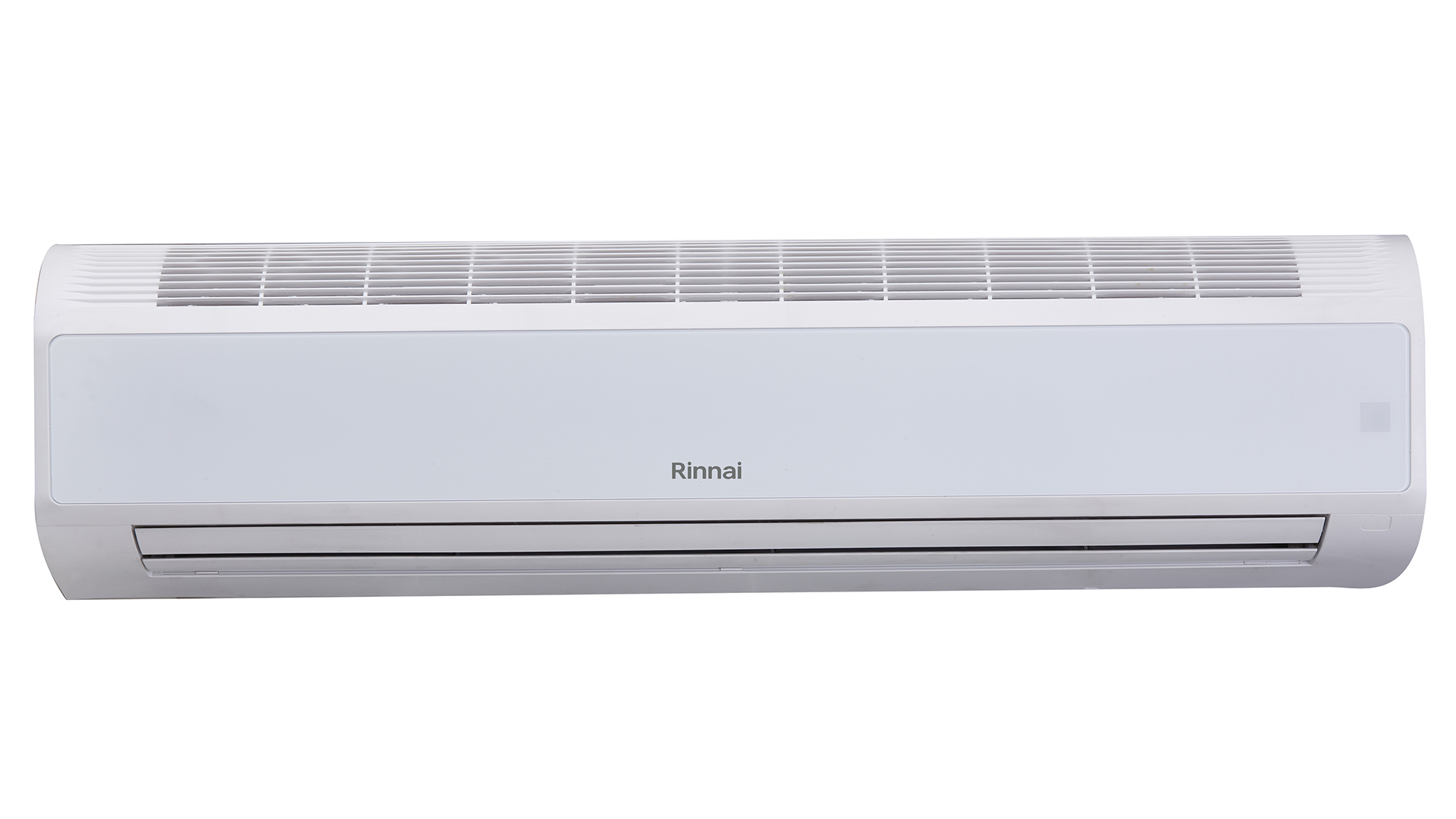

Rinnai 7.1kW / 8.0kW Mini VRF Air Conditioner (front)Preview
-

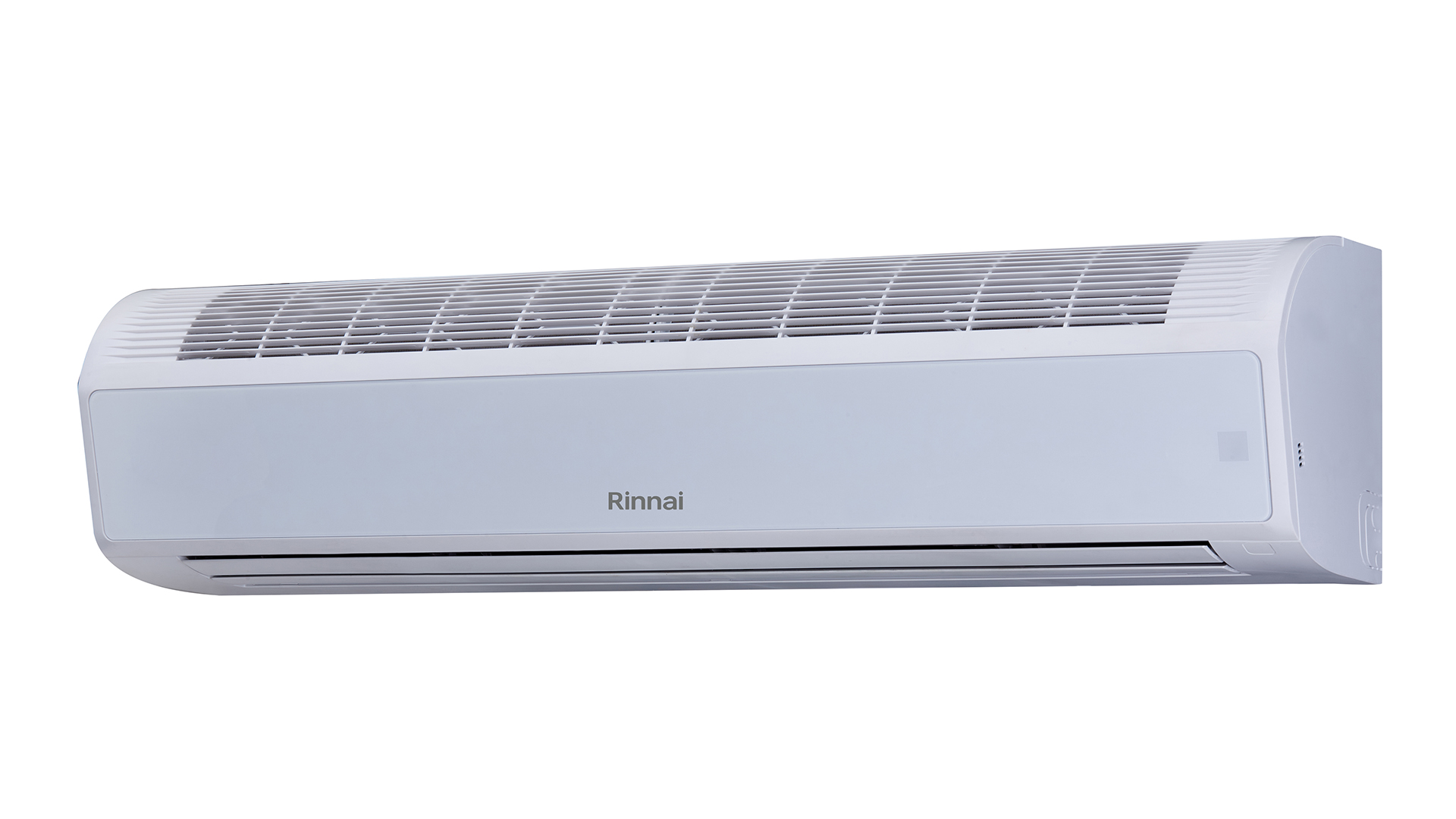

Rinnai 7.1kW / 8.0kW Mini VRF Air Conditioner (right)Preview
-

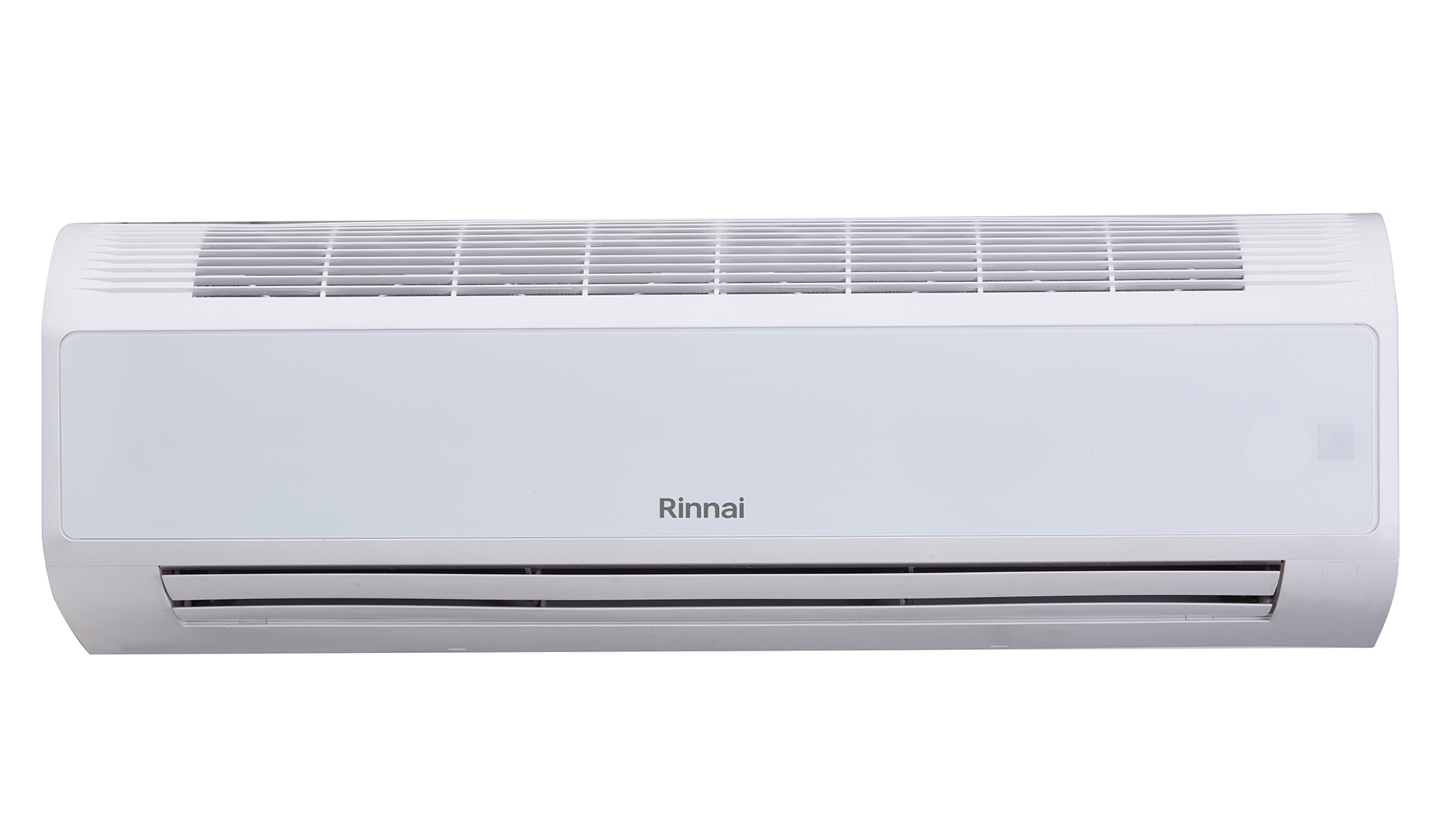

Rinnai 4.5kW / 5.6kW Mini VRF Air Conditioner (front)Preview
-

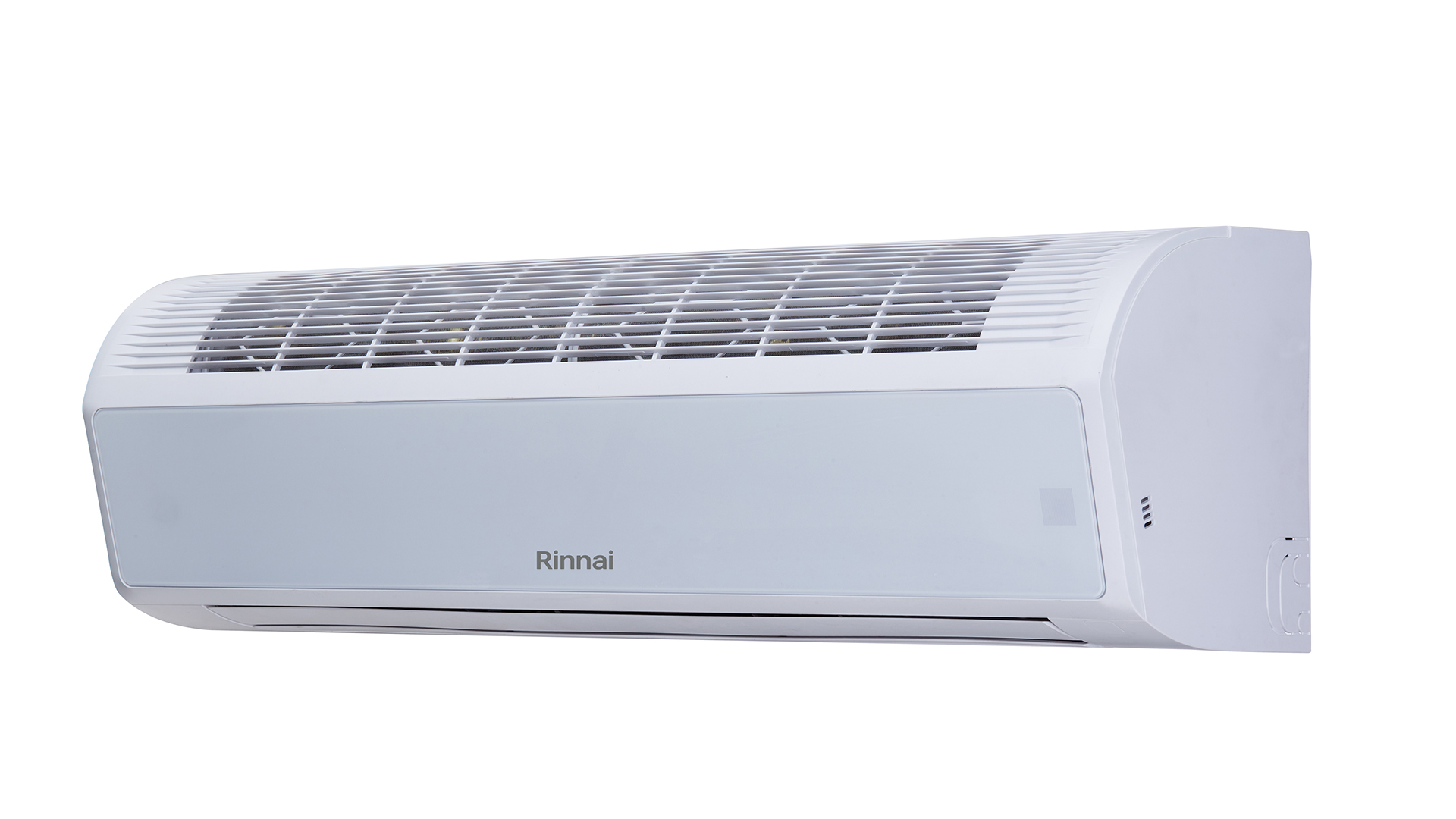

Rinnai 4.5kW / 5.6kW Mini VRF Air Conditioner (right)Preview
-

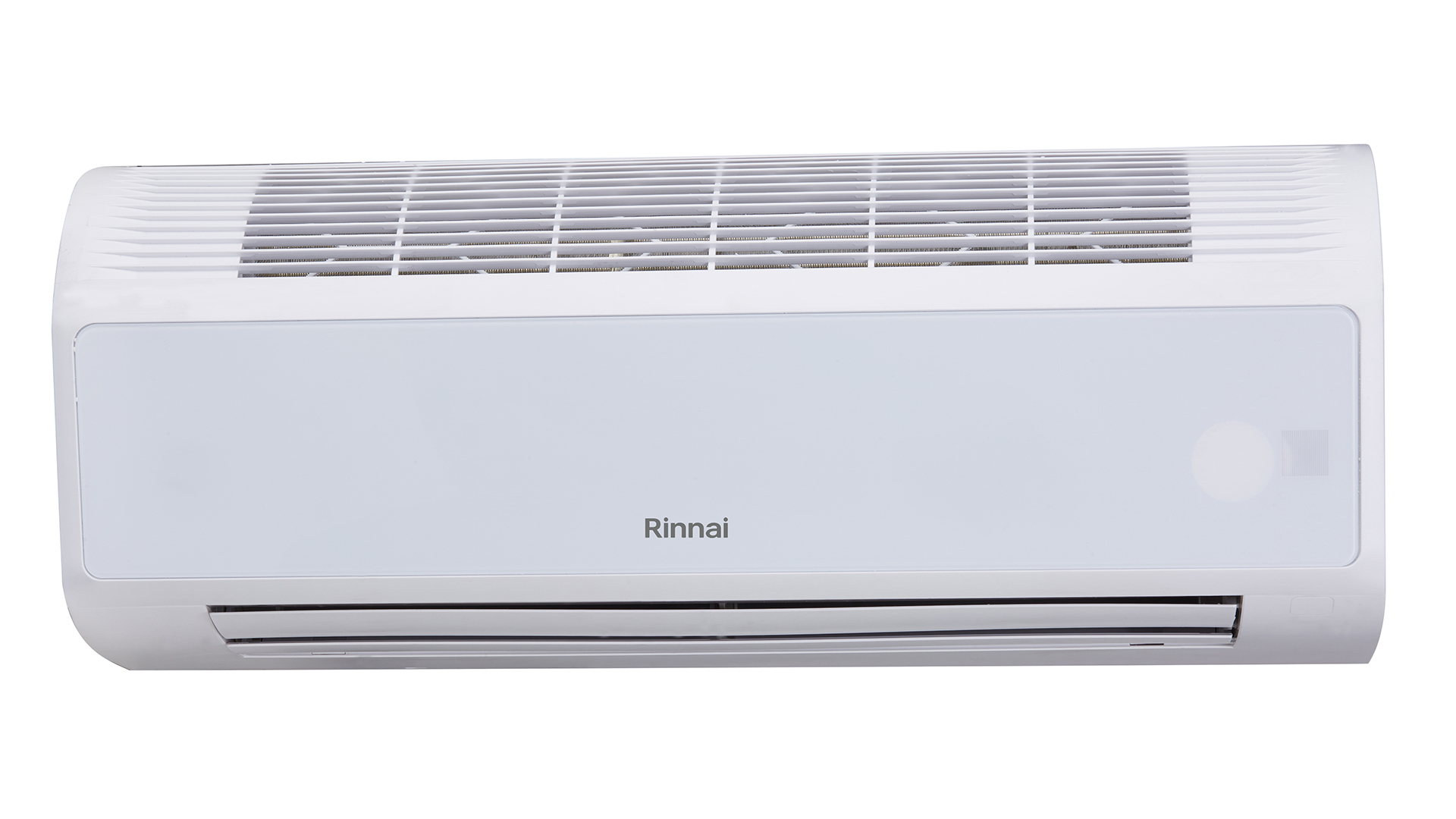

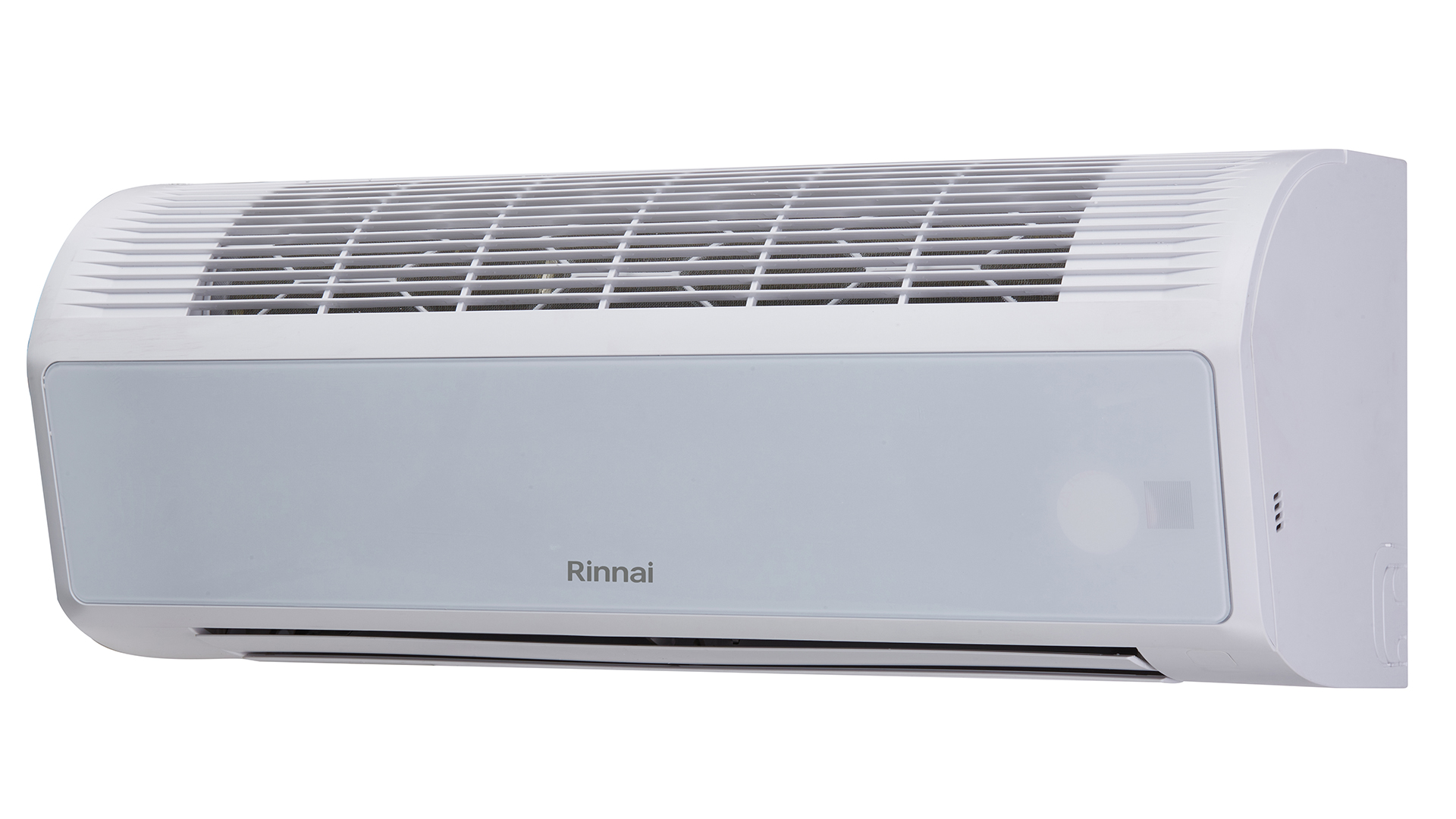

Rinnai 1.5kW / 3.6kW Mini VRF Air Conditioner (front)Preview
-
Rinnai 1.5kW / 3.6kW Mini VRF Air Conditioner (right)Preview
-

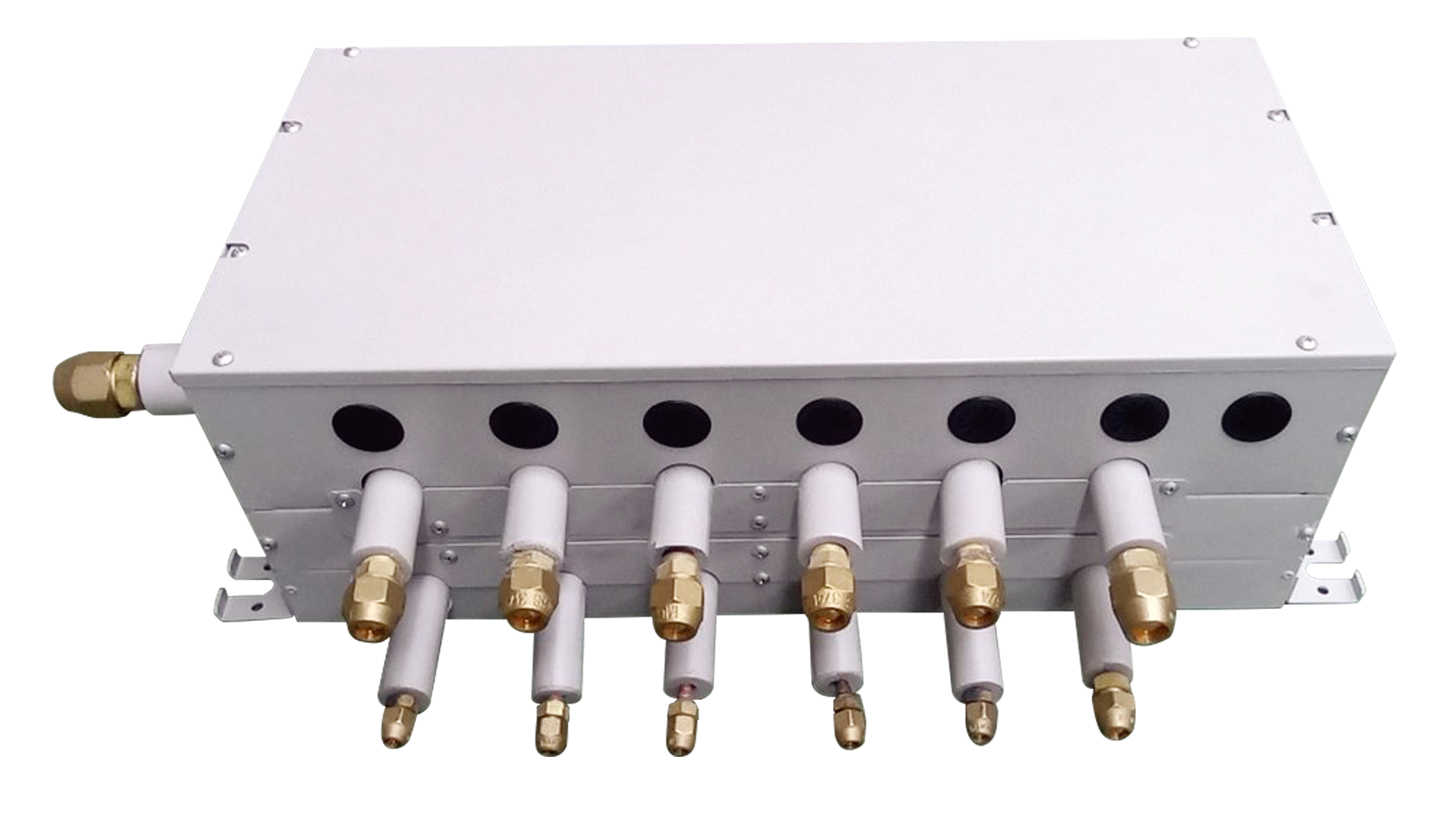

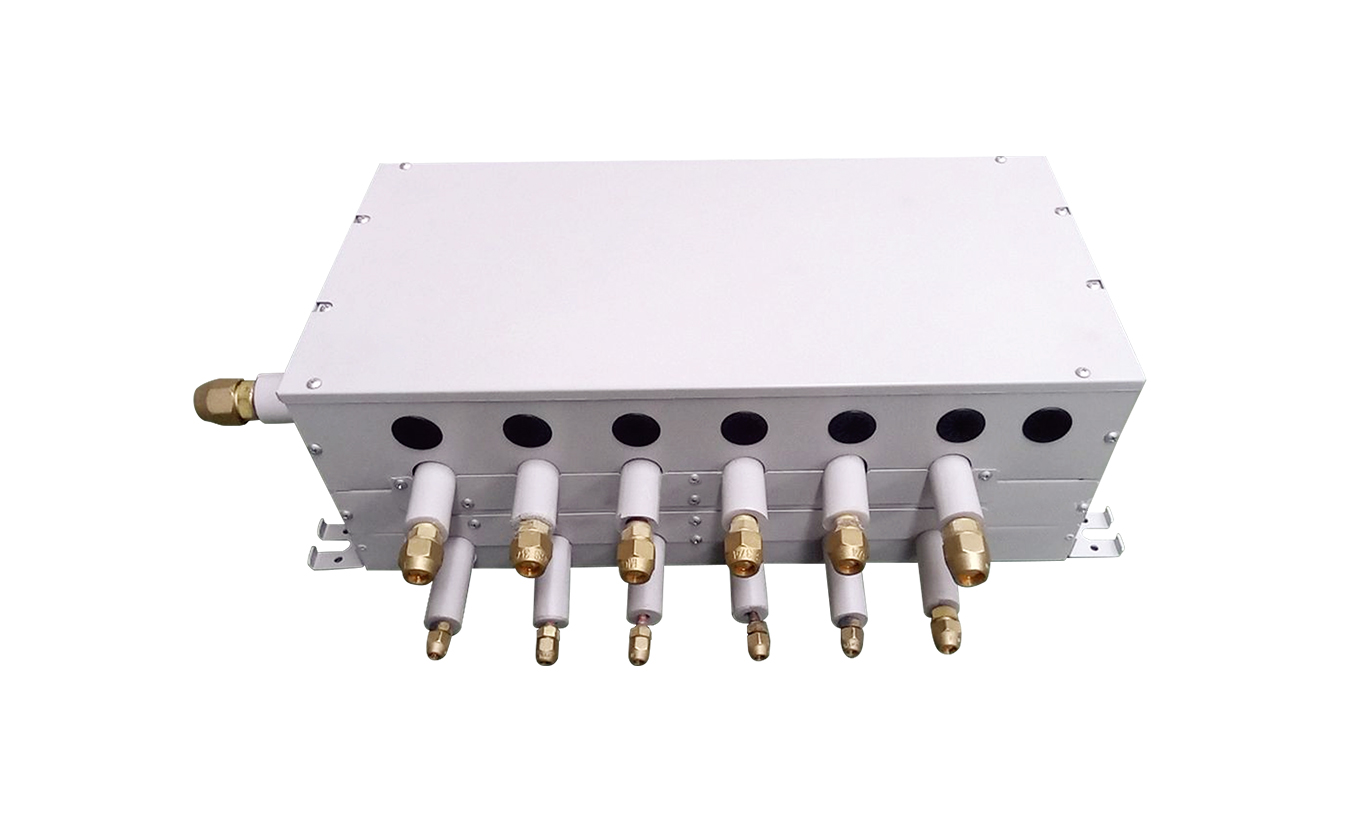

Rinnai Mini VRF Air Conditioner (6 point branch box)Preview
-

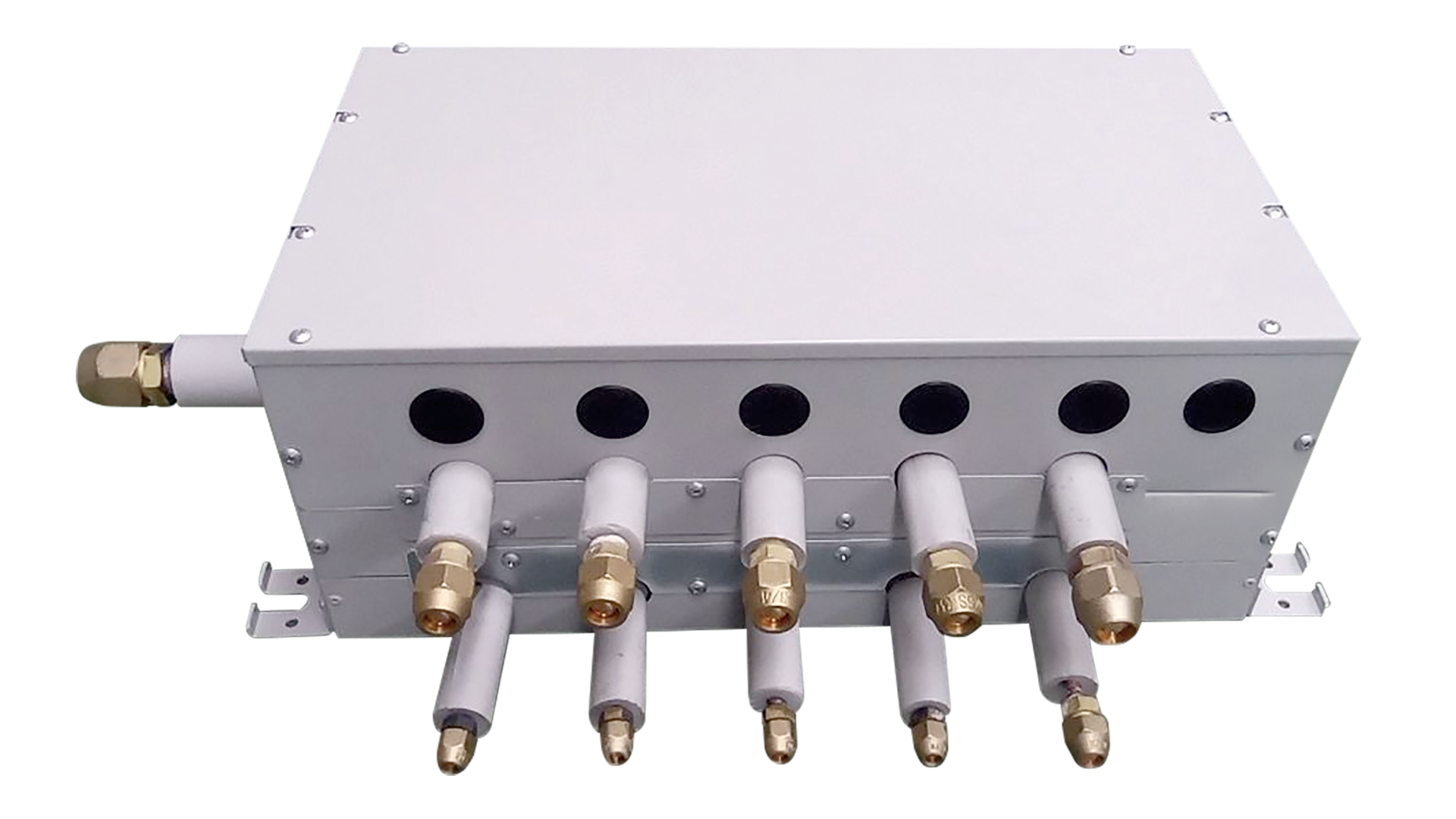

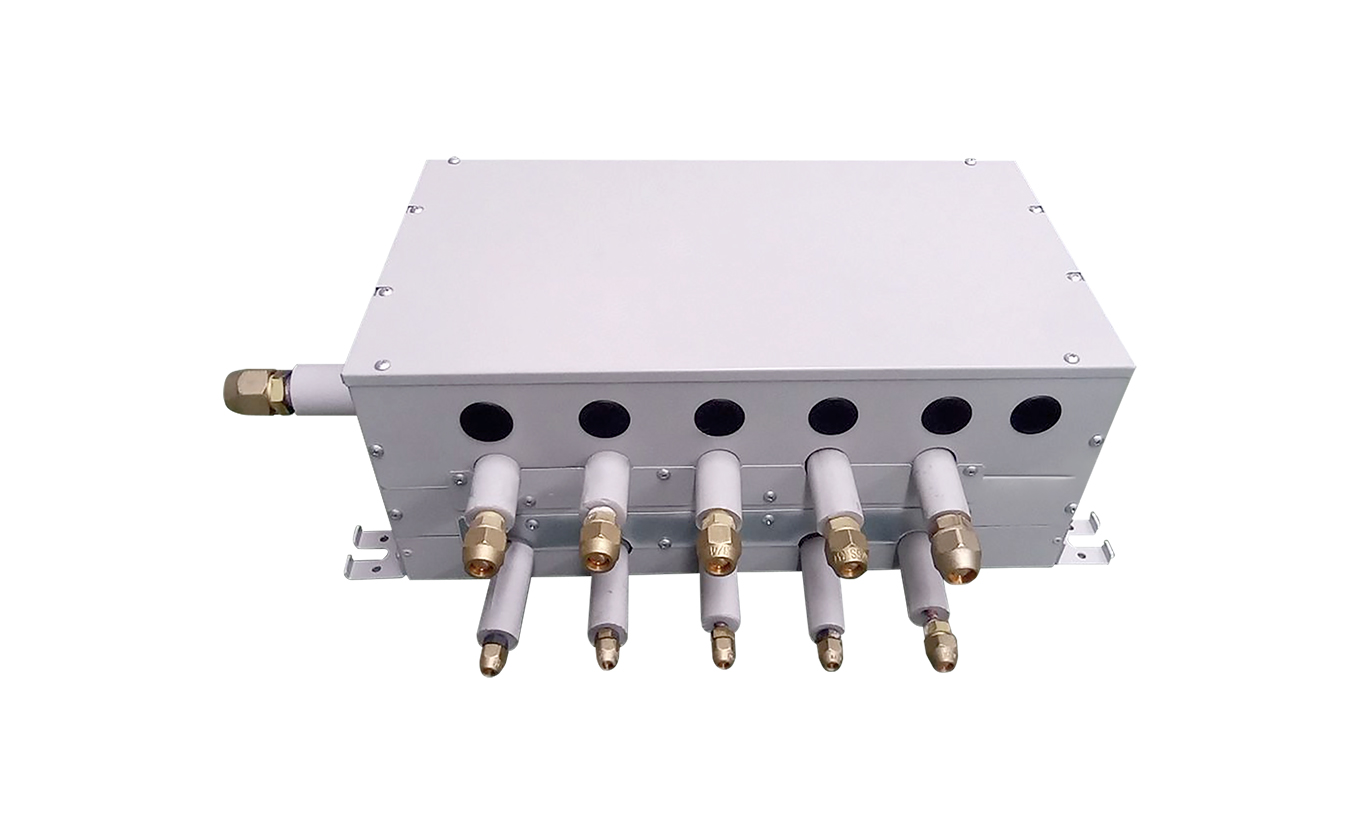

Rinnai Mini VRF Air Conditioner (5 point branch box)Preview
-

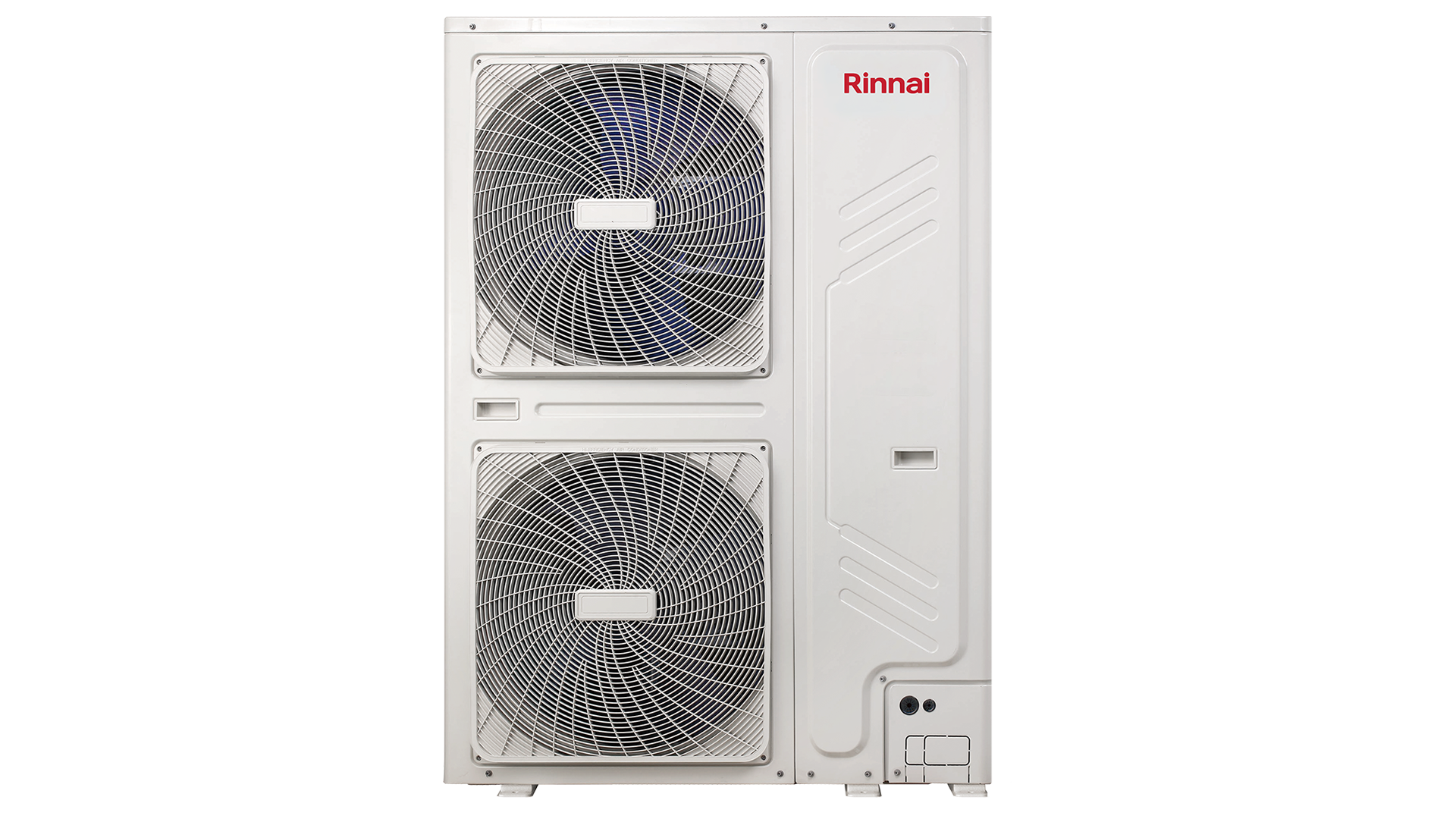

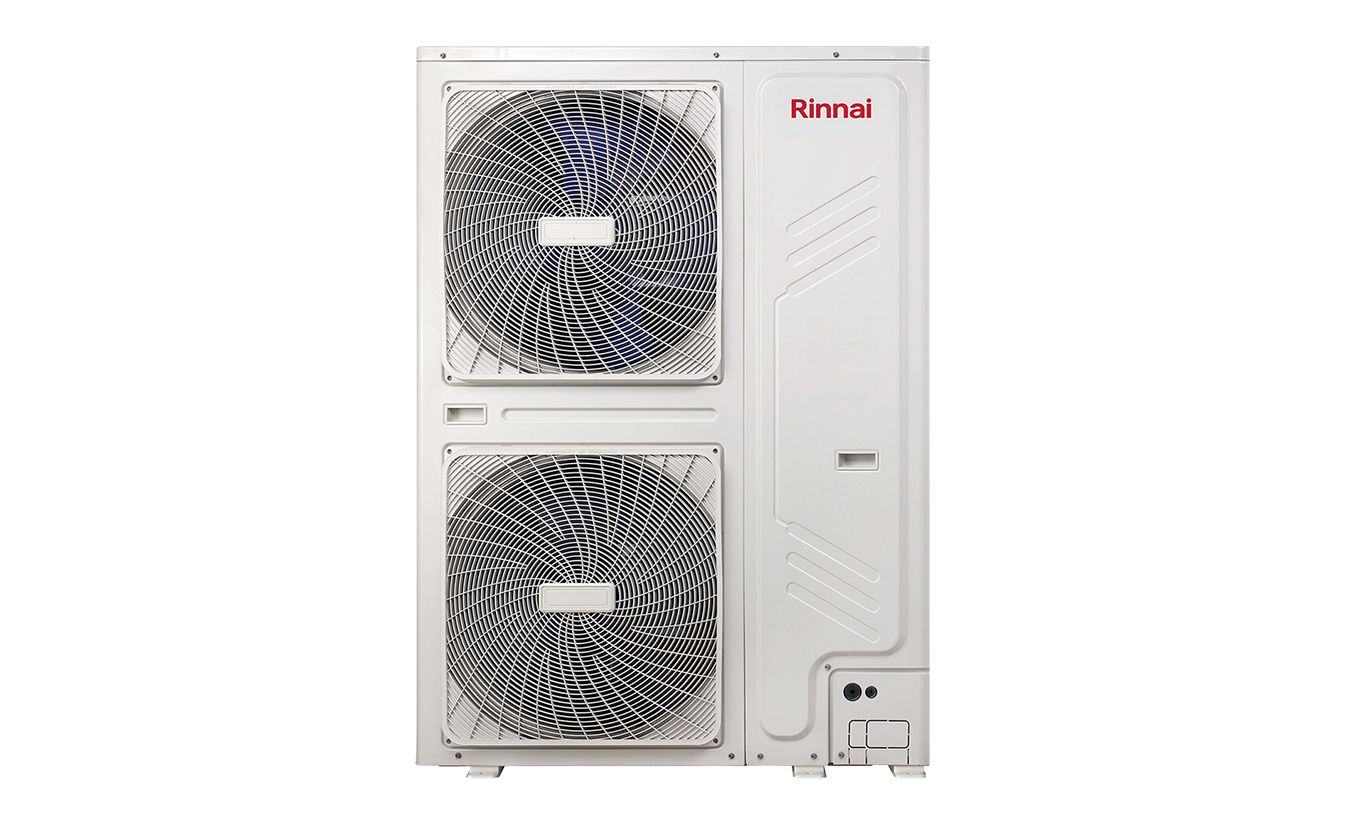

Rinnai Mini VRF Air Conditioner (outdoor unit)Preview
-

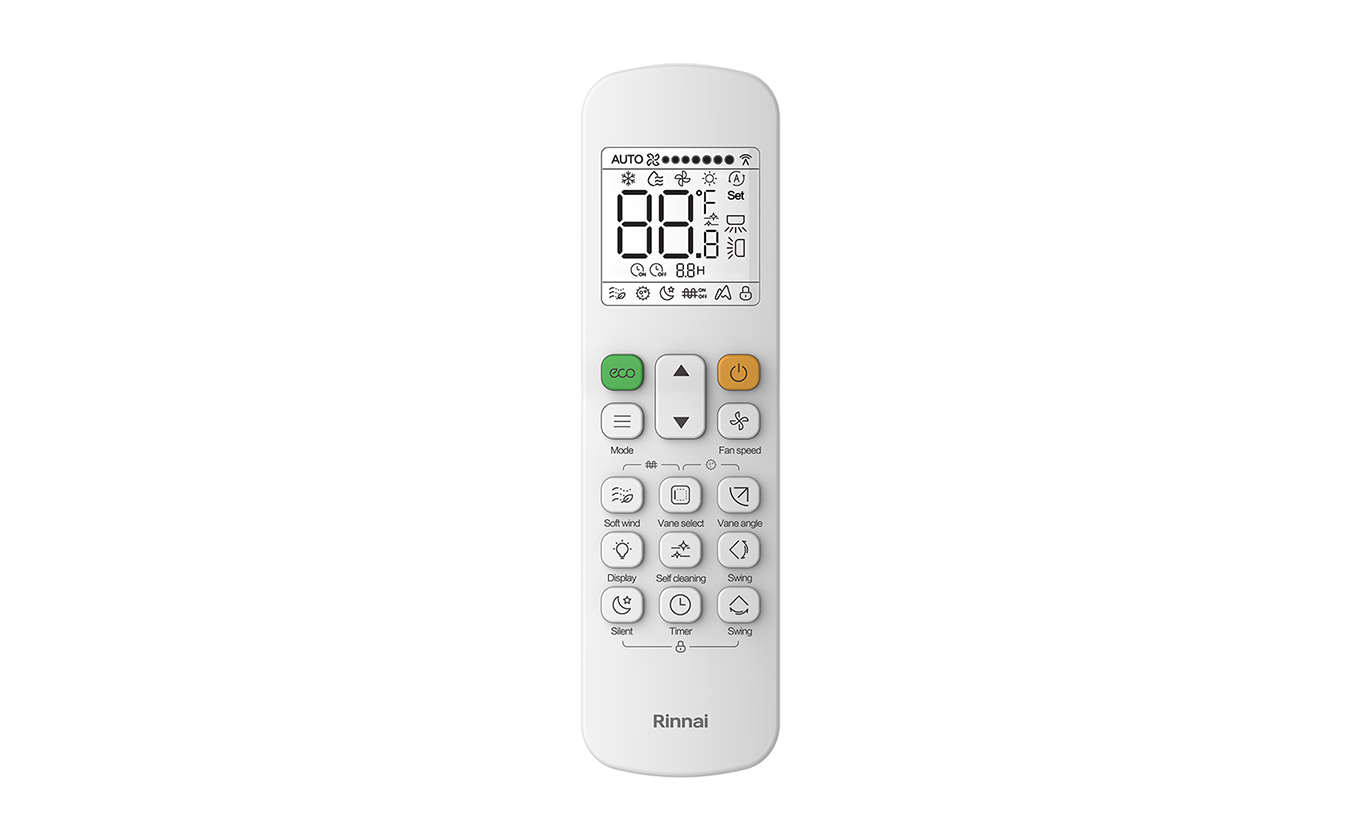

Rinnai Mini VRF Air Conditioner (remote controller)Preview

-
