Rinnai Home Controller
Rinnai Home Controller
Rinnai Home Heating and Cooling smart solution for modern homes
Control your Ducted Air Conditioning System with ease from your smart device with Rinnai Home Heating and Cooling Controller, our latest in climate control technology.
Rinnai Home’s intelligent sensors will redirect conditioned air from one room to another, so rooms reach their set temperature as quickly and efficiently as possible. Each zone is controlled individually with the added benefit of having different temperatures in each zone.
With intelligent Fan Auto Control, Scheduling Assistant and Favourite programs Rinnai Home Controller enables a more energy efficient and cost effective solution to the heating and cooling of your home.
Winter Cashback!
Get up to $500 cashback on eligible Rinnai Air Conditioning and Rinnai Home Controllers purchased between May 15th and July 31st 2025.
Offers available on Rinnai Split Systems, Multi Split Systems, Ducted Systems and Rinnai Home Controllers.
For eligibility see T&C's.
Individual zone temperature control
8 zones
8″ touch screen and wireless sensors
Wi-Fi and remote access via Rinnai Home App
Superior technology
- Individual Zone Temperature Control
- Wi-Fi and Remote access and Voice Control via Google Home, Google Assistant, Amazon Alexa, Apple Home Kit, Siri
- Fan Auto Control
- Favourites and Schedules
- ‘Filter Clean’ reminder with adjustable frequency
- Sleep timer
- 5% Airflow Control Adjustments
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
| Rinnai – Home Controllers | Rinnai – Home Sensors | ||||||
| Model No. | CNTRLDRCIZHAB | CNTRLDRCIZHAW | Model No. | CNTRLIZWLSENSORB | CNTRLIZWLSENSORW | ||
| Colours | Black | White | Colours | Black | White | ||
| Display/Screen size | in | 8” colour touch screen | Wireless | Wireless Sensors | |||
| DRCi Range | kW | 7 – 24 | Battery | CR2032 | |||
| Zoning | Up to 8 Zones | Accept | All damper motors fitted with an RJ12 connection only | ||||
| Control | Wi-Fi | Damper Motors | On the system must be the same brand | ||||
| Operating Range | Cooling | °C | 17 ~ 32 | Compatibility | Some damper motors do not require configuration and will be recognised automatically by the Rinnai Home system. Below are a list of some of these devices:
|
||
| Heating | 0 ~ 30 | ||||||
| App Name | RINNAI HOME | ||||||
| App Available from | Apple App Store / Google Play Store | ||||||
| Number of Screens | Three touch screens may be configured | ||||||
| Loom Llength | m | 25 | |||||
| Functions | On/Off | ||||||
| AC Unit | |||||||
| Zones | |||||||
| Airflow | |||||||
| Favourites | |||||||
| Schedules | |||||||
| Sleep Timer | |||||||
| Time | |||||||
| Setting | |||||||
| Beep | |||||||
| Config | |||||||
| Pair | |||||||
| System Reset Button | |||||||
Photography
-

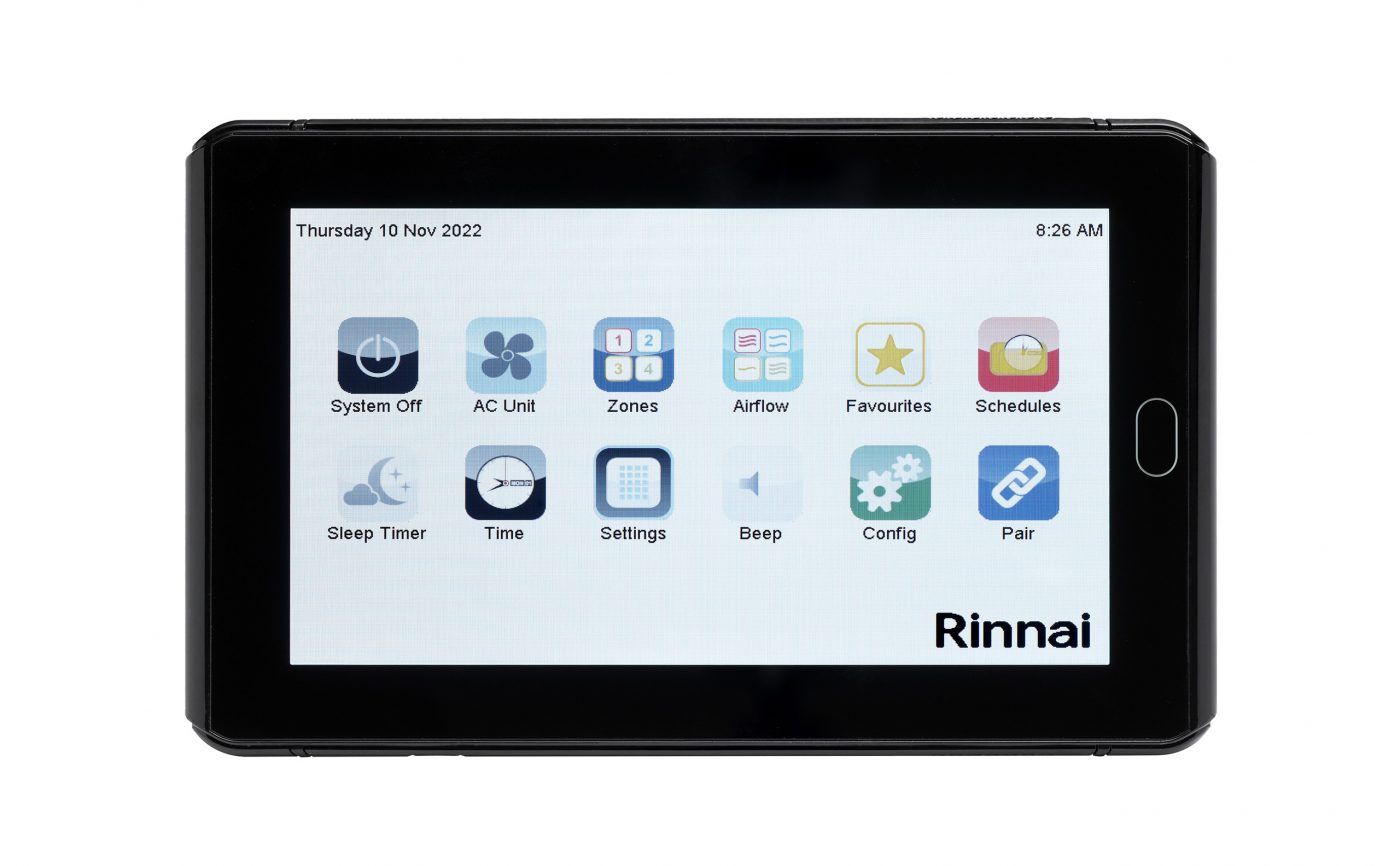

Rinnai Home Controller (black home)Preview
-

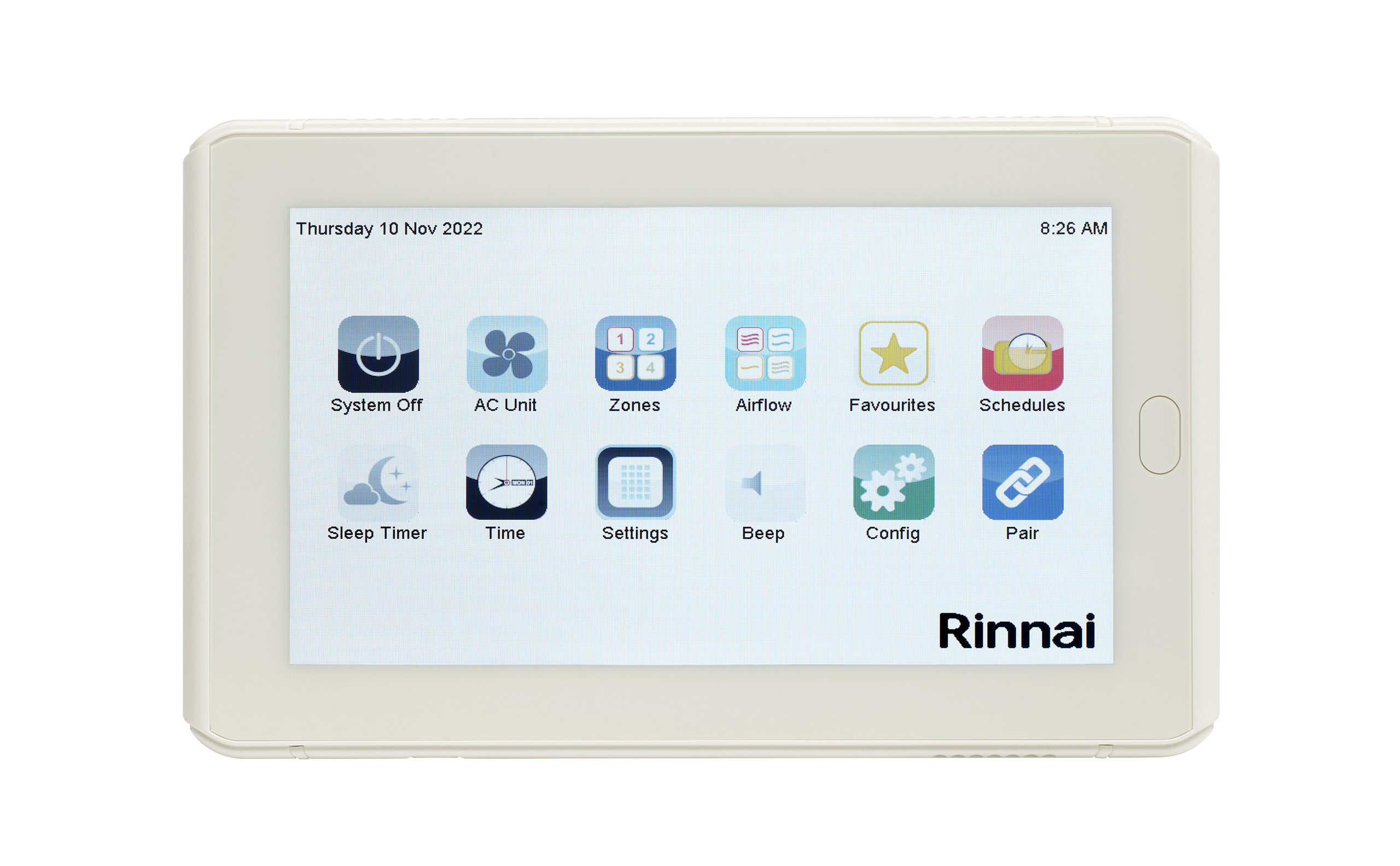

Rinnai Home Controller (white home)Preview
-

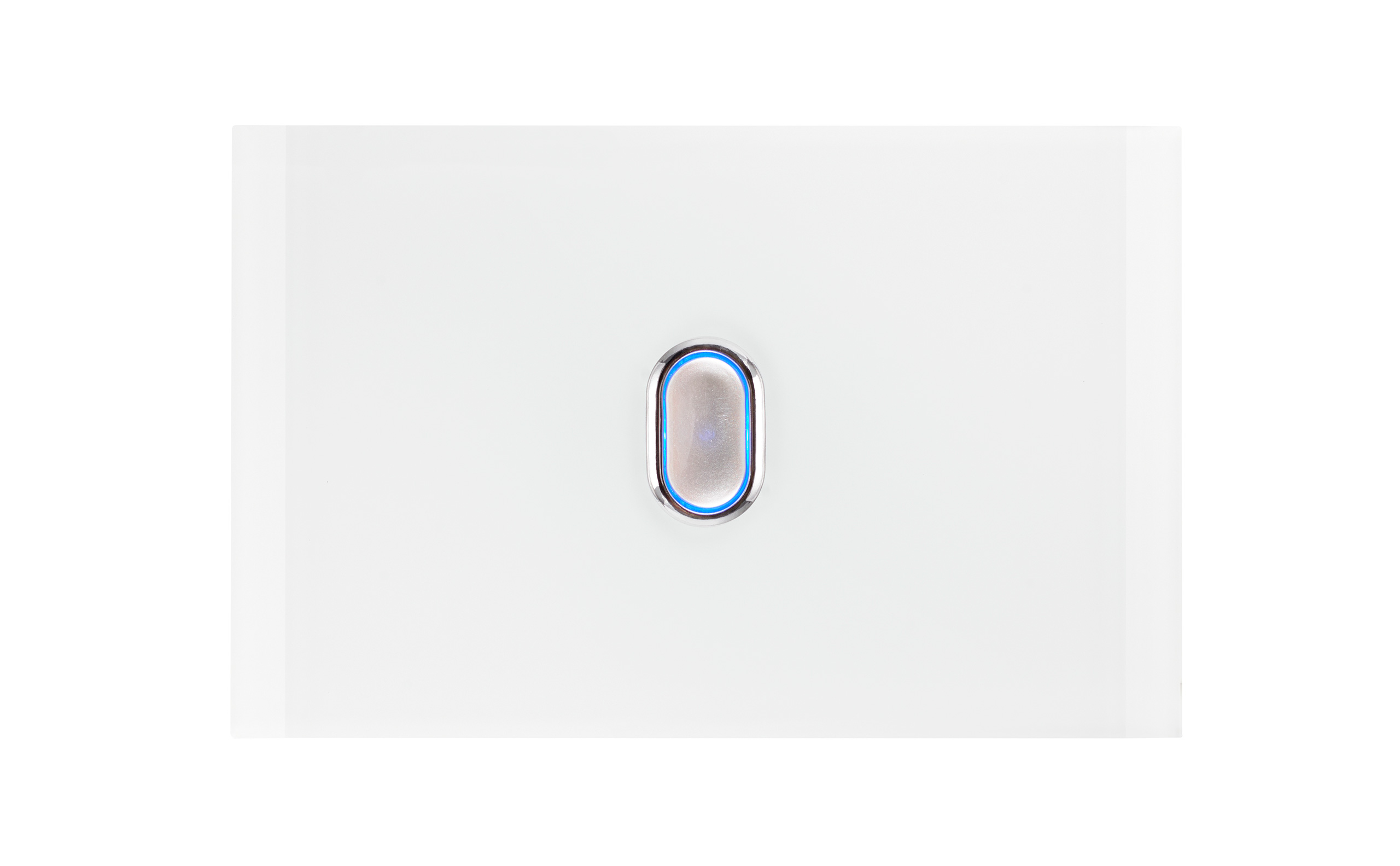

Rinnai Home Controller (white sensor)Preview
-

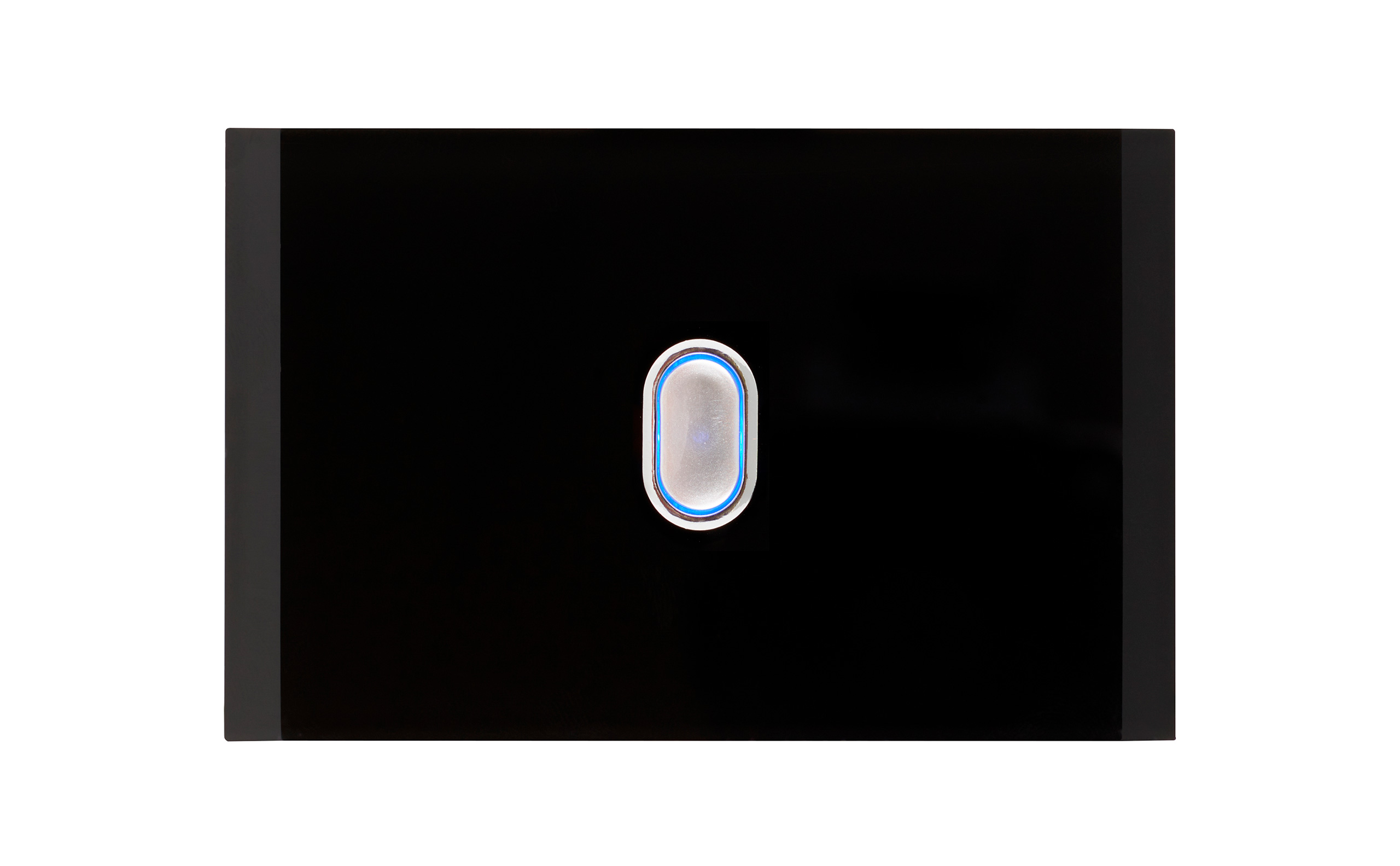

Rinnai Home Controller (black sensor)Preview
-

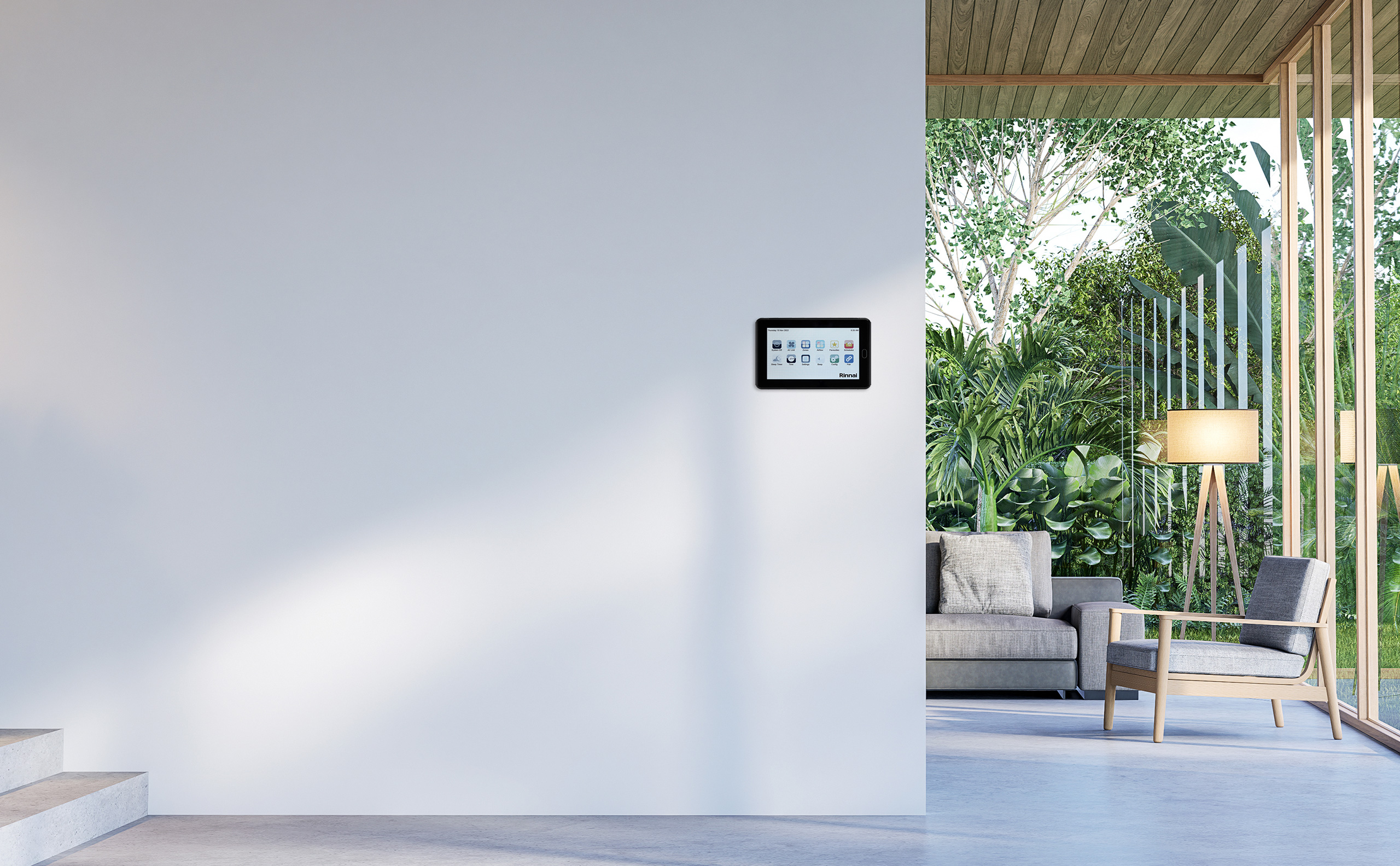

Rinnai Home Controller (living wall)Preview
-
Rinnai Home Controller (3D house diagram)Preview
-

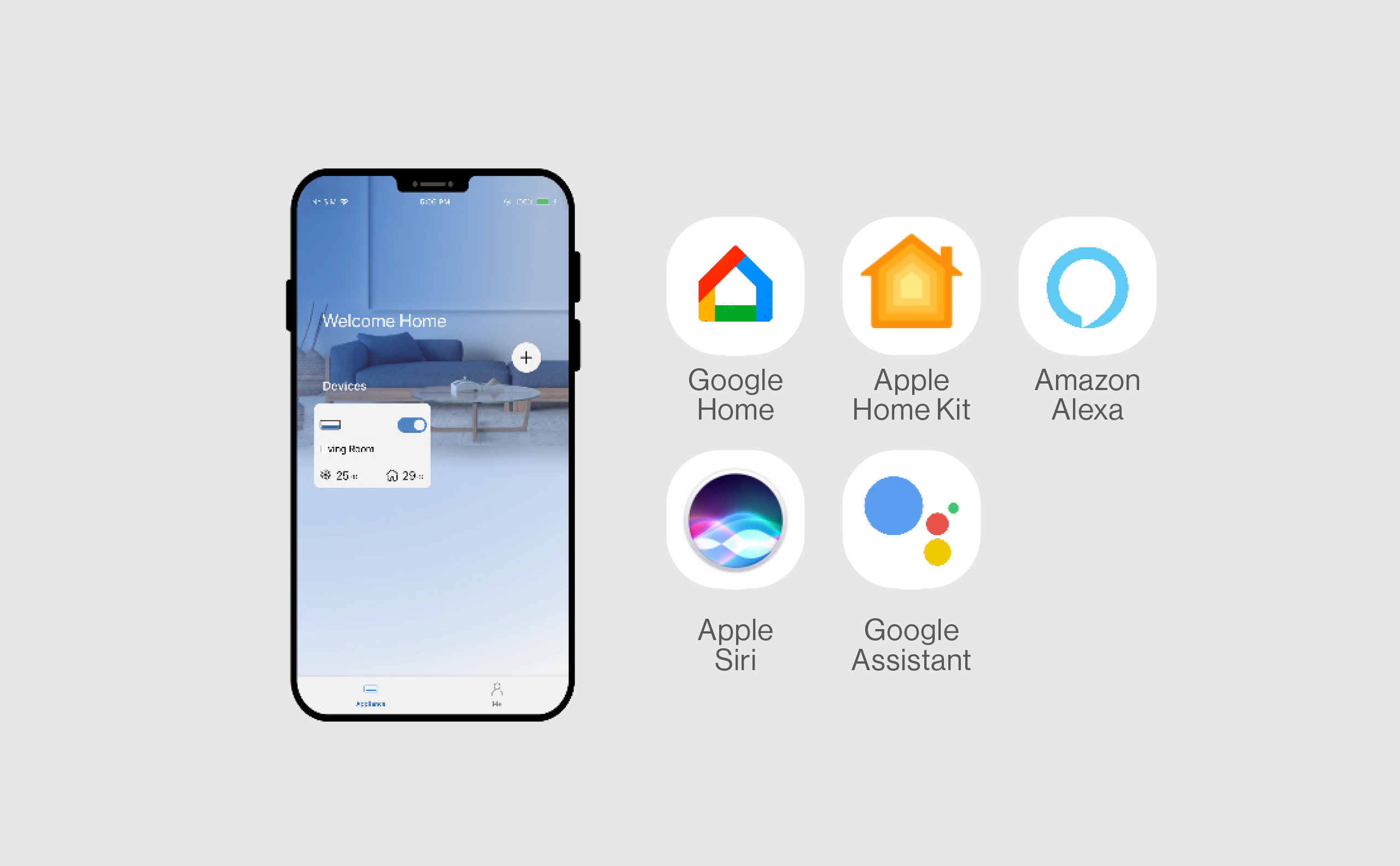

Rinnai Home Controller (phone apps)Preview
