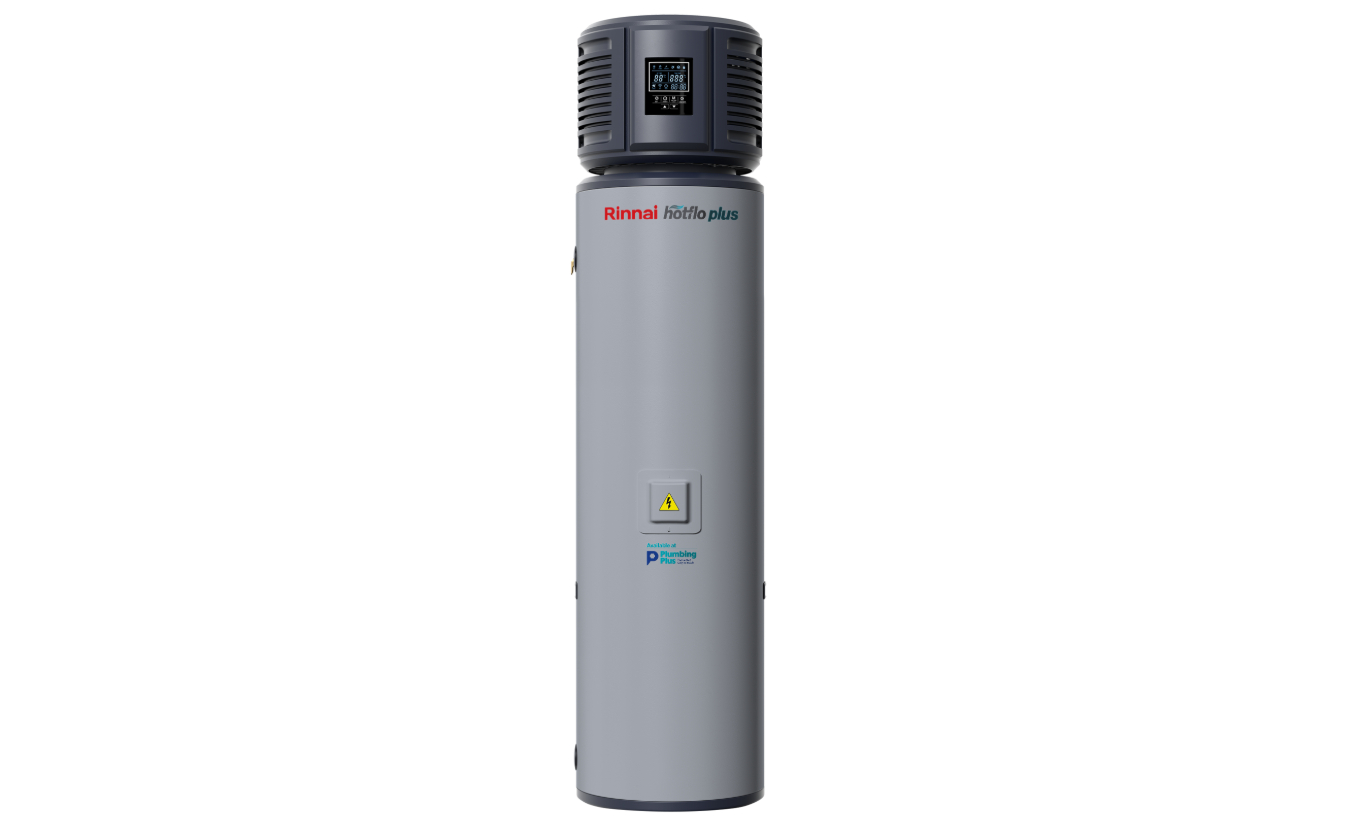

Rinnai Hotflo Plus 250L Heat Pump
Rinnai Hotflo Plus 250L Heat Pump
Transform your Hot Water system with superior efficiency
The Hotflo Plus 250L Electric Heat Pump Hot Water system is designed to harness ambient air heat through an advanced heat exchange system that boosts your water temperature. Its smart control technology optimises hot water output while slashing energy use by up to 70%*, compared to conventional electric storage systems.
This unit also features a Wi-Fi enabled timing function that complements solar PV systems, dramatically reducing your energy bills. Constructed to withstand water pressures of up to 850kPa, the Hotflo Plus is not only easier and safer to install due to its lighter frame, but it also minimises environmental impact.
Federal Government Grants** plus State Government Grants for VIC/NSW available.
* Energy saving of up to 70% based on a Hotflo Plus Electric Heat Pump when compared to a standard electric water heater of the same capacity during peak winter load in Zone 1 based on AS/NZS4234. Savings will vary depending upon your location (Zone 1-5), type of water heater being replaced, hot water consumption and associated fuel tariffs.
** Federal Government Grants available for all regions excluding ACT.
High Energy Efficiency
Convenient Wi-Fi Timer
Adaptable for All Climates
Quiet Operation
Perfect for Replacing an Electric Storage Tank
Federal Government Grants for all regions (excl. ACT) available
State Government Grants for VIC/NSW available
5 year cylinder warranty***
Superior technology
- Auto Disinfection
- Tough
- Defrost Control
- Auto Restart Function
- Multiple Operating Modes
Rinnai quality
- 5 year cylinder warranty***
*** 5 year extended Inner Storage Cylinder warranty available subject to participating in the Rinnai scheduled service program. For full terms and conditions please refer to the warranty booklet.
Federal Small-Scale Technology Certificate (STC’s)
- Hotflo Plus’s innovative design allows it to be eligible for Grants through the Federal Governments Small-scale Renewable Energy Scheme, generously covering a proportion of the up-front costs of purchasing and installing the system.
- These grants are called Small-scale Technology Certificates (STC’s) and are offered based on how sustainable a hot water system is.
- Your STC rebate value will depend on your installation location, see the map above for your geographic Zone locations.
State Government Grants
Victoria
- For Victorian consumers there are additional rebates available for replacing inefficient hot water systems with Heat Pumps.
- Victorian Energy Efficiency Certificates (VEECs) plus a Solar Victoria rebate are offered for eligible installations on top of the Federal STC grants - making the conversion to a Rinnai Hotflo Plus Heat pump the obvious low-cost choice.
New South Wales
- For New South Wales consumers there are additional rebates available for replacing inefficient hot water systems with Heat Pumps.
- Energy Savings Certificates (ESCs) are offered for eligible installations on top of the Federal STC grants - making the conversion to a Rinnai Hotflo Plus Heat pump the obvious low-cost choice.
The value of STCs and State Grants are a tradable, market driven commodity. Values are subject to daily variation and are valid as of 01/05/2024.
| Rinnai – Hotflo Plus Heat Pump | Related | Values | Unit | Model EHPT250VM (250L) | ||
| No. Shower Outlets | 2 | |||||
| Dimensions | Unit | H x D | mm | 2140 x 570 | ||
| Hot Outlet | 1445 | |||||
| Cold Inlet | 145 | |||||
| Weight | Empty | kg | 125 | |||
| Sound Level | dB(A) | 48 | ||||
| Ambient Temperature Limits (for heat pump operation – element will operate beyond these limits) (°C) |
°C | -7 to 43 | ||||
| Ingress Protection | IPX4 | |||||
| Storage Cylinder Connections | Hot Outlet / Cold Inlet | RP | ISO 7.1 ¾” | |||
| PTR Valve | ISO 7.1 ¾” | |||||
| Pressure and Temperature Relief (PTR) Supplied Valve Settings / Ratings | kPa / kW | 800 / 30 | ||||
| ECV Fitted | Fit PLV if mains pressure exceeds | kPa | 680 | |||
| Recommended PLV pressure rating | 500 | |||||
| ECV Not Fitted | Fit PLV if mains pressure exceeds | 800 | ||||
| Recommended PLV pressure rating | 500 | |||||
| Refrigerant Type / Mass | kg | R134a / 1 | ||||
| Rated Input (d) | Factory Wired | Electric Element | kW | 1.5 | ||
| Refrigeration Module | 0.9 | |||||
| Wired by Installer | Total | 2.4 | ||||
| Power Supply | Hz | 220V-240V AC/50 | ||||
| Rated Current | Maximum | Amps | 11 Amps (15 Amp plug fitted) | |||
| Energy Output | Use to size PTR | Maximum | kW | 5.5 | ||
| Heat Output (32.6°C Ambient 21.1°C cold water inlet) | 3.1 | |||||
| Refrigerant Type / Mass | kg | R134a / 1 | ||||
| Coefficient Of Performance (COP) (32.6°C ambient 21.1°C cold water inlet) | kW | 3.1 | ||||
Warranty*
| Type of Use | Cylinder | Refrigeration Components | Other Components |
| Parts | 5 Years | 3 Years | 1 Year |
| Labour | 3 Years | 1 Year | 1 Year |
*Please refer to the Warranty Booklet for more information.
Without limiting the above periods, a 5-year whole-of-product warranty applies where a rebate has been received under the Solar Victoria Solar Homes Program for installations from 1 July 2023. For further details, contact Rinnai.
