LS 1000 Gas Fireplace

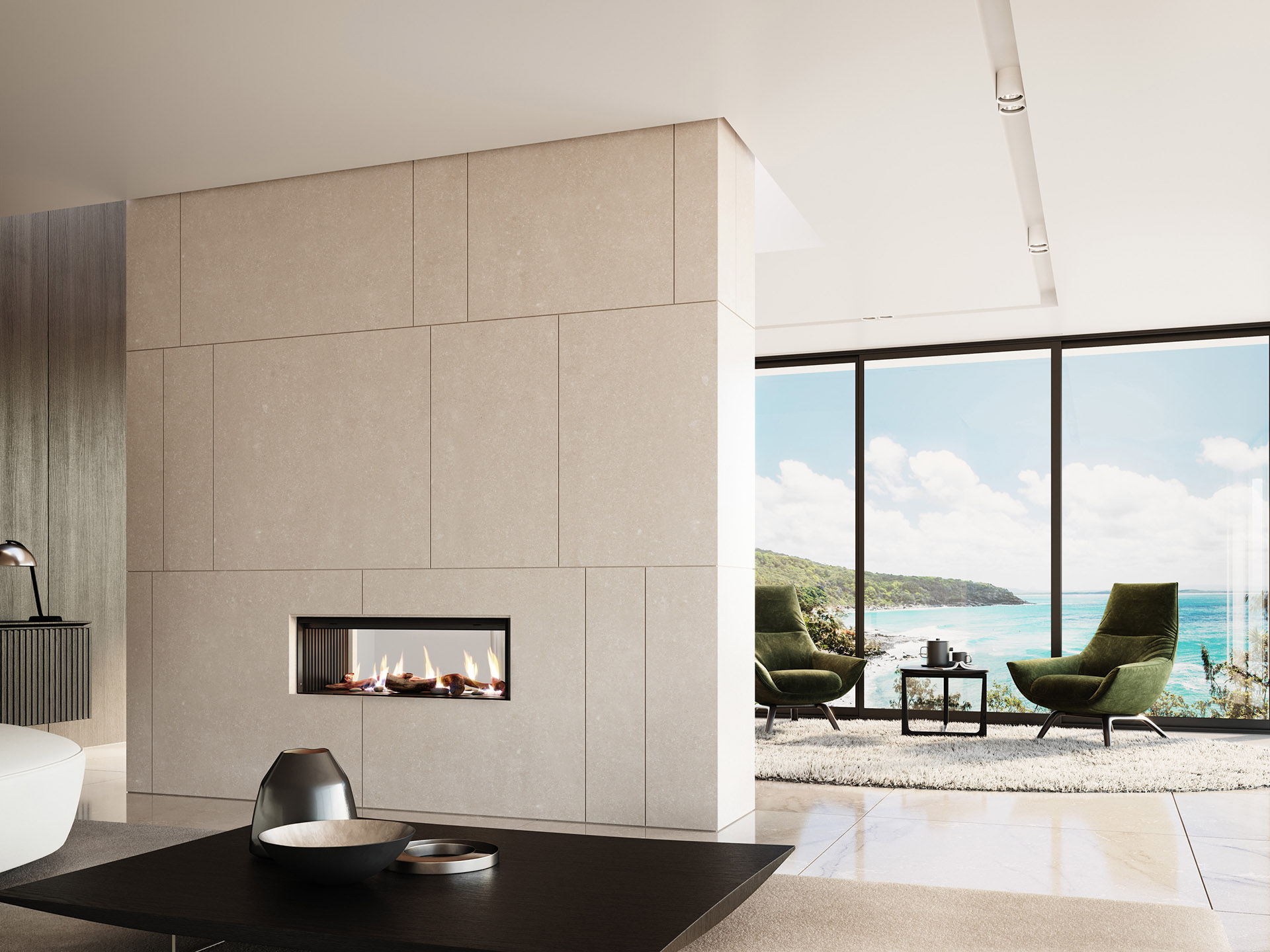

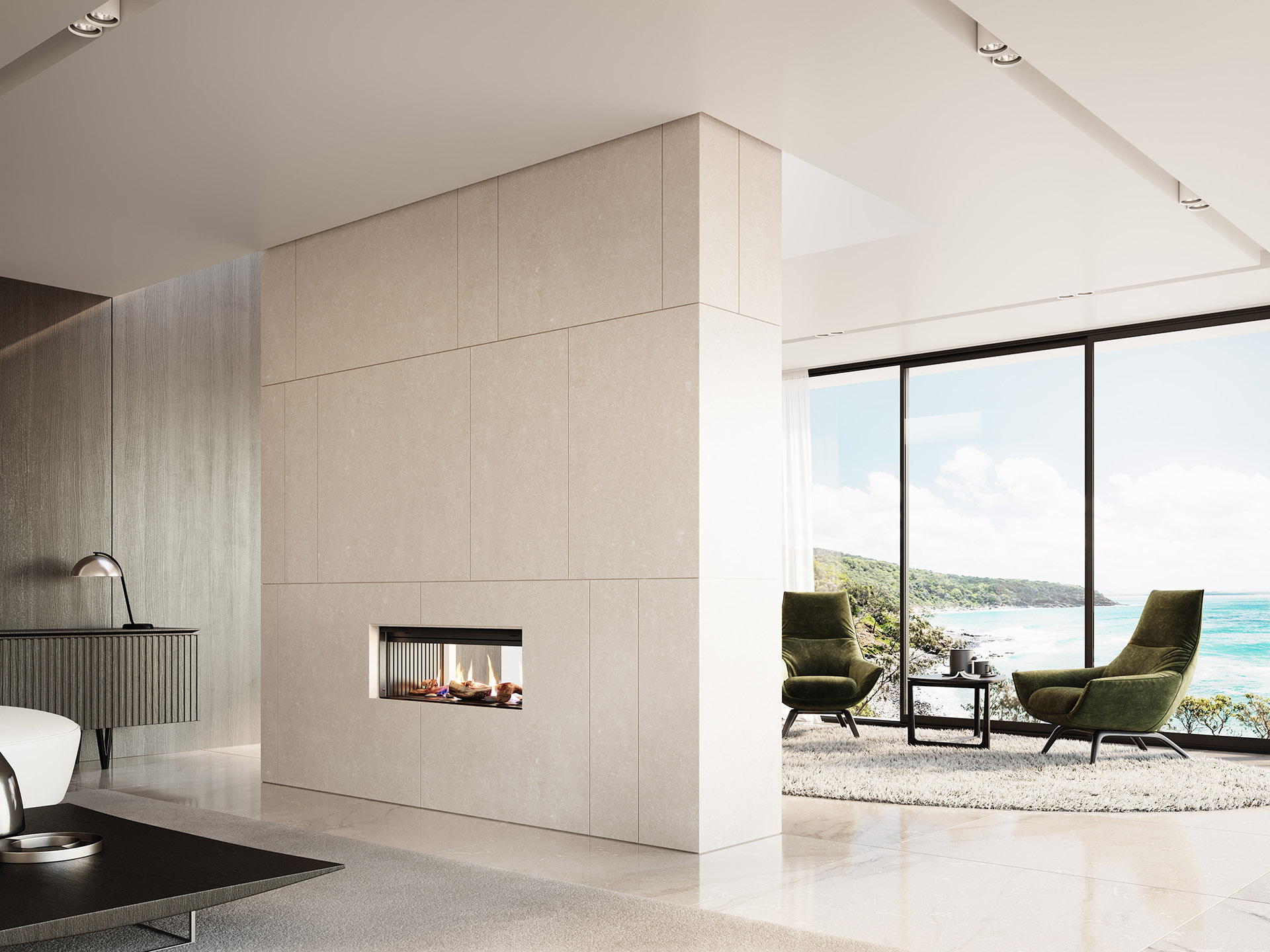

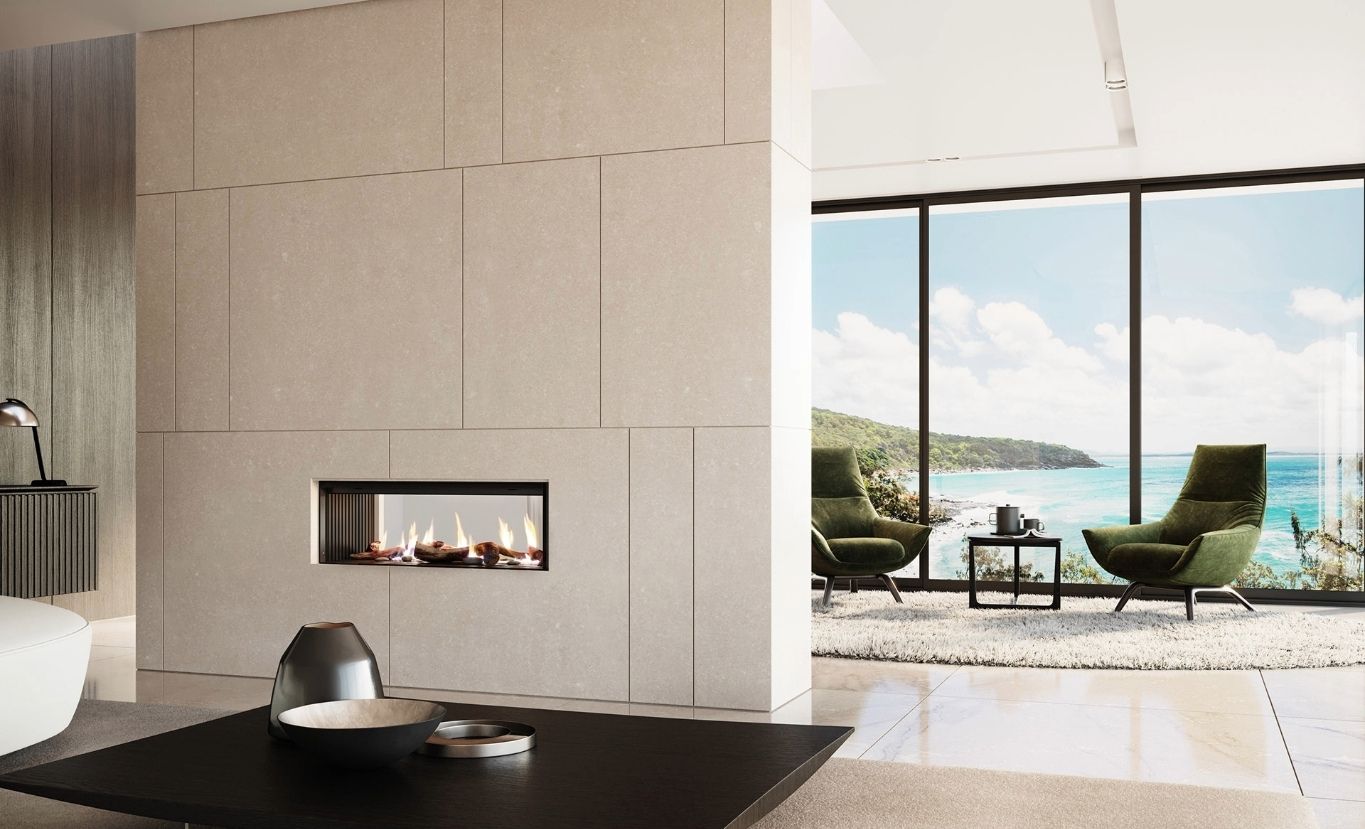

Rinnai LS 1000 Gas Fire (lifestyle - double sided living room)
Rinnai LS 1000 Gas Fire (lifestyle - single sided lady living room)

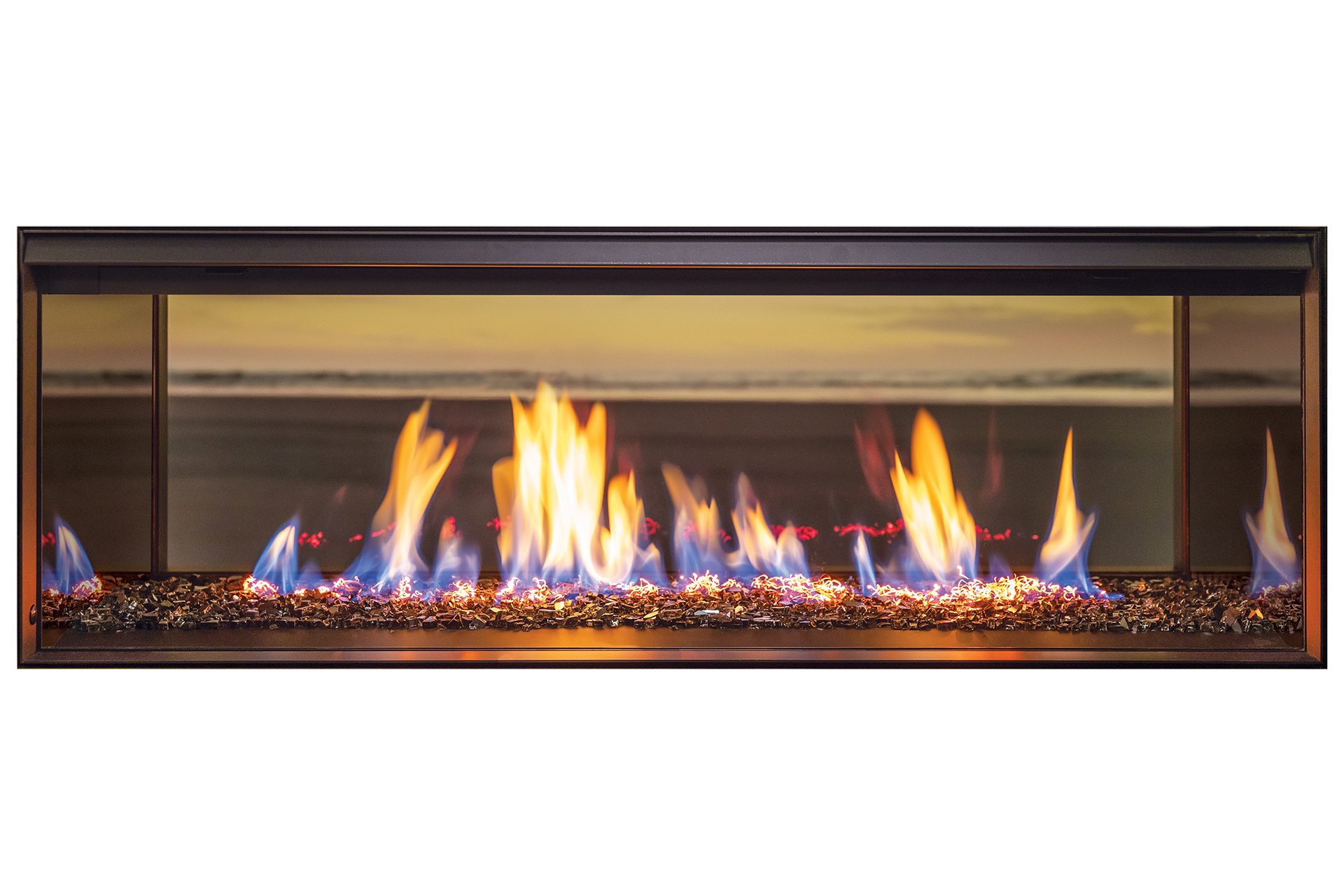

Rinnai LS 1000 Gas Fire FlameTech Log (double sided - pebbles high embers)

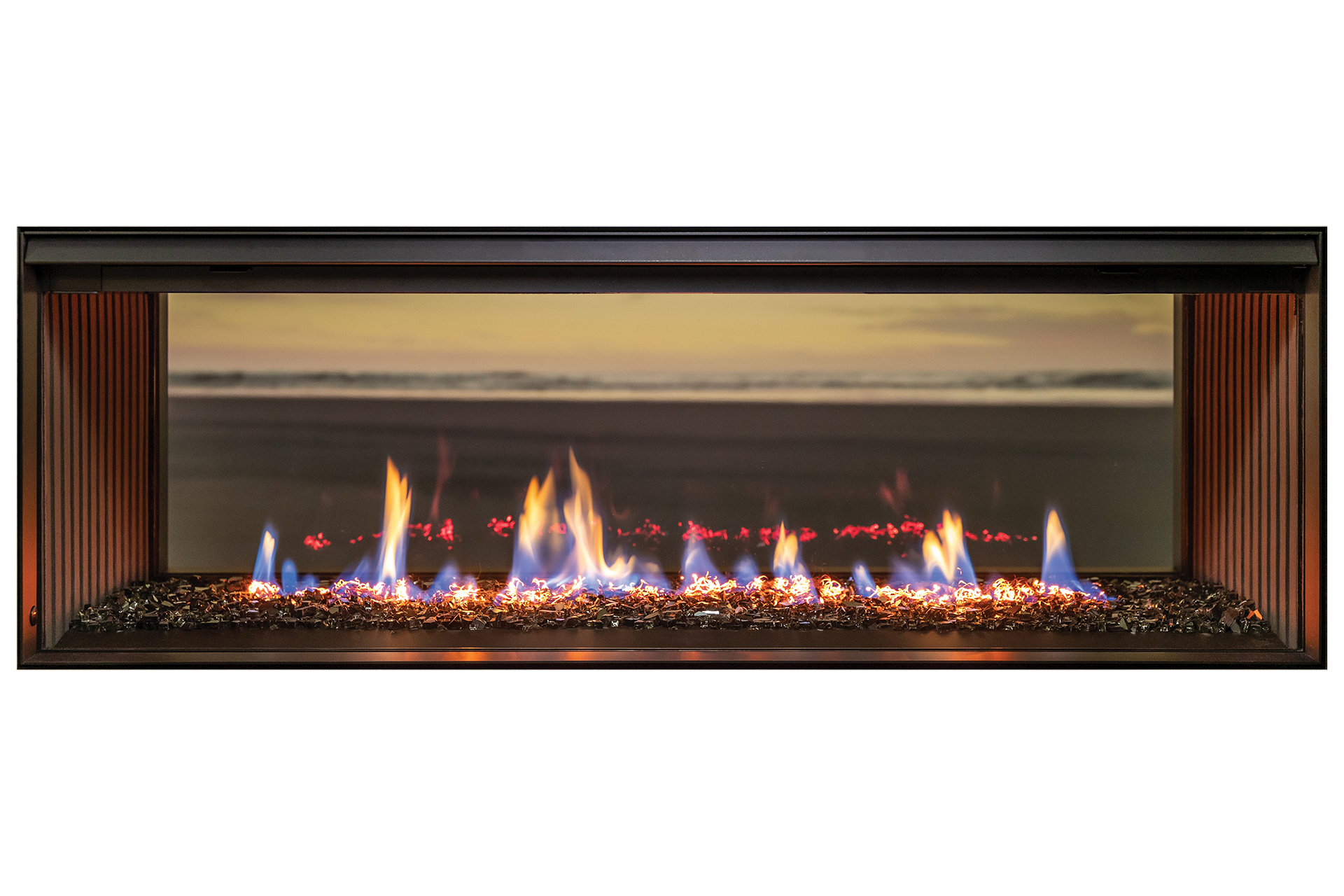

Rinnai LS 1000 Gas Fire FlameTech Log (double sided - pebbles low embers)

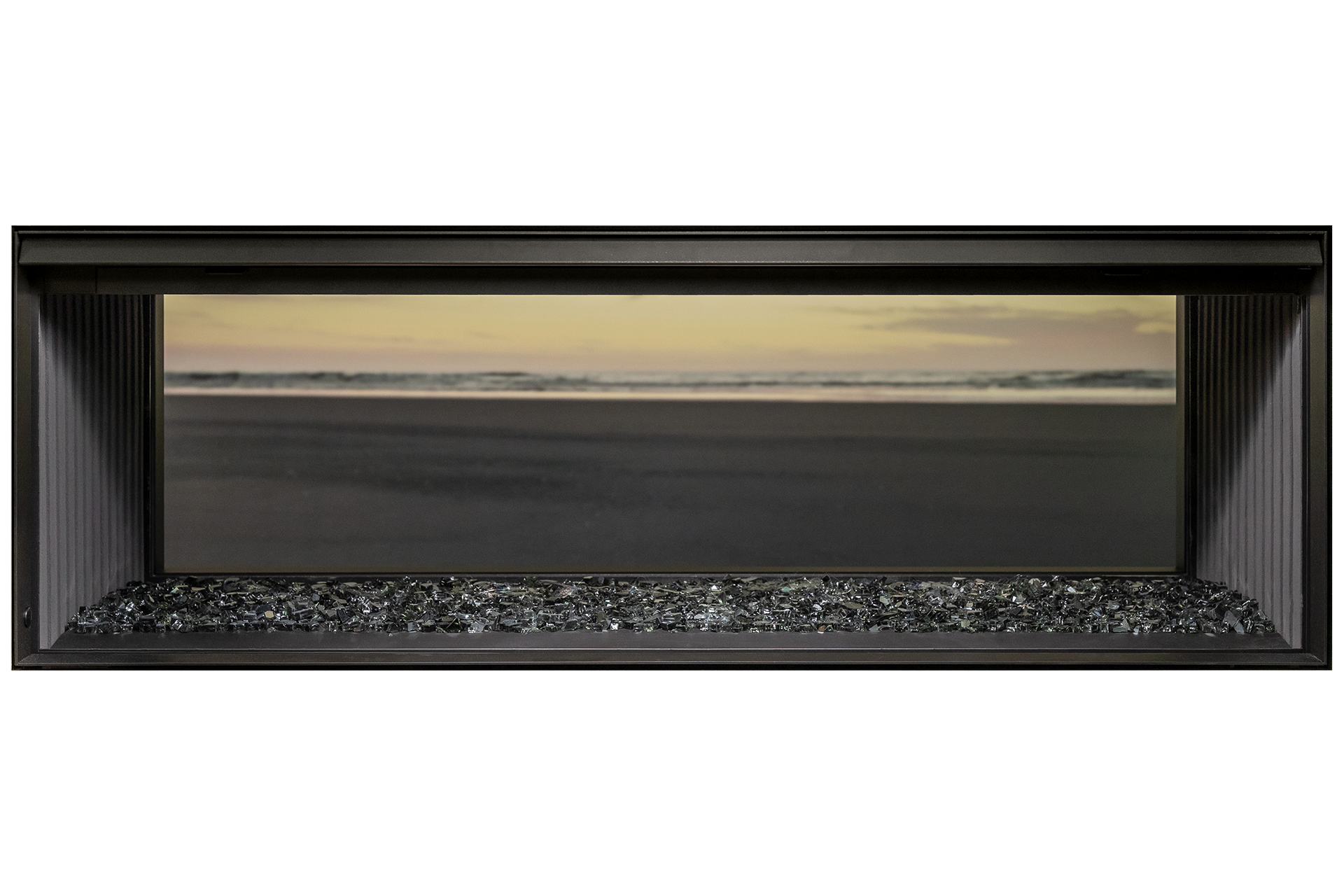

Rinnai LS 1000 Gas Fire FlameTech Log (double sided - pebbles no embers)

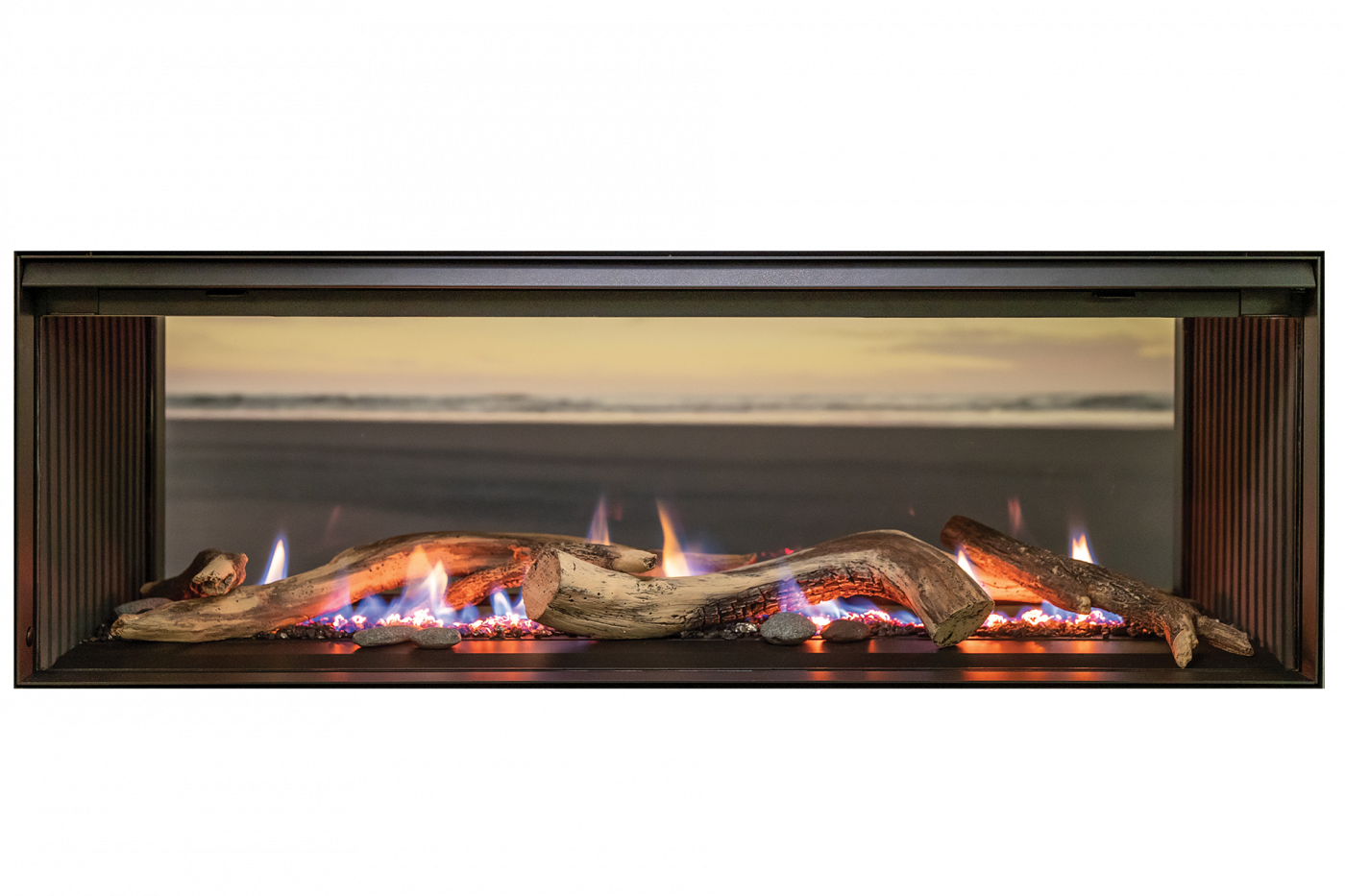

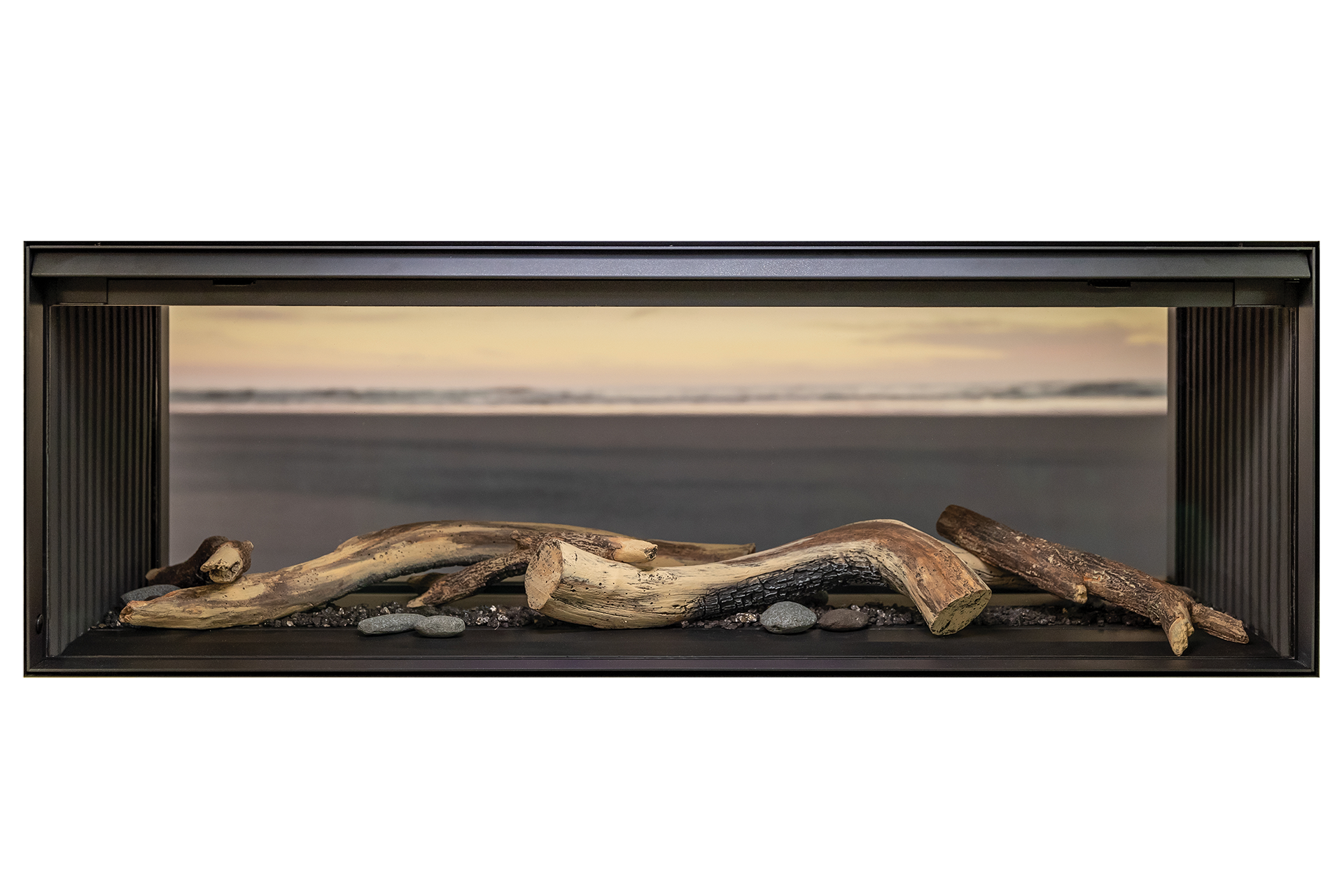

Rinnai LS 1000 Gas Fire FlameTech Log (double sided - logs no embers)

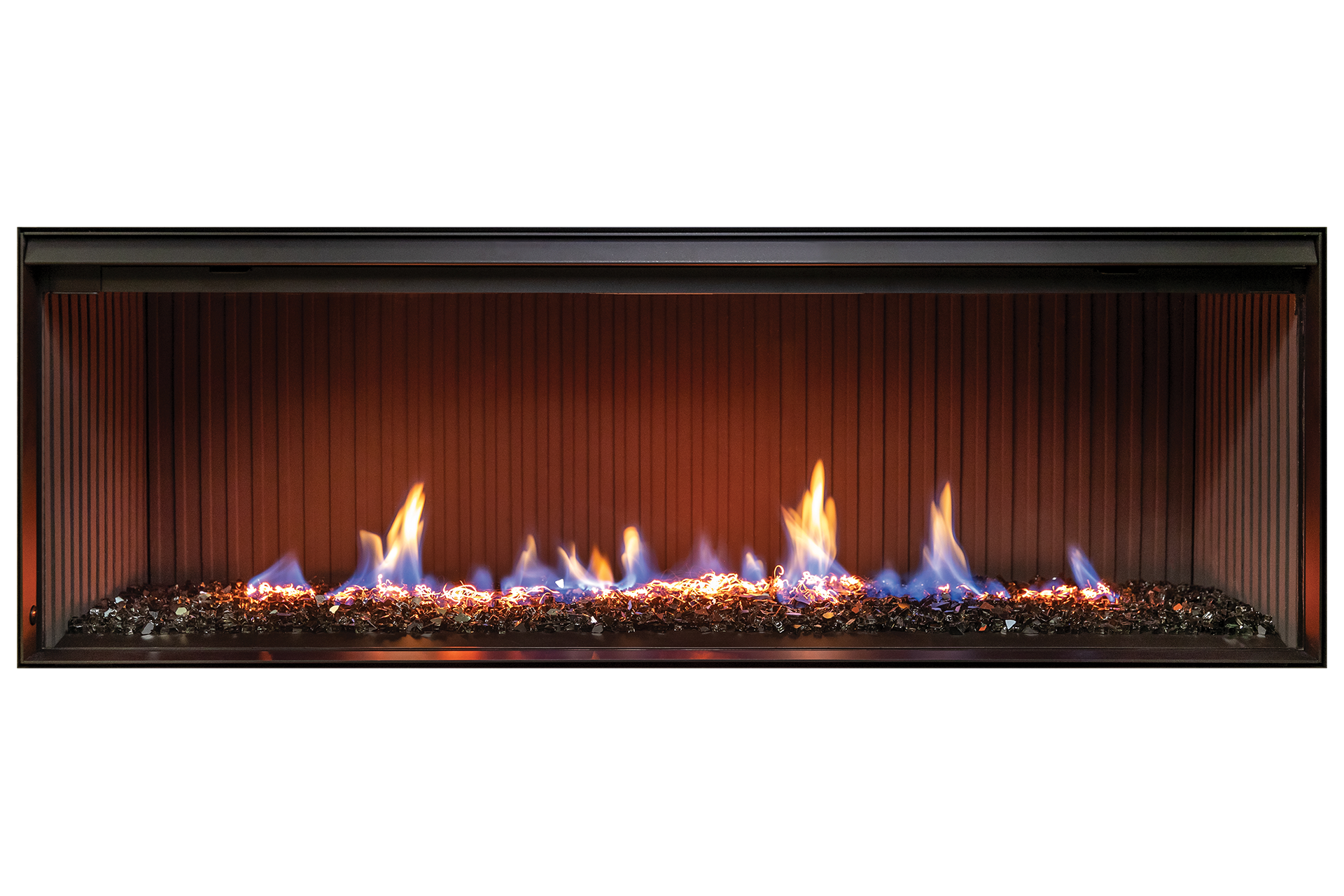

Rinnai LS 1000 Gas Fire FlameTech Log (single sided - pebbles high embers)
Rinnai LS 1000 Gas Fire FlameTech Log (single sided - logs low embers)

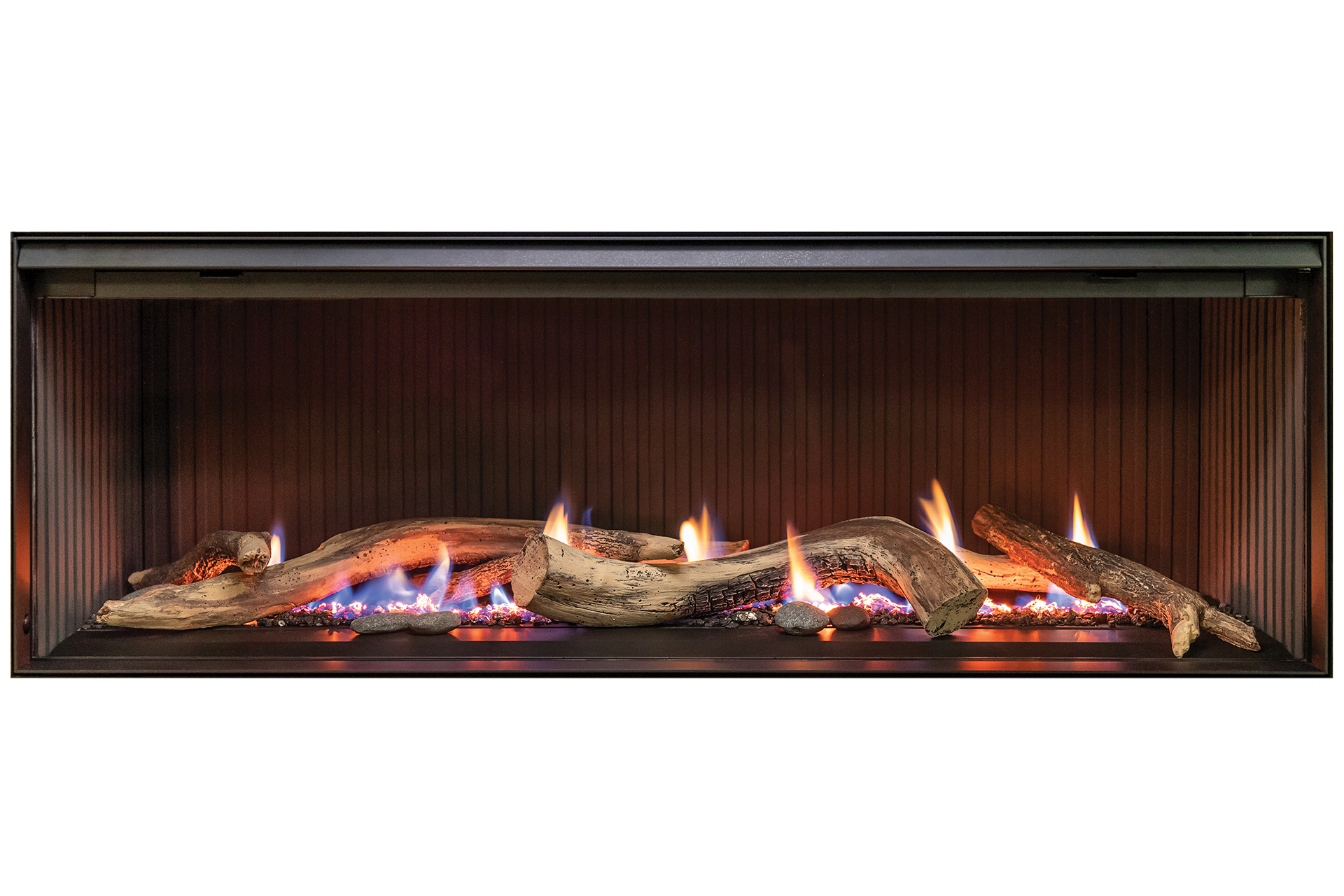

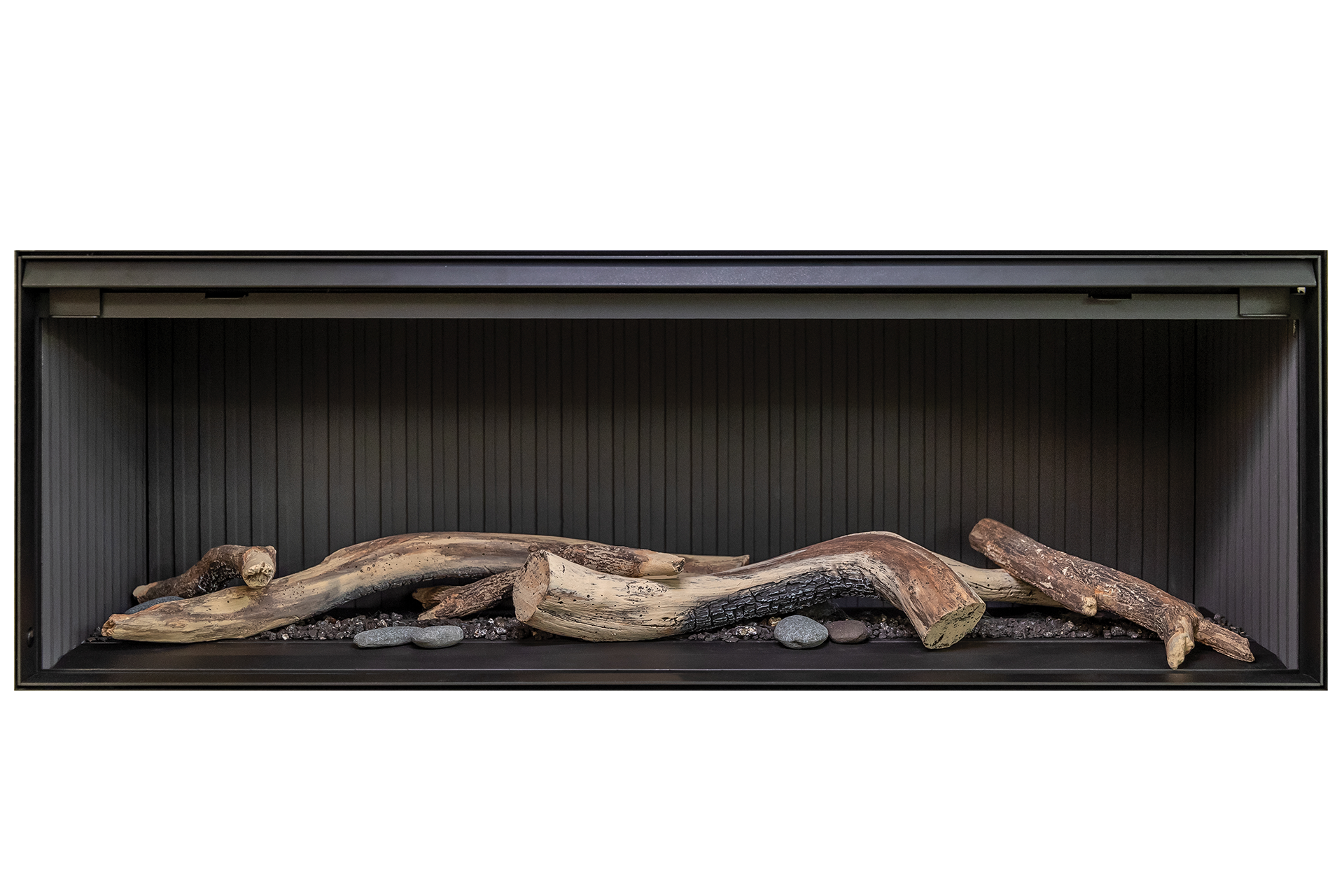

Rinnai LS 1000 Gas Fire FlameTech Log (single sided - logs no embers)
Rinnai LS Gas Fireplace Remote Controller
Rating 5

LS 1000 Gas Fireplace

Make every room a feature room with the LS 1000 Fireplace

Rinnai - 10 year heat exchanger warrantyThe hardest decision you’ll have to make with this gas fire is deciding which room you’ll enjoy it from most. Available in a single or a double-sided option, the LS 1000 Gas Fireplace offers twice the ambience and cosy warmth via its highly realistic-looking flame height. Its generous one metre width also gives it plenty of presence, as well as plenty of heat to warm your home.

WiFi logoWith a host of extra features including Wi-Fi control as standard, you’ll experience peace of mind and comfort during those chilly months. Settle in beside a flickering flame this winter with the LS 1000 Gas Fire.

Dimensions:

H: 745, W: 1435, D: 435
Single sided $11,499#Double sided $12,749#
#RRP includes GST, Flametech, logset and remote controller. Excludes installation.
Enquire Now

Locate Your Nearest Stockist

NOTE: Rinnai does not sell directly to the public. Our products are available only through third-party stockists and installers.

Search

Specialist

Dealer

Retailer

Trade

Flame Fire Specialist

Climate Specialist

Dealer

Retailer

Trade

1435mm width

Highly realistic wood and stone media

High 5 star energy efficiency rating**

Single and double-sided fireplaces available

Frameless elegant design

10 year heat exchanger warranty*

Energy Efficient Design

  • High 5 Star Efficiency Rating**

Superior Technology

  • Heat Output up to 8.0 kW** – perfect for open plan living and large areas
  • Flametech™ Technology*** – Highly realistic wood and burn media
  • Non-Reflective Glass – eliminates reflections to give you the perfect view of your gas fire
  • Multi Installation Options – Choose from single or double sided designs
  • Safety Guard – safety mesh guard to give peace of mind
  • Wi-Fi Compatible Controls – allows for convenient control from anywhere with the Rinnai Fireplace App (App available from the Apple Store or Google Play)
  • Install in Almost any Space – with flexible power flueing appliances
  • Optional – peninsular kit available on double sided model

Rinnai Quality

  • 10 year heat exchanger warranty*
  • 2 year parts and labour warranty*

Download Rinnai Fireplace App

Download from Apple Store
Download from Google Play

*For full warranty terms and conditions refer to the related warranty booklet.
**Output (kW) and Star rating may vary depending on flue or gas type.
***Flametech™ technology – is where flames emanate from the logs just as they do in real life, producing a more realistic aesthetic. The new technology even extends to the embers, allowing them to glow more brightly and naturally. All in all, these Rinnai Gas Fires look and feel more like real fires than ever before.

Note: Mandatory dress guards are not shown for illustrative purposes.

The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.

Product codes: KLS1000S / KLS1000D

Rinnai – Gas Fireplace Unit LS 1000
Appliance Dimensions Height x Width x Depth mm 745 x 1435 x 435
Flue Diameter Outer / Inner 75 / 50
Glass Dimensions Height x Width 280 x 1000
Colours Black
Gas Input Low / High MJ / h 14 / 35
Output kW 8.0*
Heats up to Capacity Very Cold m2 68
Cold 80
Cool 108
Mild 124
Efficiency Star Rating 5.0*
Gas Type NG / LPG

*Output (kW) and Star rating may vary depending on flue or gas type.

Download all
- Consumer Consumer
  • LS Gas Fireplace Series Brochure
  • LS Gas Fireplace Series Operation Manual
  • LS Gas Fireplace Series Error Codes
  • Gas Fireplace Series Wireless Smart Kit Operating Manual
  • LS Gas Fireplace Series Specification Guide
  • Gas Fireplace / Heating Warranty Booklet
  • Gas Fireplace Series Ordering Guide
Download all
+ Trade Installation Guides + Diagrams
+ Guides/Manuals
  • LS Gas Fireplace Series Installation Manual
  • LS Gas Fireplace Series Flue Installation Manual
  • LS Gas Fireplace Series Wall Linings Installation Manual
  • LS Gas Fireplace Series Peninsular Kit Installation Manual
+ CAD diagrams
  • Diagram Double Sided – LS 1000 Gas Fireplace (DWG)
  • Diagram Double Sided – LS 1000 Gas Fireplace Plan View (DWG)
  • Diagram Double Sided – LS 1000 Gas Fireplace Platform (DWG)
  • Diagram Double Sided – LS 1000 Gas Fireplace Platform Detail (DWG)
  • Diagram Double Sided – LS 1000 Gas Fireplace Sections (DWG)
  • Diagram Double Sided – LS 1000 Gas Fireplace Elevations (DWG)
  • Diagram Double Sided – LS 1000 Gas Fireplace Isometric (DWG)
  • Diagram Double Sided – LS 1000 Gas Fireplace Isometric Views (DWG)
  • Diagram Single Sided – LS 1000 Gas Fireplace (DWG)
  • Diagram Single Sided – LS 1000 Gas Fireplace Detail (DWG)
  • Diagram Single Sided – LS 1000 Gas Fireplace Platform (DWG)
  • Diagram Single Sided – LS 1000 Gas Fireplace Plan View (DWG)
  • Diagram Single Sided – LS 1000 Gas Fireplace Sections (DWG)
  • Diagram Single Sided – LS 1000 Gas Fireplace Section Along (DWG)
  • Diagram Single Sided – LS 1000 Gas Fireplace Elevations (DWG)
  • Diagram Single Sided – LS 1000 Gas Fireplace Isometric (DWG)
  • Diagram Single Sided – LS 1000 Gas Fireplace Isometric Structures (DWG)
  • Diagram Single Sided – LS 1000 Gas Fireplace Isometric Walls (DWG)
+ RFA diagrams
  • Diagram Single Sided – LS 1000 Gas Fireplace (RFA)
  • Diagram Single Sided – LS 1000 Gas Fireplace Platform (RFA)
  • Diagram Double Sided – LS 1000 Gas Fireplace (RFA)
  • Diagram Double Sided – LS 1000 Gas Fireplace Platform (RFA)
+ PDF diagrams
  • Diagram Double Sided – LS 1000 Gas Fireplace Plan View (PDF)
  • Diagram Double Sided – LS 1000 Gas Fireplace Platform Detail (PDF)
  • Diagram Double Sided – LS 1000 Gas Fireplace Sections (PDF)
  • Diagram Double Sided – LS 1000 Gas Fireplace Elevations (PDF)
  • Diagram Double Sided – LS 1000 Gas Fireplace Isometric (PDF)
  • Diagram Double Sided – LS 1000 Gas Fireplace Isometric Views (PDF)
  • Diagram Single Sided – LS 1000 Gas Fireplace Plan View (PDF)
  • Diagram Single Sided – LS 1000 Gas Fireplace Platform Detail (PDF)
  • Diagram Single Sided – LS 1000 Gas Fireplace Sections (PDF)
  • Diagram Single Sided – LS 1000 Gas Fireplace Section Along (PDF)
  • Diagram Single Sided – LS 1000 Gas Fireplace Elevations (PDF)
  • Diagram Single Sided – LS 1000 Gas Fireplace Isometric (PDF)
  • Diagram Single Sided – LS 1000 Gas Fireplace Isometric Structure (PDF)
  • Diagram Single Sided – LS 1000 Gas Fireplace Isometric Walls (PDF)
