ES 2200 Electric Fire
ES 2200 Electric Fire

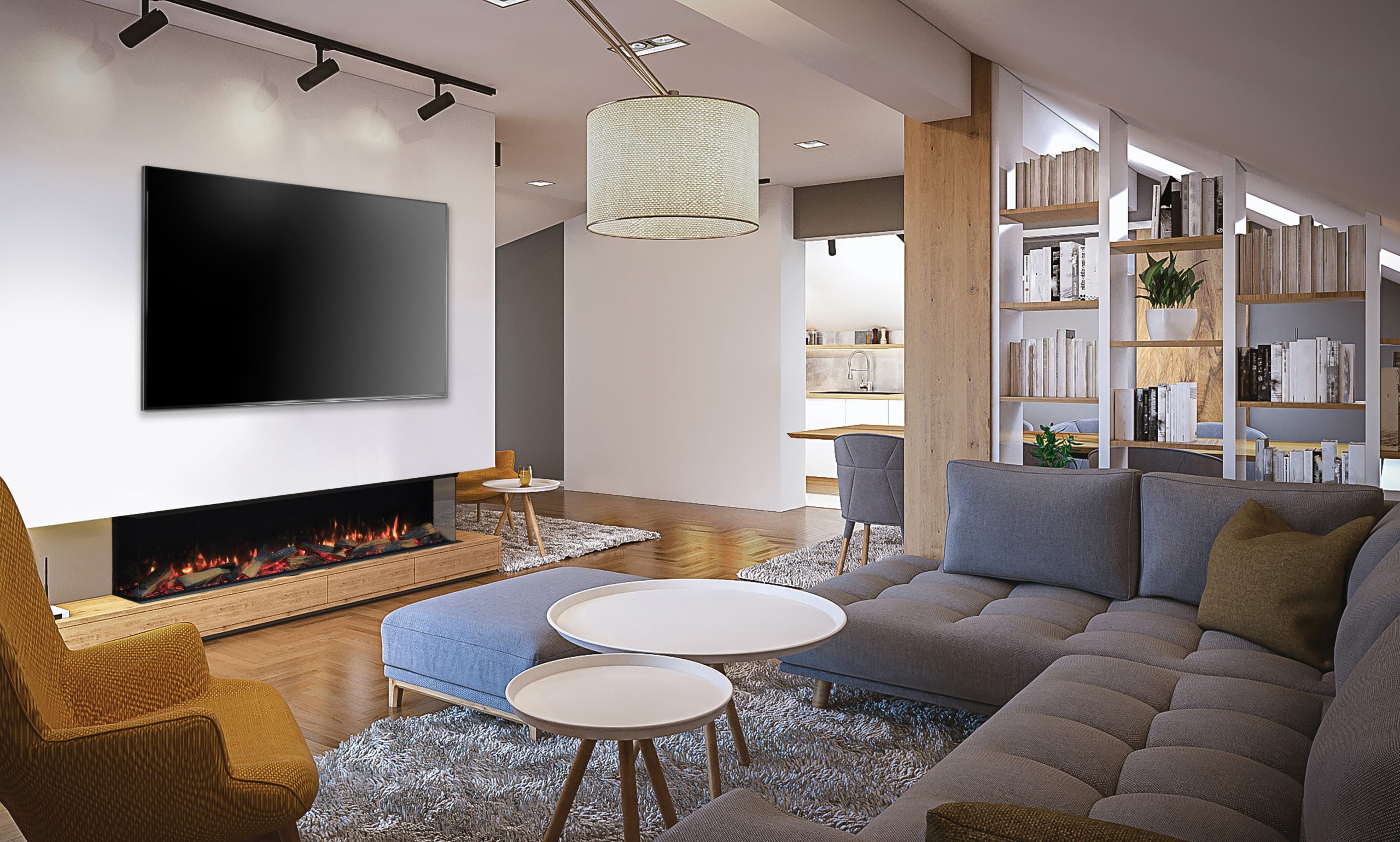

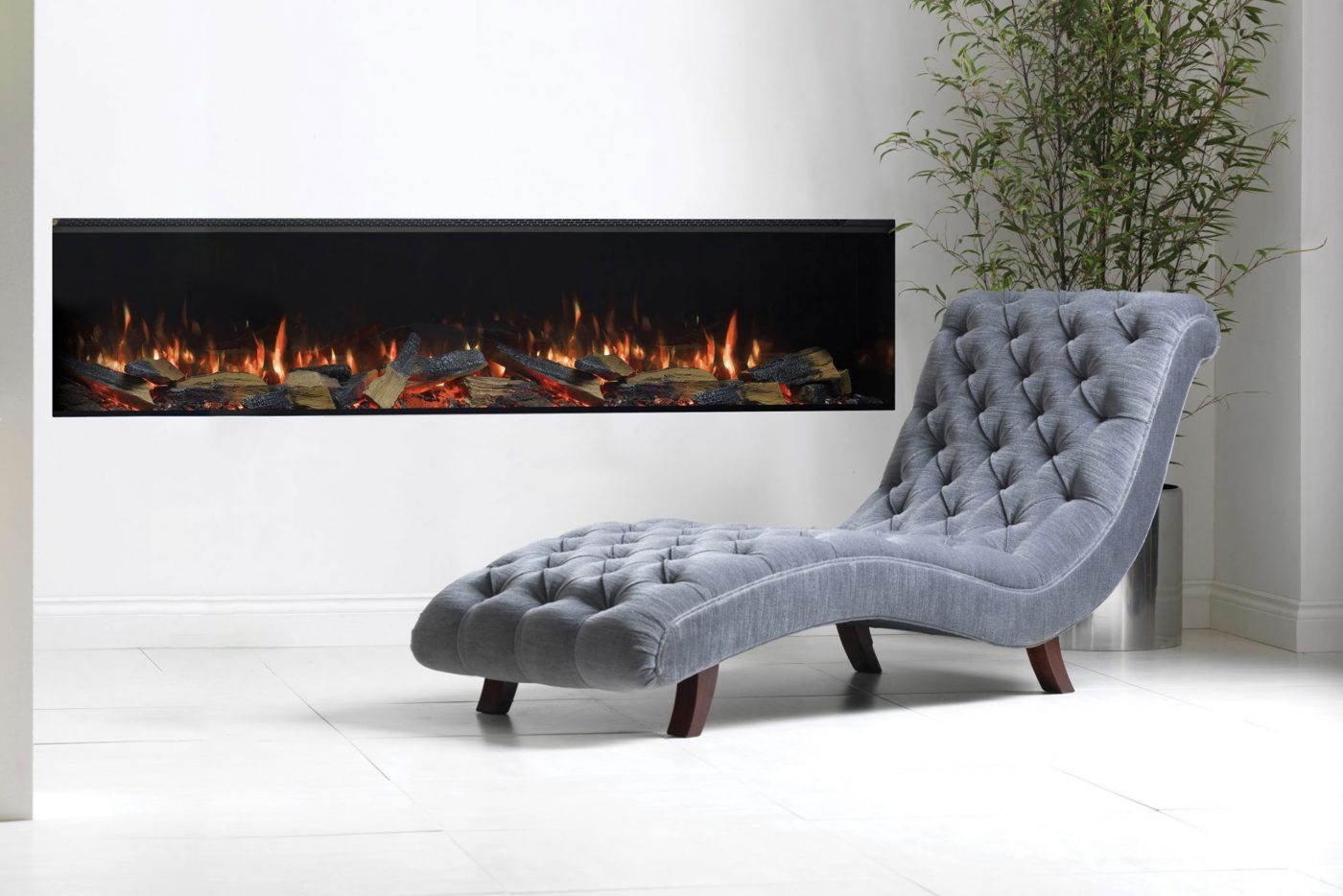

With the ES 2200 you have the largest fire in our range at a stunning 2.2 metres in length. As impressive as it is, you are still in control of every aspect of the fire, from the speed, colour and brightness of the entrancing flames, to the enchanting crackling sounds of burning logs.
Locate Your Nearest Store
Smart Technology – synchronise with your smart device
Unique TriLight technology
Instant heat and hyper realistic flame pattern
Built in Wi-Fi connectivity
- 548 x 2230 x 296mm (Dimensions H x W x D)
- Wall mountable (Supplied with brackets)
- 6 pre-set Trilight themes (Autumn Campfire, Emberglow, Inferno, Noir, Fire & Ice, Nebular)
- Multi-option RGB flame and fuel bed colours with user preset options
- Optimised heater position & minimal visible vents
- 7 day programmable timer with adaptive smart heating
- Open door/window detection
- 3 independently controlled lighting effects Flames – colour & brightness, Under fuel bed – colour & brightness, Above fuel bed – colour and brightness
- Heat output – 2.0kW (3 Heating modes with cool blow function)
- Convenient multiple control options (Manual, Remote control or App)
- Ultra-realistic glowing fuel bed with burning embers with customisable log layout
- Easy to install
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
| Model | Unit | ES2200 | |||||
| Weight | kg | 87 | |||||
| Dimensions H x W x D | mm | 548 x 2230 x 296 | |||||
| Supply Voltage | VAC / Hz | 230-240 / 50 | |||||
| Three pin plug type | Amp | 10 | |||||
| Length of power lead | mm | 1600 | |||||
| Max. Power Consumption | W | 2000 | |||||
| Power for Flame Effect | W | 72 | |||||
| HEAT OUTPUT | SYMBOL | VALUE | UNIT | ||||
| Nominal Heat Output | Pnom | 1.8 | kW | ||||
| Minimum Heat Output | Pmin | 0.9 | kW | ||||
| Maximum Continuous Heat Output | Pmax | 1.9 | kW | ||||
| AUXILIARY ELECTRICITY CONSUMPTION | |||||||
| At Nominal Heat Output | elmax | 12.5 | W | ||||
| At Minimum Heat Output | elmax | 12 | W | ||||
| In Standby Mode | elmax | 1.1 | W | ||||
| TYPE OF HEAT OUTPUT / ROOM TEMPERATURE CONTROL | YES/NO | ||||||
| With electronic room temperature control | YES | ||||||
| Electronic room temperature control plus day timer | YES | ||||||
| Electronic room temperature control plus week timer | YES | ||||||
| OTHER CONTROL OPTIONS | YES/NO | ||||||
| Room temperature control, with open window detection | YES | ||||||
| With distance control option | YES | ||||||
| With adaptive start control | YES | ||||||
Warranty
| Product Groups | Parts | Labour | ||||||||
| Residential and Light Commercial | Electric Fire Heater | 5 Years | 5 Years | |||||||
