Rinnai ES 1300 Electric Fireplace
Rinnai ES 1300 Electric Fireplace
Bringing your home to life
At 1.3 metres in length, the Rinnai ES 1300 Electric Fireplace is ideal for a range of interiors with its minimalist design themes.
Add a sense of wonder to your home and bring it to life with the touch of a button.
Locate Your Nearest Store
1330mm width
Instant heat and hyper realistic flame pattern
Unique TriLight technology
Built in Wi-Fi connectivity
Smart Technology – synchronise with your smart device
5 year warranty
Super Technology
- Heat output – 1.8kW (3 Heating modes with cool blow function)
- Optimised heater position and minimal visible vents
- 7 day programmable timer with adaptive smart heating
- Wall mountable (Supplied with brackets)
- Convenient multiple control options – Manual, Remote control or App
- Easy to install
- Open door/window detection
Themes and Effects
- Ultra-realistic glowing fuel bed with burning embers with customisable log layout
- Multi-option RGB flame and fuel bed colours with user preset options
- 3 independently controlled lighting effects:
– Flames: colour and brightness
– Under fuel bed: colour and brightness
– Above fuel bed: colour and brightness
- 6 pre-set TriLight themes: Autumn Campfire | Emberglow | Inferno | Noir | Fire and Ice | Nebular
Rinnai quality
- 5 year warranty on parts
- 5 year warranty on labour
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
| Rinnai – System Model | Values | ES1300 | |
| Weight | kg | 54.3 | |
| Dimensions | Height | mm | 548 |
| Width | 1330 | ||
| Depth | 296 | ||
| Supply Voltage | VAC / Hz | 230 – 240 / 50 | |
| Three pin plug type | Amp | 10 | |
| Length of power lead | mm | 1600 | |
| Maximum Power Consumption | W | 2000 | |
| Power for Flame Effect | 50 | ||
| Heat Output | |||
| Nominal Heat Output | Pnom | kW | 1.8 |
| Minimum Heat Output | Pmin | 9 | |
| Maximum Continuous Heat Output | Pmax | 1.9 | |
| Auxiliary Electricity Consumption | |||
| At Nominal Heat Output | elmax | W | 12.5 |
| At Minimum Heat Output | 12 | ||
| In Standby Mode | 1.1 | ||
| Type of Heat Output / Room Temperature Control | Yes / No | ||
| With electronic room temperature control | Yes | ||
| Electronic room temperature control plus day timer | |||
| Electronic room temperature control plus week timer | |||
| Other Control Options | |||
| Room temperature control, with open window detection | Yes | ||
| With distance control option | |||
| With adaptive start control | |||
Photography
-

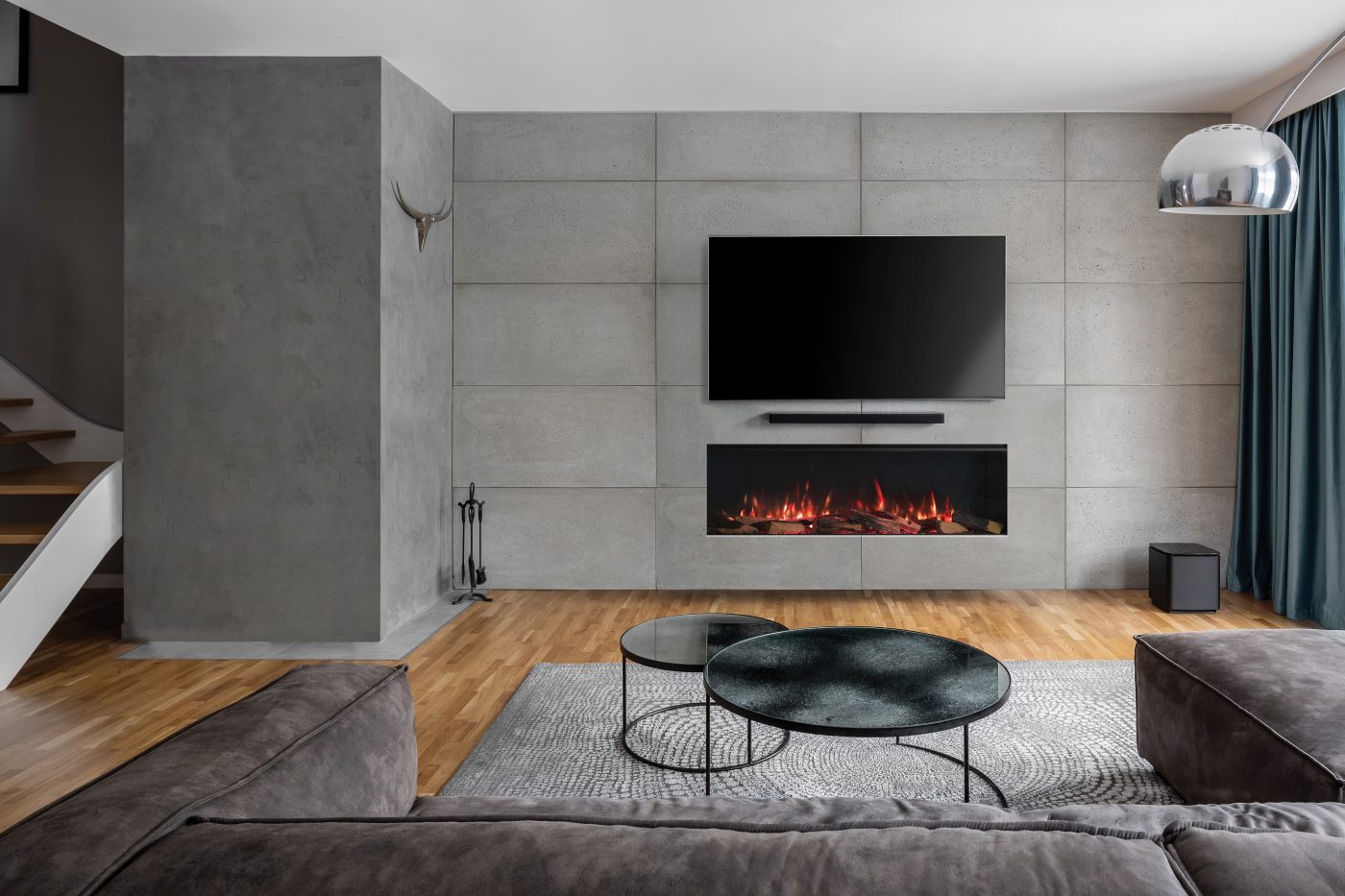

Rinnai ES 1300 Electric Fireplace (inset)Preview
-
Rinnai ES 1300 Electric Fireplace (green 3 sides)Preview
-
Rinnai ES 1300 Electric Fireplace (brown 3 sides)Preview
-
Rinnai ES Electric Fireplace TriLight Log (purple)Preview
-
Rinnai ES Electric Fireplace Mobile AppPreview
-

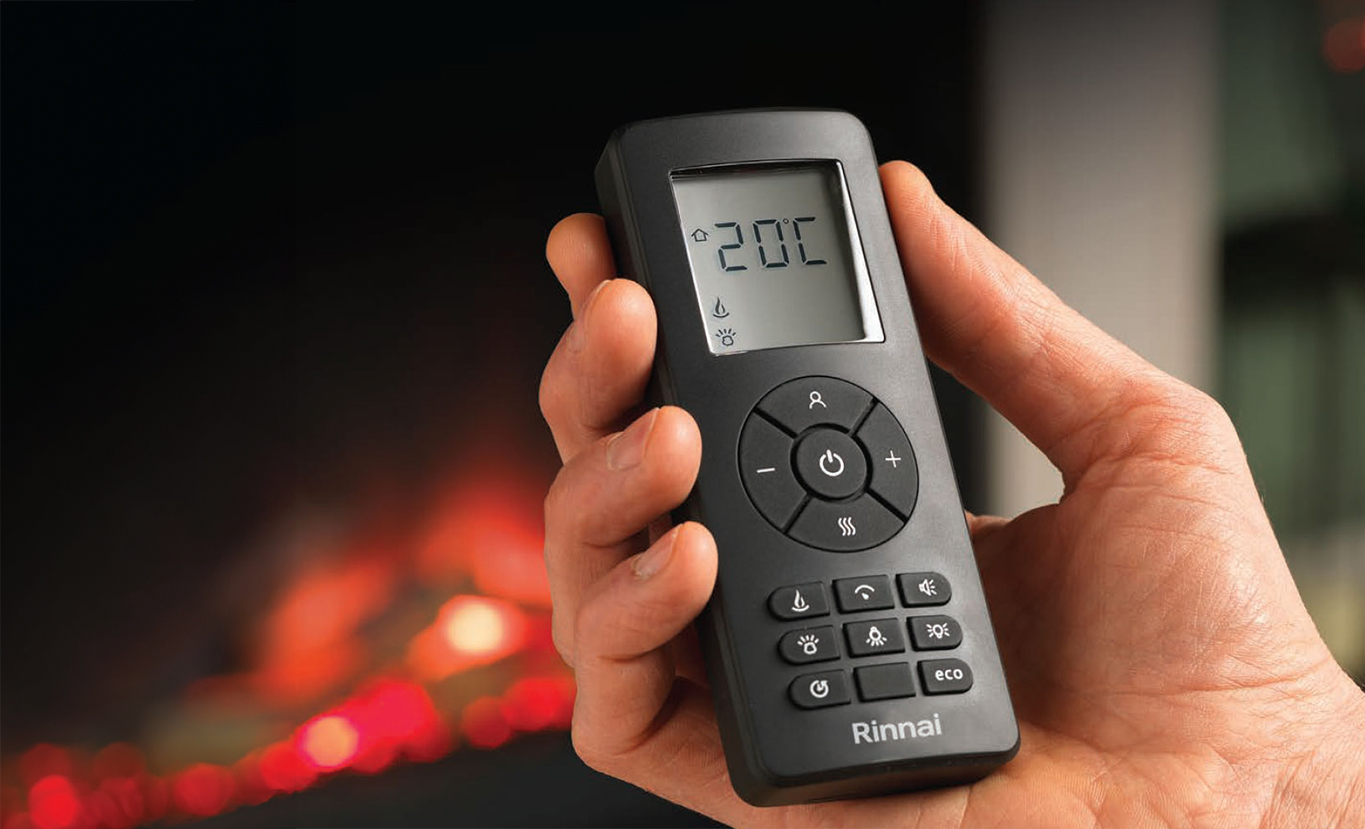

Rinnai ES Electric Fireplace ControllerPreview
PDF
-
ES Series Electric Fireplace Brochure Preview
-
ES Series Electric Fireplace Operation and Installation Manual Preview
-
ES Series Electric Fireplace Wireless Smart Kit Operating Manual Preview
CAD
-
Plans - ES 1300 Electric Fireplace (CAD)
