3.5kW Reverse Cycle Split System
3.5kW Reverse Cycle Split System
Streamlined Home Heating And Cooling From The One Unit

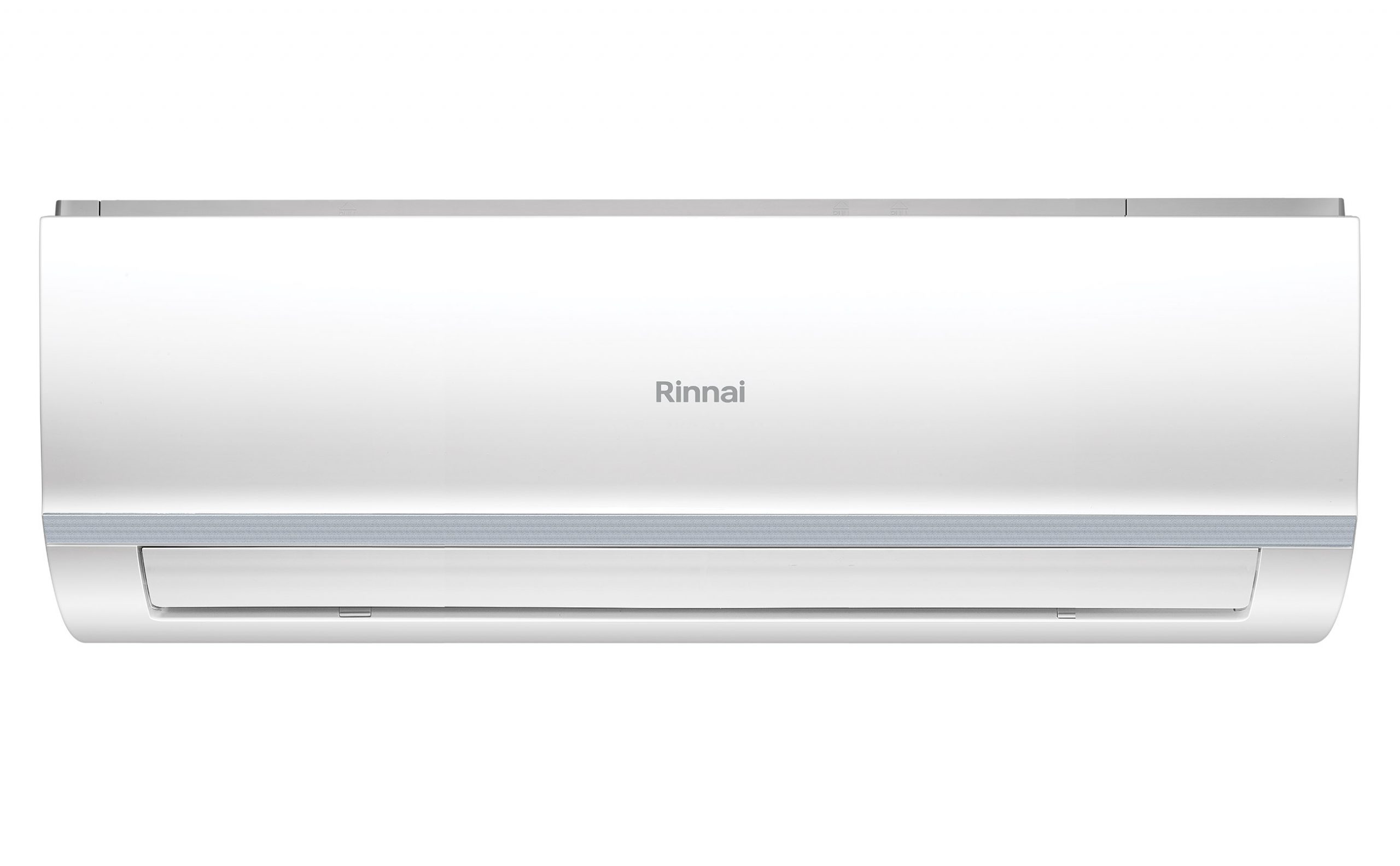

Ideal for large bedrooms, offices and medium-size living areas, the Rinnai D Series 3.5kW Reverse Cycle Air Conditioner provides you with economic climate control.
Rigorously tested for Australia’s harsh climates, the intelligent inverter split system maintains room humidity levels using its dehumidifying mode so you can relax all year round.
The easily accessible slide-out chassis design allows for simple maintenance, saving both time and money.
Equipped with a host of features including convenient Wi-Fi control and sleep mode, the Rinnai D Series 3.5kW Reverse Cycle Split System is an ultra-practical climate solution for smaller areas of the home.
Dimensions:
Locate Your Nearest Store
Ideal size for large bedrooms, study or home office
Wi-Fi Control
DRED Function
Quiet operation
- Wi-Fi Control – you can control your Rinnai using a mobile device from anywhere in the world
- Convenient and simple to use LCD wireless remote control
- Inverter technology to maintain consistent temperature and reduce running costs
- Quiet operation, ideal for bedrooms and living spaces
- 3D airflow with horizontal and vertical swing
- Heating & cooling functionality
- Turbo function to quickly cool in summer or swiftly warm in winter
- Dehumidifying mode
- Delay timer functionality to turn the appliance on or off within a specific time period
| Rinnai – System Model | HSNRA35 | ||
| Nominal Capacity | kW | 3.5 | |
| Power Supply (To Outdoor Unit) | V – Ph – Hz | 220~240 – 1 – 50 | |
| Maximum Input Current | A | 6.5 | |
| Maximum Input Power | W | 1500 | |
| Connectivity | – | Wi-Fi Enabled | |
| Demand Response Enabling Device | – | DRED Enabled | |
| Cooling | Rated Capacity | kW | 3.50 |
| Capacity Range | 1.40 ~ 4.50 | ||
| Rated Input Power | W | 858 | |
| Rated Input Current | A | 3.94 | |
| AEER | W/W | 4.06 | |
| Star Rating | – | 3.5 | |
| Heating | Rated Capacity | kW | 3.68 |
| Capacity Range | 1.50 ~ 5.00 | ||
| Rated Input Power | W | 844 | |
| Rated Input Current | A | 3.74 | |
| ACOP | W/W | 4.34 | |
| Star Rating | – | 4.0 | |
| Moisture Removal | L/h | 1.2 | |
| Suitable Area (up to 2.6m insulated ceiling) | m2 | 18 ~ 31 | |
| Indoor Unit | HINRA35M | ||
| Air Flow (Turbo / Hi / Med / Lo / Silent) | L/s | 195 / 181 / 159 / 117 / 98 | |
| Sound Pressure @ 1.4m (Turbo / Hi / Med / Lo / Silent) | dB(A) | 45 /43 / 38 / 31 / 28 | |
| Dimensions | Dimension (W x D x H) | mm | 964 x 222 x 325 |
| Packing (W x D x H) | 1045 x 305 x 405 | ||
| Net / Gross Weight | kg | 10.3 / 14.0 | |
| Operating Range | Cooling | ℃ | 18 ~ 32 |
| Heating | 1 ~ 30 | ||
| Standard Controller | Model | Wireless Remote Control | |
| Outdoor Unit | HONRA35 | ||
| Sound Pressure Level @ 1m | 55 | ||
| Dimensions | Dimension (W x D x H) | mm | 800 x 333 x 554 |
| Packing (W x D x H) | 920 x 390 x 615 | ||
| Net / Gross Weight | kg | 32.1 / 35.0 | |
| Refrigerant | Type | R410A | |
| Charged Volume | kg | 1.1 | |
| Design pressure | 4.2 / 1.5 | ||
| Refrigerant Piping | Pipe Size: Liquid / Gas | mm | Φ6.35 / Φ12.7 |
| Maximum Pipe Length | m | 25 | |
| Chargeless Length | 5 | ||
| Extra Charge for Lengths >5m | g/m | 15 | |
| Maximum Vertical Separation | m | 10 | |
| Ambient Temperature Limits | Cooling | ℃ | -15 ~ 30 |
| Heating | -15 ~ 30 | ||
