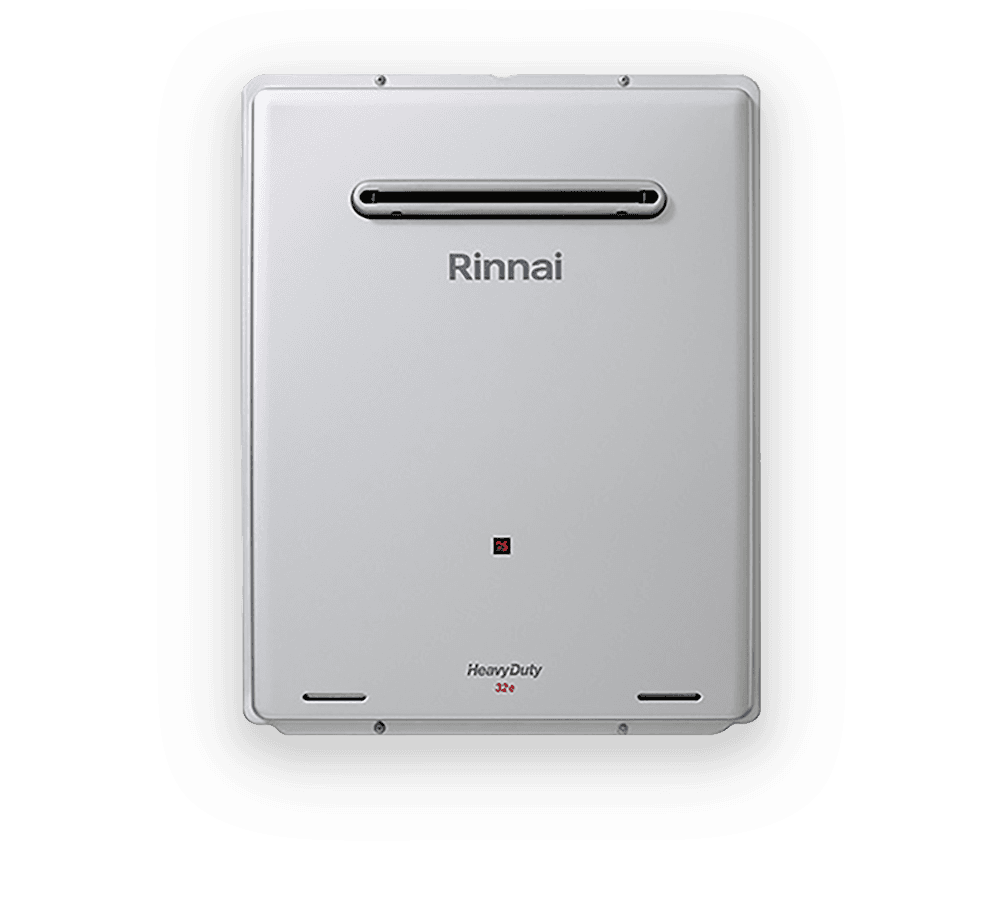

HD32e (External)
HD32e (External)
Constant temperature at all times
The largest non-condensing model in our commercial range, the highly efficient Rinnai HD32e Heavy Duty Continuous Flow Hot Water system only consumes gas when in operation.
With a fantastic 6.0 Star energy rating it delivers a constant outlet temperature at all times.
For external applications only.
Locate Your Nearest Stockist
NOTE: Rinnai does not sell directly to the public. Our products are available only through third-party stockists and installers.
Ideal for cafe’s, small retail and factories
6.0 star energy efficiency rating
High temperature safety cut-out
Anti-frost protection down to -20°C
Natural Gas or LPG models available
External model
Features
- 83% thermal efficiency
- Renowned Japanese quality and designed components manufactured in Rinnai’s own state of the art facility
- 59kW output capacity
- Heat exchange bypass technology to maintain perfect temperature while reducing pressure loss
- High quality components
- Cascade and MECS (Manifold Electronic Control System) compatible
- Built in status operation monitor displays set water temperature and system status
Ideal for
- Cafés
- Hair dressing salons
- Butchers
- Laundromats with domestic style top loader machines
- Childcare centres
- Small amenity blocks
- Factories
Commercial warranty
- 5 year heat exchange warranty
- 3 year parts and labour warranty
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
| Rinnai – HD32 external Heavy Duty Continuous Flow Hot Water | Values | |||
| Dimensions | Height | mm | 600 | |
| Width | 470 | |||
| Depth | 271 | |||
| Weight | kg | 23 | ||
| Colours | Silver | |||
| Factory Default Temperature | Celsius | 50 or 75 | ||
| Water Pressure | Minimum | kPa | 200 | |
| Water Pressure | Maximum | 1000 | ||
| Gas Rate | Minimum | NG / LPG | 20 | |
| Maximum | 250 | |||
| Flow Rate | 25 Degrees C / Max | L / min | 32 / 37 | |
| Star Rating | 6.0 | |||
| Connection Sizes | Gas / Hot / Cold | mm | 20 / 20 / 20 | |
| Status Monitor | Yes | |||
| Dimensions | Height Inc Brackets | mm | 640 | |
| Hot Water Outlet | From Wall | 115 | ||
| Left from Centre | 61 | |||
| Cold Water Inlet | From Wall | 125 | ||
| Right from Centre | 67 | |||
| Gas Connection | From Wall | 61 | ||
| Right from Centre | 120 | |||
Consumer
-
HD32e (External) Heavy Duty Continuous Flow Hot Water Specification Guide
-
Infinity Gas Continuous Flow Hot Water Operation and Installation Manual
-
Gas Continuous Flow Hot Water Error Codes
-
Commercial Hot Water Warranty Booklet
Trade
No trade files available
Photos
-

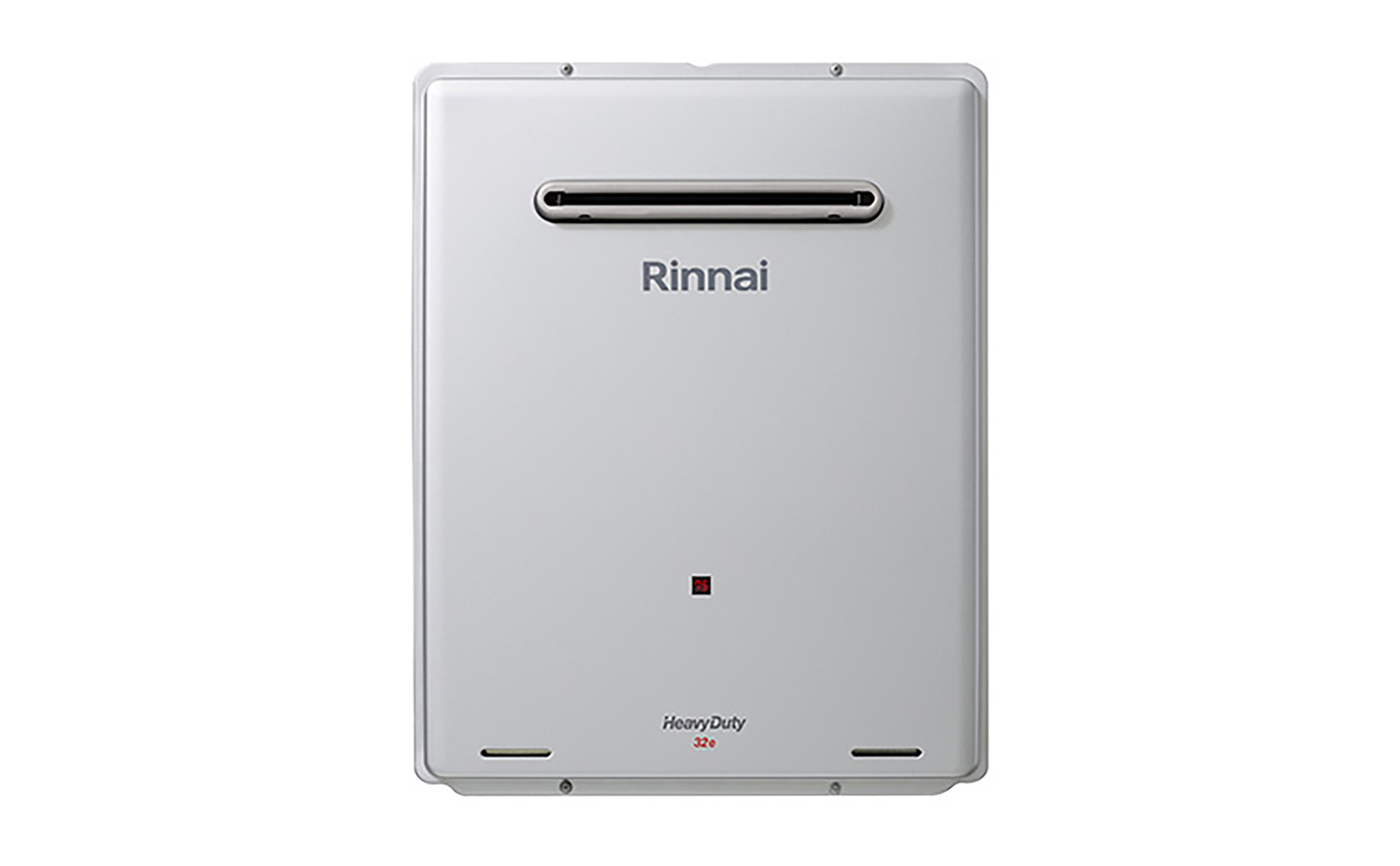

HD32e (External) Heavy Duty Continuous Flow Hot Water (front)

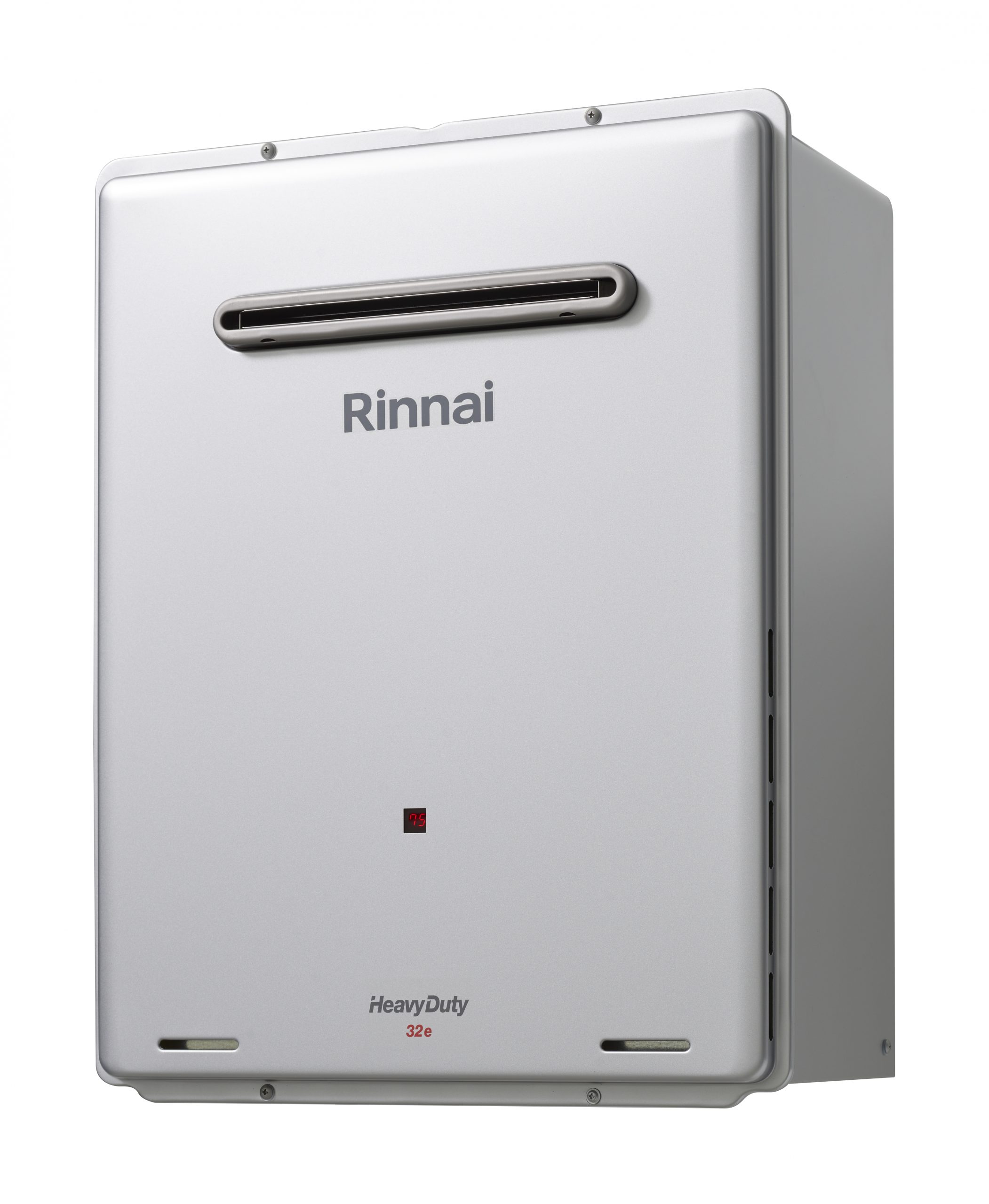

HD32e (External) Heavy Duty Continuous Flow Hot Water (right)

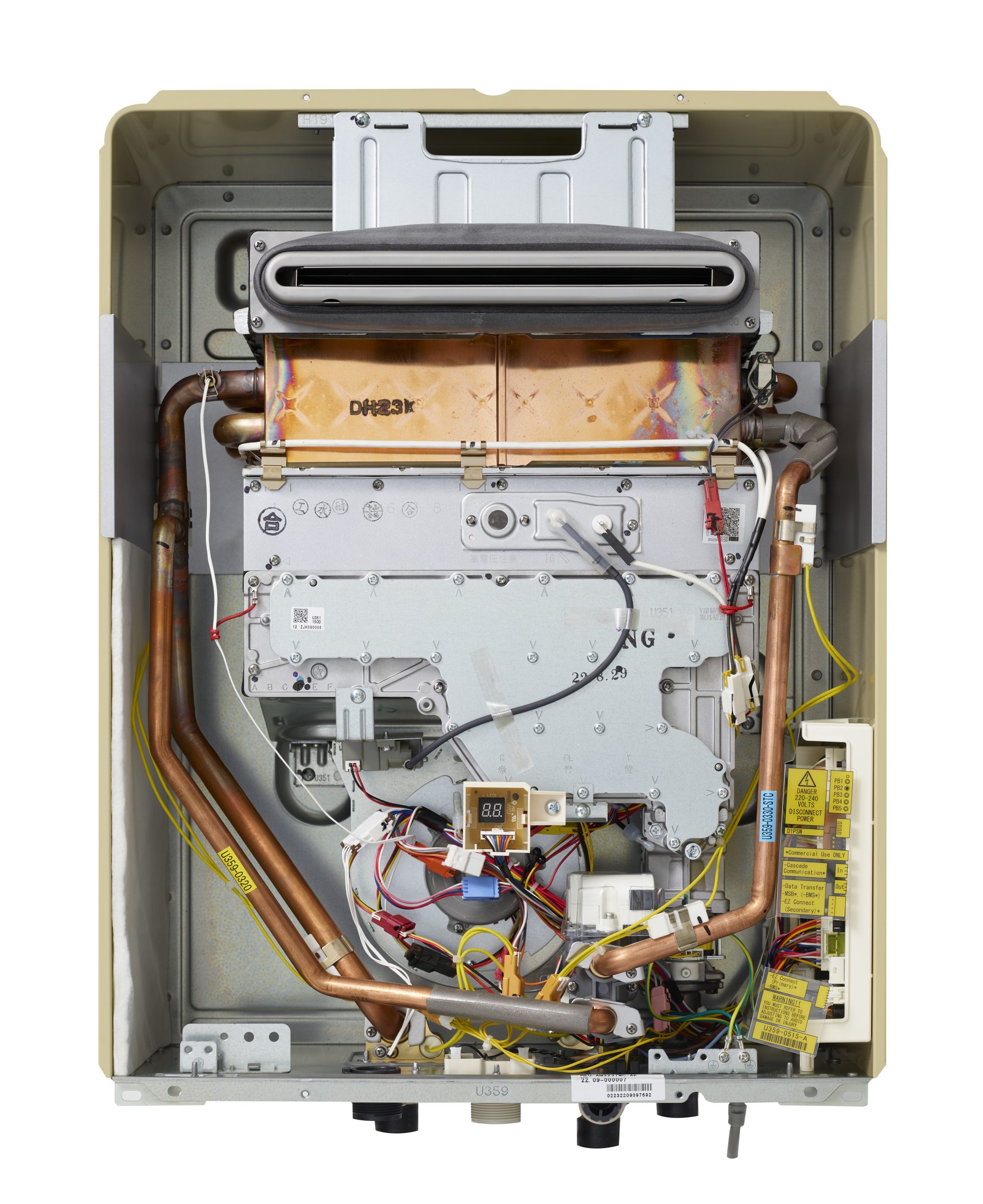

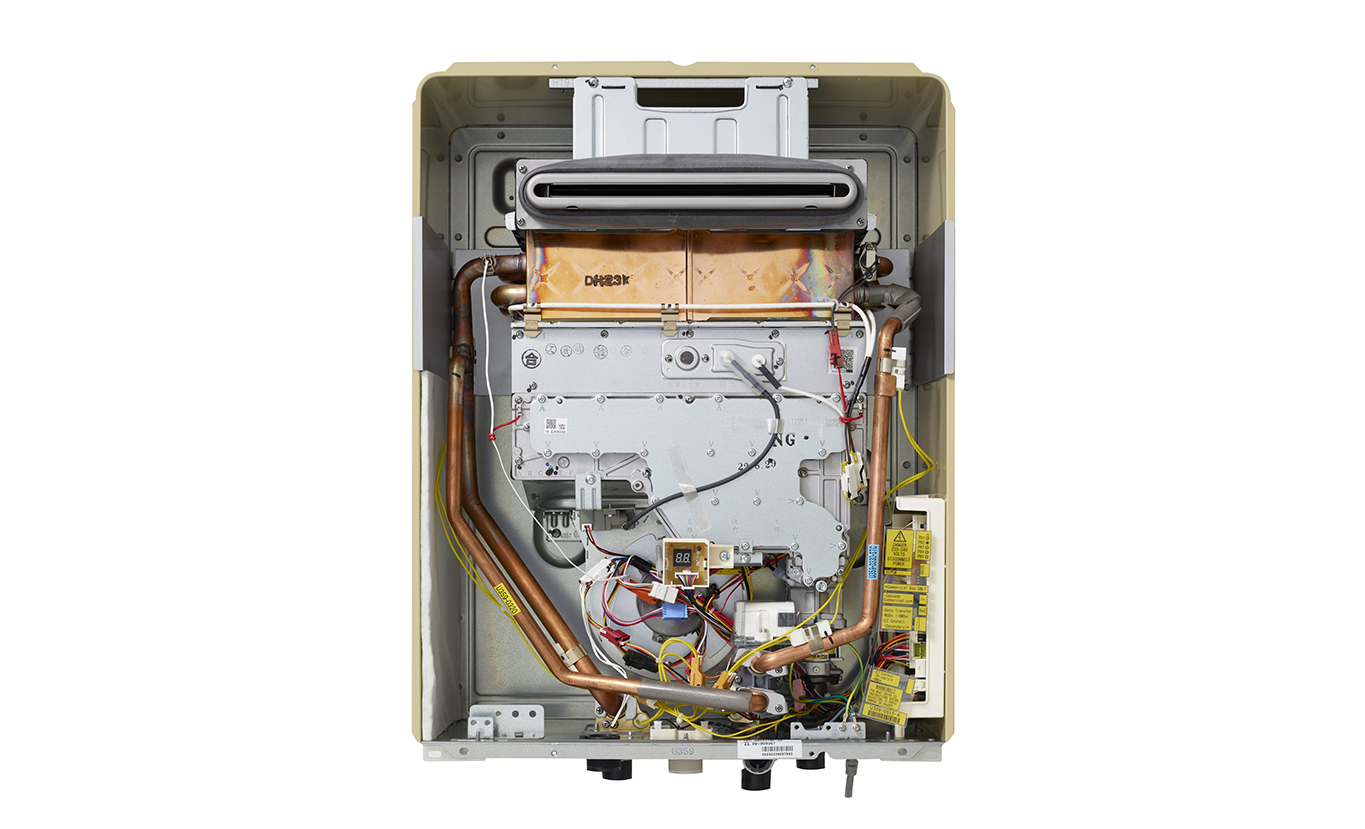

HD32e (External) Heavy Duty Continuous Flow Hot Water (interior)

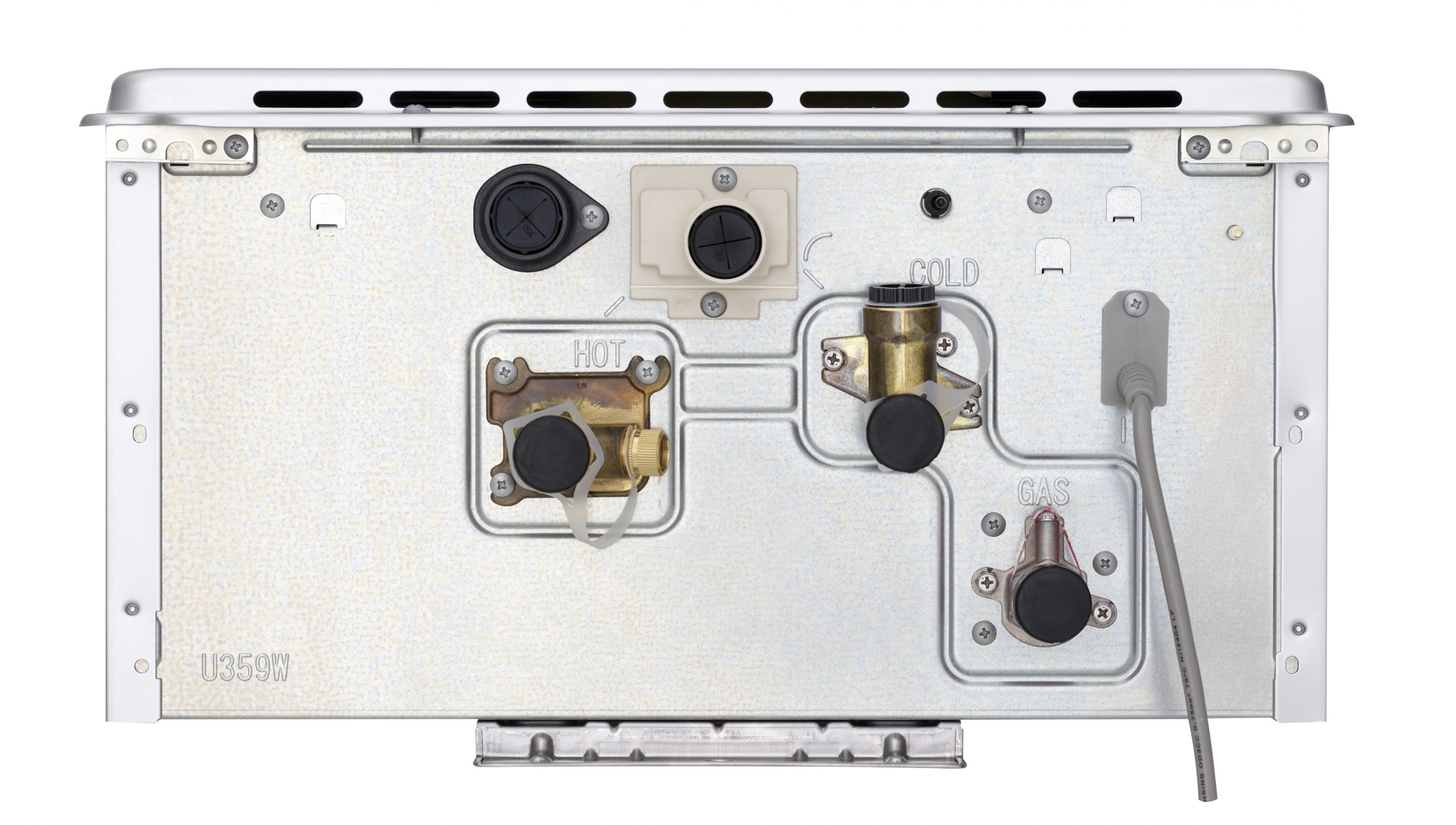

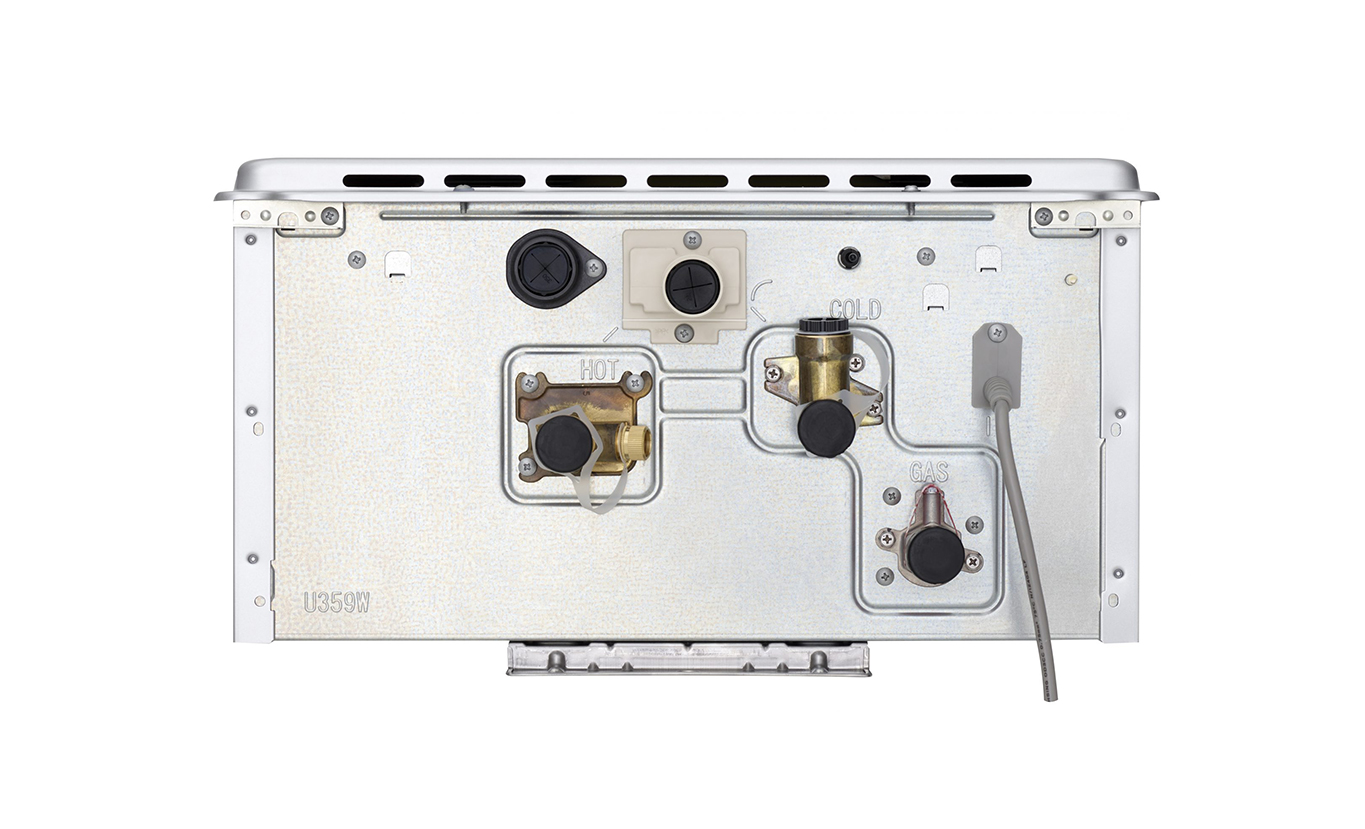

Rinnai HD32e (External) Heavy Duty Continuous Flow Hot Water (under)
