Specification
)

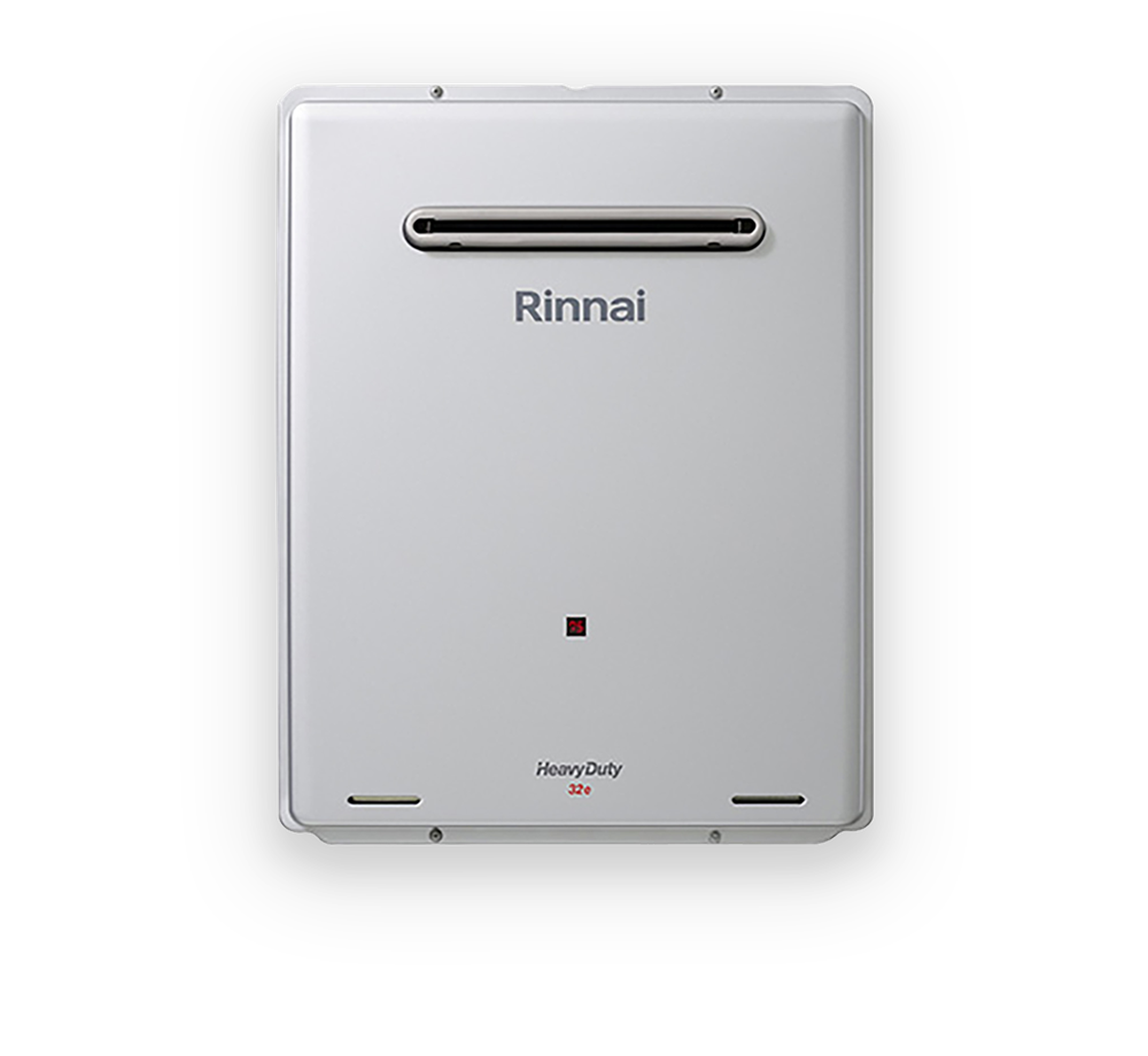

HD32e (External)
Constant temperature at all times.
Delivering a constant outlet temperature with 6.0 Star efficiency, the HD32e Heavy Duty Continuous Flow Hot Water system operates only when needed for reliable external performance.
Model
59kWOutput
Highlights
- Ideal for cafe's, small retail and factories
- Renowned Japanese design / Australian made
- External model
- Natural Gas or LPG models available
- 59kW output capacity
- 83% thermal efficiency
- Heat exchange bypass technology to maintain perfect temperature while reducing pressure loss
- Built with high-quality components, featuring a high-temperature safety cut-out and anti-frost protection down to -20°C for reliable performance in all conditions
- Cascade and MECS (Manifold Electronic Control System) compatible
- Built in status operation monitor displays set water temperature and system status
&w=3840&q=75)
Specifications
Height x Width x Depth | 600 x 470 x 271 mm | |
|---|---|---|
Weight | 23 kg | |
Colours | Silver | |
Factory Default Temperature | 50 or 75° C | |
Water Pressure | Minimum / Maximum | 200 / 1000 kPa |
Gas Rate | Minimum / Maximum | 20 / 250 NG/LPG |
Flow Rate | 25°C / Maximum | 32 / 37°C L/min |
Star Rating | 6.0 Stars | |
Connection Sizes | Gas / Hot / Cold | 20 / 20 / 20 mm |
Status Monitor | Yes | |
Height | Including Brackets | 640 mm |
Hot Water Outlet | From Wall / Left from Centre | 115 / 61 mm |
Cold Water Inlet | From Wall / Right from Centre | 125 / 67 mm |
Gas Connection | From Wall / Right from Centre | 61 / 120 mm |
Height x Width x Depth | 600 x 470 x 271 mm | |
|---|---|---|
Weight | 23 kg | |
Colours | Silver | |
Factory Default Temperature | 50 or 75° C | |
Water Pressure | Minimum / Maximum | 200 / 1000 kPa |
Gas Rate | Minimum / Maximum | 20 / 250 NG/LPG |
Flow Rate | 25°C / Maximum | 32 / 37°C L/min |
Star Rating | 6.0 Stars | |
Connection Sizes | Gas / Hot / Cold | 20 / 20 / 20 mm |
Status Monitor | Yes | |
Height | Including Brackets | 640 mm |
Hot Water Outlet | From Wall / Left from Centre | 115 / 61 mm |
Cold Water Inlet | From Wall / Right from Centre | 125 / 67 mm |
Gas Connection | From Wall / Right from Centre | 61 / 120 mm |
Disclaimer / Footnotes
Product codes: REU-AM3237WC
