Specification
)

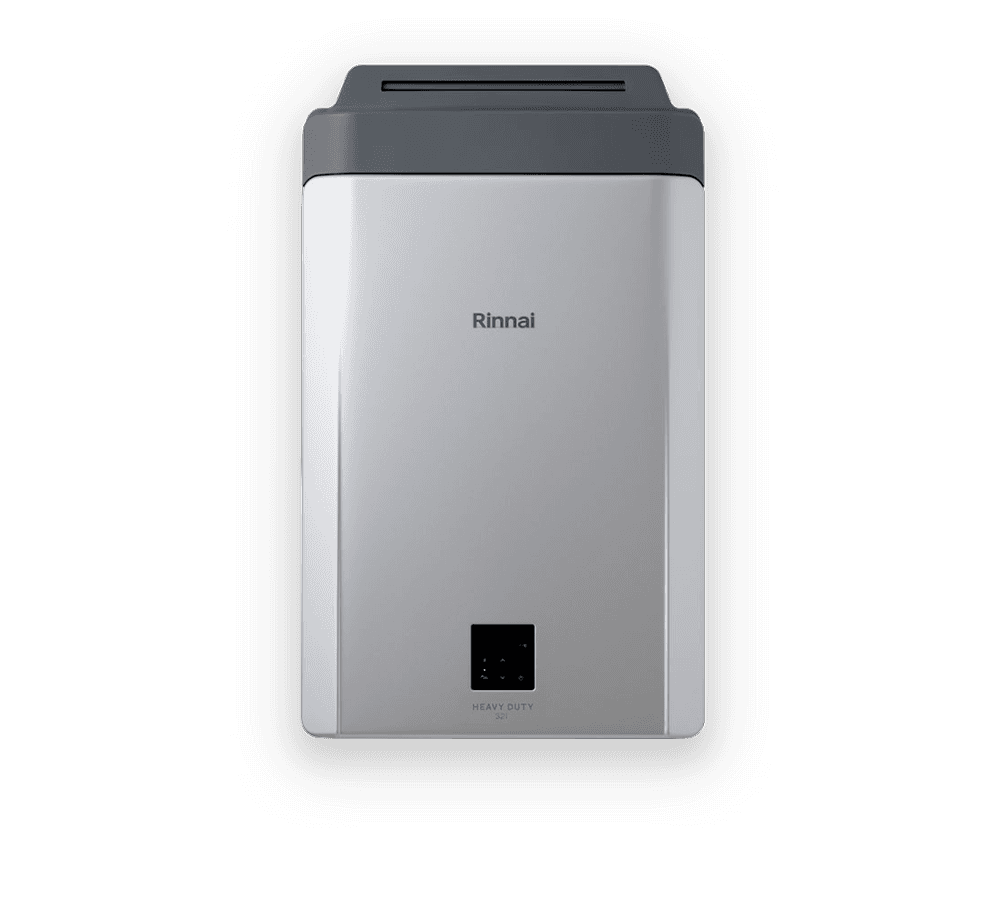

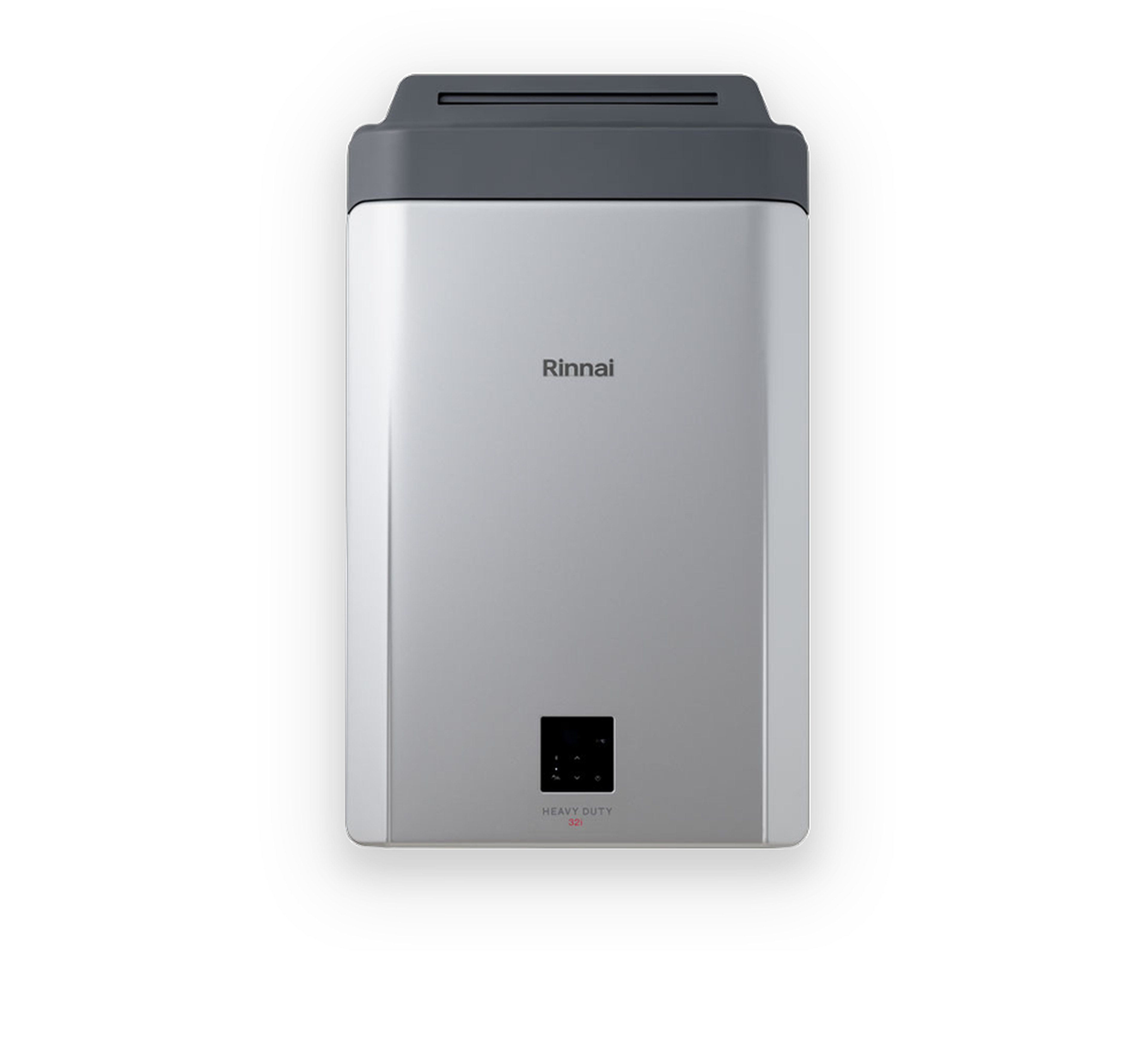

HDC32e (External)
For maximum heating output.
Delivering up to 97% thermal efficiency with dual stainless steel heat exchangers, the HDC32e Heavy Duty Continuous Flow Hot Water system offers Australian-first advanced external performance.
Model
56kWOutput
Highlights
- Ideal for caravan parks, high usage amenities and factories
- Japanese designed and made
- Revolutionary surface burner technology – an Australian first
- 50°C and 75°C pre-set temperatures available
- 7.0 star equivalent energy rating**
- 97% thermal efficiency
- 56kW output capacity
&w=3840&q=75)
Specifications
Height x Width | 796 x 472 mm | |
|---|---|---|
Weight | 27 kg | |
Factory Default Temperature | 50 or 75° C | |
Temperature | Maximum | 85° C |
Water Pressure | Minimum / Maximum | 300 / 1000 kPa |
Gas Rate | Minimum / Maximum | 15.9 / 209 NG / LPG |
Operating Water Flow Rate | Minimum | 2.4 L / min |
Thermal Efficiency Rating | 97.6 % | |
Energy Rating | 7 Stars | |
Capacity | Maximum | 55.6 kW |
Compatibility | MECS / Cascade | Yes / Yes |
Status Monitor | Yes | |
Electrical Consumption | 154 W | |
Sound Level | 53 dBA | |
Height x Depth | Including Brackets | 730 x 289 mm |
Hot Water Outlet | From Wall / From Centre | 158 / 130 mm |
Cold Water Inlet | From Wall / From Centre | 91 / 9 mm |
Gas Connection | From Wall / From Centre | 72 / 142 mm |
Condensate Connection | From Wall / From Centre | 135 / 181 mm |
Fitting Diameter | Hot / Cold / Gas | 20 |
Height x Width | 796 x 472 mm | |
|---|---|---|
Weight | 27 kg | |
Factory Default Temperature | 50 or 75° C | |
Temperature | Maximum | 85° C |
Water Pressure | Minimum / Maximum | 300 / 1000 kPa |
Gas Rate | Minimum / Maximum | 15.9 / 209 NG / LPG |
Operating Water Flow Rate | Minimum | 2.4 L / min |
Thermal Efficiency Rating | 97.6 % | |
Energy Rating | 7 Stars | |
Capacity | Maximum | 55.6 kW |
Compatibility | MECS / Cascade | Yes / Yes |
Status Monitor | Yes | |
Electrical Consumption | 154 W | |
Sound Level | 53 dBA | |
Height x Depth | Including Brackets | 730 x 289 mm |
Hot Water Outlet | From Wall / From Centre | 158 / 130 mm |
Cold Water Inlet | From Wall / From Centre | 91 / 9 mm |
Gas Connection | From Wall / From Centre | 72 / 142 mm |
Condensate Connection | From Wall / From Centre | 135 / 181 mm |
Fitting Diameter | Hot / Cold / Gas | 20 |
Resources
Operation-Manual
Infinity Enviro 32 / HDC32 (Heavy Duty) Gas Continuous Flow Hot Water Operation and Installation Manual
Error-Codes
Gas Continuous Flow Hot Water Error Codes
Spare-Parts
Infinity 32 Enviro / HDC32 (Heavy Duty) Gas Continuous Flow Hot Water Spare Parts and Exploded Diagrams
Warranty
Gas Continuous Flow / Instantaneous Hot Water Warranty Booklet
Disclaimer / Footnotes
Product codes: REU-NB3237WC-AK / REU-NB3237FFC-AK
