Specification
)

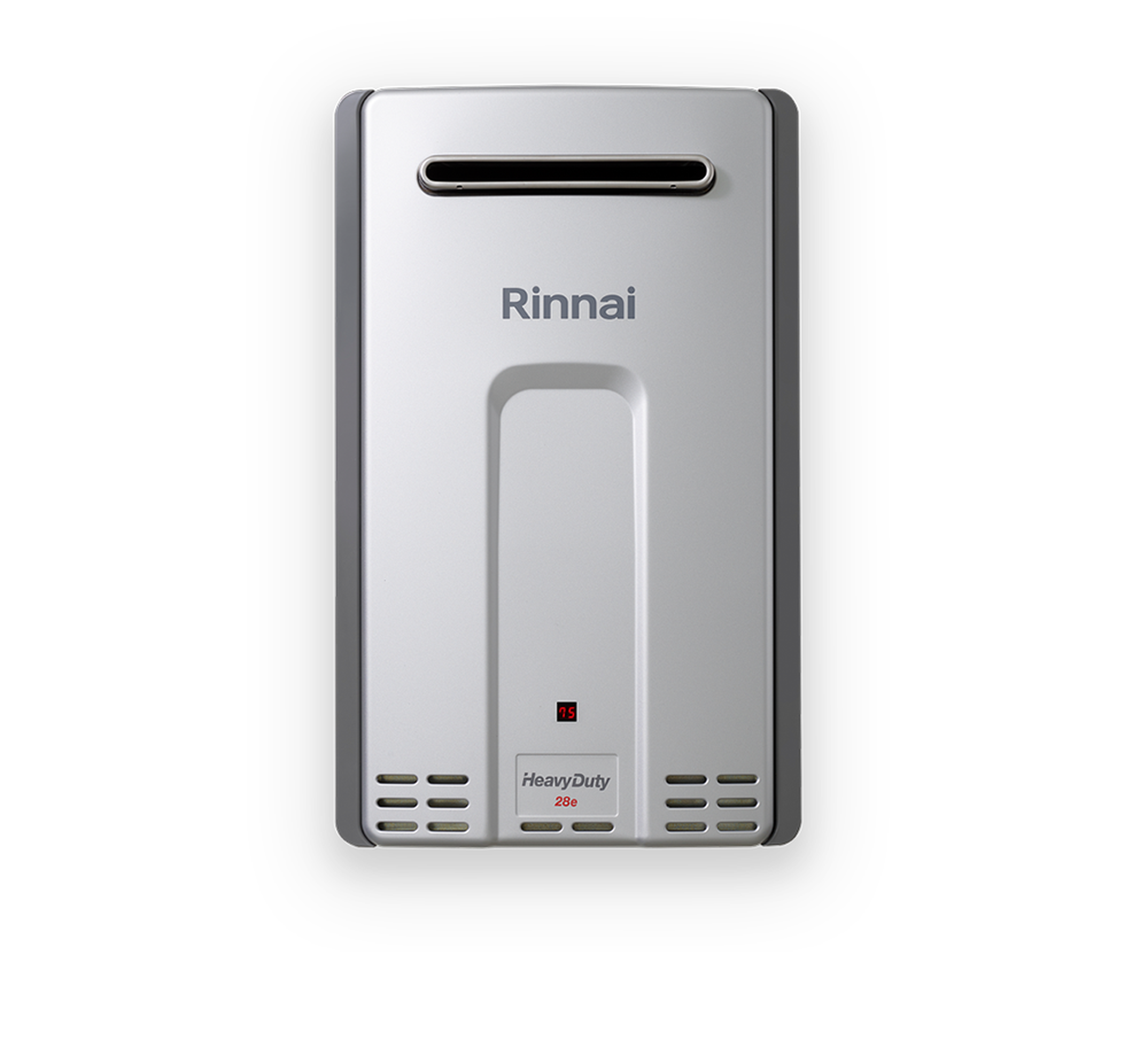

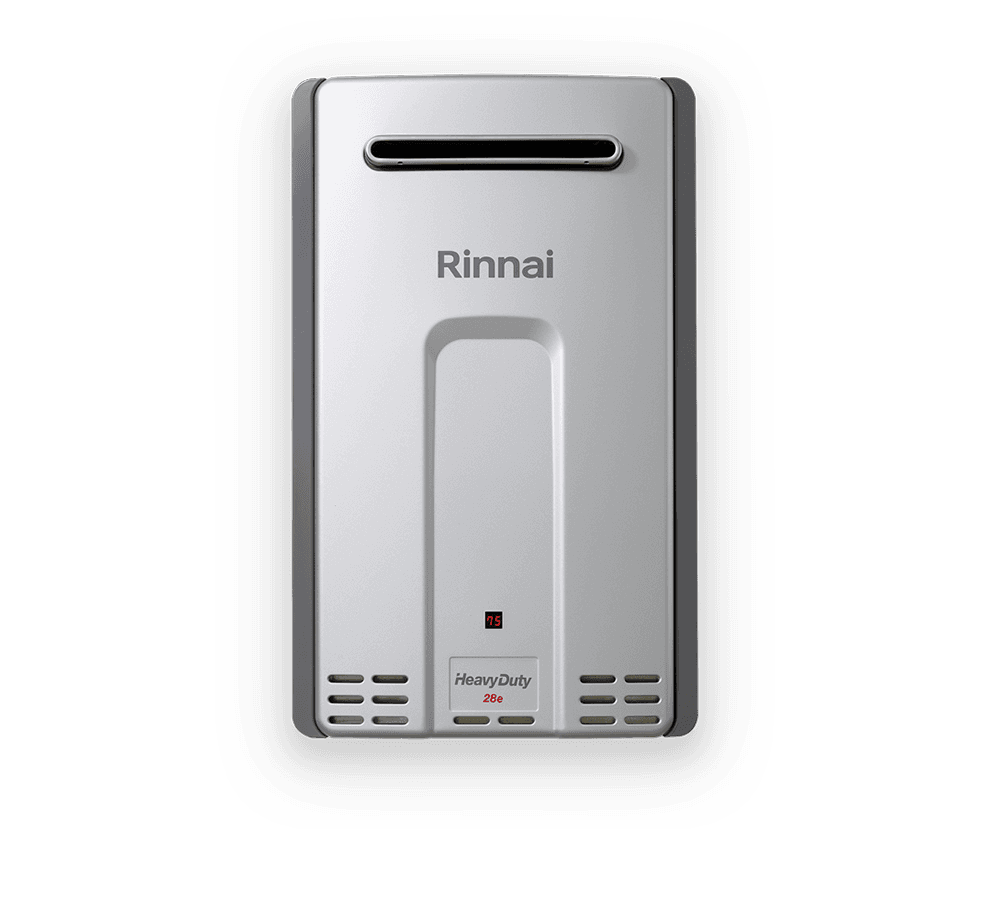

HD28e (External)
The ultimate solution for reliable hot water.
Delivering constant hot water with Japanese design quality, the HD28e external Heavy Duty Continuous Flow Hot Water system provides efficient, reliable performance in tough Australian conditions.
Model
48kWOutput
Highlights
- Ideal for cafe’s, small retail and childcare centres
- Renowned Japanese design / Australian made
- Building Management System (BMS) fault option
- Anti-frost protection down to -20°C
- Natural gas or LPG models available
- External model
- 83% thermal efficiency
- 48kW output capacity
- Internal and external options available
- Heat exchange bypass technology to maintain perfect temperature while reducing pressure loss
- MECs (Manifold Electronic Control System) compatible
- External heater has a status operation monitor displaying the set water temperature and system status
&w=3840&q=75)
Specifications
Height x Width x Depth | 583 x 357 x 272 mm | |
|---|---|---|
Weight | 20 kg | |
Colours | Silver | |
Factory Default Temperature | 50 or 75° C | |
Water Pressure | Minimum / Maximum | 220 / 1000 kPa |
Gas Rate | Minimum / Maximum | 11 / 210 NG/LPG |
Flow Rate (25° C / Max) |
| 28 / 37 L/min |
Star Rating | 6.0 Stars | |
Connection Sizes | Gas / Hot / Cold | 20 / 20 / 20 |
Status Monitor | Yes | |
Height | Including Brackets | 653 mm |
Hot Water Outlet | From Wall / Left from Centre | 96 / 110 mm |
Cold Water Inlet | From Wall / Right from Centre | 75 / 27 mm |
Gas Connection | From Wall / Right from Centre | 104 / 89 mm |
Connection Length (Hot / Cold / Gas) | From Base | 36 / 46 / 36 mm |
Height x Width x Depth | 583 x 357 x 272 mm | |
|---|---|---|
Weight | 20 kg | |
Colours | Silver | |
Factory Default Temperature | 50 or 75° C | |
Water Pressure | Minimum / Maximum | 220 / 1000 kPa |
Gas Rate | Minimum / Maximum | 11 / 210 NG/LPG |
Flow Rate (25° C / Max) |
| 28 / 37 L/min |
Star Rating | 6.0 Stars | |
Connection Sizes | Gas / Hot / Cold | 20 / 20 / 20 |
Status Monitor | Yes | |
Height | Including Brackets | 653 mm |
Hot Water Outlet | From Wall / Left from Centre | 96 / 110 mm |
Cold Water Inlet | From Wall / Right from Centre | 75 / 27 mm |
Gas Connection | From Wall / Right from Centre | 104 / 89 mm |
Connection Length (Hot / Cold / Gas) | From Base | 36 / 46 / 36 mm |
Resources
Operation-Manual
Infinity Gas Continuous Flow Hot Water Operation and Installation Manual
Error-Codes
Gas Continuous Flow Hot Water Error Codes
Warranty
Commercial Hot Water Warranty Booklet
Diagram
Diagram – HD28e (External) Heavy Duty Continuous Flow Hot Water (PDF)
Diagram
Diagram – HD28e (External) Heavy Duty Continuous Flow Hot Water (RFA)
Disclaimer / Footnotes
Product codes: REU-VCM2837WC
