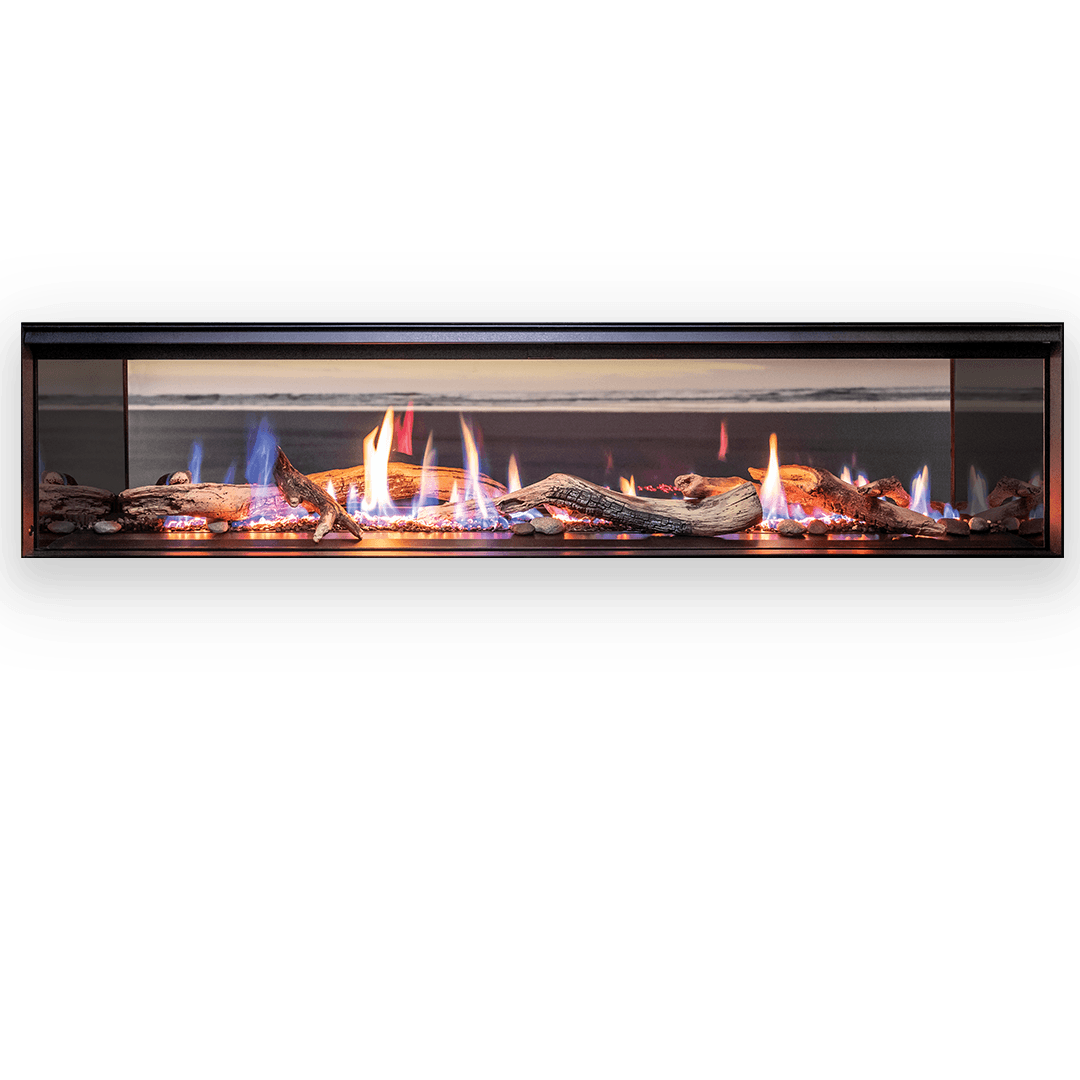

LS 1500 Gas Fireplace
Transform large spaces with bold design and powerful warmth.
Transform your space with the LS 1500 Gas Fireplace, delivering stunning design, driftwood-style logs, Wi-Fi control, and powerful warmth for large living areas.
Model
9.2kWOutput
1500mmWidth
Highlights
- 1500mm width makes it ideal for larger open plan spaces
- Highly realistic log set and burn media
- Single and double-sided fireplaces available
- Frameless elegant design
- Heat output up to 9.2kW ** – perfect for open plan living and large areas
- Innovative Flametech™ technology – creates highly realistic flames and glowing embers that closely replicate the look and feel of a real fire
- Non-reflective glass and protective safety mesh guard – provides a clear view of the fire while offering added peace of mind
- Multi installation options – choose from single or double sided designs
- Install in almost any space – with flexible power flueing appliances
- Optional – peninsular kit available on double sided model
&w=3840&q=75)
Love my fireplace. It's nice and cosy in the winter, and it also looks great as a decorative feature during the summer.
Specifications
Appliance Dimensions | Height x Width x Height | 745 x 1500 x 435 mm |
|---|---|---|
Flue Diameter | Outer / Inner | 75 / 50 mm |
Glass Dimensions | Height x Width | 280 x 1500 mm |
Colours | Black | |
Gas Input | Low / High | 15 / 40 MJ / h |
Output | 9.2* kW | |
Heats up to Capacity | Very Cold | 78 m² |
Cold | 92 m² | |
Cool | 125 m² | |
Mild | 142 m² | |
Efficiency Star Rating | 5.0* | |
Gas Type | NG / LPG | |
*Output (kW) and Star rating may vary depending on flue or gas type.
Appliance Dimensions | Height x Width x Height | 745 x 1500 x 435 mm |
|---|---|---|
Flue Diameter | Outer / Inner | 75 / 50 mm |
Glass Dimensions | Height x Width | 280 x 1500 mm |
Colours | Black | |
Gas Input | Low / High | 15 / 40 MJ / h |
Output | 9.2* kW | |
Heats up to Capacity | Very Cold | 78 m² |
Cold | 92 m² | |
Cool | 125 m² | |
Mild | 142 m² | |
Efficiency Star Rating | 5.0* | |
Gas Type | NG / LPG | |
*Output (kW) and Star rating may vary depending on flue or gas type.
Resources
Operation-Manual
LS Gas Fireplace Series Operation Manual
Error-Codes
LS Gas Fireplace Series Error Codes
Operation-Manual
Gas Fireplace Series (Wi-Fi) Wireless Smart Kit Operation Manual
Specification
LS Gas Fireplace Series Specification Guide
Warranty
Gas Fireplace / Heating Warranty Booklet
Guide
Gas Fireplace Series Ordering Guide
Installation-Manual
LS Gas Fireplace Series Installation Manual
Installation-Manual
LS Gas Fireplace Series Flue Installation Manual
Installation-Manual
LS Gas Fireplace Series Wall Linings Installation Manual
Installation-Manual
LS Gas Fireplace Series Peninsular Kit Installation Manual
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Plan View (PDF)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Platform Detail (PDF)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Elevations End (PDF)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Elevations Front (PDF)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Elevations Back (PDF)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Sections (PDF)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Section Along (PDF)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Isometrics (PDF)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Isometrics Structure (PDF)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Isometrics Walls (PDF)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Plan View (PDF)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Platform (PDF)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Elevations (PDF)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Section (PDF)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Section Along (PDF)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Isometric (PDF)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Isometric Structure (PDF)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Isometric Walls (PDF)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace (RFA)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Platform (RFA)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace (RFA)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Platform (RFA)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace (DWG)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Plan View (DWG)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Platform (DWG)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Platform Detail (DWG)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Elevations Front (DWG)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Elevations Back (DWG)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Elevations End (DWG)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Sections (DWG)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Section Along (DWG)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Isometric (DWG)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Isometric Structure (DWG)
Diagram
Diagram Double Sided – LS 1500 Gas Fireplace Isometric Walls (DWG)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace (DWG)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Plan View (DWG)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Platform (DWG)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Platform Detail (DWG)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Elevations (DWG)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Sections (DWG)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Section Along (DWG)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Isometric (DWG)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Isometric Structure (DWG)
Diagram
Diagram Single Sided – LS 1500 Gas Fireplace Isometric Walls (DWG)
FAQs
Browse helpful answers to common product questions, with guidance on what to consider when choosing the right option.
Benefits
Provides instant, comfortable warmth
Creates a natural flame and attractive focal point
Available in a range of styles, including built-in and freestanding models
Can be more economical to run than some electric heating options
Offers strong heat output for living areas and open-plan spaces
Considerations
Requires access to natural gas or LPG
Professional installation is required
Flued models require suitable venting arrangements
Upfront installation costs can be higher than some other heating options
Regular servicing is recommended to maintain safety and performance
Disclaimer / Footnotes
Product codes: KLS1500S KLS1500D
