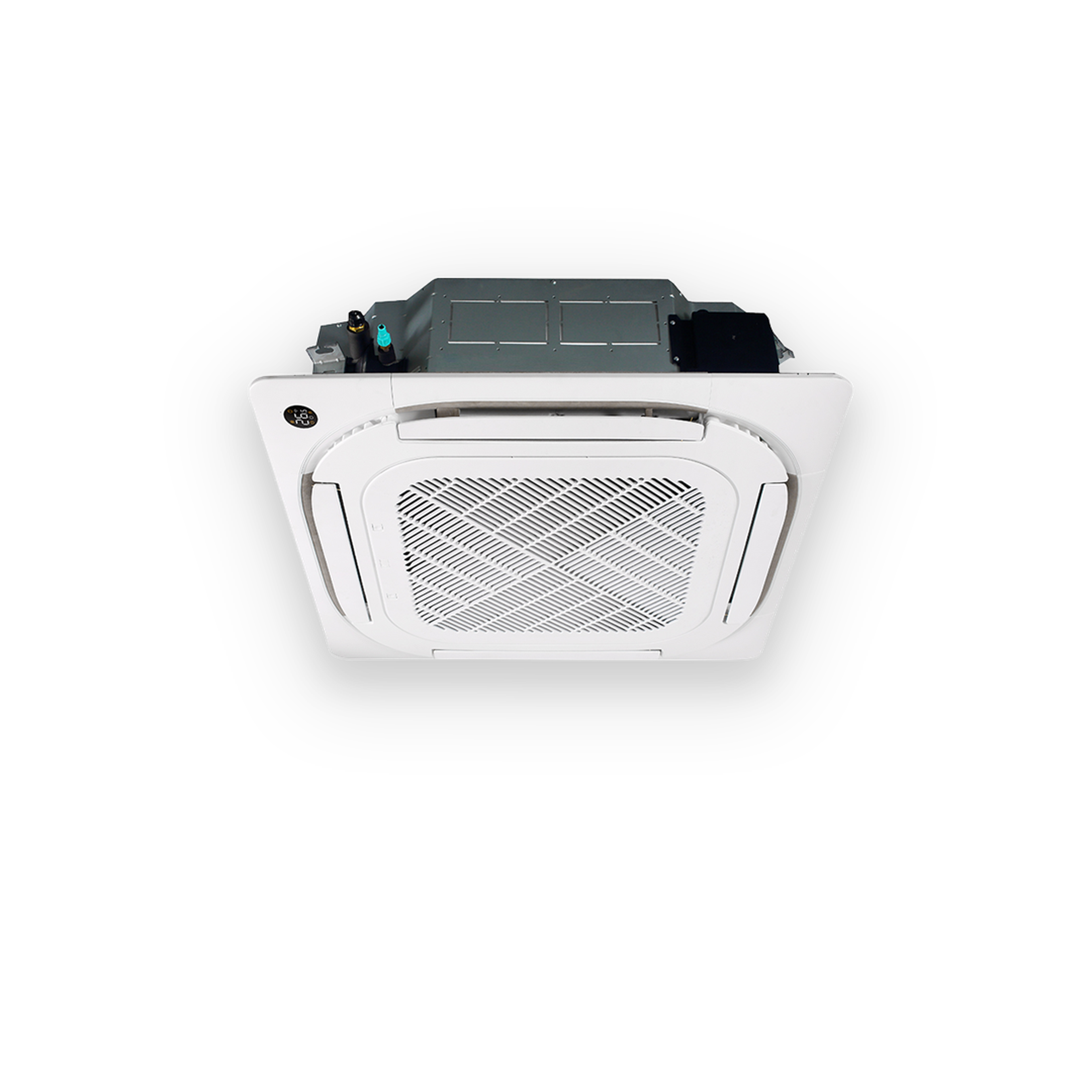

Cassette Split 10.0kW
Balanced comfort for everyday living.
Combining sleek ceiling integration with powerful performance, the 10.0kW Cassette Split System provides even 360° airflow, Wi-Fi connectivity, and efficient climate control for medium-sized spaces.
Model
10.3-10.4kWOutput
639L/sAirflow
Highlights
- Indoor unit can be hidden in a ceiling
- External supplementary duct connections
- Programmable wired thermostat
- Wi-Fi compatible (optional)
- All year-round comfort – full temperature control suited to your needs
- 360° airflow fascia – ensuring optimal air distribution and total comfort in every corner of the room
- Auto restart function – during a power failure the system will stop immediately. When the power returns, restart the systems and the unit will restart at the same settings
- Built-in drain pump – cleverly engineered to ensure condensed water is drained out reliably
- Condensate drain pump – conveniently located in a separate compartment of the indoor unit providing maximum service access
- Infrared remote control and a wired programmable thermostat
&w=3840&q=75)
We are very impressed with this product. It allows the air to blow in 4 different directions which cools so much quicker... Would highly recommend this product.
Specifications
Nominal Capacity | 10 kW | |
|---|---|---|
Power Supply | To Outdoor Unit | 220~240 – 1 – 50 V- Ph-Hz |
Maximum Input Power | 3900 W | |
Maximum Input Current | 21.0 A | |
Recommended Circuit Breaker Size | 25 A | |
Cooling | Rated Capacity | 10.3 kW |
Capacity Range | 4.0 ~ 12.6 kW | |
Rated Input Power | 3110 W | |
Stand By Power | 10 W | |
Rated Input Current | 13.7 A | |
Annualised Energy Efficiency Ratio [AEER]1 | 3.26 W / W | |
Energy Rating | 2.0 Star | |
Heating | Rated Capacity | 10.4 kW |
Capacity Range | 4.2 ~ 12.9 kW | |
Rated Input Power | 2980 W | |
Stand By Power | 10 W | |
Rated Input Current | 13.1 A | |
Annual Coefficient of Performance [ACOP]2 | 3.46 W / W | |
Energy Rating | 2.0 Star | |
1 AEER: The Annualised Energy Efficiency Ratio (AEER) measures a cooling system’s efficiency by comparing its total cooling output to the electricity it consumes, including standby power.
2 ACOP: The Annual Coefficient of Performance (ACOP) measures a heater’s efficiency by comparing its total heating output to the electricity it consumes, including standby power.
Nominal Capacity | 10 kW | |
|---|---|---|
Power Supply | To Outdoor Unit | 220~240 – 1 – 50 V- Ph-Hz |
Maximum Input Power | 3900 W | |
Maximum Input Current | 21.0 A | |
Recommended Circuit Breaker Size | 25 A | |
Cooling | Rated Capacity | 10.3 kW |
Capacity Range | 4.0 ~ 12.6 kW | |
Rated Input Power | 3110 W | |
Stand By Power | 10 W | |
Rated Input Current | 13.7 A | |
Annualised Energy Efficiency Ratio [AEER]1 | 3.26 W / W | |
Energy Rating | 2.0 Star | |
Heating | Rated Capacity | 10.4 kW |
Capacity Range | 4.2 ~ 12.9 kW | |
Rated Input Power | 2980 W | |
Stand By Power | 10 W | |
Rated Input Current | 13.1 A | |
Annual Coefficient of Performance [ACOP]2 | 3.46 W / W | |
Energy Rating | 2.0 Star | |
1 AEER: The Annualised Energy Efficiency Ratio (AEER) measures a cooling system’s efficiency by comparing its total cooling output to the electricity it consumes, including standby power.
2 ACOP: The Annual Coefficient of Performance (ACOP) measures a heater’s efficiency by comparing its total heating output to the electricity it consumes, including standby power.
FAQs
Browse helpful answers to common product questions, with guidance on what to consider when choosing the right option.
Benefits
Energy-efficient operation
Heating and cooling in one system
Quiet performance
Easy installation
Individual room control
Considerations
Best for single rooms or zones
Indoor unit is visible
Requires professional installation
Regular filter cleaning is recommended
Correct sizing is important for efficiency and comfort
Disclaimer / Footnotes
Product codes: CIN100R DONSR10Z72
