Relax with Rinnai’s latest innovation in home comfort
Discontinued

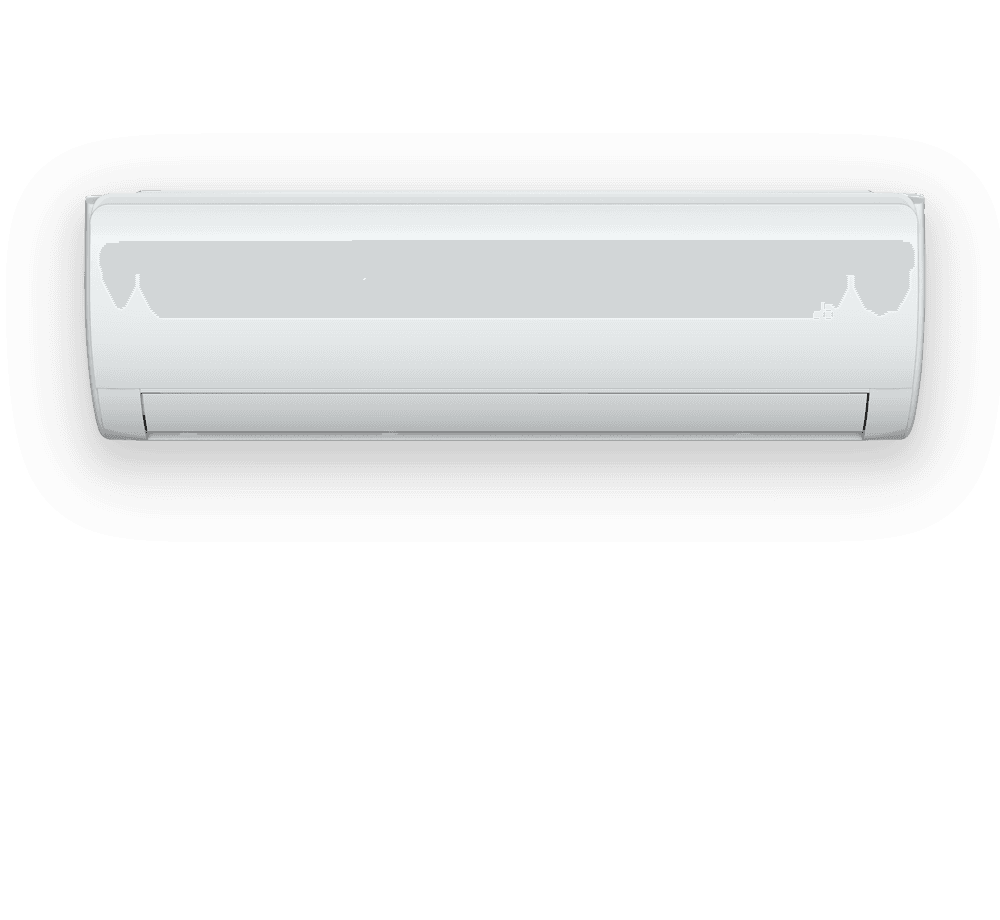

Enjoy quiet, energy-efficient comfort with the Q Series 2.5kW Reverse Cycle Split System, delivering Wi‑Fi-enabled heating and cooling with excellent air distribution for bedrooms.
Model
Key Features
Highlights
- Ideal size for the bedroom
- Low indoor noise level
- Sleek, modern design
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Specifications
Rinnai – Q Series 2.5kW Split System | HSNRA80 | |
|---|---|---|
Cooling Capacity | 2.5 (0.8 ~ 3.3) kW | |
Heating Capacity | 2.5 (0.7 ~ 5.2) kW | |
AEER / ACOP | 4.80 / 4.90 W/W | |
Energy Star For Cooling | 5 | |
Energy Star For Heating | 5 | |
Moisture Removal | 0.7 Litres/h | |
Indoor Noise Level (Turbo / Min) | 43 - 25 dBA | |
Outdoor Noise Level | 50 dBA | |
Electrical Data | ||
Power Supply | 220-240~ / 50 (V)/(HZ) | |
Running Current | Cooling (A) | 2.3 (0.9 ~ 6.0) |
Heating (A) | 2.3 (0.7 ~ 5.2) | |
Power Input | Cooling (W) | 525 |
Heating (W) | 525 | |
Refrigerating System | ||
Refrigerant Type | R32 | |
Compressor | Type | Variable Output |
Connections | ||
Connecting Pipe | Liquid (Inches) | 1/4 |
Gas (Inches) | 3/8 | |
Dimensions | ||
Net Dimensions (W x H x D) | Indoor (mm) | 850 x 300 x 198 |
Outdoor (mm) | 768 x 545 x 311 | |
Net Weight | Indoor (kg) | 9.5 |
Outdoor (kg) | 31 | |
