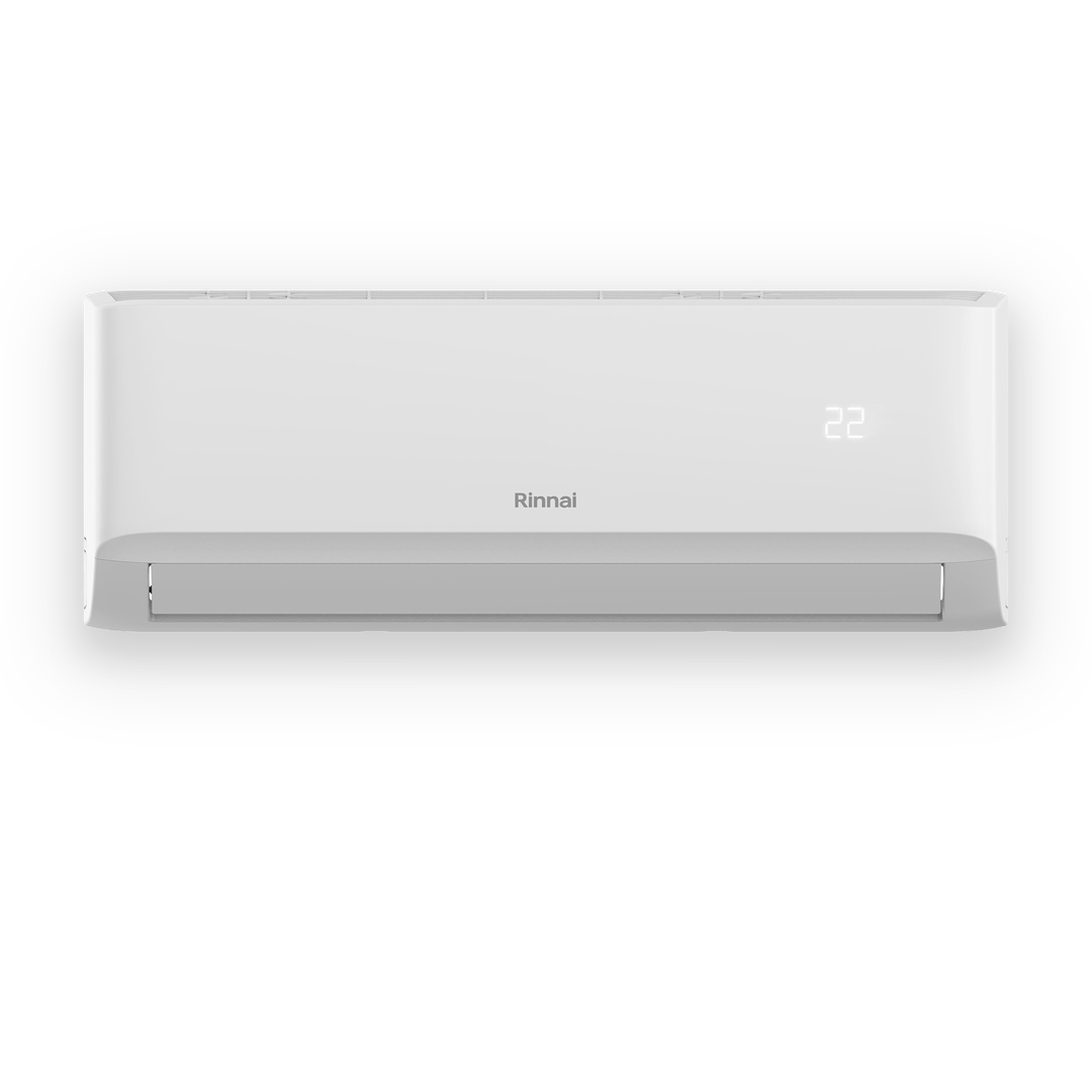

PB Series 3.5kW
Efficient heating and cooling for bedrooms and home offices.
Enjoy year-round comfort with efficient heating and cooling from the PB Series 3.5kW Reverse Cycle Split System, delivering quiet, compact, Wi‑Fi-enabled climate control for small spaces.
Model
16-23m²Room size
Highlights
- Ideal for large bedrooms, study or home office (16-23 m²)
- Designed for reliable heating and cooling in Australian conditions
- Wi-Fi control
- Quiet operation
- Up to 6.5 star energy efficiency rating – in cooling mode (^ hot climates )
- R32 refrigerant** – Eco-friendly refrigerant with lower global warming potential
- Demand control – demand response capability (DRED) to help reduce overall power consumption at critical peak load times (Subject to availability from your energy provider)
- Inverter technology – maintains consistent temperature and reduce running costs
&w=3840&q=75)
As seen on the 2025 season of the hit TV show 'Love it or List it'.
Specifications
Height x Width x Depth | 295 x 802 x 200 mm | |
|---|---|---|
Weight | Net / Gross | 8.5 / 11.5 kg |
Nominal Capacity | 3.55 kW | |
Suitable Area Coverage | 16-23 m² | |
Cooling Star Rating | Hot / Average / Cold | 5.0 / 5.0 / 5.5 Star |
Heating Star Rating | Hot / Average / Cold | 4.5 / 3.5 / 3.0 Star |
Operating Range | Cooling / Heating | 16-32 / 0-30 °C |
Sound Pressure | 46.7 dB(A) |
Height x Width x Depth | 295 x 802 x 200 mm | |
|---|---|---|
Weight | Net / Gross | 8.5 / 11.5 kg |
Nominal Capacity | 3.55 kW | |
Suitable Area Coverage | 16-23 m² | |
Cooling Star Rating | Hot / Average / Cold | 5.0 / 5.0 / 5.5 Star |
Heating Star Rating | Hot / Average / Cold | 4.5 / 3.5 / 3.0 Star |
Operating Range | Cooling / Heating | 16-32 / 0-30 °C |
Sound Pressure | 46.7 dB(A) |
Resources
Specification
PB Series Air Conditioner Selection Guide
Operation-Manual
PB Series Air Conditioner Operation Manual
Operation-Manual
PB Series Air Conditioner Operation and Installation Manual
Installation-Manual
PB Series Air Conditioner Installation Manual
Operation-Manual
PB Series Air Conditioner Remote Controller Operation Manual
Operation-Manual
PB Series Air Conditioner (Wi-Fi) Wireless Smart Kit Operation Manual
Warranty
Air Conditioner Warranty Booklet
FAQs
Browse helpful answers to common product questions, with guidance on what to consider when choosing the right option.
Benefits
Energy-efficient operation
Heating and cooling in one system
Quiet performance
Easy installation
Individual room control
Considerations
Best for single rooms or zones
Indoor unit is visible
Requires professional installation
Regular filter cleaning is recommended
Correct sizing is important for efficiency and comfort
Disclaimer / Footnotes
Product codes: HSNRP35B HINRP35MB HONRP35B
