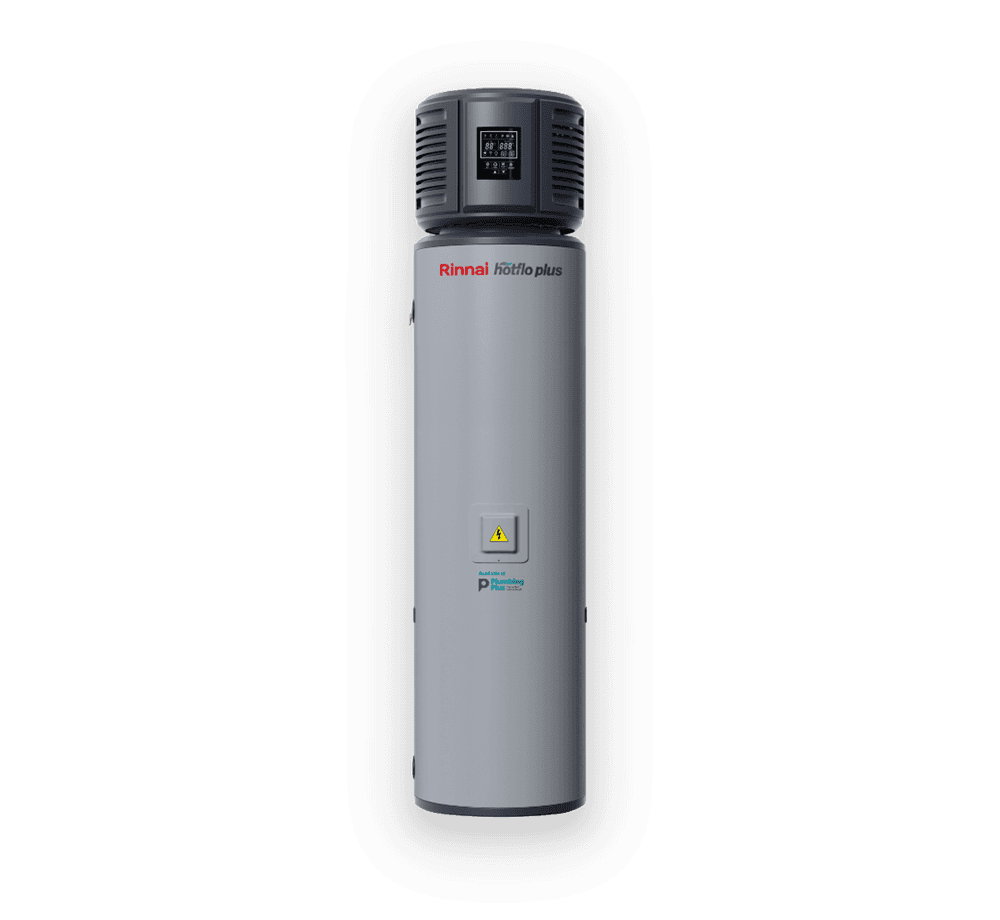

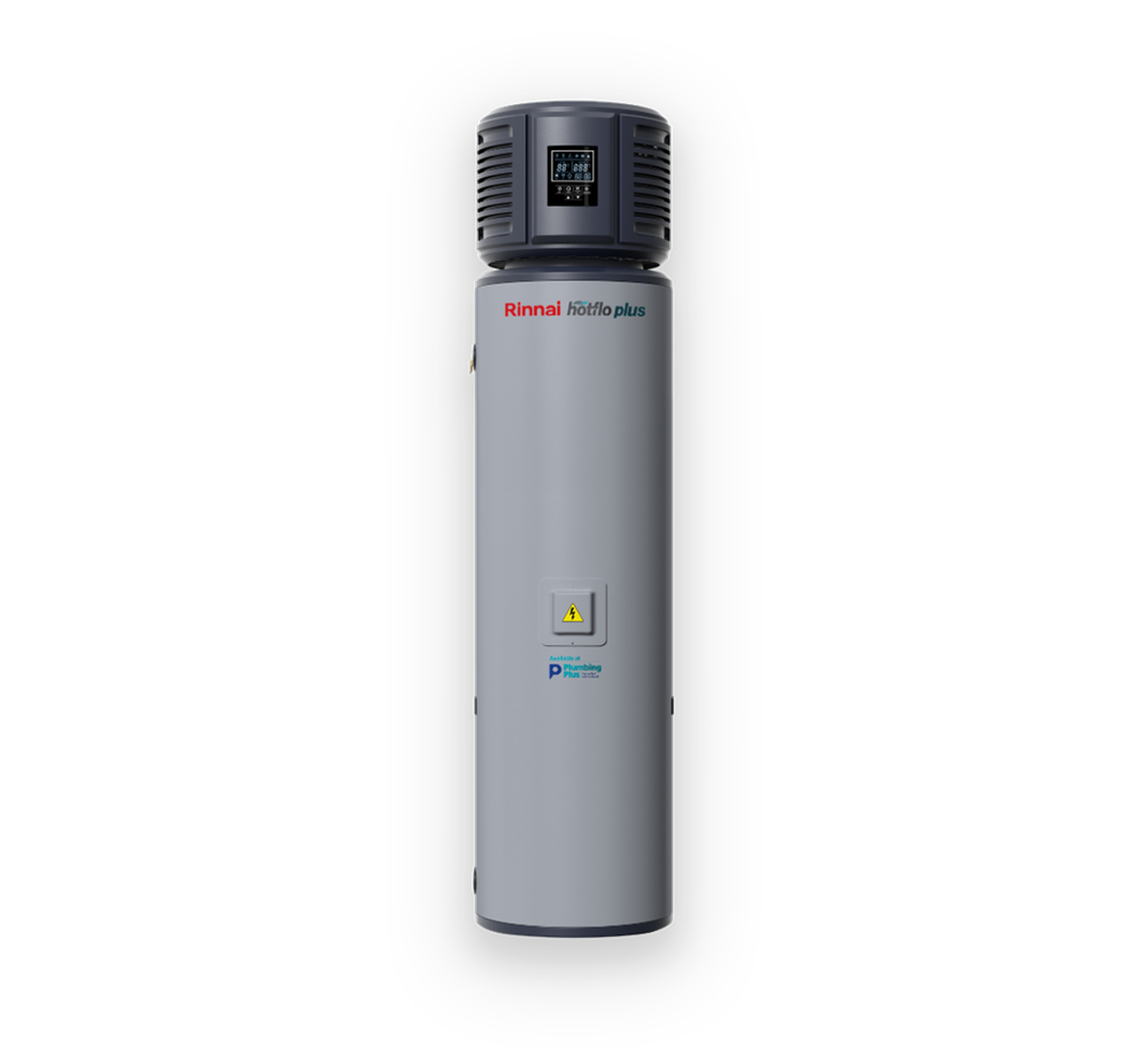

Hotflo Plus 250L (OG)
Discontinued
Transform your Hot Water system with superior efficiency.
The Hotflo Plus 250L (Original) Electric Heat Pump Hot Water system uses ambient air heat and smart controls to reduce energy use by up to 70% while delivering efficient hot water. Government rebates available.
Model
Highlights
- High energy efficiency
- Convenient Wi-Fi timer
- Adaptable for all climates
- Quiet operation
- Federal / State Government Rebates available
- 5 year cylinder warranty
Specifications
Number of People | up to 4 people | |
|---|---|---|
Dimensions | Unit (Height x Diameter) | 2140 x 570 mm |
Hot Outlet / Cold Outlet | 1445 / 145 mm | |
Weight | Empty | 125 kg |
Tank Volume | 250 L | |
Sound Level | 48 dB(A) | |
Ambient Temperature Limits | -7 to 43 °C | |
Colour | Grey | |
Ingress Protection | IPX4 | |
Storage Cylinder Connections | Hot Outlet / Cold Inlet | ISO 7 1¾” RP |
PTR Valve | ISO 7 1½” RP | |
PTR Supplied Valve Settings / Ratings | 800 / 30 kPa / kW | |
ECV Fitted | Fit PLV if mains pressure exceeds | 680 kPa |
Recommended PLV pressure rating | 500 kPa | |
ECV Not Fitted | Fit PLV if mains pressure exceeds | 800 kPa |
Recommended PLV pressure rating | 500 kPa | |
Refrigerant Type / Mass | 134a / 1 R / g | |
Rated Input | Factory Wired (Electric Element) | 1.5 kW |
Factory Wired (Refrigeration Module) | 0.9 kW | |
Wired by Installer (Total) | 2.4 kW | |
Power Supply | 220–240 / 50 V AC / Hz | |
Rated Current | 15 Amp plug fitted (Maximum) | 11 Amps |
Energy Output | Use to size PTR (Maximum) | 5.5 Amps |
Heat Output | 3.1 kW | |
Coefficient Of Performance | 3.1 kW | |
Number of People | up to 4 people | |
|---|---|---|
Dimensions | Unit (Height x Diameter) | 2140 x 570 mm |
Hot Outlet / Cold Outlet | 1445 / 145 mm | |
Weight | Empty | 125 kg |
Tank Volume | 250 L | |
Sound Level | 48 dB(A) | |
Ambient Temperature Limits | -7 to 43 °C | |
Colour | Grey | |
Ingress Protection | IPX4 | |
Storage Cylinder Connections | Hot Outlet / Cold Inlet | ISO 7 1¾” RP |
PTR Valve | ISO 7 1½” RP | |
PTR Supplied Valve Settings / Ratings | 800 / 30 kPa / kW | |
ECV Fitted | Fit PLV if mains pressure exceeds | 680 kPa |
Recommended PLV pressure rating | 500 kPa | |
ECV Not Fitted | Fit PLV if mains pressure exceeds | 800 kPa |
Recommended PLV pressure rating | 500 kPa | |
Refrigerant Type / Mass | 134a / 1 R / g | |
Rated Input | Factory Wired (Electric Element) | 1.5 kW |
Factory Wired (Refrigeration Module) | 0.9 kW | |
Wired by Installer (Total) | 2.4 kW | |
Power Supply | 220–240 / 50 V AC / Hz | |
Rated Current | 15 Amp plug fitted (Maximum) | 11 Amps |
Energy Output | Use to size PTR (Maximum) | 5.5 Amps |
Heat Output | 3.1 kW | |
Coefficient Of Performance | 3.1 kW | |
Disclaimer / Footnotes
Product codes: EHPG250VMP
