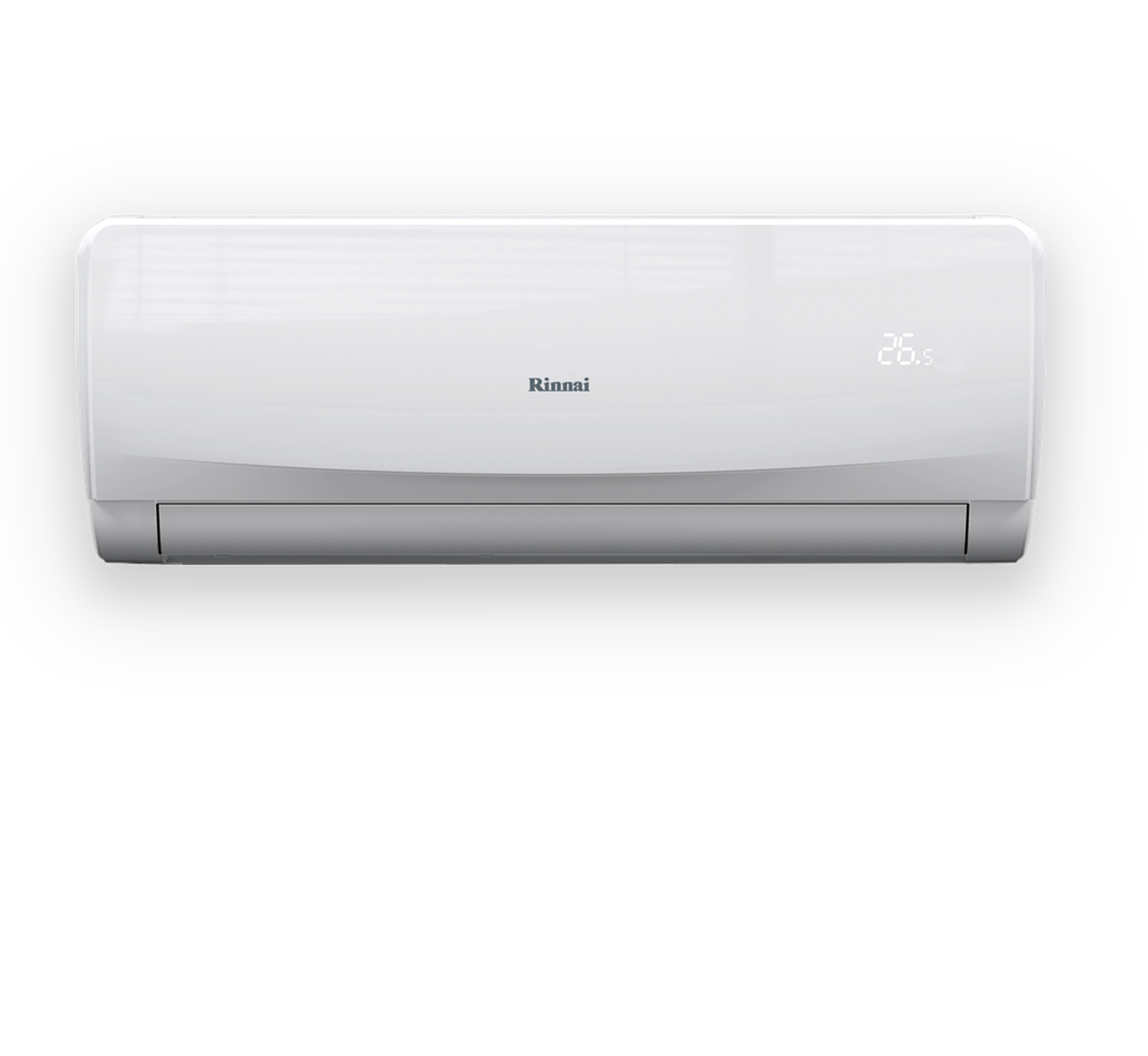

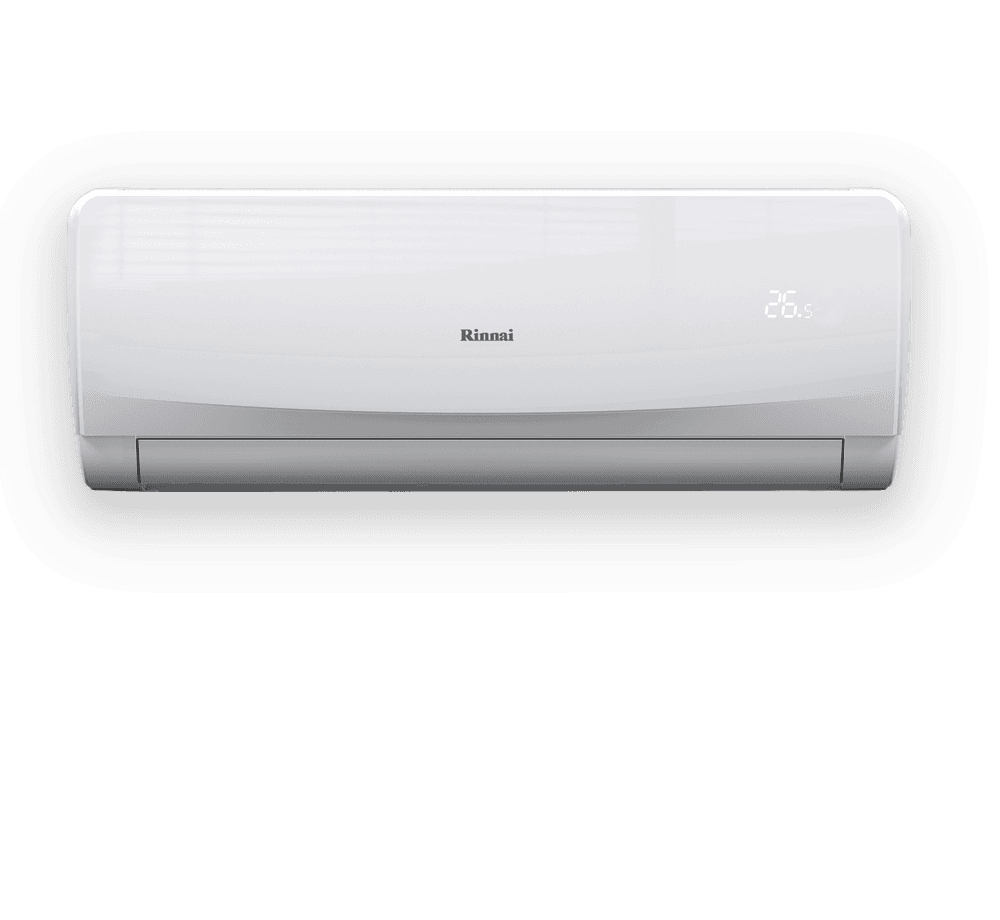

G Series 5.2kW
Discontinued
Relax with Rinnai's latest innovation in home comfort
Enjoy reliable climate control with the G Series 5.2kW Split System, delivering efficient heating and cooling with modern design and convenient temperature display for everyday comfort.
Model
Highlights
- Ideal for family rooms and living areas
- Bright, sleek design consistent across the range
- Quiet operation with the ability to operate a 'quiet' mode
- Demand Response Enabled Device (DRED) Function
- 3D Airflow for wall-to-wall comfort
- Turbo mode boost to help reach set temperatures quickly
- Innovative sleep mode giving you greater control and comfort
- 24 Hour Delay Timer (or full programmable timer function available through the Wi-Fi app)
- Wi-Fi Control / LCD Wireless Remote Control
- Translucent set temperature display
Specifications
Rinnai - G Series 5.2kW Reverse Cycle System | RINV52RB | |
|---|---|---|
Net Dimensions (W x D x H) | Indoor | 94 x 222 x 300 mm |
Outdoor | 800 x 300 x 690 mm | |
Net Weight | Indoor | 11 kg |
Outdoor | 45 kg | |
Cooling Capacity | 5.3 (1.0 - 5.6) kW | |
Heating Capacity | 5.3 (0.9 - 6.5) kW | |
EER / COP | 3.41 / 3.42 W / W | |
AEER / ACOP | 3.37 / 3.38 W / W | |
Energy Star | Cooling | 2 |
Heating | 2 | |
Moisture Removal | 1.2 Litres / h | |
Noise Level | Indoor | 47 dB/A |
Outdoor | 57 dB/A | |
Power Supply | V / HZ | |
Running Current | Cooling | 8.2 (2.3 - 9.2) A |
Heating | 8.2 (2 - 11) A | |
Power Input | Cooling | 1520 (450 - 2100) W |
Heating | 1500 (450 - 2500) | |
Refrigerant R410A | Volume | 1950 g |
Compressor | Type | |
Connecting Pipe | Liquid | Inches 1/4 |
Gas | Inches 5/8 | |
Rinnai - G Series 5.2kW Reverse Cycle System | RINV52RB | |
|---|---|---|
Net Dimensions (W x D x H) | Indoor | 94 x 222 x 300 mm |
Outdoor | 800 x 300 x 690 mm | |
Net Weight | Indoor | 11 kg |
Outdoor | 45 kg | |
Cooling Capacity | 5.3 (1.0 - 5.6) kW | |
Heating Capacity | 5.3 (0.9 - 6.5) kW | |
EER / COP | 3.41 / 3.42 W / W | |
AEER / ACOP | 3.37 / 3.38 W / W | |
Energy Star | Cooling | 2 |
Heating | 2 | |
Moisture Removal | 1.2 Litres / h | |
Noise Level | Indoor | 47 dB/A |
Outdoor | 57 dB/A | |
Power Supply | V / HZ | |
Running Current | Cooling | 8.2 (2.3 - 9.2) A |
Heating | 8.2 (2 - 11) A | |
Power Input | Cooling | 1520 (450 - 2100) W |
Heating | 1500 (450 - 2500) | |
Refrigerant R410A | Volume | 1950 g |
Compressor | Type | |
Connecting Pipe | Liquid | Inches 1/4 |
Gas | Inches 5/8 | |
