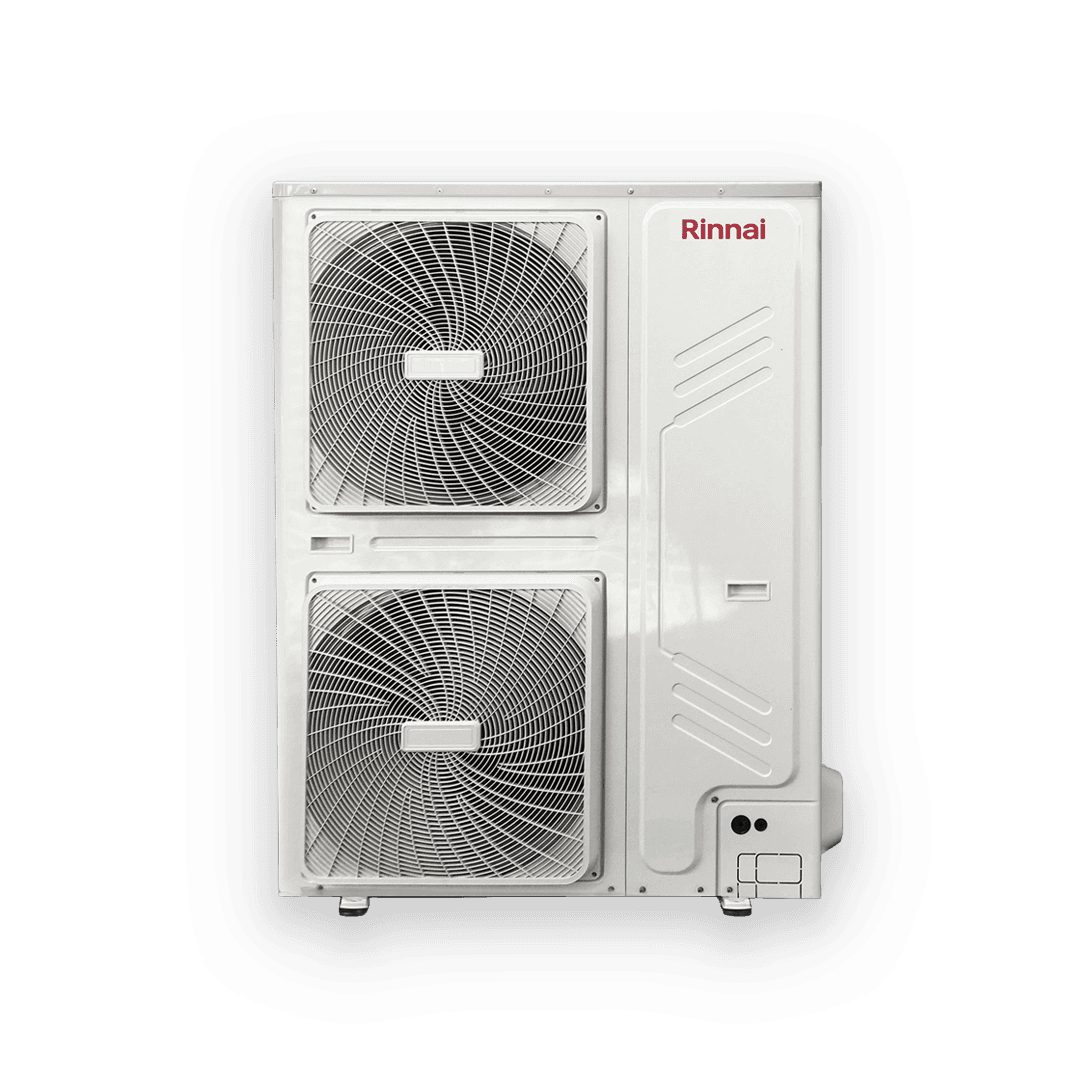

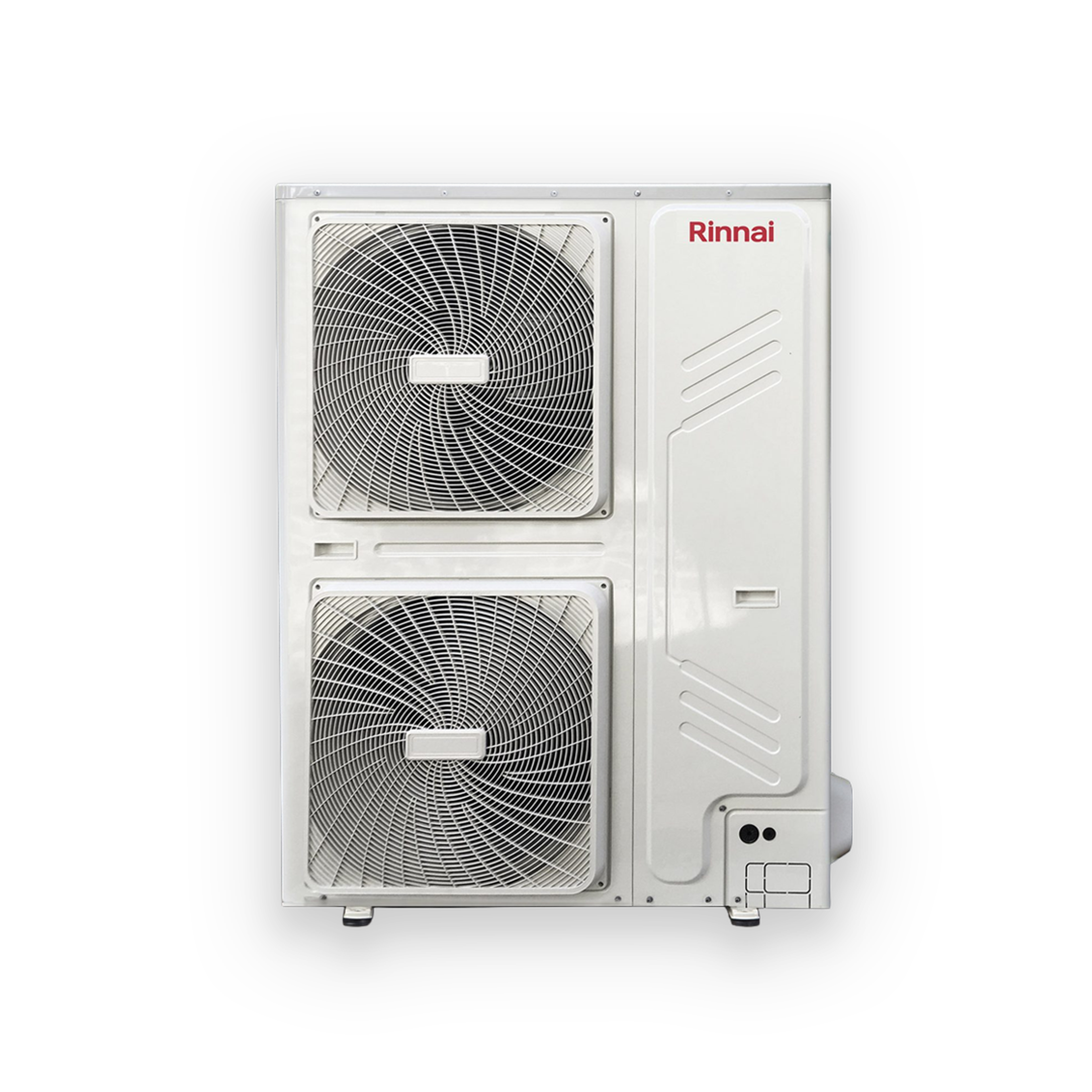

Rinnai 20-24kW Inverter Split Ducted Air Conditioner (OG)

Ducted Air R410A 20.0kW

Discontinued

  • Warranty 03 - 7 year Residential

Powerful whole-home comfort.

The Rinnai 20.0kW Ducted Air Conditioning R410A System delivers powerful, energy-efficient heating and cooling through a discreet slimline design, combining quiet inverter technology, fast temperature control, and whole-home comfort from a single system.

View replacement: Ducted Air 20.0kW

Model
20kWOutput
1203L/sAirflow
  • Warranty 03 - 7 year Residential

Highlights

  • Whole home or multi-zone ducted air conditioning
  • Responds rapidly to changing conditions, providing fast and precise temperature control
  • 3D DC Inverter ducted system
  • Efficient ducted heating and cooling
  • Powerful output for larger homes
  • Quiet ducted reverse cycle air conditioning
  • Easy to use control system
  • Wired programmable controller / Optional Wi-Fi and Remote access
  • 7 year warranty*

Specifications

Rinnai – System Model No.

20 24

Power Supply

To Outdoor Unit

415 – 3 – 50 V- Ph-Hz

Maximum Input Power

10.35 13.22 kW

Maximum Input Current

18.0 23.0 A

Recommended Circuit Breaker Size

30 40 A

Cooling

Rated Capacity

20 23.5 kW

Capacity Range

10.0 – 26.0 11.8 – 30.5 kW

Rated Input Power

5.95 6.70 kW

Rated Input Current

9.09 10.13 A

Annualised Energy Efficiency Ratio [AEER]1

3.29 3.44 W/W

Heating

Rated Capacity

20 25 kW

Capacity Range

10.0 ~ 23.7 12.5 ~ 29.6 kW

Rated Input Power

5.90 7.15 kW

Rated Input Current

8.9 10.8 A

Annual Coefficient of Performance [ACOP]2

3.32 3.43 W/W

1. AEER: The Annualised Energy Efficiency Ratio (AEER) measures a cooling system’s efficiency by comparing its total cooling output to the electricity it consumes, including standby power.
2. ACOP: The Annual Coefficient of Performance (ACOP) measures a heater’s efficiency by comparing its total heating output to the electricity it consumes, including standby power.

Rinnai – System Model No.

20 24

Power Supply

To Outdoor Unit

415 – 3 – 50 V- Ph-Hz

Maximum Input Power

10.35 13.22 kW

Maximum Input Current

18.0 23.0 A

Recommended Circuit Breaker Size

30 40 A

Cooling

Rated Capacity

20 23.5 kW

Capacity Range

10.0 – 26.0 11.8 – 30.5 kW

Rated Input Power

5.95 6.70 kW

Rated Input Current

9.09 10.13 A

Annualised Energy Efficiency Ratio [AEER]1

3.29 3.44 W/W

Heating

Rated Capacity

20 25 kW

Capacity Range

10.0 ~ 23.7 12.5 ~ 29.6 kW

Rated Input Power

5.90 7.15 kW

Rated Input Current

8.9 10.8 A

Annual Coefficient of Performance [ACOP]2

3.32 3.43 W/W

1. AEER: The Annualised Energy Efficiency Ratio (AEER) measures a cooling system’s efficiency by comparing its total cooling output to the electricity it consumes, including standby power.
2. ACOP: The Annual Coefficient of Performance (ACOP) measures a heater’s efficiency by comparing its total heating output to the electricity it consumes, including standby power.

Resources

Brochure

Ducted Air Conditioner Brochure

Download
Specification

Ducted Air Conditioner Operation Manual

Download
Specification

Ducted Air Conditioner Smart Port (Wi-Fi) Wireless Smart Kit Operation Manual

Download
Specification

Ducted Air Conditioner Wired Remote Controller Operation Manual

Download
Warranty

Air Conditioner Warranty Booklet

Download

Disclaimer / Footnotes

Product codes: DINLR20Z7 DONSR20Z9
