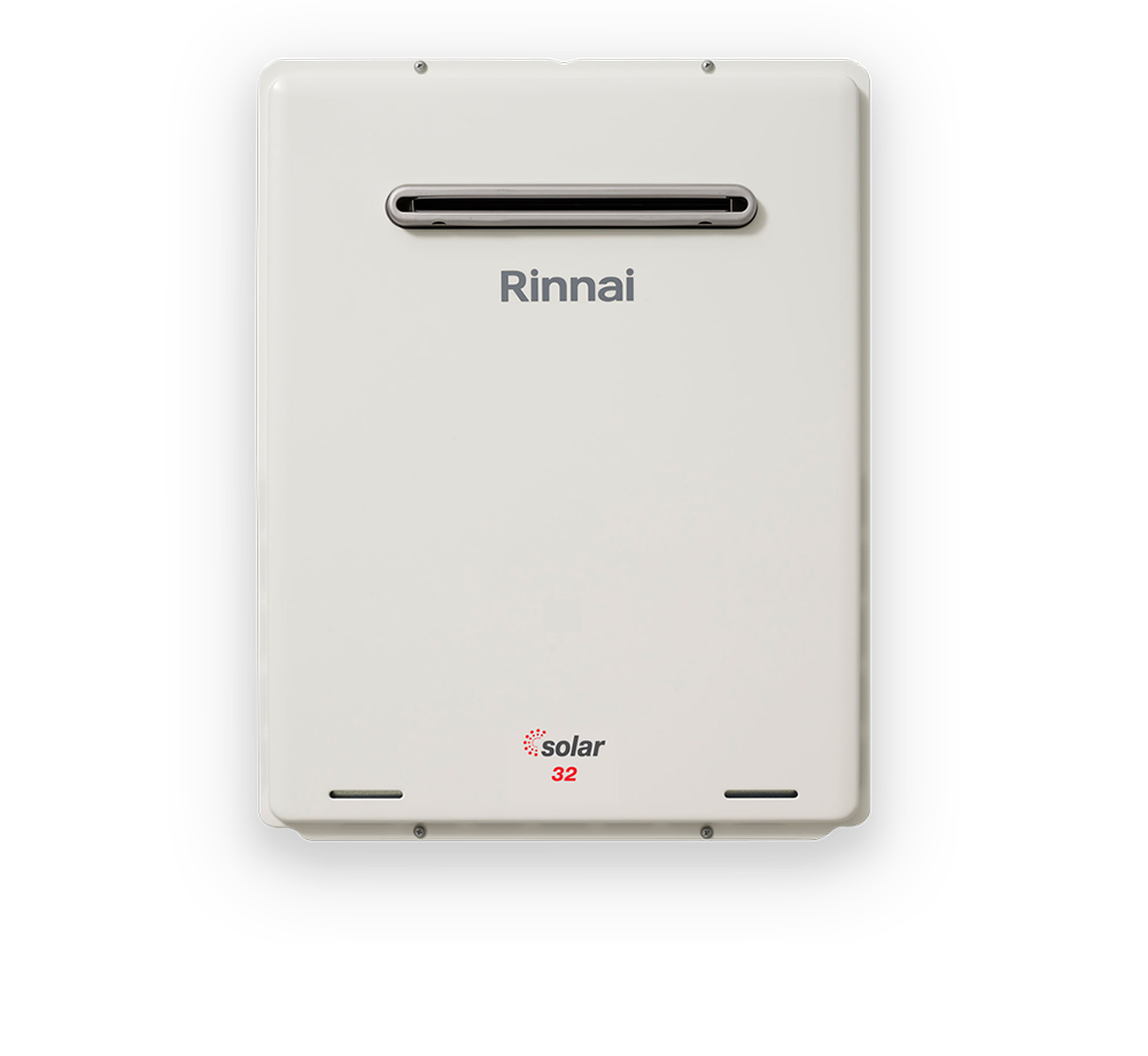

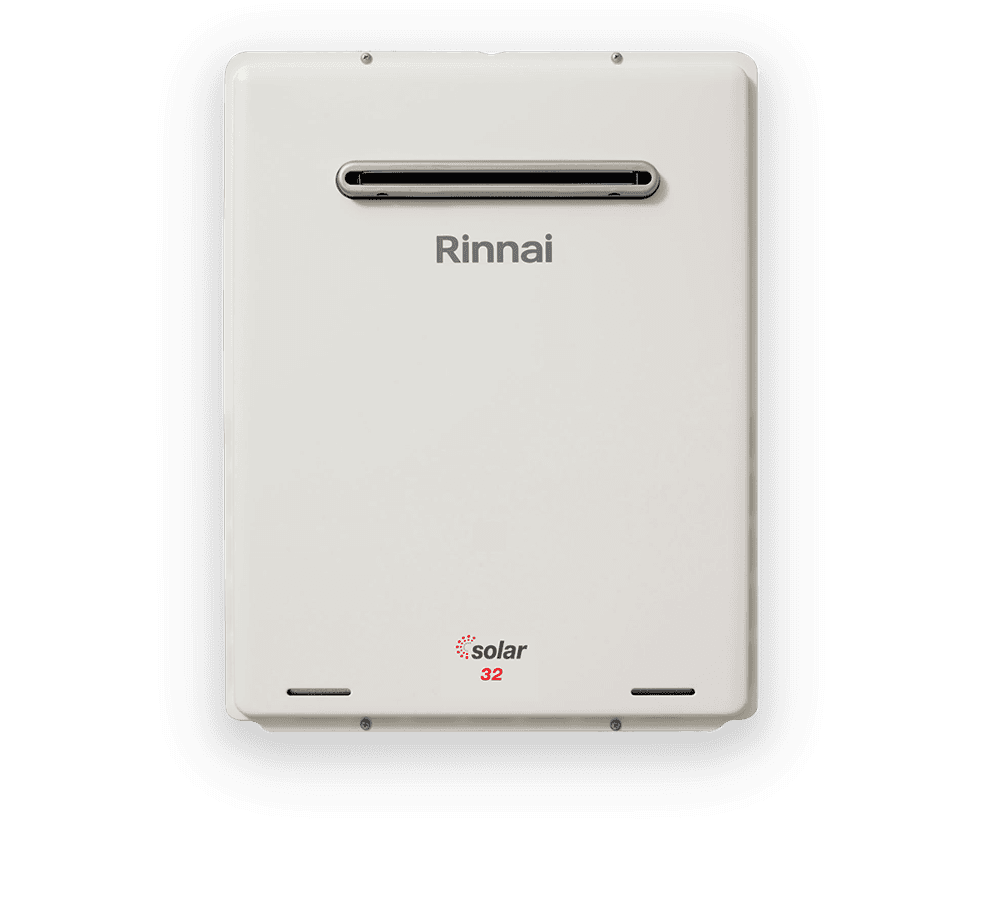

S32 Solar Booster
Intelligently designed to boost solar energy.
Ensure reliable, energy-efficient hot water with the S32 Solar Gas Booster, delivering powerful solar boosting performance and high flow for larger homes and varying conditions.
Model
28L/minCapacity
2-3Bathrooms
Highlights
- Ideal for larger homes with multiple bathrooms or high hot water demand
- Designed specifically for solar
- Never runs out of hot water
- External model built to withstand Australian conditions
Specifications
Number of Bathrooms | 2-3 | |
|---|---|---|
Dimensions | Height x Width x Depth | 600 x 470 x 271 mm |
Height | Including Brackets | 640 mm |
Colour | White | |
Flow Rate | Maximum | 32 L / min |
Water Pressure | Minimum / Maximum | 200 / 1000 kPa |
Hot Water Outlet | From Wall / Left from Centre | 115 / 61 mm |
Cold Water Inlet | From Wall / Right from Centre | 125 / 67 mm |
Connection Length from Base | Gas / Hot / Cold | 37 / 40 / 49 mm |
Connection Sizes | Gas / Hot / Cold | 20 / 20 / 20 mm |
Gas Rate | Maximum | 250 MJ / h |
Factory Default Temperature | 70 °C | |
Status Monitor | Yes | |
Compatible with Water Controllers | No | |
Note: Can NOT be used as a stand alone continuous flow water heater
Number of Bathrooms | 2-3 | |
|---|---|---|
Dimensions | Height x Width x Depth | 600 x 470 x 271 mm |
Height | Including Brackets | 640 mm |
Colour | White | |
Flow Rate | Maximum | 32 L / min |
Water Pressure | Minimum / Maximum | 200 / 1000 kPa |
Hot Water Outlet | From Wall / Left from Centre | 115 / 61 mm |
Cold Water Inlet | From Wall / Right from Centre | 125 / 67 mm |
Connection Length from Base | Gas / Hot / Cold | 37 / 40 / 49 mm |
Connection Sizes | Gas / Hot / Cold | 20 / 20 / 20 mm |
Gas Rate | Maximum | 250 MJ / h |
Factory Default Temperature | 70 °C | |
Status Monitor | Yes | |
Compatible with Water Controllers | No | |
Note: Can NOT be used as a stand alone continuous flow water heater
Disclaimer / Footnotes
Product codes: REU-VRM3237WG
