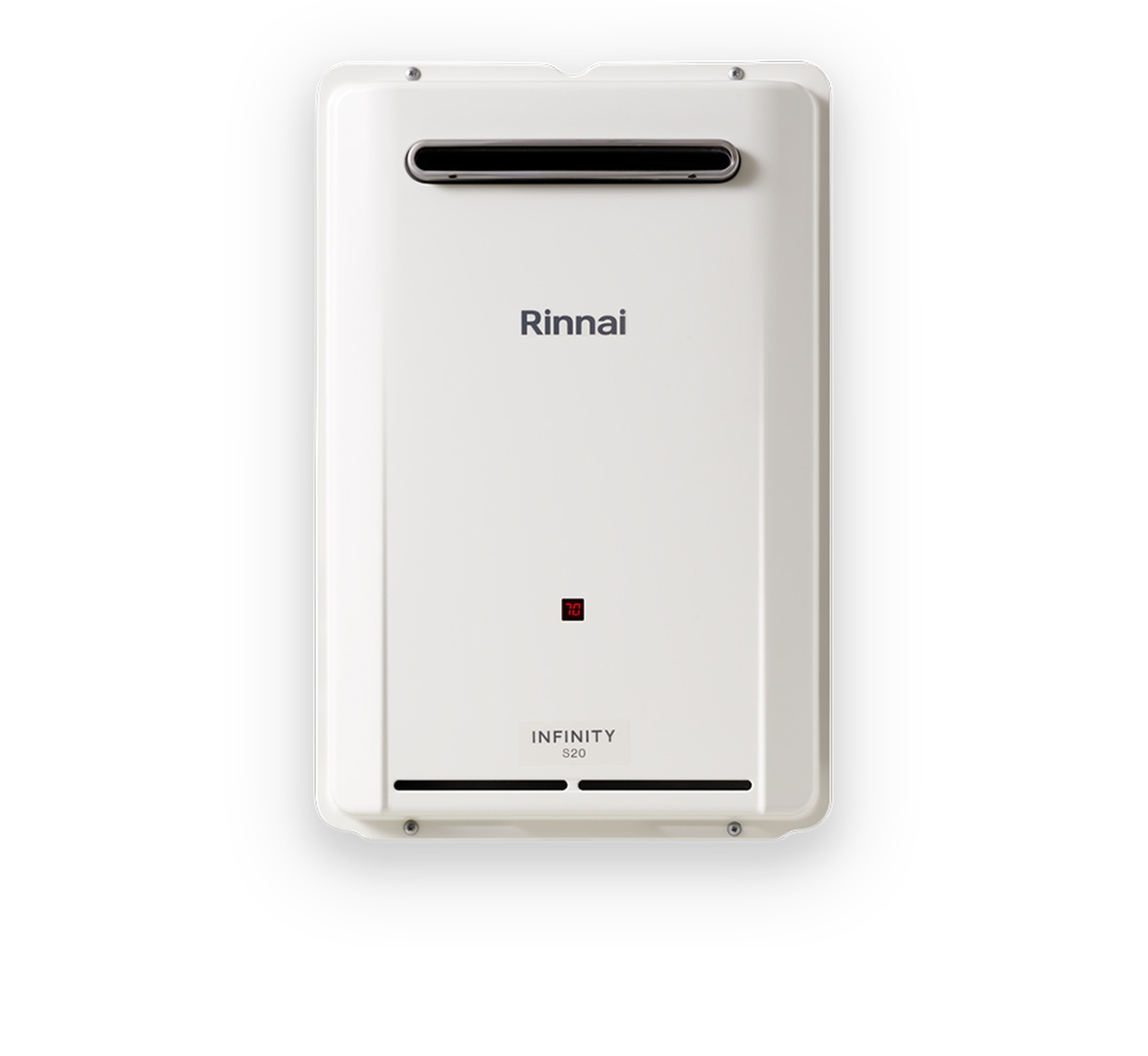

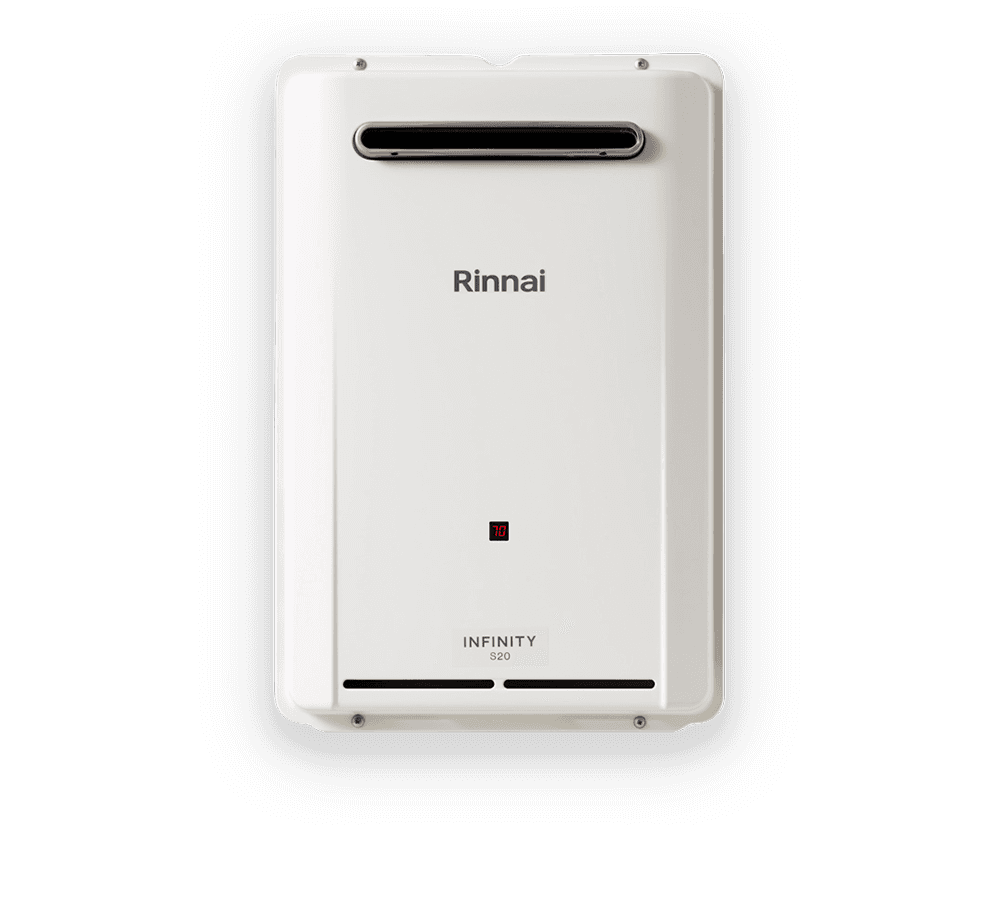

S20 Solar Booster
Built in intelligence.
Ensure reliable solar-boosted hot water with the S20 Solar Gas Booster, delivering efficient performance and consistent, high-flow supply for everyday household comfort.
Model
20L/minCapacity
1Bathrooms
Highlights
- Designed specifically for solar
- Never runs out of hot water
- External model built to withstand Australian conditions
Specifications
Number of Bathrooms | 1-2 | |
|---|---|---|
Dimensions | Height x Width x Depth | 530 x 350 x 194 mm |
Height | Including Brackets | 571 mm |
Colour | Dune | |
Flow Rate | Maximum | 20 L / min |
Water Pressure | Minimum / Maximum | 160 / 1000 kPa |
Hot Water Outlet | From Wall / Left from Centre | 87 / 105 mm |
Cold Water Inlet | From Wall / Right from Centre | 68 / 10 mm |
Gas Connection | From Wall / Right from Centre | 77 / 83 mm |
Connection Length from Base | Gas / Hot / Cold | 40 / 39 / 50 mm |
Connection Sizes | Gas / Hot / Cold | 20 / 20 / 20 mm |
Gas Rate | Maximum | 125 MJ / h |
Factory Default Temperature | 70 °C | |
Status Monitor | No | |
Compatible with Water Controllers | No | |
Note: Can NOT be used as a stand alone continuous flow water heater
Number of Bathrooms | 1-2 | |
|---|---|---|
Dimensions | Height x Width x Depth | 530 x 350 x 194 mm |
Height | Including Brackets | 571 mm |
Colour | Dune | |
Flow Rate | Maximum | 20 L / min |
Water Pressure | Minimum / Maximum | 160 / 1000 kPa |
Hot Water Outlet | From Wall / Left from Centre | 87 / 105 mm |
Cold Water Inlet | From Wall / Right from Centre | 68 / 10 mm |
Gas Connection | From Wall / Right from Centre | 77 / 83 mm |
Connection Length from Base | Gas / Hot / Cold | 40 / 39 / 50 mm |
Connection Sizes | Gas / Hot / Cold | 20 / 20 / 20 mm |
Gas Rate | Maximum | 125 MJ / h |
Factory Default Temperature | 70 °C | |
Status Monitor | No | |
Compatible with Water Controllers | No | |
Note: Can NOT be used as a stand alone continuous flow water heater
Disclaimer / Footnotes
Product codes: REU-A1620WS
