Operation-Manual
)

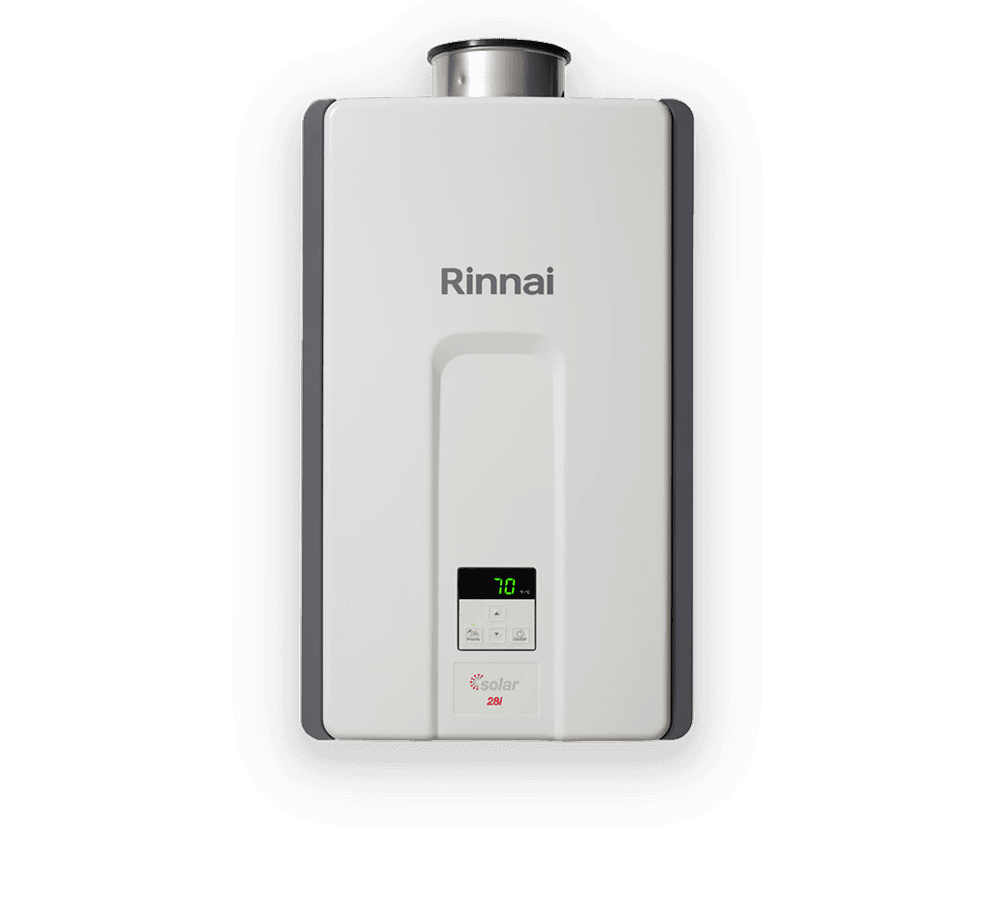

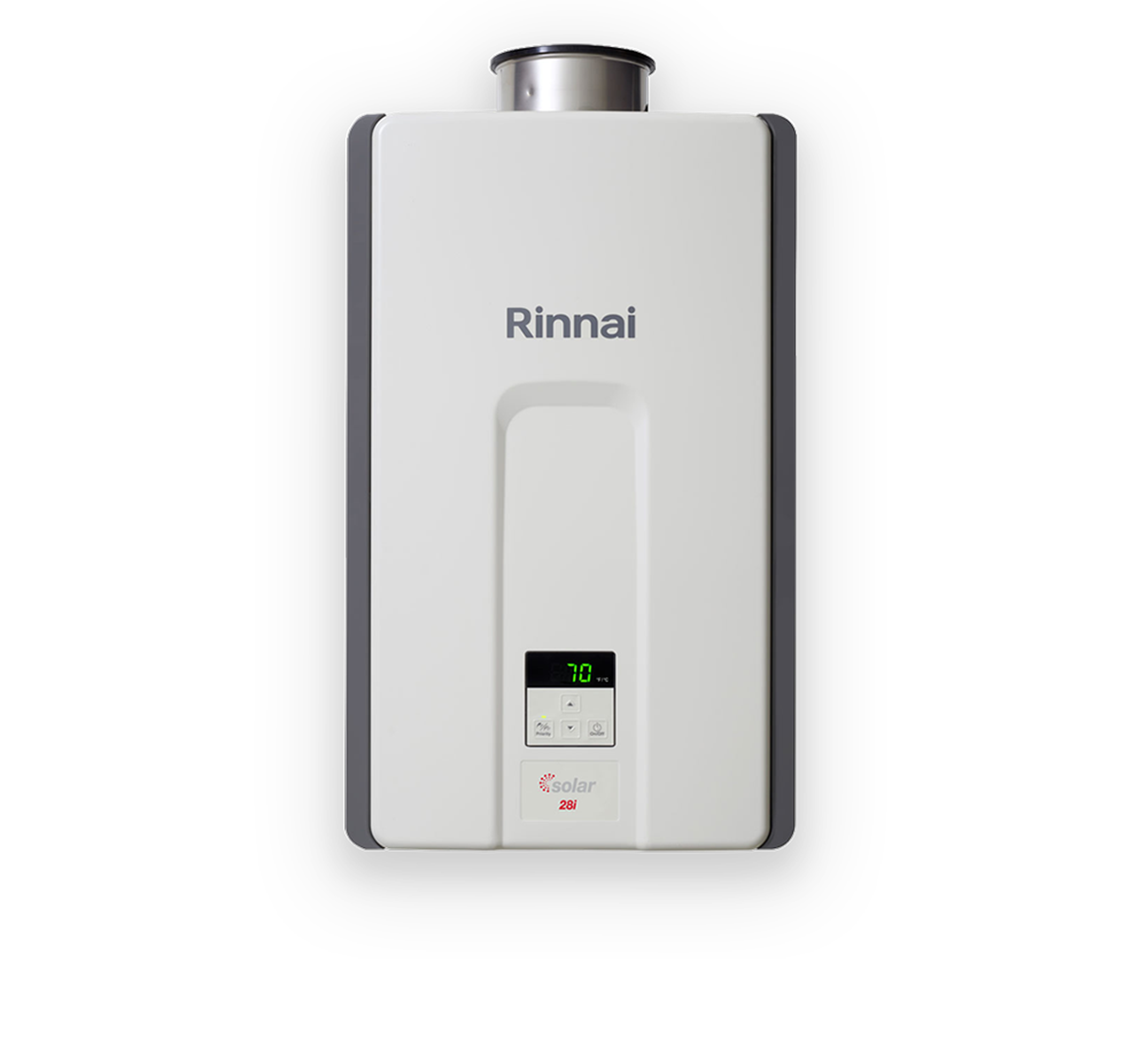

S28i Solar Booster
Servicing multiple fixtures at once.
Enjoy reliable solar-boosted hot water with the S28i Solar Gas Booster, delivering efficient, high-performance flow and compact, smart operation for busy households year-round. Designed to be installed internally.
Model
28L/minCapacity
2-3Bathrooms
Highlights
- Quality Japanese design and manufacturing
- Designed specifically for solar
- Never runs out of hot water
- Designed for indoor installation
Specifications
Number of Bathrooms | 2-3 | |
|---|---|---|
Dimensions | Height x Width x Depth | 583 x 357 x 245 mm |
Height | Including Brackets | 648 mm |
Colour | White | |
Flow Rate | Maximum | 28 L / min |
Water Pressure | Minimum / Maximum | 220 / 1000 kPa |
Hot Water Outlet | From Wall / Left from Centre | 91 / 110 mm |
Cold Water Inlet | From Wall / Right from Centre | 70 / 27 mm |
Gas Connection | From Wall / Right from Centre | 99 / 89 mm |
Connection Length from Base | Gas / Hot / Cold | 36 / 36 / 46 mm |
Connection Sizes | Gas / Hot / Cold | 20 / 20 / 20 mm |
Gas Rate | Maximum | 210 MJ / h |
Factory Default Temperature | 70 °C | |
Status Monitor | Yes | |
Compatible with Water Controllers | No | |
Note: Can NOT be used as a stand alone continuous flow water heater
Number of Bathrooms | 2-3 | |
|---|---|---|
Dimensions | Height x Width x Depth | 583 x 357 x 245 mm |
Height | Including Brackets | 648 mm |
Colour | White | |
Flow Rate | Maximum | 28 L / min |
Water Pressure | Minimum / Maximum | 220 / 1000 kPa |
Hot Water Outlet | From Wall / Left from Centre | 91 / 110 mm |
Cold Water Inlet | From Wall / Right from Centre | 70 / 27 mm |
Gas Connection | From Wall / Right from Centre | 99 / 89 mm |
Connection Length from Base | Gas / Hot / Cold | 36 / 36 / 46 mm |
Connection Sizes | Gas / Hot / Cold | 20 / 20 / 20 mm |
Gas Rate | Maximum | 210 MJ / h |
Factory Default Temperature | 70 °C | |
Status Monitor | Yes | |
Compatible with Water Controllers | No | |
Note: Can NOT be used as a stand alone continuous flow water heater
Disclaimer / Footnotes
Product codes: REU-VCM2837FF
