Specification
)

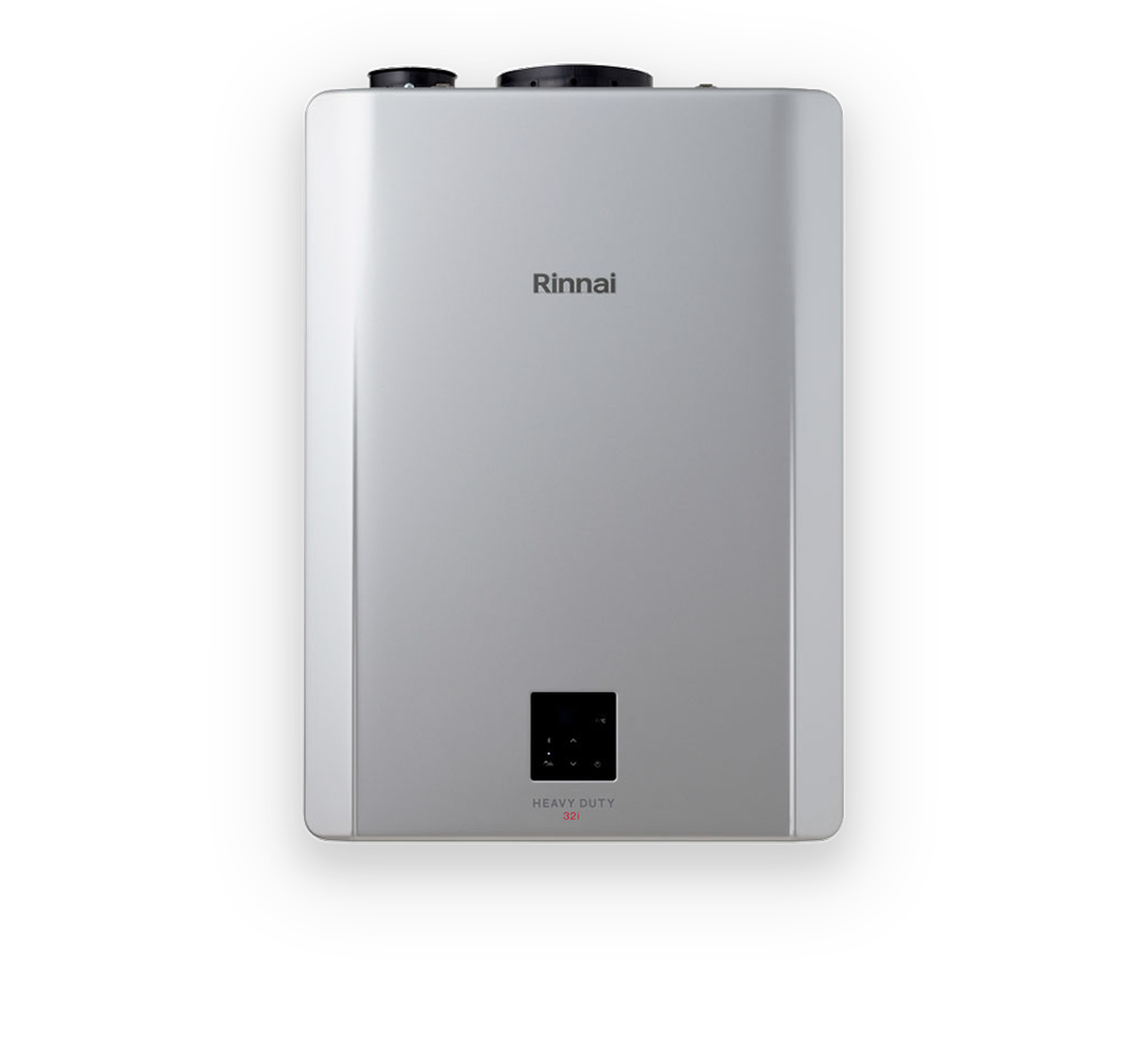

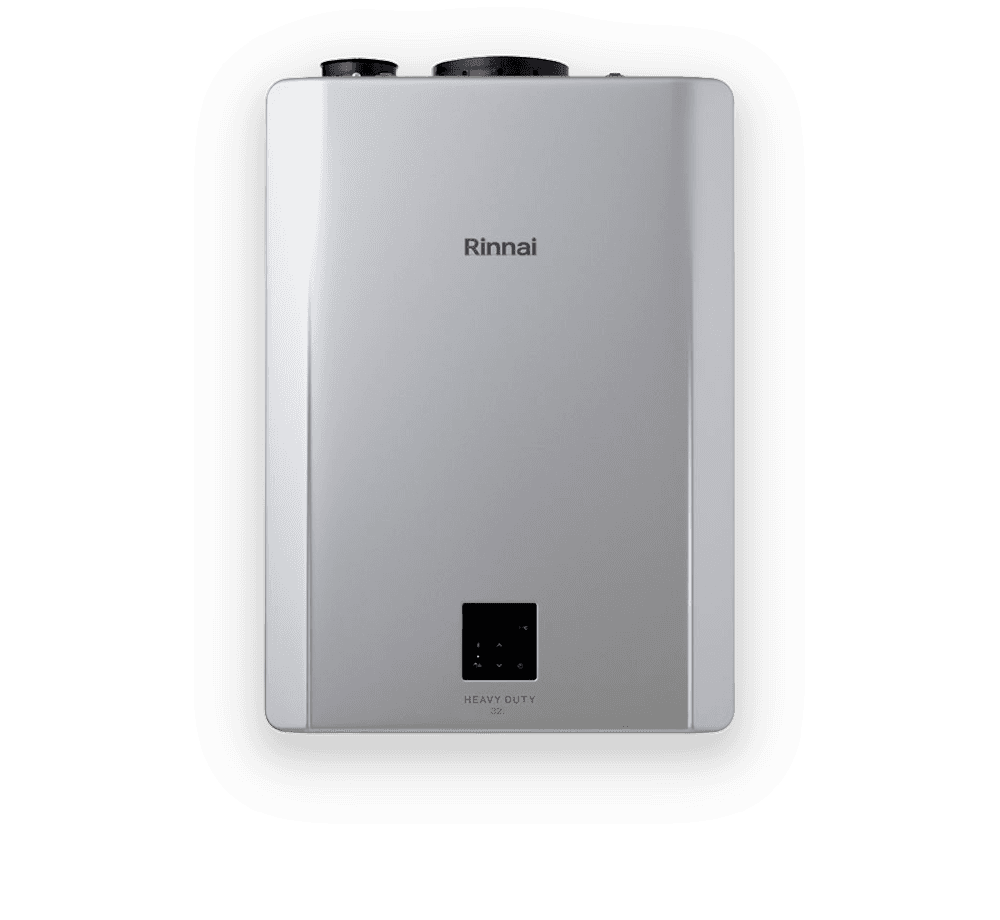

HDC32i (Internal)
Ground breaking technology.
Delivering Australian-first innovation with 97% thermal efficiency, the Rinnai HDC32i Heavy Duty Continuous Flow Hot Water system features dual stainless steel heat exchangers and flexible internal installation.
Model
56kWOutput
Highlights
- Ideal for childcare centres, high usage amenities and factories
- Revolutionary surface burner technology – an Australian first
- High temperature safety cut-out
- 7.0 star equivalent energy rating**
- 97% thermal efficiency
- 56kW output capacity
&w=3840&q=75)
Specifications
Height x Width | 654 x 470 | |
|---|---|---|
Weight | 27 kg | |
Factory Default Temperature | 50 or 75 °C | |
Temperature | Maximum | 85 °C |
Water Pressure | Minimum / Maximum | 300 / 1000 kPa |
Gas Rate | Minimum / Maximum | 15.9 / 209 NG/LPG |
Operating Water Flow Rate | Minimum | 2.4 L/min |
Thermal Efficiency Rating | 96.2 % | |
Energy Rating | 7 Stars | |
Capacity | Maximum | 55.6 kW |
Compatibility | MECS / Cascade | Yes / Yes |
Status Monitor | Yes | |
Electrical Consumption | 150 W | |
Sound Level | 49 dBA | |
Height x Depth | Including Brackets | 730 x 291 mm |
Hot Water Outlet | From Wall / From Centre | 158 / 130 mm |
Cold Water Inlet | From Wall / From Centre | 91 / 9 mm |
Gas Connection | From Wall / From Centre | 72 / 142 mm |
Condensate Connection | From Wall / From Centre | 135 / 181 mm |
Fitting Diameter | Hot / Cold / Gas | 20 |
Height x Width | 654 x 470 | |
|---|---|---|
Weight | 27 kg | |
Factory Default Temperature | 50 or 75 °C | |
Temperature | Maximum | 85 °C |
Water Pressure | Minimum / Maximum | 300 / 1000 kPa |
Gas Rate | Minimum / Maximum | 15.9 / 209 NG/LPG |
Operating Water Flow Rate | Minimum | 2.4 L/min |
Thermal Efficiency Rating | 96.2 % | |
Energy Rating | 7 Stars | |
Capacity | Maximum | 55.6 kW |
Compatibility | MECS / Cascade | Yes / Yes |
Status Monitor | Yes | |
Electrical Consumption | 150 W | |
Sound Level | 49 dBA | |
Height x Depth | Including Brackets | 730 x 291 mm |
Hot Water Outlet | From Wall / From Centre | 158 / 130 mm |
Cold Water Inlet | From Wall / From Centre | 91 / 9 mm |
Gas Connection | From Wall / From Centre | 72 / 142 mm |
Condensate Connection | From Wall / From Centre | 135 / 181 mm |
Fitting Diameter | Hot / Cold / Gas | 20 |
Resources
Operation-Manual
Infinity Enviro 32 / HDC32 (Heavy Duty) Gas Continuous Flow Hot Water Operation and Installation Manual
Installation-Manual
Commercial Hot Water FFPP (Polypropylene) Flue System Installation Manual
Error-Codes
Gas Continuous Flow Hot Water Error Codes
Warranty
Commercial Hot Water Warranty Booklet
Disclaimer / Footnotes
Product codes: REU-NB3237WC-AK / REU-NB3237FFC-AK
