Specification
)

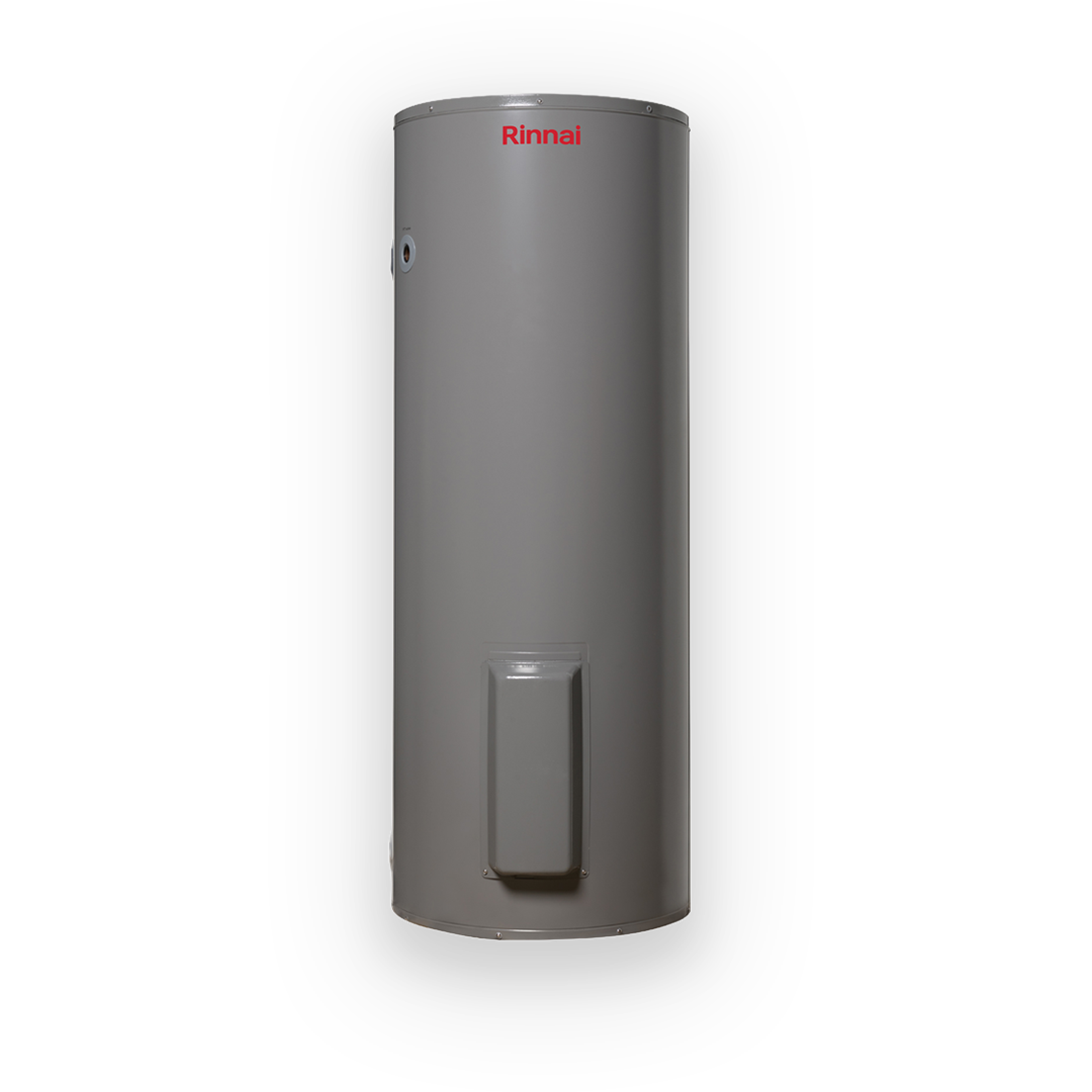

Quick Recovery Electric Vitreous Enamel 3.6kW 340L
High capacity, quick recovery – built for reliability.
Deliver fast, reliable hot water with the 340L Quick Recovery 3.6kW Electric Vitreous Enamel storage hot water system, offering high capacity, durable performance, and flexible installation for homes or businesses.
Model
340LCapacity
3.6kWEnergy
Highlights
- 340L storage capacity tank delivers up to 315L with maximum working pressure of 1000kPa
- Premium Y-Class enamel-lined cylinder provides enhanced corrosion resistance and long-lasting durability for demanding commercial hot water applications
- Exceeds MEPS heat loss standards and is WaterMark certified for compliant, fit-for-purpose installation
- High flow performance with low pressure drop, suitable for both internal and external installation
- High-efficiency polyurethane insulation, easy maintenance access, and flexible installation options deliver reliable, hassle-free performance
- 5 year commercial cylinder warranty*
Specifications
Height x Width x Depth |
| 1740 x 655 x 700 mm |
|---|---|---|
Hot Outlet / Cold Outlet |
| 1425 / 130 mm |
Dry Weight |
| 110 kg |
Electrical Entry |
| 140 mm |
Overall Width1 |
| 745 mm |
Storage Capacity |
| 340 L |
Hot Water Delivery |
| 315 L |
First Hour Delivery | 50°C rise | 500 L |
Recovery Rate | 50°C rise | 185 L |
Number of Elements |
| 3 |
Element Capacity (each) |
| 3.6 kW |
Total Input Power |
| 10.8 kW |
Electrical |
| 3 Phase, 415 VAC |
Current (per phase) |
| 15 Amps |
Pressure and Temperature Relief (PTR) Valve Setting |
| 1000 kPa |
Expansion Control Valve (ECV) Setting |
| 850 kPa |
Maximum Inlet Pressure | without ECV | 800 kPa |
| with ECV | 680 kPa |
Thermostat Setting | Factory/ Minimum | 70 / 60 °C |
Connection | Cold Inlet / Hot Outlet | 32 / 32 mm |
PTR Valve Connection |
| 20 mm |
Energy Maintenance Rate |
| 2.5 kW / 24h |
1. Including Pressure and Temperature Relief (PTR) valve
Height x Width x Depth |
| 1740 x 655 x 700 mm |
|---|---|---|
Hot Outlet / Cold Outlet |
| 1425 / 130 mm |
Dry Weight |
| 110 kg |
Electrical Entry |
| 140 mm |
Overall Width1 |
| 745 mm |
Storage Capacity |
| 340 L |
Hot Water Delivery |
| 315 L |
First Hour Delivery | 50°C rise | 500 L |
Recovery Rate | 50°C rise | 185 L |
Number of Elements |
| 3 |
Element Capacity (each) |
| 3.6 kW |
Total Input Power |
| 10.8 kW |
Electrical |
| 3 Phase, 415 VAC |
Current (per phase) |
| 15 Amps |
Pressure and Temperature Relief (PTR) Valve Setting |
| 1000 kPa |
Expansion Control Valve (ECV) Setting |
| 850 kPa |
Maximum Inlet Pressure | without ECV | 800 kPa |
| with ECV | 680 kPa |
Thermostat Setting | Factory/ Minimum | 70 / 60 °C |
Connection | Cold Inlet / Hot Outlet | 32 / 32 mm |
PTR Valve Connection |
| 20 mm |
Energy Maintenance Rate |
| 2.5 kW / 24h |
1. Including Pressure and Temperature Relief (PTR) valve
Disclaimer / Footnotes
Product codes: QREVE340L336(H)
