Rinnai Infinity 16 Enviro
Rinnai Infinity 16 Enviro
Australia’s most efficient hot water system
Perfect for 1 bathroom homes (2 in warmer climates) the eco-efficient Rinnai Infinity 16 Enviro Continuous Flow Condensing Hot Water System ensures you never run out of hot water again.
Using considerably less gas than a standard continuous flow hot water system or gas storage tank, this unit only heats water when you turn a tap on, conserving energy and reducing household running costs. Coupled with an outstanding 7 star equivalent energy rating*, the Rinnai Infinity 16 Enviro means you get superior comfort with a smaller carbon footprint.
Designed for easy domestic commissioning and installation, the slimline unit withstands tough Australian conditions and saves precious outdoor space. The Rinnai Infinity 16 Enviro also comes equipped with a host of features including built-in condensate neutraliser kit, enhanced safety monitor and Puretemp™ stability control**.
Customise and complete your Infinity 16 Enviro system with our comprehensive range of hot water controllers and accessories to enhance your hot water experience.
Locate Your Nearest Store
7.0 Star equivalent energy rating*
Ideal for 1 bathroom (2 in warmer climates)
Never runs out of hot water
Precise temperature control for safety and convenience
Puretemp™ temperature stability technology**
LPG or natural gas models available
Built in condensate neutraliser kit
50°C pre-set and 60°C models available
25 year extended heat exchanger warranty***
7.0 Star Rating*
- Australia's first 7 star equivalent 16 litre model*
- Uses less gas, substantially reducing running costs
- Generates only 1/6th of the greenhouse gas emissions of a standard electric hot water system
Superior Technology
Rinnai Quality
- 25 year extended heat exchanger warranty***
- After-sales support
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
*Independently calculated using Australian Standard AS4552. | AS4552 limits the rating shown on the energy label to 6.0 Stars. | Where the calculated rating of Rinnai appliances exceeds 6.0 Stars it is designated as an “equivalent” rating.
**Puretemp™ temperature stability control ensures that the water temperature remains steady, even during fluctuations in flow.
*** 25 year extended heat exchanger warranty available subject to participating in the Rinnai scheduled service program. For full terms and conditions please refer to the warranty booklet.
| Rinnai – Infinity 16 Enviro Gas Continuous Flow Hot Water System | Unit | Values | ||
| No. Shower Outlets | Warm Climates | 1 | ||
| Cool Climates | 2 | |||
| Dimensions | H x W x D | mm | 531 x 351 x 191 | |
| Height including Brackets | mm | 531 | ||
| Hot Water Outlet | From Wall | mm | 103 | |
| Left from Centre | 127 | |||
| Cold Water Inlet | From Wall | mm | 63 | |
| Right from Centre | 20 | |||
| Gas Connection | From Wall | mm | 61 | |
| Right from Centre | 83 | |||
| Length from Base | 38 | |||
| Hot Connection | Length from Base | mm | 39 | |
| Cold Connection | Length from Base | mm | 50 | |
| Condensate Outlet | From Wall | mm | 137 | |
| From Centre | 7 | |||
| From Base | 36 | |||
| Fitting Diameter | 15 | |||
| Weight | kg | 16 | ||
| Colour | Prestige Silver | |||
| Star Energy Rating | 7.0* Equivalent | |||
| Connection Sizes | Gas | mm | 20 | |
| Hot | 20 | |||
| Cold | 20 | |||
| Flow Rate 25°C | Maximum | l/min | 16 / 20 | |
| Gas Rate | Maximum | NG | 16 / 110 | |
| Water Pressure | Minimum | kPa | 140 | |
| Maximum | 1000 | |||
| Factory Default Temperature | °C | 50 / 60 | ||
| Status Monitor | No | |||
* Sizing assumes AAA or 3 star outlets. For more sizing information, consult with your hot water specialist.
Photography
-

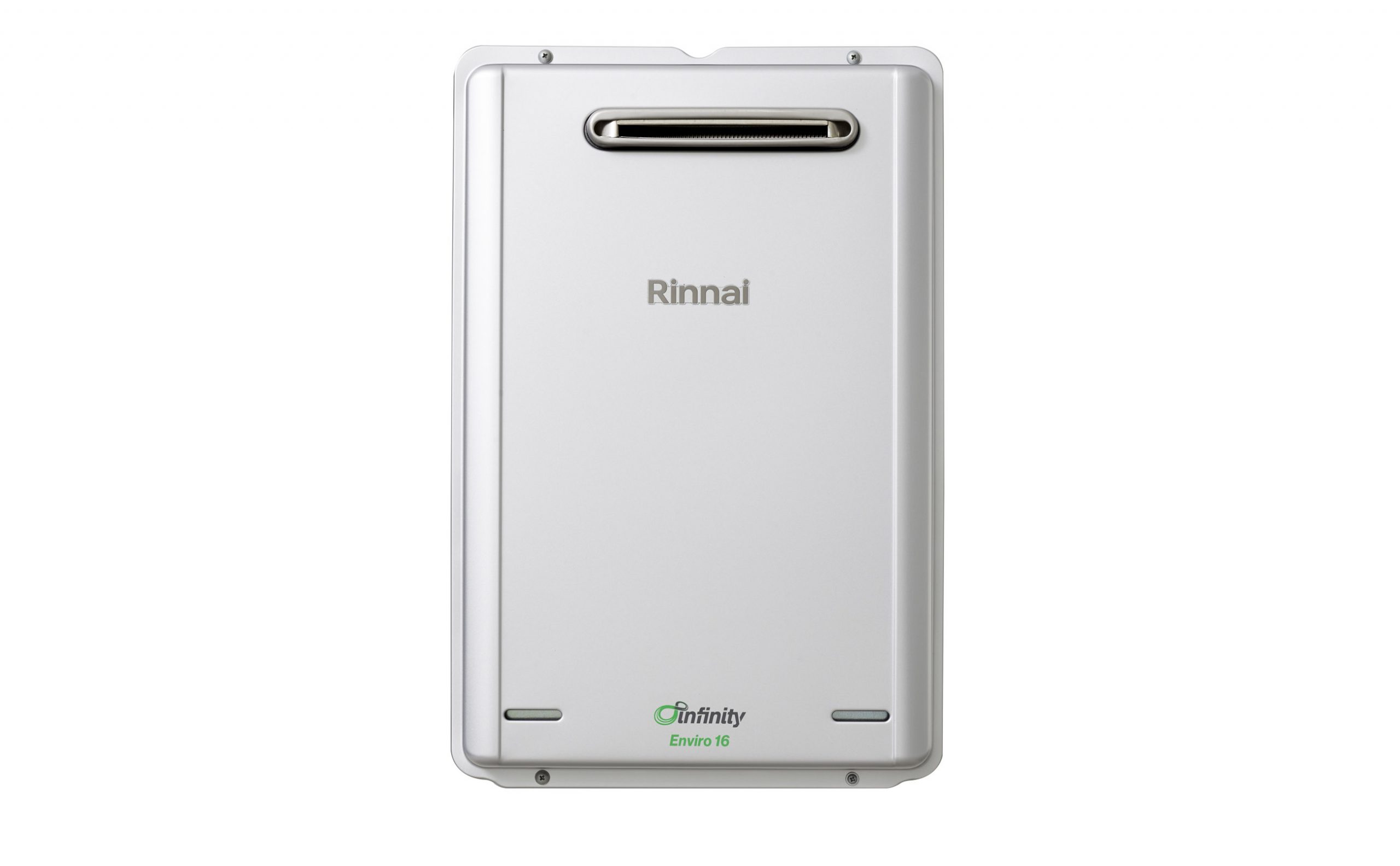

Rinnai Infinity 16 Enviro Gas Continuous Flow Hot Water (front)Preview
-

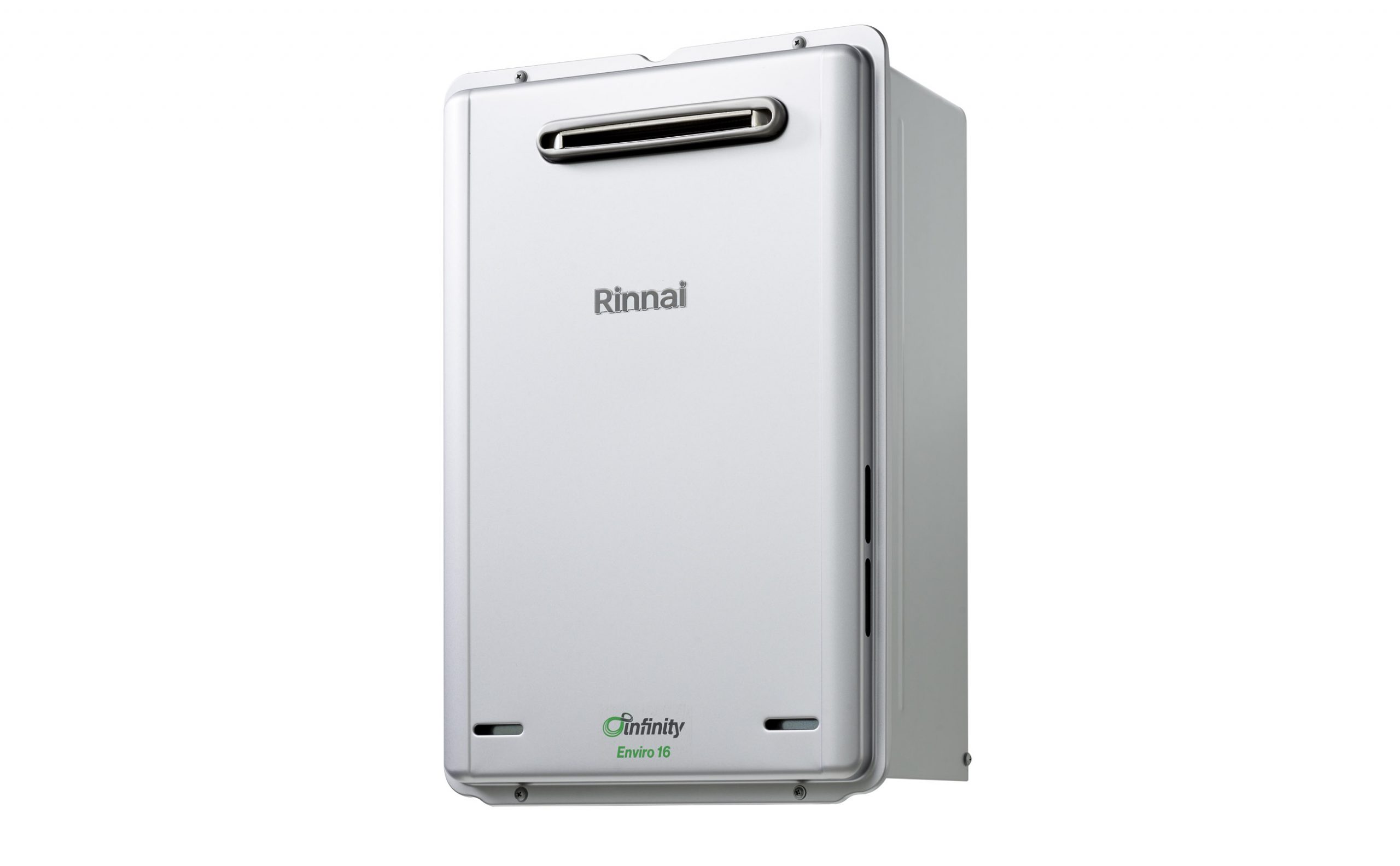

Rinnai Infinity 16 Enviro Gas Continuous Flow Hot Water (left)Preview
-

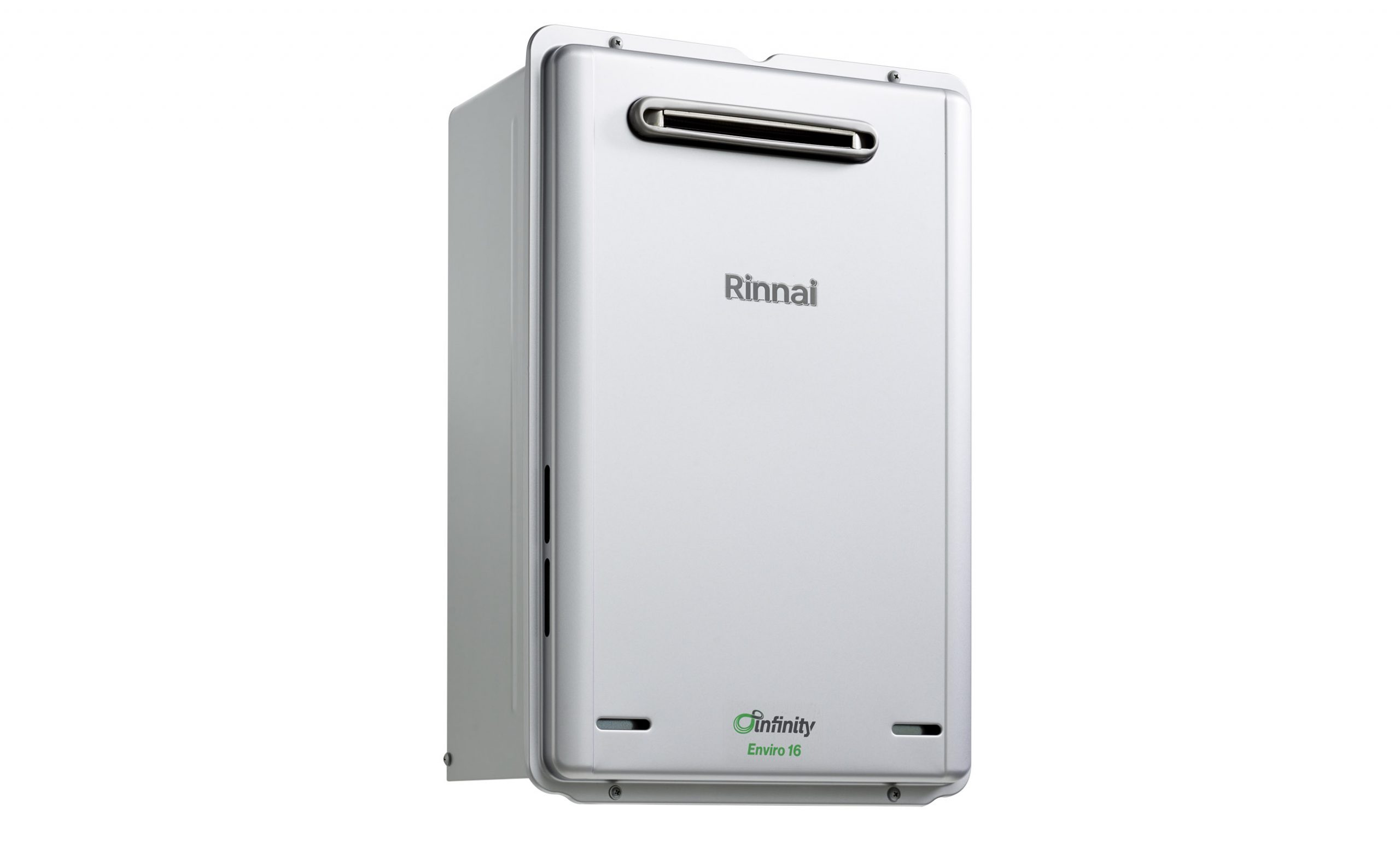

Rinnai Infinity 16 Enviro Gas Continuous Flow Hot Water (right)Preview
-

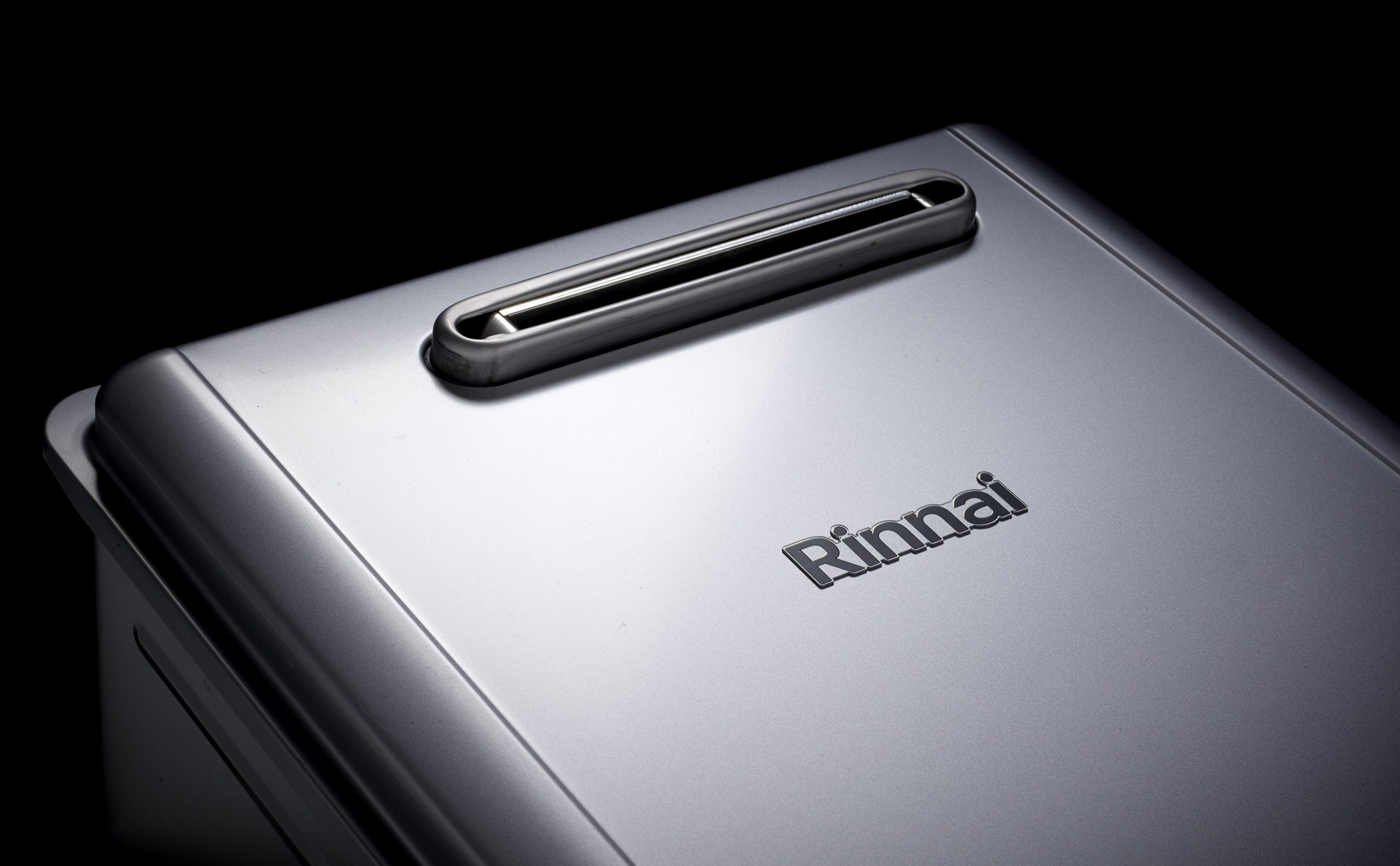

Rinnai Infinity Enviro Gas Continuous Flow Hot Water (closeup)Preview
-

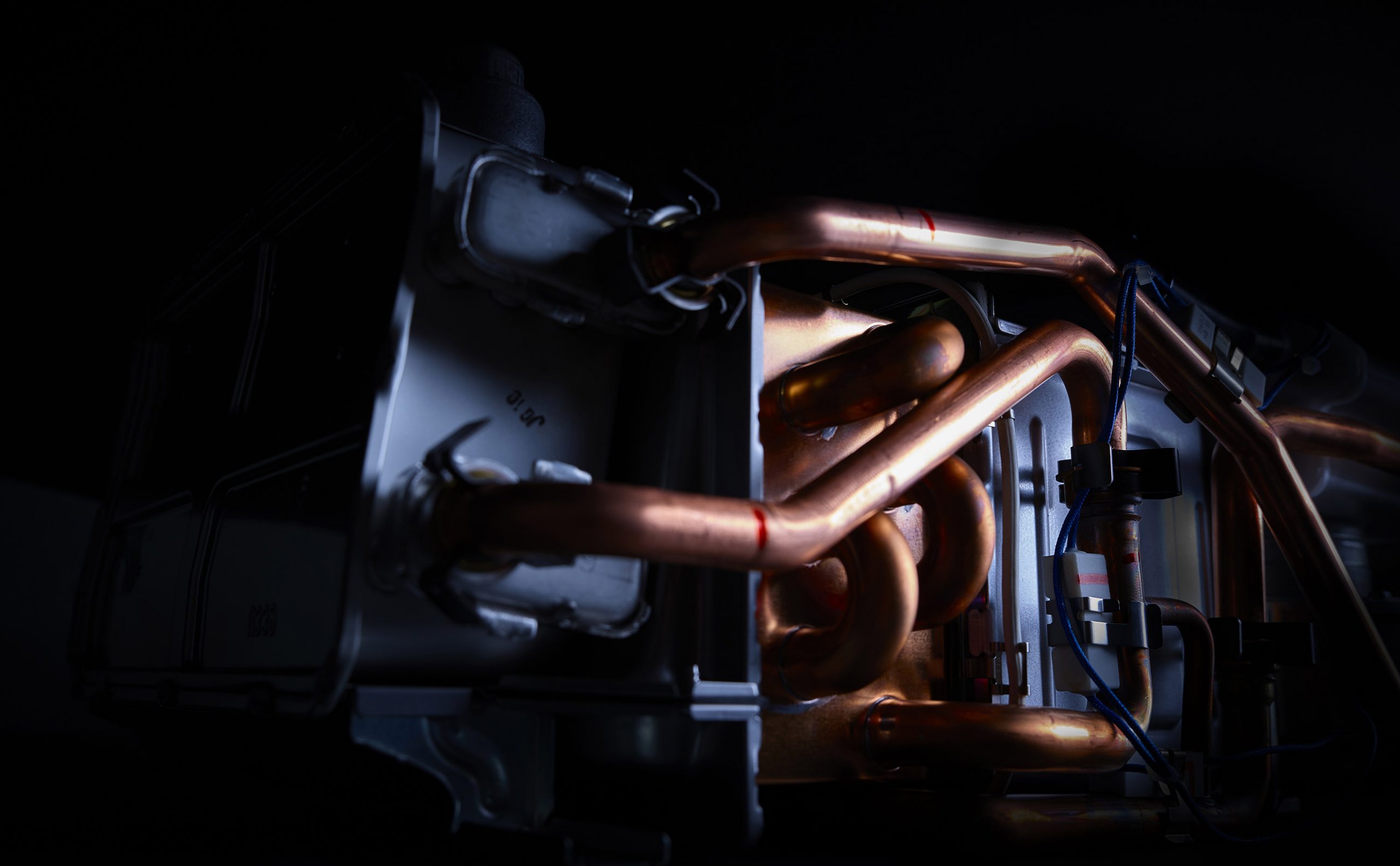

Rinnai Infinity Gas Continuous Flow Hot Water (interior pipes v1)Preview
-
Rinnai Infinity Gas Continuous Flow Hot Water (interior pipes v2)Preview
-

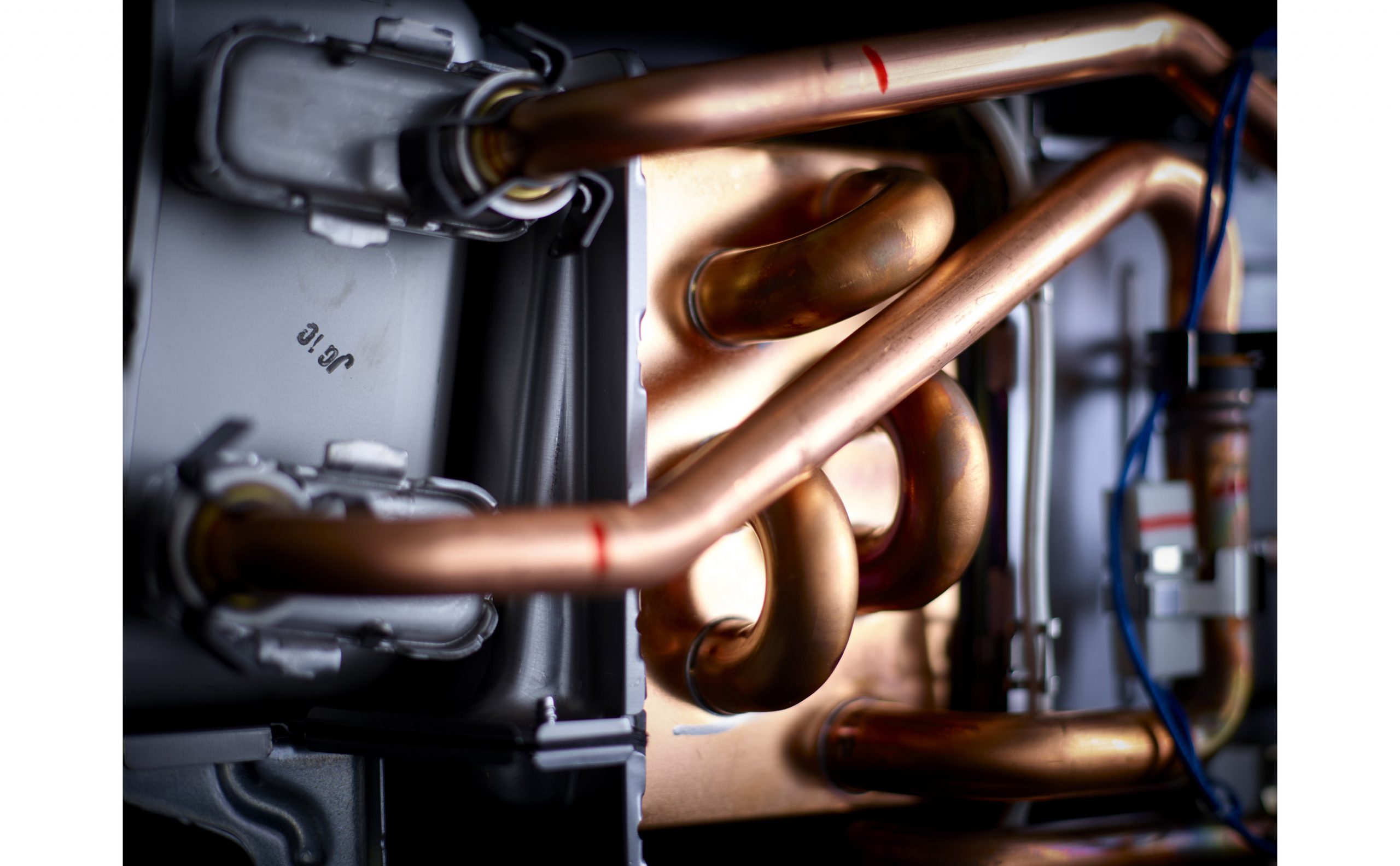

Rinnai Infinity Gas Continuous Flow Hot Water (interior pipes v3)Preview
-

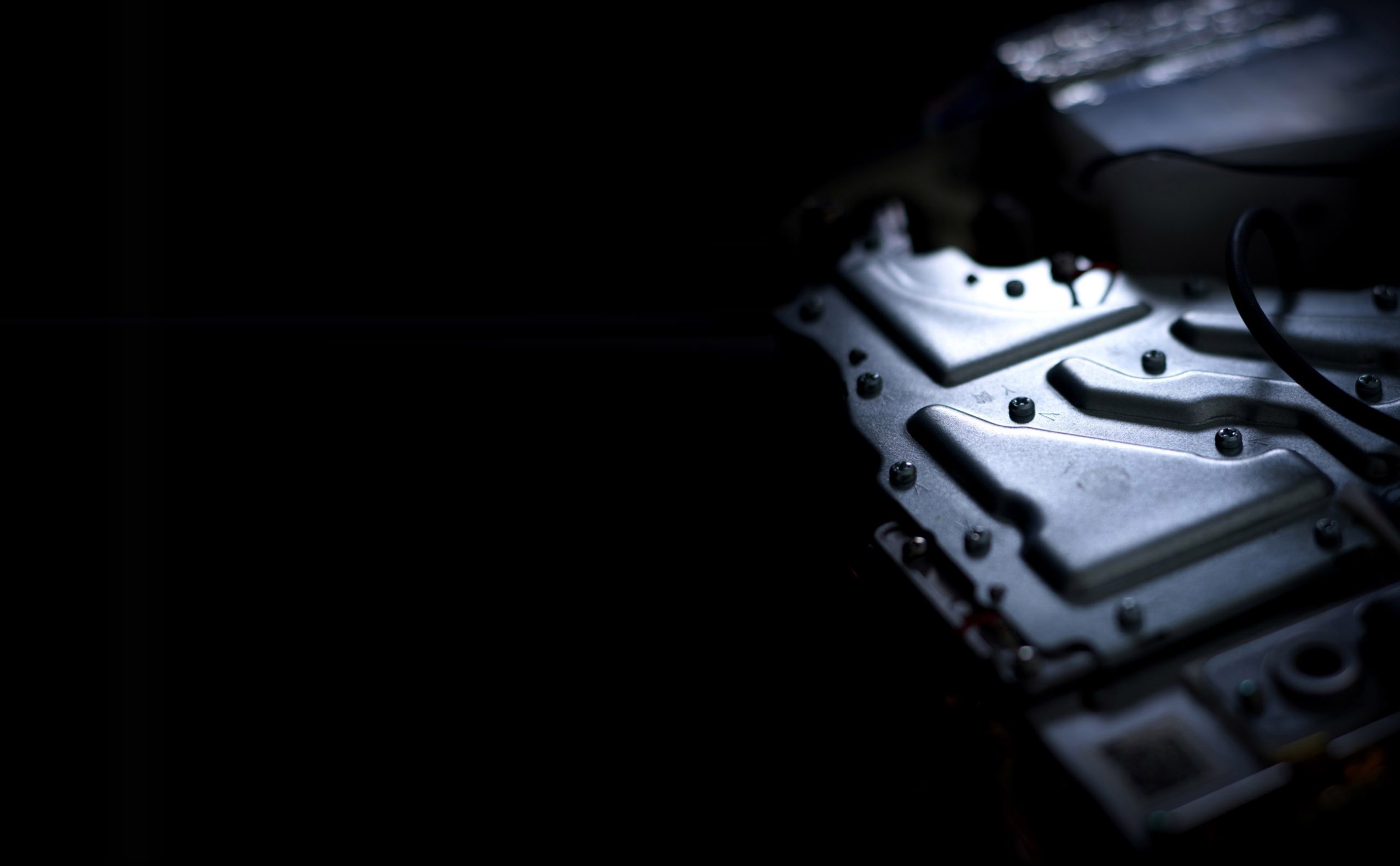

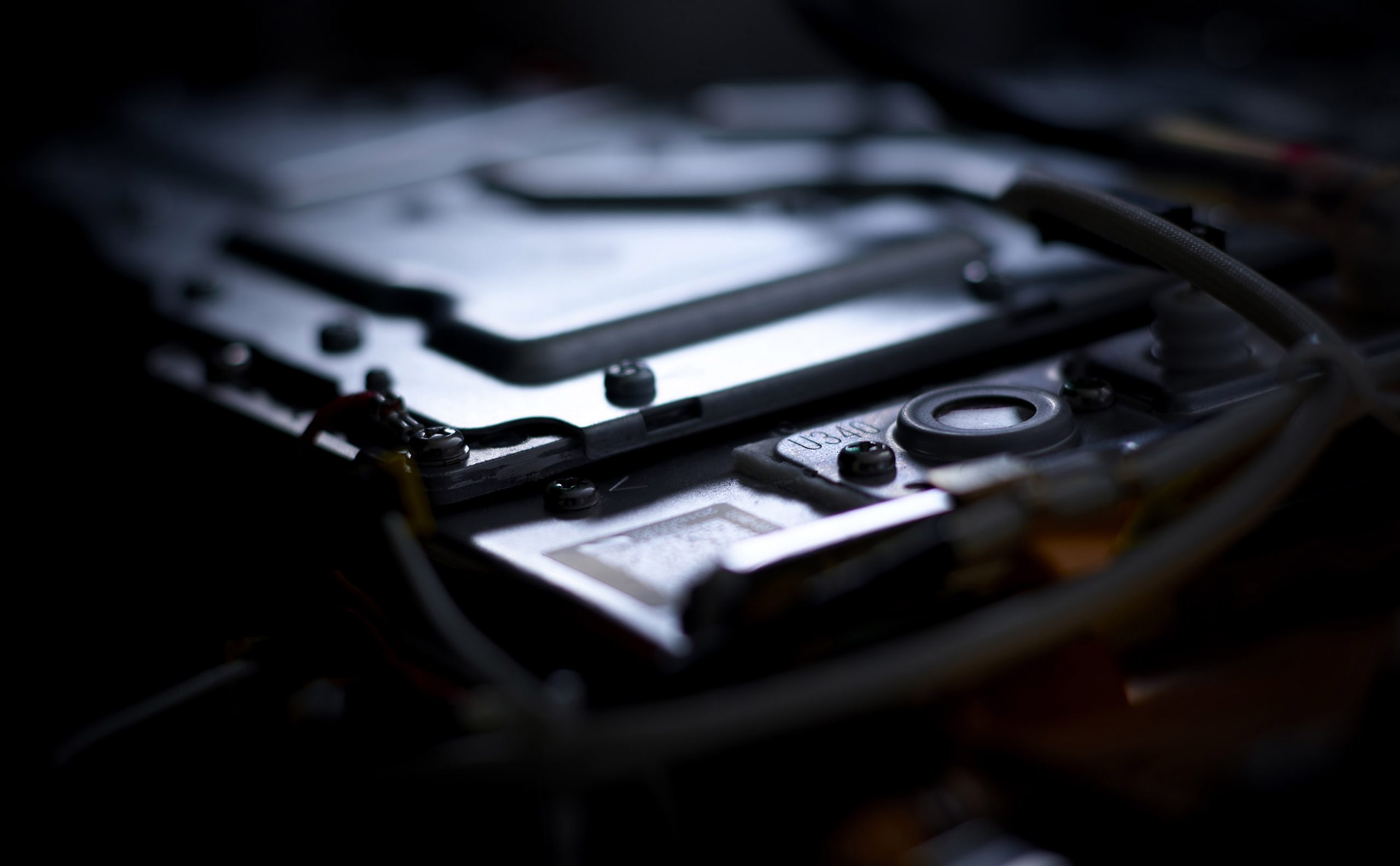

Rinnai Infinity Gas Continuous Flow Hot Water (interior v1)Preview
-
