SP5 Series Gas Ducted Heating System
SP5 Series Gas Ducted Heating System
The SP5 Series Ducted Gas Heating System delivers energy efficient heating while using less gas to warm your home.
Not only does it come with an impressive 5 star energy efficiency rating, the SP5 Series achieves this without producing any condensate. Non-condensing gas ducted gas heating systems are easier and faster to install, making them ideal for new installations or ducted gas heater replacements.
Enjoy total home comfort, with a host of add-on features including ZonePlus™, DualComfort™ and Rinnai Touch Wi-Fi, giving you full customisation and control of your home heating system. Experience pleasant gas ducted gas heating and cooling all year long, with the Brivis ICE™ add on feature.
Locate Your Nearest Store
5 star range
Highly energy efficient
Installation flexibility
- Non-condensing 5 Star Rating
- ZonePlus™ compatible
- High efficiency
- Lay down kit (internal unit option)
- Cheaper and easier to install
- Five year parts and labour warranty
- Brivis ICE™ compatible
| Rinnai Gas Ducted Heater | Star Rating | Capacity (kW) | Airflow (L/s) @ 100Pa ESP | Dimensions (L x W x H) | Net Weight (kg) |
| RSP521EN | 5 | 21 | 645 | 1046 x 416 x 657 | 66 |
| RSP521EN-XA | 5 | 21 | 685 | 1046 x 416 x 657 | 66 |
| RSP521IN | 5 | 21 | 740 | 1021 x 395 x 634 | 53 |
| RSP521IN-XA | 5 | 21 | 770 | 1021 x 395 x 634 | 53 |
| RSP530EN | 5 | 30 | 995 | 1096 x 568 x 707 | 85 |
| RSP530EN-XA | 5 | 30 | 1000 | 1096 x 568 x 707 | 85 |
| RSP530IN | 5 | 30 | 1110 | 1070 x 547 x 684 | 71 |
| RSP530IN-XA | 5 | 30 | 1170 | 1070 x 547 x 684 | 71 |
| RSP535IN | 5 | 35 | 1190 | 1070 x 547 x 684 | 72 |
Photography
-

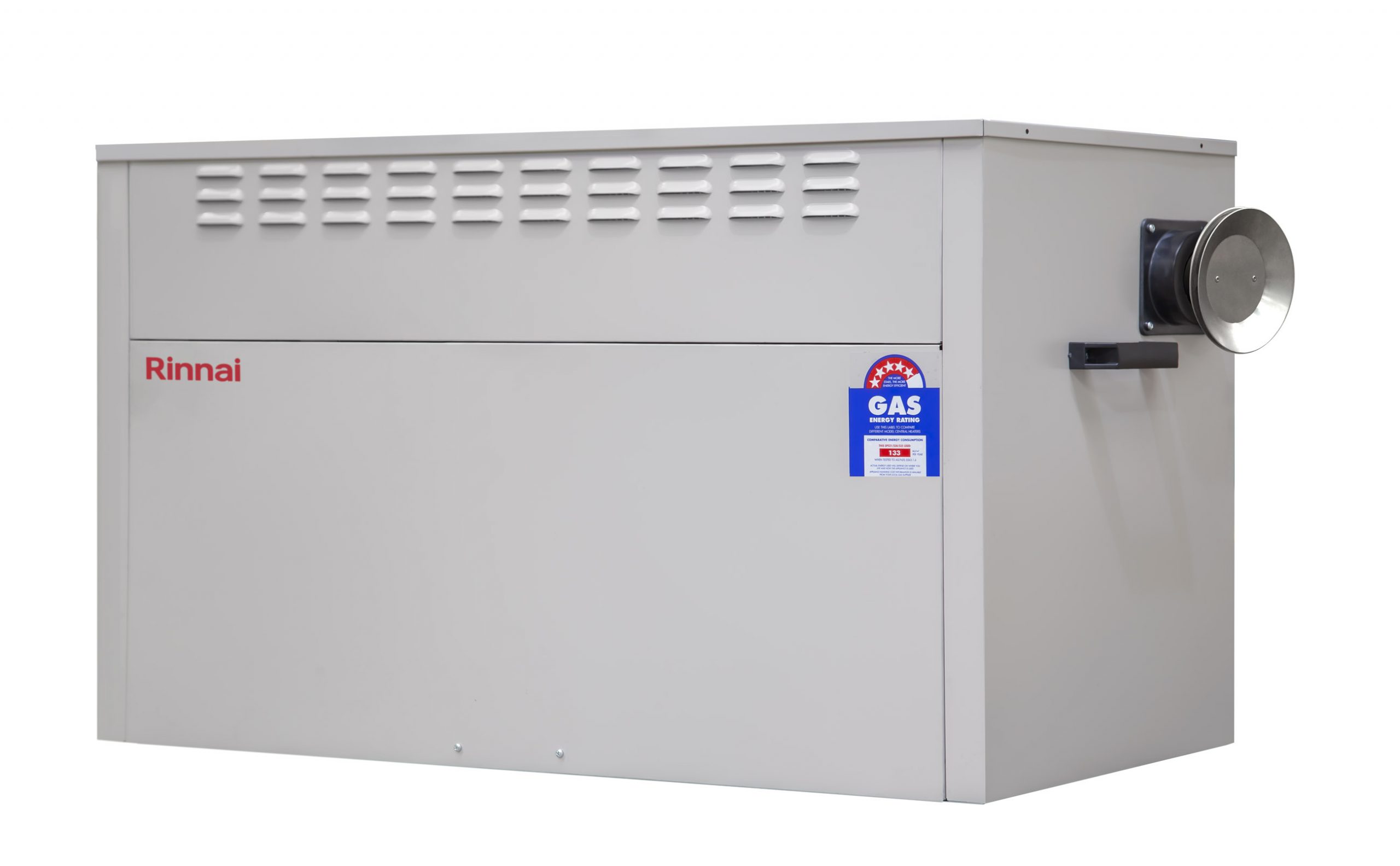

Rinnai SP5 5 Star Angle Right External Outdoors (Flue Terminal On)Preview
-
Rinnai SP5 5 Star Angle Right External Outdoors (Flue Terminal On)Preview
-

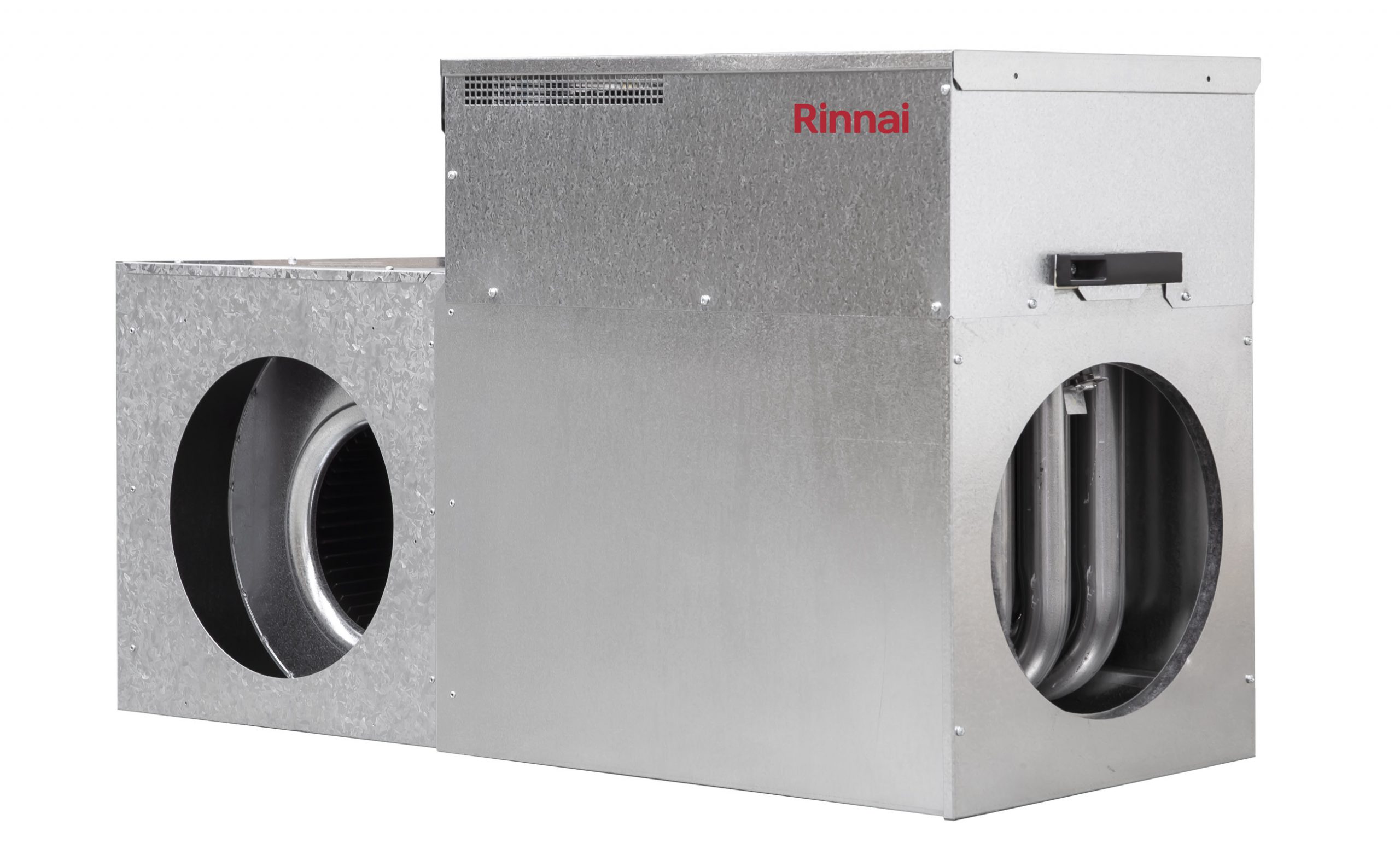

Rinnai SP5 5 Star Angle Right Internal (In roof)Preview
-

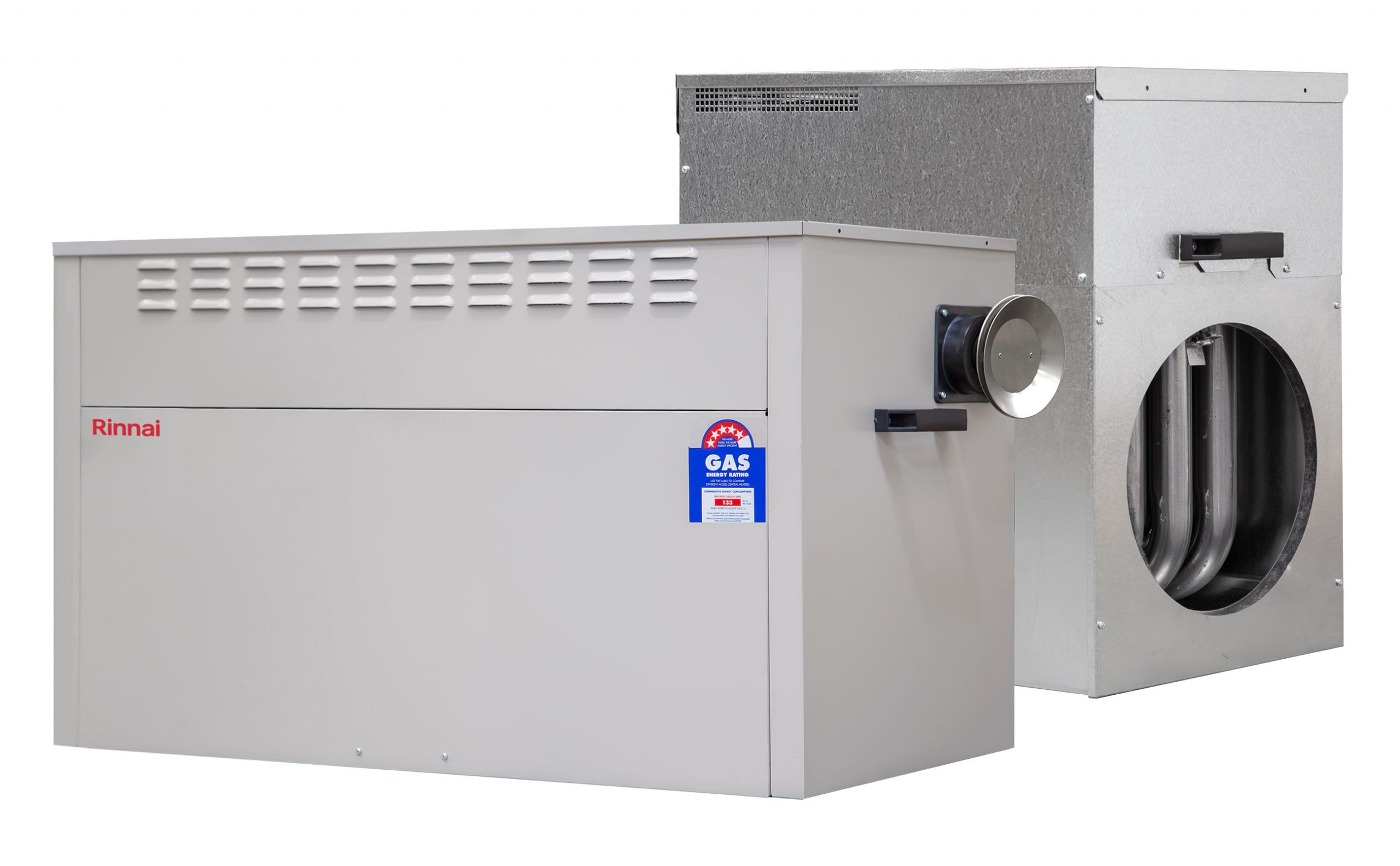

Rinnai SP5 5 Star Angle Right Internal and External In Roof and OutroodsPreview
-

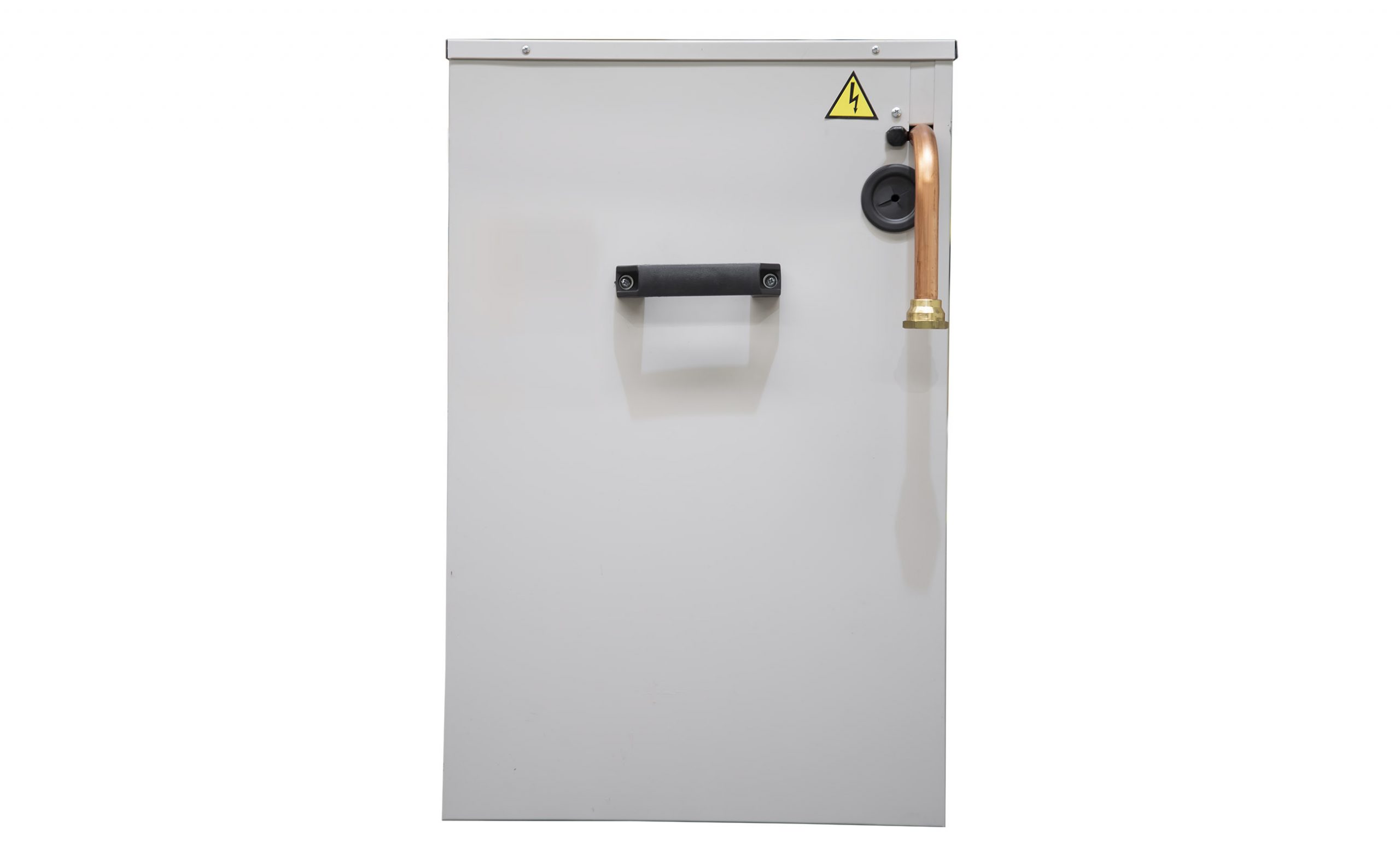

Rinnai SP5 5 Star Side Outdoors ExternalPreview
-
Rinnai Gas Ducted Heating Next to mother & daughterPreview
-
Rinnai SP4/SP5/SP6 Series Gas ducted heating near childs feetPreview
-

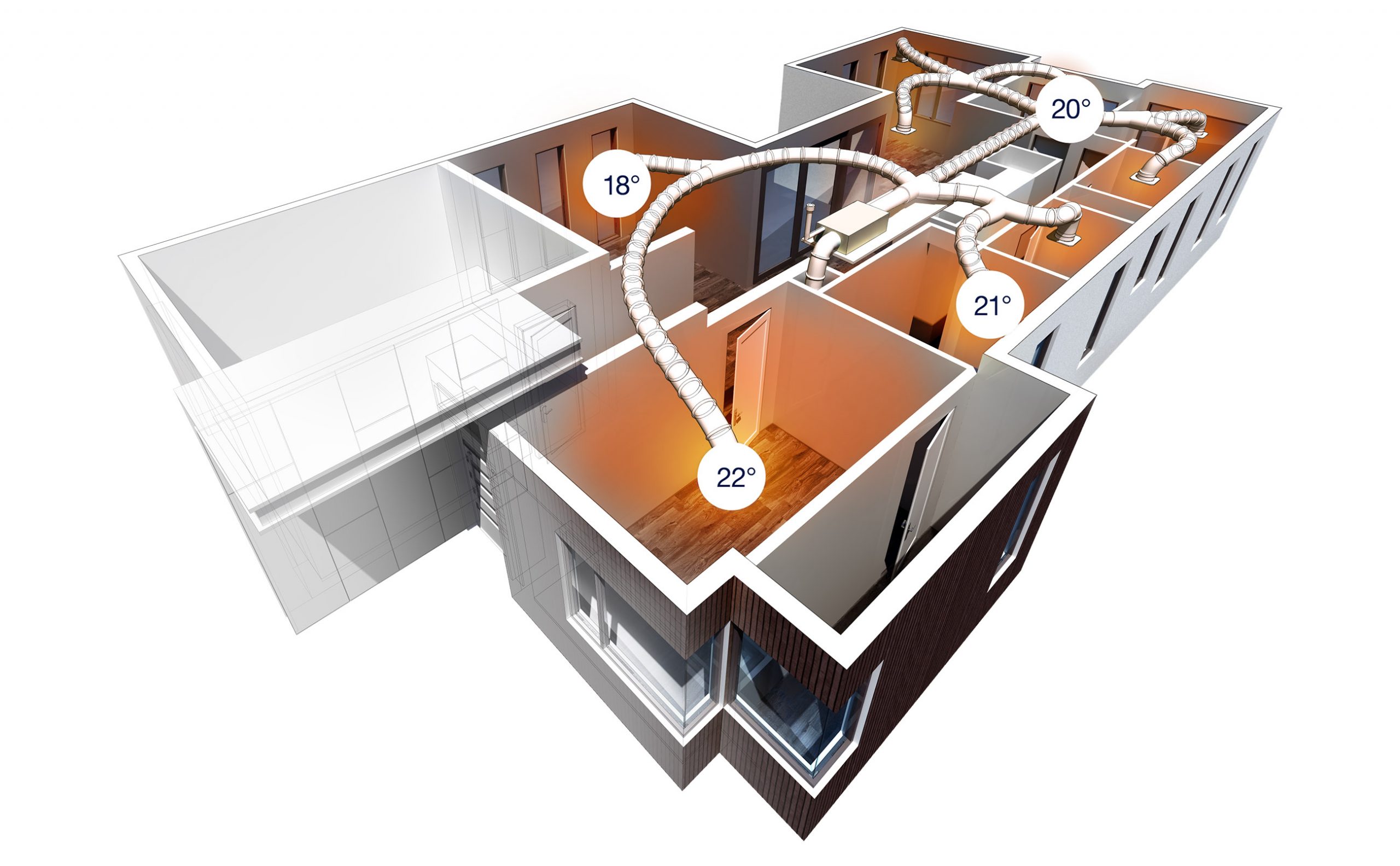

Gas Ducted Heating 3D House - Zone Plus TemperaturesPreview
-

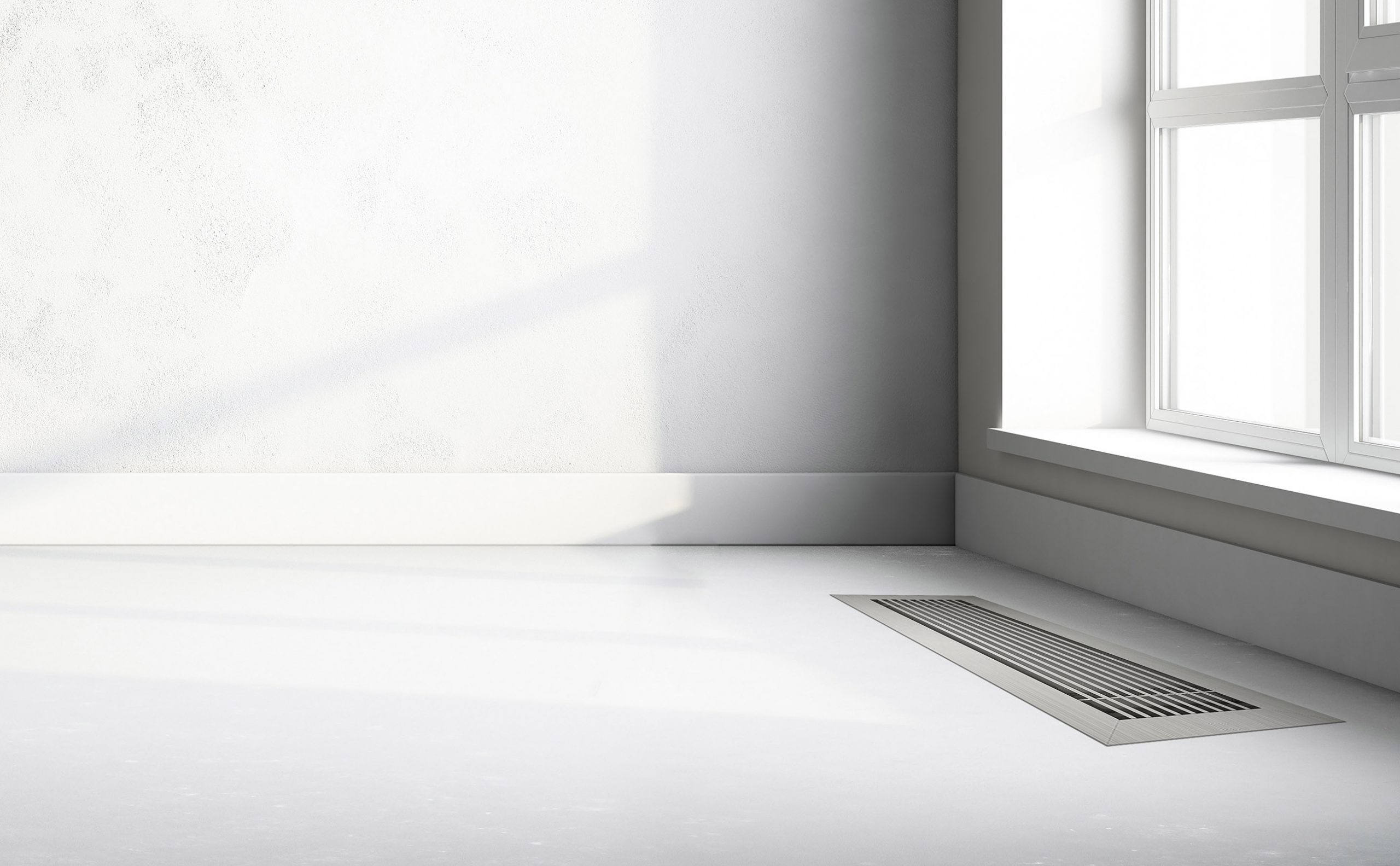

Rinnai White Room With Gas ducted heated flooringPreview
-
Gas Ducted Heating - Dog Alaskan Malamute, Bailey sleeping on duct ventPreview
-

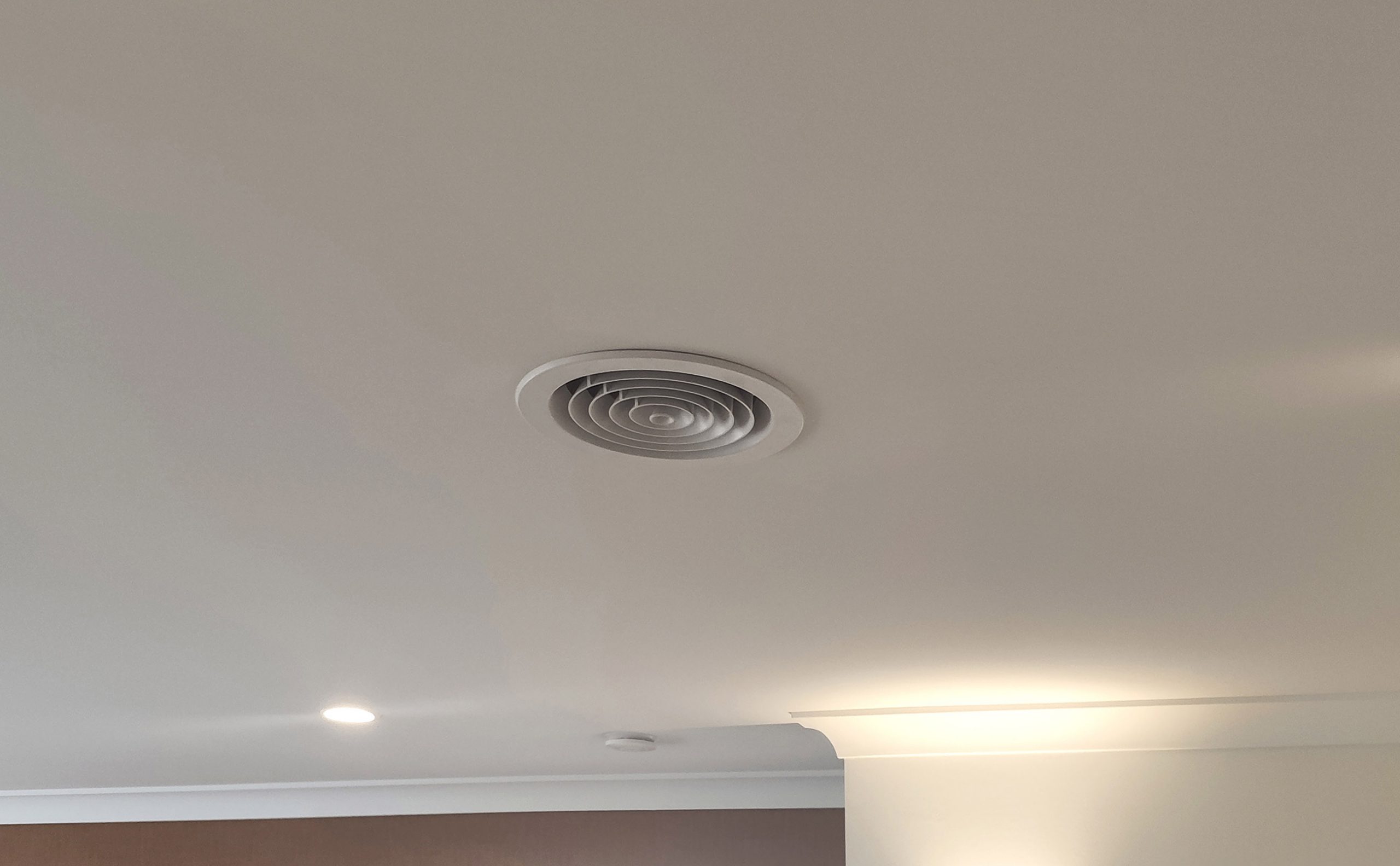

Rinnai Gas Ducted Heating - Ceiling Round Circular VentPreview
-

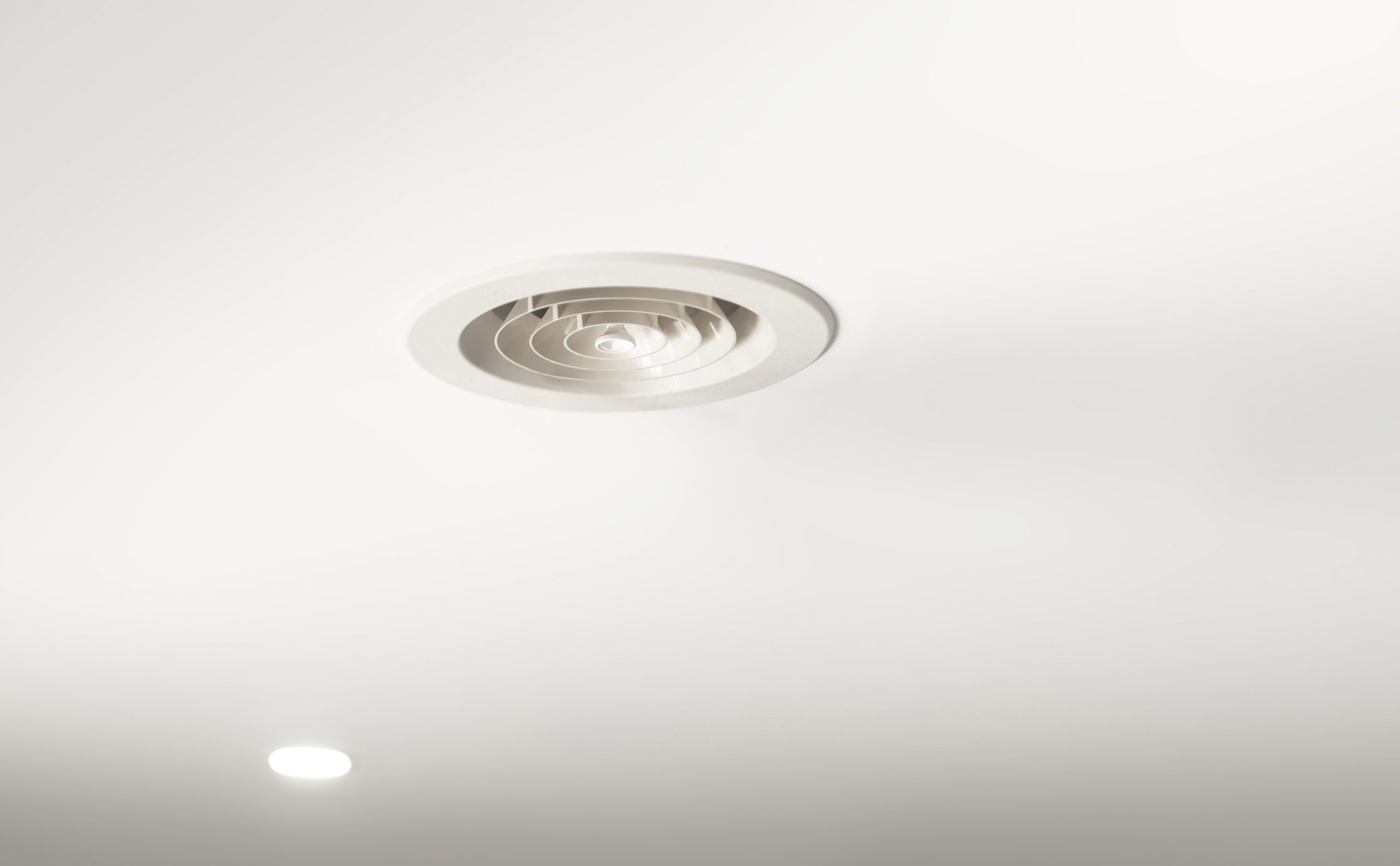

Rinnai Gas Ducted Heating - Ceiling Round Circular Vent close upPreview
