Brochure
)
Floor Console Air 5.0kW
Smart comfort for every season.
The 5.0kW Floor Console Multi Split System combines powerful climate control with convenient app-based Wi-Fi functionality, allowing you to maintain the perfect temperature all year round.
Model
4.9-5.5kWOutput
Highlights
- Up to six rooms with one outdoor unit
- Cooling output 4.9kW and heating output up to 5.5kW
- Wall-mounted or floor-standing options available
- Quiet operation
- Wi-Fi control enabled
- Turbo function – quickly cools in summer and swiftly warms in winter
- Inverter technology – to maintain consistent temperature and reduce running costs
- Dual outlets that ensure rapid temperature adjustments
- Convenient and simple to use LCD wireless remote control
- Timer functionality to turn the appliance on or off when needed
- Quiet operation
&w=3840&q=75)

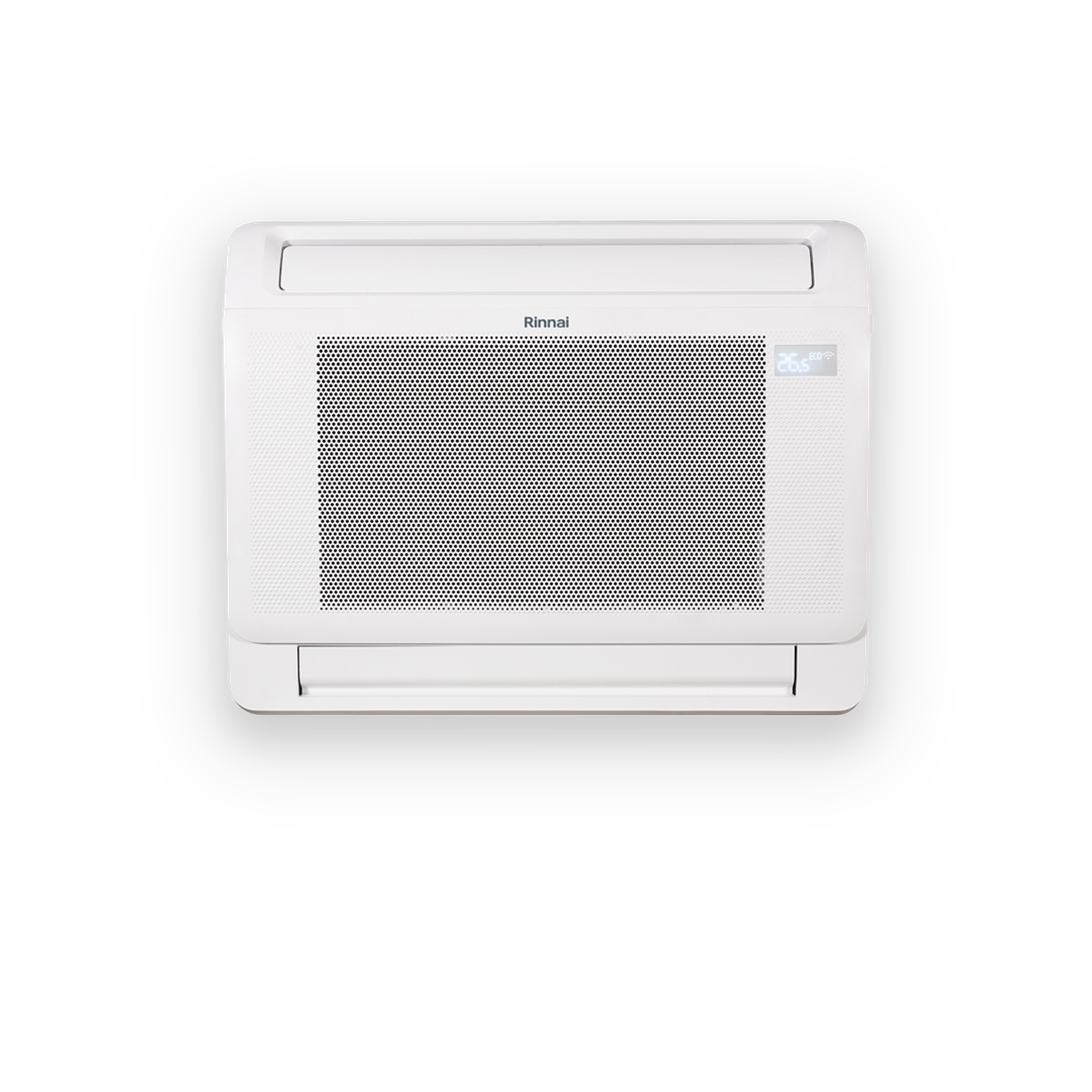

The Rinnai Floor Console Multi Split combines discreet design and reliable performance to deliver comfortable heating and cooling throughout the year.
Specifications
Dimensions | 621 x 794 x 200 | |
|---|---|---|
Weight | 14.9 / 18.8 Net / Gross kg | |
Rated Capacity | 4.9 / 5.5 Cooling / Heating kW | |
Operating Range | 16 ~ 32 / 0 ~ 30 Cooling / Heating °C | |
Sound Power Level | 54 dB(A) |
Dimensions | 621 x 794 x 200 | |
|---|---|---|
Weight | 14.9 / 18.8 Net / Gross kg | |
Rated Capacity | 4.9 / 5.5 Cooling / Heating kW | |
Operating Range | 16 ~ 32 / 0 ~ 30 Cooling / Heating °C | |
Sound Power Level | 54 dB(A) |
Resources
Operation-Manual
Multi Split Floor Console Air Conditioner Operation and Installation Manual
Operation-Manual
Floor Console Split Air Conditioner (Wi-Fi) Wireless Smart Kit Operation Manual
Warranty
Air Conditioner Warranty Booklet
Other
Multi-Split Air Conditioner Combination Tables
Installation-Manual
Multi Split Air Conditioner Outdoor Unit Installation Manual
FAQs
Browse helpful answers to common product questions, with guidance on what to consider when choosing the right option.
Benefits
Allows multiple indoor units to connect to a single outdoor unit
Provides individual temperature control in different rooms
Saves outdoor space compared to installing multiple split systems
Offers both heating and cooling in one system
Energy efficient when only conditioning occupied rooms
Considerations
Higher upfront cost than a single split system
Installation is more complex and requires professional design and installation
Indoor unit capacity is limited by the connected outdoor unit
If the outdoor unit requires servicing, multiple rooms may be affected
Best suited to homes requiring climate control in several rooms
Disclaimer / Footnotes
Product codes
Outdoor: 2 - MON2H05B1LA | 3 - MON3H07B1LA | 4 - MON4H09B1LA | 5 - MON5H11B1LA / MON5H14B1LA | 6 - MON6H19B1TA
Indoor Console: 5.0 - FINRP50MB
