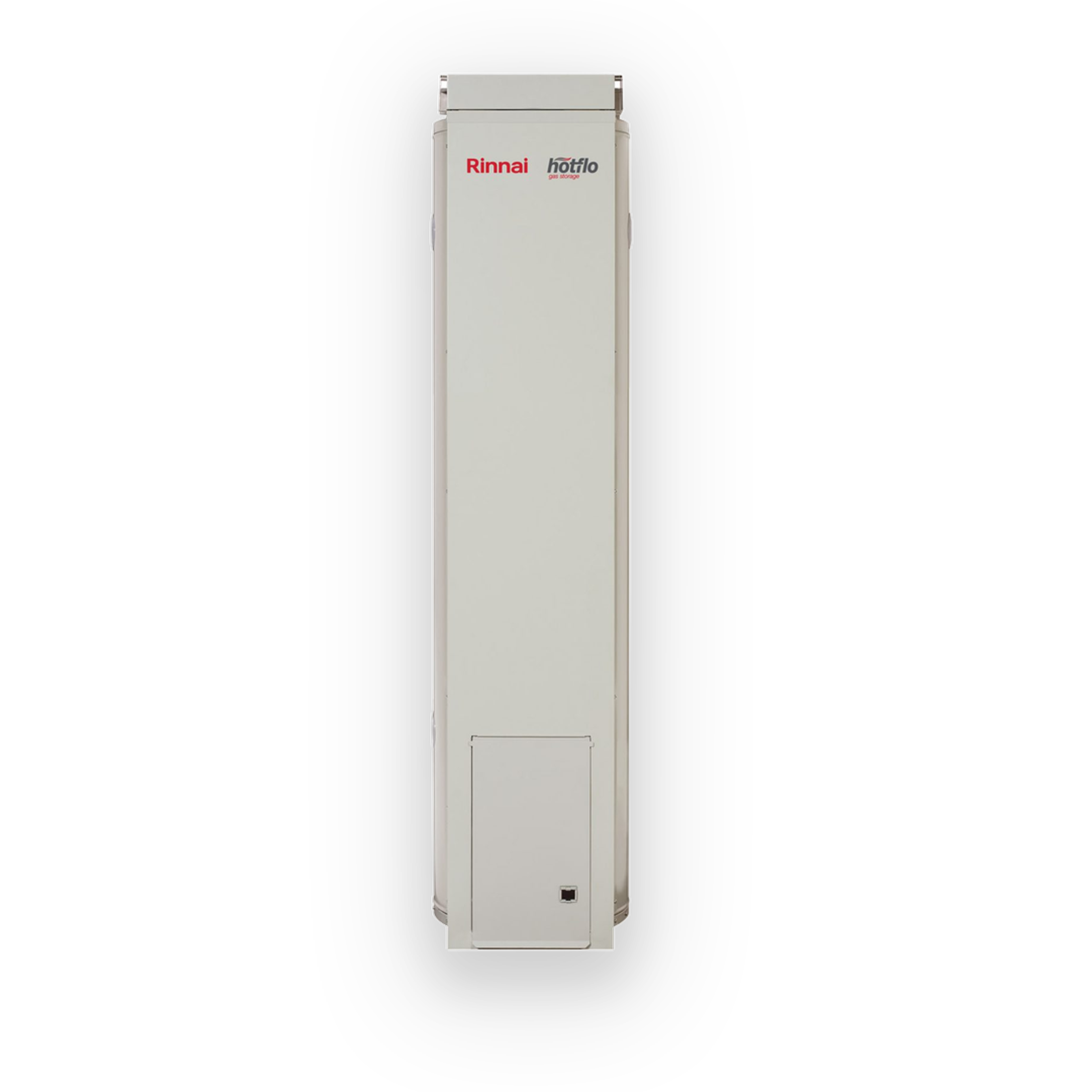

Hotflo Gas Storage 135L
Perfect for medium sized households.
The Hotflo 135L Gas Hot Water Storage Tank delivers reliable, energy-efficient hot water with strong pressure and fast recovery, making it ideal for medium-sized Australian households.
Model
135LCapacity
up to 5People
Highlights
- Ideal for up to 5 people (depending on climate)
- Vitreous Enamel*** lined steel tank adds durability for a longer life
- First hour delivery capacity – 209 litres
- External use only
- Inbuilt anode# protection extends the life of the tank
- Thermostatically controlled with safety temperature shut off for added peace of mind
- Pressure temperature relief valve
- Available in Natural and Propane Gas
&w=3840&q=75)
Rinnai's gas storage hot water systems are reliable, efficient, and always ready when you need it.
Specifications
Number of People | Warm Climate | up to 5 |
|---|---|---|
Cool | up to 4 | |
Height | Overall | 1579 mm |
Outlet | 1316 mm | |
Inlet | 328 mm | |
Weight Empty | 68 kg | |
Gas Consumption | 17 MJ / h | |
Valve | Relief Setting | 1000 kPa |
Expansion Control Setting (if required) | 850 kPa | |
With Expansion Control | 680 kPa | |
Without Expansion Control | 800 kPa | |
Recommended PLV (if required) | 500 kPa | |
Water Connections | 3/4 20 mm RP | |
Gas Type | NG / LPG | |
Rated Capacity | 135 L | |
Water Capacity in First Hour | 209 L | |
Number of People | Warm Climate | up to 5 |
|---|---|---|
Cool | up to 4 | |
Height | Overall | 1579 mm |
Outlet | 1316 mm | |
Inlet | 328 mm | |
Weight Empty | 68 kg | |
Gas Consumption | 17 MJ / h | |
Valve | Relief Setting | 1000 kPa |
Expansion Control Setting (if required) | 850 kPa | |
With Expansion Control | 680 kPa | |
Without Expansion Control | 800 kPa | |
Recommended PLV (if required) | 500 kPa | |
Water Connections | 3/4 20 mm RP | |
Gas Type | NG / LPG | |
Rated Capacity | 135 L | |
Water Capacity in First Hour | 209 L | |
Disclaimer / Footnotes
Product codes: GHF4135N / GHF4135L
