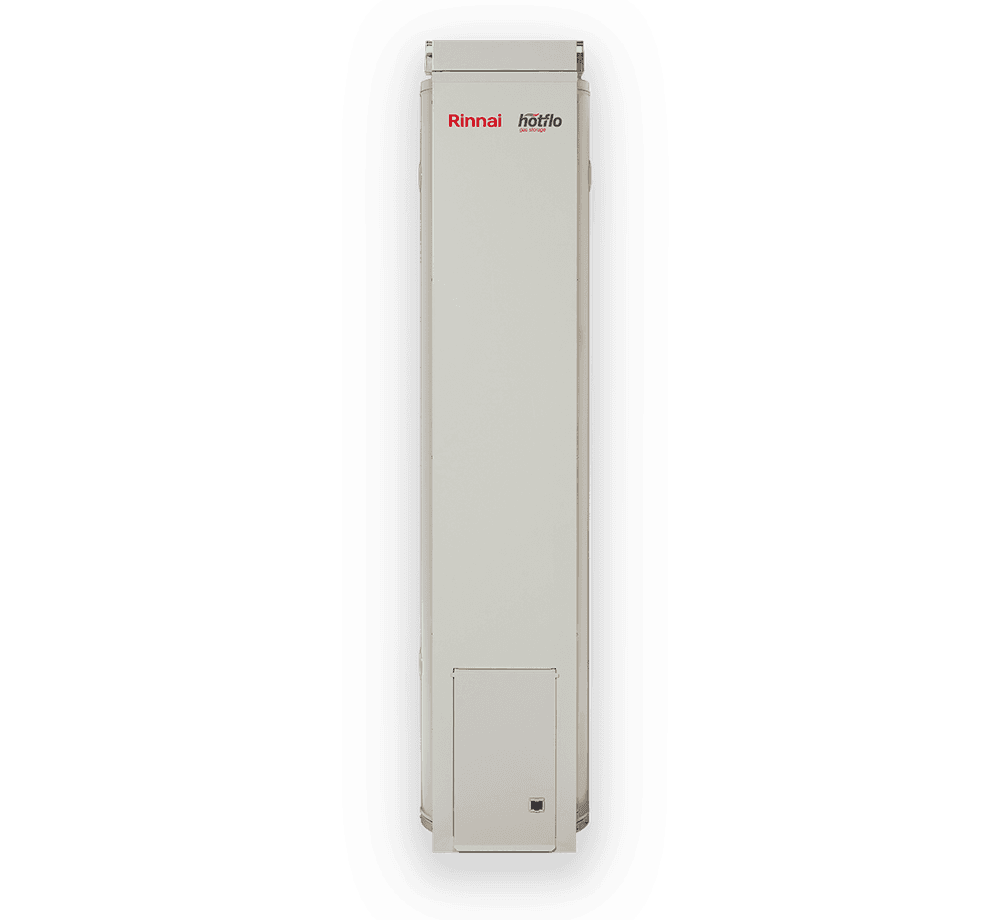

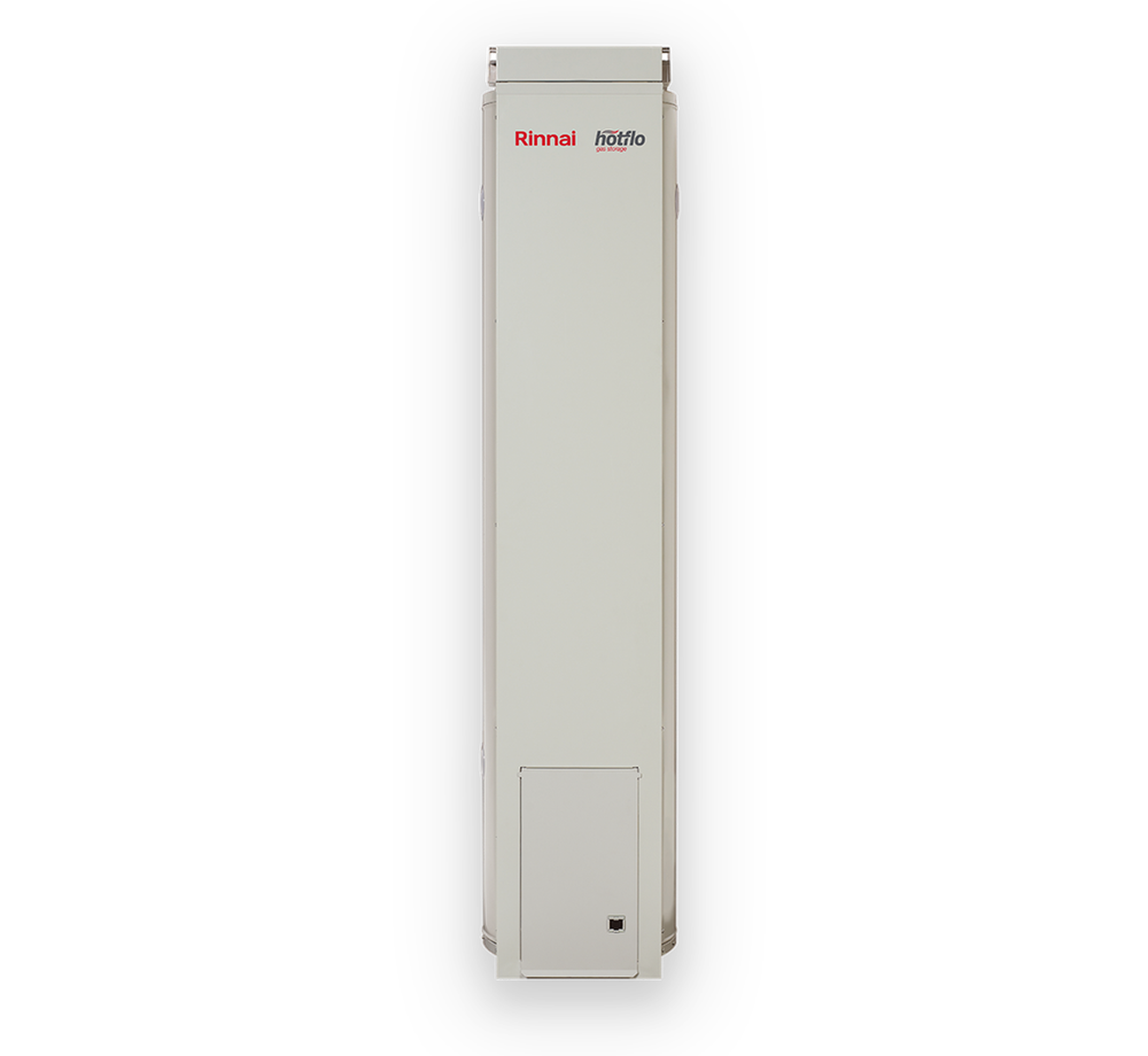

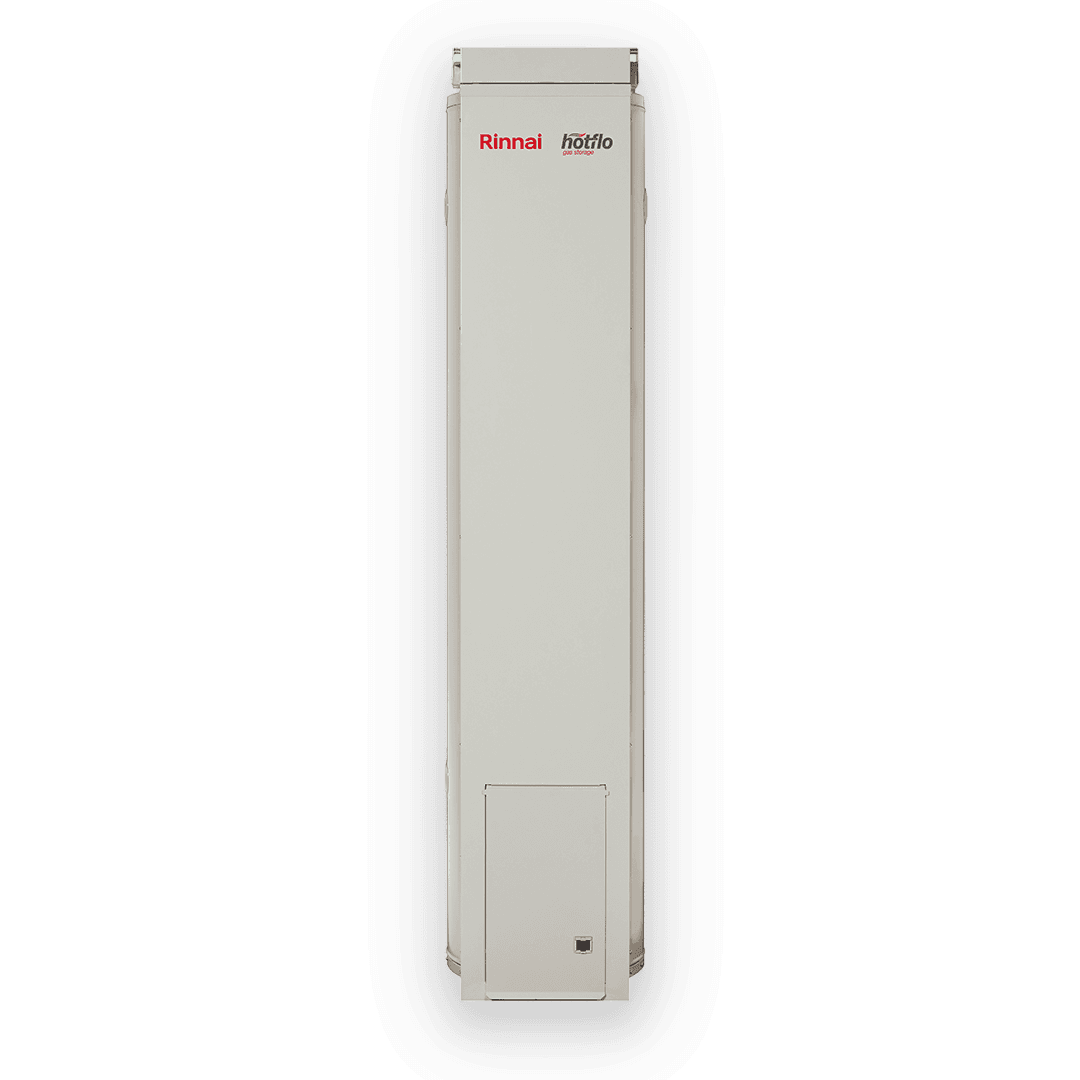

Hotflo Gas Storage 170L
Perfect for Australia’s biggest households.
Delivering reliable, high-pressure hot water for multiple outlets, the Hotflo 170L Gas Hot Water Storage Tank offers fast recovery, 4-star efficiency and safe operation.
Model
170LCapacity
up to 6People
Highlights
- Ideal for up to 6 people (depending on climate)
- Vitreous Enamel*** lined steel tank adds durability for a longer life
- First hour delivery capacity – 257 litres
- External use only
- Inbuilt anode# protection extends the life of the tank
- Thermostatically controlled with safety temperature shut off for added peace of mind
- Pressure temperature relief valve
- Available in Natural and Propane Gas
&w=3840&q=75)
Rinnai's gas storage hot water systems are reliable, efficient, and always ready when you need it.
Specifications
Number of People | Warm Climate | up to 6 |
|---|---|---|
Cool | up to 5 | |
Height | Overall | 1915 mm |
Outlet | 1616 mm | |
Inlet | 403 mm | |
Weight Empty | 83 kg | |
Gas Consumption | 20.5 MJ / h | |
Valve | Relief Setting | 1000 kPa |
Expansion Control Setting (if required) | 850 kPa | |
With Expansion Control | 680 kPa | |
Without Expansion Control | 800 kPa | |
Recommended PLV (if required) | 500 kPa | |
Water Connections | 3/4 20 mm RP | |
Gas Type | NG / LPG | |
Rated Capacity | 170 L | |
Water Capacity in First Hour | 257 L | |
Number of People | Warm Climate | up to 6 |
|---|---|---|
Cool | up to 5 | |
Height | Overall | 1915 mm |
Outlet | 1616 mm | |
Inlet | 403 mm | |
Weight Empty | 83 kg | |
Gas Consumption | 20.5 MJ / h | |
Valve | Relief Setting | 1000 kPa |
Expansion Control Setting (if required) | 850 kPa | |
With Expansion Control | 680 kPa | |
Without Expansion Control | 800 kPa | |
Recommended PLV (if required) | 500 kPa | |
Water Connections | 3/4 20 mm RP | |
Gas Type | NG / LPG | |
Rated Capacity | 170 L | |
Water Capacity in First Hour | 257 L | |
Disclaimer / Footnotes
Product codes: GHF4170N / GHF4170L
