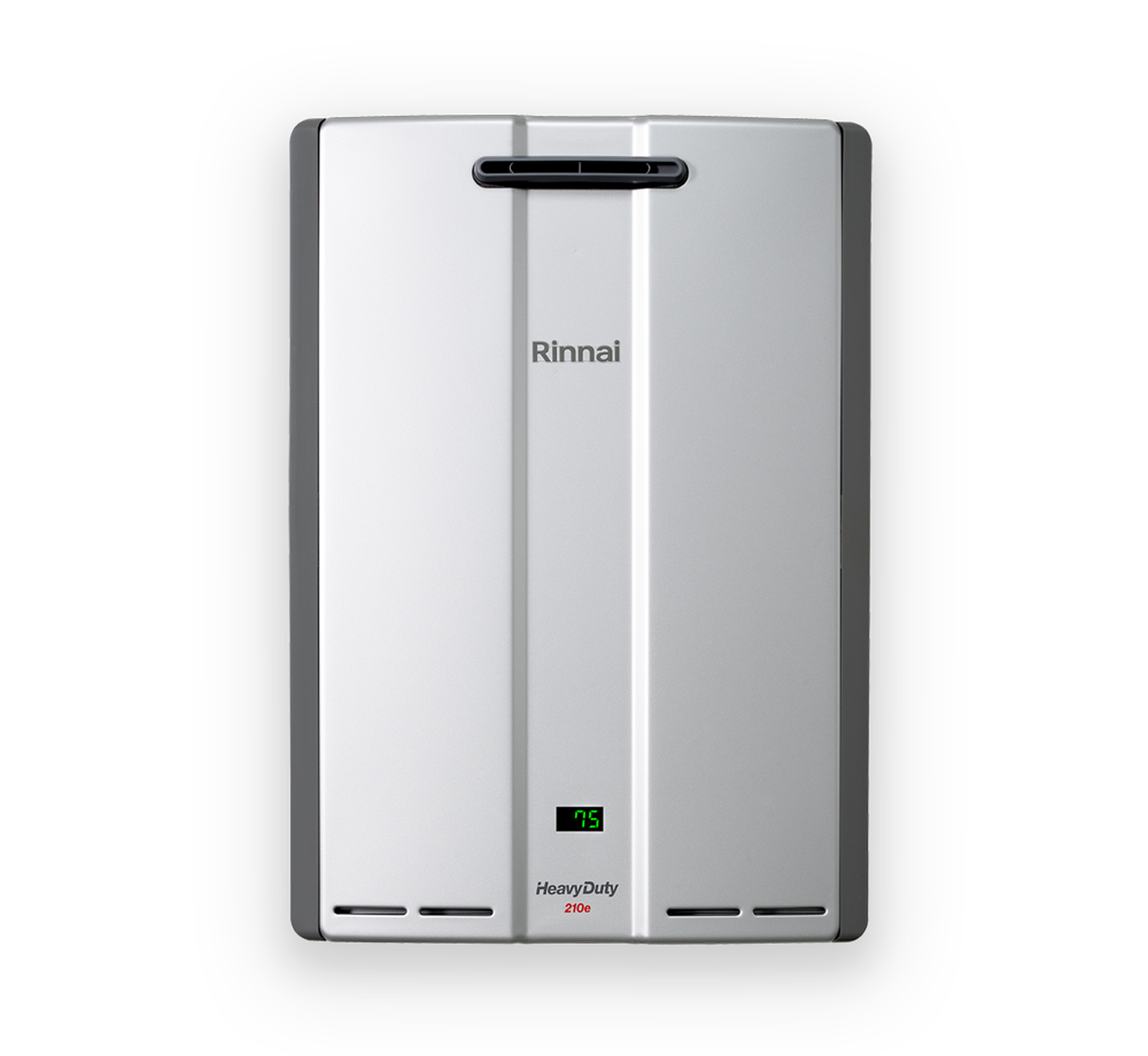

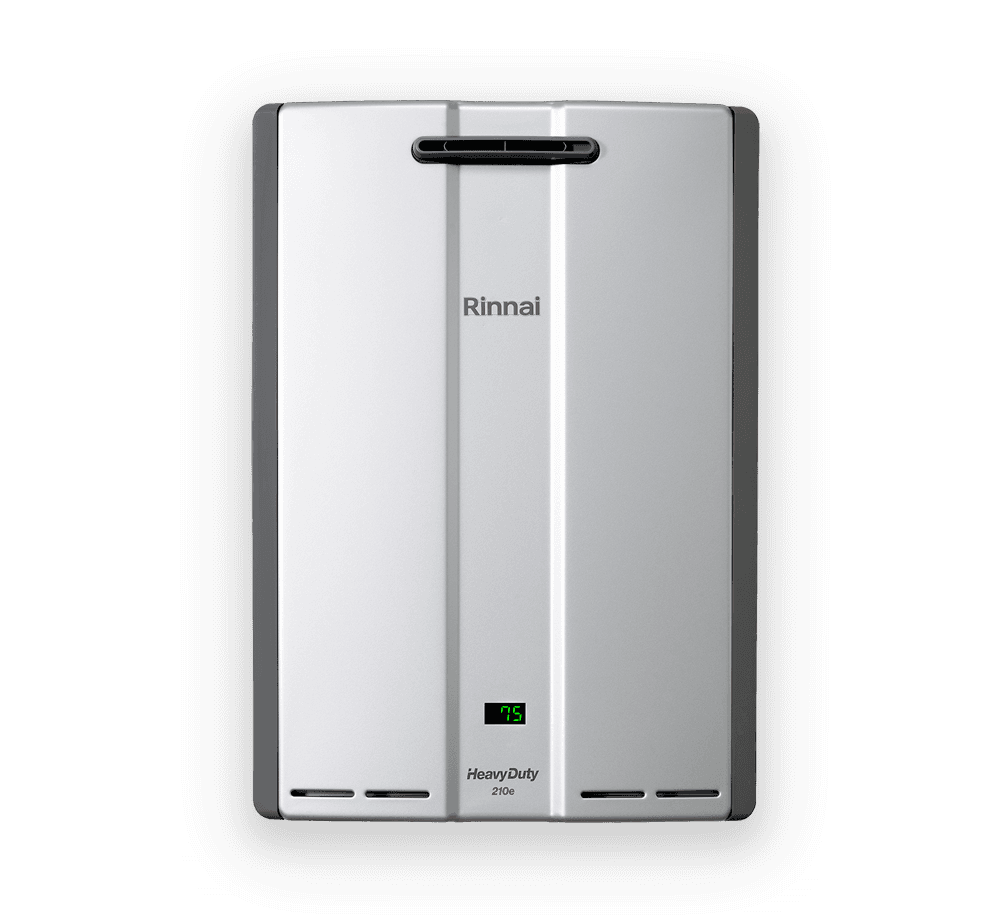

HD210e (External)
Discontinued
For maximum heating output.
Delivering high-efficiency hot water, the HD210e Heavy Duty continuous flow system features dual heat exchangers, advanced burner technology, and 97% thermal efficiency for reliable commercial performance.
Model
28Litres
Highlights
- Ideal for caravan parks, high usage amenities and factories
- 97% thermal efficiency - External model
- Australian first – Revolutionary surface burner technology
- Commercial 5 year heat exchange warranty
Specifications
Height x Width x Depth | 670 x 470 x 309 mm | |
|---|---|---|
Weight | 29 kg | |
Colours | Silver | |
Factory Default Temperature | 50 or 75 °C | |
Water Pressure | Minimum / Maximum | 300 / 1000 kPa |
Gas Rate | Minimum / Maximum | 15.9 / 209 NG/LPG |
Operating Water Flow Rate | Minimum | 2.4 L/min |
Thermal Efficiency Rating | 97 % | |
Inbuilt Controller | Yes | |
Connection Sizes | Hot / Cold / Gas / Condensate | 20 / 20 / 20 / 15 mm |
Height | Including Brackets | 722 mm |
Hot Water Outlet | From Wall / Left from Centre | 157 / 130 mm |
Cold Water Inlet | From Wall / Right from Centre | 91 / 10 mm |
Gas Connection | From Wall / Right from Centre | 72 / 142 mm |
Connection Length From Base | Hot / Cold / Gas / Condensate | 41 / 54 / 45 / 24 mm |
Height x Width x Depth | 670 x 470 x 309 mm | |
|---|---|---|
Weight | 29 kg | |
Colours | Silver | |
Factory Default Temperature | 50 or 75 °C | |
Water Pressure | Minimum / Maximum | 300 / 1000 kPa |
Gas Rate | Minimum / Maximum | 15.9 / 209 NG/LPG |
Operating Water Flow Rate | Minimum | 2.4 L/min |
Thermal Efficiency Rating | 97 % | |
Inbuilt Controller | Yes | |
Connection Sizes | Hot / Cold / Gas / Condensate | 20 / 20 / 20 / 15 mm |
Height | Including Brackets | 722 mm |
Hot Water Outlet | From Wall / Left from Centre | 157 / 130 mm |
Cold Water Inlet | From Wall / Right from Centre | 91 / 10 mm |
Gas Connection | From Wall / Right from Centre | 72 / 142 mm |
Connection Length From Base | Hot / Cold / Gas / Condensate | 41 / 54 / 45 / 24 mm |
Resources
Spare-Parts
Infinity 32 Enviro+ Continuous Flow Hot Water Spare Parts and Exploded Diagrams
Error-Codes
Gas Continuous Flow Hot Water Error Codes
Warranty
Commercial Hot Water Warranty Booklet
Diagram
Diagram – HD210e (External) Heavy Duty Continuous Flow Hot Water (PDF)
Diagram
Diagram – HD210e (External) Heavy Duty Continuous Flow Hot Water (RFA)
Diagram
Diagram – HD210e (External) Heavy Duty Continuous Flow Hot Water (DWG)
Disclaimer / Footnotes
Product codes: REU-N3237WC
