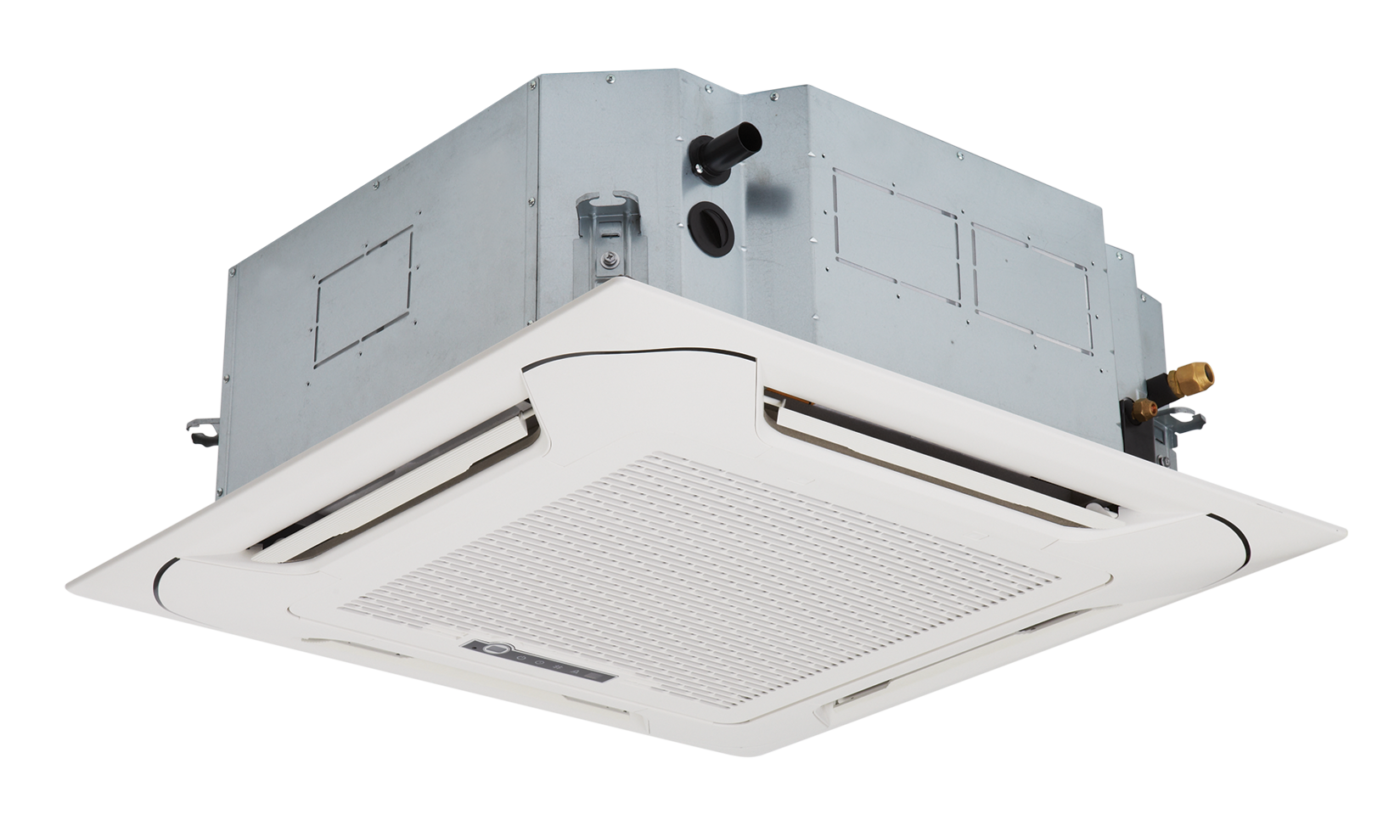

Rinnai Inverter Cassette

Compact in design, the Rinnai Inverter Cassette  Air Conditioning range is the perfect solution for light commercial applications, such as hotels, restaurants, offices and showrooms. This latest range will assure you total comfort and piece of mind all year round.

High Efficiency DC Inverter

360º Air Flow

External Supplementary Duct Connections

Programmable Wired Thermostat (optional)

Specifications

Technical Specifications – SYSTEM 70 100 120 140
Nominal Capacity kW 7 10 12 14
Power Supply (To Outdoor Unit) V- Ph-Hz 220~240 – 1 – 50
Maximum Input Power W 3000 3900 5500 5500
Maximum Input Current A 16.0 21.0 26.0 26.0
Recommended Circuit Breaker Size 25 25 32 32
Cooling Rated Capacity kW 7.0 10.3 12.3 13.4
Capacity Range 2.8 ~ 8.4 4.0 ~ 12.6 5.0 ~ 15.0 5.6 ~ 16.8
Rated Input Power W 2116 3110 3690 4079
Stand By Power 10 10 10 10
Rated Input Current A 9.4 13.7 16.1 17.8
AEER W/W 3.26 3.26 3.31 3.26
Star Rating 2.0 2.0 2.0 2.0
Heating Rated Capacity kW 7.7 10.4 14.2 14.9
Capacity Range 3.0 ~ 9.0 4.2 ~ 12.9 5.2 ~15.6 5.8 ~17.5
Rated Input Power W 2250 2980 4030 4411
Stand By Power 10 10 10 10
Rated Input Current A 10.0 13.1 17.7 19.2
ACOP W/W 3.36 3.46 3.49 3.36
Star Rating 2.0 2.0 2.0 2.0
Indoor Unit CIN070R CIN100R CIN120R CIN140R
Fascia Panel Model No. CINFAS
Rated Input W 246 250 250 250
Air Flow (Hi / Med / Lo) L/s 439 / 333 / 278 639 / 556 / 500 639 / 556 / 500 639 / 556 / 500
Sound Pressure Level @ 1.4m (Hi / Med / Lo) dB(A) 49 / 45 / 41 54 / 51 / 48 54 / 51 / 48 54 / 51 / 48
Dimensions Net – Body (W  x D x H) mm 840 x 840 x 287 840 x 840 x 287 840 x 840 x 287
Packing – Body (W x D x H) 900 x 900 x 265 900 x 900 x 300 900 x 900 x 300 900 x 900 x 300
Net – Fascia (W x D x H) 950 x 950 x 55 950 x 950 x 55 950 x 950 x 55 950 x 950 x 55
Packing – Fascia (W x D x H) 1035 x 1035 x 90 1035 x 1035 x 90 1035 x 1035 x 90 1035 x 1035 x 90
Net / Gross Weight – Body kg 24 / 28 28.7 / 32.8 28.7 / 32.8 28.7 / 32.8
Net / Gross Weight – Fascia 5 / 8 5 / 8 5 / 8 5 / 8
Condensate Drain Pipe Diameter mm ODΦ32 ODΦ32 ODΦ32 ODΦ32
Refrigerant Piping Liquid / Gas Connections Φ9.52/Φ15.9 Φ9.52/Φ15.9 Φ9.52/Φ19 Φ9.52/Φ19
Standard Controller Type Wireless Remote
Operating Range oC Cooling: 17 ~ 32.  Heating: 0 ~ 30
Outdoor Unit DONSR07Z72 DONSR10Z72 DONSR12Z72 DONSR14Z72
Power Supply V- Ph-Hz 220~240 – 1 – 50
Maximum Input Power W 3000 3900 5500 5500
Maximum Input Current A 16.0 21.0 26.0 26.0
Starting Current 2.5 3.0 3.5 4.0
Compressor Type Twin Rotary
Air Flow L/s 972 1528 1944 2000
Sound Pressure Level @ 1m dB(A) 58 61 62 62
Sound Power Level 69 70 71 71
Dimensions Net (W × D × H) mm 946 x 410 x 810 946 x 410 x 810 952 x 415 x 1333 952 x 415 x 1333
Packing (W x D x H) 1090 x 500 x 865 1090 x 500 x 865 1095 x 495 x 1480 1095 x 495 x 1480
Net / Gross Weight kg 61 / 66.5 68.5 / 74 100 / 114 116 / 130
Refrigerant Piping Type R410A
Charged Volume kg 2.90 3.80 4.50 4.90
Design Pressure MPa 4.2 / 1.5 4.2 / 1.5 4.2 / 1.5 4.2 / 1.5
Pre-Charged Length m 15 15 15 15
Charge Adjustment (Add or Remove) g/m 30 30 30 30
Refrigerant Piping Liquid / Gas Connections mm Φ9.52 /  Φ15.9 Φ9.52 /  Φ15.9 Φ9.52 /  Φ19.0 Φ9.52 /  Φ19.0
Maximum Pipe Length m 50 65 65 65
Maximum Vertical Separation 25 30 30 30
Ambient Temperature Limits oC Cooling: -15 ~ 50.  Heating -15 ~ 24
