Rating 5.9

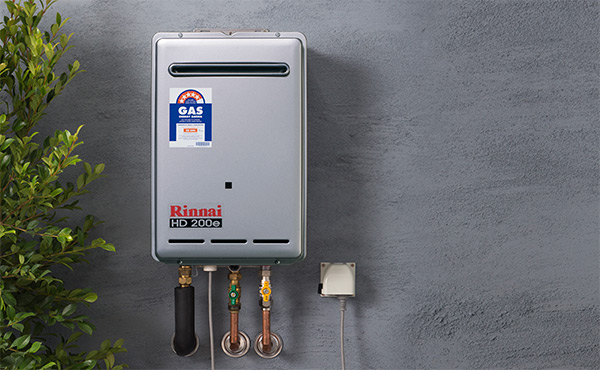

HD200e

Delivering a constant outlet temperature at all times, the HD200e is Australia’s most popular commercial continuous flow water heater. Thanks to its ‘on demand’ electronic ignition, it only consumes gas when in operation. In doing so, the Rinnai HD200e achieves an excellent 5.9 Star energy rating.

For external applications only.

Suitable for cafe’s, small retail, and child care centres

5.9 Star efficiency rating

External model

Suitable applications include:

  • Cafés
  • Hair dressing salons
  • Butchers
  • Laundromats with domestic style top loader machines
  • Childcare centres
  • Small amenity blocks
  • Factories

The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.

Specifications

Dimensions (mm) : Height

600

Dimensions (mm) : Width

350

Dimensions (mm) : Depth

251

Colours

Titanium

Factory Default Temperature (Celsius)

50 or 75

Water Pressure (kPa) : Minimum

190

Water Pressure (kPa) : Maximum

1000

Gas Rate Min/Max : NG

16/199

Gas Rate Min/Max : LPG

16/199

Flow Rate 25 Degrees C/Max :  L/min

26/32

Star Rating

5.6

Connection Sizes Gas/Hot/Cold (mm)

20/20/20

Status Monitor

Yes

Dimensions (mm) : Height Inc Brackets

636

Dimensions (mm) : Hot Water Outlet (From Wall)

96

Dimensions (mm) : Hot Water Outlet (Left from Centre)

110

Dimensions (mm) : Cold Water Inlet (From Wall)

75

Dimensions (mm) : Cold Water Inlet (Right from Centre)

27

Dimensions (mm) : Gas Connection (From Wall)

104

Dimensions (mm) : Gas Connection (Right from Centre)

89

Dimensions (mm) : Gas Connection Length (From Base)

41

Dimensions (mm) : Cold Connection Length (From Base)

51

Dimensions (mm) : Hot Connection Length (From Base)

42

Weight (Kg)

21

FAQ

  • Where to buy?

    Where to buy?

    You can use the store locator on our website to find your closest store.

  • How do I contact Rinnai?

    How do I contact Rinnai?

    You can contact us at 1300 555 545 or email us using the “contact us” form on our website.

  • What does the energy Star rating mean?

    What does the energy Star rating mean?

    Generally, the more stars, the higher the energy Star rating, the more energy efficient the product is.
